Product Type	Evaporative Air Cooler / Fan with Cooling Function
Model	Vivax AC-6511R
Power Supply	220-240V ~ 50/60Hz
Power Consumption	80W
Safety Class	Class II
Water Tank Capacity	10 liters (max)
Control	Control panel and remote controller
Fan Speeds	Low, Medium, High
Airflow Modes	Normal, Natural, Sleep
Swing Function	Automatic left-right oscillation; manual up-down adjustment
Cooling Function	Evaporative cooling using water and ice boxes
Humidification	Built-in water pump and water absorbing filter
Air Purification	Removable air filter and water pad
Anion Generator	Yes, for neutralizing positive ions
Timer	0.5 to 7.5 hours in 30-minute increments
Accessories	Water pad, air filter, ice boxes (2x), castors (4x), remote controller, instruction manual
Filter Cleaning	Air filter: wash with mild detergent in lukewarm water (40°C), air dry. Water absorbing filter: clean with water and soft brush, no detergents.
Water Tank Cleaning	Use soft detergent and warm water; rinse and dry. Do not remove tank.
Safety Features	Overheat protection with auto shut-off; tip-over protection (unplug if toppled)
Reparability	Authorized service centers; spare parts available for 7 years
Intended Use	Indoor domestic use only

Frequently Asked Questions - AC-6511R Vivax

How do I use the cooling function?

First, fill the water tank with clean water up to the MAX level. For extra cooling, place two ice boxes (frozen in freezer) into the water tank. Press the ON/OFF button, then press COOL. Adjust fan speed with SPEED button.

How do I clean the air filter?

Unplug the appliance. Remove the air filter from the rear of the unit. Wash it with a mild detergent in lukewarm water (approx. 40°C). Rinse with clean water and allow to air dry completely before reinstalling. Do not dry in direct sunlight or on a heater.

What should I do if the fan stops working?

Check if the power cord is properly plugged in. Ensure the ON/OFF button has been pressed. If the unit overheated, the safety cut-out may have activated. Unplug, let it cool down, and remove any blockages to the air inlet or outlet. If it persists, contact an authorized service center.

How do I set the timer?

While the appliance is on, press the TIMER button repeatedly. Each press adds 30 minutes, up to a maximum of 7.5 hours. The corresponding indicator lights will illuminate. To cancel, press and hold the TIMER button until all lights turn off.

Can I use the remote control for all functions?

Yes, the remote control has the same buttons as the control panel: ON/OFF, SPEED, MODE, TIMER, SWING, COOL, and ANION. Point it at the appliance within range.

What is the Anion function and how do I use it?

The Anion function generates negative ions to neutralize positive ions from electronic devices, which can improve air quality. Press the ANION button on the control panel or remote to turn it on/off.

How do I clean the water tank?

Unplug the appliance. Do not remove the water tank. Empty any remaining water. Clean the interior with a soft detergent and warm water using a soft cloth. Rinse thoroughly with clean water and dry. Avoid getting water on the control panel.

Why is there no cold air coming out?

Ensure the water tank has enough water (above MIN level). For stronger cooling, add ice boxes or use the COOL button. Also check that the water absorbing filter is properly installed and clean. The air filter should not be blocked.

How often should I change the water in the tank?

It is recommended to renew the water frequently, especially in summer, to prevent stagnation and bacterial growth. Ideally, empty and refill with fresh water daily if using cooling continuously.

Can I use this appliance outdoors?

No, this appliance is for indoor domestic use only. Do not use in bathrooms, showers, or near swimming pools. It must not be placed immediately below a socket outlet. Always operate on a flat, level surface.

USER MANUAL AC-6511R Vivax

White VIVAX air conditioner unit with multiple ventilation slots and wheels (no visible text or symbols)

Za vašu sigurnost i za dugotrajno uživanje u korištenju ovog proizvoda, molimo vas da obavezno pročitate upute prije samog korištenja uređaja

SIGURNOST I UPOZORENJA

Exterior view of a modern air purifier with black ventilation grille and control panel (no visible text or symbols)

1. Upravljačka ploča I gornji poklopac rezervoara za vodu
2. Pokretna vazdušna rešetka
3. Indikator nivoa vode
4. Točkići
5. Ručka
6. Filter vazduha
7. Filter za upijanje vode
8. Rezervoar za vodu
9. Čep rezervoara za vodu
10. ON/OFF dugme (Uklj./Isklj.)
11. SPEED dugme (Podešavanje brzine)
12. TIMER dugme (Tajmer)
13. COOL dugme (Funkcija hlađenja)
14. MODE dugme (Mod rada)
15. SWING dugme (Auto smjer protoka vazduha)
16. ANION dugme

White industrial air purifier with ventilation slots and wheels (no visible text or symbols)

Simple diagram of a rectangular block with horizontal lines and a diagonal line, no text or symbols present.

Воздушен филтер

Дел за ладење *

Котачики x4

White VIVAX air conditioner unit with multiple ventilation slots and wheels (no visible text or symbols)

White VIVAX air conditioner unit with multiple ventilation slots and wheels (no visible text or symbols)

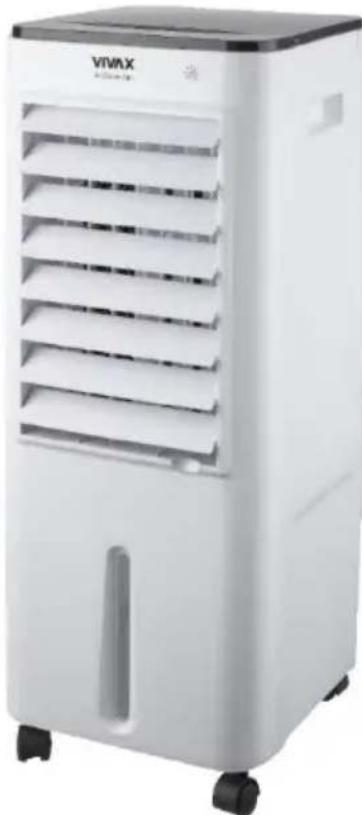

Fan with cooling function

VIVAX AC-6511R

White VIVAX air conditioner unit with black wheels and ventilation slots (no visible text or symbols)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SAFETY AND WARNINGS

IMPORTANT: Please retain your instruction booklet for future use.

We believe that safe performance is the first priority in any consumer product. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards for your Air Cooler

When using any electrically powered appliance, basic safety precautions should always be followed.

Warning: To reduce the risk of fire, electrical shock or injury to person or property:

• Ensure all packing materials and labels or stickers are removed from the appliance before first use.
  ● Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• Do not operate the product with a damaged cord or plug, or after the product malfunctions, or has been dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, replacement or refund.
• Unplug from the mains when not in use and before cleaning.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  ● Children being supervised not to play with the appliance.
• Do not use any other accessories or attachments with this appliance.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or any other liquids.

● Always place the unit on a flat level surface. Never leave the product unattended while in use.
- Do not use the appliance with an extension cord to avoid product overloading.
- Do not leave the cord hanging over the edge of a table or worktop.
● Avoid contact between the cord and hot surfaces.
● For indoor use only. For domestic use only.
- Do not use the appliance for any other than its intended use.
- This appliance should be used only as described within the instructions for use that accompany it. Please retain these instructions for future reference.
- Always ensure that your hands are dry before removing the plug from the main outlet. Never pull the plug out of the mains outlet by its cord. Close supervisions is necessary when this appliance is used by or near children and invalids.
- Keep the air intake cover free of dust or fluff.
- Do not allow the air inlet to become blocked or even partially blocked. This may cause the fan to overheat. If it does overheat, the safety cut-out will cause the fan to switch off and remain inoperable until the unit has sufficiently cooled down. In this event, switch off the appliance, unplug it and let it cool down. Remove any blockage to the air inlet or outlet before resuming use. If the fan should cut out again, even when there is no blockage, contact the approved service center for examination and repair.
- Do not cover the fan or place anything over it.
- Do not place anything through the grills or into the fan.
- Do not use the fan if it is not properly and completely assembled.
- Do not use the fan without the mesh guards, as this could lead to injury.

• Do not use the fan within 1 meter of any other electrical or electronic appliance (e.g.TV, computer, etc.) as it may cause interference.
• The installation of a residual current-operated protective device with a nominal trip current of 30mAh offers additional protection. Contact your electrician.

Caution:

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Make sure your hands are dry when plugging in and unplugging appliance.
3. Ensure all the parts are correctly mounted before switching on the appliance.
4. Do not immerse the appliance in water or any other liquid.
5. Always remove the plug after use.

Important Safeguards for all Electrical appliances

1. Carefully read all instructions before operating the appliance and save for future reference.
2. Remove and safely discard all packing materials and promotional labels before using the appliance for the first time.
3. Fully unwind the power cable before use.
4. Do not let the power cord hang over the edge of a bench or table, touch hot surface or become knotted.
5. To protect against electric shock, do not immerse the power cord, plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.

6. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

7. Children shall not play with the appliance

8. Cleaning and user maintenance shall not be mad by children without supervision.
9. It is recommended to inspect the appliance regularly. Do not use the appliance if the supply cord, plug, connector or appliance becomes damaged in any way.
10. The appliance is for household use only. Do not use this appliance for any other than its intended use. Do not use in moving vehicles or boats. Do not use outdoor. Misuse may cause injury.
11. Always switch off at the power outlet and unplug at the power outlet when the appliance is not use.
12. Before cleaning, always turn the appliance to the OFF position. Switch off at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
13. Do not place this appliance on or near a heart source, such as a hot plate or oven.

CAUTION

• Do not repair or remake the appliance by yourself, It should be repaired by the qualified service.
• Do not use the appliance near explosive and combustible gas.
• Use the appliance only on a flat surface.
• The level of water tank should be not over "MAX" scale at any time, when humidifying, the total level of water tank should be "MIN" scale.
• After adding water to the water tank, do not tilt or knock over the appliance when you put or move it. If you want to move, please drive it at side, in order to avoid spilling the water.

• Do not turnover the appliance. If it is toppled over, and there have some water in the body, should unplug the power supply. Then send it to repair department or after-sales service and overhaul.

• Do not put things on the appliance, do not cover air vent. WARNING: Do not cover appliance, in order to avoid over heat and block air circulation.

• Clean the appearance with a lightly damp cloth. Do not use any type of detergents or solutions. Do not rinse with water.
• Do not make air outlets and inlets near the wall or curtain.
• Do not knock or shake the body when use, otherwise it may cause stop.
• The water in water tank can easily metamorphose and have at summer, renew the water frequently.
• The appliance must not the located immediately below a socket outlet.
• The rating current of socket should exceed 10A.
• Do not use the appliance in the immediate surrounding of a bath, a shower or a swimming pool.

• This appliance is intended for household and similar use, such as:

• In staff kitchens, shops, offices and other work environments;

• By guests of hotels, motels and other residential environments;
• In Bed& Breakfast type environments;
• Farms.

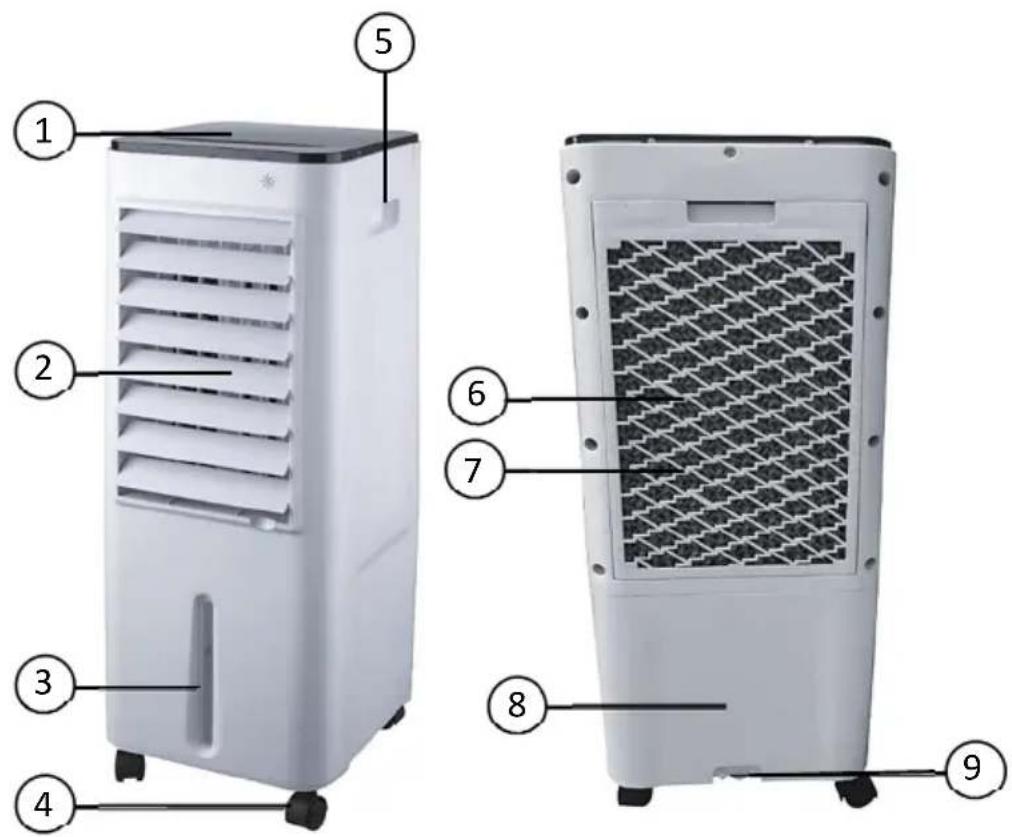

PRODUCT VIEW:

1. Operating panel and water tank top cover
2. Movable air grille
3. Water level window indicator
4. Castor
5. Handle
6. Air filter
7. Water absorbing filter
8. Water tank
9. Water tank stopper

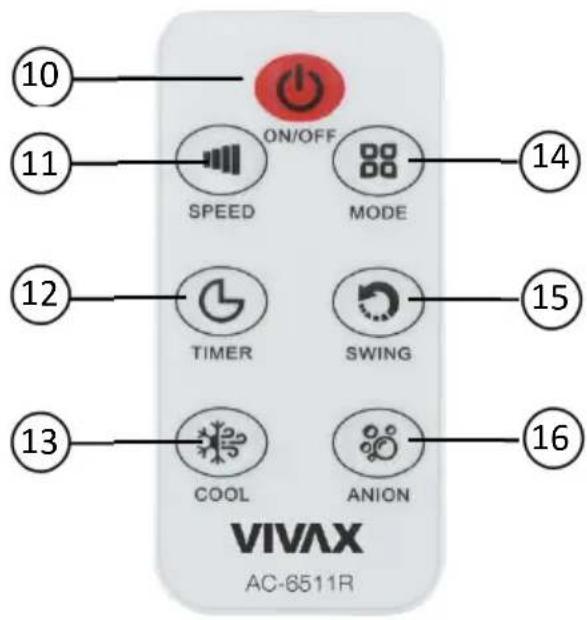

10. ON/OFF Button
11. SPEED Button
12. TIMER Button
13. COOL Button
14. MODE Button
15. SWING Button
16. ANION Button

Note: All Control Panel described for control panel have the same function by pressing corresponding keys on the remote controller.

ACESSORIES

Water pad

Simple diagram of a rectangular block with horizontal lines and a diagonal line above it (no text or symbols)

Air Filter

Ice Box 2x

Castors 4x

Remote controller Instruction manual

FUNCTIONS

1. HUMIDIFIER FUNCTION

The principle of humidification by cooling: took cooling water from the water tank by water pump or synchronous motor, after reaching the top, the cooling water will flow through wetted pad, then bellowed off humid cool air rounding the wetted pad by rotational wind wheel.

Available are three adjustable speeds: Low, Medium, High

2. FAN & AIR COOLER FUNCTION

The appliance adopts ice crystal refrigeration and humidification technology, it can cut down the temperature of air vent and raise relative humidity, prevent it from air-drying. Deliver wind at wide angle: swing the blades automatically, deliver wind at wide angle flatly. Also swing the blades transversely by your hands choose the wind direction up and down.

Buzzer reminder: the buzzer will remind you when operation the effective keypad, use conveniently.

3. AIR PURIFIER FUNCTION

This function filters the harmful dust and allergens through the Air filter.

Removable air filter and cooling pad: Easy to clean, can use soft brush and detergent.

ASSEMBLING

1. Open the package and carefully take out the appliance.
2. Draw out the water tank 1/2, pour clean water into the tank.

① Please pay attention to the water lever.
② Pour into the water over min level, but no more than max level.
③ To have the cooling effect, you can put the cold icebox into the nk.

1. Check the power, and ensure they are same as the rating label.

Attention: Cut the power when you pour the water into the tank.

TEHNICAL SPECIFICATIONS

Model: AC-6511R Power: 80W Voltage: 220-240V\~, 50/60Hz Safety Class: II

CONTROL PANEL

OPERATION

The First Plug in

In addition to Cooling, the air cooler has two other modes, i.e. Ventilation and Air humidification.

The air cooler can be operated via the control panel on the appliance and with the provided remote control.

• Choose a location near a socket.
• Insert the plug in a socket.
  • The appliance gives a short beep sound.
• The indicator light on/off lights up and the appliance is standby.

Ventilation

The ventilation working mode can be set to different speeds.

a) Switch on the appliance using the ON/OFF key.
b) The indicator light for the lowest speed lights up.
c) Change the ventilation speed with each press on the button SPEED: Low, Medium or High.

Cooling

The appliance is able to cool the air flow by adding cold water in the water tank. Pour water from the top, when you open the top lid. Carefully add water and monitor the water level on the water level window (3) (max 10l).

By cooling function, appliance can absorb heat from water or Ice cube, sand let the water temperature in the water tank below environmental temperature, so the air will be much cooler.

Using methods:

a) Add water into the ICE BOX and put it into the refrigerating chamber of refrigerator to make sure that it icing absolutely.

b) Put the ICE BOX in the water tank.

Note: There have two ICE BOX, can use circularly.

c) Switch on the appliance using the ON/OFF key.
d) Press the key COOL.
e) Change the ventilation speed with each press on the button SPEED: Low, Medium or High.

Mode

You can choose 3 airflow modes: Normal ≈; Natural ⚫ and Sleep ≈.

NOTE: Always use fresh cold water.

Make sure the water in the water tank does not come below the minimum level (MIN) when using the cooling.

Swing Mode

Using the swing mode you can adjust movements of the fins for a better air circulation.

Switch on the appliance at the required mode.

Press the SWING BUTTON and the fins will move to the left and right continuously.

Up and down direction must be adjusted manually.

Anion function

Anion function removes harmful substance created by electromagnetic waves, emitted from electric and electronic appliances, which creates positive ions in the air. If the density of positive ions rises in the air, it promotes secretion of hormones such as serotonin and free histamine in human body. This may cause many human disease like asthma, bronchitis, trouble in eyesight, pain in waist and shoulder, nervousness, tension etc....

Anion function neutralizes and removes positive ions using anions generated built in device.

Press ANION button to turn Anion function On/Off.

Timer

Press the TIMER KEY to start the timer. The time period is increased in steps of 30 minutes when you repeatedly press this key, up to a maximum of 7 1/2 hours.

Example:

If you want to set the air cooler for 5 1/2 hours, you must press down this key until the indicator lights 0.5h + 1h + 4h = 5 1/2 hours light up.

All indicator lights switch off when the entire program has been completed.

If you want to stop the timer mode or set a new time, keep pressing the timer key until all indicator lights are off.

When the appliance is on, the timer can be used to switch Off the appliance automatically at the required time within the range from 30 minutes to 7 1/2 hours.

CLENING AND MANTENANCE

1. Clean the air filter

In order to allow the air cooler to function as well as possible, we recommend cleaning the air filter regularly. The air filter could get clogged with dust and dirt

• Unplug the power plug
- Unscrew the air filter at the rear of the appliance and remove it from the appliance
- Clean the air filter with a mild detergent in lukewarm water (approx. 40^ C). Then properly rinse clean the air filter with clean water and allow it to dry in the air. Do not place the air filter in the sun or on the heating to dry it.
- Place the air filter back in the appliance. Check that it is fully dry, before using the air cooler again.

2. Cleaning the ventilation grilles

In order to allow the air cooler to function as well as possible, you can clean the ventilation grilles by vacuum cleaner with a soft brush nozzle

3. Clean the water absorbing filter

Unplug the power plug

When you have removed the air filter, you can also remove the water absorbing filter. Remove the water absorbing filter from the holder, clean it with clean water and a soft brush and then carefully place it back in the holder. Do not use detergents, as they can affect the water absorbing of the filter.

Attention: the wetted pad must be installed flatly, in order to avoid leaking.

4. Clean the water tank

Unplug the power plug,

Water tank cannot be removed. Throw away any water that is still present in the water tank and clean the tank with a soft detergent and warm water. Properly rinse with clean water and dry.

5. Cabinet Clean

Clean with neutral detergent and soft cloth.

Attention:

• Must unplug the power plug when cleaning.
• Don't make the water into the control panel.

MALFUNCITON AND MAINTENANCE

Malfunction	Possible reasons Solution
No action	1.Power off or poor connection2.Not Press the "ON/OFF" key on the control panel.	1.Plug the power cord and make sure it connects well.2.Press the "ON/OFF" key on the control panel.
Poor result of dedusting	1. Block the air filter screen with dust.2. Block the air inlet with corpus alien.	1.Remove and clean the air filter screen.2.Remove corpus alien from the air inlet.

Repair the appliance under the situation as follows:

1. Abnormal action or no action.
2. Abnormal action since ingress of water or corpus alien.

STORAGE INSTRUCTIONS

The fan should be stored in a cool, dry place.

Do not allow to be in reach of children.

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product, you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product.

The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link:

www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances

Information requirements (EN)
