FS-41TB - Fan Vivax - Free user manual and instructions

Product Type	Stand Fan
Model	FS-41TB
Voltage	220V-240V~
Frequency	50Hz
Power Consumption	50W
Blade Size	40 cm
Number of Blades	5
Blade Material	Transparent Plastic
Oscillation	Yes (press to start/pull to stop)
Tilt Adjustment	Yes (manual up/down)
Speed Settings	3 speeds (push button)
Safety Features	Overheat protection with auto shut-off; mesh guards
Cleaning Instructions	Unplug, wipe with damp cloth and mild detergent; clean air inlets regularly
Storage Instructions	Store in cool, dry place out of reach of children
Dimensions (approx.)	Height: 130-140 cm, Base diameter: 30 cm
Weight (approx.)	3 kg
Color	Black

Frequently Asked Questions - FS-41TB Vivax

How do I assemble the fan?

Assemble the support parts: attach base to support tube, then mount back cover to motor, install fan blade (align groove with pin), secure with nut, attach front cover and tighten all screws.

Why does my fan not start?

Check if the power plug is securely inserted. Also ensure the cover is not distorted touching the fan blade.

How do I adjust the fan speed?

Press the wind speed button to cycle through low, medium, and high speeds.

How do I activate oscillation?

Press the turning button to start oscillation; pull it out to stop.

Can I tilt the fan head?

Yes, slightly lift or press the cover to adjust the fan head upwards or downwards.

What should I do if the fan makes loud noise?

Check that the fan blade is tightly installed on the motor shaft, the back cover groove matches the shaft, and there are no defects or distortions on the blade or cover.

How do I clean the fan?

Unplug the fan, wipe with a damp cloth and a small amount of non-abrasive cleaner. Regularly clean the air inlet and outlet with a vacuum cleaner.

Is the fan safe for use near children?

Supervision is required. Do not allow children to play with the fan. Ensure the mesh guards are always in place.

What is the power source requirement?

The fan operates on 220V-240V~, 50Hz. Do not use an extension cord to avoid overloading.

What does the overheat protection do?

If the fan overheats, the safety cut-out will switch it off. Unplug, let it cool, remove any blockage, and resume use. If it cuts out again, contact service.

USER MANUAL FS-41TB Vivax

Black outdoor fan with visible blades and a black base, no text or symbols on the fan body

Važno je da prije uporabe uređa potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

SIGURNOST I UPOZORENJA

Black outdoor fan with visible grille and base, no text or symbols on the fan body

Black and white photo of a VITMIX air conditioner fan on a stand (no text or symbols visible)

Black and white photo of a VันX air conditioner fan on a stand (no text or symbols visible)

Black VEX air conditioner fan with visible blades and control panel (no text or symbols)

Black outdoor fan with radial mesh blades and a VVMAX brand logo on top (no text or symbols visible)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SAFETY AND WARNINGS

IMPORTANT: Please retain your instruction booklet for future use.

We believe that safe performance is the first priority in any consumer product. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards for your Mist Fan

When using any electrically powered appliance, basic safety precautions should always be followed.

Warning: To reduce the risk of fire, electrical shock or injury to person or property:

• Ensure all packing materials and labels or stickers are removed from the appliance before first use.
• Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• The appliance can be used by childrenaged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

● Children shall not play with the appliance
- Cleaning and user maintenance shall not be mad by children without supervision.
- Close supervision is necessary when the product is used by or near children or incapacitated individuals. Do not allow children to use it as a toy.

• Do not operate the product with a damaged cord or plug, or after the product malfunctions, or has been dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, replacement or refund.
• Unplug from the mains when not in use and before cleaning.
• The appliance should not be used by adults or children whose lack of experience, product knowledge or disability might cause a hazard, unless they have been correctly instructed and are adequately supervised.
• Children should always be supervised to ensure that they do not play with this product.
• Do not use any other accessories or attachments with this appliance.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or any other liquids.
  ● Always place the unit on a flat level surface. Never leave the product unattended while in use.
• Do not use the appliance with an extension cord to avoid product overloading.
• Do not leave the cord hanging over the edge of a table or worktop.
• Avoid contact between the cord and hot surfaces.
• For indoor use only. For domestic use only.
• Do not use the appliance for any other than its intended use.
• This appliance should be used only as described within the instructions for use that accompany it. Please retain these instructions for future reference.

- Always ensure that your hands are dry before removing the plug from the main outlet. Never pull the plug out of the mains outlet by its cord. Close supervisions is necessary when this appliance is used by or near children and invalids.

- Keep the air intake cover free of dust or fluff.

- Do not allow the air inlet to become blocked or even partially blocked. This may cause the fan to overheat. If it does overheat, the safety cut-out will cause the fan to switch off and remain inoperable until the unit has sufficiently cooled down. In this event, switch off the appliance, unplug it and let it cool down. Remove any blockage to the air inlet or outlet before resuming use. If the fan should cut out again, even when there is no blockage, contact the approved service center for examination and repair.

- Do not cover the fan or place anything over it.

- Do not place anything through the grills or into the fan.

- Do not use the fan if it is not properly and completely assembled.

- Do not use the fan without the mesh guards, as this could lead to injury.

- Do not use the fan within 1 meter of any other electrical or electronic appliance (e.g.TV,computer,etc.) as it may cause interference.

- The installation of a residual current-operated protective device with a nominal trip current of 30mAh offers additional protection. Contact your electrician.

Caution:

1. The appliance is not intended to be operated by means

of an external timer or separate remote-control system.

1. Make sure your hands are dry when plugging in and unplugging appliance.
2. Ensure all the parts are correctly mounted before switching on the appliance.
3. Do not immerse the appliance in water or any other liquid.
4. Always remove the plug after use.

Important Safeguards for all Electrical appliances

1. Carefully read all instructions before operating the appliance and save for future reference.
2. Remove and safely discard all packing materials and promotional labels before using the appliance for the first time.
3. Fully unwind the power cable before use.
4. Do not let the power cord hang over the edge of a bench or table, touch hot surface or become knotted.
5. To protect against electric shock, do not immerse the power cord, plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
6. It is recommended to inspect the appliance regularly. Do not use the appliance if the supply cord, plug, connector or appliance becomes damaged in any way.
7. The appliance is for household use only. Do not use this appliance for any other than its intended use. Do not use in moving vehicles or boats. Do not use outdoor. Misuse may cause injury.
8. Always switch off at the power outlet and unplug at the power outlet when the appliance is not use.
9. Before cleaning, always turn the appliance to the OFF

position. Switch off at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.

1. Do not place this appliance on or near a heart source, such as a hot plate or oven.

OPERATING INSTRUCTIONS

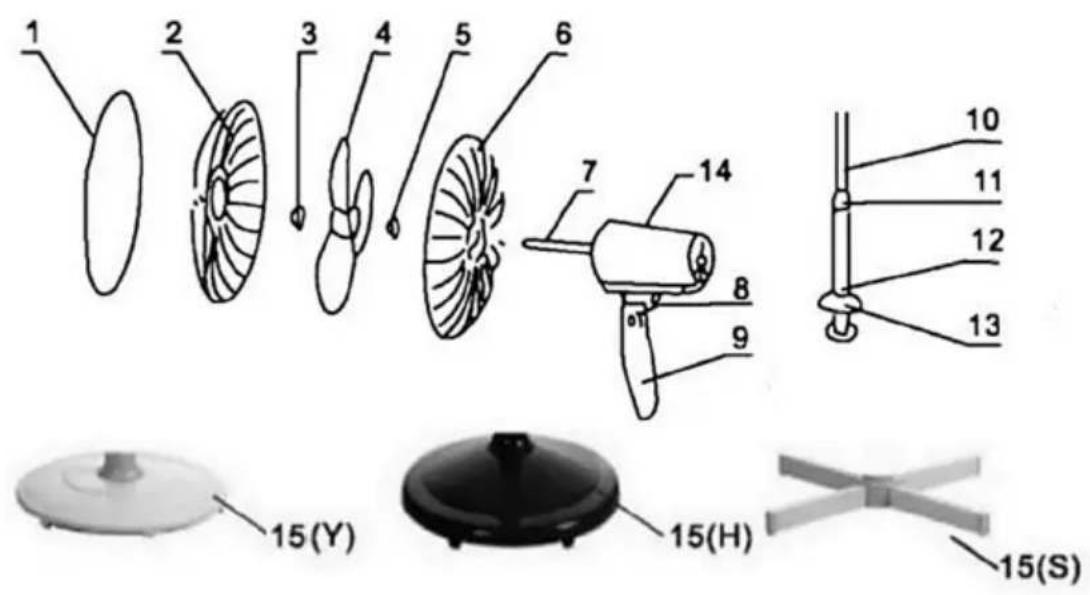

1. Shroud ring
2. Front cover
3. Fastener for Fan blade
4. Fan blade
5. Fastener for cover
6. Back cover
7. Output shaft

8. Joint

9. Panel

10. Up-Down tube
11. External joint
12. Support tube
13. Decorative cover
14. Head rotating button
15. Base

ASSEMBLY AND INSTALLATION

First step: Assemble support parts

1. Assemble and connect the base with assembly up-down tube and support tube.
2. Open the casing and take out base, then assemble the tube and cover of up-down tube and support tube.
3. Aim the hole on the bottom of support tube of support at the holes on the base and tighten the screws.
4. Slip decorative cover to base alongside the support tube and adjust up-down tube to height, then rotate tighten the external joint.

Second step: Assemble fan blade

1. Assemble guard cover and shroud ring

a. Tighten back cover enclosure to the motor by fastener (Pay attention to direction of rotation).
b. Place joint of shroud ring downwards and cover the deep groove of shroud ring to the circle side ring of back.
c. Cover enclosure, then tighten the bolts at the position of joint properly by nut.

1. Install fan blade

a. While installing fan blade, please wedge groove on the back of fan blade on spacer pin of the output shaft of motor,
b. Tighten the fixing nut of fan blade anticlockwise.

1. Assemble front cover

a. Insert the circle of front cover into the groove of shroud ring, which has been fixed to the back cover.

b. Finally fasten the bolts into screw of the joint of shroud ring.

FUNCTION INTRODUCTION

1. Setting of wind direction

The angle of the fan head is adjustable, it can be facing upwards and downwards by slightly lift or press the cover.

2. Setting of shaking

Pressing the turning button and the head starts to rotate, then pull it out and fan will stop rotating.

3. Setting of wind speed

Pressing button of wind speed can adjust the speed of wind.

SOLUTION TO SIMPLE FAILURE

When starting the fan, the fan blade doesn't work:

Please check whether the power plug has really inserted into the socket or the cover has distorted, which has touched the fan blade.

When starting the fan, loud noise appears:

Please check the unit as following:

1. Fan blade has been tight installed into the output shaft of motor.
2. Groove on back of cover has matched the inserting groove on the output shaft.
3. There are tiny defective edge ring existing around the fan blade.
4. The cover has distorted, which has touched the fan blade.

INSTRUCTIONS FOR CLEANING

Should you need to clean the fan:

● Unplug the fan from the power outlet.
- Wipe it down with a damp cloth and a small amount of non-abrasive cleaning agent.

- Do not use the appliance it if it is wet.

- Clean the air inlet and outlet regularly. You may use a vacuum cleaner for this.

STORAGE INSTRUCTIONS

The fan should be stored in a cool, dry place.

Do not allow to be in reach of children.

TECHNICAL SPECIFICATION

Model	Voltage	Frequency	Power	Blade size
FS-41TB	220V-240V~	50Hz	50W	40cm,5x transparent blades
FS-46TB	220V-240V~	50Hz	60W	46cm,3x transparent blades

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala
