TF-61 - Fan Vivax - Free user manual and instructions

Product Type	Tower Fan
Brand	Vivax
Model	TF-61
Voltage	220-240V~, 50Hz
Power Consumption	60W
Height	80 cm
Number of Speeds	3 (Low, Medium, High)
Timer	0.5 - 2 hours
Oscillation	Yes, automatic swing
Control Type	Push buttons and rotary timer knob
Fragrance Function	Yes, with removable fragrance box
Safety Features	Overheat protection with automatic cut-out
Assembly Required	Yes (base and body assembly)
Cleaning Method	Wipe with damp cloth; vacuum air vents
Storage	Cool, dry place
Intended Use	Indoor domestic use only
Disposal	Separate collection for electronic waste
Certification	EU Declaration of Conformity

Frequently Asked Questions - TF-61 Vivax

How do I assemble the Vivax TF-61 tower fan?

To assemble, first attach the base poles to the corresponding holes on the base. Then align the assembled base with the screw poles on the fan body and secure with screws. Route the power cord through the slot in the base.

How do I use the fragrance function?

On the front of the fan, below the vent, there is a small box containing a sponge. Remove the box, add a few drops of your preferred fragrance onto the sponge, then replace the box. The fan will then blow air with the scent.

Why is my fan not turning on?

First, check that the power plug is fully inserted into the socket. Ensure all buttons are properly adjusted. If it still does not work, the fan may have overheated; unplug it and allow it to cool down. If the problem persists, contact an authorized service center.

Can I use this fan with an extension cord?

No, to avoid overloading and potential fire hazards, do not use an extension cord with this fan.

How do I set the timer?

Rotate the TIMER knob clockwise to set the desired operating time from 0.5 to 2 hours. The fan will automatically turn off when the timer expires.

What should I do if the fan overheats and stops?

The fan has a safety cut-out feature. If it overheats, it will automatically switch off. Unplug the fan, let it cool down completely, and remove any obstructions from the air inlet or outlet before resuming use. If it cuts out repeatedly, contact service.

Is the Vivax TF-61 safe to use around children?

The fan can be used by children aged 8 and above under supervision. However, children should not play with the fan. Always keep it out of reach of very young children and never leave it unattended near them.

How do I clean the fan?

Always unplug the fan before cleaning. Wipe the exterior with a damp cloth and a mild non-abrasive cleaner. Never immerse the fan in water. Regularly clean the air inlet and outlet grills using a vacuum cleaner.

Can I use the fan outdoors?

No, this fan is designed for indoor domestic use only. Do not use it outdoors or in wet environments to avoid electric shock.

What does the 'SWING' button do?

Pressing the SWING button (marked with <--> symbols) enables automatic oscillation of the fan. Press it again to stop the oscillation.

USER MANUAL TF-61 Vivax

White VIVAX tall tower with vertical panel and base, no visible text or symbols on the tower itself.

Važno je da prije uporabe uređaja u potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

SIGURNOST I UPOZORENJA

Close-up of a rotary dial with control knob and rotary knob (no text or symbols visible)

Simple line drawing of a rectangular object with rounded ends, resembling a stylized letter or symbol (no text or symbols present)

RJEŠENJA ZA MOGUĆE POTEŠKOĆE

Ventilator ne radi prilikom uključivanja uređaja:

Molimo da provjerite je li utikač pravilno umetnut u utičnicu.

White VIVAX tall industrial tower with vertical panel and base (no visible text or symbols on the tower body)

Close-up of a white industrial rotary dial with control knob and rotary knob (no text or symbols visible)

1. Pritisnite taster 0-1-2-3 kako biste pokretali i zaustavljali ventilator.
2. Tipka SPEED: Pritisnite tastere 1-2-3 za odabir sledećih brzina: Sporo - Srednje – Brzo
3. Dugme TIMER : Možete podesiti raspon rada od 0.5h do 2,0 sata.
4. Taster SWING <-->: Pritisnite taster za automatsku rotaciju ventilatora; Ponovno pritisnite kako biste zaustavili rotaciju.

SASTAVLJANJE I INSTALACIJA

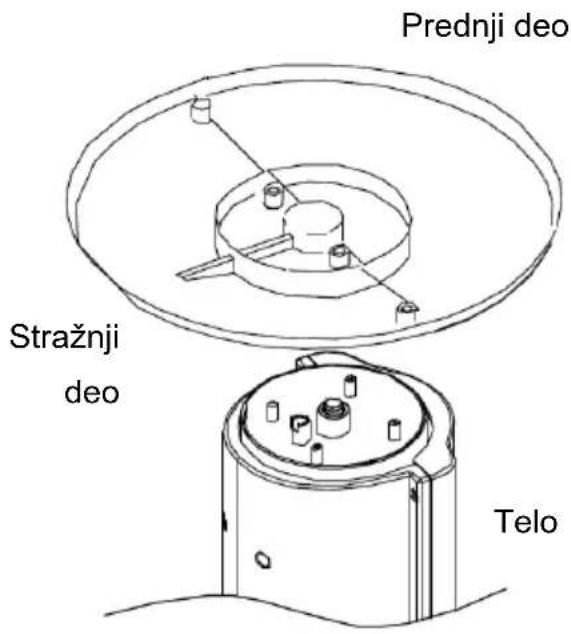

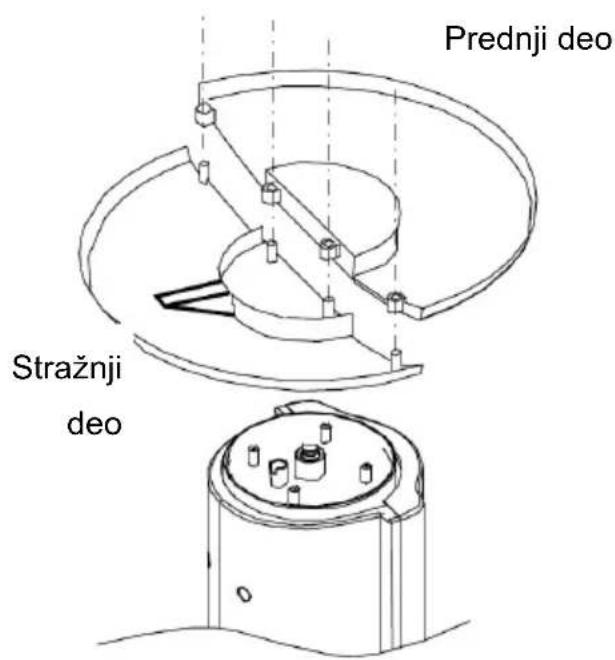

Prvi korak: Sastavljanje potpornih delova

1. Spojite otvor za sastavljanje s odgovarajućim delovima i umetnite cevi u odgovarajuće otvore.
2. Sastavljeno postolje postavite na odgovarajuće drške i pričvrstite.

Korak 1

Korak 2

Simple line drawing of a rectangular object with rounded ends, resembling a rolling pin or knob (no text or symbols)

REŠENJA ZA MOGUĆE POTEŠKOĆE

Ventilator ne radi prilikom uključivanja uređaja:

White vertical tower-mounted air conditioner unit with black panel grating and 'VIVAX' branding (no additional text or symbols visible)

Close-up of a rotary dial with numeric labels (0–30) and a curved arrow indicating rotation, no readable text or symbols beyond labels.

Simple line drawing of a rectangular object with rounded ends and a flat top, no text or symbols present.

White VTVAX tall tower with vertical panel array and base mount (no text or symbols on the tower body)

Close-up of a rotary dial with control knob and numeric display (no readable text or symbols beyond labels)

Simple line drawing of a rectangular object with rounded ends, resembling a rolling pin or button (no text or symbols)

ZGJIDHJE TË VËSHTIRËSIVE TË MUNDSHME

White vertical bar magnet with black ventilation grilles and a VIVAX brand logo (no text on device body)

Close-up of a white industrial rotary dial with control knob and rotary buttons (no text or symbols visible)

Korak 3

Korak 4

UPORABA FUNKCIJE DIŠAVE

Simple diagram of a rectangular object with rounded ends, resembling a rolling pin or button (no text or symbols)

REŠITVE ZA MOŽNE TEŽAVE

Ventilator ne radi prilikom uključivanja uređaja:

Molimo da provjerite je li utikač pravilno umetnut u utičnicu.

White vertical tower-mounted air conditioner unit with grid pattern and 'VIVAX' branding (no additional text or symbols visible)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SAFETY AND WARNINGS

IMPORTANT: Please retain your instruction booklet for future use.

We believe that safe performance is the first priority in any consumer product. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards for your Fan

When using any electrically powered appliance, basic safety precautions should always be followed.

Warning: To reduce the risk of fire, electrical shock or injury to person or property:

- Ensure all packing materials and labels or stickers are removed from the appliance before first use.

- Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

● Children shall not play with the appliance

- Cleaning and user maintenance shall not be mad by children without supervision.

- Close supervision is necessary when the product is used by or near children or incapacitated individuals. Do not allow children to use it as a toy.

• Do not operate the product with a damaged cord or plug, or after the product malfunctions, or has been dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, replacement or refund.
• Unplug from the mains when not in use and before cleaning.
• Do not use any other accessories or attachments with this appliance.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or any other liquids.
  ● Always place the unit on a flat level surface. Never leave the product unattended while in use.
• Do not use the appliance with an extension cord to avoid product overloading.
• Do not leave the cord hanging over the edge of a table or worktop.
• Avoid contact between the cord and hot surfaces.
• For indoor use only. For domestic use only.
• Do not use the appliance for any other than its intended use.
• This appliance should be used only as described within the instructions for use that accompany it. Please retain these instructions for future reference.
• Always ensure that your hands are dry before removing the plug from the main outlet. Never pull the plug out of the mains outlet by its cord. Close supervisions is necessary when this appliance is used by or near children and invalids.
• Keep the air intake cover free of dust or fluff.

- Do not allow the air inlet to become blocked or even partially blocked. This may cause the fan to overheat. If it does overheat, the safety cut-out will cause the fan to switch off and remain inoperable until the unit has sufficiently cooled down. In this event, switch off the appliance, unplug it and let it cool down. Remove any blockage to the air inlet or outlet before resuming use. If the fan should cut out again, even when there is no blockage, contact the approved service center for examination and repair.

• Do not cover the fan or place anything over it.
• Do not place anything through the grills or into the fan.
• Do not use the fan if it is not properly and completely assembled.
• Do not use the fan without the mesh guards, as this could lead to injury.
• Do not use the fan within 1 meter of any other electrical or electronic appliance (e.g.TV,computer,etc.) as it may cause interference.
• The installation of a residual current-operated protective device with a nominal trip current of 30mAh offers additional protection. Contact your electrician.

Caution:

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Make sure your hands are dry when plugging in and unplugging appliance.
3. Ensure all the parts are correctly mounted before switching on the appliance.

4. Do not immerse the appliance in water or any liquid.

5. Always remove the plug after use.

Important Safeguards for all Electrical appliances

1. Carefully read all instructions before operating the appliance and save for future reference.
2. Remove and safely discard all packing materials and promotional labels before using the appliance for the first time.
3. Fully unwind the power cable before use.
4. Do not let the power cord hang over the edge of a bench or table, touch hot surface or become knotted.
5. To protect against electric shock, do not immerse the power cord, plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
6. It is recommended to inspect the appliance regularly. Do not use the appliance if the supply cord, plug, connector or appliance becomes damaged in any way.
7. The appliance is for household use only. Do not use this appliance for any other than its intended use. Do not use in moving vehicles or boats. Do not use outdoor. Misuse may cause injury.
8. Always switch off at the power outlet and unplug at the power outlet when the appliance is not use.
9. Before cleaning, always turn the appliance to the OFF position. Switch off at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
10. Do not place this appliance on or near a heart source, such as a hot plate or oven.

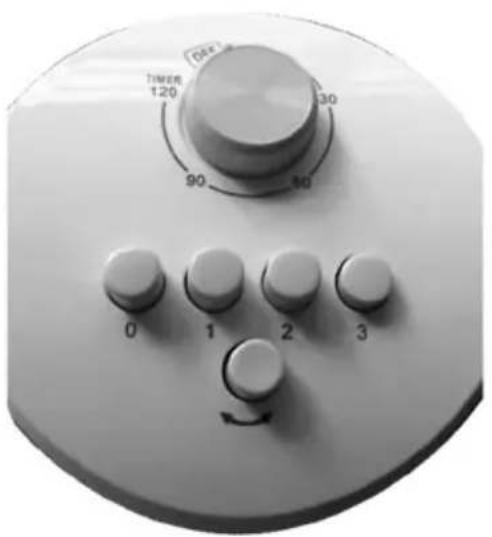

OPERATING INSTRUCTIONS

Plug unit first on power supply.

Close-up of a white industrial rotary dial with control knob (no visible text or symbols)

1. Push the 0 button to start and stop the fan.
2. SPEED button: Push 1-2-3 to select speed of: Low-Middle-High
3. TIMER knob: From 0.5 hours to 2,0 hours.
4. SWING button <-->: Push the button to oscillate the fan; Push it again to stop the function.

ASSEMBLY AND INSTALLATION

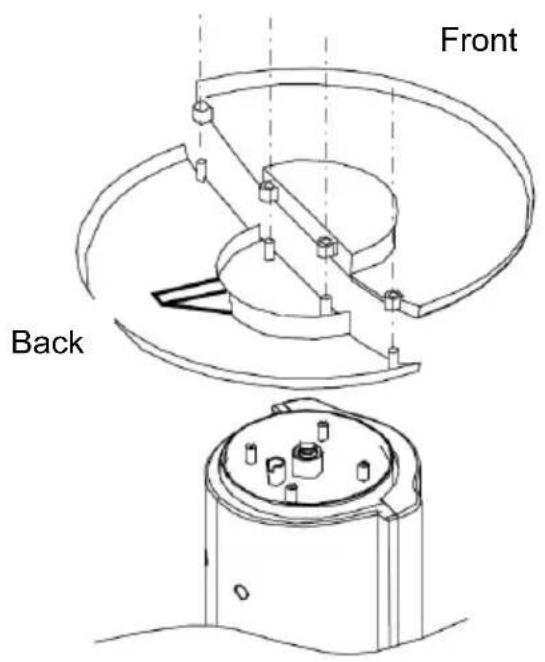

1. Aiming the assemble poles with the corresponding holes, and insert the poles into the holes.

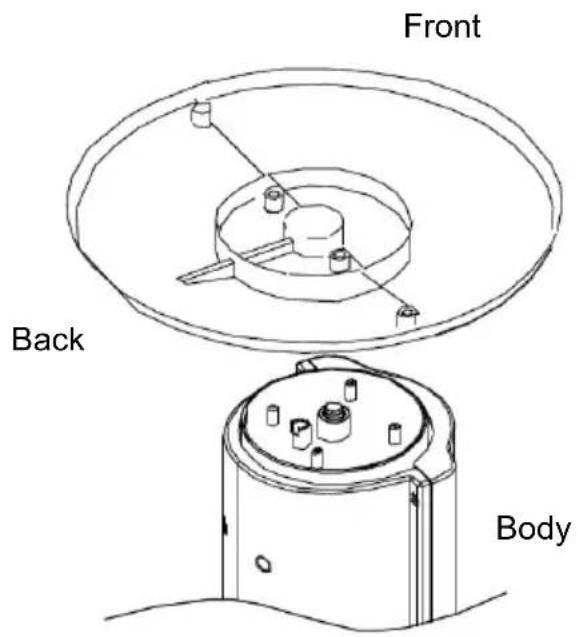

2. Aiming the assembled base to screw poles of the fan body

Step 1

Step 2

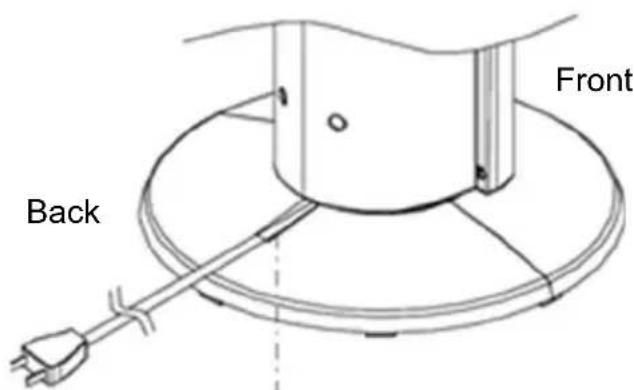

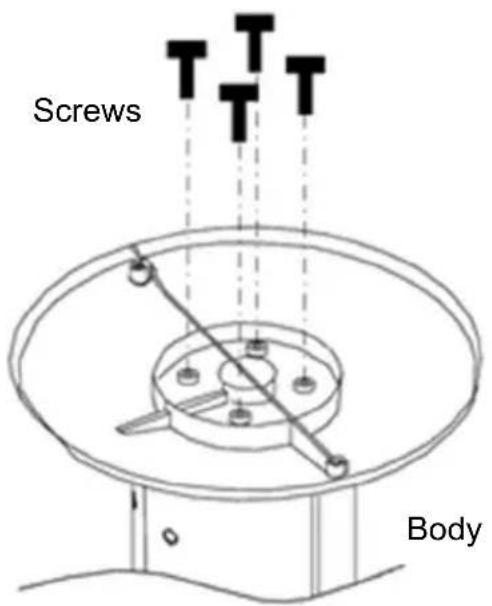

1. After well connect of the body and base, screw into the screw holes of the base. And put the power cord into the slot of the base.

2. Put the fan flatly

Step 3

Flute
Step 4

In the front of the fan, there is a small box below the vent. There is a sponge inside the fragrance box. Take out the box and put some fragrance on the sponge if you would like the wind blow with fragrance

Simple diagram of a rectangular object with two curved ends, no text or symbols present.

SOLUTION TO SIMPLE FAILURE

When starting the fan, the fan blade doesn't work:

Please check whether the power plug has really inserted into the socket. Check all the buttons are properly adjusted.

INSTRUCTIONS FOR CLEANING

Should you need to clean the fan:

• Unplug the fan from the power outlet.
• Wipe it down with a damp cloth and a small amount of non-abrasive cleaning agent.
• Never get the fan wet.
• Do not use the appliance it if it is wet.
• Clean the air inlet and outlet regularly. You may use a vacuum cleaner for this.

STORAGE INSTRUCTIONS

The fan should be stored in a cool, dry place.

Do not allow to be in reach of children.

TECHNICAL SPECIFICATION

Voltage	Frequency	Power	Features
220V-240V~	50Hz	60W	80cm hight,Timer: 2 hours3 speed, Auto swing

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling. By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala
