Product Type	Espresso and Cappuccino Machine
Brand	Fakir
Model	Babila
Power	1350 W
Voltage	220-240 V AC, 50/60 Hz
Protection Class	I
Water Tank Capacity	1700 ml
Pump Pressure	15 bar
Cable Length	75 cm
Dimensions (approx.)	30 x 25 x 35 cm
Weight (approx.)	6.5 kg
Filter Types Included	Small, Large, E.S.E Pod
Milk System	Integrated milk chamber with foam adjustment
Beverage Programs	Espresso (small/large), Cappuccino (small/large), Latte (small/large), Milk foam
Control Panel	One-touch buttons with LED indicators
Auto Shut-off	Sleep mode after 25 minutes of inactivity
Descaling	Manual descaling with white vinegar
Cleaning Cycle	Integrated cleaning button for milk system
Safety Features	Overheat protection, automatic shut-off, burn warnings
User Manual Languages	DE, EN, TR, RU and many others via request

Frequently Asked Questions - Babila FAKIR

How do I descale the Fakir Babila coffee machine?

Fill the water tank with white vinegar above the minimum level, insert the filter holder with coffee, and run the large espresso cycle. Then rinse by running water cycles. Refer to the manual for detailed steps.

What types of coffee can I use with this machine?

You can use freshly ground espresso coffee (medium dark to dark roast) or E.S.E pods. Avoid flavored or sugary coffee as it may clog the filter.

How do I clean the milk chamber?

Remove the milk chamber, wash it and the cap with warm water or coffee machine detergent. Rinse thoroughly. Run the cleaning cycle by pressing the cleaning button with water in the chamber.

Why is my coffee not flowing or flowing too slowly?

Possible causes: empty water tank, too much coffee in the filter, coffee too finely ground, or scaling. Reduce coffee amount, adjust grind size, or descale the machine.

Can I use pre-ground coffee from the supermarket?

Yes, but for best results use coffee ground specifically for espresso. The grind should be between Turkish coffee and filter coffee fineness.

How do I make cappuccino with the Babila?

Fill the milk chamber with cold milk, select the cappuccino button (small or large). The machine will automatically brew espresso and steam milk. Adjust foam density with the lever on the milk chamber.

What does the sleep mode do?

After 25 minutes of inactivity, the machine enters sleep mode to save energy. All lights except the power symbol turn off. Press the power button to wake it up.

How often should I descale the machine?

Descale every 80 uses if using soft water, or every 40 uses if using hard tap water. Increase frequency if you notice slower brewing or white residue.

Is the machine safe to use around children?

Yes, but with supervision. Children aged 8+ can use it if instructed, but cleaning and maintenance should be done by adults. Keep packaging away from children.

What should I do if the milk foam dispensation tube is blocked?

Clean the tube with a needle or small brush. Ensure milk residues are removed. If persistent, run the cleaning cycle with water or a coffee machine detergent.

USER MANUAL Babila FAKIR

Exterior view of a Fakir Babila coffee maker with control panel and glass cup (no text or symbols on main body)

BABILA

DE Kaffeemaschine

EN Coffee Machine

TR Kahve Makinası

RU Кофеварка

Illustration of various containers and objects, including coal piles, lids, and a circular container (no text or symbols)

Illustration of hands pouring dark liquid from a small container into a bowl (no text or symbols)

Illustration of a hand using a spoon to measure a small container with liquid, no text or symbols present

Illustration of a hand using a spoon to measure a small object, with no visible text or symbols

HINWEIS!

Illustration of a kitchen appliance with a pot and a hand holding a tool (no text or symbols)

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Verbrennungsgefahr!

Illustration of a kitchen appliance being processed with a tool, no text or symbols present

Hand holding a small container with a lid, possibly a cooking pot or container (no text or symbols visible)

Hand holding a small container with liquid, no visible text or symbols

Verbrennungsgefahr!

On the Operating Instructions....26

Meanings of the Symbols 26

Liability 26

EC Conformity Declaration....27

Intended Use 27

Unauthorized Use....27

Security Warnings 28

Unpacking....30

Box Contents ....30

Description of Components 31

Technical Specifications 32

Preliminary Information Prior to Use of the Appliance 32

Coffee Size Selection....33

Coffee Types 33

Espresso 33

Latte....33

Cappuccino....33

Determination of the amount of coffee....33

Water Tank Refilling 34

Milk Chamber Refilling....34

Filter Selection....35

Refilling Coffee to Filter....35

Placing the Filter Holder on the Appliance....36

Removal of Used Coffee from the Filter Holder 36

Use of The Appliance ....37

Operating the Appliance 37

Preparing Espresso 38

Preparing Cappucino ....39

Preparing Latte 39

Preparing Coffee with E.S.E Pod 40

Preparing Milk Foam 40

Sleep Mode 40

Cleaning and Maintenance....40

Descaling the Internal Parts of the Appliance 42

Storage 43

Recycling 45

Shipping....45

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir BABILA Coffee Machine produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!!

This sign indicates dangers that can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Danger of Burn!

Failure to do so may result in injury or damage to the appliance.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity Declaration

This device fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/

EU Voltage Directives. The appliance bears the CE mark on the rating plate.

Fakir reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and maintenance of the appliance shall not be carried out by children without supervision.

- Keep the packing materials away from the children. Choking risk!

- Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.

- This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.

- Children shall be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used for play.

- Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.

• Children older than 3 years and younger than 8 years shall not

plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.

- The appliance shall not be used without supervision.

Security Warnings

Please read the user manual before you use the appliance.

• Before using, check that the mains voltage corresponds to the ratio of the appliance.
• Make sure that the electrical outlet used is always easily accessible, when necessary, for easy unplugging.
• In order to completely disconnect the appliance, turn it off by pressing the power switch on the side of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Allow the appliance to cool down before cleaning and make sure that the plug is unplugged.
• Strict observance is required especially when the appliance will be used around children.
• Improper use of the appliance may cause severe burns.
• Never place the appliance on hot surfaces.
• Do not operate the appliance with a damaged cord or plug. If the cable or the appliance is damaged, it must be replaced by an authorized Fakir service.
• Do not allow the cable to dangle from the table or counter, or contact any hot surfaces.
• Do not use this product other than its intended use. The appliance is only suitable for household use.
• To prevent damage to the appliance, do not use any accessories other than those supplied with the appliance.
• Do not use the appliance in the outdoors.
• Do not fill its water tank any other substance than with cold water or vinegar for cleaning.
• Unplug the appliance when it is not in use.

• If you want to pull the plug out of the outlet then pull directly on the plug. Never pull the cord as it may be damaged.

• Do not operate the appliance without placing a cup under the coffee dispenser.

• Do not allow the coffee machine to operate without water in order to prevent damage to the heating elements.
• Do not use the appliance other than its intended purpose. This appliance may only be used to brew coffee.
• Do not leave the appliance unattended during use.
• Place the appliance on a flat, firm surface before use.
• Do not fill the water tank below the minimum line, above the maximum line.
• Faults caused by calcification or user error are not covered by the warranty.
• Water entering the appliance can cause damage and malfunction. Do not place the appliance near water taps or sinks.
• The appliance may malfunction if the water inside it freezes. Do not use the appliance in environments where the temperature may fall below the freezing point.

Danger of Burn!

- This appliance produces hot water and can be converted into water vapour when operating. Take care not to come into contact with water splashes and hot steam

Danger of Burn!

Do not touch the cup heating layer while the appliance is running, it is hot.

Unpacking

Unpack the appliance and before starting to use it check for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

• Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.
  -Do not punch a hole or a tear on the section where the on/off button is.

WARNING!!

Never use a defective appliance.

NOTE!

Keep the packaging for storage and future transports.

NOTE!

Keep this user manual for future use.

Box Contents

Appliance Main Body

Milk chamber

Filter holder

1 small size metal filter
1 large size metal filter
1 E.S.E Pod metal filter
Scale spoon / Tampering
Service list
User Manual

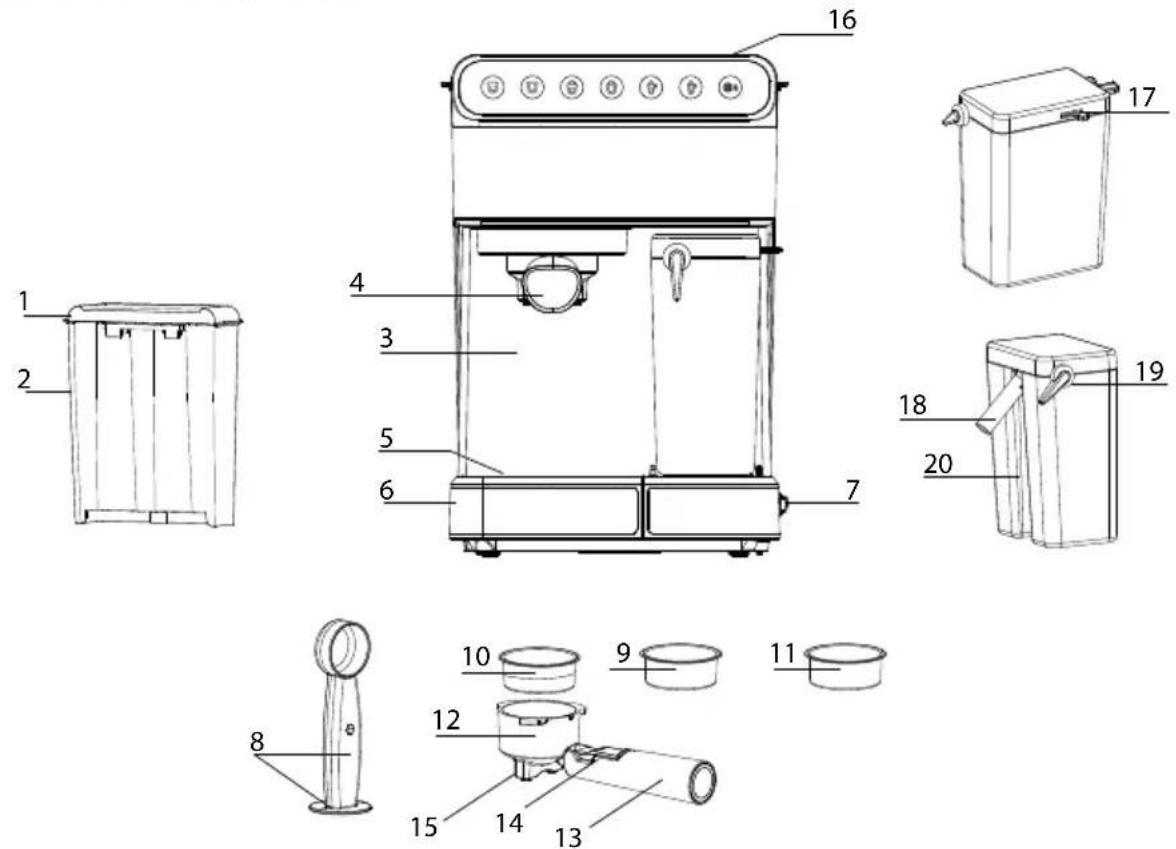

Description of Components

1. Water tank cap
2. Removable water tank
3. Appliance main body
4. Brewing Head
   5 Cup installation grid
   6 Drip tray
   7 Power switch
   8 Scale spoon /Tampering
   9 Small size metal filter
   10 Large size metal filter
   11 E.S.E Pod metal filter
   12 Filter handle chamber
   13 Filter handle lever
   14 Filter holder
   15 Coffee dispenser outlets
   16 Cup heating layer

Milk chamber

17 Milk foam adjustment lever
18 Milk foam dispensation tube
19 Milk foam dispensation tube handle
20 Milk dip tube

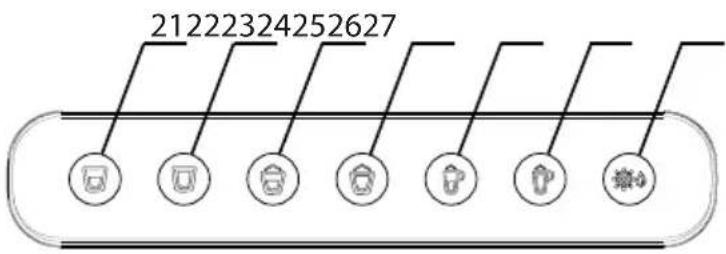

Control Panel

21 Small size espresso
22 Large size espresso
23 Small size cappucino
24 Large size cappucino
25 Small size latte
26 Large size latte
27 Cleaning button

Technical Specifications

Power : 1350 W

Voltage : 220-240 V AC, 50/60 Hz

Protection Class : I

Useful life : 7 years

Water tank capacity: 1700ml

Cable Length : 75 cm

Pressure : 15 bar

Preliminary Information Prior to Use of the Appliance

Coffee Selection

Coffee starts to loose its aromas immediately after it's ground. For this reason, if coffee is made immediately after grinding, more aromatic and flavourous results can be obtained. The coffee chosen for espresso should be freshly ground and roasted in the espresso setting. This setting is usually specified as Medium Dark Roast and Dark Roast in the packaging.

WARNING!!

Do not use roasted coffee with sugar and aroma flavours; they can clog the filter and damage the appliance. If you accidentally use one of the sugar-roasted or flavored coffee types stop using the unit and take it to the nearest authorized service centre for maintenance.

NOTE!

This type of coffee can change the taste of coffees therefore it should be operated at least 5 times with water and taste aroma must be removed.

Coffee Size Selection

Grinding the coffee correctly, choosing the right coffee size is the most important step of the coffee preparation. In order to use it with the machine, you can grind a coffee in the espresso setting or buy a coffee that has been ground with this setting. This setting is for a grind between Turkish coffee and filter coffee.

If you make the grinding right, you can get an espresso that has been completely brewed. If the grinding is finer than it should be, it will flow very slowly as the coffee flows from the filter holder, which causes your coffee to burn. If your coffee is ground thicker than it should be, the filter will flow fast through the holder. This results in an increase in the acidity(sourness) of your coffee and prevents you from having a fully brewed coffee with a balanced taste and flavour.

The most important step after brewing coffee at home is the correct coffee thickness. For the correct thickness of the coffee, the most accurate grinder should be selected. Fakir Signature

Coffee Grinder or Fakir Aroma Grinda Coffee Grinder is ideal to adjust the correct coffee size.

Coffee Types

Espresso

Espresso is the essence of the coffee. It is a beverage that forms the basis of espresso-based coffees. It is a beverage made with freshly ground coffee and roasted in the Italian coffee tradition of 8.5 g espresso.

Latte

Espresso is a type of coffee that is easy to drink by adding milk. It is a drink made with about 1/4 Espresso and 3/4 steamed milk.

Cappuccino

Cappuccino is an espresso-based coffee type similar to Latte. A beverage made with about 1/3 Espresso, 1/3 steamed milk and 1/3 frothed milk.

Determination of the amount of coffee

Before determining the coffee you choose, determine the quantity of coffee to be selected from the table below.

Espresso	Small Size	40-60 ml
	Large Size	90-110 ml
Cappuccino	Small Size	80-150 ml
	Large Size	160-300 ml
Latte	Small Size	160-300 ml
	Large Size	250-350 ml

Water Tank Refilling

You can remove the water tank and fill it under running water or open the cap of the water tank and fill from the top.

Amount of water put should be between the Min. and Max. marks. After filling the chamber, place the chamber on the hooks at the back of the appliance and press it down completely and close its cap. Make sure that it is properly placed.

WARNING!!

Never use warm or hot water to fill the water tank. Use water at room temperature. Do not operate the appliance if there is no water inside the chamber or if the chamber is not connected to the appliance.

Milk Chamber Refilling

If you plan to prepare cappuccino, latte or hot milk, remove the milk container and remove it from the appliance.

Pour cold milk between "Min." and "Max." levels.

Push the chamber in until it clicks into the appliance.

NOTE!

You can use your preferred type of milk, so you can use full fat, low-fat, organic or soy milk. The amount of milk, brand and type of milk you use will be effective at the foam rate of milk. You can always get better results in whole milk.

NOTE!

In order to obtain a more dense and homogeneous foam, use whole milk or low-fat milk at refrigerator temperature. Foam quality decreases as the temperature of milk increases.

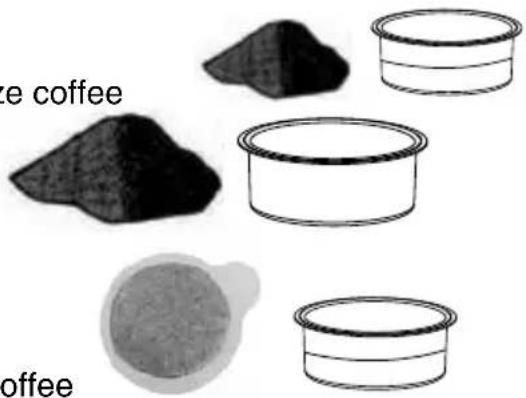

Filter Selection

Small size filter for small size coffee

Large filter for large coffee

E.S.E filter for E.S.E Pod coffee

Refilling Coffee to Filter

Following the directions in the following figures;

a. Select the desired filter and place the filter in the filter holder. Fill the filter well enough with fresh, finely ground espresso coffee. (Do not overfill).
b. Tighten the coffee with the back of the scale spoon.
c. Remove the excess coffee.

Illustration of hands pouring dark liquid from a small container into a container (no text or symbols)

Illustration of a hand using a spoon to measure a small container with liquid, no text or symbols present

Illustration of a hand using a dropper to measure a small object, with an arrow indicating rotation (no text or symbols present)

NOTE!

Before filling the filter with ground coffee for more delicious coffee, make sure the filter is not dirty with the coffee residue left from the previous brew.

NOTE!

If you are going to use E.S.E Pod, select the E.S.E Pod filter and insert the E.S.E Pod filter into the filter holder chamber.

Suggestion

For a good Espresso, place the filter and coffee in the filter holder. Apply a pressure of 15 kg to ensure that it is on the same level with the tamper. Then remove the excess coffee by hand again. Allow too little water pour from your machine. Insert the filter holder into the appliance and press the button to stop the water and stop again by pressing the same button. This way you will heat the filter holder before a hand. Then place the cup and make your coffee.

EN

Placing the Filter Holder on the Appliance

a. Place the filter holder under the brewing head.
b. Make sure that it is aligned with the 🔍 open lock icon.
c. Then, slowly turn it to the right until it is aligned with the 🔒 closed lock icon and put it into place.

Illustration of a kitchen appliance being processed with a tool, no text or symbols present

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Danger of Burn!

In order to prevent splashes, never remove the filter holder while the machine is running.

Removal of Used Coffee from the Filter Holder

a. Remove the filter holder from the appliance.
b. Push and hold the filter holder and attach it to the filter.
c. Remove the used coffee from the filter by inverting the filter holder and supporting it with your finger.

Illustration of a kitchen appliance being processed with a tool, no text or symbols present

Hand holding a small container with a lid, no visible text or symbols

Hand holding a small container with dark liquid, no visible text or symbols

Danger of Burn!

Be careful while removing the filter. Do not touch with your hand because it will be very hot immediately after use.

Placing Cup / Mug on Appliance

You must adjust the cup installation grid according to the size of the cup / mug you will use. If you are going to use a small cup, turn it over like the markings on the cup installation grid. That way, you will be raising the size of the cup.

ATTENTION!

When you are making cappuccino, latte or hot milk, adjust the milk foam dispensation tube to the cup to be used by using the handle of the milk foam dispensation tube.

Danger of Burn!

After making a milky drink, do not touch the milk foam dispensation tube as it will be too hot or wait for it to cool down or use the dispensation tube handle.

Use of The Appliance

Before using the appliance for the first time;

• Place the appliance on a fast surface and hard ground, minimum 3 cm space between the surfaces of the appliance and the side and rear walls and make sure there is at least 15 cm of free space above the coffee machine.
• Make sure all symbols are off by turning off the power switch on the side of the unit.
• Disconnect the plug from the electrical outlet.
• Remove the labels and packaging elements from the appliance.
• Remove the water tank, milk chamber, and all filters. Wash all the chambers, scale spoons/ tamping and filters with warm water or use special detergents for coffee machines. Rinse each well thoroughly and then dry. Then install each back into the appliance.

Operating the Appliance

Before each first use;

• Fill the water tank between the "Min" and "Max" levels.
• Fill the milk chamber between the "Min" and "Max" levels.
• Select one of the filters and place them in the filter holder. Place the filter holder on the appliance.
• Make sure that it is properly locked and place a cup under it. Also place the milk dispenser tube into the glass.
• Plug the appliance into the appropriate electrical outlet.
• Turn on the power switch; all symbols blink 3 times with beep.
• When all symbols are steadily lit, press the ⏻ symbol. The appliance will start and the other symbols will turn off.
• When this process is complete, all symbols will light up again.
• Your unit is now prepared and ready to use.

EN

NOTE!

Each time the appliance is used for the first time, it will warm the filter and its handle. Thus, you can enjoy the taste and aroma of the coffee in coffee making.

NOTE!

If you select and press any coffee type while the symbols are flashing, you will hear 3 beeps and this means that the machine is not yet ready. When the symbol lights are steady, you can make the selection you want.

NOTE!

Clean the appliance after each use to ensure proper operation.

NOTE!

It is recommended to turn on the appliance 15 minutes before the beverage preparation. When the appliance is on and all symbols are lit, the cup heating layer will become hot and the cups will be hot before use. Thus, you can consume your coffee more warmly and with pleasure.

Beverage Preparation

Preparing Espresso

a. Put the appropriate amount of coffee into the selected filter.

b. Choose your cup according to the selected beverage.

c. Press on the Ⓤ symbol to make small size Espresso. (40-60ml)

d. Press on the Ⓤ symbol to make large size Espresso. (90-110ml)

e. However, hold down the Ⓦ symbol for 3 seconds to adjust the brew to your taste. It brews around maximum 250 ml of Espresso.

However, you can stop by pressing the Ⓤ symbol again during brewing. In this way, you will have the amount of coffee you want.

NOTE!

The amount of coffee taken in the filter is very important to obtain a delicious Espresso coffee. If it is compressed too much, the coffee comes slowly and becomes hard. When pressed a little, the coffee flows very fast and becomes light. It is therefore ideal to apply a flat pressure of 15 kg.

NOTE!

Place two cups under the coffee flow openings to prepare 2 Espressos. Select the Large Espresso symbol or press and hold this symbol for 3 seconds.

Preparing Cappucino

Before preparing your cappuccino, adjust the preferred foam density by moving the milk chamber foam adjustment lever to the right or to the left. At the same time, the foam density can be adjusted during the brewing process.

a. Put the appropriate amount of coffee into the selected filter.
b. Choose your cup according to the selected beverage.
c. Press on the ⓤ symbol to brew small size Cappucino. (80-150 ml)
d. Press the ⓤ symbol to brew the large size Cappucino. (160-300 ml)

Danger of Burn!

The milk dispensation tube of the milk chamber is very hot after use. Allow to cool down after use.

Preparing Latte

Before preparing your latte, adjust the preferred foam density by moving the milk chamber foam adjustment lever to the right or to the left. At the same time, the foam density can be adjusted during the brewing process.

a. Put the appropriate amount of coffee into the selected filter.
b. Choose your cup according to the selected beverage.
c. Press to 🌿 brew small size Latte. (160-300 ml)
d. Press to Ⓦ brew large size Latte. (250-350ml)

EN

NOTE!

If you press the symbol of the coffee type you selected during the coffee flow, the brewing process is being interrupted and you will have less coffee than the adjusted portion, but will be making your desired amount of coffee.

Preparing Coffee with E.S.E Pod

a. Select the E.S.E Pod filter and insert a E.S.E Pod into the filter holder chamber.
b. Choose your cup according to the selected beverage.
c. Select the desired beverage type and press the symbol.

Preparing Milk Foam

Press and hold the ⓤ symbol for 3 seconds to prepare milk foam only. When you reach the desired amount, stop it by pressing the same button again. In this way, you can add it to your desired beverage or consume it plainly.

NOTE!

After preparing your drink with milk, remove the milk chamber by lifting it up. You can then store it in the refrigerator with the milk chamber. Before storing the milk chamber in the refrigerator, clean the milk chamber cap and milk dispensation tube and it will be healthier to store it in the refrigerator after reinserting the cover.

Sleep Mode

When no operations are performed for 25 minutes, the appliance will automatically enter a "sleep mode" to save energy, and all symbols except the ⚙ symbol will go off. Press the ⚙ symbol to "wake up" the appliance, all symbols will be lit again with a "beep" and return to normal status.

NOTE!

The cup heating layer of the appliance will not be working in sleep mode.

Cleaning and Maintenance

Cleaning the Milk chamber,

1. Lift the milk chamber up and out of the appliance.
2. Remove the cap of the chamber by pulling it up.
3. If there is milk in it, empty it somewhere else. Wash the milk chamber, its cap and milk dip tube with warm water or with detergent, specially designed for coffee machines. Check

that the dip tube and the dispensation tube are not clogged with milk residue. Then pour the water into the milk chamber above the minimum level and put the water below the maximum level.

1. Place a large empty glass under the milk foam dispensation tube.

5 Press the ⚙️ symbol. The appliance will start to release steam from the foam dispensation tube, make sure that clean water flows into the glass, press the ⚙️ button once to stop the operation.

6 Dispose the remaining water in the milk chamber and put it back into the unit

ATTENTION!

It is very difficult to remove dried milk residues. Therefore, clean it regularly after every use.

Cleaning of Brewing Head, Filter Holder and Filters

1. Make sure all symbols are off by turning off the power switch on the side of the unit. Unplug the appliance from the outlet.
2. Some of the metal parts can still be hot. Do not touch until cool.(danger of burns)
3. Use the filter holder to dispose the used coffee waste. Remove the metal filter. Rinse the filter holder by hand with warm water or with detergent, specially prepared for coffee machines, and rinse it thoroughly. Check that if the filter holes are clogged, and if they are clogged, clean them with a needle.
4. Wipe the bottom of the brewing head of the appliance with a damp cloth or paper towel, remove any remaining coffee residue.
   5 Place the filter holder (without the filter) back into the appliance's brewing head.
   6 Place a large empty cup /mug under the filter holder.
   7 Press the ☐ symbol and wait until the process is finished.

Cleaning the Water Tank

1. Remove the water tank by lifting it up.
2. Empty the water inside of it.
3. Clean the chamber with warm water or with detergent by hand, specially designed for coffee machines, then fill with clean water and put it back in its place.
4. If you are not going to use the appliance, dry the chamber and replace it empty.

Cleaning the Main Body of the Appliance

Unplug the appliance. Wipe the housing and the cup heating layer with a damp cloth. Never immerse the appliance in water or keep it under running water.

WARNING!!

Do not use abrasive chemical cleaners or sponges for cleaning the body or accessories of the appliance.

Water Tank Cleaning / Descaling

The mineral remains accumulated in the unit will affect the operation of the appliance. It is recommended that you clean the appliance when you begin to notice an increase in the time needed to brew espresso or when the white residue accumulates on the surface of the brewing head.

The frequency of cleaning depends on the hardness of the water being used. The following table lists the recommended cleaning intervals.

RECOMMENDED CLEANING INTERVAL
Water Type Cleaning Frequency
Soft water (filtered water)	Every 80 times of usage
Hard Water (Tap water)	Every 40 times of usage

1. Unplug the appliance.
2. Fill the chamber with undiluted white vinegar over the minimum level.
3. Leave the water tank with vinegar inside overnight.
4. At the end of a day, remove and empty the chamber.
   5 Wash and rinse the water tank with warm water and rinse it twice.

Descaling the Internal Parts of the Appliance

1. Clean the water tank by following the steps above.
2. Make sure that all symbols are off and the plug is unplugged from the electrical outlet by pressing the power switch on the side of the appliance.
3. Fill the chamber with white vinegar above the minimum level.
4. Insert the filter holder (with filter and coffee) into the appliance and place a cup on the cup installation grid.
   5 Plug the power cord in the outlet.
   6 Press the power button to turn on the appliance, the symbols will flash. When the symbols are steady, press Ⓦ for 3 seconds. The vinegar will flow through the unit and will stop automatically at the end of the operation.
   7 Place a large empty cup (at least 325 ml) onto the cup installation grid again. Fill the milk chamber with water and install it into the appliance. Press and hold the ⏻ symbol for 3 seconds. Water will flow through the milk tubes and provide cleaning. Stop the process by pressing the same symbol after about 30 seconds.
   8 Repeat the same procedure for 1 to 7 times using tap water to remove any residual

vinegar odor and residues.

Cleaning the Drip Collection Chamber

The drip collection chamber must be cleaned periodically. Doing so may cause water to run over the edges and damage the appliance. Follow the steps below to clean the drip collection chamber.

1. Remove the drip collection chamber by lifting it up.
2. Remove the cup installation grid and drain the water.
3. Clean the chamber and grind with water with warm detergent.
4. Dry the drip chamber and grind and place it back into the appliance.

NOTE!

For all cleaning operations, use special detergents for coffee machines. Other detergents will spoil the taste and aroma of coffee.

Storage

If it is not going to be used for a long time, clean the appliance and make sure it is dry. Pack the filter holder, separate the milk chamber without the accessories attached to the appliance. Store the appliance and its accessories in a dry, well-ventilated place, away from animals, away from children, in direct sunlight after packaging.

NOTE!

Before you call Customer Service, check whether you can correct the problem/ fault yourself.

For this purpose, please see the "TROUBLESHOOTING" section. If you can not resolve the problem/error, please call Customer Service: Before calling please make ready the model name and product serial number. You can find this information on the TYPE LABEL of your product. Hotline Germany: ([phone]

Problem Possible	Cause Remedy
Apliance does not turn on	Appliance is unplugged. Plug the appliance
	Power switch off Turn on the power switch
No coffee flow or minimum flow	No water in the water tank.	Fill the water tank with water.
	The coffee rate in the filter is high. Reduce the coffee amount
	The coffee is too compressed in the filter.	Do not compress too much coffee.
	The coffee machine is not plugged in. Plug in.
	The appliance has scaling	Apply the descaling process for the appliance as described in the cleaning section.
	Coffee was taken too thin.	Increase the thickness of the coffee.
During brewing coffee, the coffee overflows through the coffee holder	The filter holder is not fully locked.	Lock the filter holder fully into the brewing head.
	The seal of the brewing head has lost its elasticity or it is dirty.	Replace the brewing head seal from authorized service and clean the brewing head.
	Filter holes are clogged	Clean the holes of the filter holders
	There is too much coffee in the filter.	Reduce the coffee on the filter.
Milk is not foaming enough or milk does not come from the milk foam dispensation tube.	The water in the chamber is depleted.	Fill the water tank with water.
	Milk is not cold enough.	Replace the milk in the milk chamber with cold milk.
	Milk foam dispensation tube is blocked	Clean the milk foam dispensation tube.
	The appliance may be scaled. Descale the appliance.
Coffee flows very fast	Coffee thickness is high. Thin coffee thickness.
	There is not enough coffee in the filter.	Increase the rate amount of coffee in the filter.

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

Electrical waste must not be disposed of together with household waste. Dispose of the device according to the environmental regulations applicable in your country.

The packaging of the device consists of recycling-capable materials. Throw out them in suitable recycling bins.

This appliance complies with AEEE Regulation.

Shipping

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance. Keep the original package.

NOT / NOTES

Illustration of three different containers: two large piles and one empty, with no text or symbols present.

Two simple circular diagrams: one with a textured outer ring and the other with a cylindrical base (no text or symbols)

Filtreye Kahve Dolumu

Illustration of hands pouring dark liquid from a small container into a cup (no text or symbols)

Illustration of a hand using a spoon to measure a small container with liquid, no text or symbols present

Illustration of a hand using a spoon to measure a small container with an arrow indicating rotation (no text or symbols)

NOT!

Illustration of a kitchen appliance with a pot and a hand using a tool (no text or symbols)

Mechanical diagram showing a cylindrical component with an arrow indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Yanma Tehlikesi!

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Illustration of a hand using a tool to lift a container (no text or symbols)

Hand holding a small container with dark liquid, no visible text or symbols

Yanma Tehlikesi!

Two objects: a dark irregular object and a cylindrical container (no text or symbols)

Two simple circular objects: a textured circular object and a cylindrical container (no text or symbols)

Illustration of hands pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a dropper to measure a small container with liquid, no text or symbols present

Illustration of a hand using a dropper to measure a small object, with no visible text or symbols.

ПРИМЕЧАНИЕ!

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Опасность Ожога!

Line drawing of a kitchen setup with a pot and hand holding a tool (no text or symbols)

Illustration of a hand using a tool to lift a small container (no text or symbols visible)

Hand pouring dark liquid into a glass bell jar (no text or symbols visible)

Опасность Ожога!

1. Despite the meaning of the CE를 مصيفات成為 her native, it's not to be a non-lingible character.

2. مجالات الاستخدام

الاستخدام غير المصرح به 93

ال Authentic: 15 بار

Illustration of four different containers: two dark powders and three empty containers, with no text or symbols present.

E.S.E Pod فلتر

Illustration of hands pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a tool to press or adjust a small object, with no visible text or symbols.

Illustration of a hand using a spoon to measure a small object, with no visible text or symbols

ملاحظة

Line drawing of a kitchen appliance with a hand holding a tool, no text or symbols present

Diagram of a mechanical device with a rotating shaft and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

خطر الاشتعال!

Illustration of a hand using a tool to press a cooking pot (no text or symbols visible)

Line drawing of a hand using a tool to lift a small container (no text or symbols)

Illustration of a hand using a tool to lift a container (no text or symbols visible)

アプリ assistsignal!

Fakir customer service/

Kundenservice:

Rights to make changes are reserved. Subject to revision

92 09 994 - 9911
