Product Type	Hand Mixer
Brand	Fakir
Model	Sierra
Power Consumption	425 W
Voltage / Frequency	220-240 V / 50 Hz
Protection Class	II
Lifetime	7 Years
Speed Settings	4 speeds (1-4) + Turbo function
Accessories Included	2 beaters, 2 dough hooks, storage box
Attachment Release	Eject button
Intended Use	Household only; mixing, beating, whipping, kneading
Safety Features	Auto shut-off (not specified), overheat protection (not specified), child safety warnings
Cleaning	Motor unit wipe with damp cloth; beaters/dough hooks wash in warm soapy water
Not Dishwasher Safe	Accessories not specified as dishwasher-safe; recommend hand wash
Weight	Approx. 1.2 kg (estimated)
Dimensions (L x W x H)	Approx. 20 x 10 x 15 cm (estimated)
Certifications	CE, WEEE compliant
Warranty	Refer to Fakir authorized service; not specified in manual

Frequently Asked Questions - Sierra FAKIR

What is the power of the Fakir Sierra hand mixer?

The Fakir Sierra hand mixer has a power of 425 W.

What voltage and frequency does the mixer require?

It requires 220-240 V and 50 Hz.

How many speed settings does it have?

It has 4 speed settings (1 to 4) plus a Turbo function for maximum speed.

What accessories come with the mixer?

It includes 2 beaters, 2 dough hooks, and a storage box.

How do I remove the beaters or dough hooks?

Switch off and unplug the appliance, press the Eject button, and pull the attachments out.

Can the mixer be used for kneading dough?

Yes, use the dough hooks for mixing and kneading dough.

How should I clean the mixer?

Wipe the motor unit with a damp cloth. Wash the beaters and dough hooks in warm soapy water and dry thoroughly. Do not immerse the motor unit in water.

Is the mixer suitable for commercial use?

No, it is designed for household use only. Commercial use may void warranty.

What safety precautions should I take?

Always unplug before cleaning or attaching parts, keep away from children under 3, do not use outdoors, and ensure the voltage matches.

What should I do if the mixer does not operate?

Check if it is plugged in, switched on, and the socket has power. If the power cord is damaged, contact Fakir Authorized Service.

USER MANUAL Sierra FAKIR

Exterior view of a Fakir Sierra electric shaver with gray base (no text or symbols on device body)

SIERRA

DE Handmixer

EN Hand mixer

TR El Mikseri

RU Ручной миксер

AR خライト اليد

Benutzerhandbuch

User Manual

Kullanım Kılavuzu

On the Operating Instructions....14

Meanings of the Symbols 14

Liability 14

EC Conformity Declaration....15

Intended Use 15

Unauthorized Use....15

Safety is Important 17

Safety Warnings 17

Unpacking....19

Parts Description....19

Technical Information....20

Usage 20

Cleaning and Maintenance of the Appliance 21

Troubleshooting 21

Recycling 21

Dispatch....21

EN

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir Sierra Hand Mixer produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!

Indicates notices which if ignored, can result in risk of injury or death.

CAUTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir does not assume any responsibility.

EC Conformity Declaration

This appliance fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate. Use of accessories not supplied by Fakir reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

• This appliance is not suitable for people who are not mentally stable or who do not have enough information to use such appliances. Please do not let these people use the appliance.
• This electric appliance is not a toy. So please never let children play with the appliance and be more careful when there are children.
• Keep small items of packaging and plastic bags away from children. Otherwise they may harm themselves by swallowing them, especially packaging bags may cause danger of suffocation.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
• Children shall be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Safety is Important

• Read these operating instructions carefully before using the appliance for your safety and others'. Keep this manual in a safe place for future use.
• When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;
• Before using the appliance, make sure your mains voltage is compatible with the appliance voltage.
• This device is not a toy. So please never let your children play with the appliance and be more careful when there are children.
• Before the first use, check the appliance for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

Safety Warnings

• Following simple safety measures must be taken while using this electrical appliance;
• Please read the user manual before you use the appliance.
• Ensure that your mains voltage match the appliance voltage by checking the type label.
• If the cable, plug or another part of the appliance is damaged, do not use it. If the cable, plug or another part of the appliance is damaged, in order to avoid any damage, it must be replaced at a Fakir Authorized Service.
• Close supervision is necessary for all devices used by children or nearby children
• Use of accessories not supplied by Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. may result in fire, electric shock, or personal injury.
• Never clean the appliance with cleaners, steel woolpads, or other abrasive materials.
• Do not touch the moving parts where the attachments are placed.
• Make sure that the appliance is switched off before connecting or

EN

disconnecting it from the power supply.

• Always handle with care when using the appliance.
- Do not try to unplug the appliance by pulling on the power cord. Keep the power cord away from heat and prevent it from hanging from the corners of the table / kitchen counter.
- Do not ever use the appliance outdoors.
- Keep the motor unit from water or environments with excessive humidity.
• Always operate the appliance only with dry hands.
- Never try to attach the beaters or dough hooks to the main body while the appliance is still connected to the power supply. The appliance plug must be unplugged before placing the attachments.
- Do not try to clean the beaters or dough hooks under running water while they are still connected to the appliance. Before washing the attachments, always remove them from the appliance.
- When using the appliance, make sure that the beaters or dough hooks do not touch its cable.
- If the power cord is damaged during use, unplug the appliance from the power supply immediately. Never touch the power cord before disconnecting from the power supply.
- Disconnect the appliance from the power supply when not in use, before placing, removing parts or before cleaning.
- All repairs for the device must be carried out by an authorized Fakir Authorized Service.

KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

CAUTION!

Please read the safety rules and operation instructions written in the user manual. Keep this user manual for future use.

Unpacking

Before first use, unpack the appliance end its accessories, check for damages and defects. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

- Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

WARNING!

Never use a defective appliance.

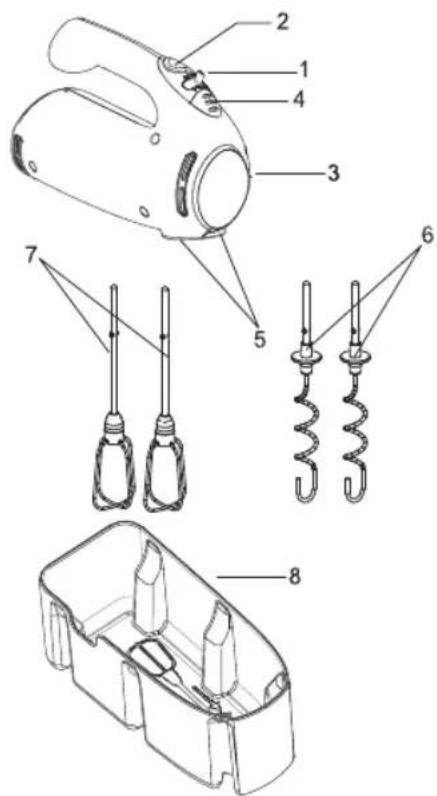

Parts Description

1. Speed setting button

2. Turbo button

3. Motor unit

4. "Eject" button to dismount the accessories

5 Mounting holes for beaters / dough kneaders

6 Kneading kit

7 Beaters

8 Accessories holding box

EN

Technical Information

• Power : 425W
  • Voltage : 220-240V/50Hz
• Protection class : II
• Lifetime : 7 Years

Using the appliance with beaters or dough hooks;

• Use beaters of the appliance for mixing, beating, whipping and creaming liquids and mixtures.
• Use dough hooks for mixing and kneading dough.
• Attaching the beaters or dough hooks to the appliance;
• Switch the appliance off and unplug it.
• Place one of the beater or dough hook into one of the mounting holes in the motor unit.
• Push and turn the beater or dough hook until it locks into its place
• Repeat the process for the other beater or dough hook.
• Removing the beaters or dough hooks;
• Switch the appliance off and unplug it,
• Keep pressing the "Eject" button,
• Pull the beaters or dough hooks out of the motor unit.

Usage

• To switch on the appliance, slide the speed control switch to one of the positions from 1 (lowest speed) to 4 (highest speed). It is recommended to start using the appliance at a low speed, and then change to a higher speed if necessary.
• To switch off the appliance, slide the switch to position "0"
• Use “Turbo” function button for maximum speed directly. For safety conditions, the “Turbo function” cannot be used when the main switch is at “0” position.

Food Quantity	Preparation Method Time
Butter Margarine and honey mixture	300 gr butter or margarine 550 gr honey	Butter taken from the freezer.(should be kept in the freezer min 4hours and cut in pieces of size approx. 10-15mm x 35-40mm).Honey taken from the refrigerator (should be kept min 1 day).	10 sec.

• When mixing liquids with the appliance, use a low speed in order to avoid splashing liquid onto it.
• Firmly hold the container that you are using the mixer inside.

Cleaning and Maintenance of the Appliance

• Before cleaning the appliance, switch the appliance off and unplug it.
• Wash the beaters and dough hooks in warm soapy water and dry thoroughly.
• You can wipe the motor unit with a damp cloth. Do not immerse the motor unit in water. Never clean the appliance with cleaners, steel woolpads, or other abrasive materials.
• Do not immerse the skin in water or any liquid.

Troubleshooting

Your appliance is processed via Quality Control against any malfunction.

Fault Possible Cause Solution
Appliance Does Not Operate	Appliance is unplugged.Appliance is not turned onThere's no power in the socket.Power cord is damaged	Plug the applianceTurn on the applianceTry another outletTake appliance to be repaired

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

According to the applicable laws in your country, leave the appliance to the waste bins identified specially for such devices.

Electrical waste must not be disposed of together with household waste.

Dispose the device to the waste baskets designated for electrical waste.

The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

This appliance is compatible with WEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.
