| Product Type | Inflatable Pool with Filter Pump |
| Brand | Crivit |
| Model | Z31152 |
| Pool Dimensions (Diameter x Height) | Approx. 305 cm x 76 cm |
| Maximum Filling Height | 56 cm |
| Water Capacity | Approx. 3400 L |
| Support Ring Pressure | 0.58 psi (0.04 bar) |
| Material | PVC |
| Filter Pump Model | FP-602LV |
| Filter Pump Voltage | 12 V ~, 50 Hz |
| Filter Pump Power | 24 W |
| Maximum Flow Rate | 1100 L/h |
| Max Water Temperature | 35 °C |
| Protection Class (Pump) | IPX8 |
| Mains Adapter Model | AD-55 |
| Mains Adapter Input | 230 V ~, 50 Hz |
| Mains Adapter Output | 12 V ~, 2 A |
| Protection Class (Adapter) | IP24 |
| Included Accessories | Pool membrane, pump, 4 clamps, 4 locking screws, 2 hoses, 2 filter meshes, repair kit, measuring strip, mains adapter, assembly instructions |
| Intended Use | Private outdoor bathing, swimming, paddling |
| Safety Features | Never operate pump when people are in pool; electric shock protection; anti-drowning warnings |
Frequently Asked Questions - Z31152 CRIVIT
User questions about Z31152 CRIVIT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual Z31152 - CRIVIT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Z31152 by CRIVIT.
USER MANUAL Z31152 CRIVIT
Assembly and safety advice
DE AT CH
SWIMMING-POOL
GB / MT Assembly and safety advice Page 18
Intended Use Page 19
Description of parts and features....Page 19
Technical data Page 19
Included in delivery....Page 19
Safety advice Page 19
Safety advice for filter pumps....Page 20
Safety advice for swimming pools Page 20
Before installation Page 20
Bringing into use
Assembling the pool Page 20
Connecting the filter pump Page 21
Draining the water Page 21
What to do in an emergency Page 21
Maintenance Page 21
Cleaning and care Page 21
Disposal Page 22
Information
Declaration of Conformity....Page 22
Inflatable Pool
- Introduction
Before using the product for the first time, take time to familiarise yourself with the product first. Read the following assembly instructions and safety instructions carefully. Only use the product as described
and for the designated areas of application. Please keep these instructions in a safe place. If you hand this product on to a third party, you must also pass on all documents relating to the product.
- Intended Use
This article is intended for use for bathing, swimming and playing / paddling. The filter pump is intended for cleaning the water in the pool. This product is intended for private, outdoor use only. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.
● Description of parts and features
1 Pool membrane
2 Support ring
3 Air valve (above-ground swimming pool)
4 Inlet
5 Outlet
6 Drain
7 Filter pump
8 Pump inlet
9 Clamp
10 Locking screw
11 Hose
12 Filter mesh
13 Pump outlet
14 Mains lead with mains adapter
15 Air valve (filter pump)
16 Air pressure gauge
17 Measuring strip
- Technical data
Swimming pool
Dimensions: approx. x 76 cm (ø x 105
Max. filling height 56 cm
Volume: 3400
Weight: 3400 kg (filled with water)
Material: PVC
Nominal pressure
of the support ring: 0.58 psi (0.04 bar)
Filter pump
Model: FP-602LV
Rated voltage: 12V\~, 50Hz
Rated power input: 24 W
Protection class:
Protection level: IPX8
Max. flow (Qmax): approx. 1100 l/h
Max. water temperature: 35 °C
Mains Adapter
Model: AD-55
Rated voltage: 230V\~, 50Hz
Rated output values: 12 V \~, 2 A
Protection class:
Protection level: IP24
- Included in delivery
Note: When opening the packaging, please make sure not to accidentally throw away assembly materials.
Please check immediately on unpacking that the delivery is complete and that the product and all parts are in perfect condition. Do not under any circumstances assemble the product if the delivery is incomplete.
1 x Pool membrane
1 x Pump
4× Clamps
4x Locking screws
2x Hoses
2 x Filter meshes
1 x Repair kit (1 x plastic film, 1 x laminated plastic film, 1 x repair instructions)
1 x Measuring strip
1x Mains adapter
1 x Assembly instructions
Safety advice
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
Avoid the risk of injury!
■
WARNING! RISK OF LOSS OF LIFE OR ACCIDENT
TO INFANTS AND CHILDREN! Never leave children un-
supervised with the packaging material or the product. The
packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation and / or drowning. Children often underestimate danger. Always keep the product out of reach of children.
This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.
This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or with insufficient experience and / or knowledge, unless they are supervised by a person who is responsible for their safety or they have received instruction on how to use the device from such a responsible person. Children must never be allowed to play with the device.
CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can effect safety and function.
■ Make sure that the product is only assembled by competent persons.
- Do not use the device / product if it is damaged.
Avoid the danger of death from electric shock!
!
WARNING! DANGER TO LIFE! Never use the filter pump 7 if
there is anyone in the water.
Before use, ensure that the mains voltage available is the same as the required operating voltage for the filter pump 7 and adaptor 14.
Before connecting the device to the mains you should always check the device and the mains lead for any damage.
A damaged device represents the danger of death from electric shock.
Do not use the device if you find any damage.
Please consult a specialist electrician if you discover any damage or problems with the device, or for the performance of repairs to the device.
- Never open any of the electrical equipment or insert any objects into it. Such interventions represent the danger of death from electric shock.
Safety advice / Before installation / Bringing into use
■ Never attempt to repair the device yourself. Have the device repaired by a suitably experienced person.
■ Never let the mains lead come into contact with water or other liquids.
■ Never touch the mains plug with damp or wet hands.
Do not use the mains lead for purposes for which it was not intended, e.g. allowing an electrical device to hang from it when being carried or to pull the plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
If the mains lead or mains plug of the filter pump 7 is damaged, the filter pump 7 must be scrapped! It cannot be replaced!
Observe the regulations governing connections to electrical power supply outlets applicable in your country before connecting the device. Contact an electrical specialist if you have any questions.
The filter pump 7 and adaptor 14 must always be connected to a properly installed shockproof power socket, which is supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA!
■ Position the device and all electrical installations and connections in a place that cannot be flooded.
■ Make sure that the device is protected from splash water.
- Carry out any tasks on the device only if the mains plug is disconnected from the mains supply.
Safety advice for filter pumps
■ Never touch the pump inlet 8 or pump outlet 13 when the filter pump 7 in operating. Failure to observe this advice may result in injury.
Do not operate the filter pump 7 if there is no water in the pool. Failure to observe this advice may result in damage to the product.
- Check the filter pump 7 regularly for escaping lubricating oil, otherwise the water may be polluted.
- Ensure that the pool is free of foreign objects that could be sucked into the filter pump 7. Failure to observe this advice may result in damage to the product.
Safety advice for swimming pools
■
WARNING! DANGER TO LIFE FROM
DROWNING! Never leave children or non-swimmers unsupervised in the pool. Danger to life from
drowning. Never allow anyone to be left alone in the pool. Make sure that at least one person who knows how to operate the pool is always present.
■
WARNING! DANGER TO LIFE! Never dive or jump into the pool. The depth of water is very shallow and the result could be loss of life or injury.
WARNING! DANGER TO LIFE! Never allow non-swimmers in the pool without flotation aids and / or life jackets.
- Place a fence around the pool to make it secure from infants and small children.
- Keep the pool free of dirt and algae. Make regular use of chemicals specially intended for swimming pools to avoid pollutants and colonisation by bacteria. Ask a specialist pool equipment dealer about suitable chemicals for your pool.
Never add chemicals just as the pool is about to be used or when there is anyone in it. Ignoring this advice may lead to skin and eye irritation. Never add chemicals if you do not know their effect and correct dosage. Instead find out the details from a pool equipment dealer.
Test the pH value and chlorine content of the water regularly. Ask a pool equipment supplier about suitable tests. - Check all accessories and materials regularly for rust, wear and/or other damage.
Note that the product is a seasonal product. Put the product way tidily if it is not to be used for a long period. - Ensure that the supporting surface below the pool bottom is level, flat and free of objects and pointed stones. Failure to observe this advice may result in injury and / or damage to the product.
- Before installation
□ Select a suitable location for the pool.
CAUTION! DANGER OF INJURY! Never try to move the pool if it is filled with water. This could result in injury.
CAUTION! The pool must be placed more than 3.5 m away from the adaptor 14 and the power socket (see fig. E)!
CAUTION! The filter pump7 must be placed more than 2 m away from the pool (see fig. E)!
☐ Ensure that the maximum possible safety distance is achieved between the pool and the pump 7 and the adaptor 14 and a safety distance between the pool and any electrical power outlet socket should also be ensured. The maximum possible safety distance is limited by the lengths of the hose and the mains lead (see fig. E).
☐ The filter pump 7 must be vertically fixed to the ground or a certain pedestal made of wood or concrete! Use the holes in the base of the filter pump 7 and fix it with screws! The pedestal must weight 18 kg at least to prevent the filter pump 7 from falling over!
☐ Ensure that the supporting surface is solid, flat and even.
CAUTION! If the supporting surface is uneven, the installed and water-filled pool could overturn, resulting in injury and / or damage to the product.
☐ Ensure that the supporting surface is free of pointed objects and stones.
☐ Do not set up the pool directly under high voltage lines or under trees. Ensure that there are no services pipes or cables below the supporting surface.
● Bringing into use
- Assembling the pool
CAUTION! Do not drag the pool membrane 1 over the ground. It could tear. Note: You will require a hand-operated pump for this stage of the work.
- Unfold the pool membrane 1 carefully so that it lies flat on the supporting surface (see Fig. A).
- Then check all the seams and surfaces for damage.

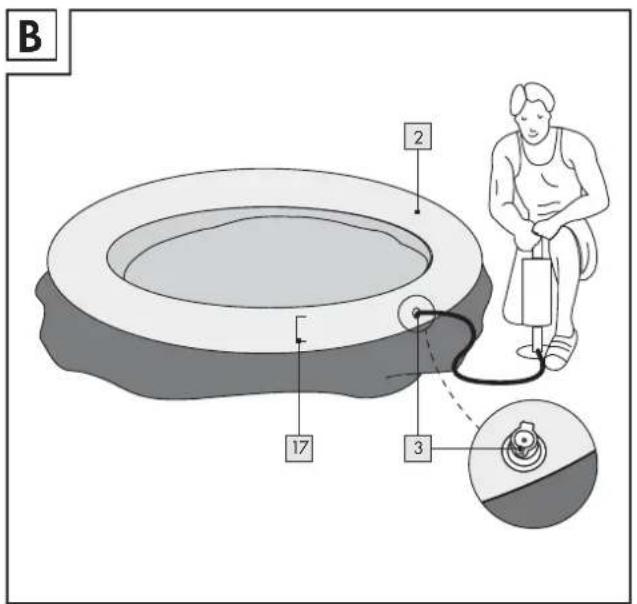

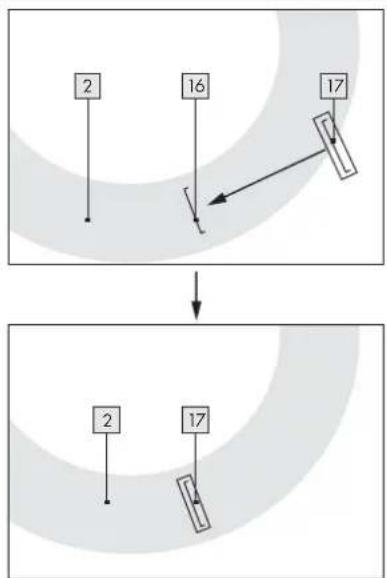

- Carefully pump up the support ring 2. When doing this, ensure that the support ring 2 lies on top of the pool membrane 1 (see Fig. B).
CAUTION! Ensure that the support ring is inflated to the rated pressure 0.58 psi (0.04 bar) exactly. To check the inflation pressure there is an air pressure gauge 16 printed on the pool. Please refer to picture G. Place the supplied measuring strip 17 onto the air pressure gauge 16. If both have exactly the same length the rated pressure is reached. Stop pumping then. Please refer to pictures D and G. Do not inflate the support ring 2 beyond this point, otherwise the support ring 2 could burst or the seams tear.
IMPORTANT! Keep in mind that air temperature and weather conditions can affect the air pressure inside inflatable products. In cold weather the product behaves as if it has less air pressure in it because the air inside contracts. Under these conditions you may have to add air. In hot weather the air inside expands. Under these conditions may have to remove air in order to avoid overfilling.
- Close the inlet 4, outlet 5 and the drain 6 on the inside of the pool.

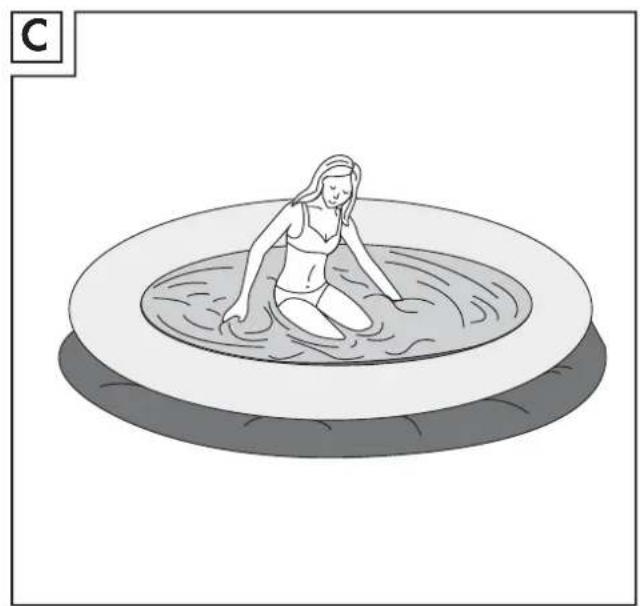

- Introduce a maximum of 2 cm water into the pool using a garden hose and smooth out any kinks and folds in the pool membrane from the inside. At the same time press the transition between the pool bottom and wall outwards (see Fig. C). Alternatively you can grasp the pool floor from below and pull it outwards to get it smooth.
Note: Check again that the pool is standing on a level surface.
- Now fill the pool with water using a garden hose.
CAUTION! DANGER OF INJURY! Avoid uneven distribution of water. If the water is not uniformly distributed or the pool inclines to the side then this indicates that the supporting surface is not level enough. Stop filling the pool immediately. Drain the water (see "Draining the water") and find a new suitable location.
CAUTION! DANGER OF INJURY! Never try to move the pool if it is filled with water. This could result in injury.
Bringing into use / What to do in an emergency / Maintenance / Cleaning and care
-
Monitor the pool the whole time during filling. The pool wall and the support ring 2 should rise as more and more water is introduced. Ensure that the pool is filling evenly and does not leak.
-

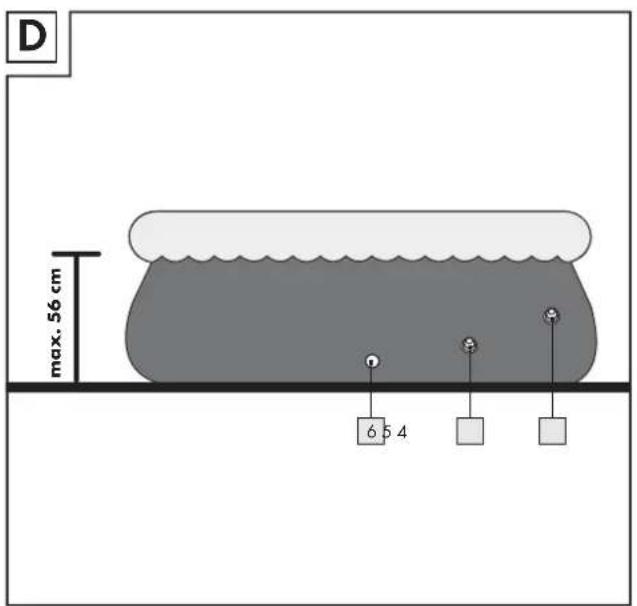

Stop filling as soon as the water reaches the underside of the support ring 2 and the pool wall is stable (see Fig. D). The maximum filling height is 56 cm.
CAUTION! DANGER OF INJURY! Never exceed the maximum filling height.
CAUTION! Ensure that no one jumps, lies or leans on the supporting ring. This can affect the stability of the pool, resulting in flooding, injury and/or damage to the product.
Your pool is now ready for use.

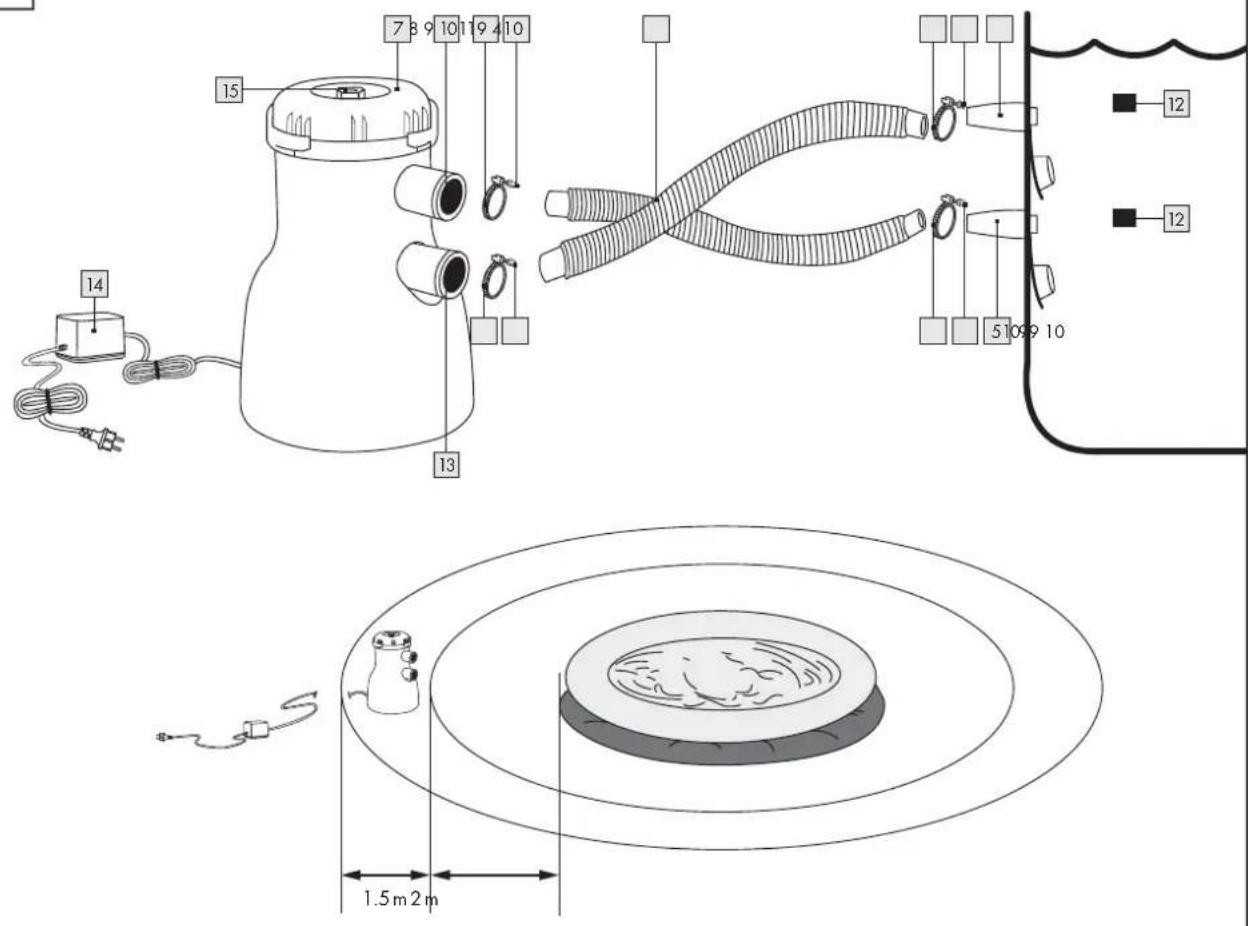

- Connecting the filter pump
WARNING! DANGER TO LIFE! Never use the filter pump 7 if there is anyone in the pool.
CAUTION! Do not operate the filter pump 7 if there is no water in the pool. Failure to observe this advice may result in damage to the filter pump 7.
☐ Select a suitable location for the filter pump 7.
WARNING! DANGER TO LIFE FROM ELECTRIC SHOCK! Ensure that the maximum possible safety distance is achieved between the edge of the pool and the pump 7. Note: Ensure that there is a properly installed electrical power outlet socket within reach of the mains lead 14.
TIP! Place the filter pump7 at least 20 cm below the level of the surface of the water to obtain the best performance.
☐ Push one end of the hose 11 on to the inlet 8 of the filter pump 7. Attach the hose 11 in place with the clamp 9 and locking screw 10. Tighten the locking screw 10 (see Fig. E).
☐ Connect the other end of the hose 11 to the outlet 5 on the outside of the pool wall. Attach the hose 11 in place with the clamp 9 and locking screw 10. Tighten the locking screw 10 (see Fig. E).
☐ Push one end of the hose 11 on to the outlet 13 of the filter pump 7. Attach the hose 11 in place with the clamp 9 and locking screw 10. Tighten the locking screw 10 (see Fig. E).
☐ Connect the other end of the hose 11 to the inlet 4 on the outside of the pool wall. Attach the hose 11 in place with the clamp 9 and locking screw 10. Tighten the locking screw 10 (see Fig. E).
Open the inlet 4 and outlet 5 on the inside of the pool wall and place a filter mesh 12 on the inlet 4 and outlet 5 (see Fig. E).
Open the air valve 15 on top of the pump by turning it clockwise to release air from the pump.
□ Wait some time to allow the chambers of the filter pump 7 to fill with water.
☐ Close the air valve 15 when water comes out of the opening. Thoroughly dry the water from all parts of the pump 7 and the ground. Dry your hands.
Connect the mains lead 14 to a properly installed electrical power outlet socket.
☐ Remove the filter pump 7 in the reverse order.
- Draining the water
WARNING! DANGER TO LIFE FROM ELECTRIC SHOCK!
Always disconnect the mains lead 14 from the mains socket before you drain any water from the pool.
CAUTION! Always drain water from the pool if the maximum filling height (56 cm) has been exceeded due to rainwater or the like. Failure to observe this advice may result in injury and / or damage to the product.
☐ Ensure that the drain 6 on the inside of the pool wall is fully closed.
Open the drain 6 on the outside of the pool wall and push a garden hose on it (see Fig. F).
Place the other end of your garden hose somewhere where the water can drain away safely - e.g. into an outfall or gully.
☐ Now close the inlet 4 and outlet 5 on the inside wall of the pool.
☐ Now release the locking screws 10 of the clamps 9 and pull off the two hoses 11 from the inlet 4 and outlet 5 on the outside wall of the pool (see Fig. E).
Open the drain 6 on the inside wall of the pool. The water begins to drain immediately.
☐ Remove the garden hose from the drain ☐ on the outside of the pool wall as soon as there is no more water in the pool (see Fig. F).
☐ Close the drain 6 on the inside wall of the pool.
● What to do in an emergency
WARNING! DANGER TO LIFE! In the event of an emergency follow the instructions below.
- Pull the person who has had the accident out of the water immediately.
- Call the emergency services immediately.
- Remove any wet clothing from the person and cover him, e.g. with blankets, to keep him warm.
- Maintenance
WARNING! DANGER TO LIFE! Always observe the following maintenance instructions. Failure to do so risks injury and loss of life - especially for children.
- Careful testing of the water (pH value and chlorine content) is essential for good water quality and the product to provide a long service life. Therefore it is important to test pH value and chloride content regularly. Ask a pool equipment supplier about suitable testing kits and how to use them. - Never allow chlorine compounds to come into contact with the pool membrane 1 before they have been completely dissolved in water. Dissolve the granulated chlorine compounds or tablets in a bucket of water first and only then add them to the water in the pool. Add the chlorine compound solution to the water at different points so that it can mix directly with the water in the pool.
CAUTION! DANGER OF INJURY! Always add the chemicals to the water - never the other way around.
☐ Never mix different chemicals together directly. Add chemicals one at a time to the pool water and wait until each chemical has mixed with the pool water. Only then may a further chemical be added.
Read carefully and observe the manufacturers' instructions.
☐ We recommend that the filter pump 7 be used every day if the pool is frequently used during the season. Ensure that the filter pump 7 runs long enough for all the water in the pool to be filtered.
Check the pressure of the air in the support ring 2 daily.
☐ Check the filling height of the water in the pool daily.
- Cleaning and care
☐ Regularly check and clean the filter element inside the filter pump body. Unplug the power cord. Unscrew the head of the pump and take out the filter element. Rinse off with clear water and remove foreign objects. Insert it into the pump body. Ensure to position it centered, when closing the head of the pump.
☐ Use a slightly damp, fluff-free cloth for cleaning the product.
☐ Do not use corrosive or abrasive cleaning agents.
☐ Minor repairs can be carried out by using the repair kit. Follow the operation instructions. For larger repairs contact your spezialised store.
Do not expose the product to extreme weather conditions such as extreme temperature, wind and rain.
Do not allow the product to be subjected to frost.
☐ Ensure that the inside and outside of the product are completely dry if you intend to store it indoors for a long period. Failure to observe this advice could result in the build-up of mildew and mould.
Store the product in dark, dry place - out of reach of children.
☐ The ideal storage temperature is between 10 and 20 °C.
Disposal/Information
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Information
Declaration of Conformity
We, Milomex Ltd., c / o Milomex Services, Hilltop Cottage, Barton Road, Pulloxhill, Bedfordshire, MK45 5HP, UK, hereby declare under our sole responsibility that the products: filter pump, Model No.: FP-602LV and mains adaptor, Model No.: AD-55, Version: 02 / 2012, to which this declaration refers, complies with the standards / normative documents of 2006 / 95 / EC.
Related harmonized standards: EN60335-1, EN60335-2-41, EN62233.
Heavenersfirling
Only for filter pump FP-602LV and mains adaptor AD-55
EMC
CE
Einleitung
E
F
IAN 71954
Milomex Ltd.
c/o Milomex Services
Hilltop Cottage
Barton Road
Pulloxhill
Bedfordshire
MK45 5HP
UK
Model No.: Z31152
Version: 02/2012
© by ORFGEN Marketing
