MWP-16 - Fan MPM - Free user manual and instructions

Product Type	Table Fan
Model	MWP-16
Brand	MPM
Power Supply	220-240 V ~ 50 Hz (typical, check rating label)
Power Consumption	31.2 W
Standby Power Consumption	0 W
Maximum Airflow	30.35 m³/min
Sound Power Level	50.5 dB(A)
Maximum Air Speed	2.351 m/s
Service Value	0.97 (m³/min)/W
Seasonal Electricity Consumption	9.984 kWh/a
Number of Speed Settings	3 (I, II, III) plus Off (0)
Oscillation	Yes, with push-button on motor cover
Adjustable Tilt	Yes, tilt fan head manually
Power Cord Length	1.50 m
Safety Features	Front and rear mesh guards, overheat protection not specified
Cleaning and Maintenance	Unplug before cleaning; wipe motor cover, controls, base with damp cloth; clean mesh guards with brush; remove propeller for cleaning
Use	Household indoor use only; not for outdoor or high humidity areas
Assembly Required	Yes, attach rear guard, propeller, front guard, and assemble base

Frequently Asked Questions - MWP-16 MPM

How do I assemble the MWP-16 fan?

First, remove protective films. Screw the protective nut for the rear guard onto the motor pin, mount the rear guard with handle facing up, and tighten the nut. Install the propeller onto the motor pin and tighten the propeller nut counter-clockwise. Attach the front guard by hooking it to the rear guard, align the fixing holes, lock the hooks, and tighten the fixing bolt and nut. Finally, place the speed controls cover onto the base and secure from underneath with four screws.

How many speed settings does the MWP-16 have?

The fan has 3 speed settings plus an off position. The control knob positions are: '0' for off, '1' for low speed, '2' for medium speed, and '3' for high speed.

How do I activate the oscillation function?

Press the oscillation button located on the motor cover to start automatic side-to-side movement. Press again to stop oscillation.

Can I use the fan in a bathroom or near a window?

No. Do not place the fan near open windows or in high humidity areas like bathrooms, as raindrops or moisture can cause a short circuit and electrical shock. The fan is intended for indoor household use only.

How do I clean the fan?

Always unplug the fan before cleaning. The motor cover, controls cover, and base can be wiped with a damp cloth and mild detergent. The mesh guards can be brushed to remove dust. For a thorough clean, remove the propeller and wipe it with a damp cloth and detergent.

What is the noise level of the MWP-16?

The sound power level of the MWP-16 is 50.5 dB(A). This is measured according to standard EN 60704-1 and EN 60704-2-7.

What is the power consumption and airflow?

The fan consumes 31.2 W of power and delivers a maximum airflow of 30.35 m³/min. The service value is 0.97 (m³/min)/W, and the seasonal electricity consumption is 9.984 kWh/a.

Is the fan safe to use around children?

Children under 8 years should be supervised. The fan must not be operated without the front and rear guards properly installed. Keep the appliance and cord out of reach of children under 8. Packaging materials like plastic bags should be kept away to avoid suffocation.

What should I do if the power cord is damaged?

Do not use the fan if the cord or plug is damaged. Return the appliance to an authorized service center for repair. Do not attempt to repair it yourself.

Can I adjust the angle of the air flow?

Yes, you can tilt the fan head up or down to change the air stream direction. While tilting, hold the controls cover with your other hand to prevent the fan from tipping over.

USER MANUAL MWP-16 MPM

Two electric fans on a stand, one with mesh grille and the other with blue fan blade (no text or symbols visible)

WENTYLATOR BIURKOWY: MWP-16

Stolní ventilátor/Table fan/Hастольный вентлятор/Tischventilator/Stolný ventilátor

WENTYLATOR STOJACY: MWP-17

Stojanový ventilátor/Stand fan/Hapolный вентлятор/Standventilator/Stojanový ventilátor

CZ NÁVOD K OBSLUZE....3

Model MWP-17

MODELL MWP-17

Read carefully this manual before using the appliance.
- Close supervision is necessary when using the appliance near children.
Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.
▶ Always unplug the appliance when it is not in use or before cleaning.
Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.
To avoid the risk of damage or injury, always use the attachments recommended by the manufacturer.
Do not immerse the appliance, its cord and plug in water or any other liquids, keep it dry at all times.

Do not leave the appliance switched on when unattended.
▶ Always switch off the appliance before unplugging it.
Do not place the appliance in vicinity of heat sources.

Do not use the appliance for the purposes different than it was designed for.

Do not use the appliance outdoors.

Never insert your fingers nor any other items through the guard when the appliance is running.

Before moving the appliance to another location disconnect it from the power source.

Do not cover the front and rear guard!

- Do not place the fan near open windows - raindrops may cause a short circuit and electrical shock! It is advisable not to place fans in rooms with high humidity, such as bathrooms.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

- Store the appliance and its cord out of reach of children under 8 years of age.

Children should be supervised to ensure that they do not play with the appliance.

Do not switch on the appliance without front and rear guard mounted.

The appliance may be switched on only after complete assembly. Partially assembled unit does not provide safe and proper operation.

Do not plug the power cord with wet hands.
This appliance is intended for household use only.
Do not remove the plug from the mains by pulling by the cord.

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

DESCRIPTION OF THE APPLIANCE

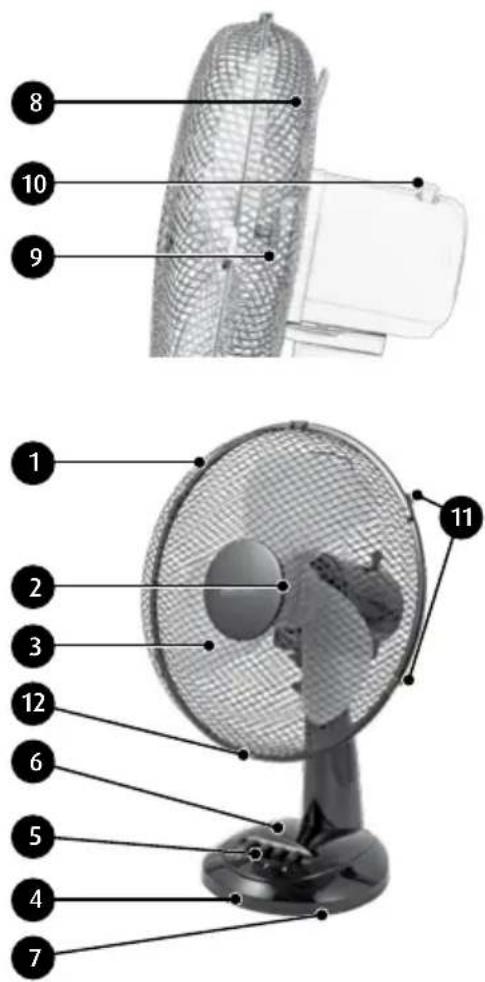

MODEL MWP-16

1. Front mesh guard of the propeller
2. Propeller protective nut
3. Propeller
4. Base
5. Off switch and speed controls
6. Speed controls cover
7. Non-slip feet
8. Rear mesh guard of the propeller
9. Ring for rear guard of the propeller
10. Button for oscillation
11. Attachment hooks
12. Holes for the attachment screw

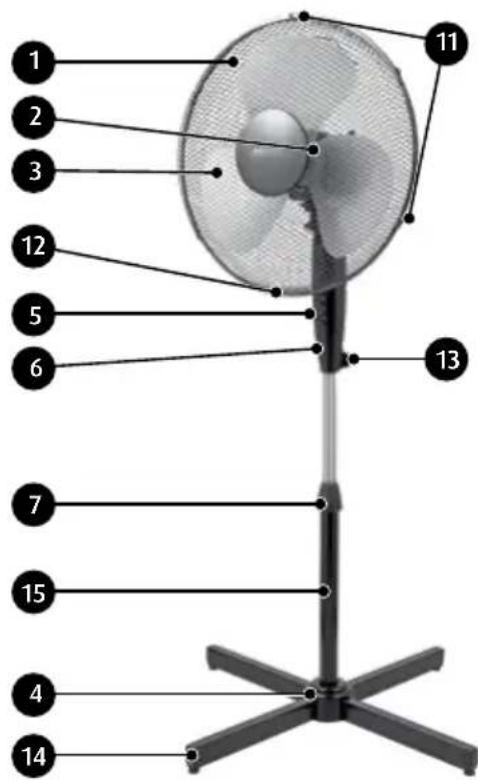

MODEL MWP-17

1. Front mesh guard of the propeller
2. Propeller protective nut
3. Propeller
4. Base cover
5. Off switch and speed controls
6. Speed controls cover
7. Head height adjustment nut
8. Rear mesh guard of the propeller
9. Ring for rear guard of the propeller
10. Button for oscillation
11. Attachment hooks
12. Holes for the attachment screw
13. Lock screw
14. Shoulders of the base
15. Tube

PREPARING THE APPLIANCE FOR OPERATION

ATTENTION! The fan must be placed on a stable, flat and dry surface!

1. Remove the protective films from the fan.
2. Unscrew the protective nut of the rear mesh guard ⑨ which is located on a motor pin.
3. Mount the rear mesh guard ⑧ with the handle facing upwards onto the motor pin and tighten the protective nut ⑨, making sure all elements are properly installed.
4. Carefully install the propeller ③ onto the motor pin and tighten the propeller protective nut ② counter-clockwise.
5. Mount the front mesh casing of the propeller ① by attaching the hook with the groove to the back mesh casing of the propeller. Make sure that the openings ⑫ for the fixing bolt in the front and back mesh casings of the propeller are positioned opposite each other.
6. Lock the fixing hooks ⑪.
7. Tighten the mesh casings of the propeller together by use of the fixing nut and bolt.

ASSEMBLY OF THE BASE FOR MODELS MWP-16

1. Place the speed controls cover ⑥ onto the base ④.
2. Secure both parts from the bottom using a four screws provided.

ASSEMBLY OF THE BASE FOR MODEL MWP-17

1. Mount the arms of the base ⑭ perpendicularly.
2. Place the head tube ⑮ on the cross shaped base so that the mounting holes line up with the mounting screws.
3. Tighten 4 mounting screws.
4. Unscrew the head adjustment nut ⑦ and place the base cover ④ onto the tube ⑮ with notches facing downwards.
5. Pull out the inner tube ⑮ element and tighten the adjustment nut ⑦.

1. Mount the fan head on the inner tube ⑮ element.
2. Tighten the screw located ⑬ on the controls cover ⑥.

USING THE FAN:

ATTENTION! Before switching on make sure the fan is placed on a flat, stable and dry surface!

1. Plug in the appliance.
2. Set the desired rotation speed using controls: „0“ - switched on, „1“ - speed I, „2“ - speed II, „3“ - speed III.
3. To activate the rotating mechanism, press the rotating operation button ⑩ located on the motor cover.
4. To change the angle of the propeller, and thus the angle of the air stream, simply tilt the fan head by holding the controls cover with the second hand to prevent the fan from overturning.
5. In model MWP-17 the head height can also be adjusted by loosening the head height adjustment nut ⑦, proper positioning of the head and tightening the nut.

CLEANING AND MAINTENANCE

1. Before cleaning the appliance, unplug it from the power outlet.
2. The motor cover, controls cover, stand and cross of the standing fan, base of the desktop fan, may be cleaned with a damp cloth and a mild detergent.
3. The mesh guards may be occasionally wiped with a brush to remove dust from the holes.
4. After the propeller is unmounted, wipe it with a damp cloth with a detergent.

Technical data sheet

MPM AGD S.A.

MODEL: MWP-16 (MWP-17)

Description Symbol Value Unit

Maximum flow rate of the fan F 30,35 (47,95) m			^3/min
Fan power P 31,20 (39,10) W
Operating value	SV	0,97 (1,23)	(m^3/min)/W
Power consumption in standby mode	P_SB	0	W
Fan's sound power level	L_WA	50,5 (50,9)	dB(A)
Maximum air speed	c	2,351 (2,738)	m/s
Seasonal electricity consumption	Q	9,984 (12,512)	kWh/a
Standards used for measuring the operational values	EN 50564:2011, EN 60704-1:2010 + A11: 2012, EN 60704-2-7:1998 IEC60879:2019

To get additional information, contact MPM AGD S.A.

ul. Brzozowa 3

Milanówek 05-822, Polska

tel. [phone]

BDO: 000027599

Technical parameters are indicated on the product nameplate.

Noise level:

• model MWP-16: L WA = 50,5 dB
• model MWP-17: LWA = 50.9 dB

Length of power cord:

• model MWP-16: 1,50 m
• model MWP-17: 1,60 m

ATTENTION! MPM agd S.A. reserves its right to modify the technical data!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA

UŻYCIE WENTYLATORÓW:

• model MWP-16: L WA = 50,5 dB
• model MWP-17: LWA = 50.9 dB

Line drawing of a vacuum cleaner with a cat silhouette and bulb (no text or symbols)

МОДЕЛЬ МУР-17

MODEL MWP-17

• model MWP-16: L_WA = 50.5 dB
• model MWP-17: L_WA = 50.9 dB

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
