Product Type	Phone Charger
Brand	SilverCrest
Model	SILM 4 A1
Input Voltage	100-240 V AC
Input Frequency	50/60 Hz
Output Voltage	5 V DC
Output Current	2.4 A
Output Power	12 W
USB Ports	1 x USB-A
Compatible Devices	Smartphones, tablets, GPS, cameras
Plug Type	EU (Type C)
Cable Length	1.0 m
Dimensions (L x W x H)	5.0 x 4.5 x 3.0 cm
Weight	50 g
Safety Protections	Overcurrent, overvoltage, short circuit, overheat
Energy Efficiency	Level V
Material	ABS plastic
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	20% - 80% RH (non-condensing)
Certifications	CE, RoHS
Cleaning	Unplug and wipe with dry cloth. Do not use liquids.
Disposal	Do not dispose with household waste. Recycle at WEEE collection points.

Frequently Asked Questions - SILM 4 A1 SILVERCREST

What devices can I charge with the SilverCrest SILM 4 A1?

The charger is compatible with most smartphones, tablets, GPS units, cameras, and other devices that charge via a standard USB-A cable. It provides up to 2.4 A output.

Is the SILM 4 A1 suitable for fast charging?

No, this charger is a standard 5V/2.4A charger and does not support Qualcomm Quick Charge or USB Power Delivery. It will charge devices at their normal rate.

Can I use this charger internationally?

Yes, it supports an input voltage range of 100-240 V AC, making it usable in most countries. You may need a plug adapter to fit local outlets.

What safety features does the SILM 4 A1 have?

The charger includes protections against overcurrent, overvoltage, short circuit, and overheating to ensure safe operation.

How do I clean the charger?

First, unplug the charger. Then wipe the exterior with a dry, soft cloth. Do not use water or cleaning liquids, as they may damage the electronics.

What should I do if the charger gets hot?

It is normal for the charger to warm up during use. However, if it becomes excessively hot or emits smoke, unplug it immediately and stop using it. Contact SilverCrest support.

Can I charge my device overnight?

Yes, the charger automatically stops charging when the device battery is full, so it is safe to leave plugged in overnight. However, for optimal battery health, unplug once charged.

What type of USB cable does the SILM 4 A1 use?

The charger has a standard USB-A female port. You need a USB-A to Micro-USB, USB-C, or Lightning cable, depending on your device.

Is the charger compatible with the Samsung Galaxy S23?

Yes, the Samsung Galaxy S23 supports standard 5V charging, so it will charge with the SILM 4 A1 at its standard speed (not super fast charging).

How do I dispose of the charger?

Do not throw it in the household trash. Take it to a designated WEEE recycling point or electronic waste collection facility.

USER MANUAL SILM 4 A1 SILVERCREST

Operating instructions

ES

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / MT Operating instructions Page 61

Índice

Introducción 2

PELIGRO

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Indice

Introduzione 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANIA

www.kompernass.com

Índice

Introdução....42

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

Contents

Introduction....62

Information about these operating instructions....62

Copyright 62

Notes on trademarks 62

Proper use 63

Warnings and symbols used 64

Safety 65

Basic safety instructions 65

Parts description/operating components....68

Setting up 68

Unpacking 68

Check package contents 68

Disposal of the packaging 69

Handling and operation....70

Mobile phone charging 70

Troubleshooting 71

Replacing the fuse 73

Cleaning....74

Storage when not in use 74

Disposal....75

Disposal of the device 75

Appendix....76

Technical data 76

Notes on the EU Declaration of Conformity.....77

Kompernass Handels GmbH warranty .....77

Service 80

Importer 80

Introduction

Information about these operating instructions

Congratulations on the purchase of your new device. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Keep these operating instructions as a reference and store them near the product. Please pass on all documentation incl. these operating instructions to any future owner(s) if you sell this product or give it away.

Copyright

This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Notes on trademarks

■ USB is a registered trademark of USB Implementers Forum, Inc.

The word "Qi" and the Qi symbol are registered trademarks of the Wireless Power Consortium.

■ The SilverCrest trademark and the retail name are the property of their respective owner.

All other names and products may be trademarks or registered trademarks of their respective owner.

Proper use

The charger is an information electronics device used to charge mobile phones in the car. Thanks to the Qi technology used, compatible mobile phones can be charged by induction charging. Incompatible mobile phones can be charged by induction charging with a suitable adapter.

Compatible connected mobile phones are automatically detected and supplied with the appropriate output voltage and current by the charger.

The car/USB adapter is only suitable for vehicles with a 12/24 V on-board socket whose negative pole is connected to ground.

The device is not intended for any other purpose nor for use beyond the scope described. The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk is borne solely by the user.

Warnings and symbols used

The following warnings are used in these operating instructions:

DANGER

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in severe injuries or even death.

▶ Follow the instructions on this warning label to avoid the risk of death or serious injury.

WARNING

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in injury.

▶ Follow the instructions on this warning label to prevent injuries to persons.

CAUTION

A warning at this hazard level indicates a risk of property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions on this warning label to prevent property damage.

NOTE

▶ A note provides additional information that makes handling the device easier for you.

The E marking is a test mark for the labelling of components requiring approval in motor vehicles and states that the necessary tests have been carried out and that an ECE component approval has been issued.

Safety

This section contains important safety instructions for handling the device. This device complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety instructions

To ensure safe operation of the device, follow the safety guidelines set out below:

- Check the device for visible external damage before use. Do not operate a device which has been damaged or dropped.

■ If the cables or connections are damaged, have them replaced by authorised specialists or Customer Service.

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Do not allow children to play with the device. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. There is a risk of suffocation!

■ Protect the charging cable from hot surfaces and sharp edges and ensure that it is not stretched tight or kinked.

The device should only be repaired by authorised specialist personnel or the customer service department. Improper repairs may put the user at risk. They will also invalidate any warranty claim.

■ Defective components must always be replaced with original replacement parts. Compliance with the safety requirements can only be guaranteed by using these replacement parts.

- Do not make any unauthorised modifications or alterations to the device.

■ Never open the device housing. There are no parts inside the device which can be maintained. In addition, this will invalidate the warranty.

- Do not expose the device to water spray or dripping water, and do not place liquid-filled objects such as vases or open drink containers on or near the device.

- Keep the device away from open flames (e.g. candles) at all times.

■ Never subject the device to extreme heat or humidity. This particularly applies to storage in a car. If the car is stationary for extended periods and in hot weather with direct sunlight, high temperatures occur in the car interior and the glove compartment. Remove electrical and electronic devices from the vehicle.

■ When placing the unit, make sure that it does not obstruct steering, braking or the operation of other vehicle operating systems (e.g. airbags) or restrict your field of vision when driving.

DANGER! Do not place the device within the airbag deployment area or near it, as the device may be flung through the vehicle interior in the event of airbag deployment and cause serious injury.

■ Make sure that the device is not installed in a position in which you could come into contact with it in the event of an accident or collision.

■ Also refer to the operating instructions for your mobile phone.

WARNING! If you notice any unusual noises, a burning smell or smoke, immediately unplug the device from the 12/24 V on-board socket. Have the device checked by a qualified specialist before using it again.

All of the applicable laws in your location must be observed. Your hands must always be free to operate the vehicle safely when you are driving. Traffic safety must always take priority whilst driving. Use this device only if it is not like to lead to any hazard during driving situations.

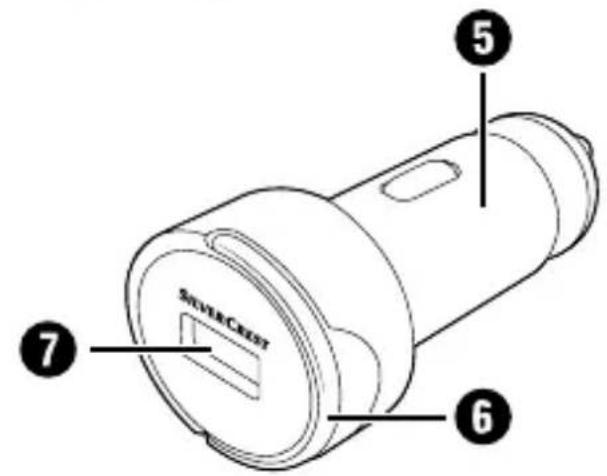

Parts description/operating components

(See fold-out page for illustrations)

① Charging surface
② Supports (for mobile phone)
3 Connection socket (micro-USB)
4 Operating LED
⑤ Car/USB adapter
6 Grip bracket
⑦ USB connection type A

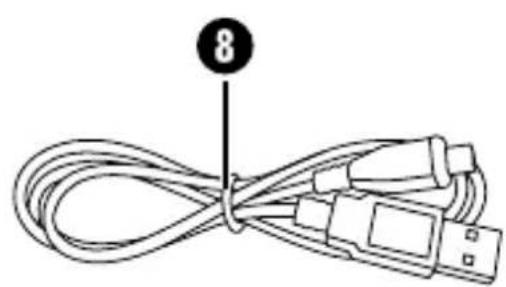

8 Connection cable (USB type A to micro-USB)
9 Operating instructions (symbol)

Setting up

Unpacking

◆ Remove all parts and the operating instructions from the packaging.
◆ Remove all packaging material.

Check package contents

(See fold-out page for illustrations)

The following components are included in delivery:

• Charging mat
• Car/USB adapte ^5
• Connection cable 8 (USB type A to micro-USB)
  • These operating instruction⑨

NOTE

▶ Check the package for completeness and signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the service hotline (see section Service).

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:plastics,
20-22: paper and cardboard,
80-98: composites.

Handling and operation

Mobile phone charging

Connect the car/USB adapter 5 to the 12/24 V on-board socket (cigarette lighter) of your vehicle. The white LED in the housing indicates that the car/USB adapter 5 ready for operation. Depending on the vehicle type, it is possible that the ignition has to be switched on first. The car/USB adapter 5 may only be used in conjunction with the car cradle.

Connect the USB type A plug of the connection cable to the car/USB adapter 5

Connect the micro-USB plug of the connection cable with the connection socket (micro-USB) of the charger. The operating LED lights up blue to show that the car charger adapter is ready for use.

Place a mobile phone on the charging surface of the charger.

NOTE

▶ Some mobile phones need to be taken out of their case for charging.

◆ Charging starts immediately and is indicated on the display of the mobile phone. The operating LED 4 flashes blue and also signals the charging process. When the operating LED 4 goes out, the charging process is completed.

When charging is complete, disconnect the car/USB adapter 5 on the grip bracket 6 from the 12/24 V on-board socket.

CAUTION

In vehicles in which the 12/24 V on-board socket also works with the ignition switched off, the mobile phone must be disconnected after the 12/24 V on-board socket after use. Otherwise, the vehicle battery can be depleted over an extended period of time, as the mobile phone and the car/USB adapter 5 may still draw power even when it is idle.

NOTE

▶ You can place a mobile phone into the support ^2 of the charger to operate it from there. Note that in this position, the mobile phone is not charged.

Troubleshooting

A mobile phone is not charging (the white LED in the housing is not lit)

• No connection to the 12/24 V on-board socket. Check the connection.
  ♦ Depending on the vehicle type, it is possible that the ignition has to be switched on first.
  ◆ The fuse is defective. Replace the fuse (see section Replacing the fuse).

The white LED in the housing goes out when a mobile phone is connected

The car/USB adapte ^5 is overloaded and no longer charges the connected mobile phone. The internal over-current protection has been triggered. Disconnect the connected mobile phone from the car/USB adapter ^5 . The white LED lights up immediately and the vehicle/USB adapter ^5 is ready for operation again.

The operating LED 4 flashes rapidly after a mobile phone has been placed for charging

The mobile phone is not compatible with Q induction charging technology and cannot be charged. Use a suitable adapter to charge your mobile phone by induction charging.
- Some mobile phones need to be taken out of their case for charging.

NOTE

▶ If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see section Service).

Replacing the fuse

There is a fuse in the car/USB adapter 5 or protecting the vehicle's on-board power supply. If the car/USB adapter 5 stops working, check the fuse and replace it if necessary.

◆ Open the car/USB adapte 5 by carefully unscrewing and removing the screw insert (C) anticlockwise.
◆ Remove the plug tip (B) from the fuse (A) and pull out the fuse (A).
Now insert a new fuse (A) of the type F4AL250V into the car/USB adapter ⑤. Place the plug tip (B) onto the slightly protruding end of the fuse (A) and screw the previously removed screw insert (C) back in.

DANGER

▶ Always use the same type of fuse! Otherwise there is a risk of fire.

NOTE

If the car/USB adapte ^5 still does not work or if the new fuse burns out immediately, the device is defective. Please contact the Service Hotline (see section Service).

Cleaning

CAUTION

▶ Disconnect the device from the 12/24 V on-board socket before cleaning.
▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device.

- Clean the device only with a slightly moistened cloth.

Storage when not in use

CAUTION

▶ Disconnect the device from the 12/24 V on-board socket when not in use.
The temperatures inside the vehicle can reach extreme values in summer and winter. Consequently, to avoid damage to the device, you should not store it in the vehicle.

◆ Store the device in a location that is clean, dry, dust-free and out of direct sunlight.

Disposal

Disposal of the device

The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies.

This disposal is free of charge for the user. Protect the environment and dispose of this device properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Appendix

Technical data

Charger
Input voltage/current	5 V === 2 A9 V === 1.8 A(=== direct current)
Output power	5-10 W**depending on end device
Frequency band 110-148 kHz
Max. H-Field < 66 dBμA/m @ 10 m
Operating temperature 15°C to 35°C
Storage temperature 0°C to 40°C
Relative humidity(no condensation)	≤75%
Dimensions approx. 18.8 x 10.7 x 2.5 cm
Weight approx. 190 g
Max. size of usable mobile phones	16.3 x 8.0 x 0.8 cm
Max. weight of usable mobile phones	300 g
Car/USB adapter
Input voltage/current	12/24 V = 2.6 A(=== direct current)
Output voltage/current	5 V = 2 A9 V = 1.8 A
Fuse F4AL/250V
Dimensions approx. 8.4 x 3.5 x 3.1 cm
Weight approx. 28 g

Notes on the EU Declaration of Conformity

CE

This device complies with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU, the UN Regulation

R10 and the RoHS Directive 2011/65/EU.

You can download the complete EU conformity declaration from www.kompernass.com/support/313581_DOC.pdf.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 313581

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung....82

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
