IAN 91778 - Chargeur de téléphone SILVERCREST - Free user manual and instructions

Product Type	Phone Charger
Brand	SilverCrest
Model	IAN 91778
Dimensions	Approx. 5.0 x 3.5 x 2.0 cm
Weight	Approx. 30 g
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	5 V DC
Output Current	1 A
Power	5 W
Fast Charging	No
USB Port	1 x USB-A
Compatibility	Smartphones, tablets, GPS, cameras and other USB devices
Safety Features	Overcurrent, short circuit, and overtemperature protection
Material	Plastic case
Color	White
Wall Plug Type	EU plug (Type C)
Energy Efficiency	Level V
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Included Accessories	None (charger only)

Frequently Asked Questions - IAN 91778 SILVERCREST

Is the SilverCrest IAN 91778 compatible with all smartphones?

Yes, it works with any device that charges via a standard USB-A port, including most smartphones, tablets, and cameras. However, it does not support fast charging.

Can I use this charger with my iPhone?

Yes, it can charge iPhones when used with your iPhone's USB cable. It delivers 5V/1A, which is safe for all iPhone models.

Does this charger support fast charging?

No, the output is limited to 5V/1A (5W), so it does not support Qualcomm Quick Charge, USB-C Power Delivery, or other fast-charging protocols.

What safety features does the IAN 91778 have?

It includes protection against overcurrent, short circuits, and overtemperature to ensure safe charging.

Can I charge my tablet with this charger?

Yes, it can charge tablets, but charging may be slower than using the original charger due to the 1A output.

Is the charger suitable for international use?

It accepts input voltages from 100-240V, so it can be used worldwide with the appropriate plug adapter.

Does the charger generate heat during use?

Some warming is normal, but it should not become hot. If it overheats, unplug it immediately and contact support.

Can I leave the charger plugged in when not in use?

Yes, but to save energy and reduce risk, it's recommended to unplug it when not charging.

What is the warranty period for this charger?

SilverCrest typically offers a 3-year warranty. Check your purchase receipt for details.

How should I clean the charger?

Unplug it first. Wipe the exterior with a dry, soft cloth. Do not use liquids or abrasives.

USER MANUAL IAN 91778 SILVERCREST

Color palette bar and cursor icon with no text or symbols

SILVERCREST®

USB CHARGer

GB

USB CHARGer

Operation and Safety Notes

PL

ŁadOWarKaUSB

Color palette bar with grayscale shades and a central target symbol (no text or labels)

GBOperationand

Safety Notes Page 4

PLWskazówkidotyc-

zące obsługi i

Color palette bar and a crosshair symbol on a white background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Intended use......Page 5

Description of parts......Page 5

Technical Data .....Page 5

Scope of delivery......Page 6

Safety notes......Page 6

Start-up ......Page 7

Cleaning and Care......Page 8

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

USB Charger

- Intended use

The USB-adapter is used for the provision of power to electrical appliances equipped with a USB-plug for that purpose, and which have a maximum rating of 1200 mA. The device can be used in a normal car socket that provides the rating given under "Technical Data". The product is not intended for commercial use. The manufacturer is not liable for any damages caused by any use other than for the intended purpose.

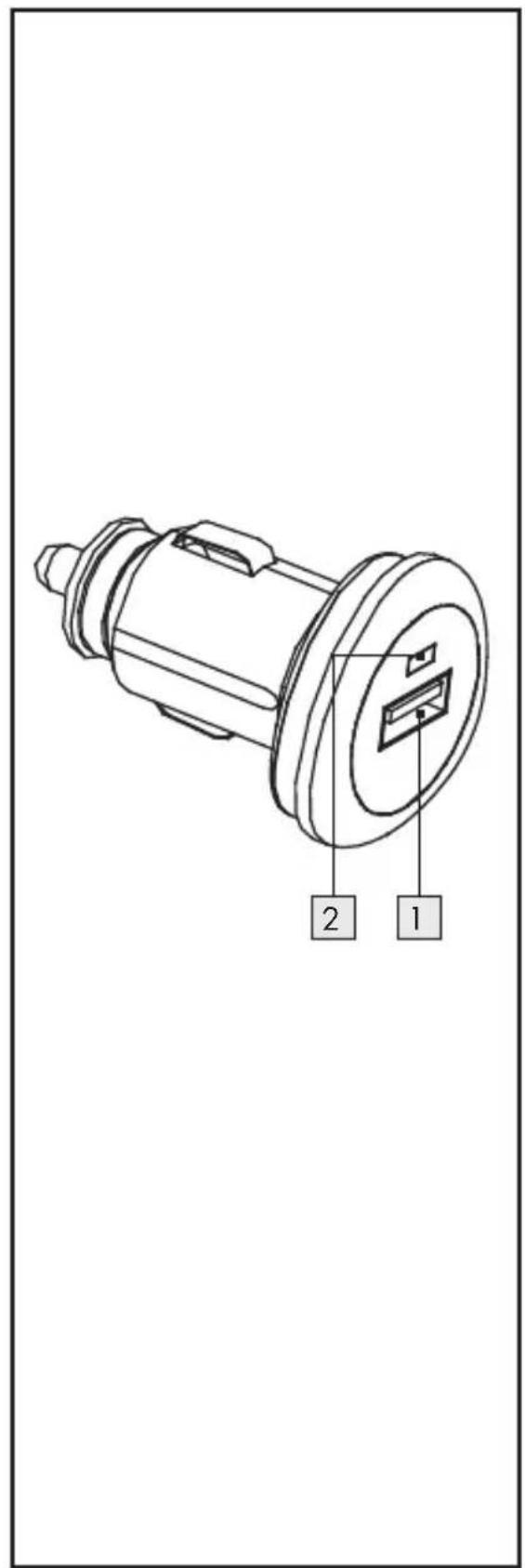

• Description of parts

1 USB-socket
2 Control lamp

- Technical Data

Input voltage: 12/24V

Output voltage: 5V

Max. output current: 1200 mA

GB 5

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Operating

temperature: 0–35 °C

Model No.: Z31306A

- Scope of delivery

1 USB Charger
1 Set of operating instructions

Safety notes

PLEASE READ THE INSTRUCTIONS PRIOR TO USE!

PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE!

• Check the product for damage before use. Never use a damaged product.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

6 GB

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Cleaning and user maintenance shall not be made by children without supervision.

■ Suitable for indoor use only.
Do not expose the device to direct sunlight or moisture.
Only plug the appliance into sockets that are easily accessible, so that you can unplug it easily in case of an emergency.

- Start-up

ATTENTION! RISK OF

OVERHEATING! Only connect the USB-adaptor to appliances which do not require more than 1200 mA (= 1.2 A).

☐ Plug the USB-adapter into a correctly installed car socket. The control lamp 2 shows that the USB-adapter receives current.

Connect the appliance that should be charged with the USB-adapter by plugging its USB-plug into the USB-socket 1.

Note: While using the USB-adapter, you can either run the vehicle engine or leave it switched off.

Attention: Do not switch the

GB 7

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

ignition on or off during the charging process, as this can lead to differences or peaks in the power supply.

☐ Disconnect the charged appliance from the USB-adapter after charging, by unplugging the USB-plug from the USB-socket.
☐ Unplug the adapter from the socket.

- Cleaning and Care

□ Always unplug the USB-charger from the socket before cleaning!
☐ Use a dry, soft and lint-free cloth for cleaning and care.

- Disposal

The packaging is made from environmentally friendly materials, which may be disposed through your local recycling facilities.

Contact your local authorities for information on how to dispose of the product at the end of product life.

8 GB

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Never dispose of the product in your regular household waste!

Dispose of the device / article at an authorised disposal centre or at your local council disposal facility.

Observe the applicable regulations. In case of doubt, please contact your waste disposal centre.

EMC CE

GB 9

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Ładowarka USB

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Maks. prqd

wyjściowy: 1200 mA

Temperatura

robocza: 0-35 °C

Nr modelu: Z31306A

Zawartość

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Predvidena

uporaba ....Stran 18

Opis delov ......Stran 18

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

USB-polnilnik

Predvidena uporaba

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Obratovalna

temperatura: 0-35 °C

Št. modela: Z31306A

Obseg dobave

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

adapterja pustite prižgan ali ugasnjen.

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

Deutschland

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Bestimmungs- gemäße

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Max.

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

- Entsorgung

Color palette bar and a geometric diagram with no text or symbols

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: Z31306A

Version: 09/2013
