BB15PK - Hi-Fi System BLAUPUNKT - Free user manual and instructions

Product Type	Hi-Fi System
Brand	Blaupunkt
Model	BB15PK
Dimensions (W x H x D)	Approx. 30 x 20 x 25 cm
Weight	Approx. 3 kg
Power Supply	AC 230V ~ 50Hz
Power Consumption	25 W
Output Power (RMS)	2 x 10 W
Speaker Configuration	2.0 stereo
Disc Playback	CD, CD-R, CD-RW
Radio Tuner	FM with 30 presets
USB Port	Yes, for MP3 playback
Bluetooth	Yes, version 4.0
Remote Control	Included
Display	LCD with backlight
Maintenance	Clean with a soft, dry cloth. Avoid liquids.
Safety	Keep away from water and heat sources.
Spare Parts Available	Remote control and power cord available.
Repairability Index	6/10 (estimated)
General Information	Hi-Fi system with CD, FM, USB, and Bluetooth.

Frequently Asked Questions - BB15PK BLAUPUNKT

How do I connect my phone via Bluetooth?

Press the Source button repeatedly until BT appears on the display. Activate Bluetooth on your phone and select BB15PK from the device list. If prompted, enter 0000 as the PIN.

Why is there no sound from the speakers?

Ensure the volume is turned up and the system is not muted. Check that the correct source is selected (e.g., CD, FM, Bluetooth). Also verify that the speaker wires are securely connected to the terminals.

How do I set the FM radio stations?

Press the Source button to select FM. Press and hold the Play/Pause button to start auto-scanning. Stations will be stored automatically. Use Prev/Next to browse presets.

Can I play MP3 files from a USB drive?

Yes, insert a USB drive containing MP3 files into the USB port. Press Source to select USB. Files will play automatically. Use the navigation buttons to select folders and tracks.

How do I clean the system?

Unplug the device. Use a soft, dry cloth to wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners. For the CD lens, use a dedicated lens cleaner disc.

What is the output power of the speakers?

The system delivers 2 x 10 W RMS output power, providing clear and balanced sound for most room sizes.

How do I reset the system to factory settings?

While the unit is on, press and hold the Stop button for about 5 seconds until RESET appears on the display. All settings will be cleared.

Does the system support audio input from external devices?

Yes, there is a 3.5mm AUX input on the front panel. Connect your device using an AUX cable and select AUX as the source.

The remote control is not working. What should I do?

Check that the batteries are installed correctly (polarierty +/-) and are not depleted. Replace if necessary. Ensure there are no obstacles between the remote and the system's sensor.

Can I listen to headphones with this system?

Yes, the system has a 3.5mm headphone jack on the front. Inserting headphones will mute the speakers automatically.

USER MANUAL BB15PK BLAUPUNKT

Enjoy it.

Portable cassette radio CD/USB player

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK DO NOT OPEN

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference. - The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

Do not install the product in the following areas:

- Places exposed to direct sunlight or close to radiators.

On top of other stereo equipment that radiates too much heat.

Blocking ventilation or in a dusty area.

Areas where there is constant vibration.

Humid or moist places.

Do not place near candles or other naked flames.

Operate the product only as instructed in this manual.

Before turning on the power for the first time, make sure the power adaptor is properly connected.

Plug in the USB stick directly or use a USB extension cable that is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - The product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and it shall be easily accessible.
26. The highest environmental temperature suitable for this product is 35°C.
27. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

— Install all batteries correctly, + and – as marked on the apparatus.

— Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
16. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.
17. To keep the laser pickup clean, do not touch it, and always close the disc tray.
18. During playback, the disc rotates at high speed. DO NOT lift or move the unit during playback, doing so may damage the disc or the unit.
19. When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc tray to its closed position in the player. Then, press switch to turn the power off and disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.
20. Put discs back in their case after playing them. Never expose discs to direct sunlight or heat sources. Never leave discs inside a car parked in full sunlight.
21. Do not touch the playback side of disks. Hold discs by the edges to avoid leaving fingerprints on the surface. Any dust, fingerprints or scratches may cause a malfunction. Never attach a label or sticky tape to the disc.
22. Use a clean soft lint-free cloth to clean the disc, working from the center outwards in a straight line, thinners, commercially available cleaners or anti static sprays for vinyl discs.
23. To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING: DANGER OF RADIATION

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This label means that this unit contains a laser component. Opening the CD compartment lid and defeating the safety interlocks will expose the user to radiation from the laser beam. Do not stare into the laser while it is operating.

BEFORE OPERATION

Notes: Concerning compact discs.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.

b. CD compact disc only with digital audio signals.

NOTICE

CE

This product complies with the radio interference requirements of the European community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer), and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries, and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

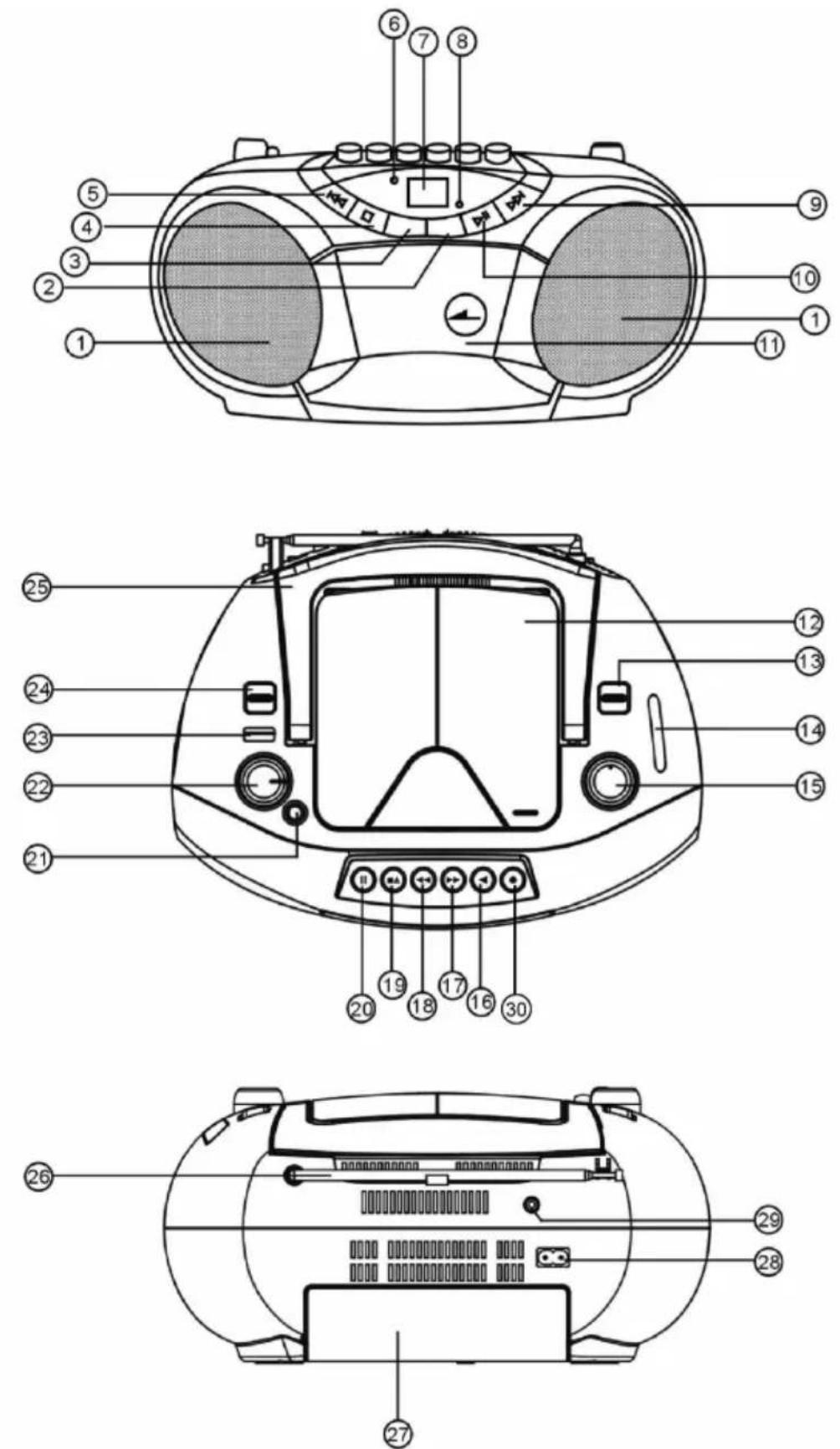

LOCATION OF CONTROLS

FEATURES OF CONTROLS

1. SPEAKERS (L&R)
2. FOLD+/+10 BUTTON
3. PROG./P-MODE BUTTON
4. CD STOP/USB BUTTON
5. CD SKIP/SEARCH BACK BUTTON
6. POWER INDICATOR
7. LCD DISPLAY
8. FM STEREO INDICATOR
9. CD SKIP/SEARCH NEXT BUTTON
10. PLAY/PAUSE/STANDBY BUTTON
11. CASSETTE DOOR
12. CD COMPARTMENT
13. BAND SELECTOR
14. DIAL SCALE
15. TUNING KNOB
16. CASSETTE PLAY KEY
17. CASSETTE REWIND KEY
18. CASSETTE FAST FORWARD KEY
19. CASSETTE STOP/EJECT KEY
20. CASSETTE PAUSE KEY
21. X-BASS BUTTON
22. VOLUME CONTROL
23. USB PORT
24. FUNCTION SWITCH
25. HANDLE
26. FM TELESCOPIC ANTENNA
27. BATTERY DOOR
28. AC SOCKET
29. MP3 LINK JACK
30. RECORD BUTTON

POWER SOURCE

This unit was designed to be operated both with AC or with DC.

AC Operation

Plug the tail of AC power cord into AC jack on unit and the cord into AC wall outlet. The batteries will be automatically disconnected.

DC Operation

Open the BATTERY COMPARTMENT DOOR. Install 6 pcs UM-1/D size batteries (not included) into compartment. Please follow correct polarities as indicated.

CAUTION

Remove batteries if they are flat or if the unit will not be used for a long period of time. Batteries contain chemical substances, so they should be disposed of properly.

BASIC FUNCTION

Switching on the Unit

Set the FUNCTION SWITCH to CD/MP3/USB/AUX or RADIO position.

NOTE: In CD/MP3/USB/AUX or TAPE mode, when the unit is not providing the main function for 15 minutes, the unit will automatically switch into standby mode. To turn on the unit again, press the PLAY/PAUSE/STANDBY button or replug the unit.

ESD hints – The product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again.

To Adjust Volume

Rotate the VOLUME CONTROL back and forth to increase and decrease volume.

To Enjoy More Bass

Depress X-BASS button to have more extra bass, press again to switch off bass.

RADIO OPERATION

Tuning Radio Stations

1. Slide the FUNCTION switch to "RADIO" position.
2. Slide the BAND switch to select the desired wave band: AM/FM ST.
3. Tune to required station by rotating the TUNING KNOB.
4. Rotate the VOLUME CONTROL to a comfortable volume level.
5. Extend the TELESCOPIC ANTENNA to its full length if you are listening to FM broadcasting. Gently move the unit back and forth to get the best reception when you are listening to AM programs, or place the unit in an open place. Note: The FM STEREO indicator will be on if you are receiving FM stereo programs.
6. To turn off the radio, set the FUNCTION switch to CD/MP3/USB/AUX or TAPE operation.

CASSETTE OPERATION

Playback of Cassette

Be sure to tighten any slack tape in the cassette before using. Use either a pencil or a ball-point pen. Simply insert the pen or pencil into the centre of the spool and rotate to remove slackness. Press the STOP/EJ button to open the cassette door.

Insert the cassette into the compartment with the open end facing upwards and the full reel on the left hand side. Push the cassette well down and close the door. Be sure not to touch the tape surface. Set the FUNCTION SWITCH to "TAPE" position and press the cassette PLAY button. To stop playback, press the STOP/EJ button once. To release the cassette, press the STOP/EJ button again.

Auto Stop

When the tape reaches the end during playback, the built-in auto stop system will release the play button automatically.

CD/MP3 Recording

1. Install a cassette tape.
2. Set FUNCTION SWITCH to "CD/MP3/USB/AUX" position.
3. Load a disc into the disc compartment, start playback, and select the desired track you want to record.
4. Press the RECORD key and the PLAY key will automatically engage. Press the disc PLAY/PAUSE/STANDBY button to start playing. Recording starts. ERASURE: When you record over previously recorded tape, the original recording is automatically erased and replaced by this newly recorded material.

USB Recording

1. Install a cassette tape.
2. Set FUNCTION SWITCH to "CD/MP3/USB/AUX" position.
3. Connect the USB into the USB PORT, start playback, and select the desired track you want to record.
4. Press the RECORD key and the PLAY key will automatically engage. Press the PLAY/PAUSE/STANDBY button to start playing. Recording starts. ERASURE: When you record over previously recorded tape, the original recording is automatically erased and replaced by this newly recorded material.

Care of Cassette Mechanism

Gently clean the tape head and pinch wheel/capstan assemblies after every 10 hours of using the unit.

The play head and the surface of the pinch roller are delicate and shall not be touched with metal objects such as screwdrivers. You may find it easier to clean the assembly by pressing the PLAY button to bring the head and pinch roller into view. Be sure to press the STOP button after cleaning the mechanism.

Damage to the pinch wheel can occur if the unit is left in PLAY mode with the power switch off. Under no circumstances should you attempt to lubricate any part of the machine.

CD/MP3 OPERATION

Discs for Playback

This system can playback all digital audio CD, MP3, WMA finalized digital audio CD-Recordable (CD-R) discs, finalized digital audio CD-Rewritable (CD-RW) discs and CD-DA format digital audio CD/CD-R/CD-RW discs.

Loading a Disc

1. Set the FUNCTION switch to CD/MP3/USB/AUX position.
2. Open the CD door. "OP" will be shown on the display.
3. Place an audio CD into the tray with the label side facing up.
4. Close the CD door. The total number of tracks will appear on the display after reading is finished.
5. To remove the CD, press OPEN/CLOSE on the CD door to open the CD compartment lid, grasp the CD by its edges, and take it out carefully.

Note:

To ensure good system performance, wait until the disc tray completely reads the disc before proceeding.

If no disc is loaded into the compartment, or the disc is placed upside down, the display will show "nod".

Playing a Disc

1. Press the PLAY/PAUSE/STANDBY button to start playback. The playback starts from track 1, the "▶" indicator is shown on the display. To interrupt playback, press the PLAY/PAUSE/STANDBY button. The "▶" indicator and the current track will flash on the display. To resume playback, press the PLAY/PAUSE/STANDBY button again.
2. To stop playback, press the STOP/USB button, the total number of tracks appears on the display.

Selecting a Desired Track/Passage

To select a desired track

Press the CD SKIP/SEARCH NEXT/BACK button repeatedly in stop mode or during play until the desired track appears on the display.

Press the PLAY/PAUSE/STANDBY button to start play.

To search for a particular passage during playback (track scanning at high speed)

Press and hold the CD SKIP/SEARCH NEXT/BACK button to scan the current playing track at high speed until the desired passage appears, then release the button. Playback will start again from this point.

To select a song whose track number exceeds 10 (for MP3 disc only)

To select a song/track whose number exceeds 10, press the FOLD+/+10 button each time to skip forward/backward 10 tracks, then press the CD SKIP/SEARCH NEXT/BACK button to select the desired track. For example: to select the 17th track, press the FOLD+/+10 button, and then press the CD SKIP FORWARD button six times immediately.

To Select A Desired Folder (for MP3 disc only)

(if the MP3 disc contains more than one folder)

To skip to the desired folder during playback, press and hold the FOLD+/+10 button for about 2 seconds to skip to the next/previous folder.

Programming Tracks

Programming tracks of a disc is possible when playback is stopped. Up to 20 CD tracks / 99 MP3 tracks can be stored in the memory in any order.

1. In stop mode, press the PROG./P-MODE button, the "PROG" will flash and the " indicator will be on.
2. Press the CD SKIP/SEARCH NEXT button to select the first desired track to be programmed.
3. Press the PROG./P-MODE button to enter. The display changes to show " P02
4. Repeat steps 2 & 3 to store other desired tracks until all tracks are programmed.
5. Press the PLAY/PAUSE/STANDBY button to start playback from the first programmed track.
6. Press the STOP/USB button to stop program playback.

To Erase the Memory (Program)

To clear the program, you have two options:

1. Press the STOP/USB button when the disc is stopped, or
2. Open the CD compartment lid, program will be erased.

Repeat

To Repeat a Single Track

1. Press the PROG./P-MODE button once in play mode, "will show and flashing on the display. The current track will be played repeatedly until the STOP/USB button is pressed.
2. To cancel Repeat function, press the PROG./P-MODE button until the "disappears from the LCD display."

To repeat all the Tracks

1. Press PROG./P-MODE button in play mode until the "C" shows steady on the display, all tracks on the disc will be played repeatedly until the STOP/USB button is pressed.
2. To cancel Repeat function, press the PROG./P-MODE button until the "disappears from the LCD display.

To repeat current folder (for MP3 only)

1. Press PROG./P-MODE button in play mode, until the "€FOLDER" shows steady on the display, the current folder will be played repeatedly until the STOP/USB button is pressed.
2. To cancel Repeat function, press the PROG./P-MODE button until the "FOLDER" disappears from the LCD display.

Random Play

Press the PROG./P-MODE button in play mode until "RDM" is shown on the display. Random play will start from the next track automatically until all tracks have been played, then it will stop. Press the PROG./P-MODE button once to cancel.

USB OPERATION

1. Set the FUNCTION switch to the CD/MP3/USB/AUX position.
2. Connect the USB device to the USB input and press the STOP/USB button for 3 seconds. The LCD will show the total number of tracks stored in the USB device. Press the PLAY/PAUSE/STANDBY button to start playback. This unit supports USB devices up to 32 GB.
3. Press the STOP/USB button on the unit to stop playback. The display will show the total number of songs stored in the USB device, and then playback stops.
4. For repeat play (repeat 1, repeat folder, repeat all), program play, and skip up/back operations, proceed as described above in "CD/MP3 OPERATION".

CAUTION:

Plug in the USB stick directly or use a USB extension cable that is no longer than 25 cm.

MP3 LINK OPERATION

This unit provides a 3.5mm MP3 LINK jack, through which other audio sources can be connected to this unit and amplified.

1. Set the FUNCTION switch to the CD/MP3/USB/AUX position.
2. Connect the audio cable into the MP3 LINK jack and connect the other end to the AUDIO OUT jack of the external audio source. The unit will automatically switch to AUX mode.
3. Adjust the volume of the main unit to your desired level.
4. Press PLAY on the external audio source (e.g., MP3 player) to start playback.

SPECIFICATIONS

General

Power Requirement: AC 230V-240V~50Hz

DC 9V UM-1/D x 6 PCS

Power consumption: 18 Watt

MP3 link jack: 3.5mm

Weight: 2.1 kg

Dimension: 310 mm (L) x230 mm (W) x 160 mm (H)

Operation Temperature: +5 °C ~ +35 °C

Receiver Section

Receiving Bands: AM/FM ST.

Tuning Range: AM: 530~1600 Khz

FM: 88~108 Mhz

Compact Disc Section

Optical Pickup: 3-Beam Laser

Frequency Response: 100Hz ~ 16KHz

Cassette Section

Recording System: 2 Tracks 2 channel (Stereo)

Frequency Response: 125 - 6.3 KHz

Wow and Flutter: 0.35 % WRMS (JIS)

Audio Section

Power output: 1.5 Watt x 2

Accessories

Instruction Booklet: 1 pc

AC Cord: 1 pc

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
