Product Type	Watch
Brand	Diesel
Model	DZ5560
Movement Type	Quartz (Chronograph, Digital) or Automatic (varies by model)
Case Material	Stainless Steel
Crystal Material	Mineral
Water Resistance	Up to 10 ATM (100 meters) - check caseback for exact rating
Functions	Time, Date, Chronograph, Stopwatch, Alarm, Backlight (depending on movement)
Crown Type	Screw-lock (if applicable)
Battery Life	Approximately 2 years (quartz models)
Care Instructions	Rinse after salt water; avoid hot tubs and saunas; avoid setting hands between 8pm and 3am
Strap Material	Not specified (likely metal, leather, or rubber)
Complications	Day/Date, Chronograph, Split Time, Timer, Dual Time (varies)
Power Reserve (Automatic)	Approximately 40 hours
Caliber Options	515.2-3, 2117, 2317, VX42EZ-D, 2305, JS15, JS16, JS26, JS10, VD57B, VD51B, VD53, VD53B, VR32A25, 8N24-N-LR-DZ, NH38A3M, FL137AX, FL137AB, QFOX21CA, QFOX21CB, QFOX21BB, QFO-015-AA
Manual Languages	Multiple (EN, DE, ES, ID, IT, JA, KO, PL, PT, RU, SV, ZH, etc.)
User Manual Pages	132

Frequently Asked Questions - DZ5560 Diesel

How do I set the date and time on my Diesel DZ5560 watch?

The procedure depends on your movement type. For most analog models, pull the crown out to position 2 to set the date (rotate counter-clockwise for date-only, clockwise for day/date). Pull to position 3 to set time (rotate clockwise or counter-clockwise as indicated). For digital models, press and hold B or C to enter setting mode, then adjust using A or D. Refer to the specific movement instructions in the manual.

How do I use the chronograph function?

Press button A to start and stop the chronograph. Press button B to reset to zero. For split time (on some models), press B while the chronograph is running, then press B again to return. Press A to finalize timing, then B to reset.

What should I do if the chronograph hands are not at zero?

Pull the crown out to position 3. Press A to rotate hands clockwise and B to rotate counter-clockwise. Press and hold for fast advancement. Return crown to position 1 when hands are at 12:00. For digital models, reset via settings.

What is the water resistance of my Diesel DZ5560 watch?

Water resistance is marked on the caseback. Ratings include 3 ATM (30m), 5 ATM (50m), 10 ATM (100m), 20 ATM (200m), 30 ATM (300m), and 50 ATM (500m). Check your caseback. Typical Diesel watches are at least 5 ATM. Avoid hot tubs and saunas, and never operate pushers underwater.

Can I swim or shower with my Diesel watch?

If your watch has a water resistance of 5 ATM or higher, it is suitable for swimming and snorkeling. 10 ATM or higher for scuba diving. However, avoid hot water (showers, hot tubs) as heat can compromise seals. Rinse with fresh water after salt water exposure.

How do I wind an automatic Diesel watch?

Rotate the crown clockwise in position 1 (pushed in). Wind approximately 10 times; the watch will start moving naturally. Do not overwind. For manual winding, continue until you feel resistance.

How do I set the alarm on a digital model?

For QFO-015-AA, press D to turn on/off alarm. To set, press and hold C for 2 seconds, then press B to select hour/minute, and D to adjust. The alarm will sound for 20 seconds at the set time. For other digital models, refer to the specific instructions.

What should I avoid doing to prevent damaging my watch?

Avoid setting the hands or date between 8pm and 3am (analog). Do not operate pushers underwater or when wet. Keep away from hot tubs and saunas. Rinse after contact with salt water. Tighten screw-lock crowns completely.

How do I change the battery in my Diesel watch?

Battery replacement is not covered in the user manual. It is recommended to take your watch to a professional jeweler or watchmaker to avoid damage. Typically, quartz models use a standard battery (e.g., SR626SW). The battery life is about 2 years.

How do I adjust the stopwatch hands if they are misaligned?

For analog chronographs, pull crown to position 3. Press A to move hands clockwise and B counter-clockwise. For VD57B, press A to reset 1/10 second hand, B for second and minute hands. Press and hold for fast movement. Return crown to position 1 when all hands are at zero.

USER MANUAL DZ5560 Diesel

• When the watch is underwater or wet, never use the pushers/bezels, or set the time. Watch cases and metal bracelets should be rinsed thoroughly in fresh water after being in salt water.
• No hot tub/sauna. Please do not take your DIESEL watch into the hot tub/sauna. The combination of extreme heat and water may cause your watch to lose some of its water-resistance.
• No backward hand, or date, adjustments should be made when the analog hands read between 8pm and 3am. At these times, the gears are too close together and such a change could cause damage.

Resistance to Water

Water Resistance Water-Related Use
Caseback Marking	Depth
		Washing Hands	Shower, Bathing	Swimming, Snorkeling	Scuba Diving
—	—	X	X	X	X
WR —
3 ATM	3 Bar, 30 Meters
5 ATM	5 Bar, 50 Meters
10 ATM	10 Bar, 100 Meters
20 ATM	20 Bar, 200 Meters			[TTY]
30 ATM	30 Bar, 300 Meters			[7STK]
50 ATM	50 Bar, 500 Meters
Always set the crown in closed position (the normal position). Tighten screw-lock crown completely.

Date Watch 515.2-3, 2117, 2317, VX42EZ-D

DATE SETTING

1. Pull crown out to position 2.
2. Rotate counter-clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate counter-clockwise to set time.
3. Return crown to position 1.

Day/Date Watch 2305

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

DAY SETTING

With crown still in position 2, turn counter-clockwise and set day for previous day.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate counter-clockwise to set time.
3. Return crown to position 1.

Chronograph JS15, JS16, JS26, JS10

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate clockwise to set time.
3. Return crown to position 1.

CHRONOGRAPH

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to rotate hands clockwise; press B to rotate hands counter-clockwise.
3. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.
4. When both hands are in the zero position, reset time and return crown to position 1.

NOTE: Chronograph minute hand will synchronize with chronograph second hand during chronograph zero reset.

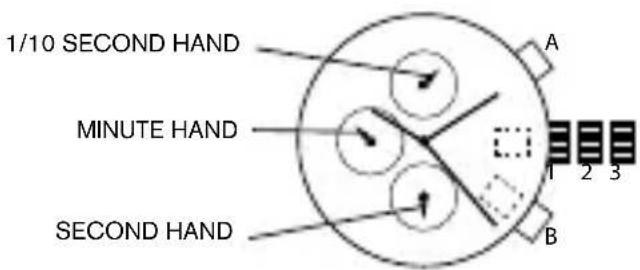

Chronograph Stopwatch VD57B

DATE SETTING (on some models only)

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Push crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate clockwise to set time.
3. Return crown to position 1.

USING THE STOPWATCH

1. Press A to start/stop the stopwatch.
2. Press B to control the split time and reset.

STOPWATCH HAND ADJUSTMENT

1. Pull crown out to position 3.
2. Press A to reset the stopwatch 1/10 second hand to the "0" position.
3. Press B to reset the second and minute hands.
4. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.

NOTE: If the stopwatch hands function improperly, pull out crown and press A and B at the same time for over 2 seconds. When the pushers are released, the stopwatch second and 1/10 second hands will spin around and return to "0." This will indicate that the internal circuit has been reset.

Chronograph VD51B

DATE SETTING

1. Pull crown out to position 2.
2. Rotate the crown clockwise until the preview day's date appears.
3. Return crown to position 1.

TIME SETTING

1. Pull crown out to position 2 when the second hand is at the 12 o'clock position.
2. Rotate crown to set time.
3. Return crown to position 1.

USING THE STOPWATCH

1. Press A to start/stop the stopwatch.
2. Press B to control split time and reset.

NOTE: The measurement time is indicated by the stopwatch hands that move independently of the center hands (and 24-hour hand where applicable).

NOTE: The stopwatch can measure up to 60 minutes.

STOPWATCH HAND ADJUSTMENT

1. Pull crown out to position 3.
2. Press A or B to reset all stopwatch hands to "0" position.
3. Each press of A or B will rotate hands clockwise; press B to rotate hands counter-clockwise. Press and hold A or B for fast increment/decrement.
4. Return crown to position 1.

NOTE: Before setting the time, check if all the chronograph hands - 1/10 second (where applicable), second, minute - are at the "0"(12 o'clock) position.

NOTE: If the stopwatch is in use, press the buttons in the following order to reset it, and then check if the hands return to the "0" position.

*If the chronograph is counting: A → B *If the stopwatch is stopped: B *If the split time is displayed: B → A → B

Chronograph VD53, VD53B, VR32A25

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
2. Pull crown out to position 3.
3. Rotate crown clockwise to set time.
4. Return crown to position 1.

CHRONOGRAPH

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

SPLIT TIME

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to rotate hands clockwise; press B to rotate hands counter-clockwise.
3. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.
4. When both hands are in the zero position, reset time and return crown to position 1.

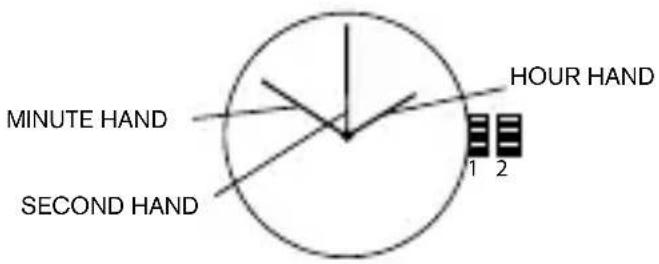

Automatic 8N24-N-LR-DZ, NH38A3M

WINDING THE MAINSPRING

1. Rotate the crown clockwise at position 1. Wind approximately 10 times clockwise and it will start to move naturally.

TIME SETTING

1. Pull the crown out to position 2.
2. Rotate crown to set time.
3. Return crown back to position 1.

Digital FL137AX, FL137AB, QFOX21CA, QFOX21CB, QFOX21BB

FL137AB FL137AX

QFOX21CA QFOX21CB

QFOX21BB

OVERVIEW

Features include CALENDAR and TIME.

NORMAL TIME DISPLAY

1. Press A to change display. Display sequence is time, calendar, seconds.
2. Press B to toggle 12/24-hour format.

TIME AND DATE SETTING

1. Press and hold B for 2 seconds to enter setting mode; year will begin flashing.
2. Press A to advance digit; press and hold A for fast advance.
3. Press B to set and advance to next setting value.
4. Setting sequence is year, month, date, hour, minute.
5. Press B to exit setting mode.

N OTE: Hour will be displayed in 24-hour format in time setting mode. N OTE: If no pusher/button is operated for 30 seconds, all changes will be saved and the setting will automatically return to display mode.

Digital QFO-015-AA

OVERVIEW

Features include CALENDAR, ALARM, 12/24H FORMAT, CHRONO, TIMER, DUAL TIME, EL BACKLIGHT.

TIME SETTING

1. Press and hold C for 2 seconds to enter setting mode; seconds will begin flashing.
2. Press B to set and advance to next setting value.
3. Setting sequence is second, minute, hour 12/24H format, month, day, week.
4. Press D to advance the flashing digit.
5. Press C to exit setting mode.

NOTE: Pressing D while the seconds are in the range of 30 to 59 resets them to 00 and adds 1 to the minutes. In the range of 00 to 29, the minutes are unchanged.

NOTE: Press A for 3 seconds to activate EL backlight.

ALARM SETTING

1. Press D to turn on/off the alarm or chime.
2. To set the alarm, press and hold C for 2 seconds to select "hour" setting; Press B to select "minute" setting; Press D to advance the flashing digit.
3. When the alarm reaches the scheduled time, the alarm icon will flash and the chime will sound for 20 seconds.

CHRONOGRAPH

1. Press D to start/stop chronograph.
2. When stopped, press C to return to zero.
3. When running, press C to split count, then press D to exit split count and C to return to zero.
4. Press B to return to time.

TIMER MODE

1. The display range of the timer is 23 hours, 59 minutes and 59 seconds.
2. Press D to start/stop the timer. Press C to return to starting value.
3. Timer sounds for 10 seconds when counting down to 00:00:00. The timer is automatically reset to its starting value after the alarm stops.

DUAL TIME

1. In the Dual Time mode, press and hold C for 2 seconds to select "minute" setting; Press B to select "hour" setting, Press D to adjust the flashing item; Press C to finish setting and to exit setting mode.

DEUTSCH

WICHTIGE HINWEISE

Chronograph JS15, JS16, JS26, JS10

DATUMSEINSTELLUNG

Automatico 8N24-N-LR-DZ, NH38A3M

DATUMINSTÄLLNING

오토매틱 8N24-N-LR-DZ, NH38A3M

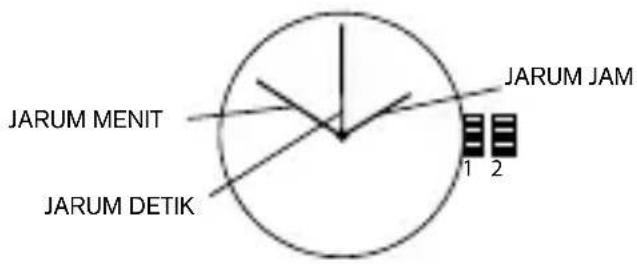

Otomatis 8N24-N-LR-DZ, NH38A3M

MEMUTAR PEGAS UTAMA
