Product Type	Built-in Electric Oven
Brand	Tefal
Model	Optimo OF464E65
Dimensions (W x H x D)	59.4 cm x 59.4 cm x 55.0 cm
Weight	38 kg
Power Supply	220-240 V ~ 50 Hz, 16 A
Maximum Power Consumption	3200 W
Energy Efficiency Class	A+
Oven Capacity	65 L
Cooking Functions	Conventional, Fan-assisted, Grill, Defrost, Pizza, Convection Bake
Temperature Range	50 °C - 250 °C
Control Type	Rotary knobs and digital display
Timer	Up to 120 minutes with end-of-cooking signal
Interior Light	Yes
Cleaning and Maintenance	Catalytic enamel walls for easy cleaning; removable door glass
Safety Features	Child lock, automatic shut-off after 24 hours, cool-touch door
Spare Parts and Repairability	Genuine Tefal spare parts available; replaceable door gasket, heating elements, and thermostat
General Information	Designed for built-in installation; includes 1 shelf, 1 baking tray, and 1 grill rack

Frequently Asked Questions - Optimo OF464E65 TEFAL

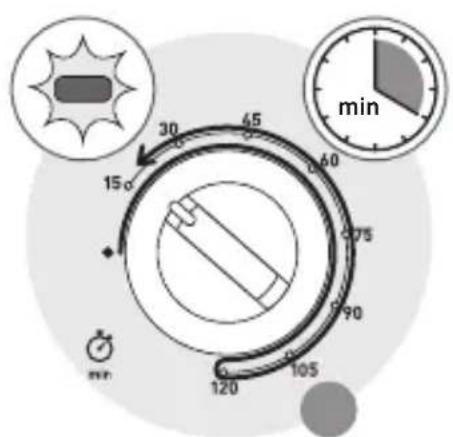

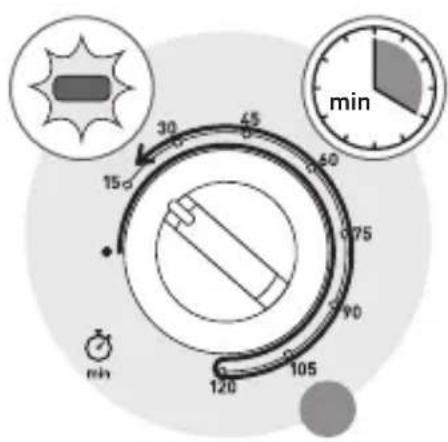

How do I set the timer on the Tefal Optimo OF464E65 oven?

Turn the timer knob clockwise to the desired cooking time (up to 120 minutes). The oven will start heating and automatically turn off when the time elapses, with an audible signal.

What oven functions are available on this model?

The Optimo OF464E65 offers multiple functions including conventional heating, fan-assisted, grill, defrost, pizza, and convection bake. Select the desired function using the rotary knob.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom of the oven completely. Use foil only on the baking tray or to wrap food. Do not let foil touch the heating elements.

How do I clean the catalytic enamel walls?

The catalytic walls are self-cleaning; during high-temperature cooking (above 200°C), grease splatters are burned off. For heavy residue, wipe with a damp cloth after the oven has cooled.

Why does the oven not heat up?

Check that the oven is properly connected to the power supply and that the timer is set. If the problem persists, the heating element or thermostat may be faulty; contact Tefal customer service.

What is the maximum temperature of the oven?

The maximum temperature is 250 °C. This is suitable for baking, roasting, and grilling.

How do I activate the child lock?

The child lock can be activated by pressing and holding the lock button for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

Can I replace the oven door glass myself?

Yes, the inner glass panel is removable. Refer to the manual for step-by-step instructions. Always ensure the oven is cool and disconnected before removing glass.

What spare parts are available for this oven?

Tefal offers genuine spare parts including a door gasket, heating elements, thermostat, fan motor, and light bulb. They can be ordered via the Tefal website or authorized service centers.

Is the oven energy efficient?

Yes, the Tefal Optimo OF464E65 has an energy efficiency class of A+, which means it consumes relatively low energy compared to standard ovens. The fan-assisted function also reduces cooking time and energy usage.

USER MANUAL Optimo OF464E65 TEFAL

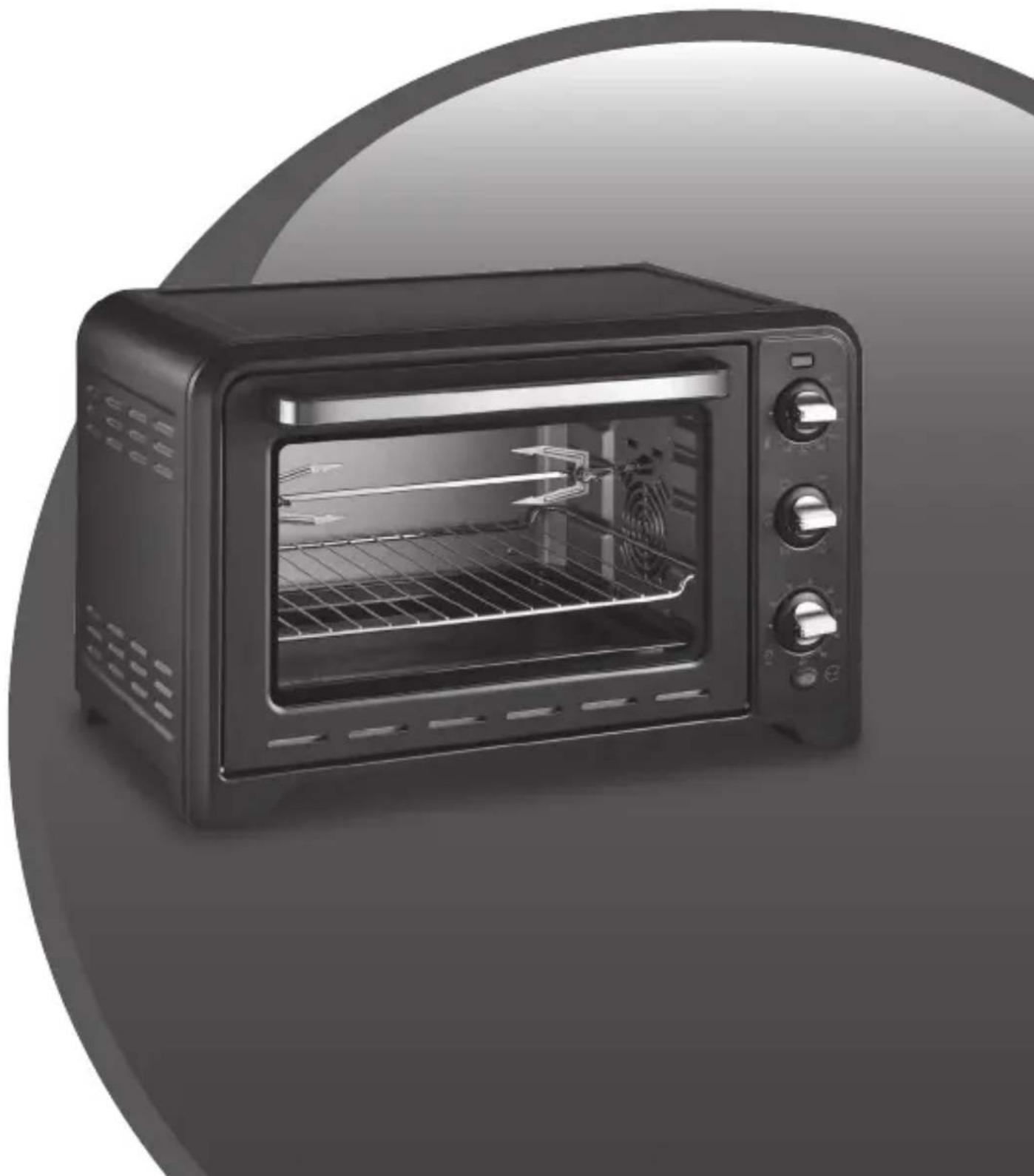

Optimo 33L with turnspit

Black square oven with open lid and control knobs, no visible text or symbols

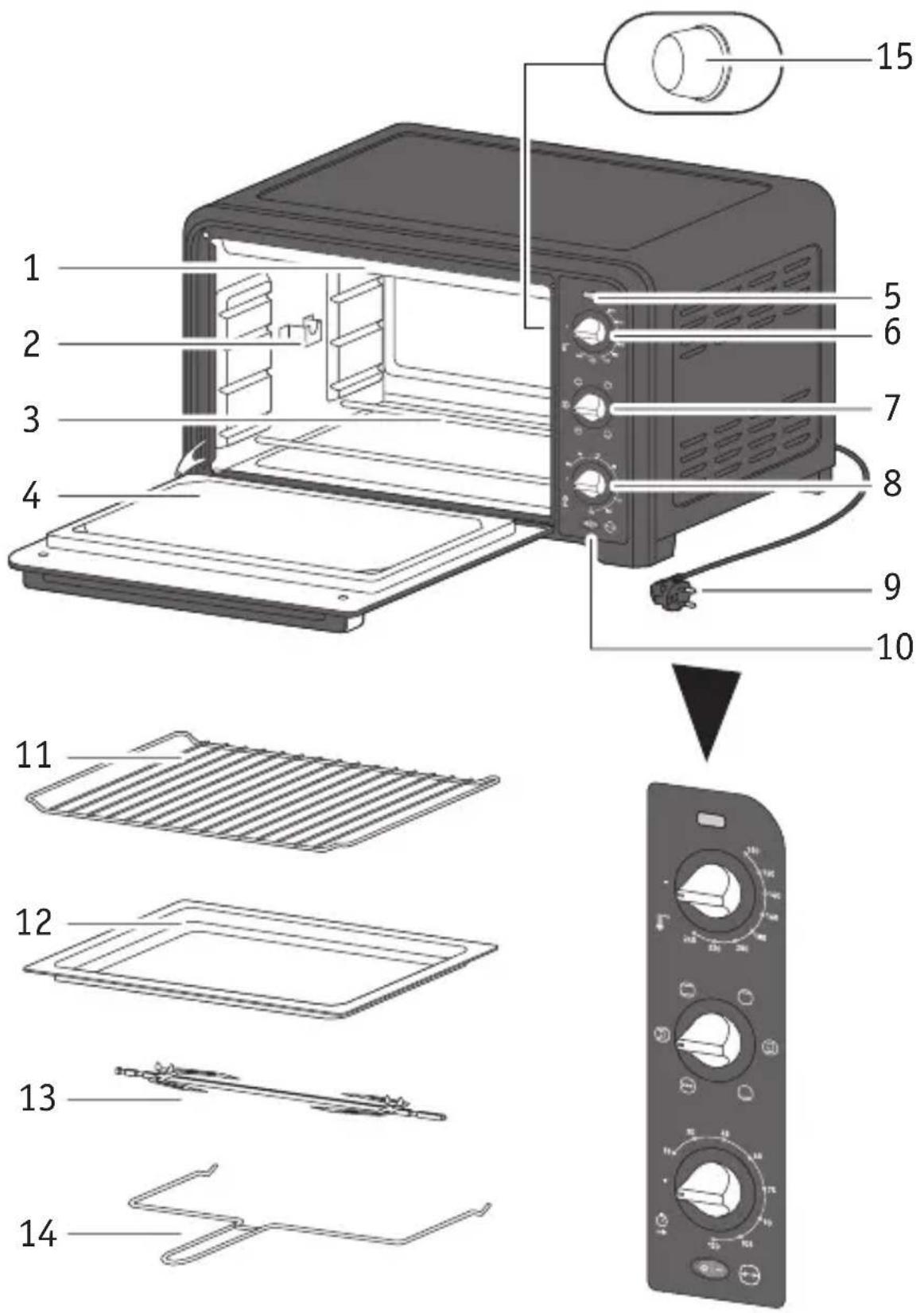

PENERANGAN

1 Elemen Pemanasan Atas
2 Dinding aluminium
3 Elemen Pemanasan Bawah
4 Pintu dinding-berganda
5 Lampu Penunjuk Kuasa

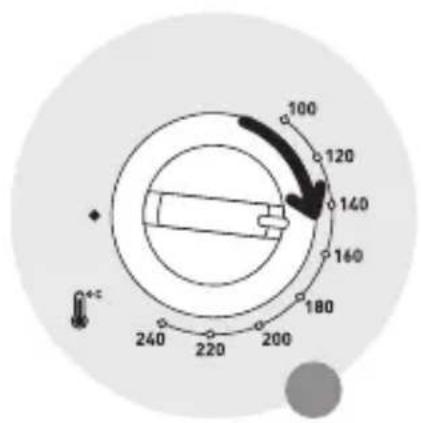

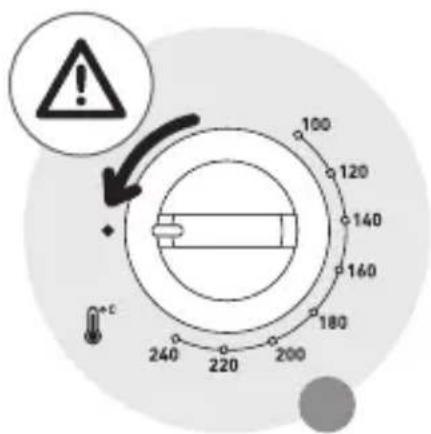

6 Tombol kawalan suhu

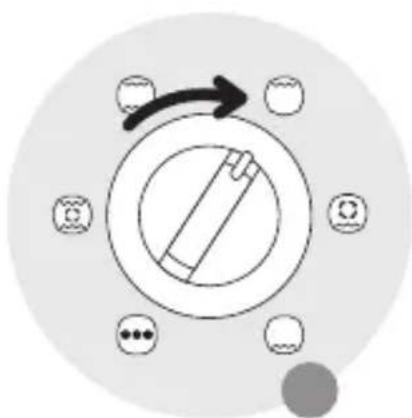

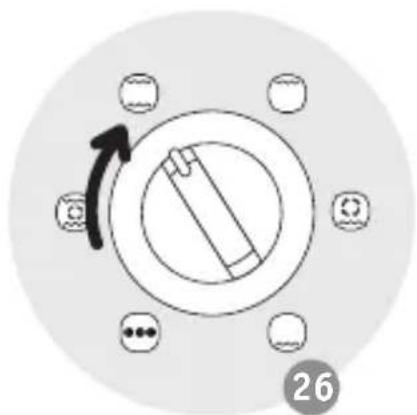

7 Tombol fungsi

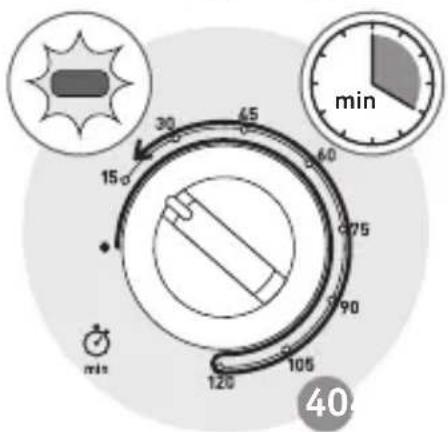

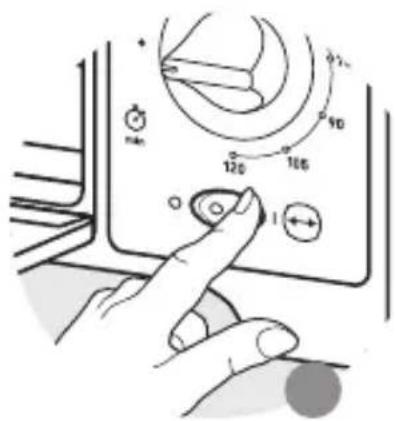

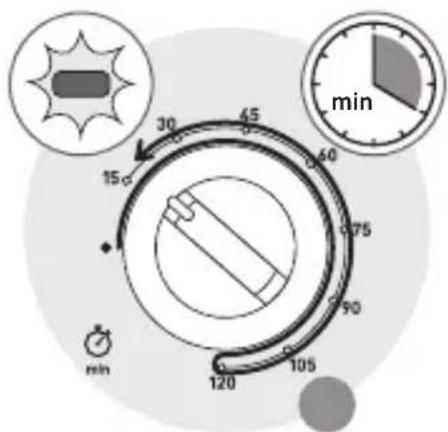

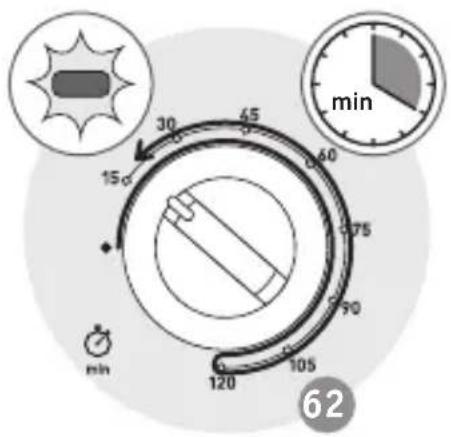

8 Tombol masa

說明

IMPORTANT PRECAUTIONS:

- Make sure you read all the instructions.

- This appliance is not intended to function using an external time-switch or a separate remote control system.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children must be supervised to ensure they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• As this appliance is for household use only, it is

not intended for use in the following applications and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- To ensure safety, if the power cord is damaged, it must be replaced by either the manufacturer, its approved service centre or similarly qualified persons*.

* Unless removable power cord

- During use the rear face of the appliance must be placed against a wall.

- The symbol ≈means: Caution, hot surface.

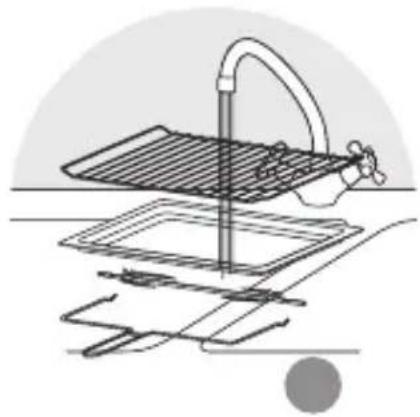

- Cleaning the appliance: the grid (and/or other removable parts) can be cleaned with a damp sponge and dishwashing liquid. Clean the inside and outside of the appliance with a damp sponge or cloth.

- The lamp must only be used for providing light to the oven. It should not be used on fittings for lighting rooms (according to model).

- Do not use the appliance if:

- it has a faulty or damaged power cord,

- the appliance has been dropped and shows visible signs of damage or of malfunction.

In each of these cases, to avoid any risks to your safety the appliance should be sent to the nearest approved service centre.

EN

• Unplug the appliance when you need to carry out major cleaning to the appliance, when you need to change the light bulb or in the event of a thunderstorm.
• Do not remove the control buttons from the control panel when it is being cleaned.
• For your safety, never dismantle the appliance yourself; contact an Approved Service Centre.
• The appliance can be used up to an altitude of 4000 meters.
• The surfaces with ⚠ are liable to get hot during use.
• The temperature of accessible surfaces may be high when the appliance is operating.

- For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment.).

• This product is not intended for outdoor use.
• Bearing in mind all the different standards in force, if this appliance is to be used in a country other than that where it was purchased, make sure it is checked by an approved service centre.
• Do not move the appliance while it is in use.
• This appliance is not designed to be built in to other furnishing units. Place your oven on a flat, stable, heat-resistant work surface or on a kitchen unit which can tolerate a temperature of at least 90°C.
• Make sure that air can flow freely all around your appliance.
• We advise you when using for the first time, to operate your oven empty (without grill).

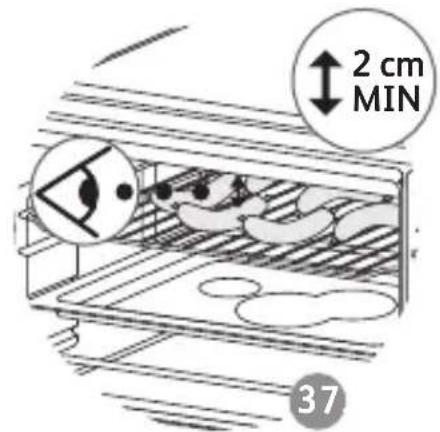

• Allow a distance of at least 2 cm between food articles and the upper heating element. It is quite normal if you notice as light amount of smoke or some smells of newness when you use your appliance for the first time, and this completely normal occurrence will quickly disappear.

- Check that the mains voltage corresponds correctly to that indicated on the appliance (alternating current only).

- Make sure that your electricity supply is sufficient for an appliance of this power.

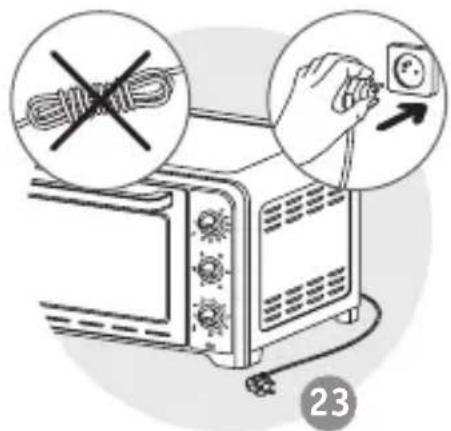

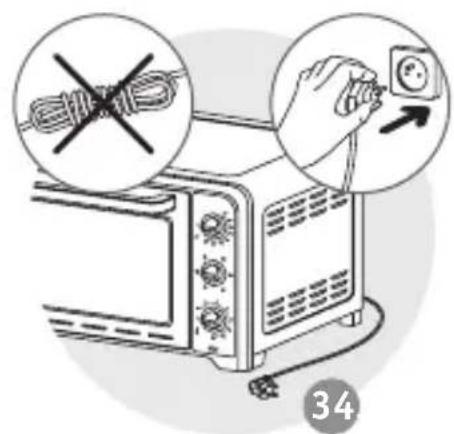

- Always plug the appliance into an earthed socket (16A).

- Do not allow the power cord to hang down or come into contact with the hot parts of the oven.

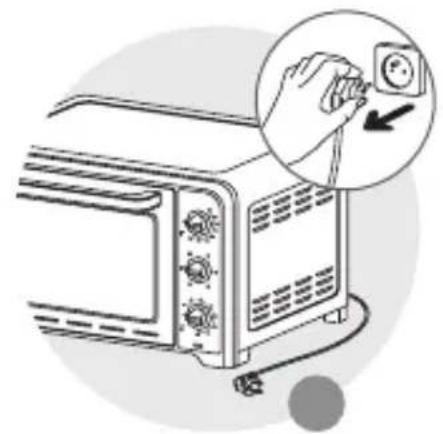

- Do not unplug the appliance by pulling on the power cord.

- Do not leave the power cord close to or in contact with sources of heat or sharp edges.

- Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

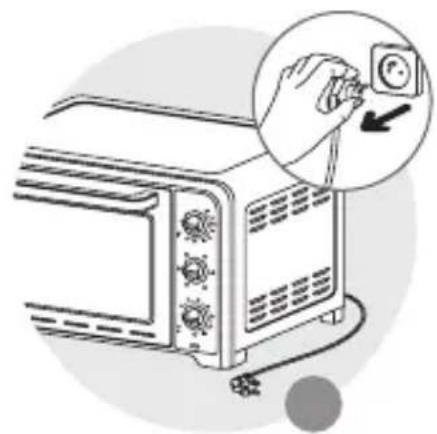

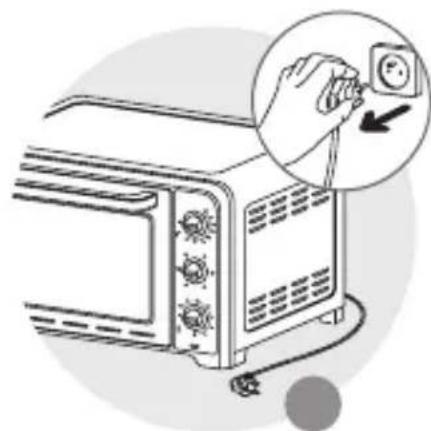

- Unplug the appliance when it is not in use.

- In order to avoid the risk of electric shocks; do not immerse the cord, the plug or the appliance itself into water or any other liquid.

- Do not place the appliance close to any heat source or near to any electrical elements. Do not stand the appliance on top of any other appliance.

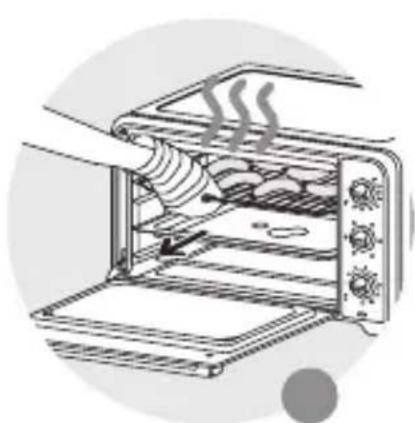

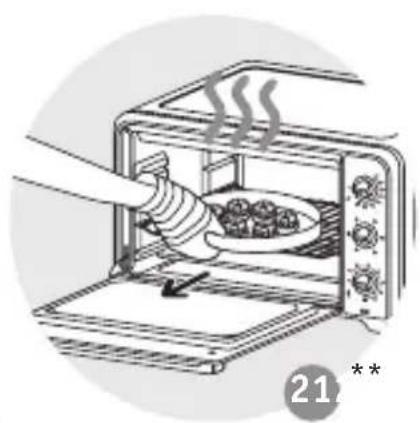

- Use the handles and the buttons; use oven gloves if necessary.

- Be careful when opening and closing the door of your oven: any violent shock or excessive stress caused by variations in temperature may break the glass parts. These parts are made of toughened glass in order to avoid any risk of spray and thus avoid danger to the user.

- Never place any plates on the glass of your oven when it is open.

- Should any parts of the product catch fire never try to extinguish the fire with water. Unplug the appliance and do not open the door. Smother the flames with a damp cloth.

- Do not store any inflammable products close to or underneath the furniture unit where the appliance is located.

- Do not operate the appliance under a wall unit, shelving, or close to inflammable materials such as blinds, curtains, drapes...

- Do not use the appliance as a heat source.

- Never place paper, cardboard, or plastic in the appliance and never put anything on top of it (utensils, grill, objects, hot dishes after cooking...).

- Do not put any aluminium foil under the appliance to protect the work surface, nor between the heating elements, nor in contact with the inside walls or the elements, because you run the risk of seriously damaging the oven or the work surface.

- Never insert anything into the ventilation ducts and do not obstruct them.

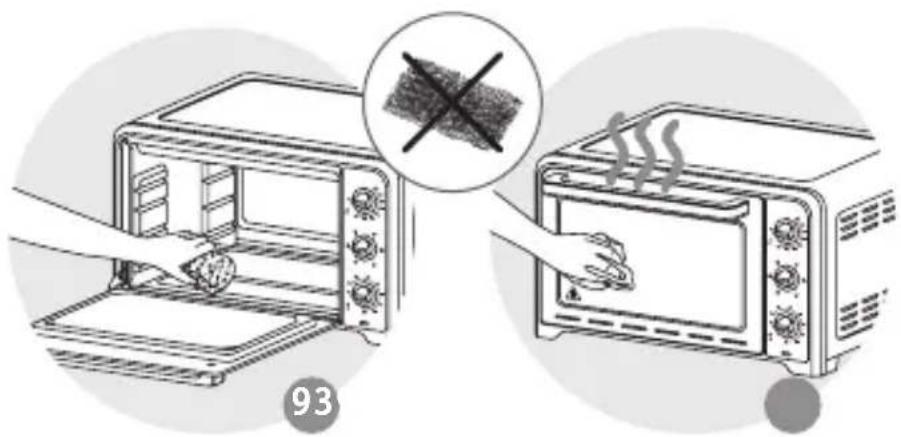

- Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers.

Remark:

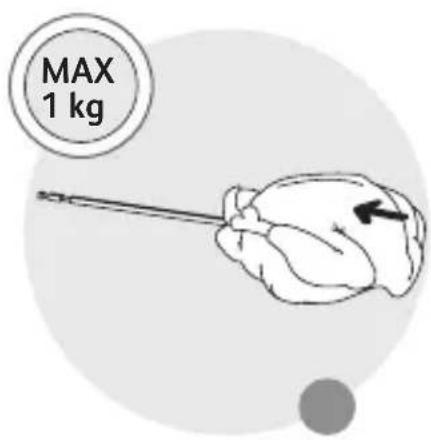

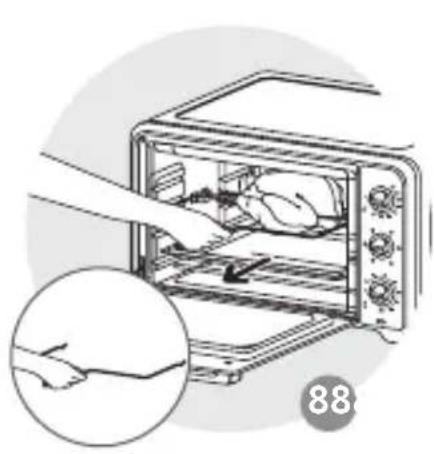

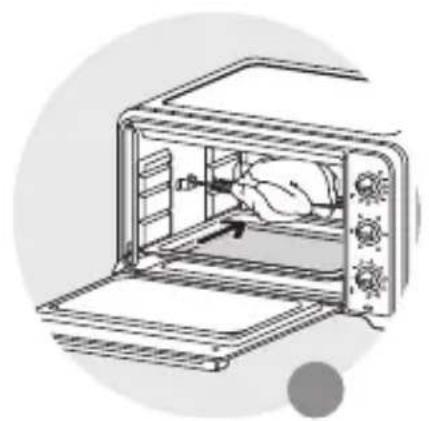

- Be sure to use the baking tray in the turnspit cooking to prevent the grease dripping on the bottom heating element.

- Be sure poultry or meat size does not extend to contact the baking tray as it may lead to a abnormal turnspit function.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. If you have any product problems or queries, please contact our Customer Relations Team 0345 602 1454 - UK [phone] - Ireland or consult our website: www.tefal.co.uk

LANGKAH PENCEGAHAN PENTING:

Illustration of a microwave oven with a hand operating the lid (no text or symbols visible)

Illustration of a microwave oven with a hand placing food into the tray (no text or symbols)

Circular diagram with a central rectangular component and surrounding circular elements, no text or symbols present.

Illustration of a toaster oven with steam rising from the top, showing food inside (no text or symbols)

Illustration of a microwave oven with food being heated by a hand (no text or symbols)

Illustration of a microwave oven with a hand adjusting a wall-mounted power outlet (no text or symbols)

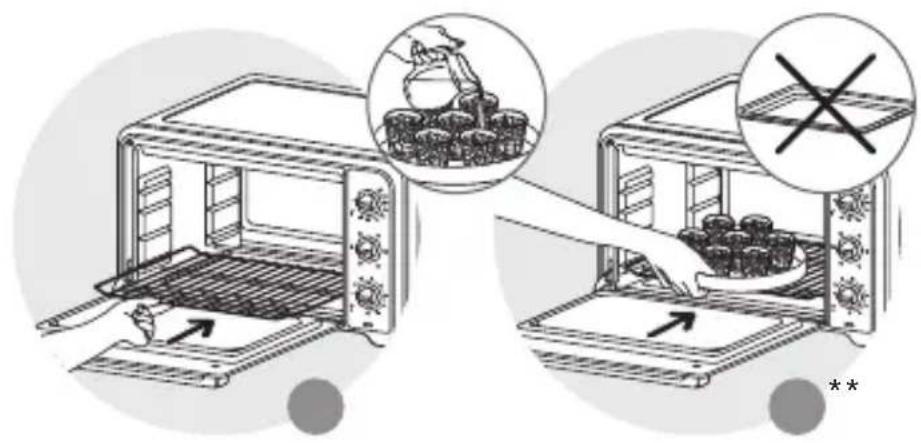

** Plat non fourni avec l'appareil Schaal niet bij het apparaat inbegrepen Platte nicht im Lieferumfang inbegriffen The dish is not supplied with the appliance El plato no es suministrado con el aparato Piatto non fornito con l'apparecchio Travessa não fornecida com o aparelho

Illustration of a microwave oven with a hand inserting a tray into the oven (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Circular diagram with a central arrow and surrounding circular elements, no text or symbols present.

Illustration of a toaster oven with steam rising, showing internal components and a warning symbol (no text or labels)

Illustration of a microwave oven with a hand holding a dish being heated by steam (no text or symbols)

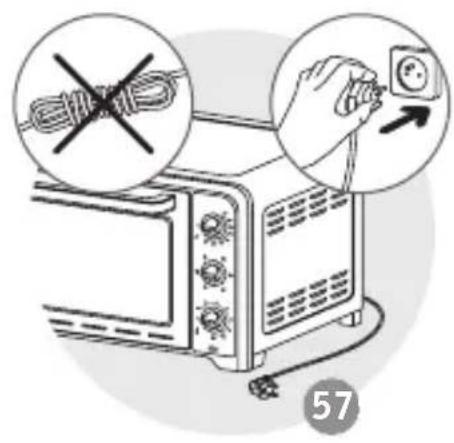

Illustration of a microwave oven with a hand holding a power outlet, showing electrical connections (no text or symbols)

** Plat non fourni avec l'appareil Schaal niet bij het apparaat inbegrepen Platte nicht im Lieferumfang inbegriffen The dish is not supplied with the appliance El plato no es suministrado con el aparato Piatto non fornito con l'apparecchio Travessa não fornecida com o aparelho

Illustration of two open kitchen ovens with food being placed, showing a hand pouring liquid from a bowl into the oven (no text or symbols present)

Circular diagram with a central circular component and surrounding icons (no text or symbols)

Illustration of a microwave oven with steam rising, showing a warning symbol and a magnified view of the oven itself (no text or labels present)

Illustration of a toaster oven with steam rising from the door (no text or symbols)

Illustration of a microwave oven with a hand inserting a power socket (no text or symbols)

Circular diagram with a central rectangular component and surrounding circular elements, no text or symbols present.

Illustration of a microwave oven with steam rising, showing food inside (no text or symbols)

Illustration of a microwave oven with food being heated by a hand, showing steam rising from the tray (no text or symbols)

Illustration of a microwave oven with a hand inserting a plug into the air gap (no text or symbols)

** Plat non fourni avec l'appareil Schaal niet bij het apparaat inbegrepen Platte nicht im Lieferumfang inbegriffen The dish is not supplied with the appliance El plato no es suministrado con el aparato Piatto non fornito con l'apparecchio Travessa não fornecida com o aparelho

Circular diagram with a central circular component and surrounding symbols, no readable text or labels

Illustration of a microwave oven with steam rising, showing interior dish and smoke (no text or symbols)

Illustration of a microwave oven with a tray holding food and a hand pouring liquid from a bowl into it (no text or symbols)

Illustration of a microwave oven with a hand inserting a power switch into a wall-mounted socket (no text or symbols)

** Plat non fourni avec l'appareil Schaal niet bij het apparaat inbegrepen Platte nicht im Lieferumfang inbegriffen The dish is not supplied with the appliance El plato no es suministrado con el aparato Piatto non fornito con l'apparecchio Travessa não fornecida com o aparelho

Illustration of a microwave oven with a hand inserting a tray into the interior (no text or symbols)

Illustration of a microwave oven with a hand inserting food into the tray, showing a magnified view of the lid (no text or symbols present)

Circular diagram with a central mechanical component and surrounding circular elements, no text or symbols present.

Illustration of a microwave oven with a hand inserting food into the tray (no text or symbols)

Illustration of a microwave oven with a hand adjusting a wall-mounted power outlet (no text or symbols)

Illustration of a microwave oven with a hand holding a container and a magnified inset showing liquid being poured into it (no text or symbols)

Simple line drawing of a chicken on a branch with arrows indicating movement (no text or symbols)

Line drawing of a microwave oven with a person inside, showing internal components and a handle (no text or symbols)

Circular diagram with a central rectangular component and surrounding circular elements, no text or symbols present.

Illustration of a microwave oven with steam rising from the top (no text or symbols)

Illustration of a hand operating a microwave oven with a close-up inset showing the interior scene (no text or symbols)

Illustration of a microwave oven with a hand inserting a power switch (no text or symbols)

9

Illustration of a microwave oven with a hand holding a rotary switch, showing the interior and exterior view (no text or symbols)

Diagram of a mechanical setup with a central rod and surrounding components (no text or symbols)

Illustration of a microwave oven being heated by a hand, showing the oven with a food item and a magnified view of its interior (no text or symbols)

Line drawing of a microwave oven with a hand operating the lid (no text or symbols)
