Product type	MP3 Player
Brand	Lenco
Model	Podo-153
Dimensions	Approximately 90 x 40 x 10 mm
Weight	Approximately 30 g
Power supply	Rechargeable lithium-ion battery via USB
Storage capacity	Internal memory 8 GB (expandable via microSD card)
Supported audio formats	MP3, WMA, FLAC, APE, WAV
Main functions	MP3 playback, FM radio, Voice recording, Shuffle play, Repeat
Screen	1.8-inch LCD screen
Connectivity	USB 2.0, 3.5 mm headphone jack
Battery life	Up to 20 hours of playback
Box contents	MP3 player, earphones, USB cable, manual
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Use only the supplied cable.
Spare parts and repairability	Battery and earphones replaceable. For any repairs, contact customer service.
General information	Portable device ideal for music on the go. Compatible with Windows and Mac.

Frequently Asked Questions - Podo-153 LENCO

How to charge the Podo-153 MP3 player?

Connect the supplied USB cable to the player and to a USB port on a computer or a power adapter (5V). The LED indicator shows charging.

What audio formats are supported?

The Podo-153 supports MP3, WMA, FLAC, APE, and WAV formats.

How to add music to the player?

Connect the player to a computer via USB. It appears as a removable drive. Copy your audio files into the storage folder.

Does the battery last long?

Yes, the battery life can reach 20 hours of continuous playback depending on volume and format.

How to use the FM radio?

From the menu, select FM Radio. Plug in the earphones (they act as an antenna). Use the buttons to search for stations.

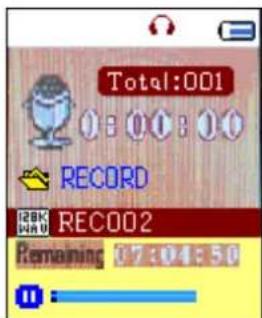

Can I record sounds with this player?

Yes, the Podo-153 has a voice recording function. Activate it from the menu and press the record button.

How to expand memory?

You can insert a microSD card (up to 32 GB) into the dedicated slot.

What to do if the player does not turn on?

Make sure the battery is charged. Try resetting the device by pressing the reset button with a paperclip.

How to clean the player?

Use a soft, dry cloth. Do not use liquids or abrasive products.

Is the player compatible with Mac?

Yes, it is recognized as a mass storage device. Works on Windows and Mac OS without additional software.

USER MANUAL Podo-153 LENCO

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The apparatus can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit could maybe not work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from rodents. Rodents enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the apparatus.

18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this apparatus.

22. Never place this apparatus on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

25. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor :

- If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.

- To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.

- Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

● Unplug this device during lightning storms or when unused for a long period.

- The socket outlet must be installed near the equipment and must be easily accessible.

- Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

● Devices with class 2 construction do not require a earthed connection.

● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

- Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin / cell batteries:

Warning:

- “Do not ingest battery, Chemical Burn Hazard” or equivalent working.

● [The remote control supplied with] This product contains a coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

- Keep new and used batteries away from children.

- If the battery compartment does not close securely, stop using the product and keep it away from children.

- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

1. Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

● Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

- Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

- Unpack all parts and remove protective material.

- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

WARNING: When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

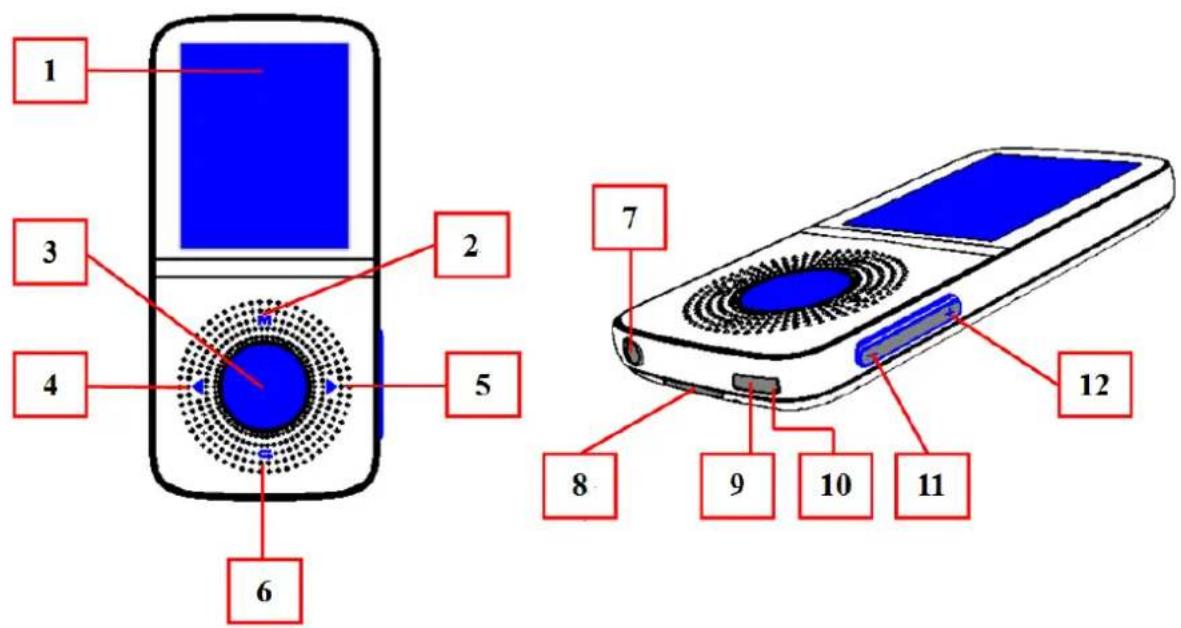

1. Get to know the controls on Player

Item	Description
1	TFT LCD Display
2	M Button (Call Menu)
3	Center ( ▶ ) Button (On / Off, Play / Pause, Enter)
4	◀ Button (Previous / Fast-Rewind)
5	▶ Button (Next / Fast-Forward)
6	hook Button (Previous Menu / Exit)
7	Earphone Output Jack (3.5mm Stereo)
8	Micro SD Memory Card Slot
9	Micro USB Port (PC Connection / Charge)
10	Microphone Position (mono, inside USB port)
11	VOL -Button (Volume Down)
12	VOL +Button (Volume Up)

2. About Player Battery

Player has an internal, non-user-replaceable battery. For best results, the first time you use player, let it charge for about 2 \~ 3 hours or until the battery status icon in the “Connect” screen shows that the battery is in full.

Battery is in full

Note: Player may continue use battery power after it's been turned off. For maintain the battery life and performance, if unit isn't used for a while, the battery need to be recharged, recharging the battery at least once per month.

Warning:

Better use the original USB cable delivered with your MP3 player. This cable is a data and charging cable. Some other USB cables in the market are charging only cables. If you use a charging only cable to transfer data from your computer to your player, it will only show the battery symbol on the screen and will not be detected by your computer as an external drive; this means that you cannot transfer any files from your computer to your MP3 player.

Note :

The player contains a built-in temperature monitor sensor. If it detects that the battery pack temperature is not within acceptable values, it will control and stop the charging function. The charging function will automatically restart when the detected battery pack temperature returns to delete normal limits.

a. Charging the Battery:

You can charge the player battery in two ways:

• Connect player to your computer. Or,
• Use the USB power charger. (not included)

b. Connection and Charging:

• Once you have connected player with computer / power charger, then you will see the "Connect" screen appear on screen,
• The level bars are running in battery status icon at the “Connect” screen. The battery is in charging.

Connect Screen

In Charging

Important: The battery does not charge when your computer is in sleep. The USB port on most keyboards does not provide enough power to charge the player. Connect player to a USB port on your computer only to prevent charge problem.

3. Connecting and Disconnecting Player

You can connect the player with your computer to transfer those media

files and recorded voice memos when necessary, and to charge the battery.

a. To Connecting Player

• To connect player to your computer, plug the connector of USB Cable into a USB port on your computer, and connect the other end to player, then the “Connect” screen appear for view.
• Now the player is ready for media files transfer with your computer and the battery is charging.
• You can transfer the media files by using the computer mouse use drag and place, or copy and paste, in between the player and your computer. Disconnect it when you're done.

b. To Disconnecting Player

It's important not to disconnect player while it's syncing or transferring files. Eject the player before disconnect it.

• To eject player, press and hold the M button for about 2 seconds, the "Connect" screen will switch to "Main Menu" screen. And now is safe to disconnect the player with your computer. Unplug the USB cable from the player. Or,
• If you're using a Windows PC, you can also eject player in My Computer or by clicking the "Safely Remove Hardware" icon in the Windows system tray, select the correspondence name of USB Device and choose "Stop" > or "Reject" follow by the pop up windows you're your computer.
• If you're using a Mac, you can also eject player by dragging the player icon on the desktop to the Trash.
• Disconnect the USB cable from the player and computer, simply remove it.
• If you accidentally disconnect player without ejecting it, reconnect it to your computer and sync again. However, some media file may loss.

4. Getting Start the Player

Turn ON / OFF the player and use of Main Menu:

• To turn ON the player, press and hold the Center (▶) button for 3 \~ 4 seconds, then you will see any one of the following shown Main Menu screen, Music / Movie / Record /pedometer / Voice / Photo / Setup/ Games / eBook, will appear on LCD after the Loading and Opening screen have displayed.

- To turn OFF the player, press and hold the Center (▶) button for 3 \~ 4 seconds.

"Main Menu"

You might need to set date & time or change some default setting as you desired in setup menu before you start to use the player.

• To go into setup menu, from main menu, choose "Setup" by using ◀ / ▶ and Center (▶) buttons, a "Setup" menu appears to use;
• For back to previous menu or main menu, press or pressing ↩ button during in setup menu and submenu.

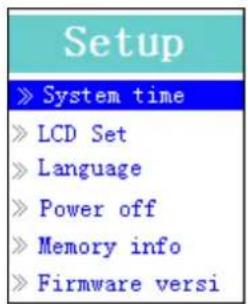

Setup Menu

(Menu Page 1)

(Menu Page 2)

a. To Setup "System time" (Date & Time):

• Choose "System time" by using the ◀ / ▶ button and then press Center ( ▶ ) button, a date & time setting screen appears to use.
• Press the VOL + button, the year is highlighted then adjusting to current year by pressing the ◀ / ▶ button. And repeating the adjusting methods by using the VOL + / VOL - and ◀ / ▶ button again for finished those items; Month, Date, Hour, Minute and seconds setting adjustment.
• Finally, you need to press the Center (▶) button to confirm the adjustment and back to Setup menu, if not the date & time will not to memorize and you need to adjust them again.

Note: the set date & time will be losses if internal rechargeable battery is fully emptied in protection mode. Adjust the clock again if you want it to use.

b. To change "LCD set"

You can set the backlight to illuminate the screen for a certain amount of time as you desired or make the backlight to always ON when every time you turn ON the player.

- To change LCD backlight, choose “LCD set” > choose “Dark mode”, a level bar with number appear then chose “0 (always On) / 5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 seconds” as you desired by using the Center ( ▶ ) and ◀ / ▶ buttons. Choose “0” to prevent the LCD backlight from turning to off. (choosing this option decrease battery performance)

c. To Change "Language"

This player can use difference OSD languages.

- To set the language, choose "Language", and then choose which language as you desired by using the Center (▶) and ◀ / ▶ buttons.

d. To Set "Power Off"

The Power Off setting can extend the time between battery charges by turning OFF the player when you are not using the controls or no operation. Also, Sleep function provided for more choice.

• To set power off time, choose "Power off", then choose "Off time", a levels bar with number menu appear, then choose "0 - 200 seconds" as you want by using the Center (▶) and ◀ / ▶ buttons.
• To set sleep time, choose “Power off”, then choose “Sleep time”, a levels bar with number menu appear, choose “0 / 10 / 20 /30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 / 120 minutes” as you want by using the Center ( ▶ ) and ◀ / ▶ buttons.

e. To View "Memory info"

You can view about the memory status of player, such as the numbers of remaining memory space available and the percentage of memory have used.

- To view the status, choose “Memory info” by using the Center (▶) and ◀ / ▶ buttons. An information screen, remaining memory space available and percentage of memory used, appear for view.

- To return to setup menu or main menu press the → button or press and hold the button

f. To View "Firmware Version"

You might need to view the details about firmware information inside the Player.

• Choose "Firmware version" by using Center (▶) and ◀ / ▶ buttons, an information screen appear for view.
• To return to setup menu or main menu press the → button or press and hold the button

g. To "Exit"

- Select Exit to back to main menu. Or, press and hole the button.

6. Use Music Menu

You can use music player to playback with supported music file format of audio coding; WMA and MP3 are supported by the player. To open the music player in Main Menu:

- From main menu, choose "Music" by using the ◀ / ▶ and Center ( ▶) button, a "Music Now Playing" screen appears to use.

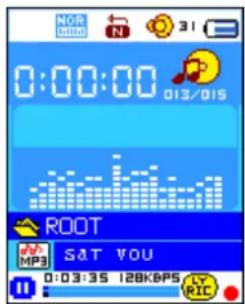

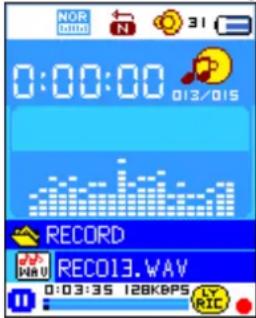

Music Now Playing

a. To Play Music

• In Music Now Playing screen, press the Center (▶) button to start the play.
• Press the Center ( ▶ ) button to pause the playing music.
• Press it again to resume.

b. Play Previous or Next Music

• Press the ▶ button to play next music.
• Press the ◀ button to play previous music.

c. Use Fast-Forward or Fast-Backward

• Press and hold the ▶ button to use fast-forward
• Press and hold the ◀ button to use fast-backward.

d. Adjust volume level

- Press the VOL+ / VOL- button to adjust volume levels to up / down and a

volume control screen appears to viewing;

• Wait for 6 \~ 8 seconds or press the ⇔ / Center ( ▶ ) button to return to music now playing screen.
• For hearing protection; a beep warning will be heard from earphone, or display warning pop-up on TFT screen, when every time you increase the volume level and reach to the default setting level which may exceed 85dB. Press the M button to accept the warning and enter into the volume control for increase the level and until to maximum level.

e. Use Lyric Display

This player supports “*.LRC” lyric files and lyrics can synchronous displayed while playing music if you music has lyric included. How to know whether the lyrics exist? If the current song has matching lyric files, the color dot beside the Lyric Message icon will be turned to green color from red in Music Now Playing screen.

• Playing the music with lyrics, and then press and hold the M button to enter the lyric display mode and the lyrics is displaying and moving up accordingly with the playing music.
• Press the M button to cancel the lyrics display and go back to Music Now Play screen if you want.

7. Use Music Submenu in Music Stop Mode

You might need to selecting folders for music play and delete music files. To do this:

• In Music Now Playing screen, press the Center (▶) button to stop the playing music if player is in playing. Then,
• Press the M button to pop-up the Music Submenu.

a. Local Folder

• In Music Submenu screen, choose "Local folder" a list menu appear, and then select folder and / or choose a music file by using the ◀ / ▶ and Center ( ▶ ) button.
• It will go back to music now playing screen once a music file is selected. Then press Center ( ▶ ) button to play.

b. Artists

- Choose “Artists” to enter folder(s) list menu grouping by Artist name, then choose who name of Artist folder > choose a song file in list where start the play.

c. Album

- Choose “Album” to enter folder(s) list menu grouping by Album name, then choose who name of Album folder > choose a song file in list where start the play.

d. Genre

- Choose “Genre” to enter folder(s) list menu grouping by Genres name, then choose who name of Genres folder > choose a song file in list where

start the play.

e. Update playlist

- Choose “Update playlist” to update the playlist when you found it show incorrect; actually, it is normal due to some media files could be manual deleted in player’s memory by user in some case. However, update the playlist when necessary.

f. Delete file

- Choose "Delete file", a list menu appear, and then choose which music file that you want to delete by using the ◀ / ▶ and Center ( ▶ ) buttons. - Once file is selected, press the Center ( ▶ ) button and choose Yes to confirm or No to cancel.

g. Delete All

• Choose "Delete all", a dialog appear to choose, then selects "Yes / No" by using the ◀ / ▶ and Center ( ▶ ) buttons.
• Once "YES" or "NO" appear then press the Center (▶) button to confirm.
• All music files will be deleted once YES is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will shown on screen for few seconds.

h. Exit

- Select Exit to back to music now playing screen.

8. Use Music Submenu in Music Playing Mode

You might need to do some changes for music playing, such as repeat, EQ settings for music files... etc. To change setting:

- In music playing mode, press the M button, a Music Submenu appear to choose;

a. To Set Repeat

- Choose “Repeat” > then choose “Normal / Repeat one / Repeat All / Repeat folder / Random All / Random Folder” as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons.

b. To Change Equalizer

- Choose “Equalizer” > then choose “Natural / Rock / Pop / Classic / Soft / Jazz / DBB” as you desired by using the ◀ / ▶ and Center ( ▶∥ ) buttons.

c. Exit

- Select Exit to back to music now playing screen.

9. Use Movie Menu

a. To Play Movie

- From Main Menu, choose "Movie" by using the ◀ / ▶ and Center ( ▶∥ ) button, a "Movie Now Playing" screen appears to use.

• In Movie Now Playing screen, press the Center ( ▶ ) key to start the play.
• Press the Center (▶) button to pause and to back to Movie Now Playing screen. Press it again, the video will play continue.

b. To Play Previous or Next Video

• Press the ▶ button to play next movie file.
• Press the ◀ button to play previous movie file.

c. Use Fast-Forward or Fast-Backward

• Press and hold the ▶ button to play fast-forward.
• Press and hold the ◀ button to play fast-backward.

d. Adjust Volume Level

• Press the VOL+ / VOL- button to adjust volume levels to up / down. Or,
• To preset the volume level at movie stop mode in Movie Now Playing screen, press the VOL+ / VOL- button to adjust volume levels to up / down and a volume control screen appears to view. Then, press the Center ( ▶) button to confirm and exit from volume control screen.

- For hearing protection; a beep warning will be heard from earphone, or display warning pop-up on TFT screen, when every time you increase the volume level and reach to the default setting level which may exceed 85dB. Press the M button to accept the warning and enter into the volume control for increase the level and until to maximum level.

10. Use Movie Submenu in Movie Stop Mode

You might need to selecting folders, delete movie files and set repeat for movie play. To do this:

• Press the Center (▶) / ↻ button to stop the playing movie and return to Movie Now Playing screen; Then,
• Press the M button, a movie submenu appear, then choose "Local / Delete file / Delete all / Repeat / Exit" as you desired by using the ◀/ ▶ and Center ( ▶ ) buttons.

a. Local Folder

• In movie submenu screen, choose "Local Folder", a file list menu appear, and then select folder and / or choose a desired movie file to play by using the ◀ / ▶ and Center ( ▶ ) button.
• It will go back to movie now playing screen once a movie file is selected. Then press the Center ( ▶ ) button to play.

b. Delete File

• Choose "Delete file", a file list menu appear, and then choose which movie file that you want to delete by using the ◀ / ▶ buttons.
• Once file is selected press the Center ( ▶ ) button and choose "Yes" to confirm or "No" to cancel.

c. Delete All

- Choose "Delete all", a dialog appear to choose, then selects "Yes / No" by using the ◀ / ▶ button.

• Once "YES" or "NO" appear then press the Center (▶) button to confirm.
• All movie files will be deleted once “YES” is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will shown on screen for few seconds.

d. Repeat

- Choose “Repeat”, then choose “Normal / Repeat one / Repeat All / Repeat folder / Random All / Random Folder” as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons.

e. Exit

- Select Exit to back to music now playing screen.

11. Convert Video files into AVI/AMV

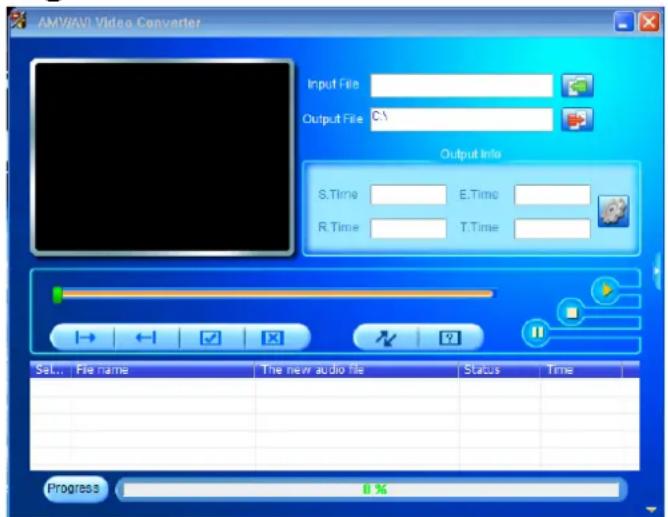

This tool can be used to transform those video files into AVI/AMV files on the computer before upload them to your player.

• To install this video convert tool to your computer, open a folder named "UTILITIES > Video Conversion Software" which stored on the Player's memory.
• Select “Setup” to start the install program, the software will automatically install to your computer.
• After installation is done, open folder “Media Player Utilities” > click program “AMV & AVI Video converter” in All Program bar on your window PC. The program interface as shown below:

Noted: This program is used to convert video files into AVI/AMV format, currently only AVI/AMV format is supported by this player.

- Then click 📄 to choose the folder where to save the AVI/AMV files, and then click 📄 to select the folder where the original files are. The original file will show in the file window once selected.

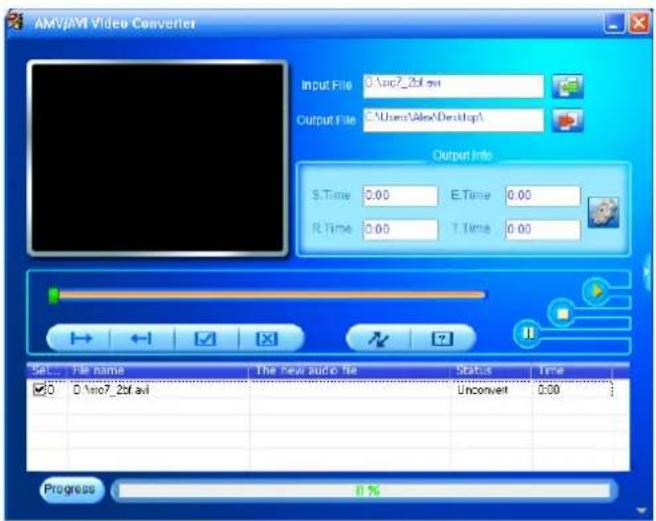

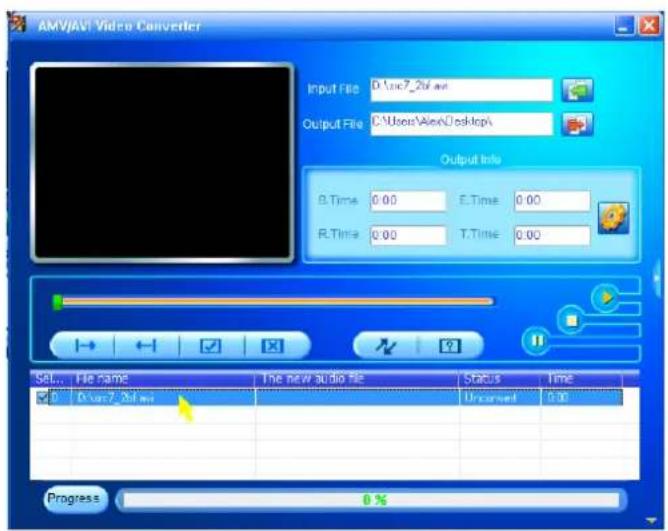

- Move the mouse arrow and left click mouse on the unconverted source files to select with highlight in the file window, then the icon will be highlighted into icon. Now click this icon and a dialog box will be shown.

- Now click this icon and a dialog box will be shown.

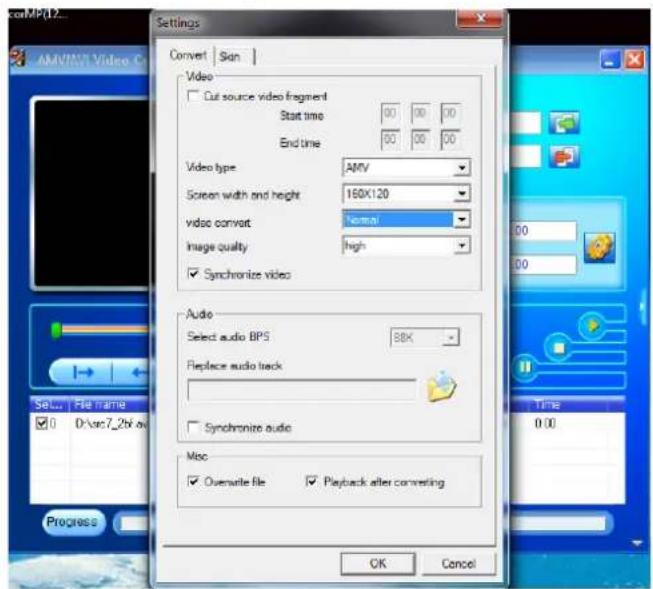

• Make sure Video type is “AVI” or “AMV”, Screen width and height is “160x120/320x240” selected. Video convert and Image quality should be “Normal” and “High” as defaulted.
• Now click to start converting.

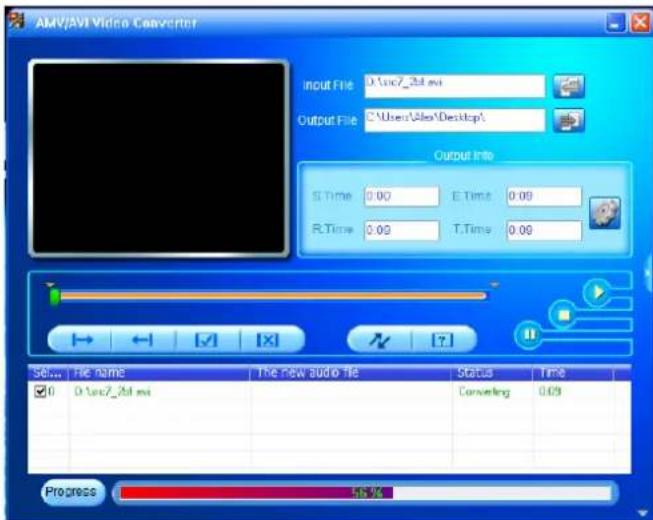

■ After conversion, the AVI/AMV files will play automatically for preview.
- And now, the converted AVI/AMV file is ready to transfer, you can simply copy and place those converted AVI/AMV files to the media player.

Note: Only pixels in “160x120/320x240 (max.)” can be supported by this player.

12. Use Record Menu

You can use the player as a Voice Recorder and recording voice memos using the built-in microphone.

a. To Start Recording Voice Memo

- From main menu, choose "Record" by using the ◀ / ▶ and Center ( ▶∥ ) buttons, a "Now Recording" screen appear to use;

Now Recording

b. To Start / Pause Recording

• Press the Center (▶) button to start the recording and the recording time is running. It is in recording.
• Press the Center ( ▶ ) button to pause the recording and recording time

will stop and flashing. Press it again to resume the recording.

c. To Save and Stop Recording File

• Press and hold the Center (▶) button, the recorded file will save into memory and ready for new recording. Press the Center (▶) button can start the new recording immediately.
• Press and hold the ⬆ button to save the recording file and exit to main menu from now recording screen.

13. Use Record Submenu (in Stop Mode)

You might need to change the folder locations which want to store the record file and / or change record quality to better compression values.

- In Now Recording screen at stop mode, press the M button to pop-up a the “Record Submenu” to choose;

a. Local folder

• In record submenu, choose "Local folder" > chooses "\ \ " until to "Root" directory with other folders are appearing to choose from defaulted folder location by using the Center ( ▶ ), ⇔ and ◀ / ▶ buttons; (Default folder path is "\RECORD")
• And then, choose the folder name which you want to save the record file by using the ◀ / ▶ and Center ( ▶ ) buttons. Once folder name selected, press and hold the ⬆ button to confirm, then the folder location is changed and go back to Now Recording screen.
• And now you can see the folder name is changed at the Record Folder icon in “Now Recording” screen.

b. REC Type

- Choose “REC type”, then choose “32K BPS / 64K BPS / 128K BPS / 256K BPS” values as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons.

c. Exit

- Select Exit to back to music now playing screen.

14. Use Pedometer

- From main menu choose “Pedometer” by using the ◀ / ▶ and Center ( ▶) buttons. A pedometer menu appears to use;

Pedometer Menu

a. Setup your pedometer before start

Before you start to use the pedometer function, you need to input your personal information and calibrates the player's pedometer sensor to personalize it. To do this:

• From pedometer menu, choose "Pedometer", then choose "Setting" by using the ◀ / ▶ and Center ( ▶ ) buttons. A submenu list appears to use;
• Choose “Women / Man”, then choose stride “Walking / Jogging / Running”, a level bar with number appear to choose;
• Input your average stride length, for example 80 (cm) by using the ◀ / ▶ and Center (▶) buttons. (Refer to “Stride Length Measurement” mentioned as below.)
• Once average stride length is set, it will return to pedometer menu. (Adjustment range can be set from 10 \~ 200 (cm) by increase / decrease 1 cm step)
• Choose "Exit" to return to main menu.

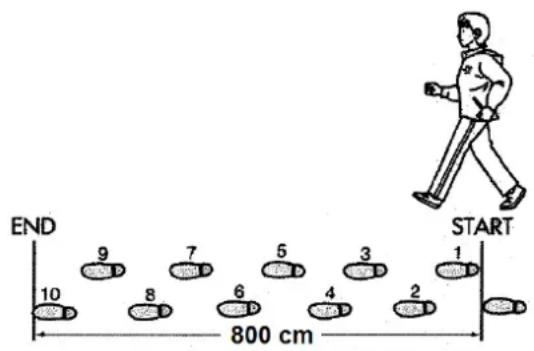

Stride length measurement

- Walk / Jog / Run 10 steps with your normal stride as illustrated below.

• Measure the distance from START to END in centimeter (cm). Then calculate your stride length by dividing the total distance by 10. Example:
  • Total distance = 800 cm
• 800 ~cm ÷ 10 steps = 80 ~cm

b. Start / Exit pedometer counts

• Choose “Start” to enter and start pedometer counts function when settings are completed, the pedometer counts display is appearing and time is start running, from “00:00:00”. At same time pedometer sensor is starting to counts your move. Now you can start walking, jogging or running as preferred in setting.
• Those wanted information; such as: Steps, distance, calorie burned and Speed, are showing on pedometer counts display screen for view.

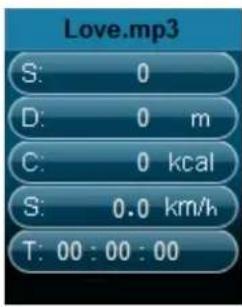

Pedometer Counts Display

• The pedometer data will only be shown on the screen after the first +/- 12 steps because the software needs some data to analyze the steps and then show the results on the screen
• To exit pedometer counts function and Save the personal counts record, press the M button, a confirm screen appear, then choose "Yes" to confirm and the screen will return to main menu. The record is saved. Or,
• Choose "No" to cancel and continue the pedometer counts.

c. Look Up record

• In pedometer menu, choose “Look up” to view the personal counts record. The player is allowed storing maximum 2 personal counts record “Record 1 / Record 2”. Moreover, the new records will overwrite the old Record 1 and Record 2.
• Press the M button to exit from personal counts record display and back to main menu.

Personal Counts Record

d. Play Music in Pedometer Function

• From pedometer menu, choose "Local folder / Card folder" by using the ◀ / ▶ and Center ( ▶) buttons. A list menu with folders / files appears to choose.
• Choose a folder and file, which music as the first music to play, when you start to play song in pedometer counts display mode. The screen will return to pedometer menu. Then.
• Choose "Start" to enter the pedometer counts display mode. Press "Center" (▶) button to start the music play music with the pedometer counts function if you wish. And,
• You can pause / stop the playing music by press the "Center" ( ▶ ) button, press it again to resume. Or, just only using the pedometer counts

function as you want it.

e. Music controls in pedometer (same as music mode)

In pedometer counts mode

• Press the Center ( ▶ ) button to start the play. Press it again to pause.
• Press the button to play next music.
• Press the ◀ button to play previous music.
• Press and hold the ▶ button to use fast-forward
• Press and hold the ◀ button to use fast-backward.
• Press the VOL+ / VOL- button to adjust volume levels to up / down and a volume control screen appears to view;
• Wait for 6 \~ 8 seconds or press the Center ( ▶ ) button to return to music now playing screen.
• For hearing protection; a beep warning will be heard from earphone, or display warning pop-up on TFT screen, when every time you increase the volume level and reach to the default setting level which may exceed 85dB. Press the M button to accept the warning and enter into the volume control for increase the level and until to maximum level.

Note: In pedometer mode, some music settings are defaulted and cannot be changed. Such as Repeat All (Cycling), In Order Play.

f. Attaching the player for pedometer

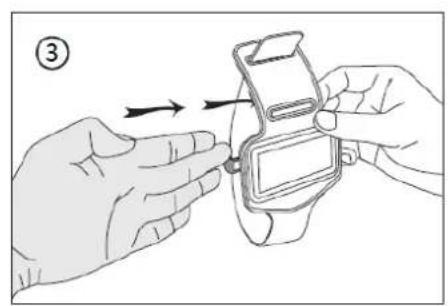

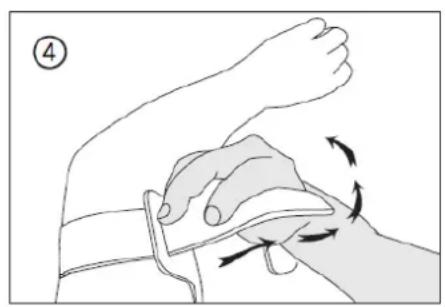

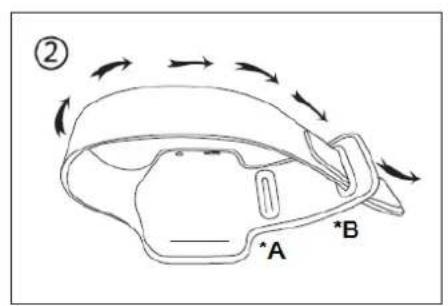

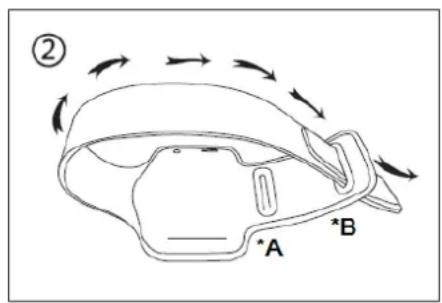

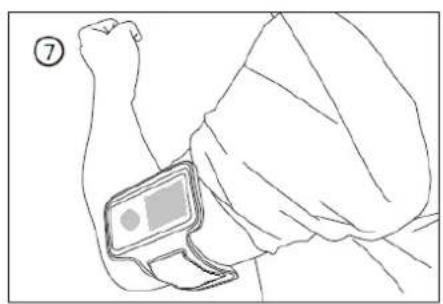

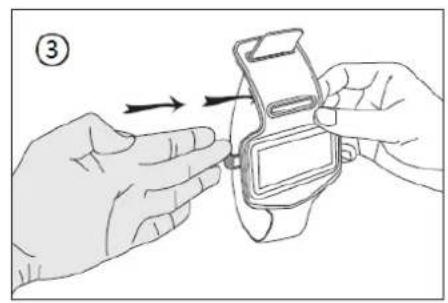

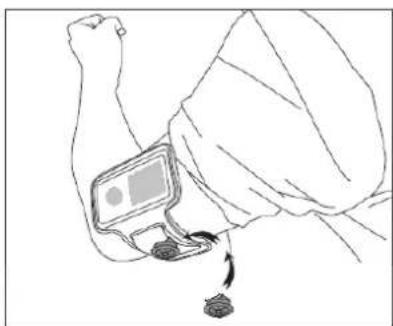

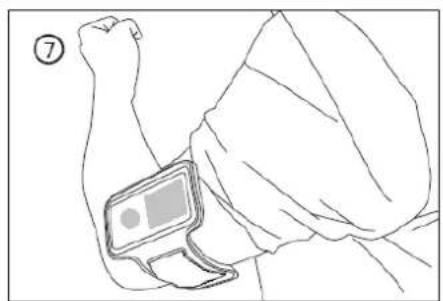

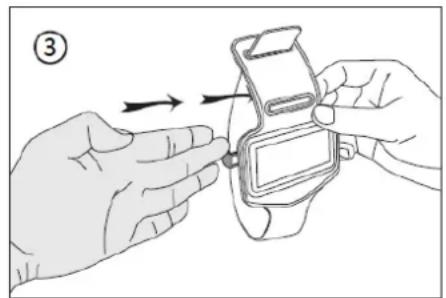

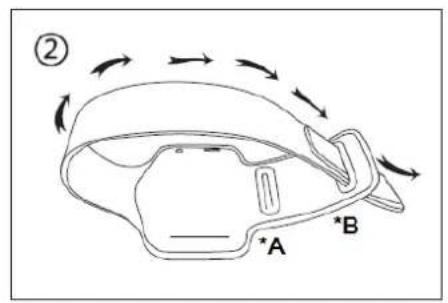

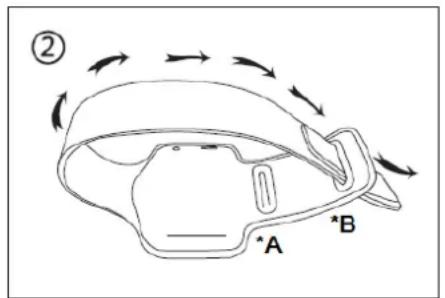

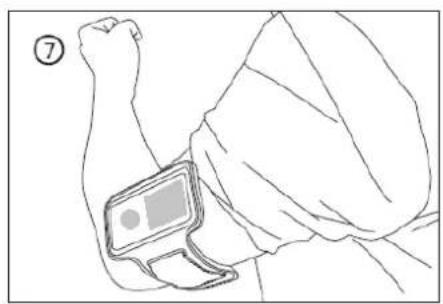

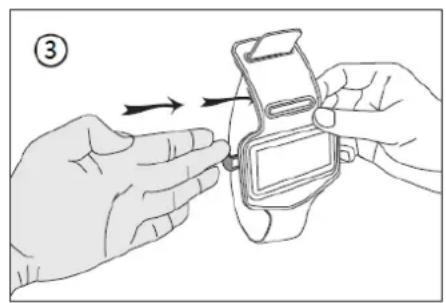

Place the unit on Armband (If provided)Put the unit onto the armband, and then place it to your upper arm, adjust the length of the armband to suits your arm size and comfortable.
Place the unit in your pocketDo not place the unit in the back pocket of your pants, to prevent sitting on it.Close the zipper / button of your pocket (if available) to prevent the unit from dropping.
Place the unit in your bagPlace the unit in a secure section or partition of your bag.Make sure the unit is placed horizontal or vertical in a pocket in the bag.
Hanging the unit from your neckAttach a secure lanyard or string to the unit. (not provided)Place the lanyard around your neck and hang the unit as illustrated.NOTE: Make sure the lanyard / string is correctly sized to easily remove the unit from around your neck. If used hanging around neck, the lanyard / string can cause strangulation. Do not place the unit with lanyard / string around a child's neck.
g. The unit may not count steps correctly in the following conditions:
The unit is not positioned correctly.When the front of the main unit is placed in the angle of less than 60° or horizontal to the ground.NOTE: The unit can count steps even if it is slanted or placed upside-down, or if the main unit is perpendicular to the ground.
The unit moves loosely.When the unit is loose or flat in your pocket or bag (not in a horizontal or vertical position).When the unit swings from your belt, the top of your pants or a bag.
Up and down movement.Standing up and/or sitting down movement.Playing sports other than walking.Ascending or descending movement at stairs or in a steep slope.
Walking at an inconsistent stride.When you shuffle or wear sandals.Starting and stopping or other forms of inconsistent walking.Walking extremely slowly.
Vibrations from a moving vehicle.Such as riding a bicycle, automobile, train or bus.
Other.The pedometer data will only be shown on the screen after the first +/- 12 steps because the software needs some data to analyze the steps and then show the results on the screen"

15. Use Voice Menu

For playback and manage the recorded voice file(s).

- From main menu, choose "Voice" menu by using the ◀ / ▶ and Center ( ▶ ) buttons, a "Voice Now Playing" screen appear to use;

Voice Now Playing

a. To Play and Pause Recorded Voice files

• In Voice Now Playing screen;
- Press the Center ( ▶ ) button to start play the recorded file.
- Press the Center ( ▶ ) button to pause
- Press it again to resume.

b. To Play Previous or Next File

• Press the ▶ button to play next file.
• Press the ◀ button to play previous file.

c. To Fast-Forward or Fast-Backward

• Press and hold the ▶ buttons to use fast-forward.
• Press and hold the ◀ button to use fast-backward.

d. Adjust volume level

• Press the VOL+ / VOL- button to adjust volume levels to up / down and a volume control screen appears to view;
• Wait for 6 \~ 8 seconds or press the Center ( ▶ ) button to return to music now playing screen.
• For hearing protection; a beep warning will be heard from earphone, or display warning pop-up on TFT screen, when every time you increase the volume level and reach to the default setting level which may exceed 85dB. Press the M button to accept the warning and enter into the volume control for increase the level and until to maximum level.

16. Use Voice Submenu in Stop Mode

You might need to change some setting as you desired for playing Voice file, you can make change during in the playing mode at Voice Now Playing screen.

• In Voice Now Playing screen, press Center (▶) button to pause / stop the playing file, if it in playing mode. Then,
• Press the M button, a voice submenu appear, then choose "Local / Delete file / Delete all / Exit" as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons;

a. Local Folder

• Choose "Local folder", a list menu appear, and then select folder and / or choose a voice file by using the ◀ / ▶, ⊆ and Center (▶) button.
• It will go back to voice now playing screen once a voice file is selected. Then press the Center ( ▶ ) button to play.

b. Delete File

• Choose "Delete file" a list menu appear, and then choose which voice file that you want to delete by using the ◀ / ▶ and Center ( ▶ ) buttons;
• Once file is selected, press the Center (▶) button and choose Yes to confirm or No to cancel.

c. Delete All

• Choose "Delete all" then selects "Yes / No" by using the ◀ / ▶ button. Once "YES" or "NO" appear then press the Center (▶) button to confirm;
• All voice files will be deleted once “YES” is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will shown on screen for few seconds.

d. Exit

- Select Exit to back to voice now playing screen.

17. Use Voice Submenu in Playing Mode

You might need to do some changes during in voice playing, such as repeat, EQ settings for music files... etc. To change setting:

- In voice playing, press the M button, a voice submenu appear, then choose "Repeat / Exit" as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons;

a. Repeat

- Choose “Repeat” > choose “Normal / Repeat one / Repeat all / Repeat folder / Random all / Random folder” as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons.

b. Exit

- Select Exit to back to voice now playing screen.

18. Use Photo Menu

You can use the player as picture / photo viewer. To do this:

- From main menu, choose "Photo" by using the ◀ / ▶ and Center ( ▶) button, a list menu appear to choose. Choose a desired photo file to start the play.

- Press the ◀ / ▶ button to play next / previous photo file.

- Press the / Center (▶) button to stop play and go back to the list menu for other file selection.

- Press and hold the button to back to main menu.

19. Use Photo Submenu in List Menu Screen

You might need to change some setting for photo browse. To change setting:

- In list menu, press the M button to pop-up the photo submenu to choose;

a. Local Folder

• Choose "Local folder" a list menu appear, and then choose your desired folder and file by using the ◀ / ▶ and Center ( ▶∥ ) button.
• Once photo file is selected, press the ▶|| button again to play.

b. Playback Set

Manual Play

- Choose “Playback set” > choose “Manual play” by using the ◀ / ▶ and Center ( ▶ ) button, a list menu appear; choose a desired file to play. The manual play setup is in used. (Choose this option will deactivated the Auto Play function)

Auto Play

- Choose “Playback set” > choose “Auto play” > choose “2 / 3 / 4 / 5 / 5 / 6 / 7 / 8 / 9 / 10 second(s)” as you desired by using the ◀ / ▶ and Center ( ▶ ) buttons. The slide show function is activated as your selected time gap to playing the photo files one by one automatically.

c. Delete file

• Choose "Delete file", a list menu appear, and then choose which photo file that you want to delete by using the ◀ / ▶ button. Once file is selected, press the Center ( ▶ ) button;
• Then choose Yes to confirm or No to cancel by using the ◀ / ▶ and Center ( ▶ || ) button.

d. Delete All

• Choose "Delete all" then selects "Yes / No" by using the ◀ / ▶ button. One "YES" or "NO" appear then press the Center (▶) button to confirm;
• All photo files will be deleted once “YES” is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will shown on screen for few seconds.

e. Exit

- Select Exit for back to photo browse list menu screen.

20. Use Game Menu

There have a game name “Snake”. Control the snake move up, down, left and right to eat the food (dot) which will exist somewhere on TFT screen. The snake’s body will get longer at every eats for food, but don’t let the snake hit the walls and hit the snake body.

• To play game, from Main menu, choose “Game” menu, then choose a game to play.
• Control KEY instruction; Press: ◀ : left, ▶ : right, M : Up, ⇔ : down,

Center ( ▶ ) : Pause.

- Press and hold the button to exit the game.

21. Use eBook Menu

You can use the player as a text reader with supported file format (.TXT).

a. To open eBook

• From main menu, choose "eBook" by using the ◀ / ▶ and Center ( ▶) buttons, a list menu appears to use;
• Choose a file which you want to read by using the ◀ / ▶ button, and then press the Center ( ▶ ) button to play. The eBook Now Playing to show;
• Press the ▶ button to view next page,
• Press the ◀ button to view previous page,
• To back to list menu screen, press the / Center ( ▶ ) button.
• Press and hold the button to back to main menu.

22. Use eBook Submenu in list menu screen

You might need to change some setting for eBook reading. To change setting:

- In list menu, press the M button to pop-up the eBook submenu to choose;

a. Local Folder

• In eBook submenu, choose "Local folder" a list menu appear, and then choose your desired folder and file by using the ◀ / ▶ and Center ( ▶∥ ) button.
• Once file is selected, press the ▶ button again to play.

b. Playback Set

Manual Play

- Choose “Playback set” > choose “Manual play” by using the ◀ / ▶ and Center ( ▶ ) button, a list menu appear; choose a desired file to play. The manual play setup is in used. (Choose this option will deactivated the Auto Play function)

Auto Play

- Choose "Playback set" > choose "Auto play" > choose "1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 second(s)" as you desired by using the ◀ and Center ( ▶ ) buttons. The page flip function is activated as your selected time gap to playing.

c. Delete file

- Choose "Delete file", a list menu appear, and then choose which eBook file that you want to delete by using the ◀ / ▶ button. Once file is selected, press the Center ( ▶ ) button; - Then choose Yes to confirm or No to cancel by using the ◀ / ▶ and Center ( ▶) button.

d. Delete All

• Choose "Delete all" then selects "Yes / No" by using the ◀ / ▶ button. One "YES" or "NO" appear then press the Center (▶) button to confirm;
• All eBook files will be deleted once “YES” is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will show on screen for few seconds.

e. Exit

- Select Exit for back to eBook list menu screen.

23. Use eBook Submenu in Playing Mode

You might need to add, select and delete some bookmark when you reading, to do this:

- In eBook now playing mode, press the M button to pop-up the eBook Submenu to choose;

a. Bookmark Select

• Choose “Bookmark select” by using the ◀ / ▶ and Center ( ▶) button, a stored bookmarks list appear to choose; (make sure that you have created bookmark(s) before use this function)
• Choose a bookmark which you want to call and then press the Center ( ▶ ) button to play.

b. Bookmark Delete

• Choose "Bookmark delete", a list menu appears, and then choose which saved bookmark you want to delete by using the ◀ / ▶ button.
• Once bookmark is selected, press the Center (▶) button to confirm. The bookmark deleted, and the screen switches back to current reading page from list.

c. Bookmark Add

• In eBook now playing mode, select the reading page where you want to bookmark by using the ◀ / ▶ and Center ( ▶ ) button. And then press the M button to pop-up the eBook submenu;
• Choose “Bookmark Add” by using the ◀ / ▶ and Center ( ▶∥ ) button, the pages saved into bookmark list and the screen switches back to current reading page automatically.

d. Exit

- Select Exit for back to eBook list menu screen.

24. Use Memory Card Slot

This player allows you to play those support media files from your Micro SD memory card (T-Flash). Also it will increase the mobile hard disk memory capacity of the player if you use this option.

- Turn Off the player. Now insert your Micro SD memory card into the memory card slot on bottom of player.

• Turn On the player and now the Micro SD memory card, T-Flash, is ready to use.
• When Micro SD Card has been inserted, then the “Card Folder” item will be existed for choose.
• Go into the card folder and choose you desired folder(s) and file(s) to play.
• To take out the Micro SD memory card, please turn Off the player before you do so.

25. Reset the Device

• In some circumstances, the device may encounter dead halt during use.
- In case the player is in hanging, press and hold the Center (▶) button for about 8 \~ 10 seconds, the player should be reset and restarted.

Important: Do not reset the device if it is proper working.

1. Trouble Shooting

Unit cannot turn ON	Check battery is it charged with enough energy.
No sound is heard from headphone.	Check whether Volume is set “0” and connect the headphone plugs firmly.Check whether the headphone plug is dirty.Corrupted MP3 may make a static noise and the sound may cut off. Make sure that the music files are not corrupted.
Characters in LCD are corrupted	Check whether the right language has been selected.
Download of music files fails.	Check whether USB cable is damaged and is connected properly.Check whether driver is installed correctly.Check whether the player’s memory is in full.

1. Specification

Dimension	83 mm (H) x 40.3 mm (W) x 9.2mm (D)
Weight	26.5g
LCD	1.8 Inches, Resolution (RGB)128 x 160
Earphone Impedance	32 Ohm
Internal Memory	See carton or giftbox
External Memory Card Slot	Micro SD Card(support up to 16GB and possible for 32GB)
Battery	Lithium 3.7V, 170mAh
	Playing Time:8 - 10 Hours (for MP3 music with power saving mode)
Audio	Earphone Output	2mW x 2 Ch. at 32 Ohm
	Freq. Responses	20Hz to 20000Hz
	SNR	>60dB
Music Format	MP3 / WMA	32Kbps – 320kbps
Movie Format	AMV/AVI	160x128 (max.)
Recorder Coding	WAV	32 / 64 / 128 / 256kbps
Picture Format	JPEG / BMP
eBook Format	TXT
Pedometer	Sensor	3 Axis Accelerometer
	Display	Steps Record, Distance, Speed, Calories Burned and Time used (by calculation)
Operating Temperature	0 to 40°C
Operating System	Win7/ 8/10; Mac 9.2 or Higher

28. Use Provided Armband

Wear the armband:

- After put the PODO-153 onto the armband, and then place it to your upper arm, adjust the length of the armband to suits your arm size and comfortable. See pictures illustrate show as below for reference:

Line drawing of a mechanical tool or wrench with a handle and grip, labeled with number ① (no text or symbols on the diagram itself)

Illustration of two hands exchanging a smartwatch with arrows indicating motion (no text or symbols)

*A: use this hole for thin arm.
*B: use this hole for large arm.

Illustration of a hand performing a wrist press or grip motion with arrows indicating clockwise motion (no text or symbols)

Line drawing of a car seatbelt buckle with rotation arrows indicating movement (no text or symbols)

Line drawing of a seatbelt buckle (no text or symbols)

Line drawing of a person's arm holding an electronic device (no text or symbols)

29. Use Provided LED Blinker Clip

Turn On and Off the LED Blinker clip:

a. To power on the LED Blinker Clip, right rotate the body of it until the LED in blinking.

b. To power off, left rotate it until the blinking LED to stop.

To replace new battery of LED Blinker clip:

a. Left rotate fully the body of LED Blinker Clip, it front body and back clip will unlock and separate;
b. Then, take out the battery from back clip and then replace with new button cell battery;
c. Put it front body and back clip together and then right rotate it will lock.

Note: Make sure that the same type of battery to be used. (Type of Button Cell Battery: CR927, DC 3V)

Wear LED Blinker Clip

a. You can wear the LED Blinker Clip on your shirt, jacket, or whatever the location as you desired;
b. However, wear it on our provided armband will be highly recommended. See picture illustrate show as below for reference:

Line drawing of a person's arm with an attached device and a circular object, showing motion (no text or symbols)

30. Guarantee

Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

31. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

32. Disposal of the Old Device

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

33. CE Marking

Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

34. Service

For more information and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

LET OP:

Line drawing of a mechanical tool or wrench with a handle and grip, labeled with number ① (no text or symbols on the diagram itself)

Illustration of two hands exchanging a device with arrows indicating motion (no text or symbols)

Illustration of a hand performing a wrist massage or grip technique with motion arrows indicating rotation (no text or symbols)

Diagram of a car seatbelt buckle with rotation arrows indicating movement (no text or symbols)

Line drawing of a seatbelt buckle (no text or symbols)

Line drawing of a person's arm holding an electronic device (no text or symbols)

Line drawing of a person's arm with a digital device and earphones, showing a hand holding the wrist (no text or symbols)

Garantie

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

(Menü Seite 2)

Line drawing of a wrench with handle and grip, labeled with number 1 (no text or symbols on the object itself)

Illustration of two hands holding a smartwatch with an arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a wrist with motion arrows indicating movement (no text or symbols)

Diagram of a car seatbelt buckle with rotation arrows indicating clockwise motion (no text or symbols)

Line drawing of a seatbelt buckle (no text or symbols)

Line drawing of a person wearing a smartwatch, no text or symbols present

Line drawing of a person's arm with an attached device and earphones, showing a hand holding the wrist (no text or symbols)

30. Garantie

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

In Charging (En charge)

(Menu Page 2)

Line drawing of a mechanical tool or wrench with a handle and grip, labeled with number ① (no text or symbols on the diagram itself)

Illustration of two hands exchanging a smartwatch with a magnifying glass (no text or symbols)

Illustration of a hand performing a wrist massage with motion arrows indicating movement (no text or symbols)

Line drawing of a car seatbelt buckle with rotation arrows indicating movement (no text or symbols)

Line drawing of a belt buckle with a numbered label (6) in the top-left corner, no other text or symbols present.

Line drawing of a person wearing a smartwatch with a screen, no text or symbols present

Line drawing of a person's arm with an electronic device and earphones, showing a hand holding the wrist (no text or symbols)

30. Garantie

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Pantalla Connect (Conectar)

Cargando

(página de menú 1)

(página de menú 2)

Line drawing of a mechanical tool or wrench with a handle and grip, labeled with number 1 (no text or symbols on the diagram itself)

Illustration of two hands exchanging a smartwatch with a device, no text or symbols present

Illustration of a hand performing a wrist massage or pressure technique with directional arrows indicating motion (no text or symbols)

Line drawing of a car seatbelt buckle with rotation arrows indicating clockwise motion (no text or symbols)

Line drawing of a seatbelt buckle (no text or symbols)

Line drawing of a person's arm holding an electronic device (no text or symbols)

Line drawing of a person's arm with an IV device and a hand holding the wrist, showing a finger movement (no text or symbols)

30. Garantía

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)
