Product type	In-ear headphones with planar magnetic transducer
Brand	Audeze
Model	iSINE 10
Dimensions (per earpiece)	25.4 x 20.3 x 12.7 mm
Weight (per earpiece)	7 g
Power	None (passive)
Transducer type	Planar magnetic
Frequency response	10 Hz - 50 kHz
Impedance	16 ohms
Sensitivity	105 dB/mW
Design	Open-back
Key features	Planar transducer, detachable cable (MMCX), open-back design, high fidelity
Care and cleaning	Clean with a soft, dry cloth. Avoid moisture and chemicals.
Safety	Listen at moderate volume to preserve hearing. Do not use while driving or in hazardous environments.
Spare parts and repairability	Replaceable cables (MMCX), silicone ear tips available separately.
General information	Brand Audeze, model iSINE 10. Packaging box includes cable, ear tips, and user manual.

Frequently Asked Questions - iSINE 10 Audeze

How to connect the iSINE 10 earphones?

The iSINE 10 use a detachable cable with MMCX connectors. Gently insert each connector into the corresponding earpiece (left/right) until it clicks. Connect the other end to your audio source (player, smartphone, DAC).

Can I use the iSINE 10 with a smartphone?

Yes, the iSINE 10 have an impedance of 16 ohms and a sensitivity of 105 dB/mW, allowing them to be easily driven by most smartphones. For optimal quality, an external DAC can be beneficial.

Are the iSINE 10 suitable for sports use?

No, the iSINE 10 are open-back earphones and are not designed for sports. They are not resistant to sweat or moisture. Prefer closed earphones for physical activity.

How to clean the iSINE 10 ear tips?

Remove the ear tips from the earphones. Wash them with lukewarm water and mild soap, rinse, and dry completely before reattaching. Do not use harsh chemicals.

Do the iSINE 10 earphones leak sound?

Yes, due to their open-back design, the iSINE 10 let sound out and do not provide passive isolation. At high volume, people nearby can hear what you are listening to.

Can I replace the cable of the iSINE 10?

Yes, the cable is replaceable using standard MMCX connectors. You can purchase compatible cables from Audeze or other manufacturers. Make sure the cable is properly oriented (left/right).

What is the difference between iSINE 10 and iSINE 20?

The iSINE 20 offer a wider soundstage and more detail, especially in the treble, thanks to improved acoustic design. The iSINE 10 are more affordable but retain Audeze's planar sound signature.

How to fit the iSINE 10 to my ears?

The iSINE 10 come with several sizes of silicone ear tips. Choose the size that creates a slight seal without discomfort. The iSINE 10 have an ergonomic design that rests on the ear concha.

Do the iSINE 10 require an audio amplifier?

No, they can be used without an additional amplifier with most devices. However, a dedicated amplifier can improve dynamics and sound precision.

Where can I find the complete user manual for the iSINE 10?

The complete manual is available for free download in PDF format on the website notice-facile.com. You can also request it directly from Audeze support.

USER MANUAL iSINE 10 Audeze

Abstract geometric logo design resembling an interlocking letter 'A' (no text or symbols)

USER GUIDE AND WARRANTY

Close-up of two electric vehicle charging cables with hexagonal head modules and a black cable (no visible text or symbols)

Abstract geometric logo composed of interlocking black lines forming a stylized 'A' shape (no text or symbols)

iSINE IN-EAR HEADPHONES

Thank you for purchasing the Audeze iSINE, the world's first full-range in-ear planar magnetic headphone. It combines leading-edge planar magnetic technology and innovative acoustic design to create a light, comfortable headphone with astounding sound.

To get the most out of your purchase, please take the time to carefully read through this user guide and warranty.

Safety Guide

Volume level is subjective and everyone perceives it differently. Listening to music for long periods of time at excessive levels can cause irreparable damage to your ears. Reduce the volume levels of the amplifier and/or audio device before listening to your headphones. Gradually increase the volume until you reach the desired level. Enjoy your headphones with safe listening habits in mind.

Always maintain a distance of at least 8-inches (20cm) between the headphones and a cardiac pacemaker, implanted defibrillator, or other medical devices as the iSINE uses permanent magnets.

Keep the product, accessories and packaging out of reach of children. This product is not intended for children under the age of 12.

Product Registration

Register your product at www.audeze.com/support to receive information, updates and news.

Specifications

Style ...... In-ear, universal fit

Type ...... Semi-open-back planar magnetic headphones

Magnetic structure ...... Single-sided Fluxor™ magnetic array

Magnet type ...... Neodymium N50

Diaphragm type ...... Ultra-thin Uniforce™

Transducer size 30mm

Maximum power handling 3W

Maximum SPL ....>120dB

Frequency response 10Hz-50kHz

Total harmonic distortion .... <0.2%, full spectrum @ 100dB

Impedance ...... iSINE 10 - 16 ohms

iSINE 20 - 24 ohms

Cable (Universal) 1.5m flexible, non-microphonic

Cable connectors (Universal) 3.5mm stereo plug input, 2-pin plug outputs

Cipher Lightning cable* 1.5m flexible, non-microphonic

Cipher Lightning cable connectors ..... Lightning input, 2-pin plug outputs

Weight 20g

Sound Technology

The iSINE is the world's most powerful in-ear planar magnetic headphone, featuring Audeze's patented Fluxor, Fazor and Uniforce technology. The result is astounding sound quality previously unheard of at any price. Flexible, portable and lightweight, a confident statement of exclusive elegance inside and out.

Amplification

The iSINE in-ears are very efficient and work wonders with smartphones, tablets and portable players of all kinds. Our Cipher cable dramatically improves the sound of Lightning-equipped Apple iDevices with its built-in AMP/DAC/DSP, while our Deckard AMP/DAC is a great solution for getting better sound at your desktop. Enjoy total musical satisfaction with your iSINE on-the-go or at home, the best of both worlds.

Setting up your iSINE Headphones

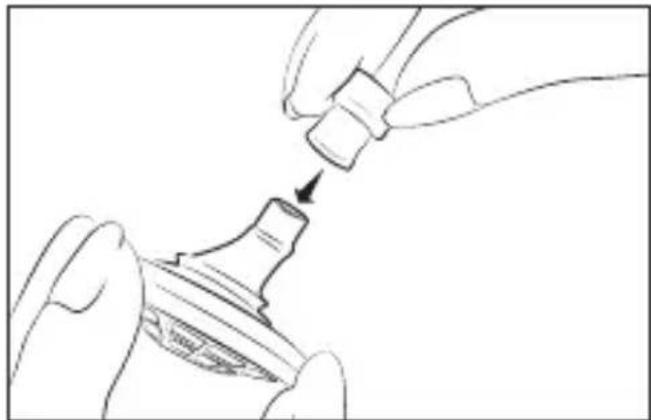

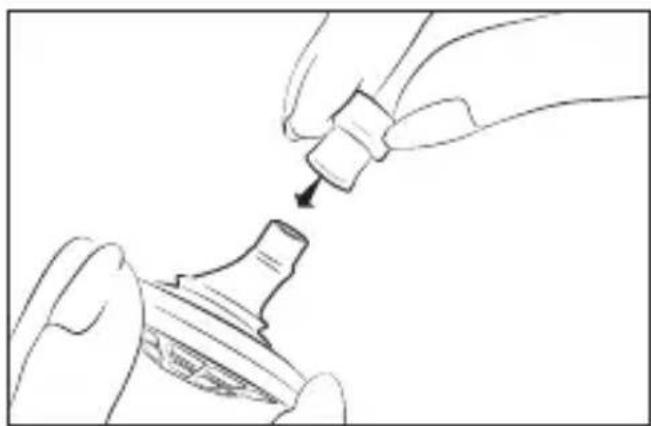

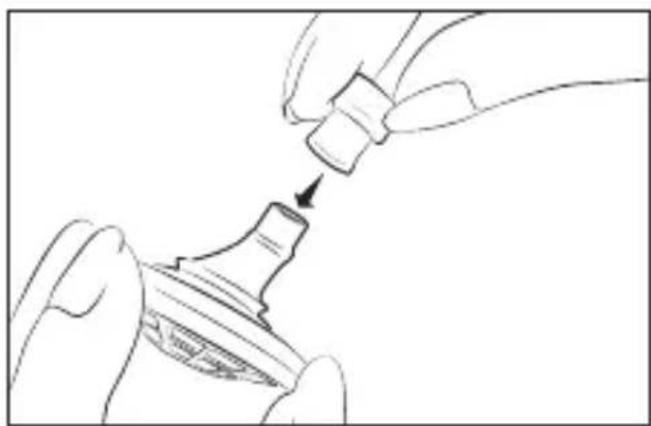

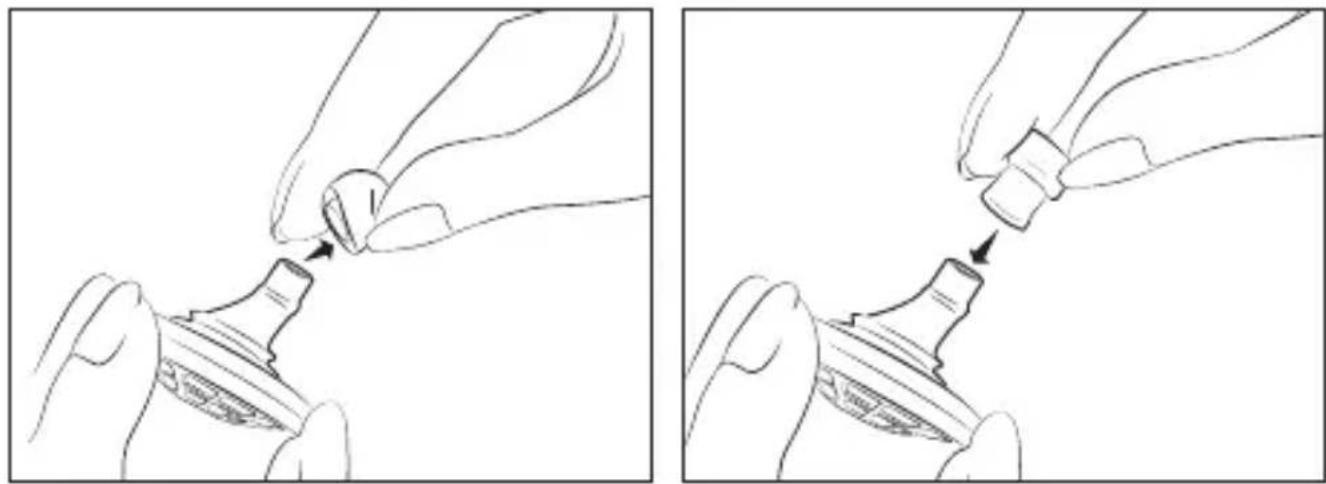

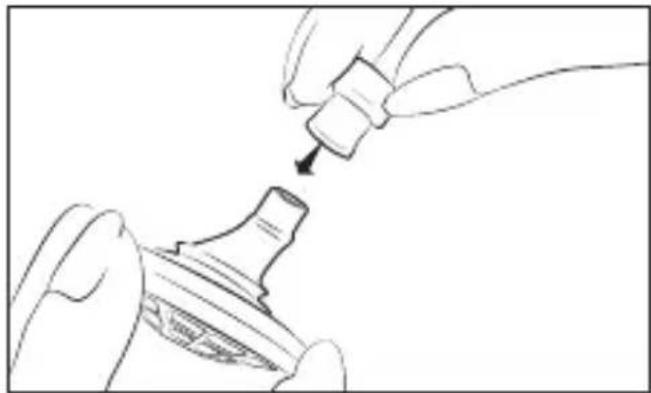

Eartips: Your new iSINEs come with the small size silicone rubber eartips pre-installed. We also provide larger sizes of eartips to suit your personal preference and comfort. To change the eartips: Pull the eartip straight off. Insert the new tip by pulling it inside out onto your finger tip, then pushing it onto the outside of the eartube, starting at a 45 degree angle. A gentle twisting motion may also help get the tips on with minimal effort. It may take a little practice before changing tips becomes easy.

Two-step illustration showing hands using a tool to adjust or apply a component, no text or symbols present.

Connecting your Headphones

Line drawing of a smartphone with a cable inserted into the port (no text or symbols)

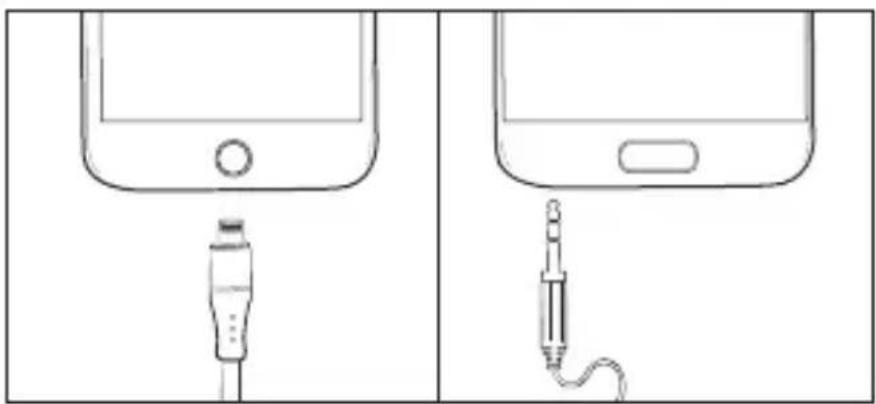

Connect the Cipher Lightning plug to your iDevice

Line drawing of a smartphone with a plug inserted into the cable (no text or symbols)

OR
Connect the 3.5mm audio plug to your source component

Line drawing of a hand holding a small object with a labeled 'R' (no text or symbols beyond the label)

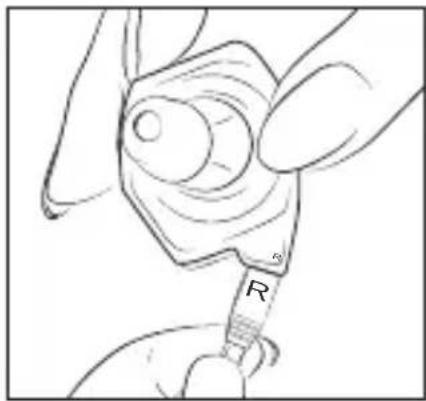

Match the inside L and R indicators Ensure the plug is fully inserted

Source: Connect the input end of the cable to your source device.

Output: Look for the (L)eft and (R)ight indicators on the two 2-pin cable ends and match them to the headphones accordingly. Ensure that both sets of cable indicators align with the indicators on the headphones and insert the plugs. You will feel a gentle click indicating the plugs are locked in place.

NOTE: The connectors are keyed and can only fit in one direction. DO NOT force the connector in backwards, doing so will damage your headphones.

Types of Ear Attachments

As everyone's ears are different, the iSINE Headphones come with two types of earpiece attachments: EarHooks and EarLocks™. We suggest trying the EarHooks first, but users should select the option that is most comfortable and secure for their use.

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

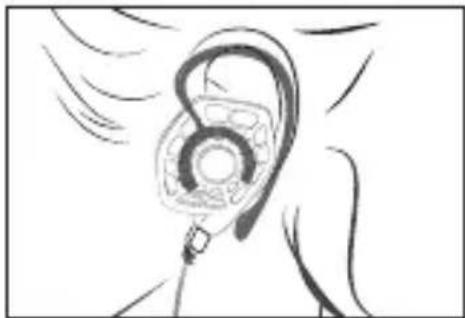

EarHooks: The EarHooks fit over the ear, anchoring the headphones in place similar to how eyeglass hooks work. For most users, the EarHooks allow the headphones to be fitted securely and allow for the most comfortable fit.

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

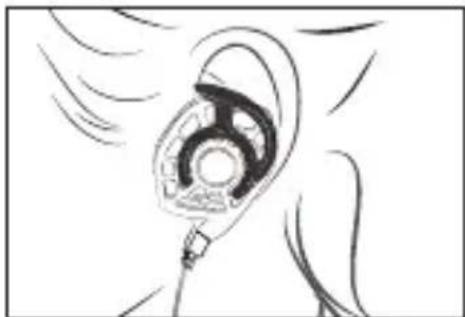

EarLocks: The EarLocks are positioned on the concha of the ear rather than over the top of the ear. They are preferred by some listeners, but may not be a viable option for everyone depending on the shape of your ear.

EarLocks are a registered trademark of Surefire.

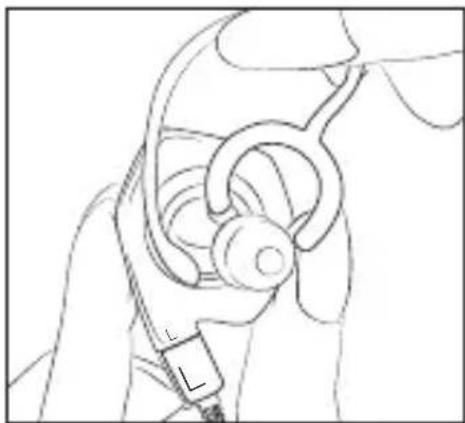

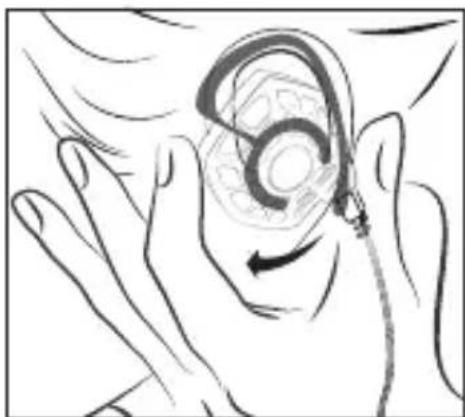

EarHook Installation

Line drawing of a hand holding an earbell device (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

1. Attach the EarHook by snapping the semi-circular latch onto the back-side of the headphone, making sure the EarHooks point up at an angle to align with the front corner of the headphone. Note the direction of the EarHook compared to that of the eartip as seen in the diagram.

2. Position the Headphone+EarHook assembly over the according ear and loop the EarHook behind your ear.

3. Gently insert the eartip into your ear canal so it's comfortably snug with a good seal.

4. Holding the headphone portion of the assembly in place, adjust the EarHook by rotating it into a comfortable position.

EarLock Installation

Line drawing of a handheld device with a circular handle and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

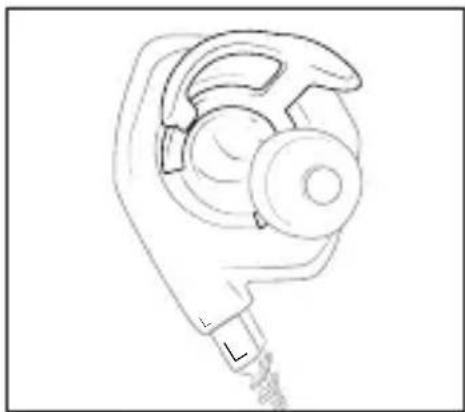

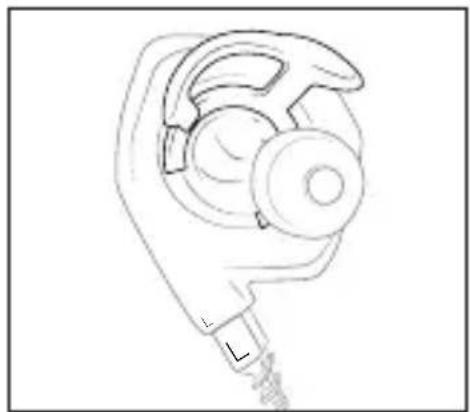

1. Attach the EarLock by snapping the semi-circular latch onto the back-side of the headphone with the EarLock tip pointing in the same direction as the eartip, as seen in the diagram.

2. Position the Headphone+EarLock assembly on the according ear.

3. Gently insert the eartip into your ear canal so it's comfortably snug with a good seal.

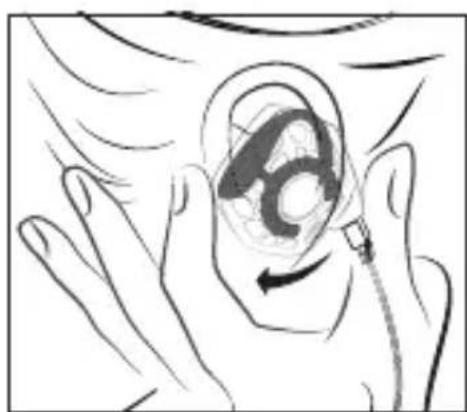

4. Rotate the Headphone+EarLock assembly so that the EarLock rests comfortably in the concha portion of your ear and the eartip maintains a good seal.

Cleaning your Headphones

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Pull the eartip up from the bottom and carefully remove the eartip from the eartube

Line drawing of a tool tip and a tool tip with a handle, no text or symbols present

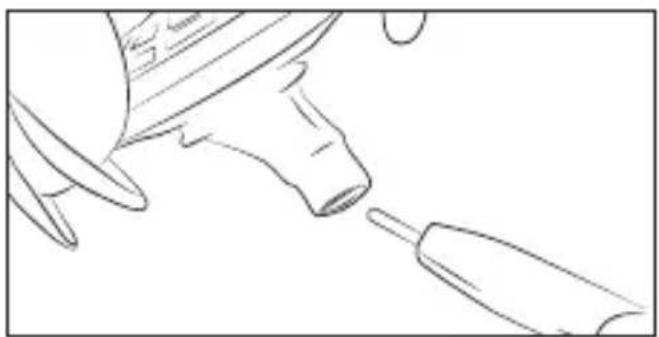

Use the supplied cleaning tool to remove built-up dirt from the headphone's eartube

IMPORTANT: Use warm water and lint-free cloth to clean and dry the silicone eartips. Replace the eartips onto the eartube before using your headphones.

DO NOT use harsh cleaning agents or abrasive materials to clean the eartips or headphones. Doing so may void the warranty.

DO NOT attempt to clean the eartips without first removing them from the headphones. Wetting the internal circuitry may cause permanent damage that is not covered by warranty.

Need more help?

For further instructions and helpful videos visit: www.audeze.com/video-tutorials

Care and Storage

Always store your iSINE headphones in thier protective case when not in use.

• Keep the case closed and store in a dry environment.
• Avoid exposure to liquids, extreme heat or cold temperatures.
• Never pull on the cable to disconnect the iSINE headphones from your music player. Hold the plug at the end of the cable and pull to disconnect.

Share your Experience

We put great effort to ensure that your experience with Audeze is as incredible as the sound of our headphones. We would love to hear from you, your feedback is an important part of our efforts to continuously improve the Audeze experience.

Connect with us at:

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]

AUDEZE Cipher Lightning Cable Unlock the Full Potential of Your Headphones

Audeze's exclusive Cipher Lightning cable provides Apple iPhone/iPad/iPod users with true high-resolution, uncompromised audio for music and voice calls. The cable bypasses the iPhone's internal DAC/amplifier and streams a 24-bit signal directly to our inline high-quality amplifier and DAC with DSP module for significantly better sound. The Apple compatible controls allow complete control of your audio playback, while the SIRI-compatible microphone provides the best voice call quality of any headset.

When you first connect your Cipher cable, your iDevice will prompt you to download and install the Audeze app from the iTunes store. You can choose to “Ignore” this download if you wish – it will not affect the use of the Cipher cable. The Audeze app features a 10-band equalizer that changes EQ in real time, and saves two EQ curve presets which travel with the cable when switching between your iOS devices. It is recommended that you install the Audeze App to take full advantage of its features and firmware upgrades. However the app is not required for operation.

Cipher Cable Controls

MEDIA PLAYER

PLAY / PAUSE .... Press the center button once SKIP TO NEXT TRACK .... Press center button twice SKIP TO PREVIOUS TRACK.... Press center button three times FAST FORWARD .... Press center button twice and hold FAST REWIND.... Press center button three times and hold

iPhone

ANSWER CALL / END CALL .... Press center button once MUTE CALL .... Press center button once and hold SWITCH CALLS.... Press center button twice VOLUME UP.... Press top button VOLUME DOWN.... Press bottom button

For further instructions on using the Audeze Cipher cable visit: www.audeze.com/cipher-guide.

Warranty

The Audeze LLC products comprising the iSINE Series headphones (an “Audeze LLC Product”) is under warranty as indicated by the original date of purchase (the “Warranty Period”).

Components (applicable to each Audeze LLC Product)

iSINE Planar Drivers .... 3 years

Parts and Labor .... 1 year (2 years in the EU)

What's covered: Audeze LLC warrants to the original purchaser that the Audeze Product will be free of defects related to manufacturing, parts, materials, and workmanship under normal and accepted use in accordance with Audeze's published guidelines. Audeze's guidelines include, but are not limited to, information contained in technical specifications, user manuals and service communications.

What's not covered: This warranty does not cover defects resulting from improper or unreasonable use or maintenance; cosmetic damage, including but not limited to scratches, dents and broken parts; failure to follow operating instructions; accident; excess moisture; excess temperature; power surges; connections to improper voltage supply; unauthorized alteration or modification of original condition; damage

caused by use with non-Audeze products; products purchased from unauthorized dealers; or defects incurred during transportation for which claims must be presented to the carrier.

Eartips, Earhooks, and EarLocks are consumables and subject to normal wear and tear in use and are not covered by warranty. Contact Audeze for replacements.

What we will do: We will, at our sole discretion and to the extent permitted by law, repair or replace (using new or refurbished Audeze LLC Products) Audeze LLC Products that are under warranty for the period listed, from the date of original retail purchase.

What we will not do: Except as stated below, pay shipping, insurance or transportation charges from you to us, or any import fees, duties and taxes. If the Audeze LLC Product is covered by this warranty and is provided to us within the first 30 days of the Warranty Period, then we will reimburse you for shipping charges.

If the Audeze LLC Product you send to us is not covered by this warranty, you will be charged the shipping costs. If you are outside the USA and purchased this product directly from Audeze LLC you must claim your

warranty service from Audeze, not from a foreign dealer or distributor. Warranty eligibility statement: To be eligible for service under this warranty you must include with the repair item(s) a valid bill of sale from an authorized Audeze LLC retailer detailing the following information:

Retailer's name

Original date and proof of purchase

Model or SKU number of the product purchased

Serial Number

Additional product information and limitations

Warranty replacements: Audeze LLC strives to improve the performance of our products, and therefore reserves the right to make changes to our design/specifications/materials at any time without notification. Audeze LLC may, at its discretion, choose to replace the Audeze LLC Product completely with a new or remanufactured product. In the event of product obsolescence, a suitable replacement will be chosen based upon the features, the intended use (as determined by Audeze) and the retail price of the original Audeze LLC Product.

Product: All warranty replacements are guaranteed for 90 days or until the conclusion of the Warranty Period of the original Audeze LLC Product, whichever period is greater. Audeze LLC does not provide advance replacements for Audeze LLC Products.

Determining authority: Audeze LLC will be the final determining authority for all potential warranty claims for service and/or replacement.

How to claim warranty service

A) If you reside in the United States and purchased direct from Audeze LLC email [e-mail].

B) If you reside in the United States and purchased from an authorized Audeze LLC dealer contact your dealer or [e-mail].

C) If you are an international customer who has purchased through your local dealer contact your local dealer or distributor for warranty service.

D) If you are an international customer who purchased direct from Audeze LLC you must contact Audeze LLC at [e-mail] for service and support. Any shipment back to Audeze LLC for repair will be at the expense of the customer.

You will need your serial number and proof of purchase to complete any RMA process.

Other conditions/rights: EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, AUDEZE LLC IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS; LOSS OF GOODWILL; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY.

THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. SOME STATES IN THE USA OR OTHER COUNTRIES. DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AUDEZE LLC DISCLAIMS ALL STATUTORY AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. INSOFAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, AUDEZE LLC LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS WARRANTY AND, AT AUDEZE LLC'S OPTION, THE REPAIR OR REPLACEMENT SERVICES DESCRIBED HEREIN. SOME STATES (INCLUDING COUNTRIES AND PROVINCES) DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY (OR CONDITION) MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.

Audeze LLC

http://support.audeze.com

Certifications

The aim of EU's Waste Electrical and Electronic Equipment (WEEE) directives 2002/96/EC and the RoHs directive is to reduce waste from electric and electronic products and to recycle as much of the materials as possible. Any remaining waste should be virtually risk-free to handle and the risk of hazardous emissions should be minimal.

Recycling

This product must either be sent for repairs and reused or sent for treatment and recycling through an approved disposal system. For recycling and waste disposal agents for Audeze LLC products, contact us at [e-mail].

Made for: iPhone 7, iPhone 7 Plus, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5. iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation. iPod touch (6th generation), iPod touch (5th generation). iPad, iPhone, iPod, iPod touch, Lightning and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini are trademarks of Apple Inc.

"Made for iPod," "Made for iPhone," and "Made for iPad" means that an electronic accessory has been designed to connect to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Toxic or Hazardous Substances and Elements 有毒或有害物质和元素
Part Name部件名称	Lead铅(Pb)	Mercury汞(Hg)	Cadmium镉(Cd)	Hexavalent Chromium六价铬(Cr6)	Polybrominated Biphenyls多溴联苯(PBB)	Polybrominated Diphenyl Ethers多溴联苯醚(PBDE)
iSINE10	○	○	○	○	○	○
iSINE20	○	○	○	○	○	○
○: Indicates that this toxic or hazardous substance isbelowthe specified limits as decribed in SJ/T11363-2006.○: 表示该有毒物质或元素在SJ/ T 11363-2006 标准规定的限量要求以下。×: Indicates that this toxic or hazardous substance isabovethe specified limits as decribed in SJ/T11363-2006.×: 表示该有毒物质或元素超出SJ/ T 11363-2006 标准规定的限量要求。

Abstract geometric logo composed of interlocking black and white shapes forming a stylized 'A' shape (no text or symbols)

ÉCOUTEURS INTRA-AURICULAIRES iSINE

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a hand pouring liquid into a bottle (no text or symbols)

Two technical line drawings of a smartphone interface with a USB cable and a separate plug, shown without any text or symbols.

Hand holding a tool with a labeled component (R) inserted, no visible text or symbols

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a hand holding an earbell device (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a handheld device with handle and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a tool tip and a tool tip with a handle, no text or symbols present

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Simple line drawing of a smartphone with a cable inserted into the port (no text or symbols)

Line drawing of a smartphone with a cable inserted into the socket (no text or symbols)

Line drawing of a hand holding a tool with a labeled component (no text or symbols present)

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a hand holding an earbell device (no text or symbols)

Illustration of a hand holding an ear with a medical device inside, showing ear anatomy (no text or symbols)

Line drawing of a handheld device with a circular head and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a tool tip and a tool tip with a handle, no text or symbols present

www.audeze.com/video-tutorials

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]

Cable Lightning Cipher AUDEZE

Abstract geometric logo composed of interlocking black lines forming an 'A' shape (no text or symbols)

AUSCULTADORES INTRA-AURICULARES iSINE

* For use with Apple products

Tecnologia sonora

Line drawing of a hand holding a small object, possibly a tool or component (no text or symbols present)

Line drawing of a hand using a tool to apply a component to a small cylindrical object (no text or symbols present)

Diagram showing two devices connected to a plug, one with a cable and the other with a plug inserted (no text or symbols present)

Hand holding a pen-like object with a label 'R' inserted, no visible text or symbols beyond the label.

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a medical device with a bulb and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a handheld device with a circular head and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a tool tip interacting with a mechanical component (no text or symbols)

Use a ferramenta de limpeza fornecida para remover a sujidade acumulada no tubo auricular do auscultador

www.audeze.com/video-tutorials

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]

Cabo Lightning AUDEZE Cipher Explore todo o potencial dos seus auscultadores

Órgão de decisão: Audeze LLC will be the final determining authority for all potential warranty claims for service and/or replacement.

Two-step illustration showing a hand holding a small object to press or install a mechanical component, with no visible text or symbols.

Collegare le cuffie

Diagram showing two devices connected by a cable, one with a plug and the other with a plug (no text or symbols present)

Line drawing of a hand holding a small object with a labeled 'R' (no text or symbols beyond the label)

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a hand holding an earbell device (no text or symbols)

Illustration of a hand holding an ear with a medical device inside, showing ear anatomy (no text or symbols)

Line drawing of a handheld device with a circular head and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Line drawing of a mechanical component with a tool and a shaft, no text or symbols present

www.audeze.com/video-tutorials

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]

Abstract geometric logo composed of interlocking black lines forming an 'A' shape (no text or symbols)

IN-EAR-KOPFHÖRER iSINE

Art ...... In-Ear, universelle Passform

Line drawing of a hand holding a small object, possibly a tool or component (no text or symbols present)

Line drawing of a hand pouring liquid into a bottle (no text or symbols)

Line drawing of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Illustration of a person wearing an ear with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a medical or surgical device with no visible text or symbols

Illustration of a hand holding an ear with a medical device inside, showing ear anatomy (no text or symbols)

EarLock Installation

Line drawing of a handheld device with a circular handle and connector (no text or symbols)

Illustration of a hand holding an ear with a medical device inserted, showing ear anatomy (no text or symbols)

Line drawing of a hand holding a pen tip with a paper clip, no text or symbols present

Line drawing of a mechanical device with a tool and base, no text or symbols present

www.audeze.com/video-tutorials

Facebook.com/AudezeLLC

Twitter.com/Audeze

[e-mail]
