| Product Type | High-resolution USB 2.0 audio interface |
| Brand | TASCAM |
| Model | SERIES 102i |
| Dimensions (W × H × D) | 186 × 65 × 160 mm |
| Weight | 1.1 kg |
| Power Supply | DC 12 V mains adapter (PS‑P1220E) — 7.2 W |
| Sampling Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Resolution | 24 bits |
| Analog Inputs | 2 × combo XLR‑jack 6.35 mm (MIC/LINE/INST) with +48 V phantom power |
| Analog Outputs | 2 × balanced LINE OUT (6.35 mm TRS jack) + 2 × headphone output (6.35 mm stereo jack) |
| Digital Connectivity | 1 × optical input (S/MUX), 1 × USB type B port (USB 2.0 Hi‑Speed), MIDI IN/OUT |
| Main Functions | Direct monitoring, microphone preamps with 58 dB gain, built-in equalizer and compressor, reverb, flexible routing via settings panel, internal mixer |
| Maintenance and Cleaning | Wipe with a soft, dry cloth. Do not use thinner, alcohol or chemical products. |
| Safety | Do not expose to water, heat sources, or drops. Disconnect during storms or prolonged non-use. Use only the supplied adapter. |
| Spare Parts and Repairability | Mains adapter included. No user-serviceable parts. Contact TASCAM support or an authorized dealer. |
| Operating Temperature | 5 °C to 35 °C |
| Supplied Accessories | Mains adapter (PS‑P1220E) with 3 plug sets, USB cable, installation guide, user manual with warranty |
| Compatible Operating Systems | Windows 7 (SP1) to 10 (32/64 bits), macOS 10.12 to 10.14+ (Core Audio), iOS 10+ |
Frequently Asked Questions - SERIES 102i TASCAM
User questions about SERIES 102i TASCAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-Fi in PDF format for free! Find your manual SERIES 102i - TASCAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SERIES 102i by TASCAM.
USER MANUAL SERIES 102i TASCAM
ENGLISH
MODE D'EMPLOI
FRANÇAIS
MANUAL DEL USUARIO
ESPAÑOL
BEDIENUNGSANLEITUNG
DEUTSCH
• TASCAM is a registered trademark of TEAC Corporation.
- Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- Apple, Mac, Mac OS X, and Lightning are trademarks of Apple Inc.
- IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
• ASIO is a trademark and software of Steinberg Media Technologies GmbH.
- Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.
TEAC CORPORATION
https://tascam.com/us/
Phone: +1-323-726-0303
10410 Pioneer Blvd. Suite #1 Santa Fe Springs, California 90670, U.S.A.
TEAC UK Ltd.
https://www.tascam.eu/en/
Phone: +44-1923-797205
Meridien House, 69-71 Clarendon Road, Watford, Herts, WD17 1DS, United Kingdom
TEAC EUROPE GmbH
https://www.tascam.en/de/
Phone: +49-611-71580
Room 817, Xinian Center A, Tairan Nine Road West, Shennan Road, Futian District, Shenzhen, Guangdong Province 518040, China
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
For U.S.A.
Declaration of Conformity
Model Number: SERIES 102i / SERIES 208i
Trade Name: TASCAM
Responsible party: TEAC AMERICA, INC.
Address: 10410 Pioneer Blvd. Suite #1 Santa Fe Springs, California 90670, U.S.A.
Telephone number: 1-323-726-0303
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment.
For Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA.
This product complies with the European Directives request and the other Commission Regulations.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
-
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.
- If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired.
CAUTION
- Do not expose this apparatus to drips or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.
- The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
- If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
- CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
For European Customers
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical and electronic equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.
CAUTION
- DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE

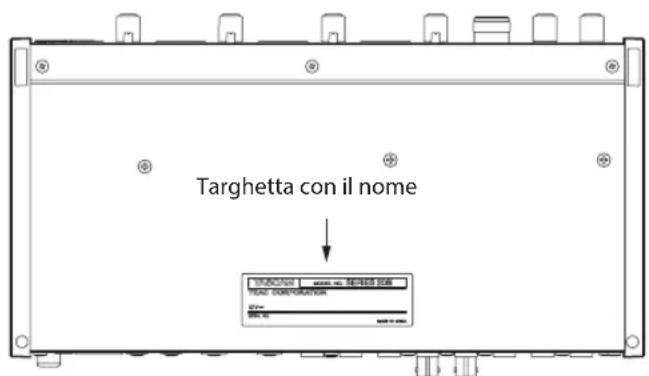

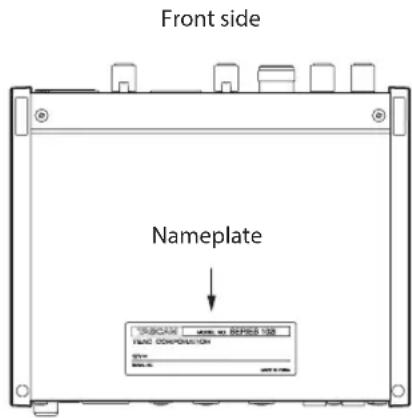

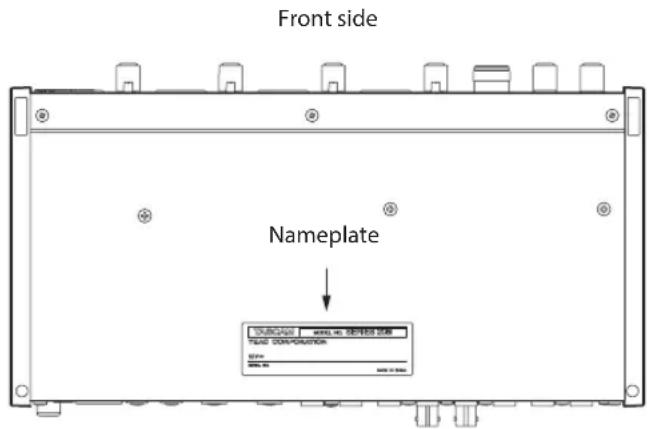

The nameplate is located on the bottom of the unit as shown below.
SERIES 102i
SERIES 208i
Contents
IMPORTANT SAFETY INSTRUCTIONS 3
Introduction....5
Note about the Reference Manual .... 5
Included items 5
Conventions used in this manual .... 5
Precautions for placement and use....6
Beware of condensation 6
Cleaning the unit 6
Using the TEAC Global Site 6
Product registration....6
About TASCAM customer support service....6
Names and functions of parts 6
Front panel 6

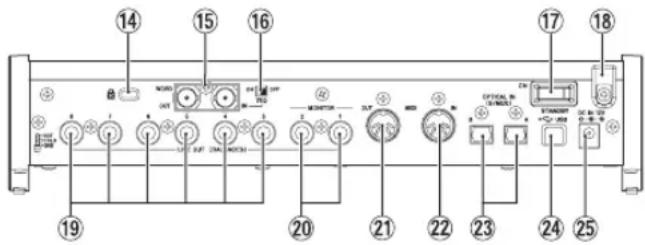

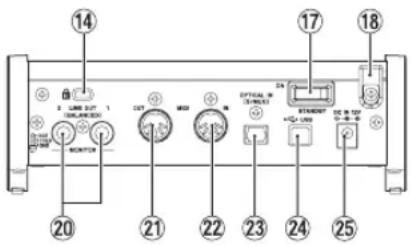

Rear panel 7

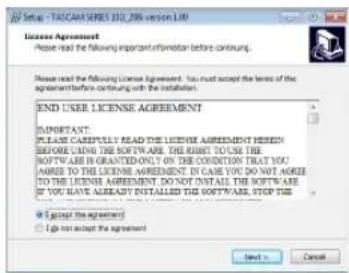

Installing the dedicated software 8
Installing the Windows dedicated software....8
Installing the Mac dedicated software....9

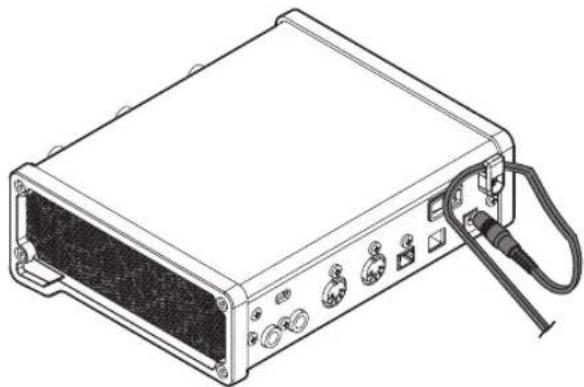

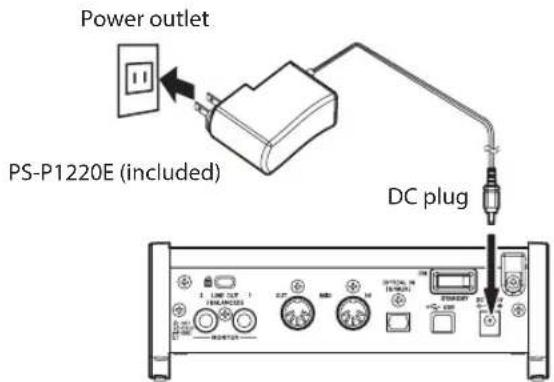

Connecting the power....10

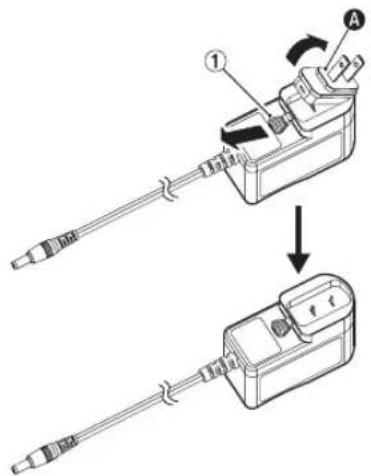

Changing the outlet plug....10

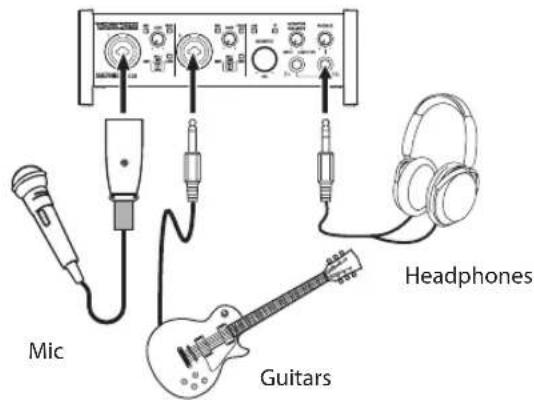

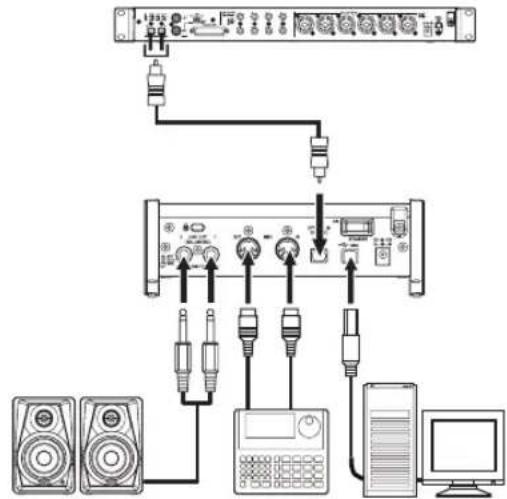

Connecting other equipment 11
Connecting with iOS devices 11
Adjusting the input sound....11
Making various settings....12
Opening the Settings Panel 12

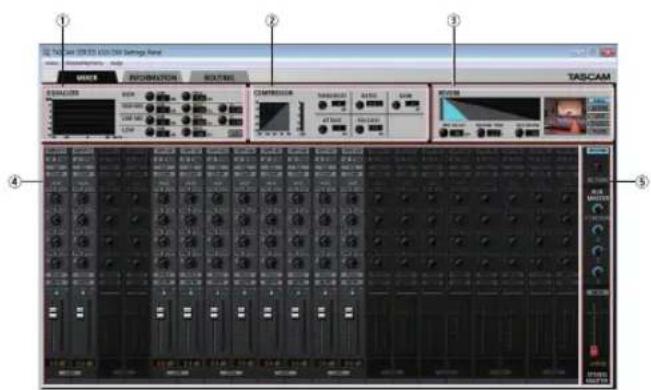

Settings Panel overview 12
Making settings on the MIXER screen 12

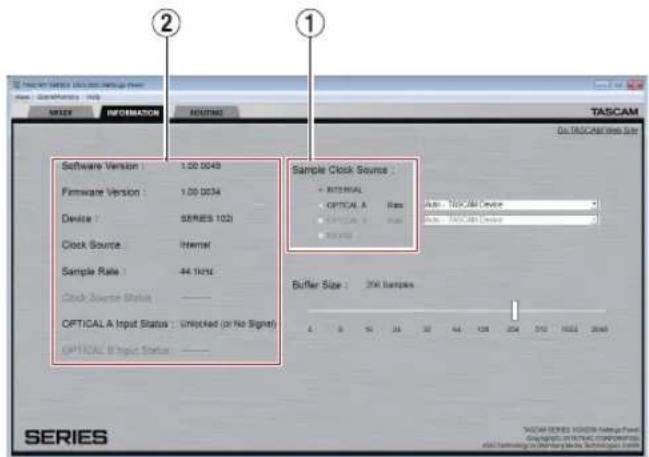

Making settings on the INFORMATION screen....12

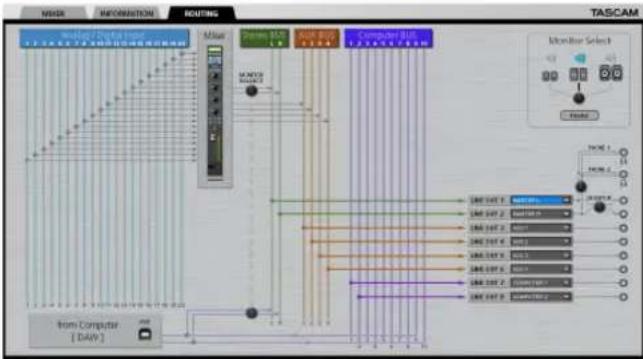

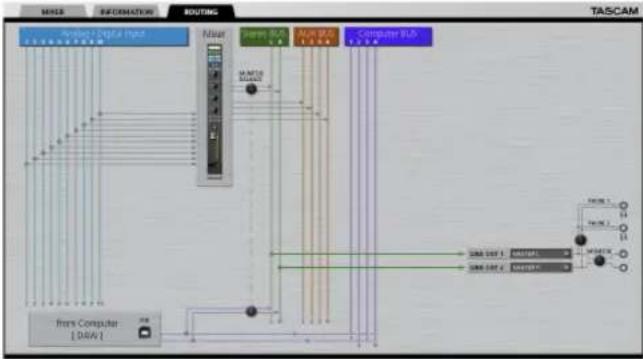

Making settings on the ROUTING screen 13
Changing sampling frequency 13
Troubleshooting 13
Specifications....14
Ratings 14
Analog audio input ratings.... 14
Analog outputs 15
Digital audio input ratings....15
Control input/output 15
Audio performance 15
Computer system requirements....16
Windows....16
Mac....16
iOS device 16
Supported audio drivers....16
General 16

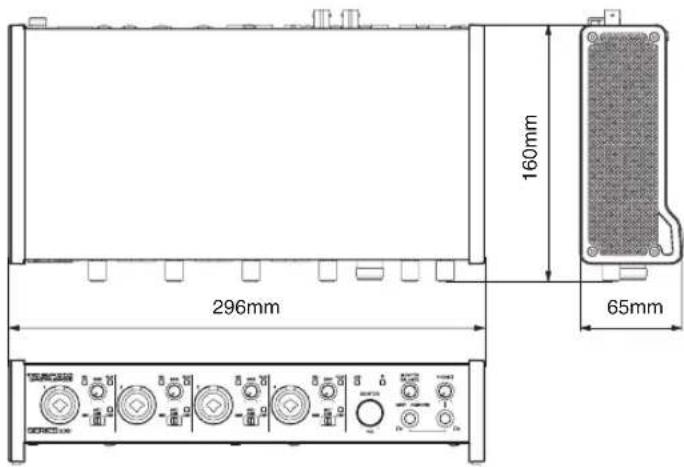

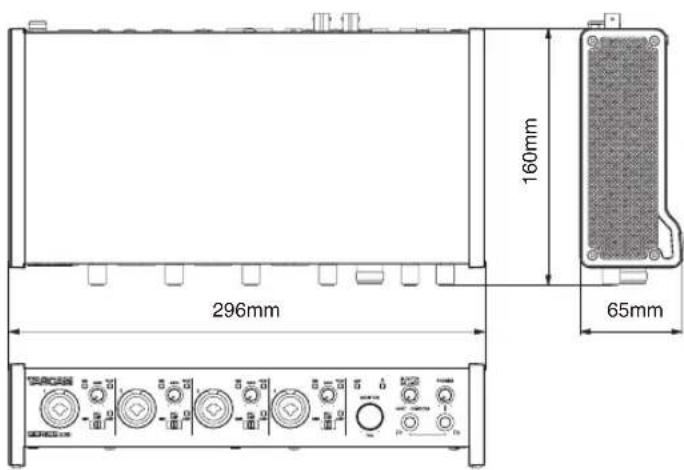

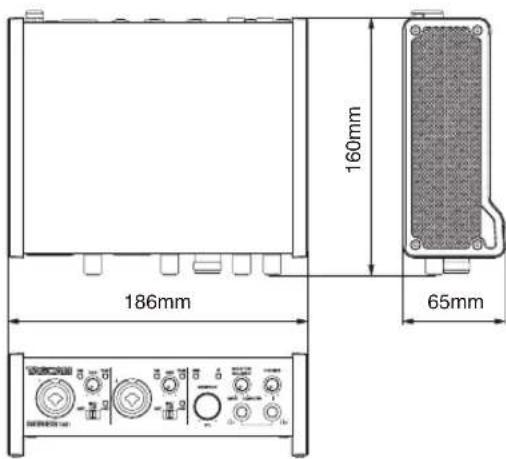

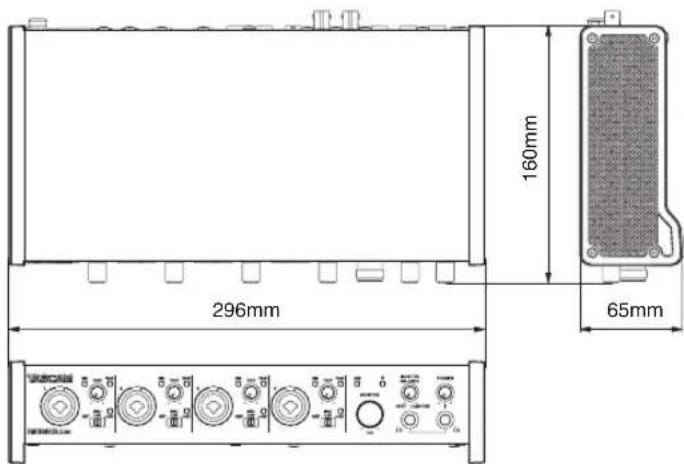

Dimensional drawings 16
Introduction
Thank you very much for purchasing a TASCAM SERIES 102i/SERIES 208i audio interface.
Before connecting and using this unit, please take time to read this manual thoroughly to ensure you understand how to properly set it up and connect it, as well as how to use its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.
You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/).
Before connecting this unit to a computer, you must download and install a dedicated driver.
Note about the Reference Manual
This Owner's Manual explains each of the functions of this unit. Please see the Reference Manual for detailed information about each of the functions.
You can download the Reference Manual from the TEAC Global Site (http://teac-global.com/).
Included items
This product includes the following items.
Take care when opening the package to avoid damaging the items. Keep the box and packing materials for transportation in the future.
Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.
● Main unit....×1
● AC adapter (PS-P1220E) (with 3 alternate plugs)....x 1
- USB cable....×1
- Set of DAW software installation guides....×1
- Set of DAW plug-in software installation guides....x 1
● Owner's Manual (this document) including warranty ....×1
ATTENTION
Always use the included AC adapter (PS-P1220E) when using this unit. Never use the included AC adapter with any other device. Doing so could cause damage, fire or electric shock.
NOTE

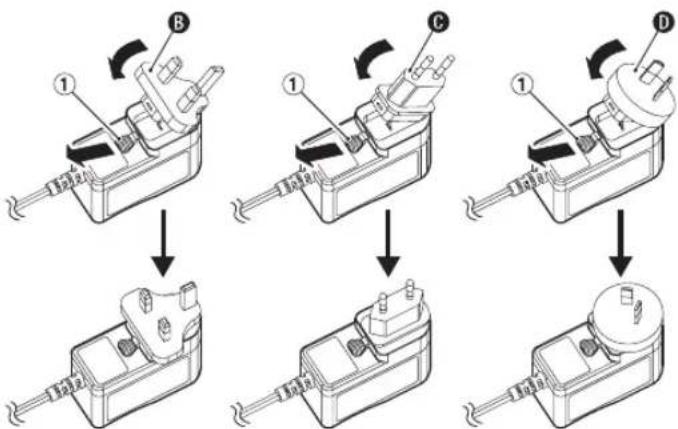

The included AC adapter (PS-P1220E) is shipped with alternate outlet plugs. Please see "Changing the outlet plug" on page 10.
Conventions used in this manual
In this manual, we use the following conventions:
- Buttons, connectors and other physical parts of this unit and connected devices are written using a bold font like this: PHONES knob.
● Information shown on a computer display is written like this: "OK".
● As necessary, additional information is provided under TIP, NOTE and CAUTION headings.
TIP
These are tips about how to use the unit.
NOTE
These provide additional explanations and describe special cases.
ATTENTION
Failure to follow these instructions could result in damage to equipment or lost data, for example.
CAUTION
Failure to follow these instructions could result in injury.
Precautions for placement and use
● The operating temperature range of this unit is 5–35 °C.
- Do not install this unit in the following types of locations.
Doing so could make the sound quality worse or cause malfunction.
Places with significant vibrations
Next to a window or in another location exposed to direct sunlight
Near heaters or other extremely hot places
Extremely cold places
Very humid or poorly ventilated places
Very dusty places
● To enable good heat dissipation, do not place anything on top of the unit.
- Do not place this unit on top of a power amplifier or other device that generates heat.
Beware of condensation
Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change. To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it.
Cleaning the unit
Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration.
Using the TEAC Global Site
You can download updates for this unit from the TEAC Global Site:
http://teac-global.com/
In the TASCAM Downloads section, select the desired language to open the Downloads website page for that language.
Product registration
Customers in the USA, please visit the following TASCAM website to register your TASCAM product online.
https://tascam.com/us/
About TASCAM customer support service
TASCAM products are supported and warranted only in their country/region of purchase.
To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (http://teac-global.com/), search for the local company or representative for the region where you purchased the product and contact that organization.
When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required.
Moreover, the warranty card and proof of purchase might also be necessary.
Names and functions of parts

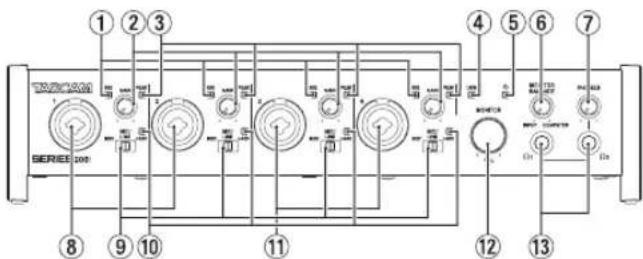

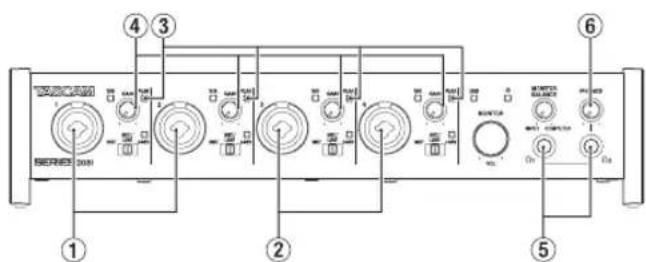

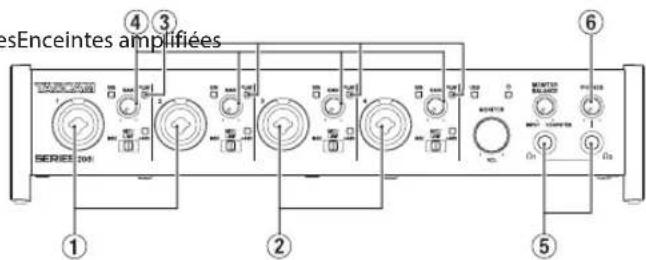

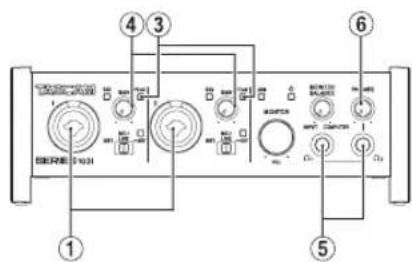

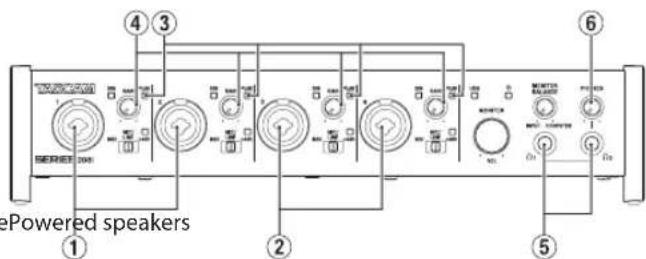

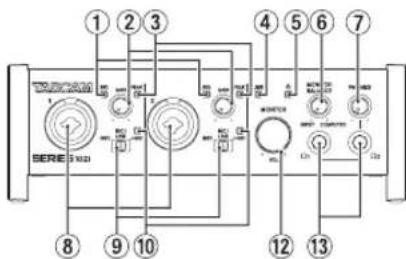

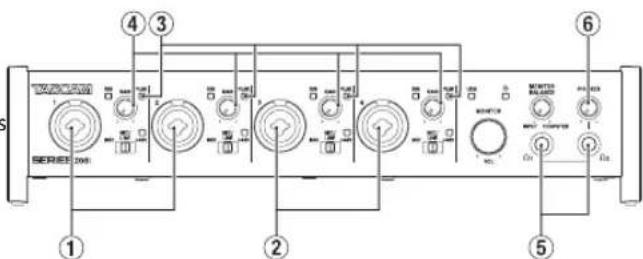

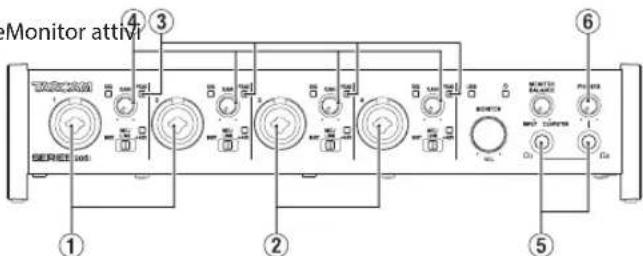

Front panel
SERIES 102i
SERIES 208i
① SIG indicators
These light green when signals (of at least -32 dBFS) are input.
② GAIN knobs
Use to adjust the input levels of the input jacks.
③ PEAK indicators
These light red when signals are about to distort (-1 dBFS or higher).
Adjust these so that the PEAK indicators do not light red.
④ USB indicator
This indicator shows the status of the unit by lighting, blinking and turning off.
| Status Meaning | |
| Lit Good USB connection | |
| Blinking | Bad USB connection (disconnected or error occurred) |
| Unlit Operating in standalone mode | |
⑤ Indicator
This indicator lights when the STANDBY switch is set to on. This indicator blinks if the clock source or OPTICAL input is irregular (when the clock source is set to WORD or OPTICAL).
⑥ MONITOR BALANCE knob
Use this to adjust the balance between the signals from this unit's input jacks and the output signals from the computer.
The volume of signals input through this unit's input jacks increase the more the MONITOR BALANCE knob is set to the left (INPUT) and signals output from the computer increase the more this is set to the right (COMPUTER).
This knob does not affect the recording level of input signals.
Input monitoring without lag is possible by monitoring the signals from the input jacks (direct monitoring).
⑦ PHONES knob
Use to adjust the output levels of the PHONES and jacks.
CAUTION
Before connecting headphones, minimize the volume with the PHONES knob. Failure to do so could result in a sudden loud noise that could harm hearing, for example.
⑧ 1-2 input jacks
These analog inputs are XLR/TRS combo jacks.
They can support high impedance input, including direct guitar input.
Use the input switches on the front of the unit to select balanced line (MIC/LINE) or unbalanced (INST) input for the TRS jacks.
When directly connecting a guitar, bass or other instrument, set the input switch to INST.
⑨ Input switches
Set according to the input source of each input jack.
INST: Select when connecting a guitar, bass or other high-impedance instrument. This makes it an unbalanced input for high impedance.
MIC/LINE: Select when connecting a balanced-output mic or line-level-output device.
+48V: This provides +48V phantom power to the 1-2 (and 3-4 on SERIES 208i) XLR input connectors.
⑩ +48V indicators
These indicators light when their input switches are set to +48V.
⑪ 3-4 input jacks (SERIES 208i only)
These analog inputs are XLR/TRS combo jacks.
They also support high impedance input, including direct guitar input.
Use the input switches on the front of the unit to select balanced line (MIC/LINE) or unbalanced (INST) input for the TRS jacks.
When directly connecting a guitar, bass or other instrument, set the input switch to INST.
⑫ MONITOR knob
Use to adjust the output level of the LINE OUT (BALANCED) 1-2 jacks on the back of the unit.
⑬ PHONES Ω1 jacks
Use this standard stereo jack to connect stereo headphones. These output the same signals as the LINE OUT (BALANCED) 1-2 jacks on the back of the unit.
Use an adapter to connect headphones with a mini plug.
NOTE
The same signals are output from both the PHONES and PHONES jacks.
Rear panel
SERIES 102i
SERIES 208i
⑭ Kensington Security Slot
⑮ WORD IN/OUT connectors (SERIES 208i only)
These BNC connectors are for the input and output of word clock signals.
Word clock signals of 44.1, 48, 88.2, 96, 176.4 and 192 kHz can be input and output.
ATTENTION
If a digital system has multiple word clock masters, serious problems, including damage to equipment, could occur.
⑯ 75Ω ON/OFF switch (SERIES 208i only)
When this switch is set to ON, the WORD IN connector terminates to 75 Ω.
⑰ STANDBY switch
Press to turn the unit on and to put it into standby.
⑱ Cord holder
Hook the cord of the included PS-P1220E AC adapter here to prevent accidental disconnection.
⑲ LINE OUT (BALANCED) 3-8 jacks (SERIES 208i only)
These standard TRS jacks are analog line outputs.
The nominal output level is +4 dBu.
(Tip: HOT, Ring: COLD, Sleeve: GND)
⑳ LINE OUT (BALANCED) 1-2 jacks
These standard TRS jacks are analog line outputs.
The nominal output level is +4 dBu.
(Tip: HOT, Ring: COLD, Sleeve: GND)
②1 MIDI OUT connector
This 5-pin DIN is a standard MIDI output connector. This outputs MIDI signals.
⑳ MIDI IN connector
This 5-pin DIN is a standard MIDI input connector. Use this to input MIDI signals.
②3 OPTICAL IN (S/MUX) connector(s)
These input multichannel digital audio in optical format. 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling frequencies are supported. 88.2/96 kHz is supported by S/MUX2, and 176.4/192 kHz is supported by S/MUX4.
⑳ USB port
Use the included USB cable to connect the unit to a computer. (Supports USB 2.0.)
ATTENTION
- When connected to a port that supports USB 3.0 or later, it will function in High Speed mode equivalent to USB 2.0 (480Mbps maximum).
- After waking a computer from suspend (sleep) mode, if the unit does not operate properly, turn it off and turn it on again or disconnect and reconnect the USB cable.
⑳ DC IN 12V connector
Connect the included AC adapter (PS-P1220E) here.
Installing the dedicated software
To use this unit, a dedicated software must be installed on a computer. The dedicated software might be updated at any time. Download the latest software for the operating system you are using from the TEAC Global Site (http://teac-global.com/).
- When you install the dedicated software on a Windows computer, the Windows driver and the Settings Panel application will be installed.
- When you install the dedicated software on a Mac, only the Mac Settings Panel application will be installed.
The standard OS driver will be used.
● With an iOS device, the standard OS driver will be used, so there is no need to install any.
ATTENTION
Before starting to install software, quit other applications.
Installing the Windows dedicated software
ATTENTION
- Complete installation of the Windows dedicated software on the computer before connecting the unit to it with the USB cable.
- If you connected the unit to the computer using the USB cable before installing the Windows dedicated software and the "Found New Hardware Wizard" launched, close the Wizard and disconnect the USB cable.
Windows dedicated software installation procedures
- Download the latest Windows dedicated software for the operating system you are using from the TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit.
- Open the saved Windows software (zip file) on, for example, the computer desktop.
- Double-click the "TASCAM_SERIES_102i_208i_Installer_x.xx.exe" (x.xx is the version number) file in the folder that appears after uncompression to automatically launch the installation software.
ATTENTION
If you open a zip file without decompressing it and doubleclick the "TASCAM_SERIES_102i_208i_Installer_x.xx.exe" file in the folder that opens, installation will not start. Right-click the zip file and select "Extract All", for example, to decompress it and then try again.
- Depending on the computer set up, a "Security Warning" or "User Account Control" screens might appear. If this occurs, click the "Yes" button.
- Read the contents of the License Agreement, and select "I accept the agreement" if you agree to the terms. Then, click the "Next >" button.
- Next, click the "Install" button.
- When the Windows security screen appears, click the "Install" button to start installation.
- The following screen appears when installation has completed.
Click the "Finish" button.
The installer will quit and the Windows Settings Panel will launch.
NOTE
The first time you connect the unit by USB to the computer after installing the software, installation of the device driver will be executed. Some time might be necessary before the unit is recognized because Windows Update will be automatically searched at this time.
If the unit is still not recognized after a while, open the software installation screen from the notification area at the bottom right of the computer display, and click "Skip obtaining driver software from Windows Update" to stop the search.
Installing the Mac dedicated software
NOTE
• Install the Mac software on the computer before connecting the unit to it with the USB cable.
- Depending on the Gatekeeper setting, a warning message might appear during installation. For information
about Gatekeeper, see "Note about Gatekeeper" in "3- Installation" of the Reference Manual.
Mac dedicated software installation procedures
- Download the latest Mac dedicated software for the operating system you are using from the TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit
- Double-click "TASCAM_SERIES_102i_208i_Installer_x.xx.dmg", which is the saved disk image file for the Mac dedicated software, and double-click "SERIES_102i_208i_Installer.pkg" inside the folder that opens.
SERIES_102i_208i_Installer.p
kg
NOTE
Depending on the computer's settings, the downloaded zip file might not have been uncompressed automatically. In this case, uncompress the zip file first and then double- click the disk image file.
- When the installer starts, click the "Continue" button.
- Next, select the desired language and click the "Continue" button.
- Click the "Read License" button and check the contents of the Software License Agreement. If you agree to the contents of the license, click "Agree".
Then, click the "Next" button.
- Next, click the "Install" button to start installation.
- The following screen appears when installation has completed.
Click the "Close" button.
Connecting the power
Use the included AC adapter (PS-P1220E) to connect a power supply to the unit as shown below.
In order to prevent the cord from becoming disconnected during use, wrap it around the cord holder when connecting it.
Always use the AC adapter (PS-P1220E) that was shipped with the unit. Using a different AC adapter could cause malfunction, overheating, fire or other problems.
NOTE
The AC adapter for the unit includes 4 types of outlet plugs. Attach the type of plug that matches the power outlet that you are using.
Changing the outlet plug
NOTE
When purchased new, the included PS-P1220E AC adapter for the unit has an outlet plug (A) already attached. There should be no need to change the plug.
- Move the knob (①) on the PS-P1220E AC adapter in the direction of the arrow and remove the plug (A).
- Select the plug that matches the AC outlet from the 3 other types included (B, C or D).
- Move the knob (①) in the direction of the arrow again, and attach the plug to the AC adapter.
This completes changing the outlet plug.
After changing the outlet plug, confirm that it is not loose or crooked and that everything is normal before plugging it into an outlet.
ATTENTION
Do not use the adapter if there is anything abnormal about the plug after changing it. Use when the plug is abnormal could cause fire or electric shock.
Contact the retailer where you purchased the unit or a TEAC service center (on the back cover) to request repair.
Connecting other equipment
This is an example of SERIES 102i connections.
Precautions before making connections
● Carefully read the operation manuals of the devices to be connected and then connect them correctly.
● Before making connections, turn this unit and all equipment to be connected off (standby).
- If possible, install all connected devices so that they are powered from the same AC power supply line. When using a power strip or similar device, be sure to use one that has a thick cable with high current capacity in order to minimize voltage fluctuations in the AC power supply.
Examples of connections to a SERIES 102i (front)
Mic preamp with S/MUX
(When using the OPTICAL OUT (S/MUX) of a TASCAM SERIES 8p Dyna as the clock master for this unit)
ComputerDrum machinePowered speakers
Examples of connections to a SERIES 102i (back)
CAUTION
Set the MONITOR and PHONES knobs to their minimum values before changing the input switch setting. Failure to do so could cause sudden loud noises from monitoring equipment, and this could damage equipment or harm hearing.
ATTENTION
- Input switches can be set for each channel separately. Do not set the switch to +48V when connecting a mic that does not require phantom power.
- Do not connect or disconnect mics when the switch is set to +48V. Doing so could cause a loud noise and might damage this unit and connected equipment.
- Set the switch to +48V only when using a condenser micro-
phone that requires phantom power. Setting the switch to +48V when a dynamic mic or other device that does not require it is connected could damage this unit and connected equipment.
- When using condenser mics that require phantom power and dynamic mics together, be sure to use balanced dynamic mics. Unbalanced dynamic mics cannot be used when phantom power is enabled.
• Supplying phantom power to some ribbon mics could break them. If you are unsure, do not supply phantom power to a ribbon mic.
Connecting with iOS devices
You can use a Lightning to USB Camera Adapter* to connect the unit to an iOS device and use it as an interface with that device.
* You must obtain a genuine Apple Lightning to USB Camera Adapter separately.
NOTE
When connected, this unit will not provide power to the iOS device.
Adjusting the input sound
Analog audio signals input into this device from mics, guitars, keyboards and other audio equipment can be converted into digital signals and transmitted to the computer via USB. You can use the features of this unit to adjust the digital signals that are sent to the computer. In addition, by connecting speakers (through an amplifier if not powered) or headphones to this unit, you can monitor audio signals that are input to this unit and output from the computer.
Use the various controls on the front of the unit as necessary while listening to the input sound.
SERIES 102i
SERIES 208i
Adjust the GAIN knobs (4) to adjust the analog input levels of the 1-2 input jacks (1) or 3-4 input jacks (2, SERIES 208i only) so that the PEAK indicators (3) above and to the right of the knobs do not light.
To listen to the monitoring signal using headphones, connect headphones to the PHONES _1 or _2 jack (5) and then adjust the PHONES knob (6).
NOTE
Check the following if you cannot hear the input sounds.
- Use the PHONES knob on the front panel to adjust the output levels of the PHONES and jacks.
- Use the MONITOR knob on the front of the unit to adjust the output levels of the LINE OUT (BALANCED) 1-2 jacks.
Making various settings
NOTE
In order to enable the computer to handle digital audio signals smoothly, other loads on the computer should be minimized as much as possible.
We recommend that you quit unneeded applications before use.
Opening the Settings Panel
Launch the Settings Panel software.
Windows
From the Start menu select "SERIES 102i_208i" under "TASCAM".
Mac
Using the "Finder", select "SERIES 102i_208i" from the "Applications" folder and launch it to open the "Settings Panel" on the computer display.
Settings Panel overview
The Settings Panel has three pages.
Click a tab at the top of the Settings Panel to open that page.
● MIXER: Make built-in mixer and effect settings.
● INFORMATION: This shows the current status of the driver and information about connections. You can also make various settings.
● ROUTING: Make output settings (and Monitor Control settings for the SERIES 208i).
Making settings on the MIXER screen
Click the MIXER tab on the Settings Panel to open the MIXER page as shown below.
SERIES 102i Settings Panel MIXER page in Windows
① EQUALIZER
Equalizer settings are shown for the channel selected in the Channel Mixer area.
② COMPRESSOR area
Compressor settings are shown for the channel selected in the Channel Mixer area.
③ REVERB area
This shows the reverb settings.
④ Channel Mixer area
Check and make settings for each channel.
NOTE
All channels are available when a SERIES 208i is connected.
When a SERIES 102i is connected, the INPUT 3, INPUT 4 and OPT B1 - B8 channels cannot be used and will appear dimmed.
⑤ Output adjustment area
Make REVERB, AUX MASTER and STEREO MASTER settings here.
For details about other settings, see "MIXER page" in "5 - Using the Settings Panel" of the Reference Manual.
Making settings on the INFORMATION screen
Click the INFORMATION tab on the Settings Panel to open the INFORMATION page as shown below.
Windows Settings Panel INFORMATION page
For details about settings, see "INFORMATION page" in "5 - Using the Settings Panel" of the Reference Manual.
Setting the sample clock source
- Click the INFORMATION tab on the Settings Panel to open the INFORMATION page as shown below.
- Click Sample Clock Source (①) on the INFORMATION page to set the sample clock source.
Options: INTERNAL, OPTICAL A, OPTICAL B, WORD
NOTE
When set to OPTICAL A, OPTICAL B or WORD, if no signal is input through the corresponding connector or synchronization becomes impossible, "Unlocked" will appear for the Clock Source Status item in the status area (②) and the unit's STANDBY indicator will blink. ("Manually Configured" will appear when using OPTICAL A/B with the Rate item set to Manual.)
Making settings on the ROUTING screen
Click the ROUTING tab on the Settings Panel to open the ROUTING page as shown below.
SERIES 102i Settings Panel ROUTING screen
SERIES 208i Settings Panel ROUTING screen
NOTE
For details about other settings, see "ROUTING page" in "5 - Using the Settings Panel" of the Reference Manual.
Changing sampling frequency
The sampling frequency (44.1kHz by default) can be set using DAW software or with the following procedure.
Windows
Change using: Control Panel → Sound window → Playback tab → Speakers SERIES 102i or Speakers SERIES 208i → Properties → Advanced tab → Default Format. Then, on the Recording tab, use "Set Default" for "Mic SERIES 102i" or "Mic SERIES 208i" to set the same sampling frequency in the same manner.
Mac
Change using: Applications folder → Utilities folder → Audio MIDI Setup → Audio Devices window → SERIES 102i or SERIES 208i w Format.
NOTE
When shipped new from the factory, the MONITOR knob is set to its minimum value, so no signals will be output from the LINE OUT 1-2 (MONITOR) jacks.
Adjust the MONITOR knob as desired when using the LINE OUT 1-2 (MONITOR) jacks.
Troubleshooting
Please read this chapter if you are unable to use the unit properly even after setting it up following the procedures in this manual.
If you are still unable to resolve your problems please contact TAS-CAM customer support (see the end of this manual) with the following information about the operating environment and details about the trouble.
Operating environment
● Computer manufacturer :
Model:
CPU:
● Memory (RAM) :
- Operating system:
● Applications used:
● Antivirus software:
● Wireless LAN use:
If these measures do not resolve the issue, please contact the retailer where you purchased this unit or a TEAC service center. See the end of this document for contact information.
The dedicated software cannot be installed.
1. Check the operating system
The operating system being used might not be compatible with the software that you are trying to install.
Check the compatible operating system of the software you are trying to install again.
2. Stop software running in the background
Antivirus software and other software that runs in the background can prevent installation.
Quit software that runs in the background and try installation again.
The unit is connected, but the computer does not recognize it.
- Install the dedicated software
- If you have not done so, install the dedicated software. (See "Installing the dedicated software" on page 8.)
-
Change the USB port
-
This unit cannot be used with USB 1.1. Use a port that supports at least USB 2.0 or USB 3.0.
- Do not use a USB hub with this unit. Always connect the unit directly to a USB port on the computer.
- If the above methods do not resolve the problem, connect the unit to a different USB port on the computer.
I cannot hear any sound even when audio is played back on the computer.
Confirm that the MONITOR BALANCE knob on the unit is not turned all the way to the left (toward INPUT).
If that is the case, turn the MONITOR BALANCE knob to the right of center (toward COMPUTER).
In addition, check the status of the unit's connection with the computer. Moreover, if you make the following settings, sound will be output through this unit, but no sound will be output by the computer's speakers or headphone jack.
Windows
- See the "Windows Media Player" section in the "6 - Application Guide" chapter of the Reference Manual, and make settings for the default playback device according to the OS.
Mac
- Quit all applications and open "System Preferences..." from the Apple menu.
- Open "Sound".
- On the "Output" tab, select "SERIES 102i" or "SERIES 208i".
After completing the setting, restart the computer and check the sound of playback. Depending on the application that you are using, you might need to make additional device settings.
In particular, DAW applications operate using audio engines with settings that are different from the OS settings, so confirm the DAW settings first after installing the dedicated software for this unit.
Please see the manuals for the applications that you are using for detailed setting procedures.
Sound breaks up or there is noise.
The processing load on the computer causes sound to break up and noise to occur.
Here are some methods to reduce the load on the computer.
-
A wireless LAN and software running in the background, including antivirus software, regularly put processing loads on the computer, which can cause sound to break up and other noise. Stop wireless LAN transmission, antivirus software and other software running in the background when using this unit.
-
Set the buffer size (latency) in the audio application that you are using or in this unit's Settings Panel to a larger value (Windows only).
NOTE
Consult the maker of the audio application that you are using for methods to reduce its load on your computer.
- Change the settings of your computer so that they are optimal for audio processing.
Using Windows
① Open the Control Panel using the appropriate method for the OS you are using (Windows 10/Windows 8.1/Windows 7).
- In Windows 10, open the "Control Panel". Then, click the "System" icon.
- In Windows 8.1, right-click the ordinary Start screen (Metro user interface screen) and then click "All apps". Then, right-click "Computer" and select "Properties".
- In Windows 7, right-click "Computer" from the Windows Start button, and select "Properties".
② Click "Advanced system settings".
③ Click "Settings" in the "Performance" section of the "Advanced" tab of the "System Properties" window.
④ In the "Visual Effects" tab of the "Performance Options" window, select "Adjust for best performance".
Using Mac
① Open "System Preferences..." from the Apple menu, and select "Energy Saver".
② Set "Computer sleep" to "Never".
③ Set "Display sleep" to "Never".
NOTE
Depending on the Mac OS version and Macintosh computer model, this setting might not be available.
4. Change the USB port
Since the unit might not properly function with some USB ports, try connecting it to a different USB port.
NOTE
- Try again after disconnecting other USB devices. (Keyboards and mice can be left connected.)
- Do not use a USB hub. Always connect the unit directly to a USB port on the computer (built-in)
Specifications
Ratings
Sampling frequencies
44.1, 48, 88.2, 96, 176.4, 192 kHz
Quantization bit depth
24-bit
Analog audio input ratings
Mic inputs (balanced)
SERIES 102i: 1-2
SERIES 208i: 1-2, 3-4
(when the input switch is set to MIC/LINE)
Connector : XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input impedance: 1.5 kΩ
Rated input level:
-64 dBu (0.0005 Vrms, GAIN knob at maximum)
-6 dBu (0.388 Vrms, GAIN knob at minimum)
Maximum input level: +10 dBu (2.45 Vrms)
Gain range: 58 dB
Instrument inputs (unbalanced)
SERIES 102i: 1-2
SERIES 208i: 1-2, 3-4
(when the input switch is set to INST)
Connectors: 6.3mm (1/4") standard TS jacks
(Tip: HOT, Sleeve: GND)
Input impedance: 1 MΩ or more
Rated input level:
-64 dBV (0.0006 Vrms, GAIN knob at maximum)
-6 dBV (0.501 Vrms, GAIN knob at minimum)
Maximum input level: +10 dBV (3.162 Vrms)
Gain range: 58 dB
Line inputs (balanced)
SERIES 102i: 1-2
SERIES 208i: 1-2, 3-4
(when the input switch set to MIC/LINE)
Connectors: 6.3 mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: 10 kΩ
Rated input level:
-54 dBu (0.0015 Vrms, GAIN knob at maximum)
+4 dBu (1.228 Vrms, GAIN knob at minimum)
Maximum input level: +24 dBu (12.282 Vrms)
Gain range : 58 dB
Analog outputs
Monitor outputs (balanced, LINE OUT 1-2)
Connectors: 6.3mm (1/4") standard TRS jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance: 230 Ω
Nominal output level: +4 dBu (1.228 Vrms)
Maximum output level: +20 dBu (7.75 Vrms)
Line outputs (balanced, LINE OUT 3-8, on SERIES 208i only)
Connectors: 6.3mm (1/4") standard TRS jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance: 230 Ω
Nominal output level: +4 dBu (1.228 Vrms)
Maximum output level: +20 dBu (7.75 Vrms)
Headphone outputs (PHONES _1 ) _2
Connectors: 6.3mm (1/4") standard stereo jacks
Maximum output:
SERIES 102i: 18mW + 18mW
SERIES 208i: 45mW + 45mW
(THD+N 0.1% or less, into 32 Ω load)
Digital audio input ratings
OPTICAL (S/MUX) IN (SERIES 208i includes A and B)
Connectors: OPTICAL (JEITA RC-5720C)
Signal format: Multi-channel optical format
(Supports S/MUX when 88.2 k, 96 k, 176.4 k or 192 kHz.)
Control input/output
USB
Connector: 4-pin USB B-type
Transfer rate: USB 2.0 High Speed (480 Mbps)
MIDI IN connector
Connector: 5-pin DIN
Format: standard MIDI
MIDI OUT connector
Connector: 5-pin DIN
Format: standard MIDI
WORD IN connector (SERIES 208i only)
Connector: BNC
Input voltage: 2.0 Vpp - 5.0 Vpp
Input impedance: 75 Ω ±10%
Permitted frequency deviation during external synchronization:
±100 ppm
Terminal on/off switch
WORD OUT connector (SERIES 208i only)
Connector: BNC
Input voltage: 2.0 Vp-p (into 75 Ω)
Output impedance: 75 Ω ±10%
Sampling frequencies: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
Audio performance
Mic amp EIN (equivalent input noise)
-129 dBu or lower
Frequency response
MIC/LINE IN
At 44.1/48 kHz, 20 Hz - 20 kHz: +0 dB/-0.4 dB (JEITA)
At 88.2/96 kHz, 20 Hz - 40 kHz: +0 dB/-0.8 dB (JEITA)
S/N ratio
109 dB
(MIC/LINE IN, GAIN knob at minimum, 20 kHz SPCL LPF+A-Weight)
110 dB
(LINE OUT, MONITOR knob at maximum, 20 kHz SPCL LPF+A-Weight)
THD + N
SERIES 102i
0.0016%
(MIC IN, 1 kHz sine wave, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0023%
(LINE IN, 1 kHz sine wave, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0014%
(LINE OUT, 1 kHz sine wave, MONITOR knob at maximum, 20 kHz SPCL LPF)
SERIES 208i
0.0013%
(MIC IN, 1 kHz sine wave, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0019%
(LINE IN, 1 kHz sine wave, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0014%
(LINE OUT, 1 kHz sine wave, MONITOR knob at maximum, 20 kHz SPCL LPF)
Crosstalk
100 dB or more
(MIC/LINE → LINE OUT, 1kHz sine wave, GAIN knob at minimum)
Computer system requirements
Check the TEAC Global Site (http://teac-global.com/) for the latest information about supported operating systems.
Windows
Supported operating systems
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 7 32-bit SP1 or later
Windows 7 64-bit SP1 or later
(Windows Vista and Windows XP are not supported)
Computer hardware requirements
Windows computer with a USB port that supports at least USB 2.0 or USB 3.0
CPU/processor speed
2 GHz or faster dual core processor (x86)
Memory
2 GB or more
ATTENTION
Operation of this unit was confirmed using standard computers that meet the above requirements.
This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions.
Mac
Supported operating systems
macOS Mojave (10.14 or later)
macOS High Sierra (10.13 or later)
macOS Sierra (10.12 or later)
Computer hardware requirements
Mac with a USB port that supports at least USB 2.0 or USB 3.0
CPU/processor speed
2 GHz or faster dual core processor
Memory
2 GB or more
iOS device
Apple iOS device running iOS 10 or later
Supported audio drivers
Windows
USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI
Mac
Core Audio, Core MIDI
iOS device
Core Audio for iPhone
General
Power
DC12V AC adapter (PS-P1220E)
Power consumption
SERIES 102i: 7.2 W
SERIES 208i: 14 W
Dimensions
SERIES 102i: 186 × 65 × 160 mm (width × height × depth)
SERIES 208i: 296 × 65 × 160 mm (width × height × depth)
Weight
SERIES 102i: 1.1 kg
SERIES 208i: 1.6 kg
Operating temperature range
5-35°C (41-95°F)
Dimensional drawings
SERIES 102i
SERIES 208i
● Illustrations in this manual might differ in part from the actual product.
- Specifications and external appearance might be changed without notification to improve the product.
● Detailed specifications are provided in the Reference Manual.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT : POUR PRÉVENIR LES RISQUES D'INCENDIE ET D'ÉLECTROCUTION, N'EXPOSEZ PAS CET APPAREIL À LA PLUIE NI À L'HUMIDITÉ.
Pour le Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.
Sommaire
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES ...... 17
Introduction....19
⑲ Prises LINE OUT (BALANCED) 3-8 (SERIES 208i uni- quement)
Mic preamp with S/MUX
SERIES 102i
Mac
(SERIES 208i uniquement)
Connecteur : BNC
(SERIES 208i uniquement)
Connecteur : BNC
SERIES 208i
Responsible: TEAC AMERICA, INC.
Dirección: 10410 Pioneer Blvd., Unit #1 Santa Fe Springs, CA 90640, U.S.A.
⑲ Conector DC IN 12V
SERIES 102i
SERIES 208i
Mac
Conector WORD OUT (solo SERIES 208i)
Conector: BNC
SERIES 208i
SERIES 102i
SERIES 208i
■ Mac
■ SERIES 208i
SERIES 208i
Lato anteriore
ComputerDrum machineMonitor atti
SERIES 208i
④ Area Channel Mixer
OPTICAL (S/MUX) IN (SERIES 208i include A e B)
Connettori: OPTICAL (JEITA RC-5720C)
SERIES 208i
⑭ ケンジントンロック装着穴
[ SERIES 208i ]
OPTICAL (S/MUX) IN (SERIES 208iはA / B搭載)
Core Audio for iPhone
一般
電源
SERIES 208i
< In the United States >
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as specified below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:
- Damage to or deterioration of the external cabinet.
- Damage resulting from accident, misuse, abuse or neglect.
- Damage resulting from failure to perform basic daily maintenance and/or calibration or otherwise resulting from failure to follow instructions contained in your owner's manual.
- Damage occurring during shipment of the product. (Claims must be presented to the carrier)
- Damage resulting from repair or attempted repair by anyone other than TEAC or an authorized TASCAM service station.
- Damage resulting from causes other than product defects, including lack of technical skill, competence, or experience of the user.
- Damage to any unit which has been altered or on which the serial number has been defaced, modified or is missing.
WHO IS COVERED UNDER THE WARRANTY
This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.
LENGTH OF WARRANTY
All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted for ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.
WHAT WE WILL PAY FOR
We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.
HOW YOU CAN GET WARRANTY SERVICE
Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer.
You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.
LIMITATION OF IMPLIED WARRANTIES
Any implied warranties, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.
EXCLUSION OF DAMAGES
TEAC's liability for any defective product is limited to repair or replacement of the product, at TEAC's option. TEAC shall not be liable for:
- Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss; or
- Any other damages, whether incidental, consequential or otherwise.
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
To locate an Authorized Service Center in Your Area
CALL 1-323-726-0303
This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.
These warranty provisions in Japanese are valid only in Japan.
< In other countries/areas >
This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.
If you have a warranty claim or request, please contact the dealer where you bought the product.
If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAM Distributor in your country. A list of TASCAM Distributors can be found on our website at: http://teac-global.com/
Model / Modèle / Modell Modello / Modelo / 型名
Owner's name / Nom du propriétaire / Name des Eigentümers Nome del proprietario / Nombre del propietario / お名前
SERIES 102i / SERIES 208i
Serial No. / No de série / Seriennummer Numero di serie / Número de serie / 機番
Address / Adresse / Adresse Indirizzo / Dirección / ご住所
- TEAC CORPORATION
- TEAC UK Ltd.
- TEAC EUROPE GmbH
- IMPORTANT SAFETY INSTRUCTIONS
- For U.S.A.
- Declaration of Conformity
- INFORMATION TO THE USER
- CAUTION
- For Canada
- For European Customers
- Disposal of electrical and electronic equipment
- Contents
- Introduction
- Note about the Reference Manual
- Included items
- ATTENTION
- NOTE
- Conventions used in this manual
- TIP
- Precautions for placement and use
- Beware of condensation
- Cleaning the unit
- Using the TEAC Global Site
- Product registration
- About TASCAM customer support service
- Names and functions of parts
- Front panel
- SERIES 102i
- SERIES 208i
- ⑦ PHONES knob
- ⑧ 1-2 input jacks
- ⑨ Input switches
- ⑩ +48V indicators
- ⑪ 3-4 input jacks (SERIES 208i only)
- ⑫ MONITOR knob
- ⑬ PHONES Ω1 jacks
- Rear panel
- ⑭ Kensington Security Slot
- ⑮ WORD IN/OUT connectors (SERIES 208i only)
- ⑯ 75Ω ON/OFF switch (SERIES 208i only)
- ⑰ STANDBY switch
- ⑱ Cord holder
- ⑲ LINE OUT (BALANCED) 3-8 jacks (SERIES 208i only)
- ⑳ LINE OUT (BALANCED) 1-2 jacks
- ②1 MIDI OUT connector
- ⑳ MIDI IN connector
- ②3 OPTICAL IN (S/MUX) connector(s)
- ⑳ USB port
- ⑳ DC IN 12V connector
- Installing the dedicated software
- Installing the Windows dedicated software
- Windows dedicated software installation procedures
- Installing the Mac dedicated software
- Mac dedicated software installation procedures
- Connecting the power
- Changing the outlet plug
- Connecting other equipment
- Precautions before making connections
- Connecting with iOS devices
- Adjusting the input sound
- Making various settings
- Opening the Settings Panel
- Windows
- Mac
- Settings Panel overview
- Making settings on the MIXER screen
- ① EQUALIZER
- ② COMPRESSOR area
- ③ REVERB area
- ④ Channel Mixer area
- ⑤ Output adjustment area
- Making settings on the INFORMATION screen
- Setting the sample clock source
- Making settings on the ROUTING screen
- Changing sampling frequency
- Troubleshooting
- Operating environment
- The dedicated software cannot be installed.
- Check the operating system
- Stop software running in the background
- The unit is connected, but the computer does not recognize it.
- I cannot hear any sound even when audio is played back on the computer.
- Sound breaks up or there is noise.
- Using Windows
- Using Mac
- Change the USB port
- Specifications
- Ratings
- Sampling frequencies
- Quantization bit depth
- Analog audio input ratings
- Mic inputs (balanced)
- Instrument inputs (unbalanced)
- Line inputs (balanced)
- Analog outputs
- Monitor outputs (balanced, LINE OUT 1-2)
- Line outputs (balanced, LINE OUT 3-8, on SERIES 208i only)
- Headphone outputs (PHONES _1 ) _2
- Digital audio input ratings
- OPTICAL (S/MUX) IN (SERIES 208i includes A and B)
- Control input/output
- USB
- MIDI IN connector
- MIDI OUT connector
- WORD IN connector (SERIES 208i only)
- WORD OUT connector (SERIES 208i only)
- Audio performance
- Mic amp EIN (equivalent input noise)
- Frequency response
- S/N ratio
- THD + N
- Crosstalk
- Computer system requirements
- Supported operating systems
- Computer hardware requirements
- CPU/processor speed
- Memory
- iOS device
- Supported audio drivers
- General
- Power
- Power consumption
- Dimensions
- Weight
- Operating temperature range
- Dimensional drawings
- INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
- Pour le Canada
- Sommaire
- ⑲ Prises LINE OUT (BALANCED) 3-8 (SERIES 208i uni- quement)
- (SERIES 208i uniquement)
- ⑲ Conector DC IN 12V
- ATENCIÓN
- Conector WORD OUT (solo SERIES 208i)
- ■ Mac
- ATTENZIONE
- ④ Area Channel Mixer
- OPTICAL (S/MUX) IN (SERIES 208i include A e B)
- ⑭ ケンジントンロック装着穴
- 注意
- OPTICAL (S/MUX) IN (SERIES 208iはA / B搭載)
- 一般
- 電源
- < In the United States >
- WHAT IS COVERED AND WHAT IS NOT COVERED
- WHO IS COVERED UNDER THE WARRANTY
- LENGTH OF WARRANTY
- WHAT WE WILL PAY FOR
- HOW YOU CAN GET WARRANTY SERVICE
- LIMITATION OF IMPLIED WARRANTIES
- EXCLUSION OF DAMAGES
- To locate an Authorized Service Center in Your Area
- < In other countries/areas >
- SERIES 102i / SERIES 208i
Brand : TASCAM
Model : SERIES 102i
Category : Hi-Fi
