Shape Twin - Monitor FOCAL - Free user manual and instructions

Product Type	Active 2-way studio monitor
Brand	Focal
Model	Shape Twin
Drivers	1-inch (25mm) inverted dome tweeter, two 5-inch (13cm) Flax sandwich cone woofers
Frequency Response	50 Hz – 35 kHz (+/- 3 dB)
Maximum SPL	113 dB (peak)
Amplification	Bi-amplified: 180W LF + 60W HF, total 240W RMS
Inputs	1x XLR balanced, 1x TRS 6.35mm balanced/unbalanced, 1x RCA unbalanced
Input Impedance	10 kOhms (balanced), 10 kOhms (unbalanced)
Acoustic Controls	High frequency shelving (0, -3 dB), low-mid frequency (0, -1.5, -3 dB), high-pass filter (full, 80 Hz, 150 Hz)
Standby Mode	Auto standby after 30 minutes (adjustable via rear switch)
Protection	Thermal overload, output current limiting, subsonic filter, soft start
Dimensions (H x W x D)	384 x 260 x 260 mm (15.1 x 10.2 x 10.2 in)
Weight	8.1 kg (17.9 lb) each
Cabinet Material	MDF with internal bracing, damping material
Finish	Black textured vinyl
Power Supply	100-240 V AC, 50/60 Hz, internal switching
Power Consumption	60 W idle, 200 W max
Operating Temperature	5°C to 35°C (41°F to 95°F)
Cleaning Instructions	Disconnect power, wipe with dry soft cloth; do not use solvents or abrasive cleaners
Safety Precautions	Do not expose to rain or moisture; ensure proper ventilation; use only with specified voltage
Spare Parts Availability	Contact Focal authorized service centers for drivers, amplifiers, and electronic modules
Repairability	Designed for serviceability; amplifier module replaceable, drivers accessible from front/rear
Country of Origin	France

Frequently Asked Questions - Shape Twin FOCAL

What is the recommended placement for the Shape Twin monitors?

Place the monitors at least 20 cm from walls to avoid bass buildup. Position them so that the tweeters are at ear level. The stereo triangle should be equilateral with the listening position. Use the high-pass filter (80 Hz) if using a subwoofer.

What cables do I need to connect the Shape Twin?

Use balanced XLR or TRS cables for best noise rejection, especially for long runs. Unbalanced RCA cables work but may introduce hum. Ensure the input selector switch on the rear matches your cable type.

How do I adjust the acoustic settings on the Shape Twin?

On the rear panel, use the HIGH FREQ switch to adjust treble (0 or -3 dB) and the LOW-MID switch to adjust 200-250 Hz range (0, -1.5, -3 dB). The HP FILTER sets the high-pass cutoff for the woofers: FULL (no filter), 80 Hz, or 150 Hz.

Why is my Shape Twin not turning on?

Check that the power cord is securely connected and the power switch is on. Verify the mains voltage matches the monitor's rating. If the auto standby is enabled (>30 min no signal), send an audio signal or disable standby via the rear switch.

What does the blinking LED on the front indicate?

A blinking green LED means the monitor is in standby mode. A solid green LED indicates normal operation. If the LED turns red, there is a fault (overheating or overload); reduce volume and allow cooling.

Can I use the Shape Twin as a home theater speaker?

Yes, but note that it is a professional studio monitor with high accuracy. For home theater, you may want to use the high-pass filter to match a subwoofer. Avoid placing the monitor too close to walls to reduce bass exaggeration.

How do I clean the Shape Twin monitor?

Disconnect power first. Wipe the cabinet with a dry, soft cloth. For grime, slightly dampen the cloth with water (no solvents). The tweeter and woofers can be gently dusted with a soft brush; do not press on the diaphragm.

What is the warranty period for the Shape Twin?

Focal typically offers a 2-year manufacturer warranty from date of purchase. Registration may be required. Terms vary by region; check with your dealer.

Can I mount the Shape Twin on a wall or stand?

Yes, the monitor has four M6 threaded inserts on the bottom for mounting on stands or brackets. Use Focal-approved mounting hardware. Ensure the mount supports the weight (8.1 kg). Do not block the rear ventilation openings.

Why is there a hissing noise from the tweeter?

A slight hiss is normal for active monitors due to the amplifier. If excessive, check for ground loops (use balanced cables) or interference from nearby electronics. The hiss should be inaudible at listening distance (1 meter).

USER MANUAL Shape Twin FOCAL

Two icons: a bar chart and an headphones, both in brown on white background (no text or symbols)

For more than four decades, Focal has created speaker drivers

and high-end loudspeakers that deliver a unique sound. Our brand

values are innovation and performance; excellence and pleasure.

we are globally renowned for our exclusive technologies. The result of this technological heritage in place, leading products offering

of this technological heritage is class leading products offering a natural, authentic performance, imbued with clarity and power.

Our collection of monitors and headphones designed

especially for audio professionals offers you tools of the trade

that are reliable, versatile and - quite simply - best-in-class.

01.

ST6

7

02.

TRIO 11 BE

3

03.

SHAPE

19

04.

ALPHA EVO

20

05.

SUB ONE

31

06.

CLEAR MG PROFESSIONAL

37

07.

LENSYS PROFESSIONAL

43

08.

LISTEN PROFESSIONAL

49

01.

ST6

Only sound, nothing else

The ST6 line provides a range of professional equipment at the cutting edge of technology. innovative additions to the drive units have really benefited the rendering, resulting in outstanding reliability and extreme precision. Packed with features like a disengageable stand-by mode, highpass filter, focus mode, and more. The Trio6, Twin6 et Solo6 monitors can be extended by the Sub12 — the perfect partner for powerful bass.

Interior of a recording studio with a red audio amplifier and a man playing a string instrument (no visible text or symbols)

"W" cone

Beryllium tweeter

Focus mode

Optimized laminar port

Inserts for wall mounting

HPF, LMF EG, LF, HF Sheivings

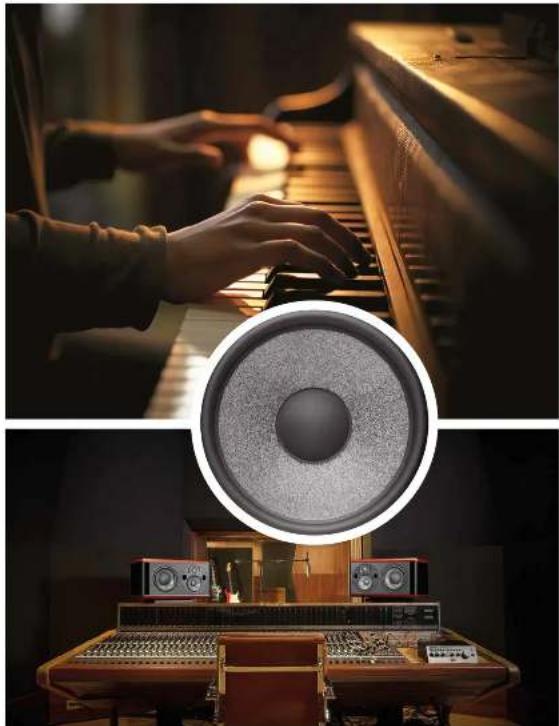

Two-panel image: top shows hands playing piano keyboard, bottom shows a close-up of a speaker with sound equipment (no text or symbols visible)

SOLO6 TWIN6 TRIO6 SUB12

Type 2 way monitor 2.5 way monitor 3 way monitor Subseafer

Frequency response	• 2-way mode:40Hz - 40kHz (+/- 3dB)• 1-way mode (Focus):10GHz - 10kHz (+/- 3dB)	• 2.5 way mode:40Hz - 40kHz (+/- 3dB)• 1.5-way mode (Focus):10GHz - 10kHz (+/- 3dB)
Maximum SPL	• 2-way mode:10dB SPL (pccx @ 1m)• 1-way mode (Focus):109.5dB SPL (peak @ 1m)	• 2.5 way mode:10dB SPL (peak @ 1m)• Mode 1.5 vole (Focus):110dB SPL (pccx @ 1m)
Amplification• Bass• Midrange• Treble	80W RMS, class G50W RMS, class AB	2 x 70W RMS, class G50W RMS, class AB
Transducers	• 6½" (3cm) "W-cone wrocker• 1" (25mm) pure Beryllium inverted clone towerer	• 2 x 6½" (3cm) "W-cone wrocker• 1" (25mm) pure Beryllium inverted clone towerer
Finish	Dark red natural revertering side panels, black body	Dark red natural revertering side panels, black body
Dimensions (HxWxD)	10 x 3½ x 1½"(33.4 x 24.6 x 29.5mm)	10% x 20% x 13%"(25.8 x 51.4 x 34.4mm)
Weight 26.6lbs (15kg)	48.5lbs (2kg) 55.5 lbs (25kg) 127.6lbs (58kg)

Red and black studio speaker with a speaker grille (no visible text or symbols)

- 3-way trade

35Hz - 40kHz (+/- 3dB)

- 2-way mode (Focus)

100Hz - 15kHz (+/- 3dB)

• 1-way mode (Focus):

2012-4012(17-36D)

- 3-way mode:

115dR SPI (pin @ hr)

- 2 way mode (Focus).

112dB SPL (plc @ 1m)

- 1-way mode (Focus):

H2dG SPL (pH ≈ 100)

100W RMS class 6

100W RMS, class G

50W RMS, class AB

- 8" (20cm) "W-core subwoofer

- 5^ (16 cm) W-cone midrange

driver

• P (25cm) pure Beryllium

Inverted doma tweeter

Dark red nature

verneering side panels.

black body

216 x 14 x 14

(53.7×20.2×36.9mm)

50Hz - 400Hz

124.5dB

600W RMS, class G

。

13<53cm

"W" cena subvocet

Dark red natural

venteering side panels.

black brody

235 x 104 x 2094

(60×487×55.8cm)

02.

TRIO 11 BE

Keep focus and mix on!

The Trioli Be is the flagship monitoring speaker in the SM6 Inc. It is designed for studios that require monitors capable of revealing the entire sound spectrum. Focal's advanced technologies ensure exceptional neutrality and precise stereo imaging within this price range. The BASH® amplification provides a wide range of sound pressure levels (SPL), making it suitable for all music styles. The Trioli Be is intended for both nearfield and midfield use.

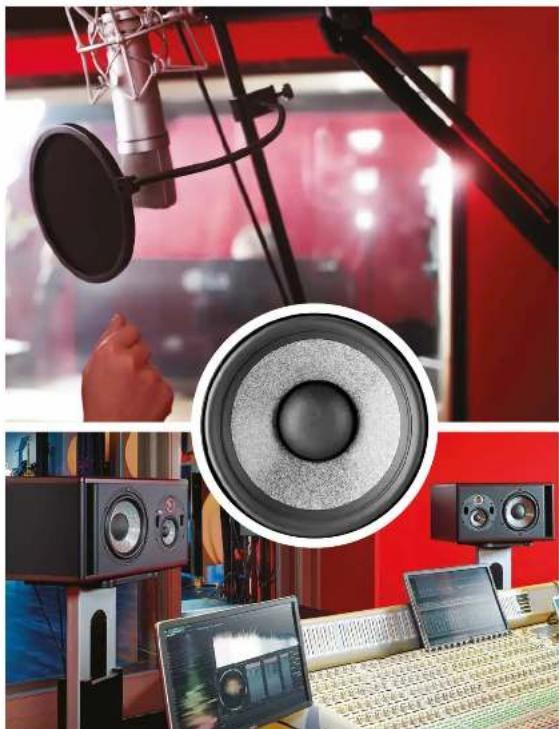

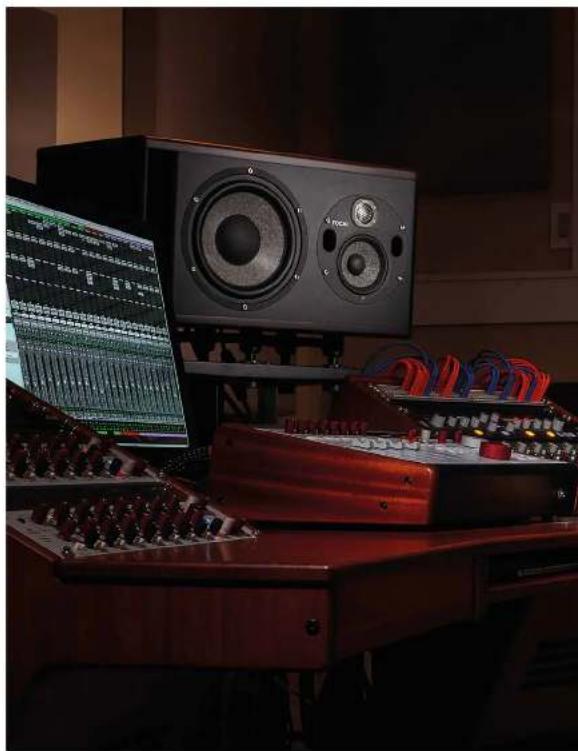

Interior of a audio recording studio with audio equipment and a large speaker (no visible text or symbols)

W cone

Beryllium tweeter

Focus mode

Red ash burl

Rotating tweeter-midrange plate

BASH ^® amplification

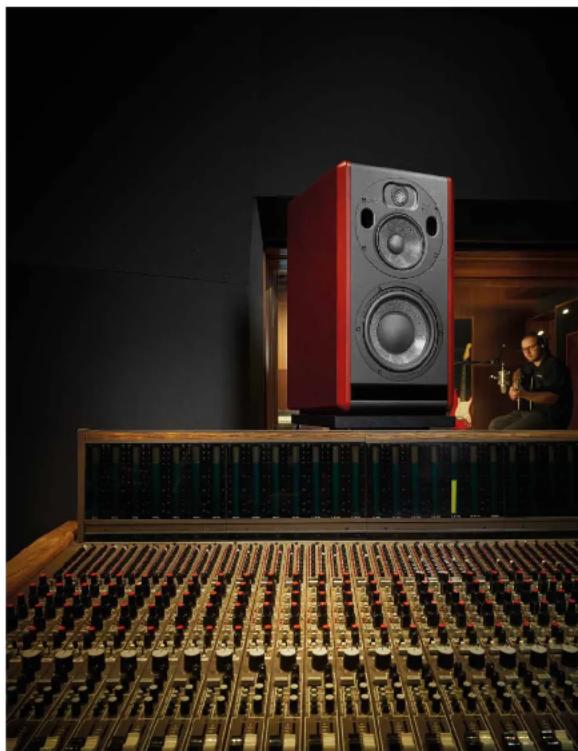

Interior of a recording studio with foam speakers and audio equipment (no visible text or symbols)

TRIO11 BE

Type 3 way / 2 way monitor

Frequency response

• 3-way mode: 50Hz - 40kHz (+/- 3dB)

- 2-way mode (Fomax): 50Hz - 20kHz (+/-3dB)

Maximum SPL

+ 3-way mode: 12dB (peak at 1m)

+ 2-way mode (Fomax): 105dB (peak @ lm)

Amplification

- Bass

300W RMS, class G

• Midrange • Stable

100W FNE class AP

Transducers

• 10' (25cm) 'W-cone suwcofer

• 5" (13cm) moreange with "A"-cone

• 1" (25mm) pure Deryllium inverted dome sweater

Finish

Side panels burl ash

Dark red natural venceering

Black body

Dimensions (HxWxD)

25×13%×17%

(63.5×34.9×45cm)

Weight 61.5lbs (3/kg)

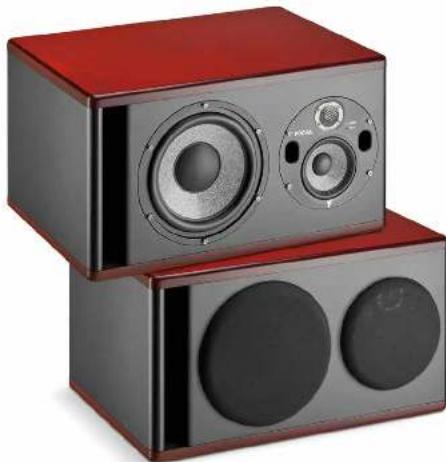

Two stacked red audio speakers with black speaker covers and analog gauges (no visible text or symbols)

03.

SHAPE

Beyond the curve!

The four monitors in the Shape range feature five innovations aimed at providing even more transparency. Designed for nearfield listening needs, they combine clever design with settings that respond to the acoustic features of small spaces. Shape is characterised by the precision of sound reproduction, as much in its tonal balance as its stereo image.

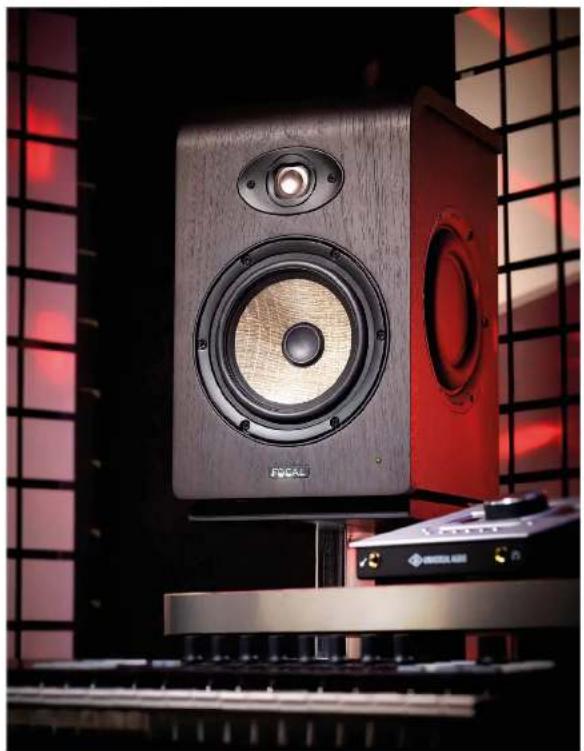

Close-up of a black Focal audio speaker with visible sound waves, set against a red grid backdrop (no text or symbols on the speaker or background)

Flax cone

Al/Mg tweeter

TMD*/NIC technologies

Genuine Walnut finish

Double passive radiator

Adjustable fit

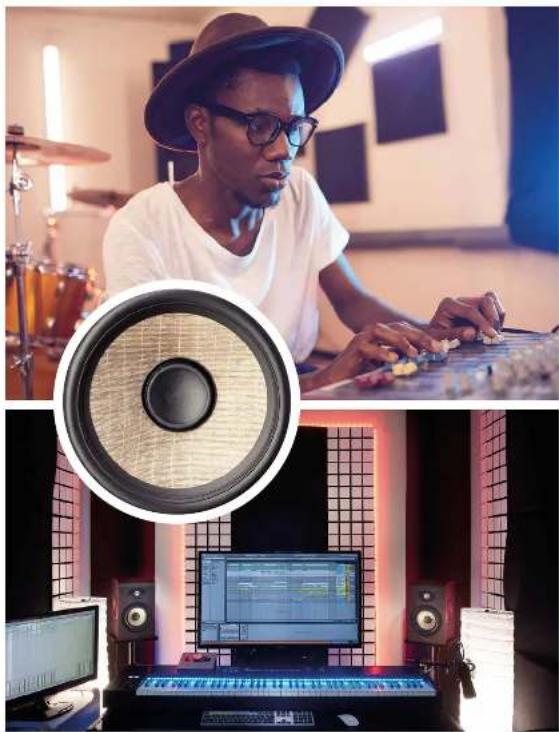

Interior of a recording studio with a musician working on stage and a close-up of a speaker cone, no visible text or symbols.

SHAPE 40 SHAPE 50 SHAPE 65 SHAPE TWIN
Type 2 way monitor 2 way monitor 2 way monitor 2.5 way monitor

Frequency response 60Hz - 35kHz 50Hz - 35kHz 40Hz - 35kHz 40Hz - 35kHz

Maximum SPL	102nR SPL (peak @ In)	106nR SPL (peak @ In)
Amplification
• Bass	25W RMS, class AB	60W RMS, class AB
• Midrange
• Treble	25W RMS, class AB	25W RMS, class AB
Transducers	• 4" (10cm) Flex cone woofer• 1" (25mm) Aluminum/Magnesium 'M'-shaped tweeter	• 5" (35cm) Flex cone woofer• 1" (25mm) Aluminum/Magnesium 'M'-shaped tweeter
Finish	Vinyl genuine walnut and black paint	Vinyl genuine walnut and black paint
Dimensions (HxWxD)	10 14 x 6 18 x 7 18 " (25.7 x 10.1 x 20cm)	10 14 x 6 18 x 7 18 " (31.2 x 191 x 24.2cm)
Weight	Tibs (Kg)	14lbs (6.6kg)

100μR SP1 (peak @ 1m)	110.5μR SP1 (peak @ 1m)
80W RMS, class AB25W RMS, class AB	80W RMS, class AB80W RMS, class AB80W RMS, class AB
• 6" x" (36.5cm) Fax cone woofer• 1" (25mm) Aluminium/MagnesiumM'-shaped tweeter	• 2 x 5" (33cm) Fax cone woofer• 1" (25mm) Aluminium/MagnesiumM'-shaped tweeter
Vinyl genuine nutnutand black paint	Vinyl, genuine nutnutand black paint
14 x 8% x 11⁄4"(35.3 x 21.8 x 26.5cm)	18% x 8% x 11"(47.8 x 21.1 x 27.9cm)
18lbs (0.5kg)	24lbs (1kg)

04.

ALPHA EVO

Reveal everything

Dedicated to music production, Alpha Evo studio monitors are characterised by exceptional dynamics, multiple features and their robust, compact design. Made for professional mixing and producing in very heterogeneous environments and incorporating new technologies, Alpha Evo guarantees excellent sonic coherence wherever you are working and makes focal professional sound accessible to everyone.

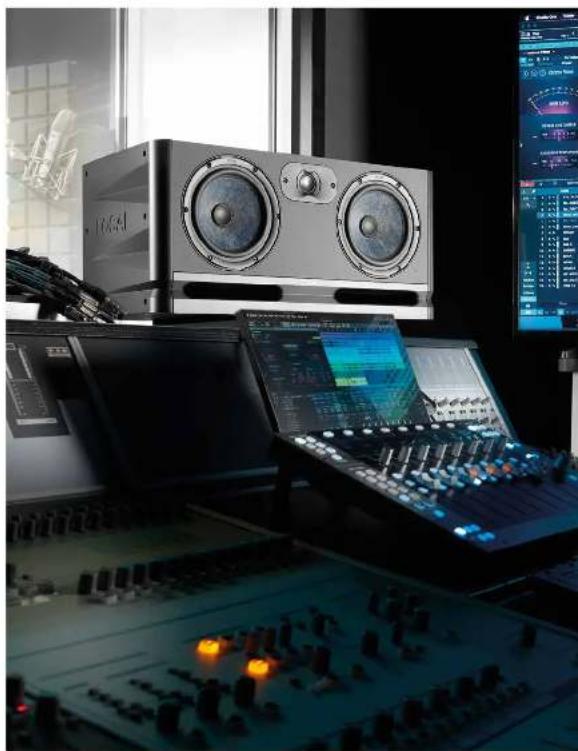

Interior of a video editing studio with audio equipment and a large speaker unit (no visible text or symbols)

Slatefiber cone

Aluminium tweeter

Laminar port

LF, HF shelvings

Inserts for wall mounting

Auto stand-by switch

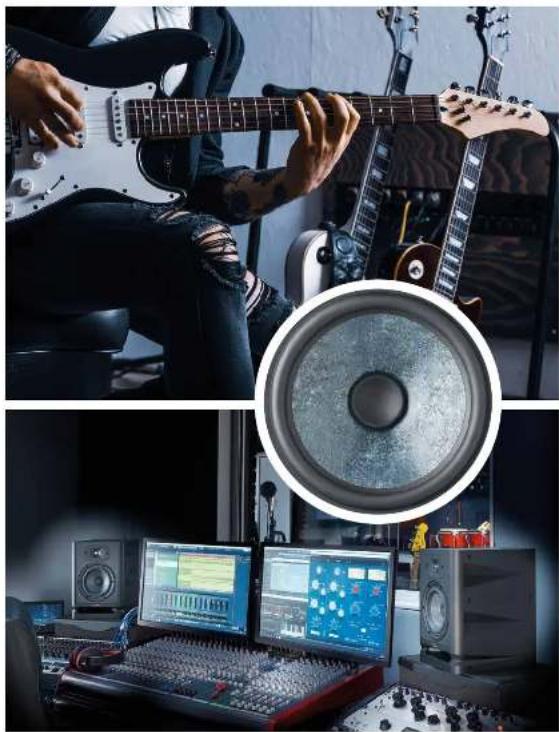

Interior of a music recording studio with a person playing electric guitar and a close-up of a large speaker (no visible text or symbols)

ALPHA 50 EVO ALPHA 65 EVO ALPHA 80 EVO ALPHA TWIN EVO

Type 2 way monitor 2 way monitor 2 way monitor 2.5 way monitor
Frequency response 45Hz - 22kHz 40Hz - 22kHz 38Hz - 22kHz 38Hz - 22kHz

Maximum SPL	104dB SPL (peak @ 1m)	104dB SPL (peak @ 1m)
Amplification
• Bass	35W RMS, class D	55W RMS, class D
• Midrange
• Treble	25W RMS, class D	30W RMS, class D
Transducers	• 5^ (15cm) made in France State Iber cone wooler• 1^ (25mm) Aluminum Inverted dome sweater	• 612 (10.5cm) made in France State Iber cone wooler• 7^ (25mm) Aluminum Inverted dome sweater
Finish	Vinyl and black paint	Vinyl and black paint
Dimensions (HxWxD)	1212 × 9 × 912 (3 × 22.8 × 23.9cm)	1312 × 1014 × 1112 (33.9 × 261.1 × 28.9 cm)
Weight	18lbs (5kg)	18.7lbs (7.6kg)

10x8dB SPI. (pic & lm)	10x8dB SPI. (pic & lm)
60W RMS, class D	50W RMS, class D
	60W RMS, class D
35W RMS, class D	30W RMS, class D
• 9" (20cm) made in FranceSkeeliber cone woofer• 1" (25mm) AluminumInverted doma boseter	• 2 x 61⁄2" (18.5cm) made in FranceSkeeliber cone woofer• 1" (25mm) AluminumInverted doma boseter
Vinyl and block paint	Vinyl and block paint
15% x 11⁄2x 13"(39 x 29.6 x 33cm)	10% x 19% x 11⁄2"(26 x 50 x 29cm)
210lbs (9.5kg)	26.9lbs (12.2kg)

05. SUB ONE

Shake your mix

To get a subwoofer that is efficient in the low-end, Focal engineers developed Sub One. Thanks to 200W RMS of power, exclusive Slatefiber technology and very low distortion, this long excursion, high efficiency subwoofer is the ideal complement to Alpha Evo and Shape lines. Its modern, slimline design and the position of the ports on the front panel make it an easy and discreet fit in any studio.

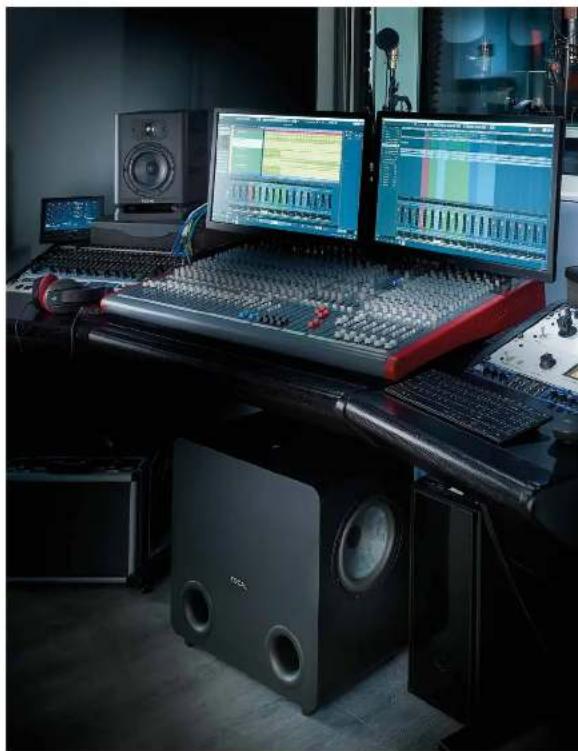

Interior of a audio recording studio with multiple audio workstation monitors and speakers (no visible text or labels)

Slatefiber cone

200W RMS

Large front vent

2-channels bass management

Auto stand-by switch

Included grilles

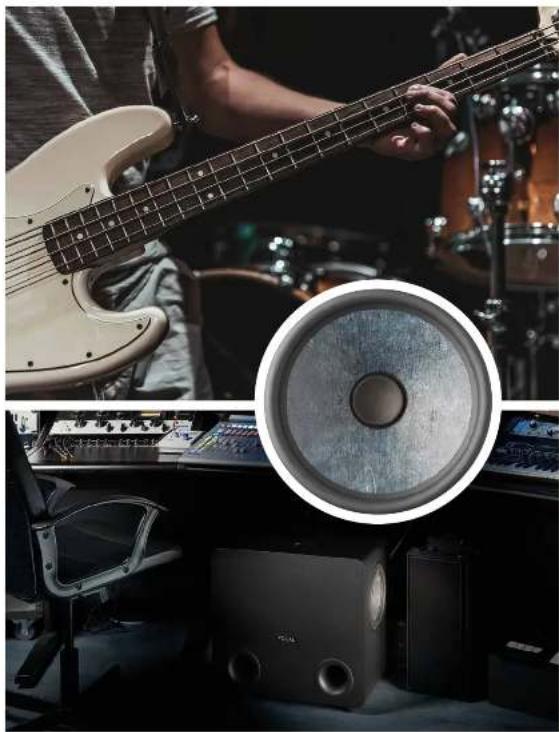

Interior of a music recording center with a bass, guitar, and audio equipment (no visible text or symbols)

SUB ONE

Subwoofer

Frequency response 32Hz - 120Hz

Maximum SPL 1/4dB (pin@ln)

Amplification 2 x 100W RMS, class D

Subwoofer 2 x 8" (20cm) made in France

long-excision Slatefiber cone wqofer

User control

• 2017-2018: New Manufacturing

1. Suburban local industrial (xuvilecity)

• External mute (controlled by a footswitch)

Dimensions (HxWxD) 195% x 195% x 175% (47.5 x 52 x 51cm)

Weight 40.8 lbs ('8.5kg)

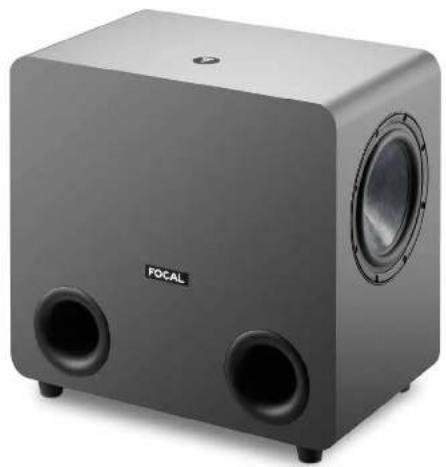

Exterior view of a gray FOCAL audio amplifier with two speakers and a speaker grille (no text or symbols on body)

06.

CLEAR MG PROFESSIONAL

Expect the best

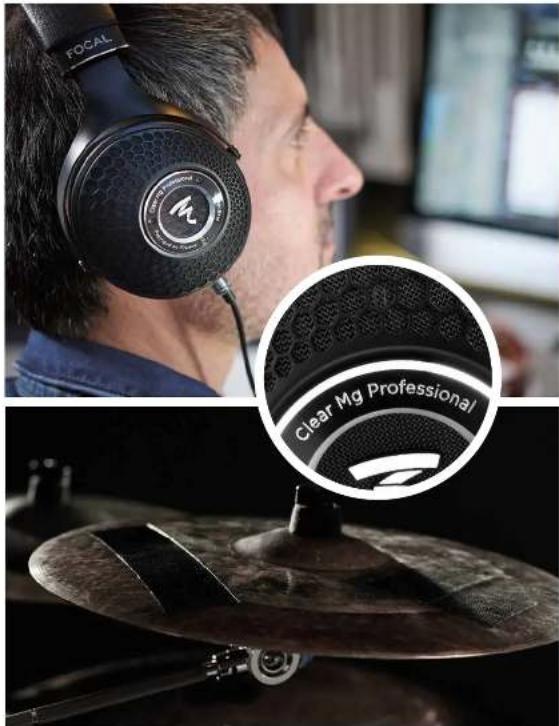

Clear Mg Professional are an essential tool for the most discerning sound engineers and producers. With their completely open design, it's easy to forget you're wearing these headphones, as spatialisation and total immersion take over. Able to reveal the tiniest details of the audio spectrum, they have excellent dynamics, allowing total confidence in the continuity of work between the monitors and the headphones.

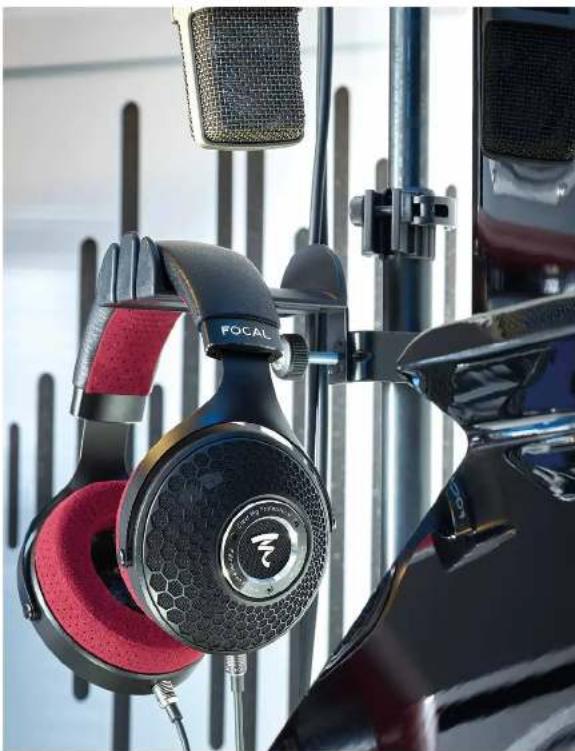

Close-up of a black and red Focal headphones mounted on a stand, with microphone and camera visible (no text or symbols)

Magnesium dome

Aluminium finish

Ultimate comfort

Spare cushions

Woven carrying case

Very open design

CLEAR MG PROFESSIONAL

Over-ear open-back headphones

Impedance 55:

Sensitivity 104dB SPL/1mW @ 1kHz

THD 0.25% @ 1kHz / 100dB SP

Frequency response 5Hz - 28kHz

Speaker driver L6' (40mm) M-shaped

Magnesium dome

Weight 0.98lbs (450g)

Cables and connectors + 1 x 16.42 (5m) cable with

1/4" (0.35mm) unbalanced Jack connector

- 1x 5.9ft (0.2m) cable with

1/0" /3 S### unbalanced jack operator

• La Jork avantler

1/8" (3.5mm) famala - 1/4" (6.35mm) male

Accessories 2 x spare cushions

Carrying case 9.8 x 9.4 x 4.7' (23 x 24 x 12cm)

Red textured object with black handle and circular logo, no visible text or symbols

HANDCRAFTED

IN FRANCE

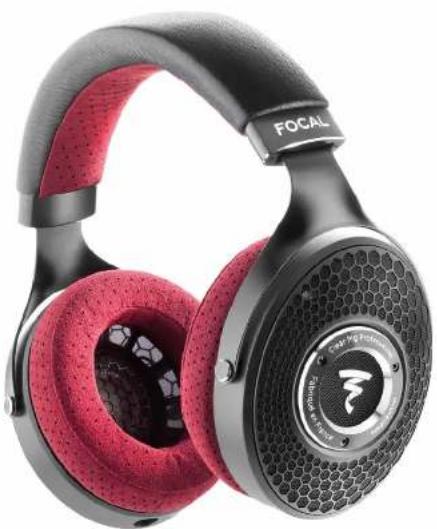

Black and red Focal headphones with hexagonal grille (no visible text or symbols)

07.

LENSYS PROFESSIONAL

Accuracy. Anywhere.

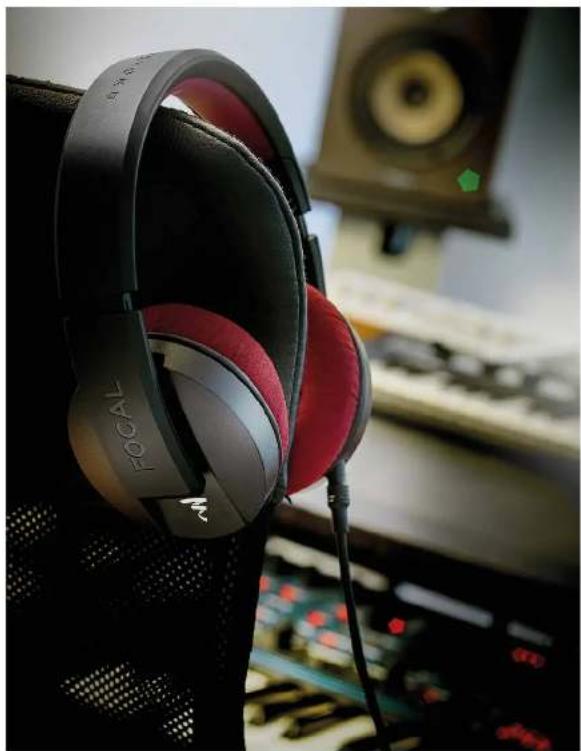

With their closed-back design combined with meticulous ergonomics, the Lensys Professional headphones are a must-have tool for working on the go or in the studio. Their design combines robust materials with a light yoke to offer comfort without compromising durability. Their exclusive M-shaped aluminum/magnesium drivers are slightly tilted inside the earcups to create an incredibly precise sound and an improved stereo image, making these reliable headphones the ultimate work companion.

Black-and-white photo of a BOZZ ear with perforated head and foam roller, resting on a patterned surface with blurred background objects (no text or symbols visible)

Black-and-white photo of a person wearing headphones and playing drums, with an inset showing a lens system labeled 'Lensys Professional' (no readable text beyond label)

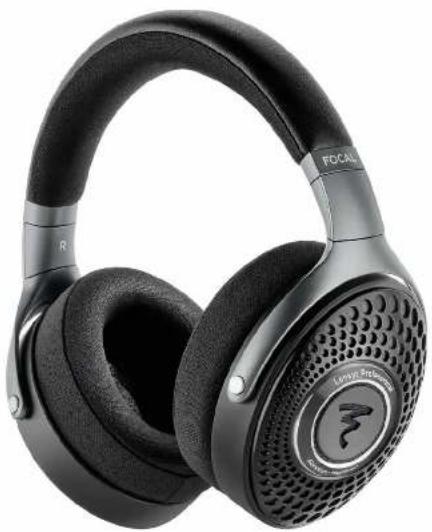

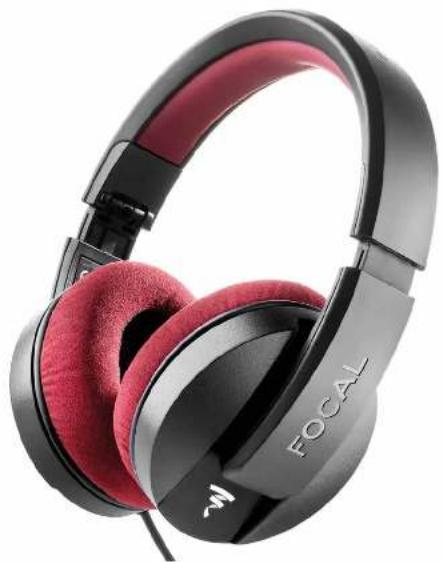

LENSYS PROFESSIONAL

Over-ear closed-back headphones

Impedance 2612

Sensitivity 100dB SPL / 1mW @ 1kHz

THD 0.3% Hz / 100dB SPI

Frequency response 5Hz - 22kHz

Speaker driver 153° (40mm) M-shaped

aluminium/magnesium dome

Weight 306 g

Cables and connectors + 1 x 4ft (1.2m) straight cable

- 1 x 10ft (3m) coiled cable

- 1x screwable Jack adapter

1/8" (3.5mm) female - 1/4" (6mm) male

Carrying case 9.4x8.3x2.7" (24x21x7cm)

Close-up of a dark textured fabric or cushion with a small looped edge (no visible text or symbols)

HANDCRAFTED

IN FRANCE

Black and silver Focal headphones with perforated head cover (no visible text or symbols)

08.

LISTEN

PROFESSIONAL

Listen to your music, not your headphones!

Listen Professional are closed-back monitoring headphones, designed especially for noisy environments. They provide outstanding isolation which, combined with tonal balance, makes equalising tracks and records much easier. Its unique transducer combining a Mylar/Titanium alloy on the dome offers incomparable low frequency articulation for professional closed-back headphones.

Close-up of a black Focal headphones resting on a computer keyboard, with a blurred background showing a speaker and microphone (no readable text or symbols)

Mylar/Titanium dome

Hard-wearing black finish

Excellent insulation

Accessories: 2 cables

Carrying case

Tough design

Close-up of a man wearing headphones and a local electronic device, with a close-up of the guitar in the foreground (no visible text or symbols)

LISTEN

PROFESSIONAL

Over-ear closed-back headphones

Black hard case with a white logo on the front face (no visible text or symbols)

Impedance 320

Sensitivity 122dB SPL @ 1kHz / 1 Vrms

THD 0.5% 连 1kHz / 100dB SPL

Frequency response 5Hz - 20kHz

Weight 0.62lb (280g)

Cables and connectors - 1 × 16.4ft (5m) called cable

- 1x 4.59ft (1.4m) straight cable

- 1x 1/8" (3.5mm) 4 conductors Jack adapter

Carrying case 9% × 8% × 4%* (24 × 21 × 11cm)

Black and red Focal headphones with visible branding (no text-heavy elements)

ST6 TRIQ11 BE SHAPE

'Twinb is a very high-performance monitor that delivers everything it promises' NLS-CRADAR

'Sublime monitors that will be an asset to a small studio' SEUND ON BOOK

'If you are looking to invest in top-quality monitoring for a non-small room, the Trial should always be among your top choices.'

The Trioli Se is yet another innovative masterpiece from Focal? SOUND ON SOUND

'It gets an AI for it, finish, sound and build quality, as well as for flexibility, trustworthiness, and honesty'

AP±0.1

'Among the best sounding (and swarkest looking) nearfield speakers' HUGIC PLAYERS

'The Shape 65s might even be the best sounding and effective monitor speakers in this price range'

'These are pretty Incredible monitors' MUSICCOI

Close-up of a black POCAL audio headset with hexagonal grille and circular headband (no visible text or symbols)

Close-up of a black and red headband with 'LOCAL' branding (no additional text or symbols visible)

ALPHA EVO

If not only sounds great, but offers a substantial uplift WIS CRADER

CLEAR MG PROFESSIONAL

'Better looking and more well built than most' 4130048

'Focal is known for having some of the best looking headphones around, and the Clear Mg Professional is definitely in line with their more luxurious models' FAOCHIN

SOS EDITORS' PICK ISSN OF THE YEAR 2003

'Focal headphones just look and feel This all-analogue speaker so well-made. It's an attractive, well-made, and consistently punches wall comfortable headphone worthy of the most above its price' discerning producers and sound engineers' SCHINSHENG WONALDO

LISTEN PROFESSIONAL

'A new favorite in the all-round category'

'A truly greet product!'

'Focal's Listen Professional offer both accuracy and vibe plus great levels of comfort' MILKCTCCI

COLLECTIONS

Combining performance and design, Focal's collections are a revelation, awakening the emotions: at home with acoustic and in-wall/ceiling hi-fi loudspeakers, Home Cinema systems and open-/closedback headphones; on the go with incar kits; during travel with Bluetooth® Noise Cancelling headphones; in the studio with monitors and headphones; for outdoor spaces and at sea with yacht audio solutions.

Home Collection

Motorities Collection

Professional Collection

FOCAL Powered by naim

Enjoy an incredible sound experience

Find our products in 10,000 retail partner stores across the world, but also in our Focal Powered by Naim shops. These stores, dedicated to our brands, invite you to dive into our world, our savoir-faire and immerse yourself in the Focal & Naim sound.

www.focal.com/concept/fpbn-en/

Line drawing of a modern living room with speakers, tiered speakers, and a table featuring vases and plants (no text or symbols)

For more information, scan the QR code or find us at:

www.focal.com

Focal JMLab

Focal ^1 is a registered trademark of Focal JMLab.

For further improvement or to reflect legal or regulatory developments, Focal JMLab reserves the right to modify the technical specifications of their products without notice. If need be, the images shown are for illustrative purposes only and may vary from the product sold. Pictures L'Atelier Sylvain Madelon / Trio11 Be (p.13) Mike Simon, SIFI Studios, Bellevue WA / Lensys Professional (p.43/45) Nicolas Reynaud SCAA/11/09/2024 - v5 - Printing: DEUX-PONTS Manufacture d'Histoires - France
