Product type	Solar LED outdoor beacon
Brand	Melinera
Model	IAN 292144
Use	Private outdoor use, not intended for indoor lighting
Protection rating	IP44 (protected against water splashes)
Operating voltage	1.2 V (DC)
Battery type	Rechargeable Ni-MH, AAA size
Battery capacity	300 mAh
LED type	1 white LED (non-replaceable)
Rated power of the LED	Approx. 0.04 W per LED
Solar cell	Approx. 40 x 40 mm
Lighting duration (fully charged battery)	Approx. 8 hours
Min. operating temperature	Down to -21 °C
Installation method	Ground stake to be planted in the soil
Automatic operation	Turns on at dusk, off at dawn
Maintenance	Clean with a dry, lint-free cloth; replace the battery every 12 months
Replaceable battery	Yes, by the user (specified type)
Replaceable LED	No, replace the entire product at end of life
Warranty	3 years from date of purchase
Package contents	1 solar lamp, 1 assembly instruction

Frequently Asked Questions - IAN 292144 MELINERA

How to install the solar lamp?

Mount the solar cell housing onto the lampshade, set the switch to ON, attach the rod and ground stake, then plant the product into the ground in a sunny location.

Why does the lamp not turn on?

Check that the switch is set to ON. Ensure the solar cell is not obstructed and receives enough direct sunlight. Keep artificial light sources away that could interfere with the dusk sensor.

How to replace the battery?

Unscrew the solar cell housing, turn the switch to OFF, open the battery compartment, replace the used battery with a new one of type Ni-MH AAA 1.2 V / 300 mAh observing correct polarity, then close and reassemble everything.

Can the LED be replaced?

No, the LED is non-replaceable. If it reaches the end of its life, you must replace the entire product.

What is the full charging time?

In summer with regular sunlight, it takes about 2 to 4 days to fully charge the battery (especially if it was completely discharged).

What to do if the lamp turns off shortly after turning on?

This may be due to a defective battery or insufficient sunlight. Replace the battery or install the product in a location with more sunlight exposure.

Can I use the lamp indoors?

No, this product is designed for outdoor use only. It should not be used for indoor room lighting.

How to clean the lamp?

Use a dry, lint-free cloth. For stubborn dirt, a slightly damp cloth is suitable. Do not use harsh cleaning agents.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof.

What to do in case of malfunction due to electrostatic discharge?

Remove the battery, wait a few moments, then reinsert it. This can resolve temporary malfunctions caused by electrostatic discharge.

USER MANUAL IAN 292144 MELINERA

LED-SOLARLEUCHTE / LED SOLAR LIGHT / BALISE SOLAIRE À LED

DE AT CH

LED-SOLARLEUCHTE

Assembly, operating and safety instructions

NL BE

LED-SOLARLAMP

B

HG00163D

C
HG00163A HG00163D

HG03220A

HG00163A HG00163D HG03220A

EXPLOSIONSGEFAHR! Laden

Description of parts and features......Page 12

Scope of delivery....Page 12

Technical data......Page 12

Safety instructions......Page 12

Product-specific safety instructions ......Page 13

Safety instructions for batteries/rechargeable batteries Page 13

Functioning......Page 13

Preparing for use ......Page 14

Installing the product....Page 14

Setting up the product....Page 14

Replacing the rechargeable battery Page 14

Charging the rechargeable battery....Page 14

Maintenance and care ......Page 15

Troubleshooting Page 15

Disposal Page 15

Warranty Page 16

LED Solar Light

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Properuse

The product is intended for private outdoor use. The product is not intended for commercial use or for use in other applications.

Not suitable for ordinary lighting in household room illumination.

This product is suitable for extreme temperature up to -21 °C.

• Description of parts and features

1 Solar cell housing
2 Lamp shade
3 ON/OFF switch
4 Fastening screws
5 Battery compartment lid
6 Rechargeable battery
7 Pole
8 Ground stake

- Scope of delivery

1 LED Mosaic Solar Light / LED Solar Light and rechargeable battery (Ni-MH, AAA, 1.2 V= (Direct Current) / 300 mAh)
1 Assembly instruction

Technical data

Operating voltage: 1.2 V (Direct Current)

Rechargeable battery: 1 x Ni-MH rechargeable battery/AAA/1.2 V= (Direct Current)/300 mAh

LED: 1 x LED (not replaceable) Rated power LED: approx. 0.04 W per LED Protection type: IP44 (splash proof)

Solar cell: approx. 40 x 40 mm

Lighting time

(with full charge): approx. 8 hours

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
- Do not use the product if you detect any kind of damage.

Always switch off the product, when storing it in dark environment, in order not to discharge the rechargeable battery.
The LED is not replaceable.
If the LED fails at the end of its life, the entire product must be replaced.

Product-specific safety instructions

■ Make sure that the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish.
Cold temperatures have a negative influence on the operating life of the rechargeable battery 6. If the product is not going to be used for a long time, e.g. in winter, it should be taken up, cleaned and stored in a dry, warm room.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

Functioning

The solar cell installed in the product converts sunlight into electrical energy and stores it in the rechargeable battery 6. Switches on the product as it begins to get dark. The LED is a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle of light on the solar cell and the temperature (the rechargeable battery 6 capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery 6 does not achieve maximum capacity until after several charge and discharge cycles.

In summer completely drained rechargeable batteries take about 2 to 4 days to fully recharge in constant sunlight.

● Preparing for use

• Installing the product

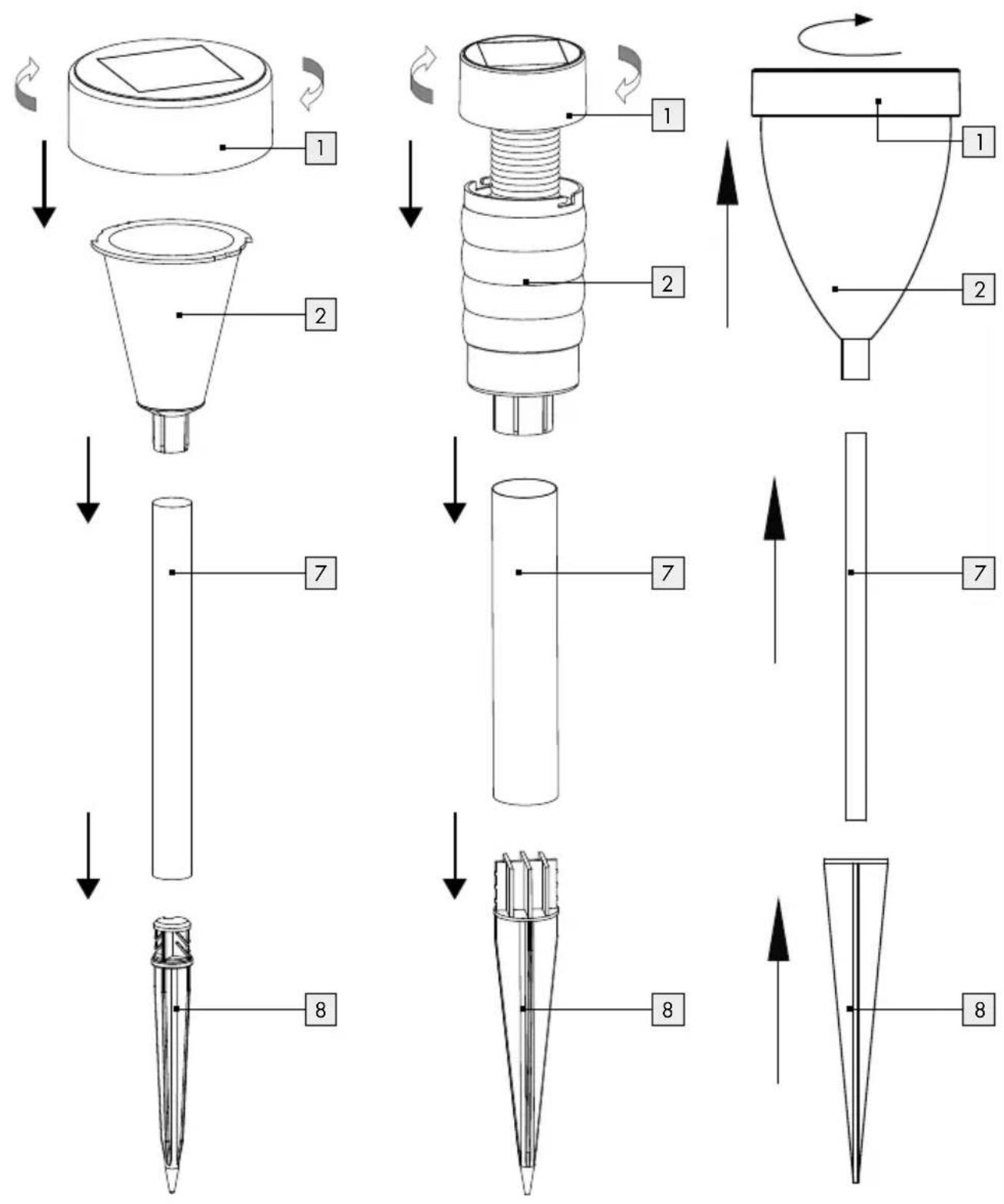

Install the product in accordance with Figures A, D:

1. Rotate the solar cell housing 1 anticlockwise out of the lamp shade 2 (see Fig. A).
2. Move the ON / OFF switch 3 into the ON position to enable the product switching on during darkness.
3. Insert the solar cell housing 1 into the lamp shade 2 and tighten by turning it clockwise.
4. Place the product on to the pole 7.
5. Insert the ground stake 8 into the pole 7 with the tip facing downwards (see Fig. D).
6. Your product is ready for use.

Setting up the product

Note: Remove the protective film from solar cell before use.

☐ Insert the assembled product far enough into the ground (lawn, flower bed) for it to be stable.
☐ Make sure you keep proper footing and balance at all times. Do not use any force when assembling or setting-up the product, e.g. hammer blows. This will damage the product. In order to achieve the best result, set the product up in a place where the solar cell will get direct sunlight for as long as possible.
☐ Make sure that the solar cell is not influenced by any other source of light such as yard or street lighting as otherwise the light will not come on in twilight.
☐ The product automatically switches on in twilight conditions and off again when normal outdoor lighting conditions return.

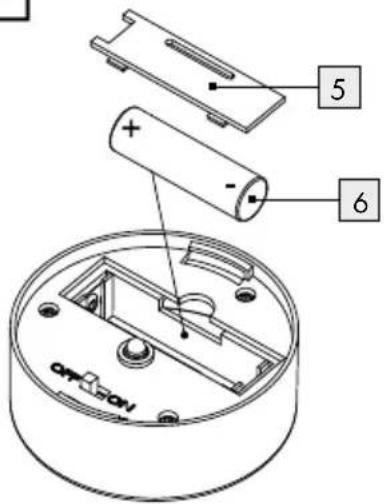

• Replacing the rechargeable battery

The rechargeable battery 6 should be replaced every 12 months to ensure optimum performance.

1. Separate the solar cell housing 1 from the lamp shade 2 by moving it anti-clockwise (see Fig. A). Switch off the product with the ON / OFF switch 3.

2. ForHG00163A: Open the battery compartment lid of the solar cell housing 1.

For HG00163D/HG03220A: Loosen the fastening screws 4 by using a small cross head screwdriver and then lever out the battery compartment lid 5 of the solar cell housing 1 with the help of a slot screwdriver (see Fig. B).

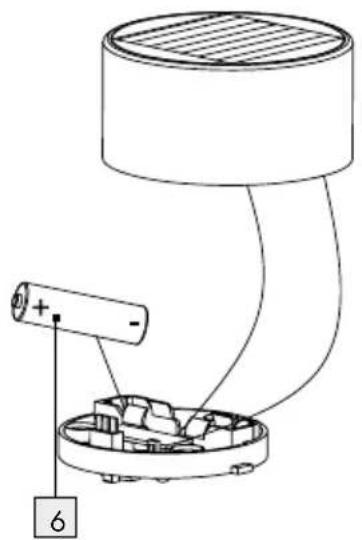

1. Exchange the old rechargeable battery 6 to a new one, ensure that you do not damage the wiring. Take care to the correct polarity, when inserting the new rechargeable battery. The polarity is indicated in the battery compartment. The new rechargeable battery has to have the same technical data like the old one.

2. For HG00163D/HG03220A: Now again fasten the battery compartment lid 5, fasten the fastening screws 4 by using a small cross head screwdriver. Slide the ON/OFF switch 3 to the position ON.

3. Connect the solar cell housing 1 again to the lamp shade 2 and then connect every part of the product to each other (see Fig. D).

- Charging the rechargeable battery

Note that the product must be switched on when the battery is charging.

The charging time of the rechargeable battery 6 when the solar cell is used depends on the intensity of the sunlight and the angle of incidence of the light on the solar cell. Place the solar cell as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels.

● Maintenance and care

The LED cannot be replaced.

The product is maintenance-free, except for any necessary change of rechargeable battery.

☐ Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt.

Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is malfunctioning, remove any sources of interference from the area of the product.

Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the batteries briefly and reinsert them.

Error Cause	Solution
The light will not switch on even though the sun shone on the product all day.	Artificial sources of light, e.g. street lighting, are interfering with the product.	Mount the product in a place where it cannot be disturbed by other sources of light.
The light does not come on or comes on only briefly.	The rechargeable battery is broken or there was not enough daylight.	Replace the rechargeable battery or mount the product in a place where it can receive more sunlight.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
