IAN 273580 - Lighting MELINERA - Free user manual and instructions

Product Type	LED Solar Lantern
Brand	Melinera
Model	IAN 273580
Intended Use	Outdoor decoration (not suitable for indoor room illumination)
Power Source	Solar cell + 1 x 1.2V NiMH rechargeable battery (AAA, 600mAh)
Illuminant	1 LED (non-replaceable)
LED Lifespan	Approx. 20,000 hours
Operating Voltage	1.2V DC
Protection Rating	IP44 (splash-proof)
Operating Temperature	Suitable for extreme temperatures below -20°C
Battery Capacity	600 mAh
Light Duration (fully charged)	Approx. 6 hours
Assembly Required	Yes (insert stabilizers into holders)
Switch	ON/OFF switch
Hanging Hook	Yes
Included Items	1 LED solar lantern, 2 stabilizers, 1 operating instructions
Cleaning	Clean with a soft dry cloth only; no liquids or detergents
Battery Type	NiMH rechargeable (AAA), not disposable
Battery Disposal	Recycle per local regulations (do not dispose with household waste)
Warranty	3 years from date of purchase
CE Certification	Yes

Frequently Asked Questions - IAN 273580 MELINERA

How does the solar lantern work?

The solar panel charges the internal NiMH battery during daylight. At dusk, the light automatically turns on using stored energy. The ON/OFF switch allows manual control.

How do I assemble the lantern?

Open the lamp cover, insert the two stabilizers into the bottom holders, then into the top holders, and close the cover. Refer to figures C, D, and E in the manual.

Can I replace the LED?

No, the LED is not replaceable. It has a lifespan of approximately 20,000 hours.

Why does the light not turn on at night?

Possible causes: the battery is not fully charged, the solar panel is covered or shaded, or artificial light sources (e.g., streetlights) are interfering with the photosensor. Place the lantern in a location with direct sunlight and away from artificial light.

Can I use disposable batteries?

No, only use the specified rechargeable NiMH battery (1.2V, AAA, 600mAh). Disposable batteries can cause damage or malfunction.

What is the IP rating?

The lantern has an IP44 rating, meaning it is splash-proof from all directions. It is suitable for outdoor use but should not be submerged in water.

Is the lantern suitable for indoor use?

No, it is intended for outdoor decoration only. It is not designed for ordinary room illumination.

How should I clean the lantern?

Clean the exterior with a soft dry cloth. Do not use liquids or detergents, as they may damage the device.

What should I do if the lantern stops working?

First, check the battery and ensure it is properly inserted. If the problem persists, remove the battery for a short time and reinsert it. Electrostatic discharges can cause temporary malfunctions. If still not working, contact customer service.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your sales receipt as proof of purchase. The warranty covers material and manufacturing defects but not normal wear or damage from improper use.

USER MANUAL IAN 273580 MELINERA

LED SOLAR LANTERN

GB

LED SOLAR LANTERN

Operation and Safety Notes

CZ

LED SOLÁRNÍ LAMPION

GB Operation and Safety Notes Page 5

HG00523A/D HG00523B HG00523C
B

C

D

LED solar lantern

- Intended use

This product is suitable for outdoor use for decoration. This product is intended for private use only and not for commercial purposes.

■ Not suitable for ordinary lighting in household room illumination.

This product is suitable for extreme temperatures below -20°C.

• Description of parts

1 Hanging hook
2 Lamp cover
4 LED
5 ON-/OFF-switch
6 Holder (bottom)
7 Stabilizer
8 Holder (top)
9 Solar cell

3 Battery compartment cover

- Technical data

Operating voltage: 1.2 V=

Battery: 1 x 1.2 V NiMH battery, 600 mAh, AAA

Illuminant: 1 x LED (cannot be replaced)

Life time LED: approx. 20,000 hours

Degree of protection: IP44 (splash-proof)

- Included in delivery

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not assemble the product if the package contents are incomplete.

1 LED solar lantern
2 Stabilizers
1 Operating instructions

Safety Information

PLEASE READ THE INSTRUCTIONS FOR USE PRI- OR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not use the device if it is damaged.
■ Under no circumstances should you take the device apart. Improper repairs may place the user in considerable danger. Repairs should only be carried out by specialist personnel.
■ LED cannot be replaced.
- Do not put this device in water or other liquids!

Safety instructions for rechargeable batteries

WARNING! DANGER TO LIFE!

Rechargeable batteries are not intended to be in the hands of children. If accidentally swallowed seek immediate medical attention!

CAUTION! EXPLOSION HAZARD!

■ Never throw batteries into fire or water!
Do not exert mechanical strain on batteries!
Do not use disposable batteries.
■ Never short-circuit or open rechargeable batteries.

Risk of equipment damage

■ Only use the battery type specified!
When inserting the battery ensure the correct polarity! This is shown inside the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!

- Assembly

☐ Open the lamp cover 2 (see fig. B).

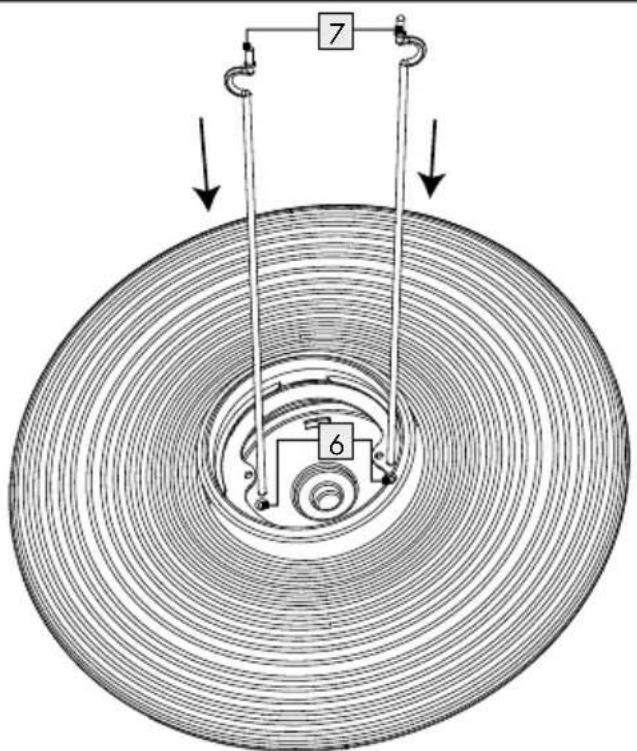

☐ First insert the stabilizers 7 into the holders (bottom) 6 located on the inner side of the housing (see fig. C). Pull the lamp apart.
☐ Insert the other end of the stabilizers 7 into the holders (top) 8 located on the top of the lamp (see fig. D).
☐ Close the lamp cover 2 (see fig. E).

- Inserting / replacing the battery

□ See Fig. B.

Use

☐ Switch the light on by pressing the ON / OFF switch 5 (see Fig. B).
☐ The battery charging period using the solar cell depends on the intensity of the sunlight and the angle incidence of the light on the solar cell 9. With fully charged batteries the solar lamp stays on for about 6 hours.
Place the solar cell 9 as perpendicular as possible to the angle of light incidence. In this way you will receive the highest light levels.

Note: For the best results, put the light in a place where the solar cell 9 is exposed to direct sunlight for as long as possible. Do not hang the light in trees or under canopies etc. as this reduces the incidence of incoming sunlight. Position the lamp in such a way that the solar cell 9 is not covered or in the shade.

Note: Make sure the solar cell is not impacted by other light sources, e.g. yard- or street lighting, or the light will not switch on at twilight.

- Cleaning and maintenance

■ Under no circumstances should you use liquids or detergents, as these will damage the device.
☐ The device should only be cleaned on the outside with a soft dry cloth.

- Troubleshooting

● = Problem

● = Cause

O = Solution

● The light does not come on in the dark, even after being exposed to sunlight all day.

• Artificial sources of light such as street lights, etc. are simulating daylight to the photosensor.
  Place the light in a location where it is shielded from artificial sources of light.

Electrostatic discharges can lead to malfunctions. In cases of the appliance failing to work, remove the batteries for a short while and then replace them.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Defective or exhausted rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return rechargeable batteries and / or the appliance using the recycling facilities provided.

Improper disposal of rechargeable batteries can damage the environment!

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. For this reason, dispose of used rechargeable batteries at a local collection point.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44
