Product type	Battery charger for power tools
Brand	Hitachi (now HiKOKI)
Model	UC 7SD
Input voltage	230 V AC, 50-60 Hz
Output voltage	7.2 V DC
Charging current	1.0 A
Compatible battery type	Ni-Cd or Ni-MH 7.2 V batteries, Hitachi BCL series
Dimensions	Approximately 15 x 8 x 6 cm
Weight	Approximately 0.4 kg
Charge indicator	Red LED steady when charging, green when charged
Protection	Protection against overcharge, short circuit, and overheating
Typical charging time	Approximately 1 hour for a 1.2 Ah battery
Operating temperature	0 °C to 40 °C
Intended use	Charging Hitachi/HiKOKI 7.2 V tool batteries
Maintenance	Clean contacts with a dry cloth; do not use solvents
Spare parts	Available from authorized Hitachi/HiKOKI service centers
Repairability	Repairable by a professional; no user-serviceable parts
Safety standards	Complies with CE standards

Frequently Asked Questions - UC 7SD HITACHI

What types of batteries can I charge with the Hitachi UC 7SD charger?

The UC 7SD charger is designed for Ni-Cd and Ni-MH 7.2 V batteries from the Hitachi BCL series. Do not use other types of batteries.

How do I know if the battery is fully charged?

The charger's LED lights up red during charging and turns steady green when the battery is fully charged. If the LED flashes, it indicates an anomaly (battery too hot, too cold, or defective).

Can I leave the battery connected to the charger after charging is complete?

It is best to remove the battery once charging is complete to prevent premature wear. The charger does not overcharge, but prolonged exposure to the float voltage may reduce battery life.

What should I do if the battery does not charge?

Check that the battery is properly inserted and the contacts are clean. If the LED stays off or flashes, try another battery. If the problem persists, the charger may be defective; contact an authorized service center.

Does the charger get hot during use?

Yes, it is normal for the charger to warm up slightly during charging. If it becomes hot or emits a strange odor, unplug it immediately and have it checked.

Can I use the charger with a battery of another brand?

No, unless otherwise specified. Using non-compliant batteries may damage the charger and pose a fire risk. Use only batteries recommended by Hitachi/HiKOKI.

How long does it take to charge a battery?

Charging time depends on battery capacity. For example, a 1.2 Ah battery charges in about 1 hour. Check your battery's specifications for an accurate estimate.

Can I charge the battery in cold weather?

The charger operates between 0 °C and 40 °C. Below 0 °C, charging may not start. If the battery is too cold, warm it gently to room temperature before charging.

How do I clean the charger?

Unplug the charger before cleaning. Use a soft, dry cloth to wipe the casing and contacts. Do not use chemicals or abrasive liquids.

Where can I find spare parts or get my charger repaired?

Contact an authorized Hitachi/HiKOKI service center. The list of centers can be found on the official website. Do not attempt to repair the charger yourself.

USER MANUAL UC 7SD HITACHI

Model Battery Charger

Line drawing of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS

WARNING

Improper and unsafe use of this battery charger can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual before operating the battery charger. Please keep this manual available for others before they use the battery charger.

MODE D'EMPLOI ET INSTRUCTIONS DE SECURITE

⚠ AVERTISSEMENT

CHARGING METHOD....8

BEFORE USE 9

MAINTENANCE AND INSPECTION 10

STORAGE 10

SERVICE AND REPAIRS.... 10

PARTS LIST 27

TABLE DES MATIERES

Français

Page

INFORMATIONS IMPORTANTES ...... 11

SIGNIFICATION DES MOTS D'AVERTISSEMENT .... 11

SECURITE

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DU CHARGEUR DE BATTERIE.... 12

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE...... 13

MISE AU REBUT D'UNE BATTERIE USÉE .... 14

Page

UTILISATION ET ENTRETIEN

MODÈLE.... 15

NOM DES PARTIES.... 15

SPECIFICATIONS 15

UTILISATIONS.... 16

MÉTHODE DE RECHARGE 16

Read and understand all of the operating instructions, safety precautions and warnings in the Instruction Manual before operating or maintaining this battery charger.

Most accidents that result from battery charger operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “ SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the battery charger and in this Instruction Manual.

Never use this battery charger in a manner that has not been specifically recommended by HITACHI, unless you first confirm that the planned use will be safe for you and others.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in serious personal injury.

CAUTION indicates a hazardous situations which, if ignored, could result in moderate personal injury, or could cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC7SD, UC9SD and UC12SD.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge HITACHI rechargeable battery types FEB7S (For UC7SD), EB714S (For UC7SD), FEB9S (For UC9SD), EB914 (For UC9SD), FEB12S (For UC12SD) and EB1214L (For UC12SD). Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.
5. This battery charger might be attached to HITACHI battery operated tools as a standard accessory. In this case, please confirm Instruction Manual of the HITACHI battery operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC7SD, UC9SD and UC12SD battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPES FEB7S (FOR UC7SD), EB714S (FOR UC7SD), FEB9S (FOR UC9SD), EB914 (FOR UC9SD), FEB12S (FOR UC12SD) and EB1214L (FOR UC12SD). OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

⚠ WARNING: Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 50^ F ( 10^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.

10. NEVER use an engine generator or DC power to charge.

11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).

12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

DISPOSAL OF THE EXHAUSTED BATTERY

WARNING:

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS AND

MAKE THEM AVAILABLE TO OTHER USERS

OF BATTERY CHARGER!

NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the battery charger.

MODEL

UC7SD / UC9SD / US12SD

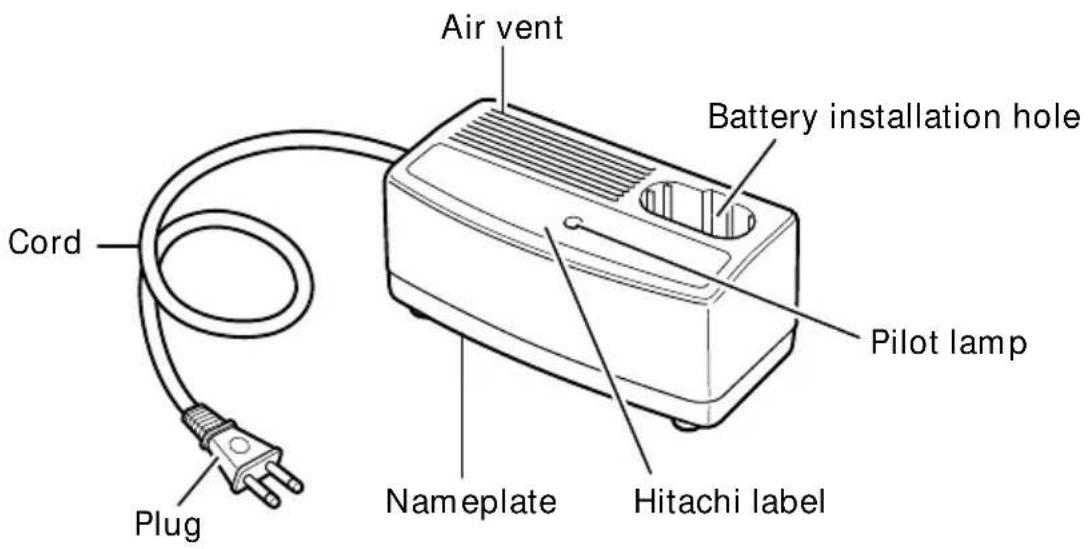

NAME OF PARTS

Fig. 1

SPECIFICATIONS

Model UC7SD UC9SD	UC12SD
Input power source Single phase: AC120V 60Hz
Charging time	60 min. (FEB7S, EB714S) 60 min. (FEB9S, EB914) 60 min. (FEB12S, EB1214L)
Charging voltage 7.2	V 9.6 V 12 V
Charging current 1.6	A 1.55 A 1.55 A
Weight 2.4 lbs (1.1 kg)	2.6 lbs (1.2 kg)	3.3 lbs (1.5 kg)

APPLICATIONS

For charging the HITACHI batteries types FEB7S (For UC7SD), EB714S (For UC7SD), FEB9S (For UC9SD), EB914 (For UC9SD), FEB12S (For UC12SD) and EB1214L (For UC12SD).

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○The power source voltage is stated on the nameplate.

○The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

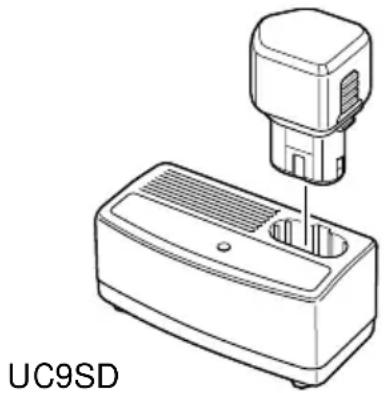

Line drawing of a device with a cylindrical component inserted into a base, labeled 'UC9SD' below (no other text or symbols)

Fig. 2

1. Insert the battery into the battery charger.
   Insert the battery into the battery charger as shown in Fig. 2. Make sure it contacts the bottom of the battery charger.
2. Insert the plug of battery charger into the receptacle.

WARNING: Do not use the electrical cord if damaged. Have it repaired immediately.

3. Charging

When the plug of battery charger has been inserted into the receptacle, charging will commence and the pilot lamp will light on.

NOTE: If the pilot lamp does not light, pull out the plug from the receptacle and check if the battery is properly mounted.

○In approx. one hour, when the battery is fully charged, the pilot lamp will go out.

NOTE: The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

○Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION:

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light.

The battery will not be recharged. In such a case, let the battery cool before charging.

- If the battery charger does not work while the battery is mounted correctly, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MAINTENANCE AND INSPECTION

CAUTION: Pull out battery before doing any inspection or maintenance.

1. Check the Mounting Screws

Loose mounting screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION: Using this battery charger with loosen, screws is extremely dangerous.

2. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

3. Check the rotational direction

STORAGE

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

SERVICE AND REPAIRS

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES

Line drawing of a device with a top component and a base housing, labeled 'UC9SD' below (no other text or symbols)

Fig. 2

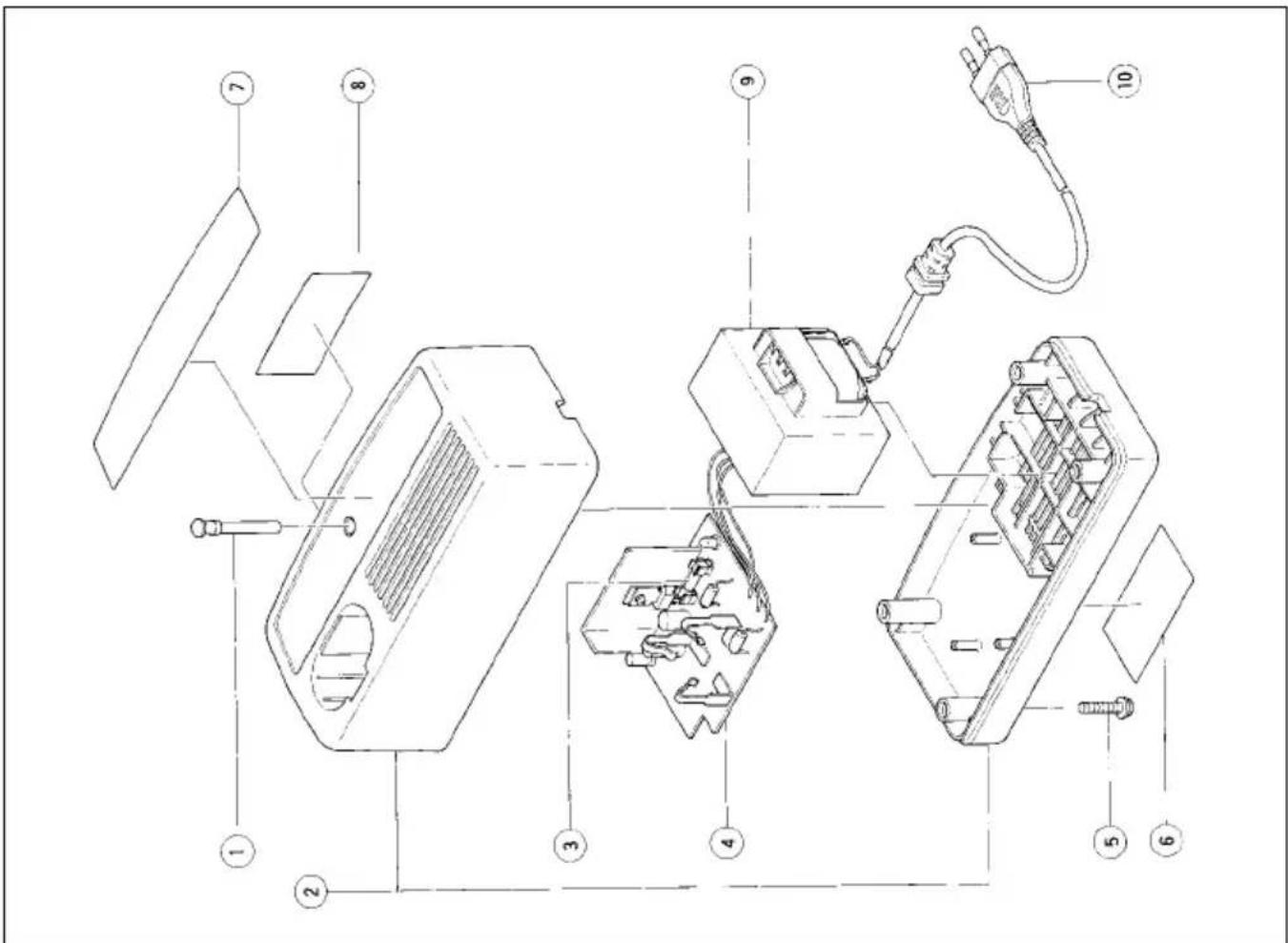

Line drawing of a device with a top component and base housing, labeled 'UC9SD' (no other text or symbols)

Fig. 2

Parts are subject to change without any obligation on the part of the HITACHI due to improvements. The drawing and the list are parts structural drawing and Parts list of model UC12SD. For other models refer to the drawing and the list.

NICKEL-CADMIUM BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER recarding COLLECTION.

LES BATTERIES AU NICKEL-CADMIUM DOIVENT ÊTRE RECYCLÉES OU MISE AU REBUT DE FAÇON ADÉQUATE.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRES-VENTE D'OUTILS ELECTRIQUE AGREE PAR HITACHI.

LA BATERÍA DE NÍQUEL-CADMIO DEBERÁ RECICLARSE O DEPOSITARSE EN EL LUGAR ADECUADO.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

6395 Kestrel Road Mississauga ON L5T 1Z5

504 Code No. C99140661 Printed in China
