Product Type	Battery Charger
Brand	Hitachi
Model	UC 36YRL
Weight	0.9 kg
Charging Voltage	25.2 – 36 V
Compatible Batteries	BSL2530 (25.2 V, 3.0 Ah), BSL3626 (36 V, 2.6 Ah)
Charging Time (BSL2530)	Approx. 60 minutes
Charging Time (BSL3626)	Approx. 80 minutes
Charging Temperature Range	0°C – 40°C
Optimal Charging Temperature	20°C – 25°C
Cooling Fan	Yes, for cooling overheated battery
Charge Status Indication	Red lamp: blinking (standby/complete), continuous (charging), flickering (error)
Overheat Indication	Green lamp: lights continuously when battery is too hot
Protection Features	Overheat protection, short-circuit protection, automatic shut-off
Power Cord	Detachable, length not specified
Input Voltage	AC 100-240 V (typical for Hitachi chargers)
Input Frequency	50/60 Hz
Maintenance	Clean with soft dry cloth; store in dry place; do not use solvents
Repairability	Repair only by authorized Hitachi service center; use genuine parts
Safety Standards	Complies with local regulations; replace damaged cord by qualified person

Frequently Asked Questions - UC 36YRL HITACHI

How long does it take to charge a battery with the UC 36YRL?

The charging time depends on the battery type: approximately 60 minutes for the BSL2530 (25.2 V, 3.0 Ah) and approximately 80 minutes for the BSL3626 (36 V, 2.6 Ah) at 20°C ambient temperature.

Which batteries are compatible with the UC 36YRL charger?

This charger is designed for Hitachi Li-ion batteries models BSL2530 and BSL3626. Do not use other battery types.

What does the red blinking light on the charger mean?

A blinking red charge status lamp (at 1-second intervals) indicates that the charger is in standby mode or charging is complete. A continuous red light means charging is in progress. A rapid flicker (0.1-second intervals) indicates a malfunction.

What does the green light on the charger mean?

A continuously lit green overheat lamp indicates that the battery is too hot and charging has paused. Once the battery cools down, charging will resume automatically.

Can I charge the battery immediately after use?

It is recommended to let the battery cool down before charging, as high temperature can degrade battery life. The charger will automatically pause charging if the battery is overheated.

What should I do if the charger shows a flickering red light?

A flickering red lamp (0.1-second intervals) indicates a malfunction. First, remove and inspect the battery connector for foreign objects. If none, the battery or charger may be defective. Contact an authorized Hitachi service center.

How do I clean and maintain the UC 36YRL charger?

Clean the charger with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline, or paint thinner. Store in a dry, high, locked place out of reach of children.

Is the UC 36YRL charger safe to use outdoors?

No, the charger should only be used indoors in a dry, well-ventilated area. Avoid exposure to rain, direct sunlight, and flammable materials.

Can I use a non-Hitachi battery with this charger?

No, only use genuine Hitachi batteries specified for this charger (BSL2530 or BSL3626). Using other batteries can cause damage or safety hazards.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the charger until repaired.

USER MANUAL UC 36YRL HITACHI

Line drawing of a device casing with internal components, enclosed in a circular border (no text or symbols)

使用前务请详加阅读
Read through carefully and understand these instructions before use.

1

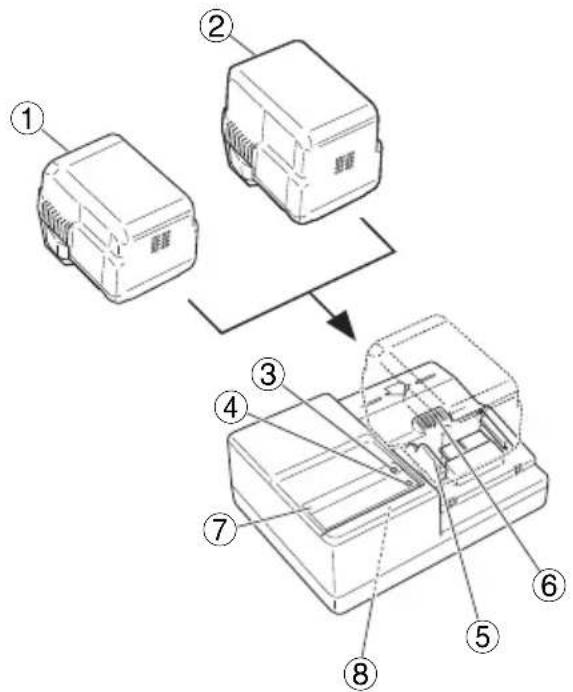

1	充电式电池(BSL2530)	Rechargeable battery (BSL2530)
2	充电式电池(BSL3626)	Rechargeable battery (BSL3626)
3	充电状态灯(红色)	Charge status lamp(red)
4	过热指示灯(绿色)	Overheat lamp (green)
5	充电式电池的连接导轨	Rail for connecting the rechargeable battery
6	冷却扇	Cooling fan
7	警示板	Caution plate
8	标牌	Name plate
9	线	Line

一般操作注意事项

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit.
   Never use power tools and charger near flammable or explosive materials.
   Do not use tool and charger in presence of flammable liquids or gases.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place — out of reach or children. Store tools and charger in a place in which the temperature is less than 40^ C.
5. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
6. When the charger is not in use or when being maintained and inspected, disconnect the power cord of the charger from the receptacle.
7. To avoid danger, always use only the specified charger.
8. Use only genuine HITACHI replacement parts.
9. Do not use power tools and charger for applications other than those specified in the Handling Instructions.
10. To avoid personal injury, use only the accessories or attachment recommended in these handling instructions or in the HITACHI catalog.
11. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
    Let only the authorized service center do the repairing. The Manufacture will not be responsible for any damages or injuries caused by repair by the unauthorized persons or by mishandling of the tool.
12. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.
13. Always use the charger at the voltage specified on the nameplate.
14. Always charge the battery before use.
15. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.
16. Do not use a transformer containing a booster.
17. Do not charge the battery from an engine electric generator or DC power supply.
18. Always charge indoors. Because the charger and battery heat slightly during charging, charge the battery in a place not exposed to direct sunlight; where the humidity is low and the ventilation is good.
19. Use the exploded assembly drawing on this handling instructions only for authorized servicing.

PRECAUTIONS FOR CHARGER

1. Always charge the battery at an ambient temperature of 0–40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40°C.
   The most suitable temperature for charging is that of 20–25°C.
2. Do not use the charger continuously.
   When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the connector for the rechargeable battery.
4. Never disassemble the rechargeable battery or charger.
5. Never short-circuit the rechargeable battery.
   Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire.
   If the battery is burnt, it may explode.
7. Using an exhausted battery will damage the charger.
8. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
9. Do not insert objects into the air ventilation slots of the charger.
   Inserting metal objects or flammable into the charger air ventilation slots will result in an electrical shock hazard or damage to the charger.

SPECIFICATION

CHARGER

Charging time	BSL2530: Approx. 60 minutesBSL3626: Approx. 80 minutes
Charging voltage	25.2 – 36 V
Weight	0.9 kg

APPLICATION

For charging the HITACHI BATTERY.

○ BSL2530, BSL3626

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge status lamp will blink in red. (At 1-second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger until the line is visible, as shown in Fig. 1.

3. Charging

When inserting a battery in the charger, the charge status lamp will light up continuously in red. When the battery becomes fully recharged, the charge status lamp will blink in red. (At 1-second intervals.) (See Table 1)

(1) Lamp indication

The indications of the lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the lamp
Charge status lamp(red)	Before charging	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights	Lights continuously
	Charging complete	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
Overheat lamp(green)	Overheat standby	Lights	Lights continuously	Battery overheated. Unable to charge.(Charging will commence when battery cools)

NOTE: When standby for cooling battery, UC36YRL cools the overheated battery by cooling fan.

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 2, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL2530, BSL3626	0°C — 50°C

(3) Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 20°C

	Battery capacity (Ah)
Battery Voltage	Li-ion BATTERY
	2.6 Ah		3.0 Ah
25.2 V	—	—	BSL2530(14 cells)	60 min.
36 V	BSL3626(20 cells)	80 min.	—	—

NOTE: The recharging time may vary according to the ambient temperature.

1. Disconnect the charger's power cord from the receptacle.

2. Hold the charger firmly and pull out the battery.

NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the overheat lamp of the charger lights up green. In such a case, first let the battery cool, then start charging.
When the charge status lamp flickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.
○ Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC36YRL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

MAINTENANCE AND INSPECTION

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

1. Cleaning of the charger

When the charger is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

1. Store idle charger

When not in use, the charger should be stored in dry, high or locked-up place — out of reach of children.

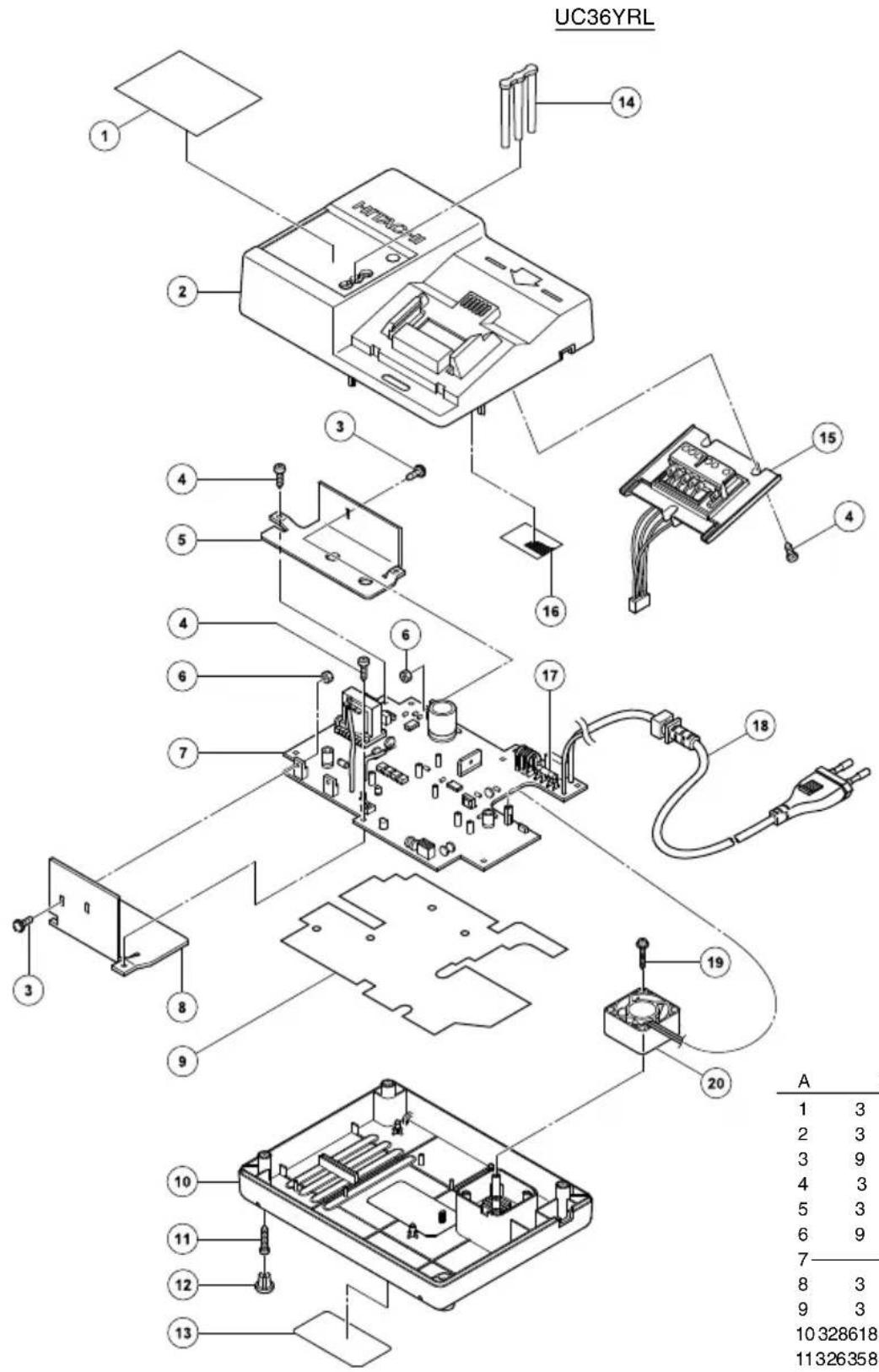

1. Service parts list

A : Item No.

B : Code No.

C: No. Used

D : Remarks

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

A	B		C	D
1	3	2	18	6	3	7
2	3	2	8	6	3	0	1
3	9	9	3	9	6	3	3	M
4	3	2	7	1	7	4	7
5	3	2	8	6	3	2	1
6	9	4	9	5	5	3	3	M
7——1
8	3	2	8	6	3	3	1
9	3	2	18	6	2	2
10 328618 1
11 3263584D3×18
12	327173 4
13——1
14 322201 1
15 327176	1
16	328531 1
17	328679	1
18——1
19 327175 2 D3×25
20	326809	1
