Product type	Battery charger
Brand	Hitachi
Model	UC 18YGL2
Input voltage	AC 120 V, 60 Hz
Charging voltage	DC 7.2 – 18 V
Charging current	DC 2.0 A
Weight	0.4 kg (0.9 lb)
Admissible charging temperature	0 °C to 40 °C (depending on battery)
Compatible batteries	EB7, EB9, EB12, EB14, EB18, BCL14, BCL18, EBM1830
Typical charging time	Approximately 35 to 90 min (depending on battery)
Charge indicator	Red light: flashing (standby), steady (charging), slow flashing (done), fast flashing (overheat)
Built-in protections	Battery overheat, overcharge, short circuit
Maintenance and cleaning	Clean with a soft cloth; do not use solvents
Repairability	Repairs exclusively by an authorized Hitachi center
Recommended power supply	Standard wall outlet (120 V)
Storage conditions	Dry place, temperature below 40 °C, out of reach of children
Battery lifespan	Recharge before complete discharge to extend lifespan
Outdoor use	Do not expose to rain or snow

Frequently Asked Questions - UC 18YGL2 HITACHI

What types of batteries can I charge with the Hitachi UC 18YGL2 charger?

This charger is designed exclusively for Hitachi rechargeable batteries of the EB7, EB9, EB12, EB14, EB18, BCL14, BCL18, and EBM1830 series. Using other types of batteries may cause explosion or injury.

How long does it take to charge a battery?

Charging time varies according to battery capacity and technology. It is approximately 35 minutes for 1.2-1.4 Ah batteries, 60 minutes for 2.0 Ah, 70 minutes for 2.4 Ah, 80 minutes for 2.6 Ah, and 90 minutes for 3.0-3.3 Ah. These times are given for an ambient temperature of 20 °C.

What do the red light flashes mean?

The red light flashes slowly (1 second on, 1 second off) before charging and after charging is complete. During charging, it stays steady. If it flashes quickly (1 second on, 0.5 second off), the battery is overheated and charging is suspended until it cools down.

Can I use an extension cord with this charger?

Yes, but only if necessary and with a cord in good condition, of gauge suitable for the rated current (2.0 A). Refer to the minimum gauge table in the manual to select the correct section.

What to do if the battery does not charge?

First check that the battery is inserted fully. If the light does not come on, unplug the charger and check the outlet. If the battery is hot, let it cool down before trying again. If the problem persists, contact an authorized Hitachi service center.

Can I charge the battery immediately after use?

It is not recommended to charge a still hot battery. Wait a few minutes for it to cool down. Charging a hot battery can reduce its lifespan and the charger may suspend charging until it cools.

Where should I use the charger?

Use the charger in a dry, well-ventilated place, away from rain, snow, and direct sunlight. The ambient temperature must be between 0 °C and 40 °C.

How to maintain the charger?

Clean the housing with a soft cloth, possibly dampened with soapy water. Do not use solvents, gasoline, or thinner. Always unplug the charger before cleaning.

How to dispose of a used battery?

Do not throw the battery into household trash. It is recyclable. Dispose of it at a suitable collection point in accordance with local regulations. Do not incinerate it, as it may explode.

What to do if the power cord is damaged?

Do not use the charger if the cord or plug is damaged. Have it replaced immediately by a qualified repairer. Do not attempt to repair it yourself.

USER MANUAL UC 18YGL2 HITACHI

Model Battery Charger

Line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this battery charger can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the battery charger. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS ...... 3

MEANINGS OF SIGNAL WORDS ...... 3

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER .... 4

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER .... 5

DISPOSAL OF THE EXHAUSTED BATTERY .... 6

Page

CHARGING METHOD......8

BEFORE USE 12

MAINTENANCE AND INSPECTION 12

STORAGE 13

SERVICE AND REPAIRS 13

PARTS LIST 36

TABLE DES MATIERES

Français

Page

CONSIGNES DE SÉCURITÉ IMPORTANTES ...... 14

SIGNIFICATION DES MOTS D'AVERTISSEMENT .... 14

SECURITE

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE ..... 15

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE .... 16

MISE AU REBUT D'UNE BATTERIE USÉE ..... 17

Page

UTILISATION ET ENTRETIEN

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this battery charger.

Most accidents that result from battery charger operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the battery charger and in this Instruction Manual.

NEVER use this battery charger in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for battery charger Model UC18YGL2.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. ⚠️ CAUTION: To reduce risk of injury, charge only HITACHI rechargeable battery types EB7, EB9, EB12, EB14, EB18, BCL14, BCL18 series and EBM1830. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENTION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.
5. This battery charger might be attached to HITACHI battery operated tools as a standard accessory. In this case, please confirm Instruction Manual of the HITACHI battery operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YGL2 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

CAUTION: USE ONLY HITACHI BATTERY TYPES EB7 SERIES, EB9 SERIES, EB12 SERIES, EB14 SERIES, EB18 SERIES, BCL14 SERIES, BCL18 SERIES AND EBM1830. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.

11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).

12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

DISPOSAL OF THE EXHAUSTED BATTERY

WARNING:

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS AND MAKE THEM AVAILABLE TO OTHER USERS AND OWNERS OF THIS TOOL!

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the battery charger.

NEVER operate, or attempt any maintenance on the battery charger unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own battery charger.

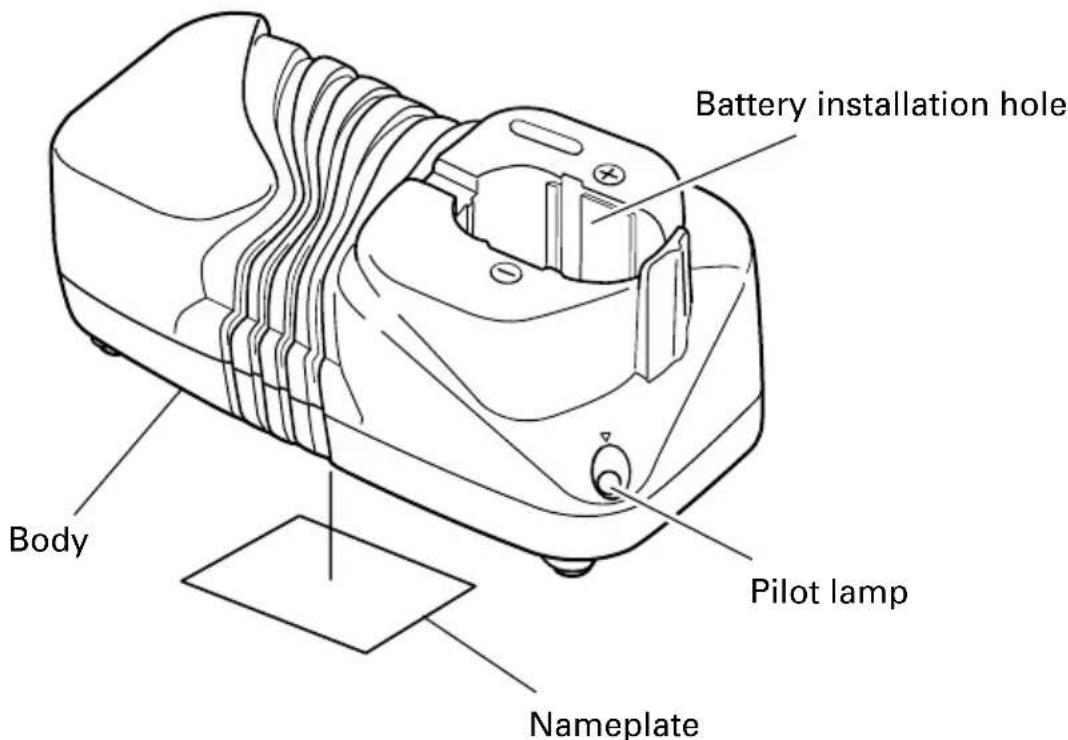

NAME OF PARTS

Fig. 1

SPECIFICATIONS

Model UC18YGL2
Input power source Single phase: AC 120 V, 60 Hz
Charging time Approx. 35 minutes...... EB712S, EB7S, EB714S, FEB7S,EB912S, EB9S, EB914S, EB914,FEB9S, EB1212S, EB12S, EB1214S,EB1214L, FEB12S, EB1412S,EB1414S, EB1414, EB1812S,EB1814SLApprox. 40 minutes ...... BCL1415, BCL1815Approx. 60 minutes ...... EB7B, EB9B, EB12B, EB1220BL,EB14B, EB18B EB1820, EB1820LApprox. 70 minutes ...... EB924, EB1224, EB1424, EB1824LApprox. 80 minutes ...... EB926H, EB1226H, EB1426H,EB1826HLApprox. 90 minutes ...... EB930H, EB1230H, EB1230HL,EB1230X, EB1430H, EB1430X,BCL1430, EB1830H, EB1830HL,EB1830X, EBM1830,EB933X, EB1233X, EB1433X, EB1833X
Charger Charging voltage ...... DC 7.2–18 VCharging current ...... DC 2.0 A
Weight 0.9 lbs (0.4 kg)

APPLICATIONS

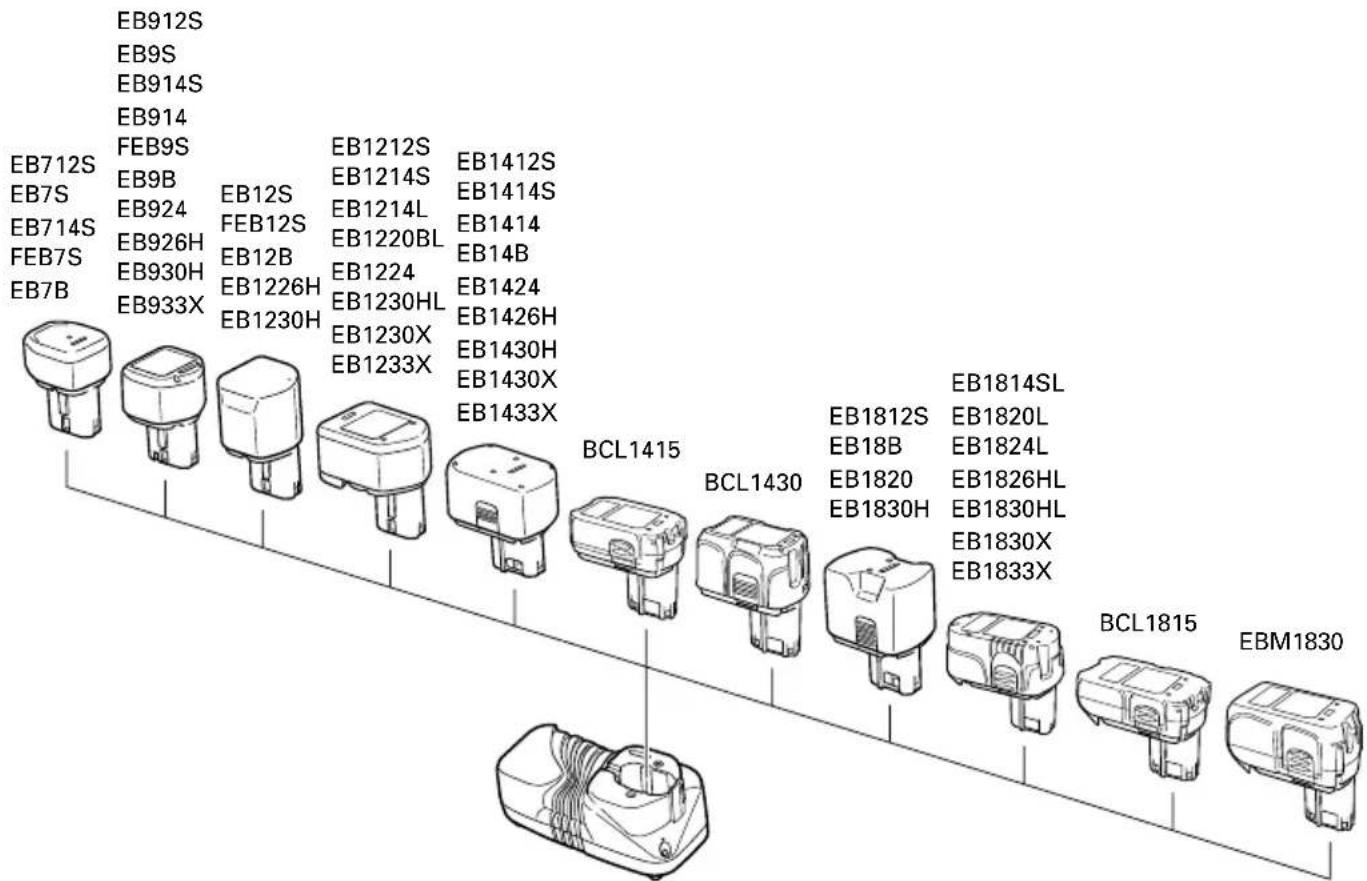

For charging the HITACHI batteries types EB7, EB9, EB12, EB14, EB18, BCL14, BCL18 series and EBM1830.

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○The power source voltage is stated on the nameplate.
○The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the plug of battery charger into the receptacle.

When the plug of battery charger has been inserted into the receptacle, pilot lamp will blink in red. (At 1-second intervals)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

⚠ WARNING: Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 2. Make sure it contacts the bottom of the battery charger.

Fig. 2

3. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2)

NOTE: If the pilot lamp does not light or blink in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2)

Table 2

Indications of the pilot lamp
Pilot lamp(red)	Beforecharging	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Whilecharging	Lights	Lights continuously
	Chargingcomplete	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Overheatstandby	Blinks	Lights for 1 seconds. Does not light for0.5 seconds. (off for 0.5 seconds)	Battery overheated.Unable to charge.(Charging will commencewhen battery cools)

○Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries	Temperatures at which the battery can be recharged
EB712S, EB7S, EB714S, FEB7S, EB7B, EB912S, EB9S, EB914S, EB914, FEB9S, EB9B, EB924, EB1212S, EB12S, EB1214S, EB1214L, FEB12S, EB12B, EB1220BL, EB1224, EB1412S, EB1414S, EB1414, EB14B, EB1424, EB1812S, EB1814SL, EB18B, EB1820, EB1820L, EB1824L	23°F—131°F (-5°C — 55°C)
EB926H, EB930H, EB933X, EB1226H, EB1230H, EB1230HL, EB1230X, EB1233X, EB1426H, EB1430H, EB1430X, EB1433X, EB1826HL, EB1830H, EB1830HL, EB1830X, EB1833X	23°F—122°F (-5°C — 50°C)
BCL1415, BCL1430, BCL1815, EBM1830 32°F—122°F (0°C — 50°C)

○Regarding recharging time

Table 4 shows the recharging time required according to the type of battery.

Table 4 Recharging time (approx. min.) at 20°C

Battery capacity (Ah)

Battery Voltage

Ni-Cd BATTERY Ni-MH BATTERY

Li-ionBATTERY

1.2-1.4 Ah 2.0 Ah 2.4 Ah 2.6 Ah 3.0 Ah 3.3 Ah 1.5 Ah 3.0 Ah

7.2V

EB712SEB7S 35EB714SFEB7S

min.

EB7B

60min.

—

—

—

—

—

—

—

—

—

—

—

—

9.6V

EB912SEB914SEB9SEB914FEB9S

35min.

EB9B

60min.

EB924

70min.

EB926H

80min.

EB930H

90min.

EB933X

90min.

—

—

—

—

12V

EB12SEB1212SEB1214SEB1214LFEB12S

35min.

EB12BEB1220BL

60min.

EB1224

70min.

EB1226H

80min.

EB1230HEB1230HLEB1230X

90min.

EB1233X

90min.

—

—

—

—

14.4V

EB1412SEB1414SEB1414

35min.

EB14B

60min.

EB1424

70min.

EB1426H

80min.

EB1430HEB1430X

90min.

EB1433X

90min.

BCL1415

40min.

BCL1430

90min.

18V

EB1812SEB1814SL

35min.

EB18BEB1820LEB1820

60min.

EB1824L

70min.

EB1826HL

80min.

EB1830HEB1830HLEB1830X

90min.

EB1833X

90min.

BCL1815

40min.

EBM1830

90min.

NOTE: The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

○Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION:

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds).

The battery will not be recharged. In such a case, let the battery cool before charging.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MAINTENANCE AND INSPECTION

⚠️ CAUTION: Pull out battery before doing any inspection or maintenance.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

⚠️ CAUTION: Using this battery charger with loosened screws is extremely dangerous.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

3. Service parts list

A: Item No.
B: Code No.
C: No. Used
D: Remarks

CAUTION:

●Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

STORAGE

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

SERVICE AND REPAIRS

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Table 4 Recharging time (approx. min.) at 20^ C

Capacidad de la batería (Ah)

Tensión de la batería

BATERÍA de Ni-Cd (níquel-cadmio)

BATERÍA de Ni-MH (níquel-hidruro metálico)

BATERÍA de ion de lítio

1.2–1.4 Ah 2.0 Ah 2.4 Ah 2.6 Ah 3.0 Ah 3.3 Ah 1.5 Ah 3.0 Ah

7.2V

EB712SEB7S 35EB714S FEB7S

min.

EB7B

60 min.

—

—

—

—

—

—

—

—

—

—

—

—

9.6V

EB912SEB914SEB9SEB914FEB9S

35 min.

EB9B

60 min.

EB924

70 min.

EB926H

80 min.

EB930H

90 min.

EB933X

90 min.

—

—

—

—

12V

EB12SEB1212SEB1214SEB1214L FEB12S

35 min.

EB12BEB1220BL

60 min.

EB1224

70 min.

EB1226H

80 min.

EB1230HEB1230HLEB1230X

90 min.

EB1233X

90 min.

—

—

—

—

14.4V

EB1412SEB1414SEB1414

35 min.

EB14B

60 min.

EB1424

70 min.

EB1426H

80 min.

EB1430HEB1430X

90 min.

EB1433X

90 min.

BCL1415

40 min.

BCL1430

90 min.

18V

EB1812SEB1814SL

35 min.

EB18BEB1820LEB1820

60 min.

EB1824L

70 min.

EB1826HL

80 min.

EB1830HEB1830HLEB1830X

90 min.

EB1833X

90 min.

BCL1815

40 min.

EBM1830

90 min.

A	B	C	D
1 329-634	1
2	—	—	1
3	—	—	1	120V “4”
4 326-285	7
5 329-635	1
6 326-358	3 D3×8
7	—	—	1

Line drawing of a quill pen with inkwell, no text or symbols present

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR HITACHI.

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

450 Export Blvd. Unit B,

Mississauga ON L5T 2A4
