Thank you for choosing to purchase this high quality device. This manual shall give you an overview of how to operate your device. You will receive safety information and you will be informed about how to clean your equipment best. The safety and operating information must be strictly followed in order to ensure the long-term and safe functioning of the product. Please, take some time to peruse the manual carefully. The operating instructions should be retained in a safe place for future reference, to be given with a resale. Due to software updates or technical developments with third manufactures (e.g. Apas), parts of this manual can be updated. Every now and then please visit our website www.audio-block.com to check whether there are up to

date operating instructions for downloading. For this purpose, compare the status on the cover page with the information on the Inter not. If you have any further questions regarding your device, please contact an authorized specialist supplier or our service centre. In case of a defect resulting from improper operation, misuse or non-observance of the operating instructions, please be aware that the guarantee for this defect will be invalidated. Besides, no liability can be accepted for consequential damages. This product is EMC certified and meets all the directives and requirements of the European Union. CF and RoHS documentation are provided.

CONTENTS

Safety instructions 34

Before operating....38

Controls on the device 39

The remote control 40

Connections to the device....41

Initial commissioning and installation....43

Manuelle Installation (WLAN & AN)

The amplifier.

The FM radio 26

The DAP + radio....47

The internet radio 48

The CD playe....50

The media player (USB front connection) ....51

Music streaming-function....53

Spotify Connect 54

Connecting external devices via Bluetooth ^® 55

Selling Up and operating Multi-room Systems 56

Frontal connections: Line-In, USB 57

Rear Outputs: Pre-Out, Rec-Out 57

Frontal Outputs: Headphones....57

System settings....58

Troubleshooling....60

Care and transport....61

Technical data....61

Block

SAFETY INSTRUCTIONS

Caution: to avoid the risk of electric shock, do not modify this device. The opening of the device as well as changes in the appliance may be carried out only by authorized personnel. Important security instructions:

▶ Before using the device for the first time, please read the operating instructions thoroughly.
▶ This device is to be used indoors only.
This device may be connected only to a socket intended for it.
▶ This device is not to be exposed to humidity.
▶ Make sure the appliance does not stand to close to other objects
▶ Make sure the appliance does not stand near a heat source
▶ Make sure that the connection cable is not damaged or is going to be damaged

nation on disposal of the old equipment:

Your product is made of high quality and recyclable materials. With this symbol, the product fulfils the EU Directive 2007/96 / FC. Please do not dispose of your appliance in the domestic waste but, in a suitable separate collection of materials. Electronic devices, accessories and packaging shall be handled to special places intended and marked by signs for its purpose. For more information, where you find these places, please contact your local garbage disposal service. Please, keep to this regulation in order to give a better environment to our children.

ipment complies with the FU norm (73/23/FFC), and fulils the electromagnetic

compatibility (89/336/FFC).

CAUTION FROM OF ELECTRIC SHOCK DO NOT OPEN

The flash icon shall warn the user of not isolated hazardous voltages in the device's housing. This voltage could be strong enough to injure people through an electrical shock. The exclamation mark shall draw the attention of the user to the fact that the manual, delivered together with the device, contains important operating and maintenance instructions.

HANDLING BATTERIES

Batteries may contain flammable substances. Improper handling can cause batteries to leak, strongly heat, ignite, or even explore what, could damage your device and your health.

Follow these instructions:

▶ Keep children away from batteries.
▶ In case of batteries have been swallowed, report this to your doctor immediately.
▶ Never charge batteries (unless specifically stated).
▶ Never discharge batteries by high power output.
▶ Never short - circuit batteries.
▶ Never expose batteries to excessive heat, such as sunshine, fire or something similar.

Do not disassemble or deform batteries. Your hands or fingers could be injured or battery fluid could get into your eyes or on your skin. Should this happen, rinse the affected area with plenty of clear water and inform your doctor immediately.

▶ Avoid strong jolts and vibrations
- Never exchange the polarity. Make sure that the poles Plus (+) and minus (-) are correctly inserted, to prevent short circuits.
- If necessary, clean battery and device contacts before insertion. Do not mix new and old batteries or batteries of different types. This could cause malfunctions on your device. Besides, the weaker battery would discharge too strongly.
▶ Remove any discharged batteries immediately from the unit.
▶ Remove the batteries from your device if they haven't been used for an extended period of time.
- Replace at the same time all discharged batteries in a device with new batteries of the same type. If you want to store or to dispose the batteries, isolate their contacts with an adhesive tape.

Block

SAFETY INSTRUCTIONS

Do not let electrical appliances in children's hands! Never let children unattended to use electrical devices. Also keep the Packaging foils far away from children. There is a danger of shocking and suffocation.

SAFE POSITIONING

▶ Use the device exclusively in dry rooms
If you bring the device from a cold into warm surroundings, it could be humid inside the equipment. In this case, wait about two to three hours before running 1.
▶ Place the device on a firm and horizontal plane surface.
▶ Place the device with at least 10 cm of distance to the wall.
▶ Do not cover existing ventilation openings.
- Avoid the proximity of heat sources, such as radiators, or devices with strong magnetic fields, such as loudspeakers.
▶ Do not place open sources of fire, such as burning candles, on the device.
▶ Do not place the device on sensitive surfaces.

SECURE CONNECTION

• Connect the device only to an easily accessible and suitable installed socket. With 230 V \~ 50 Hz.
  The net plug must be of easy access so that the device can be easily and quickly disconnect from the power supply, in case of emergency.
  ▶ Locate the power cable so that nobody can trip over it or step on it.
  ▶ Do not use extension cables. Do not bend or squeeze the re. cable.
  ▶ Always pull the mains cable from the socket.

SAFE USE

• Disconnect the power plug from the power socket and remove the aerial cable from the device if you do not use the unit for a long time or when a thunderstorm is approaching.
  The net cable shall not be wrapped around the device during operation nor in touch to hot surfaces. Avoid humidity to enter the housing.
  ▶ Never touch the device, the net cable or the net plug with wet hands. There is a risk of electric shock. Should an item or liquid get into the housing, immediately disconnect the device from the power supply and have it checked.
  ▶ Have your equipment inspected by qualified personnel before restarting it. Otherwise there is the anger of electric shock.
  ▶ Never use the device if it is damaged, or if there is any damage to the rel cable or to the plugs. In case, the appliance is damaged, immediately pull the plug from the socket.
  ▶ Never open the device. In case of faults, please contact our service centre or any other specialized shop.
  ▶ The remote control has an infrared diode Class 1.
  ▶ Do not look at the I FD with optical devices.

Block

BEFORE COMMISSIONING

Before you can use your internet radio, streaming functionality or using a smartphone app, you will need

• A quick Internet access.
- A route, preferably with WLAN (wireless access point).
- If your router does not provide WLAN, you can also correct your device via an Ethernet cable
• Later on, when setting up the device, choose between wireless (WLAN) and cable connection.
- If your wireless network is set to Wire Equivalent Privacy (WLP) or Wi-Fi Protected Access (WPA), you will need the WFP or WPA code, so that your Internet radio can exchange data with the router.
Before you continue, make sure that your wireless network is switched on and has broadband internet access.
- If you have any problem connecting your device to your router, please, try to solve them by consulting the router's operating manual.

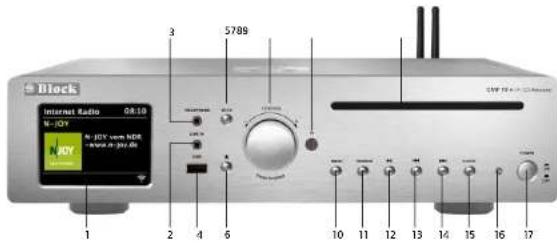

Block Internet Radio 08:10 4-201 5789 3 5789 1 2 4 6 10 11 12 13 14 15 16 17

1. Colour display.
2. 3,5mm line-in input jack for media players.
3. 6.3mm Headset Jack.
4. USB input jack.
5. "Back" button press this button to return to the previous menu item.
6. "CD" button: opens or closes the CD case. With the first pressure of this key, the device changes to "CD" operation mode.
7. Multifunction knob: with left/right rotation, the volume can be raised or lowered. Press the menu key, on the menu mode, the single points are selected by turning and activated by pressing the multifunction rotary knob.
8. Remote control infrared senso
9. CD slot-in
10. "Menu" button by pressure of this key, you reach in the system menu.

11. "Source" button: by pressing this button repeatedly the devices will be connected in a sequence to its sources.

12. "Replay/pause" button after a simple pressure, the device stops on pause, after a repeated one, it continues on replay mode. If you press it for 5 seconds, the device will be on stop mode. This key function is valid for CD and media players.

13. Back" button: press this button to return to the previous menu item.
14. "Forward" button: press this button on radio mode and the device searches automatically the next transmitter. On CD and media player mode, the device changes to the next track.
15. "Clock" button: It changes the display to show to time and the date. You press it again to return to the last function.
16. LED light: In normal operation, the LED lights up blue. In standby mode, the LED lights red.
17. "Power" button: Pressing this button switches the device on and off (genuine mains disconnect switch)

Block

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Block

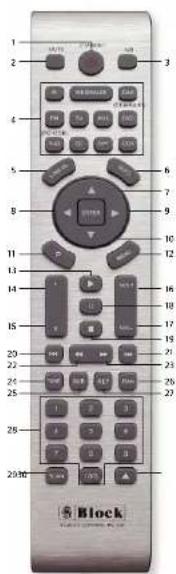

THE REMOTE CONTROL

1. "Standby" button switches the device to "Clock" mode, the display will show the time and the date. To save energy, switch off the device in the net counter.

2. "Mute" buttons switches the sound off.

3. "A/B" button: switches the output to the speaker boxes A, B or both.

4. Operating Mode selected button: IR starts the internal radio • Media / USB (SFO-TIFY) starts the media player or USB playback Press it again to switch in the Spotify mode, • DAS starts the DAS radio reception • Press it again to switch the in the Bluetooth mode, • FM starts the FM radio reception • TV / AUX - his button activates all the external inputs on the rear panel • DVD activates the back-sliced DVD input of the device • Pressing twice activates the Bluetooth mode, • Phonos; activates the back sided phone input (record player) • CD; starts the Integrated CJ player, • OP; pressing several times switches on the optical inputs from 1.3 • COA; activates the back sided coaxial entrance.

5. Line-In" button: activates the front connector behind, the magnetic cover.

6. info* button press this button to select FM, DAB+, Internet radio and media player additional information can be called up.

7. Arrow upwards: on FM mode to increase the frequency in 0.05 MHz, In menu to select the different points.

8. Arrow to the left to reach the previous setting in the menu.

9. Arrow to the right to access selected functions in the menu.

10. Arrow down: In FM mode by the frequency in 0.05 MHz increments to reduce. To select the different points in the menu.

11. F ^o button: recalls or saves pre-set transmitters in radio mode. Taste, Menu ^o :

12. "Menu" button: displays the system menu.

13. "Play" button

14. Balance ^a button: moves the speaker balance to the left

15. "Balance" button: moves the speaker balance to the right

16. "Volume+" button: Increases the volume

17. "Volume" button: reduces the volume

18. "Pause" button

19. Stop button

20. „Back" button: on radio mode, the device searches the previous lower transmitter. On CD and media player mode, the unit jumps to the previous track.

21. Forward button on radio mode, the device searches the next higher transmitter. On CD and Media Player mode, the device jumps to the next track.

22. "Last backward" button: only on CD mode.

23. "Last forward" button: only on CD mode

24. long" button: activates the trobic and bass settings. To adjust the volume, use the VOL /VOL1 buttons.

25. SUR* button press this button to switch the different digital sound optimization.

26. "RAN" button: switches the random playback on / off during CD operation

27. REF ^® button: switches to automatic replay during CD operation.

28. Button ,1 - 10 ^3 : on radio mode, recalls on the stored transmitters and on CD mode, it chooses the single pieces of the CD.

29. "SCAN" button: searches automatically all available stations in DNB + mode.

30. "CD" button; opens and closes the disc tray.

2 3a 14 16 17 5 6 15 Block A B S 4 7 8 9 10 11 12 13 2 18 3b

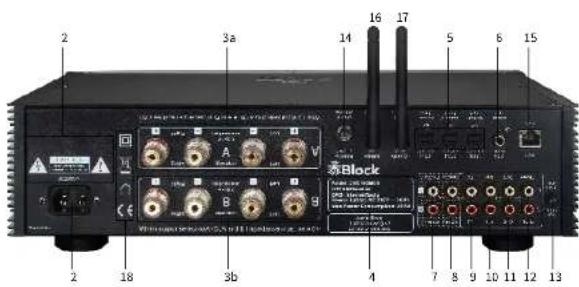

CONNECTIONS ON THE DEVICE

1. Mairs connection: the mains connection cable may show no damages or defects.
2. warnings
4. a. Loudspeaker connections A: please ensure the correct connection of plus and minus! b. loudspeaker connections B: please ensure the correct connection of plus and minus!
5. Type designation and electric current specifications.
6. Optical Inputs 1-3: connect here or optical digital cable.
7. Coaxial input: connect here a coaxial cable.
8. Pre Out Output Jack to connect another amplifier or a subwoofer.
9. Rec-Out jack: to connect a recording device.

10. TV input jack to connect a TV set.

11. AUX input jack: to connect an additional device.

12. DVD input jack to connect a DVD player.
13. Phonon input jack to connect a record player with MM system.
14. Ground screw connection: to connect a ground cable for record player.
15. DAB + / M acrial connection
16. Lan connector jack for RJ 45 plug (Ethernet)
17. Bluetooth aerial connection (picture of put up aerial)
18. WLAN aerial connection (picture of put up aerial).
19. inspection marks and disposal instructions.

Block

DESIGN OF THE DEVICE

▶ Connect the FM / DAB + cable antenna to the device.
Connect your speakers. You can elhe loose the screw connection and connect the stripped cable end or connect the loudspeakers cables with banana plugs directly into the connections. They can be connected to the CVR 10 two different loudspeaker pairs, one pair on the "A" to the marked connections and one on the terminals labelled "B". Make sure you have the correct polarity of the positive (red) and negative (black). If you want to connect two pairs of speakers to "A" and "B" in a parallel operation, both loudspeaker pairs must have at least 8 ohms.
3. If you need additional input sources such as from the tape deck, TV, DVD player, satellite receiver or d/s players, connect these devices to the corresponding input jack of the CVR-10 using suitable cables. For this purpose, you have 3 analogue inputs (TV, AUX, DVD), 1 analogue Phone input with a preamplifier for record players with M/I system (connect them eventually to an available earthing-conductor cable with the ground screw connection) and four digital grounding cables (3x optical and 1x coaxia) are available. In addition, an analogue line-in connection is also provided at the front.
When using an external device to record the signal sources of your CVR-10, please connect this unit to the RFC-OUT jack. This output emits an unregulated signal without volume control or sound regulation from the CVR-10.
If you want to use another (high-end) amplifier or an active subwoofer on the CVR-10, please connect it to the pre-out jacks of the CVR-10. This output emits a signal from the CVR-10 influenced in volume and tone control.
When connecting your CVR-10 wireless over an existing WI AN to the Internet, please install the supplied WI AN aerial.
When connecting your CVR-10 to the Internet via Ethernet (wired), please connect your router using the RJ-45 cable to the Ethernet socket of the CVR-10.
▶ Connect the power cable to the device and to a power outlet.

FIRST COMMISSIONING AND INSTALLATION

After you have safely installed your device and have carried out all the wirings, you can switch on your CVR-10 for the first time. Please hold your password (WFP or WPA) and, if necessary, your network identifier (SSID) ready for a possible WLAN installation. After turning on, the CVR-10 will start on CD mode.

• Please confirm the question after starting the equipment assistant wizard with "Yes", press the arrows keys of the remote control until "Yes" lights up and confirm with the key "Enter"
  ▶ Select your desired time format, either 12 h or 24 h display and confirm with the key "Enter".
  ▶ Select in the next step "Update from DAB" (recommended) and confirm.
• Every time it starts, your CVR-10, will in future recover automatically from this source the information to time and date.
  For the following time zone setting, please select for Germany UTC+1:00. For other locations, please select the appropriate time zone and confirm.
  In the following setting, please indicate whether your location currently has summer time, then "ON" would be the correct input
• In the following query "Keep network connected?", it should be confirmed with "Yes" in order to avoid interception and streaming problems.
  ▶ When choosing WI AN region, please choose "Most of Europe".
  Now it starts searching a WLAN connection and shows you all found WLAN networks (SSID) in your surrounding. Select your WLAN network. In case your WLAN does not appear, this could be due to the following reasons:

WLAN aerial not installed.

WI AN signal too weak at the installation place (perhaps I would be necessary to adjust the serial to the router and on the CVR-10 or use a WI AN repeater).

WLAN SSID suppressed on the router, select the input "Manual configuration".

If you connect the CVR-10 with an ethernet cable with your router, instead of using WLAN, select "Cable".

- In case your router supports WPS, select "Press key" and then press the appropriated button on the router. Alternatively, you can also choose "skip WPS" and subsequently enter the network password (WFF or WFA). Afterwards, in both cases the device should be finally connected.

Block

MANUAL WLAN INSTALLATION

If any problem appears while setting up the assistant, wizard, or you prefer to do a manual setup, please proceed as follows:

Press the "Menu" button on the remote control. Using the arrows keys on the remote control, choose first "System Settings", then select "Internet Settings", then "Manual Settings", then "Wireless".
▶ Select in the next step "DHCP active". This is the default setting of all conventional Internet router and it takes a lengthy network configuration. Confirm the setting
Now enter the name of your wireless network (SSID), pay attention to the correct spelling and use of capita/small letters. Confirm with "OK".
▶ Select the type of your password protection (usually WFA2 and AES). In case of doubt, consult the manual of your router.
Enter the password of your WLAN network, pay attention to the correct spelling and use of capital/small letters. Confirm with "OK".
Now the router and your CVR-10 - should be connected and an internal connection should exist, "Connected" shall appear on the display.

MANUAL CABLES INSTALLATION (ETHERNET)

Should you do without a WLAN connection and connect the CVR-10 to your router by cable (Ethernet), please proceed as follows:

▶ Connect a free Lan jack to your router and to the Lan jack on the CVR-10 using a Ethernet cable (RJ-45)
Press the key, Menu ^a on the device or on the remote control. Choose first „System Settings ^b , then „Internet Settings ^c , then „Manual Settings ^d , and then ^e Cable, using the multi-function rotary knob.
Next, select "DHCP, DHCP active". This is the default setting of all conventional Internet router and it takes a lengthy network configuration. Confirm the setting.
Now the router and your CVR-10 should be connected and an Internet connection should exist, "Connected" shall appear on the display.

*Should you save disconnected the DHCP function on your router, select please "DHPC Inactive" in this case, you must configure the Network, the rules and specification should be known by now. For the configuration, you may need the MNC address of your Block device. You can find this under Mental System settings/Internet settings/Adjustment indicator/MNC address.

THE AMPLIFIER

The CVR-10 is equipped with a high-quality AP class amplifier with an output of 7 x 60 walls to 4 ohms (RMS).

To change the sound, use the following settings:

VOLUME:

Use „WOL -” and „WOL -” buttons on the remote control or the multi-function knob on the device to change the volume of your system overall.

Please note that for different signal sources, the volume of the CVR-10 can vary with the volume setting. This is not a defect but it is caused by different input levels of the connected signal sources.

BALANCE:

Use the keys „L“ and „R“ on the remote control to change the balance between the two speakers and move to centralise the sound in the room.

BASS:

To raise or lower the bass press „Tone“ on the remote control until „Bass“ appears on the display. Use the „VOL“ and „VOL“ buttons on the remote control. This function deactivates after a short time

VOLUME:

Press "Tore" on the remote control so after, until "Treble" appears in the display. Now press the "VOL" and "VOL" buttons on the remote control to increase or decrease the volume. This function deactivates itself after a short time.

DSP-SETTING (DIGITAL SOUND PROCESSING):

Press the SUR button

This key is used to switch on various digital sound enhancements such as „Normal“, “Live“, „Jazz“, „Rock“, „Hal“, „Classic“, „Pop“ and „Stadium“, press several times to view the different modes. Try to find out which setting suits you best, on the „Normal“ made this function is dead/Varied.

Block

THE FM RADIO

You can enjoy your FM radio with the supplied FM and DA3 + reception combination, as well as with a house antenna or a cable connection (adapter) is included. You can activate the FM radio with the remote control, pressing the "FM" button as well as pressing "Source" on the device.

FIRST SETUP:

▶ Press the key "Scan" on the remote control. The tune will now search for the next available station
If you want to save this station as favourite, press the "P" button on the remote control, use the arrow keys to select an available memory and keep pressing, "Enter" until the announcement, "savee" appears. Now you can access this station by pressing the receptive key on the remote control's numeric keywords. You are also able to overwrite memory stations that have been stored at any time with a new station.
Repeat steps 1-2 until you have stored all the desired stations or until the frequency is run through once. You can store up to 10 stations as favourites.
Please use the little yellow reception quality icon in the lower right corner of the display to align your antenna optimally.

DAILY OPERATION:

▶ Press the key "FM" on the remote control to start the radio.
▶ You can recall your stored transmitter at any time using the numeric keypad of your remote control.
The radio disposes of ROS, it becomes up-to-date information about the program, e.g. title, pmre, etc. (depending on the transmitter). You can get more information by pressing the Info ^® button on your remote control once or several times.
▶ By pressing the "left arrow" on the remote, you can access additional settings on the device. Scan settings: "Only strong transmitters" - Yes / No
Audio settings: Mono Only' Yes / No (Select ,Y-S" for strong-sourcing stations). With the keys,Forward" and,Back", you can switch the frequency stand to the next higher or lower available station.

* Please note that a DAB + reception is not possible at the moment using a cable correction because the DAB-Bouquet is currently not fed into the cable network.

THE DAB + RADIO

You can operate your DAB + radio with the enclosed combination set for FM and DAB + reception as well as with a house antenna. A connection to the cable network is not possible at the moment, because the DAB + transmitters are unfortunately not too. You can activate the DAB + radio with the remote control, "DAB" button, as well as by pressing repeatedly the "Source" button.

INITIAL SET-UP:

Press the "DAS" button on your remote control, it starts searching automatically. After the search is complete, all the transmitters found will be shown on the display.
Use the arrow keys on the remote control to select the desired transmitter and confirm with "Enter". If you want to save this station as a favourite, press the .7" button on the remote control, choose a with the arrow keys a free storage space and press "Enter" until the message "saved" appears on the display. How you are able to operate this station by pressing the respective button on the numeric keypad on the remote control. In this way, you can always overwrite the once occupied transmitter memory.
- Press the "left arrow" button or the remote control to return to the list. Repeat steps 2-3 until you have stored all the desired transmiters. You can store up to 10 channels as favourites.
- Please use the little yellow reception quality icon on the lower right corner of the display to align your antenna optimally.

IN DAILY OPERATION:

▶ Start the DAB + radio using the „DAB“ key on your remote control.
▶ You can use the numeric pad of your remote control to retrieve stored stations.

The DAB + radio d'sposes of digital test functions, which are shown on the display. By pressing the Info* key on your remote control once or several times, you can get further information depending on the transmitter. Press "Enter" to switch the display to full screen.
▶ Once you press the "left arrow" button on the remote control you return to the complete station list.
Press the left arrow ^4 button twice on the remote control to call other settings on the device. The DRC function is not popular in Germany because the DAB + transmitters do not support this, the function "Invalid shorten" removes non-receivable transmitters, e.g. after a move.
▶ Use the keys, Forward* and, Back* to change the station to the next higher or lower station.

Block

THE INTERNET RADIO

If you have your CVR-10 connected to the internet as described, you shall receive Internet radio without any further settings.

Your Internet radio shall be automatically connected to one of the largest databases of Internet transmitters. with more than 25,000 broadcasters and podcasts worldwide. You can access the Internet radio expressing the key "IR" on the remote control or just by pressing repeatedly the "Source" button on the device.

IN DAILY OPERATION:

▶ Start the Internet radio using the key IR ^® on your remote control.

▶ Selecting transmitters:

By pressing the "Venu" button on the remote control and selecting "Last Istened", the display will show you all the last stations you have listened to.
Press the "Menu" key on the remote control and choose select, "Station List /My Favourite" and the display will show you all the transmiters that your have marked as favourites. Markthemas favourites so you can find them again quickly. To select transmitter as favourites, just press, Enar" on the remote control for a long time or hold the multifunction knob on the device pressed. Anur limited number can be saved as favourites. If you want to delete one of the favourites, select it using the multifunction knob on the device and hold it pressed until the equipment asks if the station should be deleted from the list of favourites.
- If you press the "Menu" button on the remote control and select "Channel list / Local Germany", all German stations will be shown, either every available transmitter, only the most popular ones or sorted by genre.
- Pressing the "Menu" button on the remote control and selecting, Channel list / station* a I available stations worldwide will be shown, sorted by country, genre, popular stations or new stations. You also have the option to search for a transmitter by entering the name.

Just as described in FM or DAB-1 function, other than to "Favourites", you can also save stations to the remote control's number block.

- The radio disposes of digital text functions; up-to-date information about the program, such as title, genre, etc., appears on the display. Pressing the "info" button on your remote control once or several times will give you further information depending on the station.

MANAGEMENT OF INTERNET RADIOS

Convenent management of your Internet transmitters on a computer:

▶ Start the Internet radio using the "IR" button on your remote control.

Press "Menu" on the remote control or on the device and select "Station list / Help / Access Code", Then write down the displayed code.

Log on to the website http://www.wifiradio-fronter.com and create a profile. This service is free of charge; the website is pursued by the same company, which also manages the transmitter database of your Internet radio. Afterwards, you can then register your device there by entering the access code of your device.

- Select your desired stations and add them to your device. You can create a folder for a better assortment, e.g., children ^a , news ^b , juice ^c , or party ^d . All assortments made on this website will be immediately transferred to your device and will be available to you there under the 'Favourites' option.

Should a transmitter not be found in the database, you could add it yourself when you visit the web page of the transmitter, copy or transcript the URI of the stream. Afterwards you can add this URI as your own transmitter on the page www.wifiradio-frontier.com and name it as you wish. Later on, you will find this transmitter on your device under "Menu / Channel List / My coded stations".

- Through this service you can register Block devices as many as desired, then they automatically will dispose of the same favourites.

Block

THE CD PLAYER

The integrated CD player is equipped with a sturdy CD drive, which plays the media "CD", MP3 CD", CD-R", CD-RW" and HD-CD". The CD player can be activated within the "CD" key on the remote control, or by pressing the "Source" button, several times. The CVR 10 will automatically switch to CD mode when you press the "CD" key on the device.

IN DAILY OPERATION:

To insert a CD: Press the CD^ button on the device or on the remote control. The CD tray will slide out. Insert a CD and close the tray by pressing the CD^ button again.
Playing a CD: Press the "Play" button on the device or on the remote control to start playback. Press, "Play on the device again to pause playback. You can pause the playback also by pressing, pause" on the remote control. A long pressure of "Play" on the device or pressing the "Stop" button on the remote control stops the reproduction.
- Selecting tracks: Press the keys "Forward" or "Backward" on the device or on your remote control until you have reached the desired track. Playback will start automatically
To fast forward or rewind within a track. Press the Fast Forward or Fast Reverse buttons on your remote control to scroll forward or backward within a track.
Repeat: Press the "RFP" button on your remote control once to repeat a single piece. Press, "RFP" a second time to repeat the entire disc and a third time to switch it off.
Shuttle: Press the „RAN“ button on your remote control once to start random playback. Press „RAN“ a second time to stop the random playback.

THE MEDIA PLAYER (USB FRONT PORT)

You can connect a removable disk (e.g. USB stick or USB hard disk) to the USB front port of your CVR-10. This memory medium must be formatted FAT 32 in order to be read by the CVR-10. Depending on the manufacturer of the storage medium, this may possibly be limited in its size.

The CVR 10 recognizes MP3, WMA and FLAC files with a maximum sampling rate of 48 KHz at 16 bit (FLAC) and 820 Kb/s (MP3 and WVA). To activate the USB media player, you can press the "Media / USB" key on the remote control, or you just press the "Source" key on the device several times. Select "USB Play" from the displayed menu to play music from your plugged-in storage media. The CVR-10 shows the contents of the medium on the display. Within the list, you can navigate with the help of the arrow keys on your remote control, press "Enter" to choose and play the desired tracks or folders. To create your own play list, you must select a piece of music on the stick and then hold the multifunction button on the device for a while or just press the "Enter" key on the remote control. This will add the piece of music to your play list. The USB function is capable of reading out additional stored songs information. E.g. read MP3 tags. By pressing the "Info" key on your remote control once or several times, you can retrieve this information depending on the file.

Additional features in the media player menu:

▶ Repeat: When the function is switched on, individual tracks, playlists or the entire content will be replayed.
- Shuffle: When the function is activated, cracks are played within a Playlist or the entire content will be replayed according to the random principle.

Block

THE MEDIA PLAYER (DLNA)

Your new CVR-10 is D1 NA (Digital Living Network Alliance) certified. This means you can access, according to the D1 NA standard, the respective music sources in your home network.

If you have connected your CVT 10 to your router and has a USB port, you can access its NAS (Network/Attached storage) functionality.

Just connect a standard USB hard drive to your router and enable NAS functionality in its configuration or connect a NAS drive to your network. In case of problems, or if you need further information on the NAS functionality of your router, please consult the router's manual for help.

You can play the desired tracks or folders on this hard drive or NAS drive. This is just the best way to install a uniform DLNA media server for all of your household devices.

Now, press the key, Media / USB on the remote control to activate the media player. Select, Shared Media from the displayed menu to view a list of all media-server suitable devices on your network. Choose your installed media server and then select the option, Music.

The contents of your hard drive will be pre-sorted displayed according to various criteria, for example, "Artists", "Albums", "All Songs", "Genres", or "Order". The quality of this sorting is directly related to the quantity of the recorded data on the hard disk; should the MP3 tags be missing, the songs will not be pre-sorted well. Within the list, you can navigate with the help of the arrow keys on your remote control, press "Enter" to choose and play the desired tracks or folders.

To create your own play list on the CVR-10 you press the key "Enter" on the remote control. This current track will be added to your play list.

The media player function is capable of reaching out additional stored songs' information. E.g., near MP3 tags. By pressing the "Info" key on your remote control once or several times, you can retrieve this information depending on the file.

The DLNA media player reads MP3, WMA and FLAC files up to a maximum stream size of 1.5 MBil/s.

Other file formats when streaming can be converted from many routers with KAS functionality directly on the CVR-20 format.

Please also read the operating instructions for your router.

MUSIC STREAMING

The "streaming" of music in the home area means the transfer of music data from an external device such as a computer, tablet PC or smartphone to a player, such as your CVR-10.

The prerequisite is that these devices shall be located in the same network (WLAN or LAN). We briefly introduce you here to the most common device streaming solution:

APPLE® PC (MAC OS X®)

The use of the Airplay® function of iTunes® is not possible with the CVR-10.

Nevertheless, you can stream with the Apple Macintosh®. Please install a streaming server, e.g. the free software, Service® (http://servio.org/download) and start. Through the function, Media / USB - Shared Media® you will now find a Service® server, which can be used to access all the music from your Apple Macintosh. In case of problems or for further information, please consult the installation instructions for Service®.

WINDOWS® PC

▶ A streaming function is integrated into the Windows Media Player ^® up version 8,

Please activate this (see Windows Media Player ^2 user guided) You can then use the ,Media / USB - Shared Media ^4 function to access every song from the Windows Media Player. In case of problems For further information please read the operating instructions of Windows Media Player.

STREAMING FROM SMARTPHONE OR TABLET PC [ANDROID®]

Please read the enclosed operating instructions for the App, UNDOCK™ to learn how you can play the music of your Android device on the CVR-10. Many modern Android devices already dispose of a function to play music on a DIA device. These usually need to be shared on your Android device as a media server. Please also read the operating instructions for your Android device.

STREAMING FROM IPOD ^® , IPHONE ^® , OR IPAD ^® DEVICES OR TABLET PC [IOS ^® ]

Please read the enclosed operating instruction for the App, UNDOK™ to know how to pay the music from your iOS device on the CVR-10. In order to make the app, UNDOK™ to have access to the library of e.g., Tunes®, you must have an app, e.g., the free media: connect" installed and started before.

STREAMING SERVICES

At the moment, there are a large number of streaming services with the most different technologies in the market. If you want to use it on your CVR-10, simply connect your CVR-10 via Bluetooth to your mobile phone, table, or PC. Select it as output device.

* Audi oblock GmbH unfortunately can not guarantee the full functionality or accuracy of the descriptions from third-party software manufacturer as these are subject to continuous developments or changes which cannot be influenced by Audi oblock GmbH

Block

TO USE CONNECT (SPOTIFY)

To use Connect you need Spotify Premium. Details can be found on the attached flyer.

Connect with your new device the same wireless network that also connects your phone, tablet, or PC (further information you find in the operation instructions).
▶ Open the Spotify app on your mobile, tablet or PC and play a song. If you are using the app on your phone, tap the picture to the song in the lower-left corner of the screen. Tab et and PC users please go to step 4.
▶ Tap the Connect icon.
▶ Select your device from the list.
If it is not indicated, make sure it is connected to the same wireless network as your phone, I can el, or PC. Ready! Have fun listening to music!

REMOTE CONTROL WITH THE APP „UNDOK™“\*

If you have an iPhone ^ , iPod ^ , or iPad ^ , please go to the Apple App Store ^ and look for the term "undok". Important: Select, "Phone Apps" beforehand! If you have an Android device (tablet PC or smartphone), visit Google's Play-Score ^ and search for the term "undok", install the found free app or your mobile device. Important: To operate your CVR-10, the Smartphone / Tablet and the CVR-10 must be registered in the same WI AN network and the CVR-10 must be switched on!

▶ Now start the app, UNDOK™. The app will search for all D: NA-capable devices in the WI AN.
▶ Please choose your CVR-10 from the found devices.
- Your CVR-10 is now connected to the app, UNDOK™ and you can the operate the device. "Source" function: Select the desired source among the available signal sources.
- Browse's function: the many options of the signal source can be selected here, depending on the selected signal source. For an overview of the functions, please look up in the manual the respective chapter on signal sources.
Now running* function: provides information and covers (if available) to the currently playing track or radio station.
Additional functions, Settings*. This menu allows you to switch the device off and on, change the sound settings, terminate the app and make further settings.

* For this app additional functions, e.g. to configure Multi-room systems, please read the enclosed "UNDOK™" manual.

ADAPTING EXTERNAL REMOTE CONTROLS

Your CVR-10 can learn the codes from other remote controls, e.g. from a TV remote control. Proceed as follows:

• Press the "Menu" button on the appliance for 3 seconds, then the device enters the learning mode
• Press on Block F3 button ^6 will appear on the display. Press a button on the remote control to select a function to transfer.
• The following appears on the display, "Code from Block FB accepted" and shortly afterwards, "please press external FB key". Now press the button on the extem remote control to release the function to be transferred.
  • "Key code has been transmitted" appears on the display. Then it jumps back to first point.
• Repeat these steps until all functions (max. 50) have been transferred to your remote control unit. Exit the programming by pressing again the "Menu" button on the device. If you have programmed a key incorrectly, simply repeat all steps with the right keys, the device will overwrite the faulty settings.
• To delete all programs, press and hold the keys "Back" and "Enter" on the device, and then restart the device completely.

CONNECT EXTERNAL DEVICES VIA BLUETOOTH®

Your device is equipped with a modern Bluetooth® interface. This allows you to pair any Bluetooth® source with the CVR-10. Possible sources are smartphones (iOS, Android, Windows Phone), IoTet PCs (iOS, Android, Windows 8) or media players (Pod, similar) with Bluetooth® function. Connecting external devices via Bluetooth® Your device is equipped with a modern Bluetooth® interface. Through this you can pair any Bluetooth source with the CVR-10. Possible sources with Bluetooth function are smartphones (iOS, Android, Windows Phone), tablets (iOS, Android, Windows 8) or media players (Pod, similar). To activate the Bluetooth® function, press the "Source" button until Bluetooth® appears on the display, then activate the Bluetooth function on your external device. Pair an external device with the CVR-10: On your external device, search for Bluetooth® devices in your surroundings, select your CVR-10 and begin the pairing (coupling the devices In case of problems, or if you need further Information about the pairing, please consult the instruction manual of the device you wish to pair with your CVR-10. Afterwards you can activate the music playback function of your external device and your CVR-10 will play the music. Please note that you can only link sources using the built-in Bluetooth function. The pairing of, for example, external speakers to the CVR-10 is not possible!

Playback of audio files:

1. Press, Play ^6 on the remote control to play a track.
2. Press, Pause" on the remote control to pause a track.
3. Press "Forward" on the remote control to jump to the next track
4. Press, Back to jump to the previous track.

Block

SETUP UP AND OPERATION OF MULTI-ROOM SYSTEMS

To integrate your CVR-10 into a multi-room system, e.g. to the Smartbox SR-100 from Audioblock, please read the supplied instructions for the App „UNDOK™”, which is mandatory for the configuration. Please note that the multi-room functionality is only available from 01/2016 onwards!

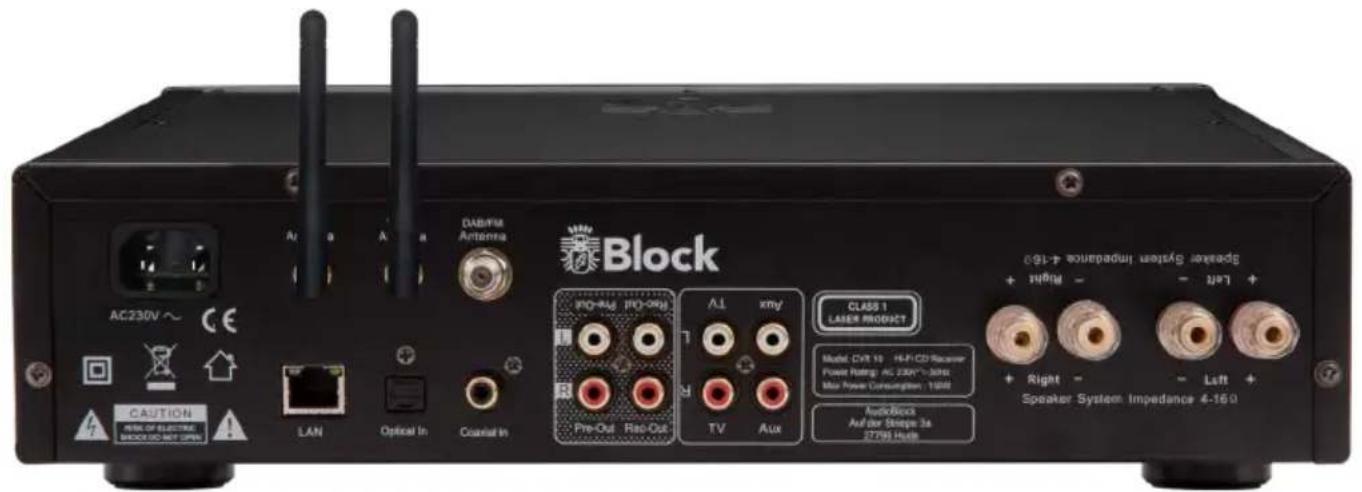

THE OPTICAL CONNECTIONS

The rear optical connections of the CVR-10 (also S. / PDIP® or TOSUNIA®), process stereo: light wave signals in digital form (no Dolby® surround or similar). These connectors are particularly suitable for external CD players, data recorders or many modern televisions. For most, televisions, the optical audio output on the TV menu must first be activated. For the connection, please consult the operating instruction of the external device. A suitable cable is available in an accessory shop.

THE COAXIAL CONNECTION

The rear coaxial connector of the CVR-10 processes electrical stereo audio signals (no Dopby® surround or similar) in digital form. This connection is particularly suitable for external CO players, data recorders or satellite receivers. For the connection, please consult: the operating instruction of the external device. A suitable cable is available in an accessory shop.

THE AUX CONNECTION

The rear AUX connector of the CVR-10 processes electrical high-level audio signals in analogue form. This connector is suitable for all external devices with analogue audio output. For the connection, please consult the operating instruction of the external device. A suitable pinch cable is available in an accessory shop.

THE TV AND DVD CONNECTION

The rear TV and DVD connections of the CVR-10 process electrical high-level audio signals in analogue form. These connections are suitable for all external devices with analogue audio output, for example, for the connection of a TV, DVD player or satellite receiver with analogue audio output (e.g. over the headphone output of the IV). For the connection, please consult the operating instruction of the external device. A suitable pinch cable is available in the accessory shop.

THE PHONO CONNECTION

The rear phono connector of the CVR-10 processes electrical high-level audio signals in analogue form. This connection is suitable for record players with MM system (common), but not for MC systems (free); for the connection, please consult the operating instruction of the external device. To prevent a hum, please connect an existing earth cable to the record player and the CVR-10. A suitable disc player cinch cable with grounding is available in the accessory shop.

THE PRE-OUT OUTPUT

The rear pre-cut output sends high-level electrical audio signals in analogue form. These signals will not change in sound and volume after the settings made on the CVR-10. This output is particularly suitable for an additional amplifier, e.g., an active subwoofer in a second room, or radio loudspeakers, e.g. for tenzoe or kitchen.

THE REC-OUT OUTPUT

The rear rec-out output sends high-level electrical audio signals in analogue form. These signals will not change in sound and volume after the settings on the CVR-10, but transmitted unchanged from the respective signal source. This output is particularly suitable for recording devices such as tape recorder or cassette recorder. The USB connection

THE USB CONNECTION

See page 51 for a more detailed description of the USB front connector.

THE LINE-IN CONNECTOR

The line-in connector located behind the magnetic cover at the front of the CVR-10 processes electrical high-level audio signals in analogue form. This connector is suitable for all external devices with analogue audio output, like media players, iPod, smartphones etc. (connection over headphone output). For the connection, please consult the operating instruction of the external device. A suitable 3.5 mm cable is available in the accessory shop.

THE HEADPHONE CONNECTION

The headphone jack of the CVR-10, located behind the magnetic cover on the front, allows you to connect a commercially available headphone with 6.3 mm jack plug. A 3.5 mm jack adapter for smaller headphones can be obtained from the accessory shop.

THE LOUDSPEAKER OUTPUTS

The CVR-10 is equipped as its back with two high-quality gold-plated terminal pairs for the connection of loudspeaker cables. Cabes can be connected either via banana plugs mounted on the cables (plug-in mounting) or via the screwable terminal heads with the stripped loudspeaker cable (screw mounting).

Block

SYSTEM SETTINGS

Press the "Menu" button on your remote control or on the device and select the System settings item. In the following menu you carry out. The following settings:

INTERNET SETTINGS:

In this menu, you can change the settings you have made for your Internet connection, e.g. when you change the location. You can also restart the assistant wizard, or manually set up the connection.

LANGUAGE:

Select your desired display language for the device

DEFAULT SETTINGS:

Selecting and confirming this item resets all settings back to the factory settings. Please use this feature if massive problem occurs with the receipt of data from the Internet or the general operating software of the device. You should also perform this function if you want to resell the device. After running the factory settings, a new start requires a restart of the device wizard.

SOFTWARE UPDATE:

The CVR-10 checks regularly whether there is any update available on the Internet and points it out. You can then choose to run the update. You can disable this feature (not recommended); or check the operating software for update process.

SETUP WIZARD:

Selecting and confirming this item starts the setup wizard. All the settings you then make override the old setings. You can also use the setup wizard to update the time settings (summer and winter time) if problems occur during the automatic changeover.

INFO:

Selecting and confirming this point will show you technical information about the installed software version, the manufacturer ID of the device, and the name under which your device appears on the network.

ADDITIONAL COMFORT FEATURES

Press the "Menu" button on your remote control or on the device and select, Main menu. In the following menu you can also select, Snooze and Alarm clock in addition to the already known signal sources:

SLUMBER:

Select "Snooze" on your remote control using the arrow keys and confirm with "Enter". The "Sleeps" indicator appears. Use the arrow buttons to set the desired time when the device will automatically switches up and by mode. Confirm your selection with "Enter". Exit this menu by pressing the "Menu" button again.

ALARM CLOCK:

Select "Alarm clock" on your remote control, using the arrow keys and confirm with "Enter". The "Alarm" menu appears. You can now set two different alarms. For example, e.g., the first alarm clock, in the next menu, you can switch the alarm on and off, set the clock, select between daily, individual days, weekends, etc., the signal source with which you want to wake up and adjust the volume. Press the "Back" button to return to the previous menu. The alarm function is now active.

ERROR MESSAGES AND TROUBLESHOOTING (NETWORK)

MESSAGE CAUSE TROUBLESHOT
No connection to correct password2. Correct password, no contact to the router		1. Enter the correct password2. Disable the Mac filter on the router
Formal Error	The file format is not recognized	Make sure the user is encoded in WMT, MP3, or DAC with no more than 40 kHz if not, please re-encode.
Network Error	Wrong information is received from the network	“The data from the server are not readable, possibly restart the CVR-10 and the router
Network not available	Problems connecting the router Switch on or restarting the router
Network timeout. No response off-line The selected station is current, do not available,please charge the transmitter
No UFP found live UFP server was found. Have sure your media server is on the same networks your CVR-10 and is powered on.
Not authorized	Wrong entity with the password or not registered with the UFP server	Enter the correct password.
Update failed	Software update failed	Check your network settings, or try again user.

Block

ERROR MESSAGES AND GENERAL TROUBLESHOOTING

FEHLERBESCHREIBUNG MÖDILICHE URSACHE UND BEHEBUNG
No power even though the unit is on	The power cable is not connectedThe socket's defectiveThe fuse in the device is defective - Fault, must be repaired by a technicianThe power cable is defective - Fault must be repaired by a technician
No sound The unit is not on at all	The vol. me is too lowThe speaker cable is not connected properlyNo input signalThe wrong input is set on the device
No sound on a channel The audio input is not connected correctlyThe selection of the input is incorrectThe speaker cable is not connected correctlyHe speakers are defective
Loud buzzing An audio cable is not properly connected or defectiveThe clarifying cable is not connected to the record playerYour unit is too close to another unit or V
Weak bass The phase of the loud speaker is not connected correctly Change +/-
Distorted sound Volume, pass or	Trecile are set too highSpeakers may be defectiveThere is a bridge (short circuit) on the loudspeaker cable
The remote does not work Make sure that, the batteries are inserted correctlyAre the battery set empty/ Please replace them with new onesFoint the remote control at the receiver on the unitRemove all objects between the remote control and the unitDetermining if the distance between the FB and the device is more than 5 meters
Keys do not work(Device or remote control)	Ium the unit off and then on again.Alformatively, remove the device from the power and then reconnect it(If the device can be influenced by external power interference)
Fault in reception - The station is not set correctlyThe antenna is not properly alignedRestart a station search
Network connection is not possible	the network is currently unavailable. Please try again laterThe router does not allow any port, since the device is not yet Address. Start the network wizardCheck the distance between the router and the deviceChange the selected encryption method of the routerDetermine whether a firewall rejects the deviceCheck if used, the network cable

Repairs and interventions in the device may only be carried out by

authorized persons. Qualified personnel are made.

CARE AND TRANSPORT

CARE AND CLEANING OF THE APPLIANCE

Before you clean it, disconnect it from the power supply. Use only clean and dry cloths to clean your appliance. If the appliance is very dirty, you can clean the unit with a damp cloth and mild clearing fluid. Never use liquids such as gasoline, alcohol, petroleum or other solvents.

TRANSPORT THE UNIT

Please keep the packaging and the instructions for use so that you can pack the unit properly for transporting or shipping. The original packaging is designed so that you can safely transport, or ship the device. Please keep this manual for future reference.

TECHNICAL SPECIFICATIONS

Mains voltage: AC 230 V / \~ 50 Hz

Power consumption of 150 watts (max.)

Connections:

Artenna connection
3 x stereo inputs (RCA), 300 mV
1x stereo input (3.5 mm jack), 300 mV
Network: LAN (RJ 45) or WLAN 2.4 GHz and 5 GHz, Bluetooth®
1 x USB connection
1 x Optical digital input
1 x coaxial digital input

Outputs

3,5 mm headphone jack
Analogue pre-out (RCA)
Analogue rec-out (RCA)

Built-in amplifier with 2 x 30 watts RMS at 4 ohms:

Frequency response: 10 Hz - 25 KHz
Signal-to-noise ratio>83 dB
Channel separation: > 75 dB
Distortion Factor: 0.05%

Built-in DAB + radio: 174.328 - 233.200 MHz • Built-in FM radio: FM 87.5 - 108 MHz • Built-in Internet radio with more than 29,000 channels and podcasts worldwide • Built-in CD player (HDCD / CD-R / CD-RW / MF3) • Remote control adapting function • Built-in media player (MF3, WMA, FLAC) • ADimensions [B [H [I] ] Weight: 350 x 283 x 80 mm G_1 kg

Abstract white logo design featuring a stylized pen and leaf motifs on a dark background (no text or symbols)

Block

Multiroom | Bluetooth | HIFI

AC230V ~ CAUTION OPEN OF ELECTRIC RADIO/DC-500 MHz GHz LAN Optical In Coastal In DABRMA Antenna Block PRO-RAG (PRO-ONE) A1 xmy CLASS 1 LASEX PRODUCT Model CVB 10 - Hi-Fi CD Receiver Power Rating: AC 230V~Johns Max Noise Consumption: 100W AudioBlock Auf/for Shape 2a 27796 Huts Speaker System Impedance 4-160 + Right - Left + Speaker System Impedance 4-160
