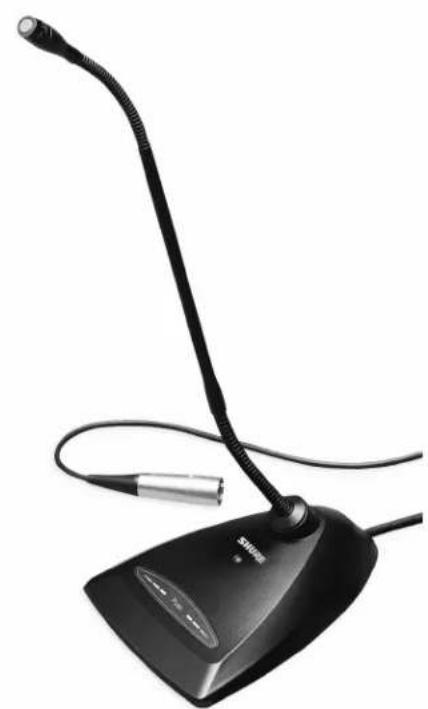

| Product type | Condenser gooseneck microphone |
| Brand | Shure |
| Model | MX418DS |
| Polar pattern | Cardioid |
| Frequency response | 50 Hz to 17 kHz |
| Output impedance | 150 Ω (balanced) |
| Sensitivity | -35 dBV/Pa (17.8 mV/Pa) |
| Connector | XLR 3-pin |
| Phantom power | +48 V DC (DIN 45596 standard) |
| Dimensions (gooseneck) | Length: 318 mm |
| Weight | 165 g |
| Body material | Die-cast metal |
| Color | Matte black |
| Primary use | Conferences, speeches, presentations |
| Care and cleaning | Wipe with a slightly damp soft cloth. Do not use solvents. |
| Safety | Do not expose to excessive moisture. Use only with compliant phantom power. |
| Spare parts and repairability | Consult an authorized Shure after-sales service for any replacement. |
| Warranty | 2 years (according to reseller conditions) |
Frequently Asked Questions - MX418DS SHURE
User questions about MX418DS SHURE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microphone in PDF format for free! Find your manual MX418DS - SHURE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MX418DS by SHURE.
USER MANUAL MX418DS SHURE
MX400D
Desktop Microphones
Shure Microflex ^® MX400D Series microphones are miniature electret condenser gooseneck microphones with a desktop base and a 3 m (10 ft.) cable. Desktop base allows microphones to be used in multi-purpose rooms where quick setup is required, or where permanent installation is impractical.
Features
- Wide dynamic range and frequency response for accurate sound reproduction
• Interchangeable cartridges that provide a choice of polar pattern for each application
• Programmable mute button and LED indicator - Logic input and output terminals for remote control or use with automatic microphone mixers
• Balanced, transformerless output for increased immunity to noise over long cable runs - RF filtering
MX400 Series Model Variations

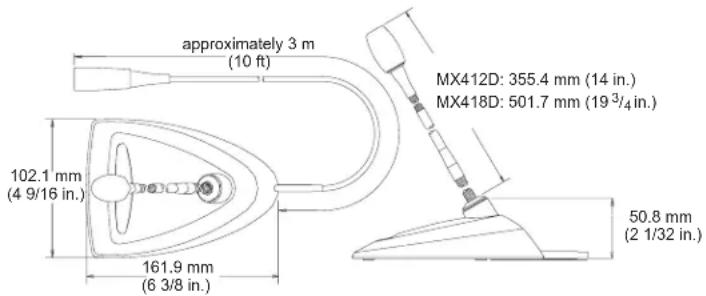

MX400 microphones are available with 305 mm (12 in.) or 457 mm (18 in.) goosenecks.
- "S" models include a mute button and LED.
- "D" models include a desktop base with programmable mute button and LED and logic input and output.
- "SE" models feature a surface mount flange with side-exit cable.
The polar pattern of the included cartridge is indicated by a model number suffix:
/C Cardioid
/S Supercardioid
/N Cartridge not included
Interchangeable Cartridges
Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.
R183 Omnidirectional
R184 Supercardioid
R185 Cardioid
Snap-Fit Windscreen
- Snap into the groove below the cartridge.
• To remove, spread the gap with a screwdriver or thumbnail. - Provides 30 dB of "pop" protection.


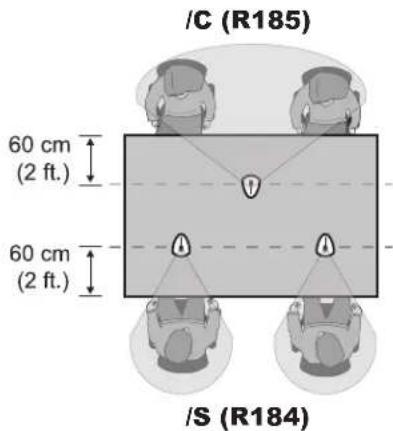

- Aim the microphone toward the desired source, such as the talker.
- Aim it away from any unwanted source, such as a loudspeaker.
- Place the microphone within 15 to 30cm (6 to 12 in.) of the desired sound source.
• Always use the supplied windscreen or optional metal windscreen to control breath noise. - If four or more microphones will be open at the same time, use of an automatic mixer, such as the Shure SCM810 or SCM410, is recommended.

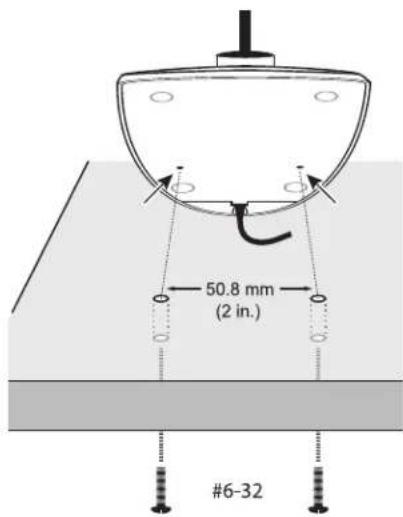

Securing to a Surface

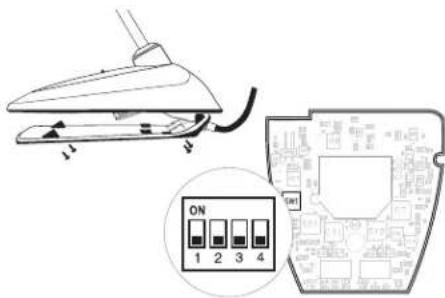

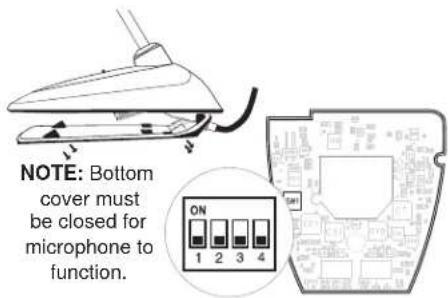

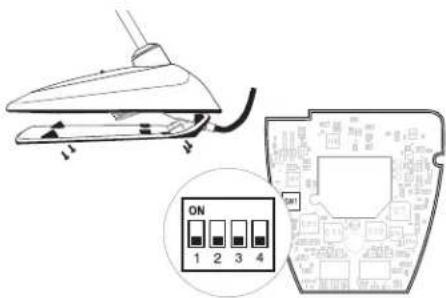

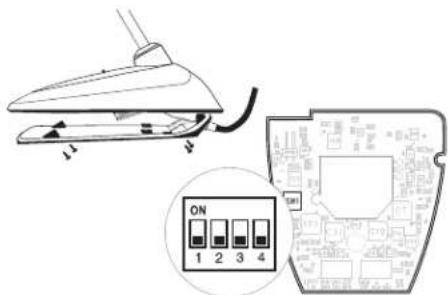

DIP Switches
Use the DIP switches to configure logic settings and mute button behavior.
The DIP switches are covered with a piece of clear tape at the factory. Remove tape to modify the switch settings.
| OFF (factory default) | ON | |
| 1 M | Momentary Toggle | |
| 2 P | Push-to-mute Push-to-talk | |
| 3 M | Mute button enabled, LED illuminates when mic is active | Disable mute button (microphone always on), logic controls LED |
| 4 -- | -- |

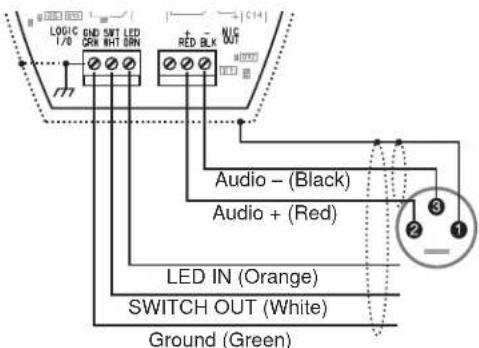

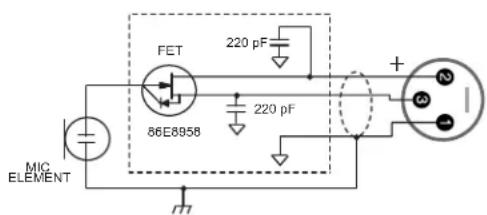

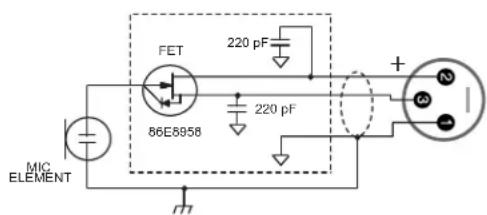

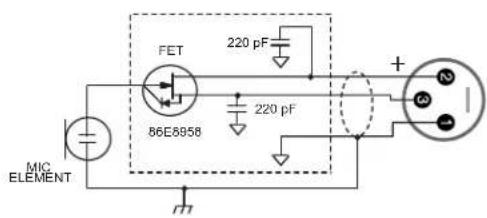

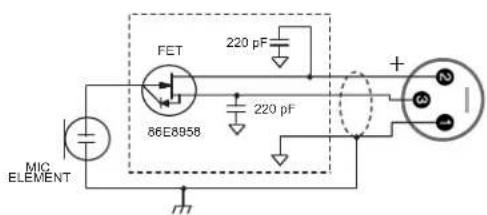

Wiring Diagram
NOTE: Audio and logic ground are connected at microphone base.
Mute Button Configuration
Use DIP switches 1 and 2 to configure the mute button, as follows.
Be sure to set DIP switch 3 off (factory default) so that the mute button controls audio from the microphone.
| Switch Function DIP Switch Setting | |
| Momentary: push-to-mute(as shipped). | |
| Momentary: push-to-talk | |
| Toggle: (Push On/Push Off): Mic is active when powered on | |
| Toggle: (Push On/Push Off): Mic is mute when powered on | |
Connecting to an Automatic Mixer
Use these settings if connecting the microphone to an automatic mixer or other device that mutes audio and controls the LED.
- Connect logic leads to the automatic mixer. Connect the LED IN to the gate output to illuminate the LED when that channel is gated on.
- Set DIP switch 3 on. This disbles the mute button (the microphone passes audio regardless of whether the button is pressed or not).
- Set DIP switch 1 to configure how the mute button sends SWITCH OUT logic:
Momentary:
push = 0 Vdc,
release = 5 Vdc
Toggle:
initial = 5 Vdc,
push = 0 Vdc
Logic Wiring
Orange (LED IN): Set DIP switch 3 on to use LED IN. When shorted to LOGIC GROUND, the LED turns on.
White (SWITCH OUT): Provides TTL logic (0 Vdc or 5 Vdc) in response to the mute button. Set DIP switch 1 for momentary or toggle. When phantom power is applied, logic initializes high (5 Vdc). DIP switch 2 has no effect on SWITCH OUT.

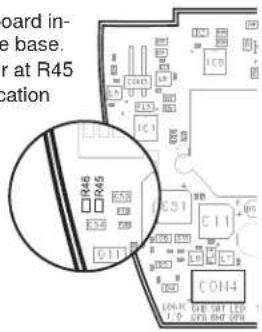

Changing SWITCH OUT to Always Momentary
Use the following modification in situations where your logic interface requires momentary closure of the SWITCH OUT, but you want the mute button to toggle the microphone (DIP switch 1 ON, 3 OFF):
- Access the circuit board inside the microphone base.
- Remove the resistor at R45 and reinstall it at location R46.

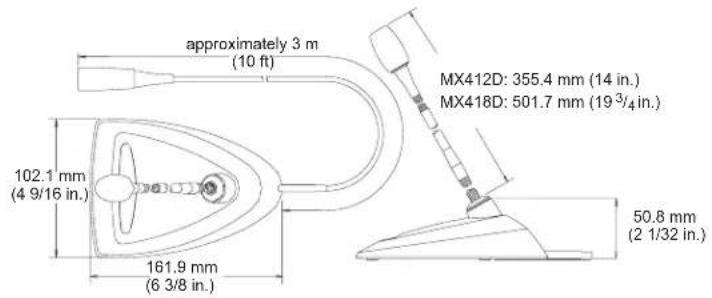

Specifications
Type
Condenser (electret bias)
Frequency Response
50-17000 Hz
Polar Pattern
MX412D/C, MX418D/C: Cardioid
MX412D/S, MX418D/S: Supercardioid
Output Impedance
EIA Rated at 150 Ω (180 Ω actual)
Output Configuration
Active balanced
Sensitivity (at 1 kHz, open circuit voltage)
Cardioid: -34 dBV/Pa (21 mV)
Supercardioid: -33 dBV/Pa (24 mV)
1 Pascal=94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 kΩ load)
Cardioid: 123 dB
Supercardioid: 122 dB
Equivalent Output Noise (A-weighted)
Cardioid: 29 dB SPL
Supercardioid: 28 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB
SPL at 1 kHz)
Cardioid: 65 dB
Supercardioid: 66 dB
Dynamic Range (1 kΩ load at 1 kHz)
94 dB
Common Mode Rejection (10 Hz to 100 kHz)
45 dB minimum
Preamplifier Output Clipping Level (1% THD) -6 dBV (0.5 V)
Polarity
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
Net Weight
MX412D: 0.81 kg (1.80 lbs)
MX418D: 0.82 kg (1.82 lbs)
Packaged Weight
MX412D: 1.63 kg (3.62 lbs)
MX412D: 1.64 kg (3.64 lbs)
Logic Connections
LED IN: Active low ( ≤ 1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT: Active low ( ≤ 1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3k ).
Mute Switch Attenuation
-50 dB minimum
Cable
3 m (10 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental Conditions
Operating Temperature: -18–57 °C (0–135 °F) Storage Temperature: -29–74 °C (-20–165 °F) Relative Humidity: 0–95%
Power Requirements
11–52 Vdc phantom, 2.0 mA
Furnished Accessories
| Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit) | RK412WS |
Optional Accessories
| Foam Ball Windscreen A99WS | |
| Metal Locking Windscreen A412MWS | |
| Custom Logic Cable (specify length) 95B2509 | |
Replacement Parts
| Omnidirectional Cartridge (Black) R183B |
| Supercardioid Cartridge (Black) R184B |
| Cardioid Cartridge (Black) R185B |
CERTIFICATION
Eligible to bear CE Marking. Conforms to
European EMC Directive 2004/108/EC. Meets
Harmonized Standards EN55103-1:1996 and
EN55103-2:1996, for residential (E1) and light industrial (E2) environments.
The Declaration of Conformity can be obtained from:
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Wannenacker Str. 28
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
MX400D
MX412D: 1.64 kg (3.64 lbs)
Connexions logiques
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
MX400D
DIP-Schalter
MX412D: 1.64 kg (3.64 lbs)
Logikanschlüsse
11–52 V DC Phantomspeisung, 2,0 mA
Headquarters Europe, Middle East & Africa
D-74078 Heilbronn, Germany
Tel: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
MX400D
MX412D: 1.64 kg (3.64 lbs)
Conexiones lógicas
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
MX400D
Microfoni da tavolo
MX412D: 1.64 kg (3.64 lbs)
Collegamenti logici
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
MX400D
デスクトップマイクロホン
DIPスイッチ
MX412D: 1.64 kg (3.64 lbs)
ロジックコネクタ
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Eメール：EMEAsupport@shure.de
radar
| Angle (°) | Value | |---|---| | 0 | 0 | | 30 | -15 | | 60 | -10 | | 90 | -5 | | 120 | 0 | | 150 | 0 | | 180 | 0 |250 Hz 500 Hz 1000 Hz
radar
| Angle (°) | Value | |---|---| | 0 | -10 | | 30 | -5 | | 60 | -10 | | 90 | -5 | | 120 | -10 | | 150 | -5 | | 180 | -10 | | 210 | -5 | | 240 | -10 | | 270 | -5 | | 300 | -10 | | 330 | -5 | | 360 | -10 | | 390 | -5 | | 420 | -10 | | 450 | -5 | | 480 | -10 | | 510 | -5 | | 540 | -10 | | 570 | -5 | | 600 | -10 | | 630 | -5 | | 660 | -10 | | 690 | -5 | | 720 | -10 | | 750 | -5 | | 780 | -10 | | 810 | -5 | | 840 | -10 | | 870 | -5 | | 900 | -10 | | 930 | -5 | | 960 | -10 | | 990 | -5 | | 1020 | -10 | | 1050 | -5 | | 1080 | -10 | | 1110 | -5 | | 1140 | -10 | | 1170 | -5 | | 1200 | -10 | | 1230 | -5 | | 1260 | -10 | | 1290 | -5 | | 1320 | -10 | | 1350 | -5 | | 1380 | -10 | | 1410 | -5 | | 1440 | -10 | | 1470 | -5 | | 1500 | -10 | | 1530 | -5 | | 1560 | -10 | | 1590 | -5 | | 1620 | -10 | | 1650 | -5 | | 1680 | -10 | | 1710 | -5 | | 1740 | -10 | | 1770 | -5 | | 1800 | -10 | | 1830 | -5 | | 1860 | -10 | | 1890 | -5 | | 1920 | -10 | | 1950 | -5 | | 1980 | -10 | | 2010 | -5 | | 2040 | -10 | | 2070 | -5 | | 2100 | -10 | | 2130 | -5 | | 2160 | -10 | | 2190 | -5 | | 2220 | -10 | | 2250 | -5 | | 2280 | -10 | | 2310 | -5 | | 2340 | -10 | | 2370 | -5 | | 2400 | -10 | | 2430 | -5 | | 2460 | -10 | | 2490 | -5 | | 2520 | -10 | | 2550 | -5 | | 2580 | -10 | | 2610 | -5 | | 2640 | -10 | | 2670 | -5 | | 2700 | -10 | | 2730 | -5 | | 2760 | -10 | | 2790 | -5 | | 2820 | -10 | | 2850 | -5 | | 2880 | -10 | | 2910 | -5 | | 2940 | -10 | | 2970 | -5 | | 3000 | -10 | | 3030 | -5 | | 3060 | -10 | | 3090 | -5 | | 3120 | -10 | | 3150 | -5 | | 3180 | -10 | | 3210 | -5 | | 3240 | -10 | | 3270 | -5 | | 3300 | -10 | | 3330 | -5 | | 3360 | -10 | | 3390 | -5 | | 3420 | -10 | | 3450 | -5 | | 3480 | -10 | | 3510 | -5 | | 3540 | -10 | | 3570 | -5 | | 3600 | -10 | | 3630 | -5 | | 3660 | -10 | | 3690 | -5 | | 3720 | -10 | | 3750 | -5 | | 3780 | -10 | | 3810 | -5 | | 3840 | -10 | | 3870 | -5 | | 3900 | -10 | | 3930 | -5 | | 3960 | -10 | | 3990 | -5 | | 4020 | -10 | | 4050 | -5 | | 4080 | -10 | | 4110 | -5 | | 4140 | -10 | | 4170 | -5 | | 4200 | -10 | | 4230 | -5 | | 4260 | -10 | | 4290 | -5 | | 4320 | -10 | | 4350 | -5 | | 4380 | -10 | | 4410 | -5 | | 4440 | -12500 Hz 6400 Hz 10000 Hz

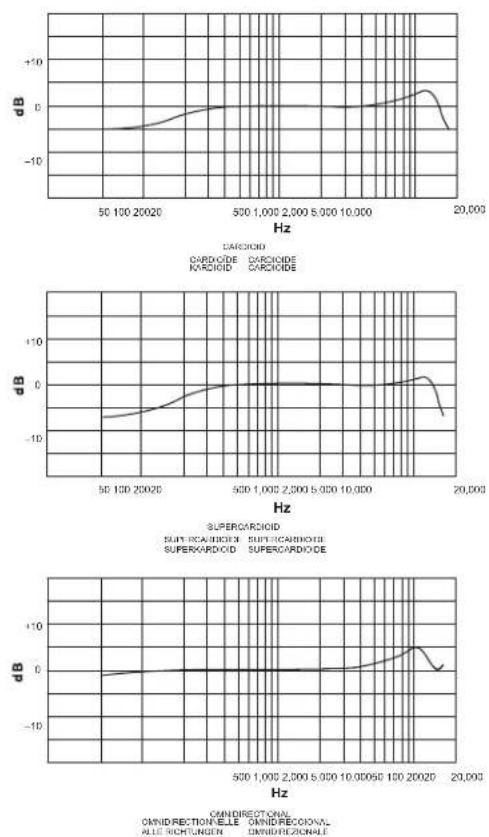

CARDIOU
