Product Type	Air Purifier
Brand	Homedics
Model	TotalClean AP-T40-EU
Filtration Technology	All-in-One True HEPA (pre-filter, HEPA filter, carbon filter)
Filtration Efficiency	Removes up to 99% of particles 0.3 microns in size (allergens, pollen, dust, microbes, pet dander, odors, mold, smoke)
UV-C Technology	Yes, eliminates germs, viruses, and bacteria
Ionizer	Yes, with on/off switch
Auto Mode	Yes, with air quality sensor (green/yellow/red color indicator)
Fan Speeds	4 (low, medium, high, auto)
Built-in Timer	2, 4, 8, or 12 hours
Maximum Effective Area	109 m² (airflow 264.8 m³/h)
Air Changes per Hour	1 time per hour for a 109 m² room (ceiling height 2.43 m)
Essential Oil Tray	Yes, with 3 pads included
Filter Replacement Indicator	Yes, LED indicator
Power Supply	220-240 V, 50 Hz
Pre-filter Cleaning	Monthly with vacuum cleaner
HEPA Filter Replacement	Every 12 months
UV-C Bulb Replacement	After approximately 10,000 hours of use
Replacement Parts Available	HEPA filter (AP-T40FL), UV-C bulb (AP-UVC1), oil tray (AP-T40WTARM/AP-T40BKARM), pads (ARM-PAD3)
Warranty	3 years
Recommended Use	Closed room, doors and windows closed
Safety	Do not use essential oils directly on the device; do not clean the HEPA filter with water

Frequently Asked Questions - TotalClean AP-T40-EU HOMEDICS

How to change the HEPA filter?

Unplug the device, remove the front grille, take out the old filter, insert the new HEPA filter (ref. AP-T40FL) with the tabs facing outward, replace the grille, and plug back in. Press and hold the ION button for 3 seconds to reset the indicator.

How to use the essential oil tray?

Press to open the tray on the side of the device. Place a provided diffuser pad, add 5-7 drops of essential oil onto the pad (not directly onto the tray). Close the tray. The scent will automatically diffuse when the appliance is running.

What to do if the device does not work?

Check that the device is plugged in, the power button is pressed, and the outlet has power. Make sure the HEPA filter and the front grille are properly installed. If the problem persists, check the fuses.

How to clean the pre-filter?

Unplug the device, remove the HEPA filter, then use a vacuum cleaner with a brush attachment to clean the outside of the HEPA filter (the pre-filter). Replace the filter and grille. Perform this operation once a month.

When to replace the UV-C bulb?

The UV-C bulb is designed for approximately 10,000 hours of use. The UV-C button lights up red when it needs to be replaced. Unplug the device, remove the HEPA filter, unscrew the bulb cover, replace the bulb (ref. AP-UVC1), and reassemble.

Is the ionizer safe for pets?

The ozone output is less than 0.05 ppm, but ozone can be hazardous to birds and small animals. Use the ionizer in a well-ventilated room and allow pets to freely leave the room. Observe their reaction.

How to set the timer?

Press the timer button until the indicator for the desired duration lights up: 2, 4, 8, or 12 hours. To deactivate, press until all timer LEDs turn off.

What does the filter replacement indicator mean?

The FILTER indicator lights up when it is time to change the HEPA filter, based on usage hours. Replace the filter and reset by pressing the ION button for 3 seconds.

Which essential oils to use?

Use only pure essential oils without additives. Avoid synthetic oils. Never pour oil directly into the device. Use the provided pads. If in doubt about pet safety, consult a veterinarian.

How to reset the filter replacement indicator?

After changing the filter, plug in the device and press the ION button for 3 seconds until the FILTER indicator turns off.

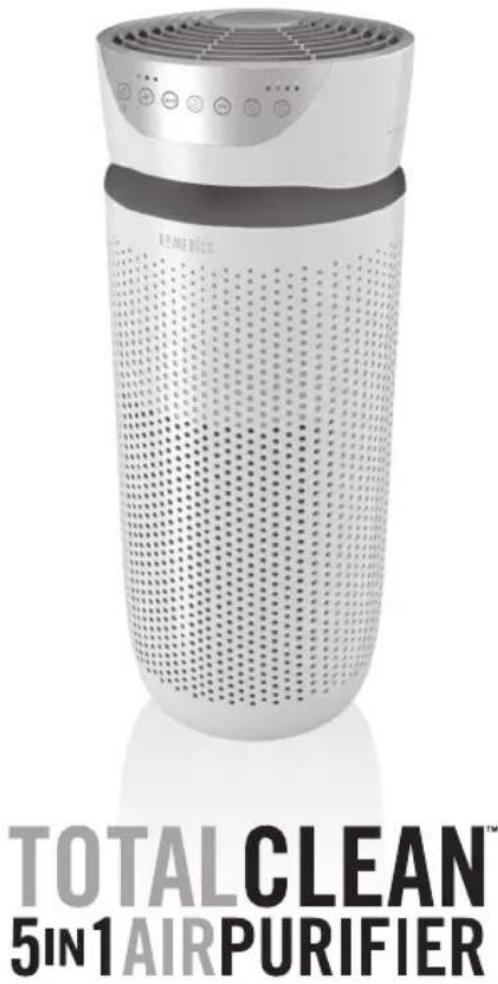

USER MANUAL TotalClean AP-T40-EU HOMEDICS

LEADERS IN HEALTH & WELLBEING

Register your product today at www.homedics.co.uk/product-registration

5914

Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odour, mould spores, and smoke from air that passes through the filter.

CARBON ODOUR FILTRATION

Reduces household odours and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.

PRE-FILTER

Captures large particles.

UV-C TECHNOLOGY WITH ON/OFF

When on, the UV-C technology light kills germs, viruses, and bacteria.

IONISER WITH ON/OFF

When on, the ioniser assists in the air purification process.

AUTO MODE/PARTICLE SENSOR

Automatically adjusts the fan speed based on indoor air quality.

4 SPEEDS

Low, medium, high and auto.

BUILT-IN TIMER

Choose from 2, 4, 8, or 12 hours.

REPLACE FILTER INDICATOR

Illuminates when it is time to replace the filter.

SUGGESTED ROOM SIZE

109 M ^2 /H / 1176 FT ^2 /H. Portable air purifiers will be more effective in rooms where all the doors and windows are closed.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 109 M ^2 / 1176 FT ^2 room (assuming an 2.43 M/8 FT ceiling) once per hour on high speed in a closed room. The airflow rate is 264.8 M ^3 /H / 9408 FT ^3 /H.

OIL TRAY

Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

OPERATING INSTRUCTIONS

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
- Place the air purifier on a firm, level surface.
- Plug the power cord into a standard AC outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power ⏻ button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed ✿ button until the desired setting is reached.

UV-C TECHNOLOGY WITH ON/OFF

The optional UV-C technology kills germs, viruses, and bacteria by penetrating its DNA, resulting in the microorganism's death or the inability to reproduce. Press the UV-C button to turn the UV-C technology on. The blue LED will glow. Press the UV-C button again to turn the UV-C technology off.

AUTO MODE/PARTICLE SENSOR

The Auto Mode automatically adjusts the fan speed based on indoor air quality. The air quality Particle Sensor monitors and displays indoor air quality by colour: green (good), yellow (elevated), or red (poor)

IONISER SETTING WITH ON/OFF

Ion particles have a positive or negative charge that attach to airborne particles, making them easier to be captured by the filtration system. Press the ioniser ION button to turn the ioniser on. The blue light will glow to indicate the ioniser is in use. Press the ioniser ION button again to turn the ioniser off.

NOTE: Dust particles may accumulate on surfaces around the air purifier when the ioniser is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth.

NOTE: You may hear occasional popping sounds when the ioniser is used. This is normal.

NOTE: The ioniser produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ioniser feature in a well-ventilated area.

NIGHTLIGHT

The nightlight has 3 options. Press the nightlight ⚙ button once to turn the blue nightlight on. Press again to turn the blue nightlight ring and the display lights off. Press a third time to turn the display lights on.

TIMER

Press the timer ⏻ button until the desired timer setting is lit on the display. The timer ⏻ button will cycle through the following settings: 2 hours, 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer ⏻ button until all timer LEDs are off. The air purifier will run continuously when the timer function is off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air. NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the air purifier if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

This air purifier has been certified by the European Centre for Allergy Research Foundation (ECARF) as an allergy-friendly product. Please note that allergy friendliness is no longer guaranteed if the Essential Oil Scent Tray function is used, since essential oils may lead to allergic reactions.

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

located on the side of the air e nightlight ring.

nd remove the tray.

oad (3 included) into the oil tray.

of essential oil to the pad.
re or less depending on
nce.

y back in its compartment and the scent will start automatically ifier is turned on.

WARNING: Only place essential oil on the

FILTER REPLACEMENT

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the HEPA-type filter based on the air purifier's hours of use.

REPLACING THE HEPA-TYPE FILTER

For optimal performance, replace every 12 months under normal usage conditions.

1. Unplug the air purifier. Pull the indents on each side of the grille

1. Remove the grille cover and set

Diagram of a wire mesh structure inside a container with 'aside' label (no other text or symbols)

1. Pull the tabs to remove the old

1. With the filter tabs facing outward, insert the new HEPA-type filter.

Line drawing of a hand holding a grid-like object near a cylindrical structure (no text or symbols)

1. Place the tabs at the bottom of the grille cover into the base of the air purifier. Gently push the grille cover until it snaps into place.

1. Plug the power cord into a standard AC outlet and press the power button Press and hold the ioniser

UV-C BULB REPLACEMENT

REPLACING THE UV-C BULB

The UV-C bulb is designed to last for approximately 10,000 hours of use. The UV-C button on the control panel will flash RED when the UV-C bulb burns out and needs to be replaced. The UV-C button will change to blue once the bulb has been replaced.

NOTE: The air purifier will continue to operate without the UV-C function when the UV-C bulb burns out.

CAUTION: Do not operate the air purifier without the protective UV-C bulb cover.

CAUTION: Unplug the power cord before servicing or replacing the UV-C bulb.

1. Unplug the air purifier and remove the HEPA-type filter. Using a Phillips-head screwdriver (not included), unscrew the 2 screws located on the UV-C bulb cover.

1. Remove the cover to expose the UV-C bulb.

2. Gently push from the sides and rotate the UV-C bulb to remove.

Technical diagram of a mechanical component with arrows indicating assembly or force direction (no text or symbols)

1. Remove and replace the UV-C bulb. Re-install the UV-C bulb cover, HEPA-type filter, and grille cover.

NOTE: The UV-C bulb contains mercury (Hg).

ION button for 3 seconds to reset

CLEANING THE PRE-FILTER

NOTE: For best performance, vacuum the pre-filter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA filter as described in the Replacing the True HEPA Filter section.
3. Vacuum the outside of the

True HEPA filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly.

1. Place the True HEPA filter back into the air purifier and close grille.
2. Plug the power cord into a standard AC outlet.

TO CLEAN THE OIL TRAY

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of

the oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

Diagram of a cylindrical object with a mesh pattern and a hand holding a curved object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

NOTE: Leave the essential oil pad out of the oil tray when storing.

FOR BEST PERFORMANCE

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.
• Clean off the outside of the unit with a dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed.
  • Vacuum the pre-filter monthly under normal usage conditions.
• Replace the True HEPA filter every 12 months under normal usage conditions.
• Always use a genuine HoMedics replacement filter for optimal performance.

To purchase genuine HoMedics replacement/spare parts please visit www.homedics.co.uk

3 Pack of aroma pads - ARM-PAD3

Aroma tray (white) - AP-T40WTARM

Aroma tray (black) - AP-T40BKARM

HEPA filter - AP-T40FL

UV-C Bulb - AP-UVC1

Cover & screws - APUVCCV

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate · Unit is not plugged inPower button not pressedNo power to unitTrue HEPA filter is not installed correctlyGrille cover is not installed correctly		Plug unit inPress the power button to turn the power onCheck fuses, try a different outletReinstall the True HEPA filterReinstall the grille cover
Reduced airflow · The back grille may be blockedPre-filter needs vacuumingThe True HEPA filter needs to be replaced		Check to make sure nothing is blocking the back grille and air outletVacuum the pre-filter with the brush attachment of your vacuum cleanerReplace the True HEPA filter
Reduced odour removal	The True HEPA filter needs to be replaced	Replace the True HEPA filter
Excessive noise · The unit is not level	Place the unit on a flat, level surface
Replace filter light remains lit after filter replacement	The replace filter indicator needs to be reset	Press and hold the ioniser button for 3 seconds until the replace filter light turns off
Display lights are off · Nightlight setting	Press the nightlight button until the desired lights are on/off

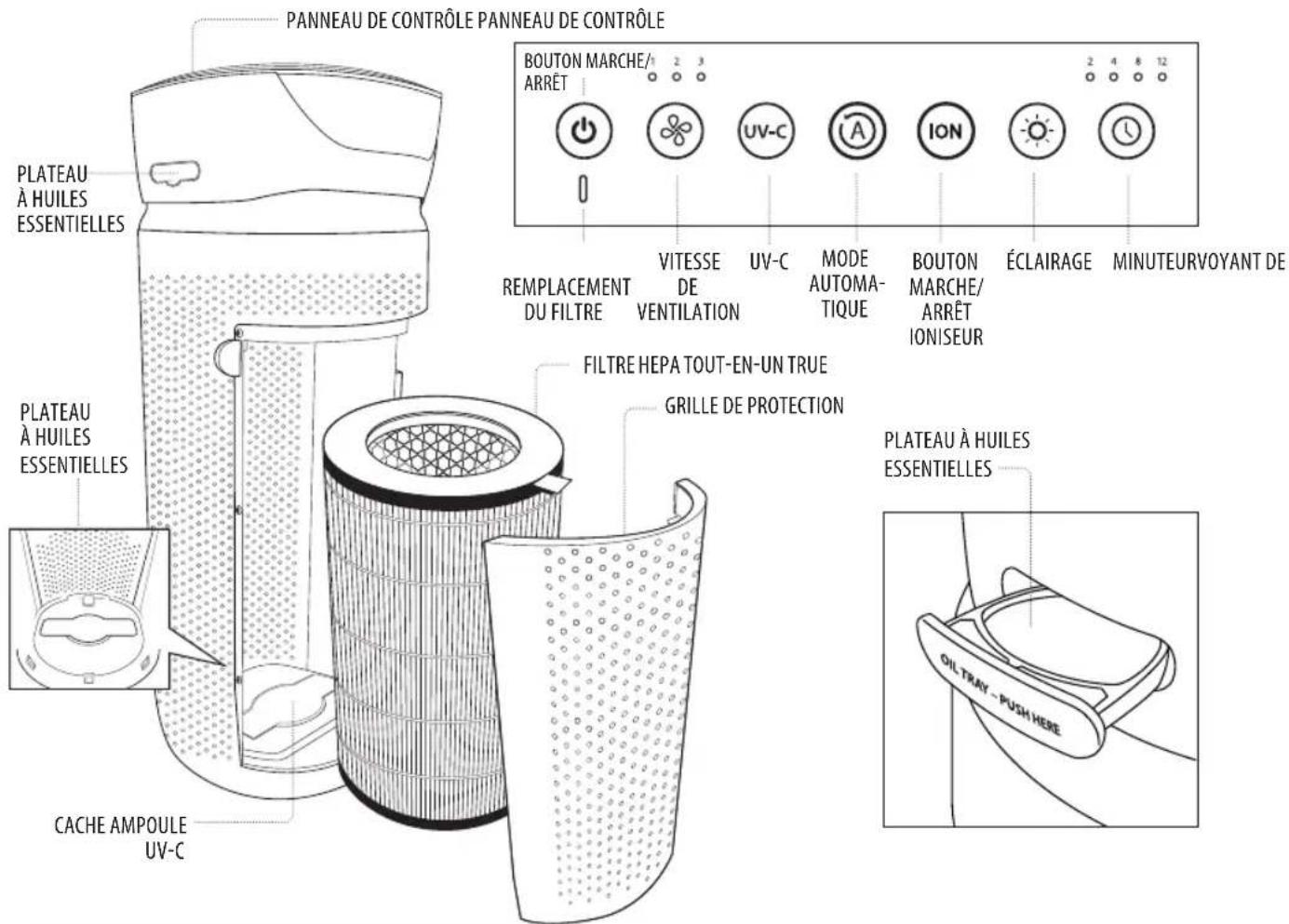

CARACTÉRISTIQUES DU PRODUIT

SYSTÈME DE FILTRATION HEPA TOUT-EN-UN TRUE

FILTRATION HEPA TOUT-EN-UN TRUE

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container with a mesh structure, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

REEMPLACER L'AMPOULE UV-C

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with concentric circles and a central shaft (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols present)

Line drawing of hands holding a tool over a circular object with a ruler, no text or symbols present

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical industrial container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container with a mesh structure, no text or symbols present

Line drawing of hands handling a grid-patterned object (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands holding a tool over a circular object with a small square mark (no text or symbols)

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

HEPA-Filter - AP-T40FL

UV-C-Lampe - AP-UVC1

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with concentric circles and internal features (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands holding a rectangular object over a circular base, with no visible text or symbols

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

LIMPIEZA DE LA BANDEJA PARA EL ACEITE

Line drawing of a hand cleaning a circular object (no text or symbols)

Illustration of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a cylindrical container filled with granular material, no text or symbols present

Line drawing of hands handling a grid-patterned object (no text or symbols)

Diagram of a curved structure with internal components and directional arrows, no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of hands using a tool to cut or adjust a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical structure with internal grid pattern (no text or symbols)

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols visible)

Diagram of a curved mechanical component with directional arrows and dotted pattern (no text or symbols)

Technical line drawing of a mechanical component with a central pin and circular base (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and internal shafts (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands holding a rectangular object over a circular base, with no visible text or symbols

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

DE OLIETRAY REINIGEN

Line drawing of a hand cleaning a circular object (no text or symbols)

HEPA-filter - AP-T40FL

UV-C lamp - AP-UVC1

Deksel en schroeven - APUVCCV

PROBLEMEN OPLOSSEN

Line drawing of a person using a tool on a chair (no text or symbols)

Technical line drawing of a cylindrical structure with internal grid pattern (no text or symbols)

Line drawing of a hand holding a container with a mesh structure, no text or symbols present

Illustration of hands handling a cylindrical object with layered structure (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands holding a tool over a circular object (no text or symbols)

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Abstract diagram with curved lines and a black arrow pointing upward (no text or symbols)

Technical line drawing of a cylindrical container with internal mesh structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands holding a mechanical component with a circular base and mounting bracket (no text or symbols)

Diagram of a cylindrical object with a mesh top and a hand holding a curved tool, no text or symbols present.

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container with a mesh structure, no text or symbols present

Illustration of hands handling a cylindrical object with a grid pattern (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

AZ UV-C IZZÓ CSERÉJE

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

Line drawing of a hand cleaning a circular object (no text or symbols)

Abstract diagram with curved lines and a black arrow pointing upward (no text or symbols)

Illustration of a hand holding a small object with a black arrow pointing downward (no text or symbols)

Illustration of a hand pouring liquid into a container with arrows indicating flow (no text or symbols)

Line drawing of a hand holding a small object with an arrow pointing to it (no text or symbols present)

FILTERBYTE

LAMPA FÖR FILTERBYTE

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand pouring liquid into a container with a mesh structure (no text or symbols)

Line drawing of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

RESERVGLÖDLAMPA FÖR UV-C-LAMPA

BYTE AV UV-C-GLÖDLAMPAN

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Technical line drawing of a mechanical assembly with concentric circles and a central shaft (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of hands holding a mechanical component with a circular base and mounting bracket (no text or symbols)

Diagram of a cylindrical object with a mesh top and a hand holding a tool, no text or symbols present

RENGÖRA OLJEFACKET

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

3-pack aromkuddar - ARM-PAD3

Aromfack - AP-T40WTARM

HEPA-filter - AP-T40FL

UV-C-glödlampa - AP-UVC1

UV-C-TEKNOLOGI MED AV/PÅ-FUNKSJON

Når den er på, dreper UV-C-lyset mikroorganismer, virus og bakterier.

IONISERER MED AV/PÅ-FUNKSJON

F∅R APPARATET SLÅS PÅ

• Ta luftrenseren ut av esken og fjern den gjennomsiktige, beskyttende plastposen.
• Plasser luftrenser på en fast, jevn overflate.
• Koble strømledningen til en standard stikkontakt.

STR∅MKNAPP OG INNSTILLINGER FOR VIFTEHASTIGHET

UV-C-TEKNOLOGI MED AV/PÅ-FUNKSJON

IONISERER-INNSTILLING MED AV-PÅ-FUNKSJON

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical structure with internal grid pattern (no text or symbols)

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Diagram of a curved mechanical component with directional arrows and dotted pattern (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a curved object (no text or symbols)

SLIK RENGJ∅R DU OLJEBEHOLDEREN

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

FOR BEST YTELSE

HEPA-filter - AP-T40FL

UV-C-pære - AP-UVC1

Line drawing of hands using a tool to cut or inspect a textured object (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a grater with a mesh net, no text or symbols present

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Diagram of a curved mechanical component with directional arrows and dotted pattern (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal structure and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a curved handle, no text or symbols present

ÖLJYLOKERON PUHDISTAMINEN

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK

Customer Support: [phone]

[e-mail]

IB-APT40-EU-0120-04
