IAN 86428 - Tent CRIVIT - Free user manual and instructions

Product Type	Pop-Up Beach Shelter
Brand	Crivit
Model	IAN 86428
Assembled Dimensions	Approx. 200 cm (L) x 120 cm (W) x 90 cm (H)
Weight	Approx. 1000 g
Packed Size	Approx. 62 cm diameter x 2.5 cm
Scope of Delivery	1 Pop-Up Beach Shelter, 1 Carry and Storage Bag, 8 Tent Pegs, 2 Guy Ropes, Instruction Manual
Material	Polyester fabric (not permanently waterproof)
Intended Use	Protection against wind and sun; not for rain or commercial use
Assembly	Pre-assembled; only need to secure with guy ropes and pegs
Pegs	8 tent pegs, approx. 18 cm x 4 mm
Guy Ropes	2 ropes, approx. 200 cm each
Fire Safety	Keep away from flames; ensure ventilation when using gas burners
Ventilation	Keep openings clear to prevent suffocation
Maintenance	Brush off dirt; use water if needed; never machine wash or dry-clean
Cleaning	Use commercially available tent care products for stubborn stains
Storage	Store dry and clean in a cool, well-ventilated place
Repair	Holes/tears can be glued; poles not repairable
Warranty	3 years from purchase date; private use only
Manufacturer	Simex Sport GmbH, Schiefbahner Strasse 12, 41748 Viersen, Germany
Contact	[e-mail], IAN 86428

Frequently Asked Questions - IAN 86428 CRIVIT

How do I assemble the Pop-Up Beach Shelter?

The shelter is pre-assembled. Simply take it out of the bag and throw it away from you into the air. It will spring into shape. Then insert the tent pegs at an angle and attach the guy ropes for stability. Ensure the entrance does not face the wind.

How do I dismantle and pack the shelter?

First, hold all left and right arches together (Figure 1). Then stand it upright, push the upper arch downward with your left hand, and fold it towards the center (Figure 2). Push the rings into each other and pack into the carry bag (Figure 3). Watch the dismantling video via the QR code for guidance.

Can I use the beach shelter in rainy weather?

No. The material is not permanently waterproof. It is intended only for protection against wind and sun. Do not use in rain.

How do I clean the beach shelter?

Brush off loose dirt. For stubborn stains, use commercially available tent care products. Never machine wash or dry-clean. Always ensure the shelter is dry before storing to prevent mold.

What is the warranty period and what does it cover?

The warranty is 3 years from purchase. It covers material and manufacturing defects. Transport damage, wear items, and damage from improper use are excluded. Keep your receipt as proof of purchase.

Can I use the shelter for commercial purposes?

No. The product is intended for private, non-commercial use only. Commercial use voids the warranty.

What safety precautions should I take?

Keep away from hot appliances and open flames. Ensure ventilation openings are not blocked. Never leave children unattended near hot surfaces. Know the fire precautions of your campsite.

How do I store the shelter when not in use?

Clean and dry the shelter thoroughly before storing. Pack it into the carry bag, close the zipper, and store in a cool, dry, well-ventilated place away from frost. Avoid damp conditions to prevent mold and mildew.

Can I repair holes or tears in the fabric?

Yes, small holes or tears can be glued using the same material or a tent repair patch. The poles cannot be repaired and must be replaced if damaged.

How do I contact the manufacturer for support?

Contact Simex Sport GmbH at [e-mail] or by mail at Schiefbahner Strasse 12, 41748 Viersen, Germany. Reference the model IAN 86428.

USER MANUAL IAN 86428 CRIVIT

PoP-UP Beach Shelter

GB CY

PoP-UP Beach Shelter

Operation and Safety Notes

RO

cort de Plajà PoP-UP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

HR

Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa svim funkcijama uređaja.

RO

GB / CY Operation and Safety Notes Page 5

HR Upute za posluživanje i za Vašu sigurnost Stranica 8

Three grayscale images of a tent with open lid, showing different sizes and shading (no text or symbols visible)

2

Three sequential images showing a person adjusting a dark fabric or net, with arrows indicating the process (no text or symbols present)

3

Three black-and-white photos showing people handling different sizes of a tent: a large open tent, a small covered tent, and a simple circular blanket (no text or symbols visible)

Pop-Up Beach Shelter

- Introduction

Congratulations! You have purchased a high-quality product. The instructions for use are to be considered as part of this product. They contain important instructions for use. Please read all the information carefully before use. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for use as protection against the wind and sun. The material of the beach tent is not permanently waterproof. Therefore, it should not be used in rain. The product is not intended for commercial use.

- Scope of delivery

1 Pop-Up Beach Shelter
1 Carry and storage bag
8 Tent pegs
2 Guy ropes
1 Set of instructions for use

- Parts description

Guy rope (approx. 200 cm)

Tent pegs (approx. 18 cm x 4 mm)

- Technical Data

Measurements

(assembled): approx. 200 cm (L) x 120 cm (W) x 90 cm (H)

Weight: approx. 1000 g

Packed size: approx. 62 cm diameter x 2.5 cm

Safety notes

KEEP THESE INSTRUCTIONS IN A SAFE PLACE. WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE INCLUDE ALL THE DOCUMENTS. DO NOT REMOVE ANY SEWN-IN LABELS.

● Safety precautions for fire and ventilation

CAUTION:

■ Additional ventilation is required when using gas or other burners.
- Do not place a hot appliance near to the walls, ceiling or curtains.
■ Always observe the safety notices for this product.
■ Never allow children to play in the vicinity of hot appliances.
- Keep the exits clear.
■ Ensure you know the fire precautions of the site.
■ Ensure that the ventilation openings are always open, in order to prevent suffocation.

- Assembly / Before use

Assembly is not necessary because the article is pre-assembled, with the exception of the guy ropes.

Use

Warning:

Please ensure that the poles are under tension and that the beach tent always springs into its natural shape. Ensure that the tensioning force does not cause you injury.

- Selecting a set-up location

☐ Preferentially choose a flat clean set-up area.
☐ Remove stones and similar objects, to prevent damage to the floor.

Take the beach tent out of the bag. Ensure that the poles are under tension and that the tent springs into its natural shape. Ensure that the tensioning force does not cause you injury.

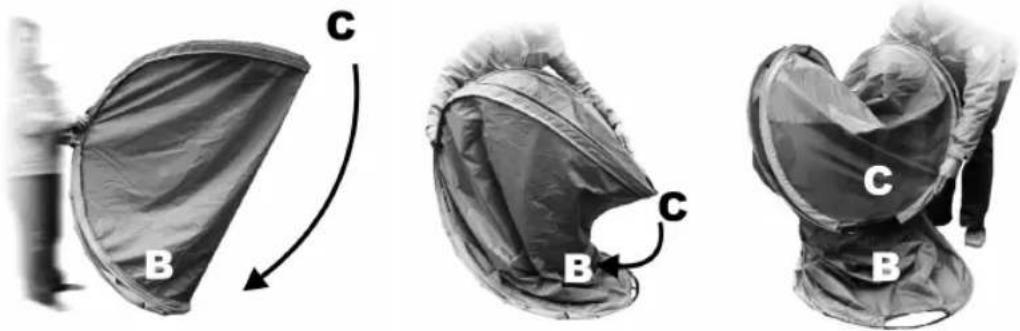

Figure 2: Stand the beach tent upright. Push the upper arch (C) downwards with the left hand and fold it in towards the centre (B) using your left hand.

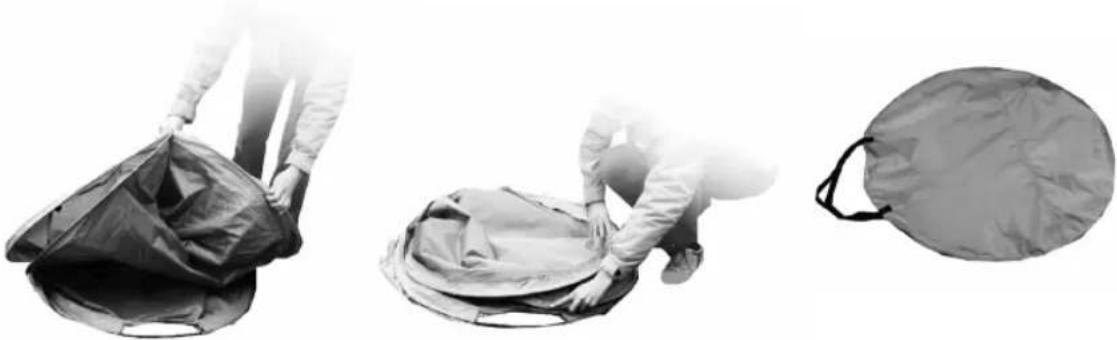

Figure 3: Push the rings into each other and pack the beach tent into the carry and storage bag.

- Assembling the beach tent

☐ Throw the beach tent away from you into the air. The entrance should not face into the wind if possible.

When securing, in order to achieve better steadiness, ensure that the tent pegs are inserted into the ground at an angle but without tension. The material and the anchor points should only be under light tension.

● Special problems/Particular environmental conditions

UV rays - all the tent materials suffer material fatigue under strong sunlight and bleach to a certain extent. During bad weather conditions (storm), it is recommended that the beach tent is dismantled.

- Dismantling the beach tent

Please watch the tent dismantling information video, by using the QR-code with a suitable appliance.

Attention: Please ensure that the poles are under tension and that the beach tent always springs into its natural shape. Ensure that the tensioning force does not cause you injury.

For dismantling, please follow the descriptions given with Figures 1–3.

To prevent the formation of mould or mildew stains, always dismantle the beach tent in a clean and dry condition.

Figure 1: Hold all the left and right arches together.

- Packing

☐ Pack the cleaned accessories into the storage bag supplied.
Lie the beach tent in the carry and storage bag and carefully close the zipper.
Keep the article in a cool, dry and well-ventilated place away from frost. Avoid packaging and storage in a damp condition, (formation of mould, mildew).

● Maintenance/Cleaning and repair

Brush off dirt. Use clean water if necessary. For stubborn stains, only use commercially available tent care products. Please never wash in a washing machine or dry-clean! Holes or tears can also be glued using the same material. The poles do not require specific maintenance, other than being stored dry and clean in the storage bag. The poles of this product cannot be repaired.

● Environmental instructions and disposal information

Contact your local authorities for information on how to dispose of the product at the end of product life.

Warranty

This tool has a warranty of 3 years from the date of purchase. The product has been manufactured with care and thoroughly inspected before delivery. Please keep your receipt as proof of purchase. In the event of a warranty claim, please contact our service

department by telephone. This will ensure you will be able to return your produce postage-free.

The warranty covers only claims for material and manufacturing defects, not transport damage, wearing items or damage to fragile components, e.g. buttons or batteries.

This product is intended for private, non-commercial use only.

Any incorrect or improper use of the device, use of force and changes not performed by our authorized service branch will void the warranty. This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This also applies to replaced and repaired parts. Any damage and defects present at the time of purchase must be reported immediately after unpacking the device, but no later than two days after the date of purchase. Repairs made after expiration of warranty are subject to a fee.

● Manufacturer / Service

Simex Sport GmbH

Schiefbahner Strasse 12

41748 Viersen

Germany

[e-mail]

IAN 86428
