HDSVI985B - Range hood HOOVER - Free user manual and instructions

Product type	Extractor hood
Brand	Hoover
Model	HDSVI985B
Width	90 cm
Depth	50 cm
Height (min - max)	60 - 110 cm
Net weight	15 kg
Power supply	220-240 V ~ 50 Hz
Maximum power consumption	200 W
Energy class	B
Installation type	Extraction or recirculation
Air outlet diameter	150 mm
Number of speeds	3
Lighting	LED, 2 x 3 W
Grease filters	Washable metal (2 pieces)
Charcoal filter (optional)	Ref. 39401198
Maximum noise level	65 dB(A)
Maximum airflow	650 m³/h
Controls	Touch electronic
Grease filter maintenance	Dishwasher wash every 2 months
Charcoal filter replacement	Every 6 months
Repairability index	7.5/10
Country of manufacture	Italy

Frequently Asked Questions - HDSVI985B HOOVER

How to install the Hoover HDSVI985B hood?

Installation must be carried out by a qualified professional. Ensure a safety distance of at least 65 cm between the hood and the hob. Use the supplied drilling template and firmly attach the hood to the wall. Connect the exhaust duct (diameter 150 mm) or install the charcoal filter for recirculation mode.

How to clean the hood's grease filters?

The metal grease filters are dishwasher safe or can be washed by hand with hot water and detergent. Let them dry completely before putting them back. It is recommended to clean them every 2 months or more often with heavy use.

When should the charcoal filter be replaced?

The charcoal filter should be replaced every 6 months to ensure optimal performance. The compatible model for the HDSVI985B is Hoover reference 39401198. The filter is not washable; it must be disposed of after use.

The hood makes noise, is this normal?

Some noise is normal, especially at maximum speed (65 dB(A)). If the noise becomes excessive, check that the exhaust duct is not obstructed, that the filters are clean, and that the hood is securely attached to the wall. An imbalance in the motor may also be the cause.

How to change the LED bulbs of the hood?

The LED bulbs are integrated and must be replaced by a professional. Contact Hoover after-sales service to obtain a replacement bulb (ref. 39401197). Do not attempt to disassemble the module yourself.

Can I use the hood without external exhaust?

Yes, the hood can operate in recirculation mode. For this, you must install a charcoal filter (not supplied) and block the air outlet. The charcoal filter must be replaced regularly to maintain good performance.

Why does the hood not turn on?

First check that the hood is properly plugged in and that the circuit breaker hasn't tripped. If the LED lighting does not work but the motor runs, the LED module may be defective. Contact customer service.

What is the maximum suction power?

The Hoover HDSVI985B hood offers a maximum airflow of 650 m³/h at speed 3. For daily use, speed 1 or 2 is sufficient.

How to set the hood timer?

Press the 'Timer' button to activate a delayed shut-off. The hood will automatically turn off after 10 minutes. You can cancel the timer by pressing the button again.

Where to find spare parts for the Hoover HDSVI985B hood?

Spare parts (filters, bulbs, remote control) are available from Hoover after-sales service or on their website. Use the model number HDSVI985B to identify compatible parts. The repairability index is 7.5/10, which facilitates repairs.

USER MANUAL HDSVI985B HOOVER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

SPECIFICATION

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 10

DESCRIPTION OF COMPONENTS 11

OPERATION 11

MAINTENANCE 13

TROBULESHOOTING 14

CONFORMITY WITH DIRECTIVES 15

ENVIRONMENTAL PROTECTION 15

05

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged in fumes from appliances burning gas or other fuels;
☐ Regulations concerning the discharge of air have to be fulfilled.
□
Children should be supervised to ensure that they do not play with the appliance.
☐ Do not flambé under the range hood.
☐ The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

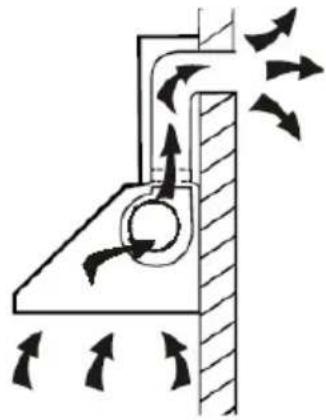

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

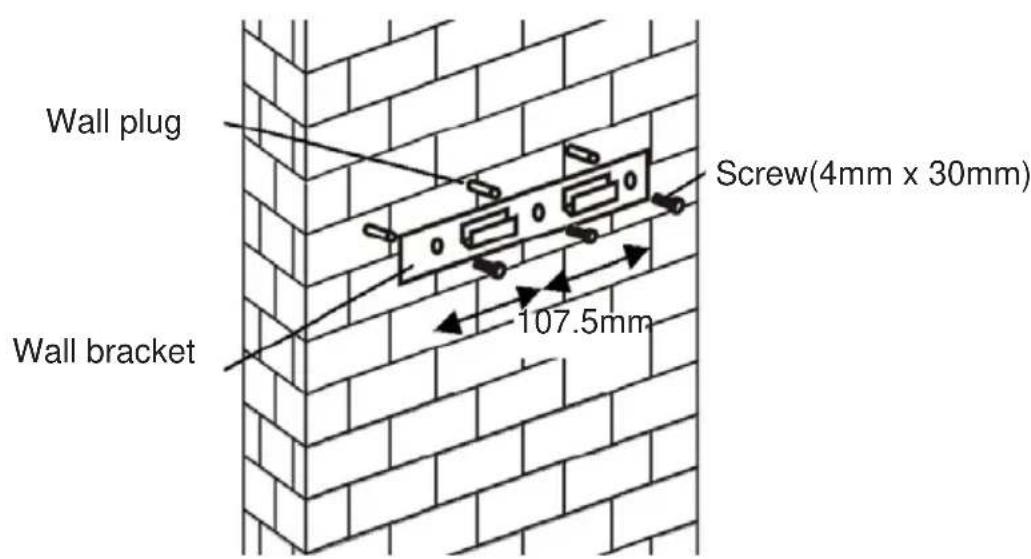

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Leave up the cooker hood and hang onto the wall bracket hook.

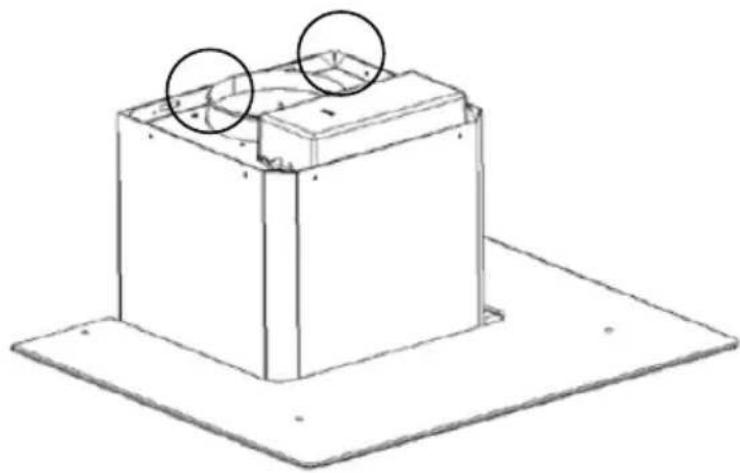

Technical line drawing of a rectangular box mounted on a flat base, with two circular annotations highlighting the top and side views (no text or symbols present)

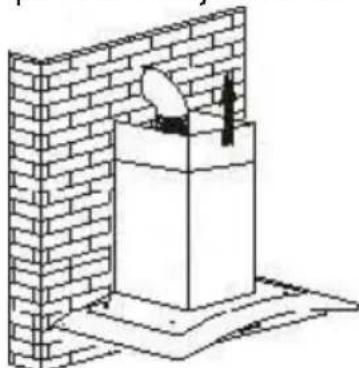

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

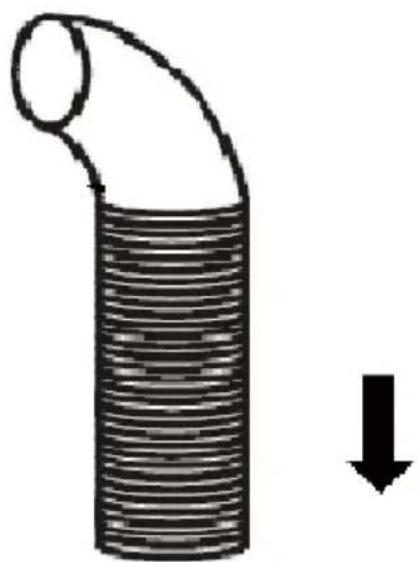

Diagram of a coiled pipe with a downward arrow indicating compression or reduction (no text or symbols)

Cooker hood

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

i. Place the glass in appropriate position on the top the cooker hood

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

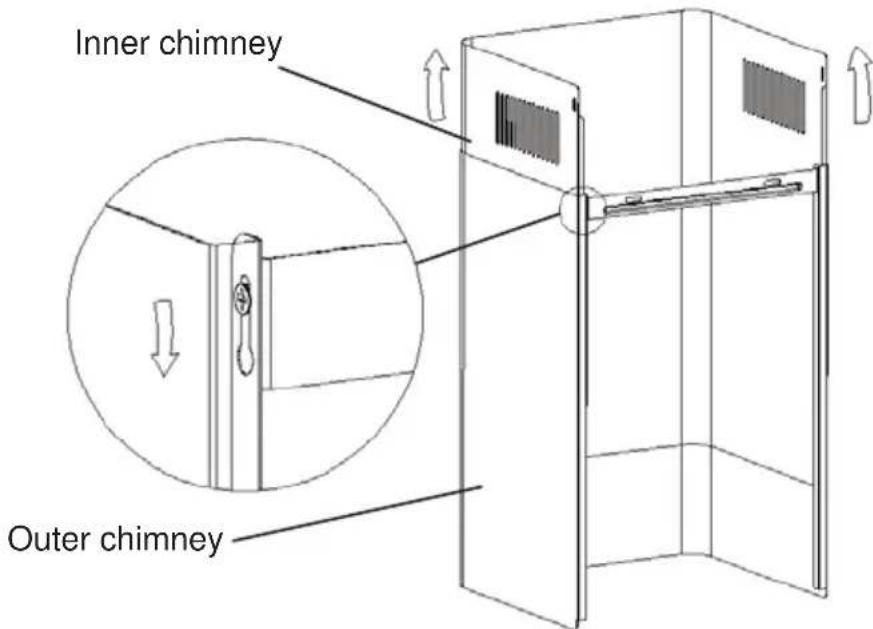

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Isometric line drawing of a brick wall with a small object on top, no text or symbols present

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

8.

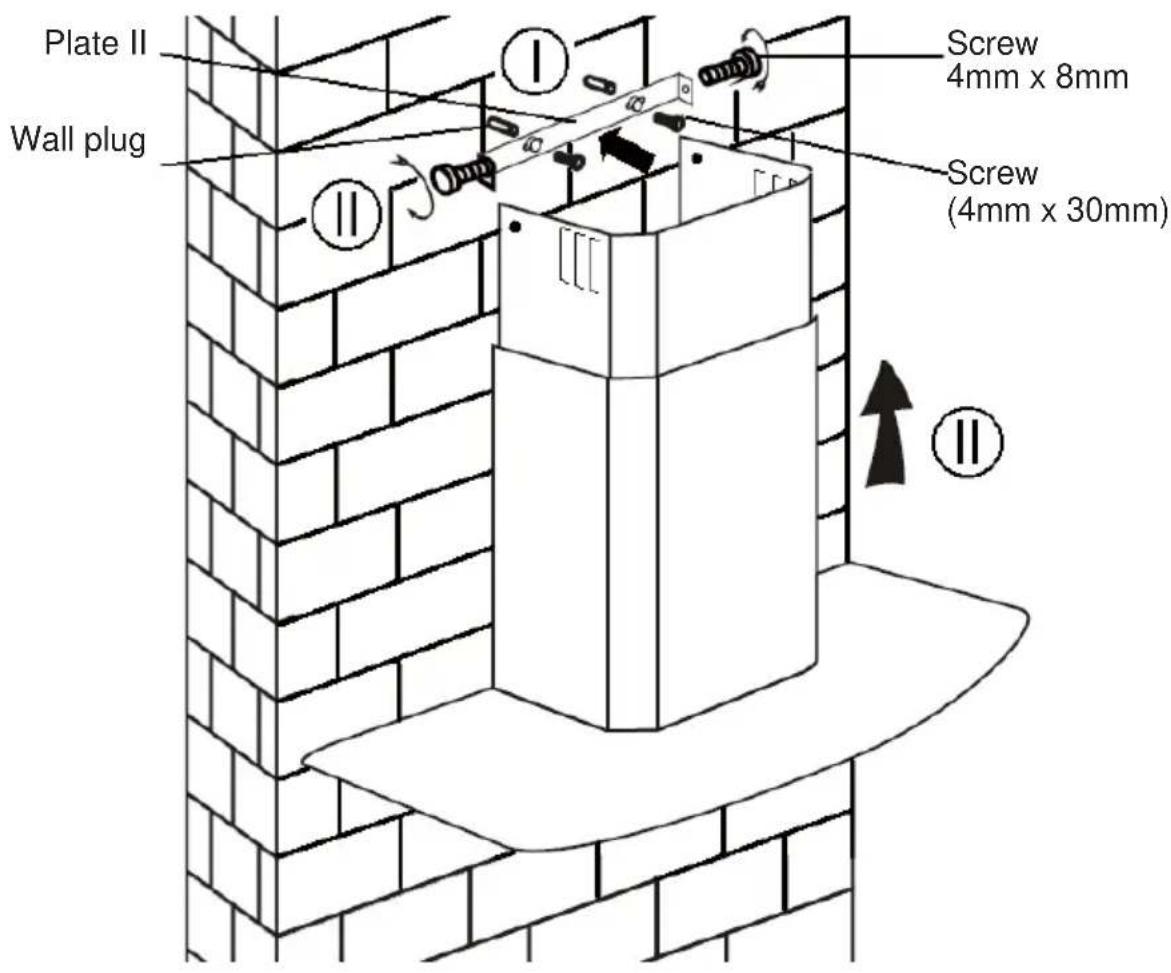

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.

ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

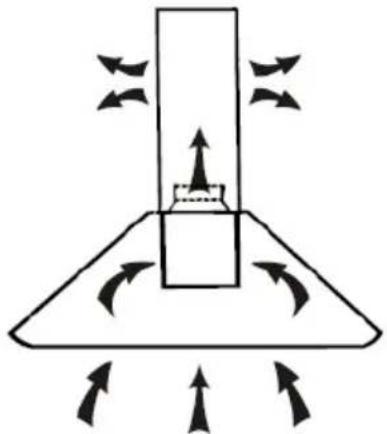

Diagram of a conical device with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with a close button and rotation arrow (no text or symbols)

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

ON/OFF button ①

Pressing 1-2 seconds to switch on/off the cooker hood.

Low Speed button 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

Short press the light/timer button (1 second) to switch on or switch off the light.

Quick Timer

.Keep pressing the Light/timer button for 2-3 seconds to switch on the quick timer.

The working speed button will become flashing, the quick timer will last for 5 seconds.

When the count down finish, there will be 'bit' sounds for 5 seconds.

To cancel the quick timer, press Light/Timer button again or press the ON/OFF button.

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

Booster button

Depress this button to enter into highest speed and again to turn off motor.

Light button

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure technical diagram showing a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

NOTICE D'INSTALLATION ET D'UTILISATION

Sommaire

INTRODUCTION 17

Installation (Evacuation) 20

Installation (Recyclage) 24

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular box mounted on a flat base, with two circular annotations highlighting the top and side views (no text or symbols present)

Diagram of a coiled pipe with a downward arrow indicating flow or compression (no text or symbols)

Hotte

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE

Enclenché

NOTE :

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with two circular features on top (no text or symbols)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Cappa

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Isometric line drawing of a brick wall with a mounted structure and a small circular object, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

Pure mechanical diagram showing two downward forces and a central component, without any text or symbols

INSTALLATION (ABLUFT NACH INNEN) 58

INSTALLATION (Wandmontage)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular box mounted on a flat base, with two circular features on top (no text or symbols)

Diagram of a brick wall with a cylindrical object inserted into a container, no text or symbols present

INSTALLATION (ABLUFT NACH INNEN)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

SCHLIESSEN

HINWEIS:

Pure mechanical diagram showing a lever system with two downward arrows indicating force or direction (no text or symbols)

INSTALLATIE (VENTILATIE BUITEN) 69

INSTALLATIE (VENTILATIE BINNEN) 74

BESCHRIJVING VAN DE ONDERDELEN 75

WERKING 75

ONDERHOUD 78

PROBLEMEN OPLOSSEN 79

OVEREENSTEMMNG MET RICHTLIJNEN 79

MILIEUBESCHERMING 79

INLEIDING

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular box mounted on a flat base, with two circular features on top (no text or symbols)

Diagram of a pipe with a curved duct and horizontal fill, accompanied by a downward arrow (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Architectural diagram of a brick wall with a central column and support structure (no text or symbols)

INSTALLATIE (VENTILATIE BINNEN)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with a circular arrow indicating rotational motion (no text or symbols on the diagram itself)

OPMERKING:

Pure mechanical diagram showing two downward arrows pointing to a central component with no text or symbols

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Hand holding a plug inserted into an electrical socket (no text or symbols visible)

Isometric line drawing of a rectangular box with two circular holes on top, placed on a flat base (no text or symbols)

Diagram of a brick chimney with an upward arrow, mounted on a base (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand holding a rectangular object with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

ΑΣΦΑΛΙΣΗ

ΣΗΜΕΙΩΣΗ:

Pure mechanical diagram showing two downward arrows pointing to a horizontal beam with a central component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular box with two circular holes on top, placed on a flat base (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating compression or reduction (no text or symbols)

Okap kuchenny

Technical line drawing of a mechanical housing or enclosure with no visible text or symbols

6.

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

UWAGA:

Pure electrical circuit lines without any symbols
