IAN 282273 - Air mattress CRIVIT - Free user manual and instructions

Product type	Inflatable buoy/mattress for aquatic use
Brand / Model	Crivit IAN 282273
Dimensions (inflated)	Approx. Ø 88 cm x H 27 cm
Maximum load	100 kg
Main material	PVC (plastic)
Intended use	Water recreation for one person able to swim
Inflation	Using a foot pump or double-action pump (not included)
Deflation	Open the valve, compress the stem or use the included evacuation hose
Repair	Adhesive patches included; wait 20 minutes after application
Delivery contents	1 buoy, 2 repair patches, 1 evacuation hose, instructions
Safety	Does not protect against drowning; for swimmers only; prohibited for children under 14; do not use in wind or current
Care and cleaning	Clean with water or soapy water; store dry and deflated at room temperature; close valves
Precautions	Avoid contact with sharp, hot objects; do not over-inflate; do not use compressor or compressed air
Spare parts available	During warranty period (according to after-sales service)
Warranty	Commercial warranty according to manufacturer's conditions; 2 years statutory warranty of conformity
After-sales service	CH Service Switzerland Tel. [phone] or email [e-mail]
Manufacturing date	2018 (Month/Year)
Minimum inflation temperature	15 °C

Frequently Asked Questions - IAN 282273 CRIVIT

How to properly inflate the Crivit IAN 282273 inflatable mattress?

Use a foot pump or double-action pump with a suitable adapter. Open the valve (1a), compress the stem (1b) and inflate until the item is firm but not over-inflated. Close the valve and push it in slightly. Never use a compressor or compressed air.

What is the maximum weight supported by this mattress?

The maximum load is 100 kg. Never exceed this limit to avoid damaging the product or injuring yourself.

Can children use this product?

No, this mattress is not suitable for children under 14 years. It is only for people who can swim and does not protect against drowning.

How to repair a leak or hole in the mattress?

Completely deflate the item, clean and dry the area around the leak. Cut an adhesive patch (included) large enough, remove the paper and apply with firm pressure. Wait 20 minutes before reinflating. Do not use patches on seams.

Can I use this mattress in a pool or in the sea?

This mattress is designed for use on water, but it is forbidden to use it in case of wind or current. It does not protect against drowning and is reserved for swimmers.

How to quickly deflate the mattress?

Pull out the valve and compress the stem slightly to let air escape. You can also insert the included evacuation hose into the valve for faster deflation.

What are the important usage precautions?

Avoid contact with sharp, hot or cutting objects. Do not over-inflate. Protect the mattress from sunscreens containing alcohol. Do not inflate below 15°C. In case of strong heat, deflate slightly.

How to maintain and store the mattress after use?

Clean with water or soapy water, never with harsh chemicals. Store it clean, dry and deflated in a temperate room with valves closed. For winter, do not place sharp objects on it and do not dust with talc.

What accessories are included with the mattress?

The delivery includes: 1 buoy, 2 repair patches, 1 evacuation hose and instructions. The pump is not included.

How to contact after-sales service for this product?

For Switzerland, call 0842 665566 (0.08 CHF/min) or email [e-mail]. Reference: IAN 282273.

USER MANUAL IAN 282273 CRIVIT

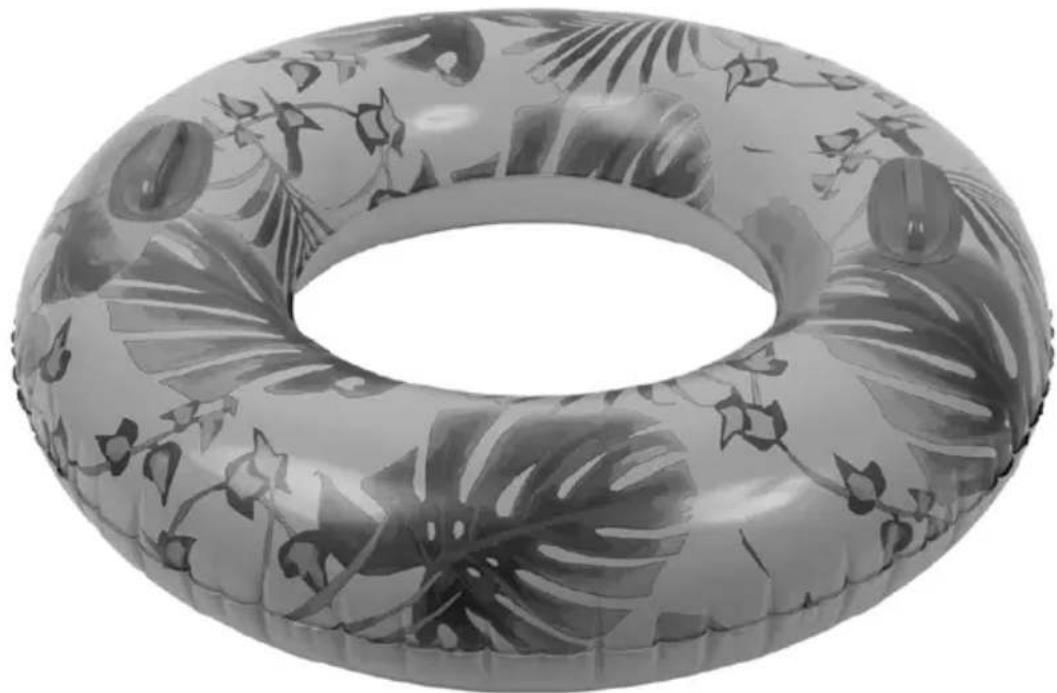

Black and white illustration of a torus with decorative floral patterns (no text or symbols)

WASSERRING

DE AT CH

WASSERRING

Gebrauchsanweisung

IT CH

CIAMBELLONE GONFIABILE

Istruzioni d'uso

FR CH

BOUÉE

Instructions for use

IAN 282273

DE AT CH

Lieferumfang 4

Technische Daten 4

Scope of delivery 14

Technical data 14

Intended use 14

Used symbols 14 - 15

Safety instructions 15

Inflating 15-16

Empty the air 16

Repair 16

Storage, cleaning 16

Disposal 16

Service handling 16

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

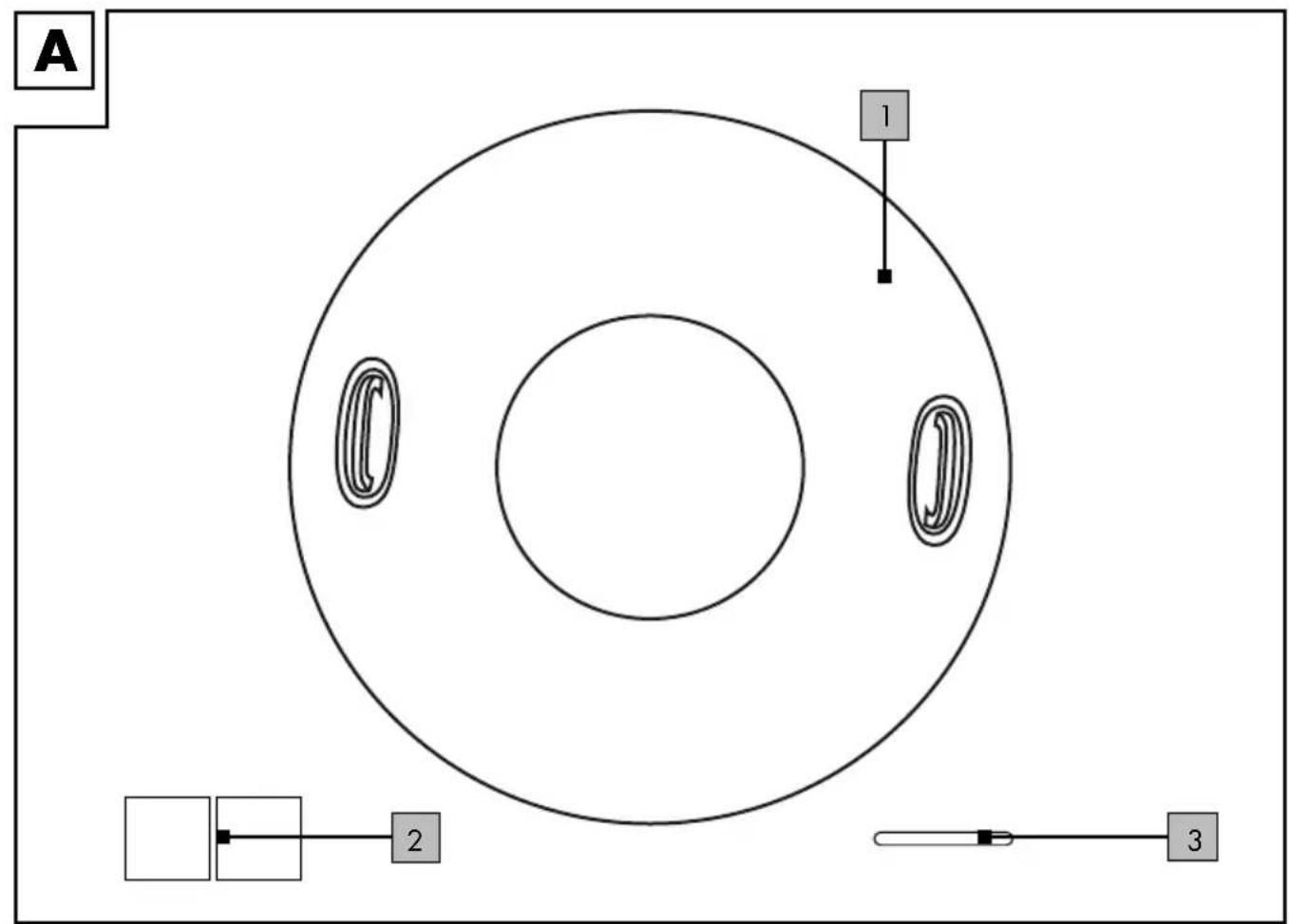

Scope of delivery (figure A)

1 x inflatable swim ring (1)
2 x repair patch (2)
1 x bleeder tube (3)
1 x instructions for use

Technical data

Size (inflated): approx. 88 x 27cm (∅ x H)

Highest load: 100kg

Date of manufacture (month/year): 2018

Intended use

This product is designed for private use by one person of 100kg maximum weight, and is for use on water. The product is not a swimming aid, or a water toy, or a winter sports article, and is only suitable for swimmers!

Not suited for children from ages 0-14.

Used symbols

WARNING!

Please take note of the symbols indicated on the product before using the item.

General warning sign

This is not a buoyancy aid

General prohibition sign

General mandatory sign

First read the instructions for use

Do not use with offshore

Do not use with offshore

Not suitable for children years of age

Number of users: / children 0

Only suitable for t swimmers

□
区

Device requires

Highest load

Safe distance to shore: 50m

+

1

completely

Inflate all air chambers

2

Permissible operating pressure

Risk of body becoming jammed is not correct

Avoid jamming by ensuring loose fit

Body size for the inside area

Safety instructions

CAUTION!

There is a risk of tipping, drifting or drowning if these instructions are not followed. Uneven distribution of load on the article will cause tipping.

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

WARNING! MORTAL DANGER!

Will not protect against drowning! For swimmers only!

CAUTION!

The air chambers can be pushed below the water surface during ascending. Due to this reason and as well as due to single-sided loading the product can tilt.

Risk of injury!

• Use the device only for its intended purpose.
• The product may only be used by persons who are familiar with the safety information.

• Please take note of the maximum highest load. Exceeding the weight limit can lead to product damages as well as influence the functions negatively.

• Check the product for damages or wear before each use. The product may only be used while in good order and condition!
  Do not use the product if visual damages can be seen or are suspected.

• Do not use the product anymore if it can no longer constrain air.

Avoiding damage to the product!

• All inflatable products are sensitive to the cold. The product should thus never be unfolded and inflated at temperatures below 15 °C!
• If air pressure increases in direct sunlight, it should be adjusted correspondingly by releasing some of the air.

- Please ensure that the product – particularly when it is inflated – is not brought into contact with stones, gravel or sharp objects and that it does not chafe or rub against anything, as damages to the foil could otherwise occur.

- Only insert suitable pump adapters into the safety valves. Otherwise the valves could become damaged.

- Do not inflate too strongly, as this could cause the welded seams to burst open. Seal the valves tightly after inflating.

- Avoid contact with sharp, hot, pointed or dangerous objects.

- WARNING!

Avoid the use of sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol may dissolve the colour coating of the inflatable PVC items. This can lead to discolouration on your body, your clothing, or on other objects which come into contact with the product.

Inflating

ATTENTION!

• All air chambers must always be completely inflated!
• Avoid excessively inflating the air chambers as this could cause the welded seams to overstretch or even burst open.

• Use standard foot pumps or doubleaction hand pumps with the correct adapters to inflate the product.

• Do not inflate the product with compressors or compressed air bottles. This could damage the product.
  • Make sure that the chambers are equally filled with air one after the other.

• Only inflate the chambers enough such that they are still slightly wavy on the inside after being inflated.

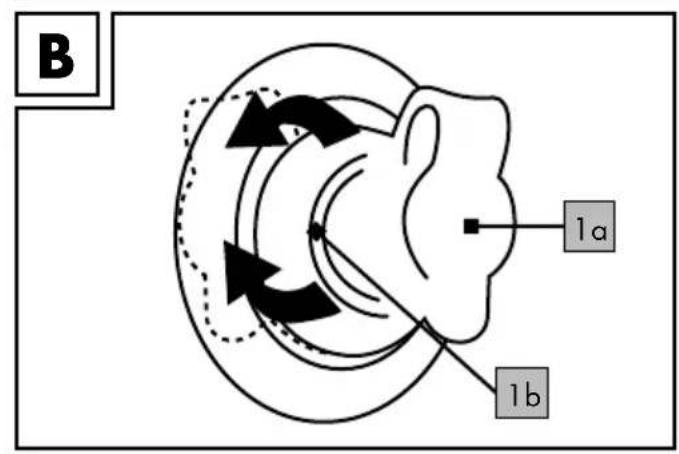

• Open the valve stopper (1a) (figure B).

• Press the valve shaft (1b) (figure B) together and pump up the air chamber until the article is sufficiently taut.
• Close the valve stopper and press the valve into the mattress applying gentle pressure.

Empty the air

1. Pull the valve out.
2. Press the valve shaft together slightly so that the air can escape.

Or insert the ventilation tube into the closure in order to allow the air to escape quickly.

Repair

Small leaks or holes can be rectified using the enclosed repair patch.

Important! After repairing this product, do not inflate it for at least 20 minutes! Do not use the patch for leaks or holes on the seam.

• Let all the air escape from the product.
• Clean the area around the leak thoroughly! This area must be dry and free of grease or oil.
• Cut off a piece of the repair patch, which is approx. 1.3cm larger in diameter than the damaged area.
• Pull the patch off of the paper and place it on the damaged area and press down firmly.

Storage, cleaning

Always store the product in clean and dry condition, deflated and at room temperature.

The valves should always be closed during storage. Only use water and a soap solution to clean the product, never use aggressive cleaning agents.

When you store the product over the winter do not place any sharp objects on the product and do not use talcum powder on it.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Service handling

IAN: 282273

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

02/2018
