IAN 271666 - Air mattress CRIVIT - Free user manual and instructions

Product type	Inflatable mattress
Brand	Crivit
Model	IAN 271666
Dimensions (inflated)	Approx. 178 x 65 x 19 cm (L x W x H)
Maximum load	100 kg
Intended use	Private use on water, for persons who can swim
Number of users	1 person
Delivery contents	Mattress, 2 repair patches, evacuation hose, instruction manual
Material	Plastic (not specified in more detail)
Valve type	Safety valve with closure
Inflation	Using a foot pump or double-action pump (compressor prohibited)
Inflation order	Sleeping surface then head
Deflation	Pull out valve, compress stem, or use evacuation hose
Repair	Self-adhesive patches for leaks and holes (except seams)
Maintenance	Clean with water or soapy water, no harsh chemicals
Storage	Dry, clean, deflated, valves closed, at room temperature
Safety precautions	Does not protect against drowning, only for swimmers, do not use in wind or current, not for children 0-14 years
Minimum inflation temperature	15 °C
Disposal	Environmentally friendly via an approved recycling company
After-sales service	Replacement parts at www.delta-sport.com (Lidl Service section)

Frequently Asked Questions - IAN 271666 CRIVIT

What are the dimensions of the mattress when inflated?

The mattress measures approximately 178 x 65 x 19 cm (Length x width x height).

What is the maximum supported weight?

The maximum load is 100 kg. Do not exceed this weight to avoid damage.

How to inflate the mattress correctly?

Use a foot pump or a double-action pump with suitable adapter. First inflate the sleeping surface, then the head. Never use a compressor or compressed air canister. Close the valves tightly after inflation.

Can this mattress be used as a swimming aid or for winter sports?

No, this mattress is not a swimming aid accessory, nor a toy or winter sports item. It is only suitable for persons who can swim.

Is the mattress suitable for children?

No, it is not suitable for children aged 0 to 14 years. Only suitable for adults who can swim.

How to repair a leak or hole?

Use the supplied repair patches. Fully deflate, clean and dry the area around the leak. Cut a piece of patch (overlap about 1.3 cm), remove the film and apply pressing firmly. Do not apply on seams.

How to maintain and store the mattress?

Clean with water or soapy water only. Store it dry, clean and deflated in a temperate room, valves closed. Avoid contact with sharp objects.

Can the mattress be used in strong wind or currents?

No, it is prohibited to use the mattress in wind or current. This increases the risk of capsizing and drowning.

What to do if the mattress loses air during use?

If the mattress can no longer hold air, do not use it. Check the valves and seams. If a leak is detected, repair it with the patches. If the problem persists, contact after-sales service.

How to get replacement parts?

Replacement parts are available on the website www.delta-sport.com in the Service - Lidl Replacement Parts Service section.

USER MANUAL IAN 271666 CRIVIT

LUFTMATRATZE

DE AT CH

LUFTMATRATZE

Gebrauchsanweisung

IT CH

MATERASSINO GONFIABILE

Istruzioni d'uso

FR CH

MATELAS GONFLABLE

Mode d'emploi

GB

POOL LOUNGER

Instructions for use

DE AT CH

Lieferumfang 4

Technische Daten 4

Scope of delivery 13

Technical data 13

Intended use 13

Used symbols 13

Safety instructions 14

Inflating 14

Empty the air 15

Repair 15

Care, storage 15

Disposal 15

Service 15

Congratulations! With your purchase you decided on a high-quality product. Get to the product before you start to use it.

Carefully read the following instructions for use. Use the product only as described and only for the given areas of application.

Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

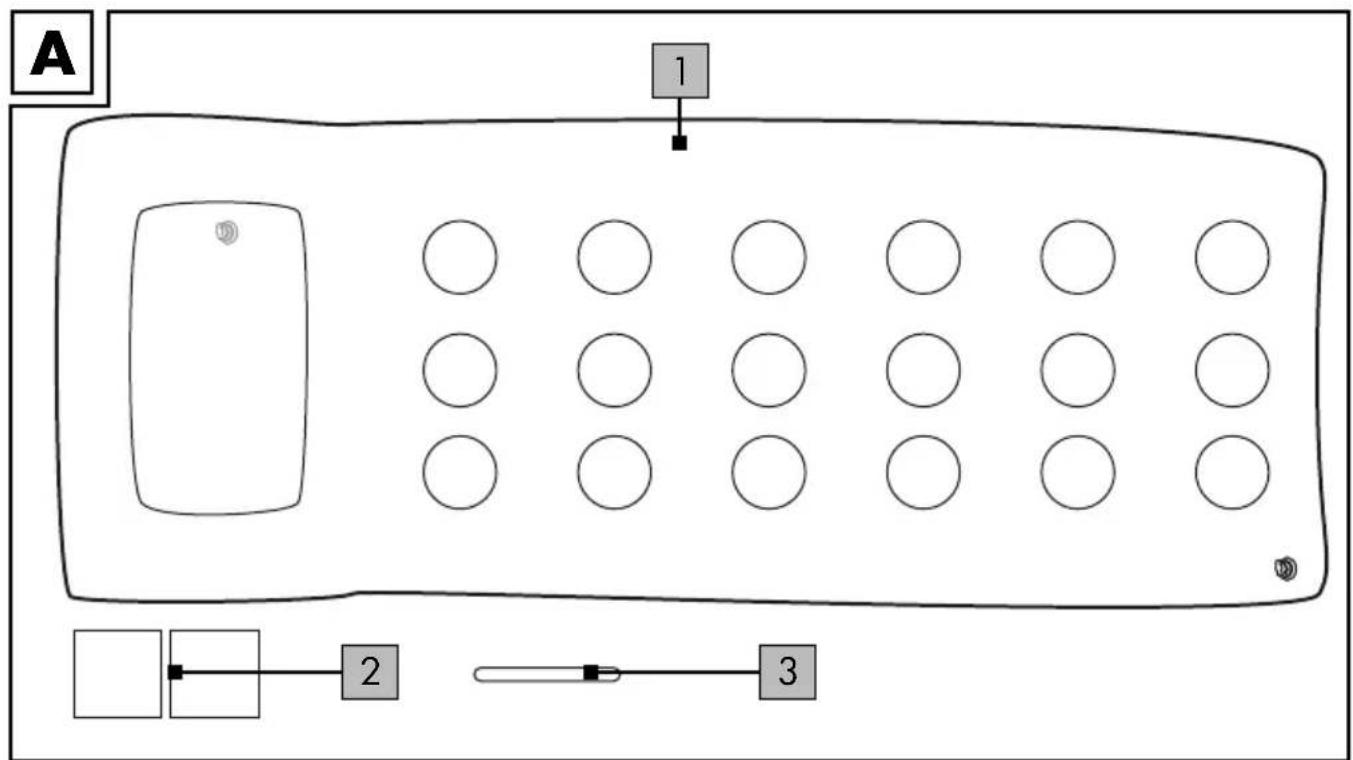

Scope of delivery (figure A)

1 x pool lounger (1)

2 x repair patch (2)

1 x bleeder tube (3)

1 x instructions for use

Technical data

Size (inflated): approx. 178 x 65 x 19cm

(L × W × H)

Highest load: 100kg

Intended use

This product is designed for private use by one person of 100kg maximum weight, and is for use on water. The product is not a swimming aid, or a water toy, or a winter sports article, and is only suitable for swimmers!

Not suited for children from ages 0-14.

Used symbols

WARNING!

Please take note of the symbols indicated on the product before using the item.

General warning sign

This is not a buoyancy aid

General prohibition sign

General mandatory sign

First read the instructions for use

Do not use with offshore

Do not use with offshore

Not suitable for children 4 years of age

Number of users: / children 0

Only suitable for at swimmers

Device requires

Highest load

Safe distance to shore: 50m

completely

Inflate all air chambers

Safety instructions

CAUTION!

There is a risk of tipping, drifting or drowning if these instructions are not followed. Uneven distribution of load on the article will cause tipping.

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

WARNING! MORTAL DANGER!

Will not protect against drowning!

For swimmers only!

CAUTION!

The air chambers can be pushed below the water surface during ascending.

Due to this reason and as well as due to single-sided loading the product can tilt.

Risk of injury!

• Use the device only for its intended purpose.
• The product may only be used by persons who are familiar with the safety information.
• Please take note of the maximum highest load. Exceeding the weight limit can lead to product damages as well as influence the functions negatively.
• Check the product for damages or wear before each use. The product may only be used while in good order and condition! Do not use the product if visual damages can be seen or are suspected.
• Do not use the product anymore if it can no longer constrain air.

Avoiding damage to the product!

• All inflatable products are sensitive to the cold. The product should thus never be unfolded and inflated at temperatures below 15^ !

• If air pressure increases in direct sunlight, it should be adjusted correspondingly by releasing some of the air.

• Please ensure that the product – particularly when it is inflated – is not brought into contact with stones, gravel or sharp objects and that it does not chafe or rub against anything, as damages to the foil could otherwise occur.

• Only insert suitable pump adapters into the safety valves. Otherwise the valves could become damaged.
• Do not inflate too strongly, as this could cause the welded seams to burst open. Seal the valves tightly after inflating.
• Avoid contact with sharp, hot, pointed or dangerous objects.

Inflating

ATTENTION!

• All air chambers must always be completely inflated!
• Avoid excessively inflating the air chambers as this could cause the welded seams to overstretch or even burst open.
• Use standard foot pumps or double-action hand pumps with the correct adapters to inflate the product.
• Do not inflate the product with compressors or compressed air bottles. This could damage the product.
  • Make sure that the chambers are equally filled with air one after the other.
• Only inflate the chambers enough such that they are still slightly wavy on the inside after being inflated.

Pump up the air chambers in the following order:

1. • Main section
2. • Head section

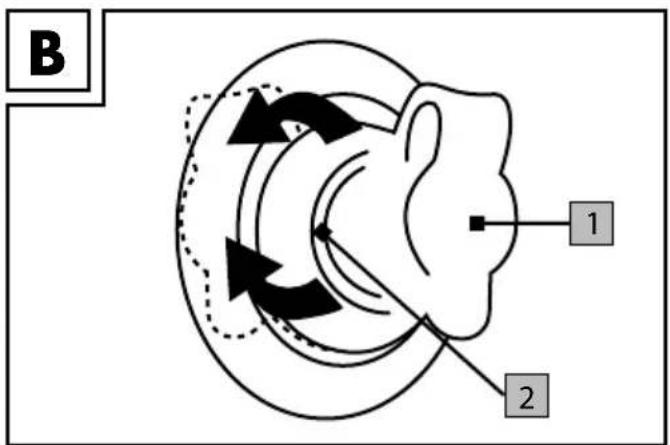

3. Open the valve stopper (1) (figure B).
4. Press the valve shaft (2) together and pump up the air chamber until the article is sufficiently taut.
5. Close the valve stopper and press the valve into the mattress applying gentle pressure.

Empty the air

1. Pull the valve out.
2. Press the valve shaft together slightly so that the air can escape.
   Or insert the ventilation tube into the closure in order to allow the air to escape quickly.

Repair

Small leaks or holes can be rectified using the enclosed repair patch.

Important!

After repairing this product, do not inflate it for at least 20 minutes! Do not use the patch for leaks or holes on the seam.

• Let all the air escape from the product.
• Clean the area around the leak thoroughly! This area must be dry and free of grease or oil.
• Cut off a piece of the repair patch, which is approx. 1.3cm larger in diameter than the damaged area.
• Pull the patch off of the paper and place it on the damaged area and press down firmly.

Care, storage

Always store this product in a dry, clean and deflated state at room temperature. The valves should always be closed when this product is being stored. Only clean using water or soap water; never use any aggressive cleaning agents. When putting this product away for winter storage, do not place any sharp objects on top of it and do not apply talcum powder.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

IAN: 271666

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 04/2016
