IAN 361428 - Air mattress CRIVIT - Free user manual and instructions

Product type	Inflatable mattress
Brand	Crivit
Model	IAN 361428
Dimensions (L x W x H)	Approx. 190 x 125 x 108 cm
Maximum load	100 kg
Number of users	1 person (adult)
Intended use	Pool, water recreation, for good swimmers
Recommended age	From 14 years
Material	PVC
Delivery contents	1 inflatable mattress, 2 repair patches, 1 user manual, 1 quick start guide
Valve type	Safety valve with flap
Operating pressure	Not specified; inflate until chambers are firm but not too tight
Care and cleaning	Clean with clear water or soapy water; store deflated, dry and at room temperature
Repair	Use provided patches; wait 20 minutes after application
Important safety instructions	Does not protect against drowning; for good swimmers only; do not use in strong wind or current; avoid sharp objects
Warranty	3 years (material and manufacturing defects)
Customer service	Service France: 0800 919270; email: [e-mail]
Reference	IAN 361428_2007

Frequently Asked Questions - IAN 361428 CRIVIT

How to properly inflate the CRIVIT IAN 361428 inflatable mattress?

First inflate the main air chamber, then the arch. Use a foot pump or double-action pump with the appropriate adapter. Do not use a compressor. Open the flap of the upper valve (fig. A), inflate until chambers are firm, then close the flap and push in the valve.

What is the maximum weight supported by this mattress?

The maximum authorized weight is 100 kg. Do not exceed this limit to avoid damaging the product and compromising its buoyancy.

Can I use this mattress in a public pool or at sea?

No, this mattress is only intended for use in pools. It is not suitable for sea, lakes, or rivers due to currents and waves.

How to repair a leak or hole on the mattress?

Use the provided patch. Completely deflate the mattress, clean and dry the area around the leak. Cut a piece of patch extending about 1.3 cm beyond the damaged area, remove the protective film, press firmly and wait 20 minutes before re-inflating. Do not apply on seams.

How to store the mattress out of season?

Store it deflated, dry, clean and at room temperature. Make sure the valves are closed. Avoid placing sharp objects on it. Do not use talc. Clean only with water or soapy water.

Can the mattress be used by children?

No, this product is not suitable for children aged 0 to 14 years. It is intended for adults who can swim. Children must be supervised constantly near water.

What inflation pressure is recommended?

The manual does not specify an exact pressure. Inflate until the air chambers are slightly rounded and firm, without over-inflating to avoid tearing seams. In hot weather, release some air to compensate for expansion.

Can I use sunscreen or sun products on the mattress?

Avoid sunscreens and skin care products containing alcohol, as they may discolor the PVC coating and stain your skin or clothes.

What to do if the mattress deflates during use?

Get out of the water immediately and check for a leak. If the mattress no longer holds air, do not use it anymore. Repair it with the provided patches or contact customer service.

What is the warranty for this product and how to activate it?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt. For any claims, contact the hotline at 0800 919270 (France) or by email at [e-mail].

USER MANUAL IAN 361428 CRIVIT

White inflatable raft with a curved gray handle, no text or symbols visible

REGENBOGEN-LUFTMATRATZE RAINBOW INFLATABLE POOL LOUNGER MATELAS GONFLABLE ARC-EN-CIEL

DE AT CH

TECZOWY MATERAC DMUCHANY

Instructions for use

NL BE

REGENBOOG LUCHTBED

Gebruiksaanwijzing

CZ

DUHOVÁ NAFUKOVACÍ MATRACE

Návod k použití

ES

COLCHÓN «ARCOÍRIS»

Technical line drawing of a mechanical component with a rotating shaft and housing (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Two pictograms showing a person in water and a person in a boat, with directional arrows indicating movement or flow (no text or symbols)

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery

1 x air mattress
2 x repair patch
1 x instructions for use
1 x quick start guide

Technical data

Size (inflated): approx. 190 x 125 x 108cm (L x W x H)

Highest load: 100kg

Date of manufacture (month/year): 02/2021

Intended use

This product may be used in the swimming pool only by one person with a maximum weight of 100kg. The product is for private use only. The product is not a swimming aid, or a water toy, or a winter sports article, and is only suitable for swimmers!

Not suited for children from ages 0-14.

Attention! The user surface is the side with the valves and symbols.

Used symbols

WARNING!

Please take note of the symbols indicated on the product before using the item.

General warning sign

This is not a buoyancy aid

General prohibition sign

General mandatory sign

First read the instructions for use

Not suitable for children from 0-14 years of age

Number of users: Adults 1 / children 0

Only suitable for competent swimmers

Device requires balancing

Highest load

To be used only in the swimming pool

+

Inflate all air chambers completely

2

Permissible operating pressure

Safety instructions

CAUTION!

There is a risk of tipping, drifting or drowning if these instructions are not followed. Uneven distribution of load on the article will cause tipping.

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

WARNING! MORTAL DANGER!

Will not protect against drowning! For swimmers only!

CAUTION!

The air chambers can be pushed below the water surface during ascending.

Due to this reason and as well as due to single-sided loading the product can tilt.

Risk of injury!

• Use the device only for its intended purpose.
• The product may only be used by persons who are familiar with the safety information.
• Please take note of the maximum highest load. Exceeding the weight limit can lead to product damages as well as influence the functions negatively.
• Check the product for damages or wear before each use. The product may only be used while in good order and condition! Do not use the product if visual damages can be seen or are suspected.
• Do not use the product anymore if it can no longer constrain air.

Avoiding damage to the product!

• All inflatable products are sensitive to the cold. The product should thus never be unfolded and inflated at temperatures below 15 °C!

• If air pressure increases in direct sunlight, it should be adjusted correspondingly by releasing some of the air.

• Please ensure that the product – particularly when it is inflated – is not brought into contact with stones, gravel or sharp objects and that it does not chafe or rub against anything, as damages to the foil could otherwise occur.

• Only insert suitable pump adapters into the safety valves. Otherwise the valves could become damaged.
• Do not inflate too strongly, as this could cause the welded seams to burst open. Seal the valves tightly after inflating.
• Avoid contact with sharp, hot, pointed or dangerous objects.
• WARNING! Avoid the use of sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol may dissolve the colour coating of the inflatable PVC items. This can lead to discolouration on your body, your clothing, or on other objects which come into contact with the product.

Inflating

ATTENTION!

• All air chambers must always be completely inflated!
• Avoid excessively inflating the air chambers as this could cause the welded seams to overstretch or even burst open.
• Use standard foot pumps or double-action hand pumps with the correct adapters to inflate the product.
• Do not inflate the product with compressors or compressed air bottles. This could damage the product.
  • Make sure that the chambers are equally filled with air one after the other.
• Only inflate the chambers enough such that they are still slightly wavy on the inside after being inflated.

Inflate the air chambers in the following sequence:

1. • main chamber
2. • bow-shaped headrest

3. Open the respective upper valve cap (fig. A).

4. Inflate the main chamber first and then the headrest until the product is firm enough.
5. Close the respective valve cap and apply light pressure to depress the valve.

Deflation

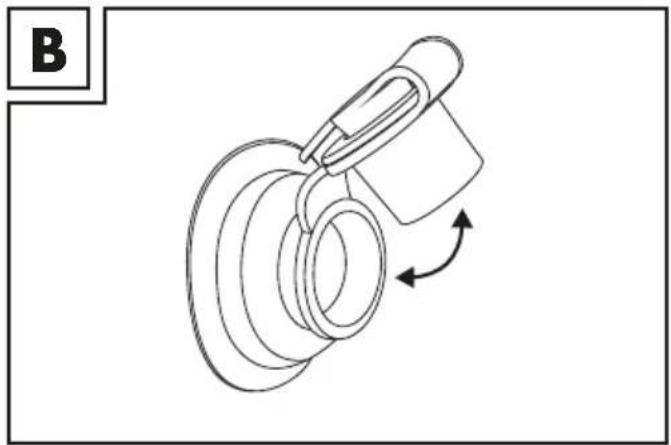

To deflate quickly open the respective lower valve cap (fig. B.).

Repair

Small leaks or holes can be rectified using the enclosed repair patch.

Important! After repairing this product, do not inflate it for at least 20 minutes! Do not use the patch for leaks or holes on the seam.

1. Let all the air escape from the product.
2. Clean the area around the leak thoroughly! This area must be dry and free of grease or oil.
3. Cut off a piece of the repair patch, which is approx. 1.3cm larger in diameter than the damaged area.
4. Pull the patch off of the paper and place it on the damaged area and press down firmly.

Storage, cleaning

When not in use, always store the product clean, dry and uninflated at room temperature. The valves should always be closed during storage. Use only water or soapy water to clean.

When storing for the winter do not put any sharp objects on the product and do not apply talcum powder.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 361428_2007

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
