Product Type	LED suspended ceiling light
Available models	54577 (rectangular 60x40 cm) and 54578 (round ∅ 40 cm)
Dimensions (model 54577)	Length 60 cm, width 40 cm, suspension height 130 cm
Dimensions (model 54578)	Diameter 40 cm, suspension height 130 cm
Power supply	220-240 V~ 50 Hz
Max rated power	28 W
Protection class	II
Integrated dimmer	Yes, push button to adjust brightness
Height adjustment	Yes, up to 40 cm adjustment
Orientation	Possible to correct suspension
Light source	Non-replaceable LED
Usage	Indoor, dry and enclosed rooms
Installation	By a qualified electrician
Maintenance	Clean with a dry, lint-free cloth, disconnect power before
Warranty	3 years from date of purchase
After-sales service France	EGLO FRANCE LUMINAIRE SARL, ZA Jeune Bois, 2 Rue de la Martinique, F-68274 Wittenheim, T: [phone], [e-mail]
After-sales service Belgium	EGLO BELGIUM B.V.B.A., Antwerpsesteenweg 247, B-2950 KAPELLEN, T: [phone], [e-mail]

Frequently Asked Questions - IAN 280204 Livarno Lux

How to install the light?

The electrical installation must be carried out by a qualified electrician. Before assembly, turn off the circuit breaker (position 0). Use the provided dowels and screws. Follow the steps illustrated in the manual.

Can I adjust the brightness?

Yes, the light has an integrated dimmer operated by a push button (10). Press and hold to decrease or increase brightness. The wall switch resets brightness to 100%.

Is the light suitable for a bathroom?

No, this light is exclusively designed for indoor use in dry and enclosed rooms. It must not be exposed to moisture.

How to adjust the suspension height?

Press the height adjustment (9) located at the cable outlet. You can shorten or lengthen the cable (max. 40 cm) by pushing it in or pulling it out of the connection box. Replace the height adjustment to secure the cable.

What to do if the light does not turn on?

First check the circuit breaker and fuse. Ensure power is present (220-240 V~). If the problem persists, contact after-sales service.

How to clean the light?

Turn off the mains power (circuit breaker in position 0). Let the light cool down. Use a dry, lint-free cloth. Never use aggressive detergents and do not immerse the light in water.

Can I replace the light source?

No, the LED light source is not replaceable. At the end of its life, the entire light must be replaced.

What is the warranty?

The light has a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the receipt and item reference.

Where can I find after-sales service?

In France: EGLO FRANCE LUMINAIRE SARL, T: [phone], [e-mail]. In Belgium: EGLO BELGIUM B.V.B.A., T: [phone], [e-mail].

Is the light compatible with a dimmer switch?

The light has its own integrated dimmer (push button). Using an external wall dimmer is not recommended, as it could damage the light.

USER MANUAL IAN 280204 Livarno Lux

LED-PENDELLEUCHTE / LED PENDANT LAMP / SUSPENSION À LED

DE AT CH

LED-PENDELLEUCHTE

Assembly, operating and safety instructions

NL BE

LED-PENDELLAMP

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill / AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 280204

Intended use Page 12

Scope of delivery Page 12

Parts Description......Page 12

Technical Data Page 13

Safety Page 13

Safety Notices......Page 13

Preparation Page 14

Required tools and material....Page 14

Prior to installation Page 14

Initial use Page 14

Installing the light Page 14

Dimming the light Page 14

Adjusting the light....Page 14

Maintenance and Cleaning......Page 15

Disposal Page 15

Declaration of Conformity Page 15

Warranty / Service centre Page 15

Warranty Page 15

Service address......Page 16

Warranty card......Page 16

List of pictograms used
	Read the instructions! Safety class II
[XSW7]	Safety instructionsInstructions for use	[472K]	Observe the warnings and safety notices!
	This light is only suitable for indoor use in dry and enclosed spaces.		Accident hazard and risk of fatal injury forinfants and children!
	Volt (AC) Warning! Risk of electric shock!
	Hertz (mains frequency) Warning - Hot surf	[5XHS]
	Watt (effective power)	[BHD2]	Dispose of the packaging and the product in an environmentally friendly manner!

LED pendant lamp

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to care-

fully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

The light can be mounted to any surface of normal flammability.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 LED Pendant Light

2 Wall plugs

2 Screws

1 Set of assembly instructions and instructions for use, including warranty card

PartsDescription

1 Wall plug
2 Mounting bracket
3 Screws (mounting bracket)
4 Connection box (electrical connection)
5 Connection housing
6 Locating screw (connection housing)
7 Mounting ring for light
8 Terminal block
9 Height adjustment
10 Button (for brightness control)

●TechnicalData

Item number: 54577 / 54578

Operating voltage: 220-240V\~50Hz

Rated power max.: 28 W

Protection class: II/

Dimensions:

Length from

ceiling/length: 54577: 130 cm, length of

light: 60 cm, width: 40 cm

54578: 130 cm, ∅ Light:

40 cm

Distributor:

EDI Light GmbH, Heiligkreuz 22, A-6136 Pill,

www.edi-light.com

●Safety

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

RISK OF WARNING!

CIDENT AND DANGER TO LIFE FOR INFANTS AND CHILDREN!

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

- Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

■ Ensure the electrical connection is carried out by a qualified electrician or a person trained in electrical installations.
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any defects have been identified.
■ Remove the fuse or switch off the circuit breaker (0 setting) in the fuse box prior to installation.
- Be sure not to damage any wires during installation.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Before use, verify the available mains voltage matches the voltage required for operating the light (220–240V\~, 50Hz).

Preventing fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure the light has been switched off and

has cooled down before touching it to avoid burns. Lamps become very hot.

• Do not attach the light to a damp or conductive surface.
  Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).
  The illuminant in this light is not replaceable; when the illuminant reaches the end of its life, replace the entire light.

RISK OF SHORT CIRCUIT! Ensure the cables do not touch during operation. This can damage the light.

●Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / marking tool
• Voltage tester
• Screwdriver
• Electric drill
• Bit ( approx. 0.6 cm)
• Side cutting pliers
• Ladder

- Prior to installation

Important: The electrical connection must be established by a qualified electrician. This person must be familiar with the properties of the light and the connection regulations.

• Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
  ■ Make careful preparations for mounting and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
  ■ Always be attentive! Always pay attention to what you are doing and proceed with caution at all times. Never install the light if you are having difficulty concentrating or do not feel well.
  Before installation ensure that the circuit to which the light will be connected is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).
• Verify that the components are not energised using a voltage tester.

■ Ensure that you do not damage any electrical cables, gas or water pipes when you drill into the wall.
- Please refer to the instructions for use for your power drill.

- Initial use

• Installing the light

WARNING! DANGER OF ELECTRIC SHOCK!

■ Remove the fuse or switch off the circuit breaker (O setting) in the fuse box prior to installation (see Fig. A).

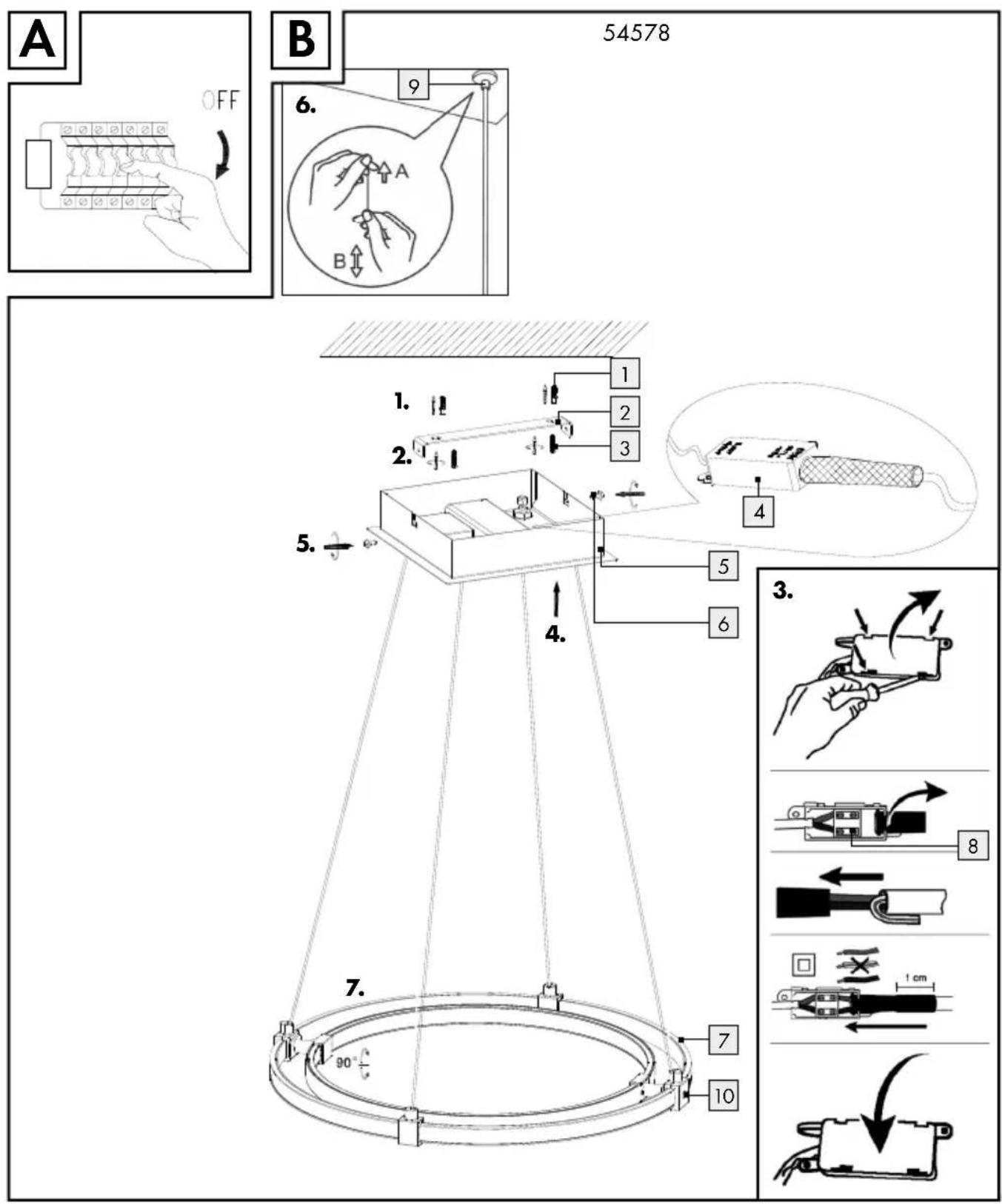

☐ Install the light as shown in Figure B. While doing so, ensure that you follow the order of the individual steps as stated in these instructions.

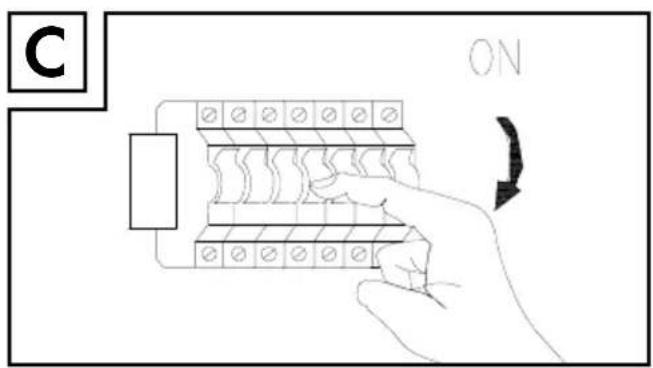

☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (I setting) (see Fig. C).

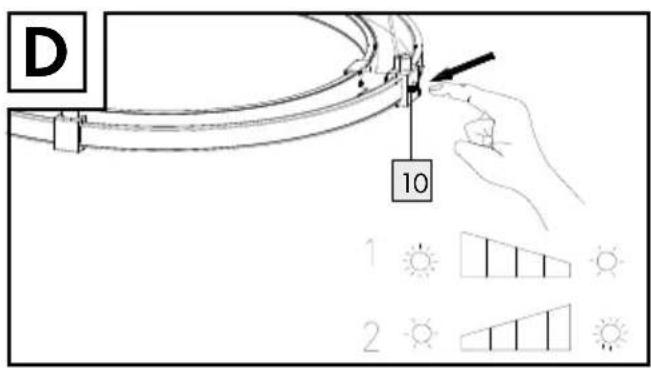

Dimming the light

☐ You have the option of dimming the light using a button 10.
☐ Press and hold the button 10 to reduce brightness.
☐ Press and hold the button 10 again to increase brightness.
☐ If you switch the light on or off using the wall switch, it will be at 100% brightness.

- Adjusting the light

☐ If the pendant does not hang down straight, you can adjust it at the connection housing 5.
☐ Press the height adjustment 9 on the end of the cable back into the connection housing 5
☐ Push the cable into the connection housing 5 to shorten it (max. 40 cm).
☐ Pull the cable out of the connection housing 5 to extend it.

☐ Allow the height adjustment 9 to return to its initial position. The cable is now secured.

● Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).

WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh detergents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  ☐ Only use a dry, lint-free cloth for cleaning.
  ☐ Replace the fuse or switch on the circuit breaker in the fuse box (I position).

●Disposal

The packaging is made of entirely recyclable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administration for more details on how to dispose of your worn-out product.

The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate refuse collection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

● Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Serviceaddress

Great Britain/Irland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

T: [phone]

E: [e-mail]

IAN 280204

Please have your receipt and item number (e.g.

IAN 12345) ready as your proof of purchase

when enquiring about the product.

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

Please return the unrepaired item, carriage paid.

Please provide pricing. Repair the product against charge.

NL-4906 AA OOSTERHOUT (NBR)

T: [phone]

E: [e-mail]

België

EGLO BELGIUM B.V.B.A.

Antwerpsesteenweg 247

B-2950 KAPELLEN

T: [phone]

E: [e-mail]

IAN 280204

EGLO ČESKO-MORAVSKÁ SVÍTIDLA SPOL. S.R.O.

Náchodská 2479/63

CZ-193 00 PRAHA 9 Horní Počernice

T: [phone]

E: [e-mail]

IAN 280204

(Edf. Best Point) 2° - 16A

San Fernando de Henares

E-28830 MADRID

T: [phone]

E: [e-mail]

IAN 280204
