Brand	Livarno Lux
Model	IAN 286717
Product type	LED solar lamp with motion sensor
Operating voltage	3.7 V
Battery type	Lithium-ion 18650, 2200 mAh
Number of LEDs	10 (non-replaceable)
Power per LED	Approx. 0.5 W
Solar cell	5 V, 160 mA
Sensor range	Up to 5 m
Detection angle	90° (at 2 m height)
Protection rating	IP44 (water splashes)
Functions	Fixed night lighting (15 lm), full power lighting (200 lm) with motion detection, delay 40 s
Operating temperature	Down to -21 °C
Warranty	3 years
Cleaning	Lint-free damp cloth, mild cleaner; clean the sensor and solar cell regularly
Battery replacement	Possible, use a 18650 3.7 V 2200 mAh battery

Frequently Asked Questions - IAN 286717 Livarno Lux

How to charge the lamp for the first time?

Set the ON/OFF switch to ON and expose the solar cell to direct sunlight. Charging may take 2 to 10 days depending on sunlight.

What to do if the lamp does not turn on?

Check that the switch is set to ON, the sensor is clean, and the battery is charged. If necessary, recharge the battery with an external charger.

How to replace the battery?

Remove the lamp from the bracket, set the switch to OFF, unscrew the battery compartment cover, replace the battery with a 18650 3.7 V 2200 mAh battery respecting polarity, then close.

Why does the battery discharge quickly?

This may be due to a dirty solar cell, unfavorable orientation, winter weather conditions, or a defective battery. Clean the cell or reorient it.

Does the lamp work in winter?

Yes, but charging may be reduced. Check that the solar cell is not shaded, remove snow or ice, and recharge the battery if necessary with an external charger.

What is the ideal mounting height?

A height of 2 m is recommended for a maximum detection range of 5 m and an angle of 90°.

Can I use the lamp as indoor lighting?

No, this product is designed for outdoor use only, to illuminate areas without access to electricity such as a garden shed.

How to clean the lamp?

Turn it off, use a slightly damp lint-free cloth with a mild cleaner. Clean the sensor and solar cell regularly.

What to do if the light flickers?

This indicates the battery is almost empty. Recharge it with an external charger.

Are the LEDs replaceable?

No, the LEDs cannot be replaced. If they reach the end of their life, the entire product must be replaced.

USER MANUAL IAN 286717 Livarno Lux

LED-SOLAR-WANDLEUCHTE / LED SOLAR WALL LIGHT / APPLIQUE MURALE SOLAIRE À LED

DE AT CH

LED-SOLAR-WANDLEUCHTE

Assembly, operating and safety instructions

FR BE

APPLIQUE MURALE SOLAIRE À LED

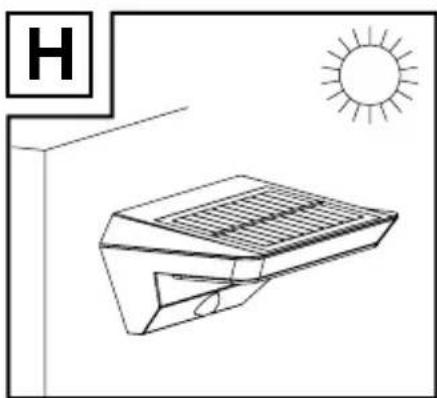

Simple line drawing of a solar panel with a sun and a label 'H' (no text or symbols on the diagram itself)

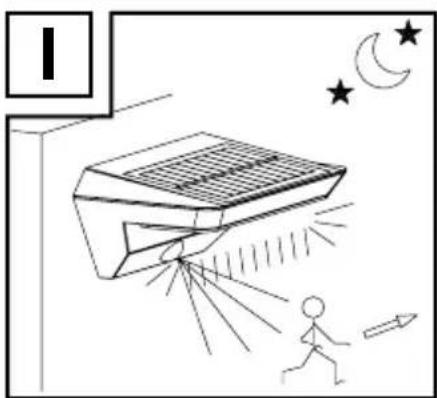

Illustration of a person walking toward a solar panel under night sky with stars and moon (no text or symbols)

Intended use....Page 17

Parts description......Page 17

Technical data......Page 18

Scope of delivery....Page 18

General safety instructions......Page 19

Safety instructions for batteries / rechargeable batteries.. Page 19

Function......Page 20

Before use...... Page 20

Charging...... Page 20

Initial use......Page 21

Installation......Page 21

Replacing the rechargeable battery ...... Page 22

Winter-time use...... Page 23

Cleaning and care....Page 23

Troubleshooting Page 23

Disposal Page 24

Warranty Page 25

List of pictograms used
	Direct current (type of current and voltage)
	LED lifespan
	Motion detector range: 5 m
	Coverage angle of motion detector: 90 °

LED Solar wall light

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended to illuminate outdoor areas without electrical connection, e. g. garden sheds etc. The product is intended for private use only and is not suitable for commercial use.

■ Not suitable for household room illumination.

This product is suitable for extreme temperatures up to -21 °C.

Parts description

1 Wall plug
2 Mounting plate
3 Screws (4 x 30 mm)

4 Hanger
5 Receiver
6 Solar cell
7 Sensor
8 Battery cover
9 Battery compartment
10 Rechargeable battery
11 ON/OFF switch

Technical data

Operating voltage: 3.7V

Rechargeable battery: 1 x 3.7 V=Li-ion battery, 2200 mAh, 18650

LED lamp: 10 x approx. 0.5 W (the LEDs are non-replaceable.)

Solar cell: approx. 5 V, approx. 160 mA

Sensor: Range: max. 5 m,

detection angle: approx. 90° (at the optimal installation height of approx. 2 m)

Degree of

protection: IP44 (splash-proof)

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Main unit
1 Li-Ion rechargeable battery type 18650, 3.7 V—, 2200 mAh (pre-installed)
1 Mounting plate
2 Screws (4 x 30 mm)
2 Wall plugs ∅ 6 mm
1 Assembly, operating and safety instructions

General safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

- Keep children out of the area you are working in. A large number of screws and other small parts are included with delivery. These may prove life-threatening if swallowed or inhaled.

Do not use this product if you notice any damage!

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge

non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them.

Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES! Leaked or dam-

aged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable pro-

tective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
The illuminants are not replaceable.
If the illuminants fail at the end of their lives, the entire product must be replaced.

Function

The solar cell 6 converts energy from sunlight into electricity. It charges the rechargeable battery installed in the battery compartment 9. This rechargeable battery stores electric energy supplied by the solar cell. A fully charged rechargeable battery supplies enough energy for about 0.5 hours of light in sensor mode or about 8 hours of light in stand-by mode. During the summer, a fully discharged rechargeable battery will need approx. two to four days of consistent exposure to sunlight until it is fully charged. The rechargeable battery must be charged before using the light for the first time (see "Charging").

Before use

Note: Remove all packaging materials from the product.

Charging

Note: The rechargeable battery built into the product is charged at the time of delivery. However, it may have lost charge during

transport from the manufacturer to the retail location. Therefore, please charge the rechargeable battery before the first use.

☐ Slide the ON/OFF switch to the ON position.

Note: In constant sunlight (depending on the season) a drained rechargeable battery should take two to ten days to charge.

Note: The built-in charging controller of the LED solar spotlight prevents the rechargeable batteries from overcharging. Replace the rechargeable battery if the light output does not improve after charging (see "Replacing the rechargeable battery").

Initial use

Note: The solar cell 6 also works as a twilight sensor, while the motion sensor 7 only responds to movement.

☐ When selecting the setup location for the solar cell ensure that the solar cell, as well as the twilight sensor, is not affected by other light sources, e.g. street lighting.

The "ON" position for the ON/OFF switch 11 features the following functions:

If the orientation light is constantly lit up, it will automatically switch on or off once the solar cell 6 detects dusk or dawn. To ensure a long operating life, the LEDs will not be fully powered in this setting, but only provide approx. 15 lm. If the rechargeable battery is fully charged, the charge will be sufficient for approx. 8 hours of lighting. As soon as the motion sensor 7 detects movement, the product will switch to particularly bright light. While the particularly bright light is switched on, the LEDS will be run at full power and supply approx. 200 lm. Approx. 40 seconds after the last movement has been detected, the product will return to functioning as a constantly lit-up orientation light.

- Installation

☐ When selecting the mounting location, pay attention to the following:

1. The solar cell 6 requires direct sunlight when possible. Ideally, the solar cell surface will be directed to the south. The horizontal direction of the solar cell is dependent on mounting on a vertical wall.

2. Depending on the mounting height (ideally at 2 m) the sensor 7 has a detection range of max. 5 m with a detection angle of 90° horizontally and 90° vertically.

3. Ensure that the product is not illuminated by street lighting at night. This can influence the effect.

☐ Fix the mounting plate 2 using the provided wall plugs 1 ( 6 mm) and the provided screws 3 Ensure that the arrow on the marking of the mounting plate ( UP) is showing vertically upward (Fig. A).

Note: The enclosed mounting material is suitable for ordinary masonry construction. Other wall substrates may require other fastening materials. Seek specialist advice when in doubt.

Set the ON / OFF switch to the position "ON" to start the operation of the product (Fig. G).

Note: In the "OFF" position both the light and the charging function are disabled.

☐ Attach the product to the mounting plate in such a way that the hangers 4 of the mounting plate grip in the receivers 5 on the back of the product. Slide the product downwards until the hangers click into place in the receivers (Fig. B).

After mounting, check that the main unit is fitted securely.

● Replacing the rechargeable battery

Note: Regularly clean the sensor and solar cell to ensure proper functionality (refer to "Cleaning and care").

Replace the rechargeable battery as follows:

☐ Slide the product upwards until the hangers 4 release from the receivers 5 (Fig. B).
☐ Remove the product from the wall.
Set the ON / OFF switch to position "OFF" (Fig. G).
☐ Loosen the fixing screws of the battery cover and remove these (Fig. D).
Remove the rechargeable battery from the battery compartment 9 and replace it with a new rechargeable battery (Fig. E). Use only rechargeable batteries of the recommended type (see "Technical data"). Please note the polarity when inserting the battery. This is indicated in the battery compartment.
☐ Close the battery compartment by fixing the battery cover with the fixing screws. Ensure that the arrow on the marking of the battery compartment 8 (↑UP) points vertically upward (Fig. F).
Note: Ensure that you tighten the screws, otherwise, water could get into the battery compartment and damage the rechargeable battery or the product.
☐ Return the ON / OFF switch to the position "ON" before you return the product to the hooks of the mounting plate.

- Winter-time use

Due to the low level of solar radiation in the winter, charging of the rechargeable battery may be reduced, and correspondingly, the effectiveness of the product may decrease. For this reason check that the solar cell 6 remains clear of shadow for the whole day, despite the low position of the sun. If necessary, remove ice or snow. If the light on time is inadequate due to the weather, recharge or replace the rechargeable battery 10 using an external charging device or replace it (see "Replacing the rechargeable battery").

- Cleaning and care

Before cleaning, switch the product off.
☐ Use a slightly dampened, lint-free cloth and mild cleaning agent to clean.
☐ Regularly check the sens 7r and solar cell 6 particularly for dirt.
☐ Regularly clean the sensor and solar cell to ensure proper functionality.
☐ Keep the solar cell free of snow and ice, especially in winter.

- Troubleshooting

Problem Cause Solution
The product does not switch on.	Switch 11 set to “OFF” position	Set ON/OFF switch to “ON” position
	Dirty sensor 7	Clean sensor
	The rechargeable battery 10 is drained	Charge the rechargeable battery using an external charging device
The light flickers. The rechargeable battery is almost drained		Charge the rechargeable battery using an external charging device
Battery quickly loses its charge.	The solar cell 6 is dirty.	Clean the solar cell
	Solar cell is positioned incorrectly	Reposition the solar cell (refer to “Installation”)
	Poor weather conditions	Refer to “Winter-time use”
Problem Cause	Solution
Battery quickly loses its charge.	The rechargeable battery is defective	Replace the rechargeable battery (see “Replacing the rechargeable battery”)

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44
