Product Type	LED Picture Light
Brand	Livarno Lux
Model	IAN 73552
Lamp Type	LED (non-replaceable)
Number of LEDs	8
Total Power Consumption	0.48 W (8 x 0.06 W)
Operating Voltage (Spotlight)	4.5 V DC
Battery Type (Spotlight)	3 x AA (1.5 V each, not included)
Operating Voltage (Remote)	3 V DC
Battery Type (Remote)	2 x AAA (1.5 V each, not included)
Remote Control Range	Approx. 4 m
Mounting	Wall-mounted (drilling required)
Included Items	LED picture light with wall bracket, remote control with mounting bracket, 4 dowels (∅ 5 mm), 4 screws, installation instructions
Safety Features	Built-in level, caution for drilling into walls, non-replaceable LEDs, spirit level fluid warning
Cleaning	Use a dry, lint-free cloth
Disposal	Recycle packaging; dispose of product at local waste facility; batteries must be recycled per Directive 2006/66/EC
Intended Use	Indoor only, not for commercial use
Certification	CE, EMC

Frequently Asked Questions - IAN 73552 Livarno Lux

How do I install the LED picture light?

Mark the mounting location using the built-in level, drill holes, insert dowels, and secure the wall bracket with screws. Then slide the light onto the bracket. Ensure you do not drill into electrical wires, gas, or water lines.

What batteries are required for the spotlight and remote?

The LED spotlight requires three AA batteries (1.5 V each, not included). The infrared remote control requires two AAA batteries (1.5 V each, not included). Always insert batteries with correct polarity.

Can I use rechargeable batteries?

The manual does not specify rechargeable batteries. For safety, use standard alkaline batteries. If you use rechargeable batteries, ensure they are 1.5 V and note that performance may vary.

What should I do if the LEDs stop working?

The LEDs are non-replaceable. If they fail, the entire light must be disposed of properly. Contact local waste disposal for recycling.

How should I clean the LED picture light?

Use a dry, lint-free cloth to clean the light. Do not use water or cleaning agents.

Does the product include a remote control? How does it work?

Yes, an infrared remote control is included. Point it directly at the light from up to 4 meters away. Ensure the infrared diode on the light is facing up. Use the ON/OFF switch on the remote or on the spotlight itself.

Can I mount the remote control separately?

Yes, the remote control has a mounting bracket. Drill holes, insert dowels, and screw the bracket to the wall. Then snap the remote into the bracket.

What is the maximum range of the remote control?

The infrared remote control has a range of approximately 4 meters. For best results, point it directly at the spotlight.

What safety precautions should I take during installation?

Do not drill into electrical wiring, gas, or water lines. Use a cable detector if necessary. Keep children away during installation. Also, allow the lamp to cool for at least 5 minutes before touching the LED bar.

How should I dispose of the product and batteries?

Dispose of the product at your local recycling facility, not with household waste. Batteries must be recycled according to Directive 2006/66/EC. Never throw batteries in fire or water.

USER MANUAL IAN 73552 Livarno Lux

Color palette bar and a crosshair symbol (no text or labels)

ES

ILUMINACUADROS LED

Operation and Safety Notes

DE AT CH

LED-BILDERLEUCHTE

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Iluminacuadros LED

- Uso adecuado

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

10 Tasto ON/OFF (telecomando a infrarossi)
11 Staffa di montaggio per telecomando a infrarossi
12 Vite
13 Coperchio vano batterie per telecomando a infrarossi
14 Interruttore ON / OFF per telecomando a infrarossi
15 Tassello

● Dati tecnici

Lampada spot a LED:

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Telecomando a infrarossi:

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Messa in funzione

Lampadina spot a LED:

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

CONTACTO COM A BOCA:

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Intended Use......Page 55

Description of Parts ......Page 55

Technical data Page 56

Included items......Page 57

Safety Instructions ......Page 57

Safety instructions

for batteries ......Page 61

Preparing for use

Inserting / replacing

batteries......Page63

Mounting the light ......Page 64

Mounting the infrared

remote control ......Page 65

Switching the lamp on / off ....Page 66

Cleaning and Care......Page 67

Disposal Page 67

Color palette bar and a target symbol on a white background (no text or labels)

LED Picture Light

- Intended Use

This LED picture light is only suitable for indoor use. The product is not intended for commercial use.

● Description of Parts

1 LED bar
2 Lamp arm
3 Infrared receiver
4 ON / OFF switch (LED spotlight)
5 Wall bracket
6 Built-in level
7 Battery cover for LED spotlight
8 Infrared diode
9 Infrared remote control
10 ON / OFF switch (infrared remote control)
11 Mounting bracket for infrared remote control

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

12 Screw
13 Battery cover for infrared remote control
14 ON/OFF switch for infrared remote control
15 Dowel

- Technical data

LED spotlight:

Operating

voltage: 4.5 = V

Battery: 3 × AA_7 = 1.5 V (not included)

Max. nominal

output: 8 x 0.06 W

Lamp: 8 x LED (not replace-able)

Infrared remote control:

Operating

voltage: 3 = V

Battery: 2 x AAA; -1.5 V (not included)

56 GB/MT

- Included items

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not assemble the product if any of the included items listed below are missing.

1 LED picture light with wall bracket
4 Dowel (approx. ∅ 5 mm)
4 Screws

1 Remote control with mounting bracket
1 Installation instructions

Safety Instructions

Damages due to failure to follow these instructions for use will void the product warranty! We assume no liability for secondary failures! We assume no liability for property or personal damages due to improper

handling or failure to observe safety instructions!

WARNING!

RISK OF FATAL IN-

JURY AND ACCI-

DENTS FOR INFANTS AND

SMALL CHILDREN! Never

leave children unsupervised with packaging materials. The packaging materials pose a suffocation hazard. Children often underestimate dangers. Always keep children away from the product. It is not a toy.

Children or persons lacking knowledge or experience in handling the device or have limited physical, sensory or mental abilities, must not use the device without supervision or instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the device.

CAUTION! EXPLO- SION HAZARD!

Do not operate the lamp in potentially explosive environments containing flammable vapours, gases or dusts.

WARNING! RISK OF FATAL

INJURY! Please be sure not to drill into any electrical wiring, gas or water lines inside the wall. If necessary, use a cable detector before drill into the wall.

WARNING! RISK OF FATAL

INJURY! During installation keep children away from the area in which you are working. The product includes a variety of screws and other small parts.

CAUTION! RISK OF INJURY!

Allow the lamp to cool down at least 5 minutes before touching the LED bar 1.

■ Never use the light if any defects have been identified.

■ Do not attach objects to the product.

■ The LEDs are non-replaceable. Defective LEDs will render the light unusable. In this case properly dispose of the light.

If the spirit level is damaged avoid any contact with the fluid inside. Please observe the following instructions in the event of contact with the fluid. First aid procedure for:

SKIN CONTACT: immediately clean the affected area with plenty of soap and water for at least 15 minutes. Consult a physician if skin irritation occurs.

EYE CONTACT: immediately flush the affected eye with plenty of water for at least 15 minutes. Use your thumb and forefinger to hold the affected eye open. Seek immediate medical attention.

INHALATION: immediately provide sufficient fresh air. Use pure oxygen if respirator problems occur.

ORAL CONTACT: if the person is conscious immediately rinse

Color palette bar and a target symbol on a white background (no text or labels)

the inside of the mouth with plenty of water. Seek immediate medical attention.

Safety instructions for batteries

WARNING! RISK OF FATAL

INJURY!

Batteries are not in-

tended for children. Do not leave batteries lying around. They could potentially be swallowed by children or pets. In the event a battery is swallowed seek immediate medical attention.

EXPLOSION HAZ-

ARD! Never recharge non-rechargeable bat-

teries, short-circuit and / or open batteries. Battery may overheat, ignite or explode. Never throw batteries into fire or water. The batteries might explode.

- Immediately remove drained batteries from the product. Batteries

otherwise have a higher risk of leaking.

■ Always replace both batteries at the same time and only insert batteries of the same type.
■ Never use different types of batteries or combine used and new batteries.
■ Regularly check batteries for leaks.
■ Leaking or damaged batteries may result in burns upon contact with the skin; always wear suitable safety gloves!
■ Remove batteries during extended periods of non-use.
- When inserting the battery ensure the correct polarity! Correct battery placement is shown inside the battery compartment. Batteries may otherwise explode.
■ Remove used batteries. Very old or used batteries may leak. The chemicals inside may damage the product.

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

● Preparing for use

- Inserting / replacing batteries

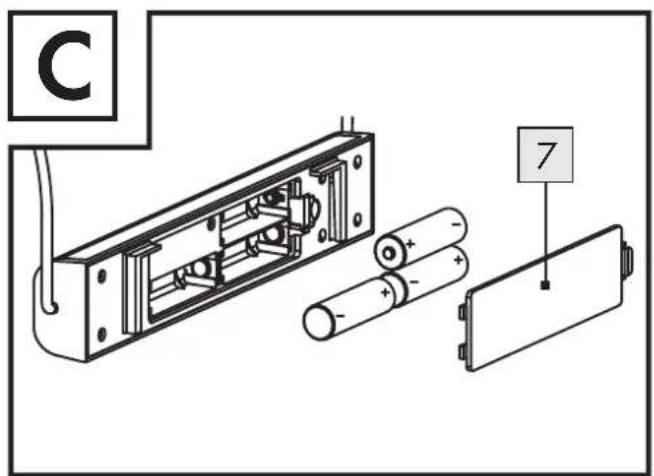

LED spotlight:

□ Slide the light off the wall bracket 5.
☐ Remove the cover 7 from the battery compartment.
☐ If applicable, remove the used batteries.
☐ Insert three 1.5 V batteries (type AA) into the battery compartment (see Fig. C).
Note: verify correct polarity. This is shown inside the battery compartment.
☐ Replace the battery cover. Slide the light onto the wall bracket.

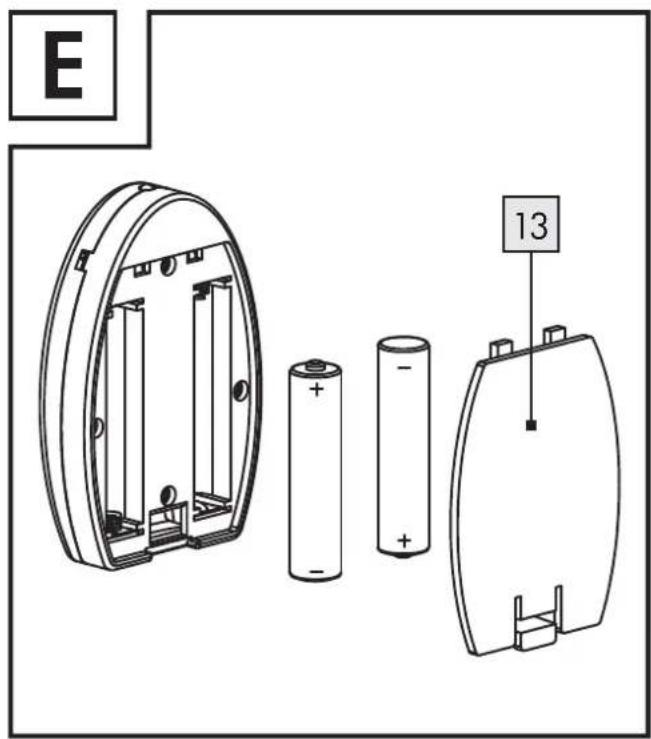

Infrared remote control:

☐ Remove the battery cover 13 from the battery compartment.
☐ Insert two 1.5 V batteries (type AAA) into the battery compartment (see Fig. E).

Note: verify correct polarity.

This is shown inside the battery compartment.

☐ Replace the battery cover.

- Mounting the light

Note: you will need a drill for installation.

CAUTION! RISK OF INJURY!

Refer to your drill's operating instructions.

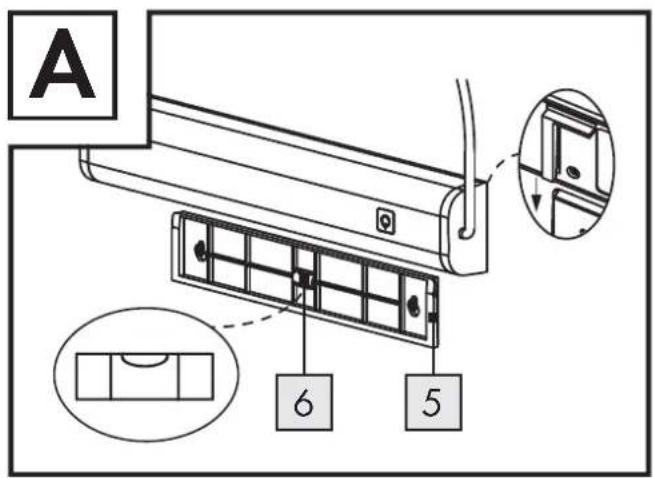

☐ With a pencil mark the location on the wall where you would like to install the wall bracket 5. If necessary, use the built-in spirit level 6 (see Fig. A).

Note: using the level position the wall bracket so the air bubble inside the spirit level is centred between the two markings.

□ Drill the mounting holes.

CAUTION! Be sure not to damage lines inside the wall.

Color palette bar and a target symbol on a white background (no text or labels)

☐ Insert the dowels in the drilled holes.

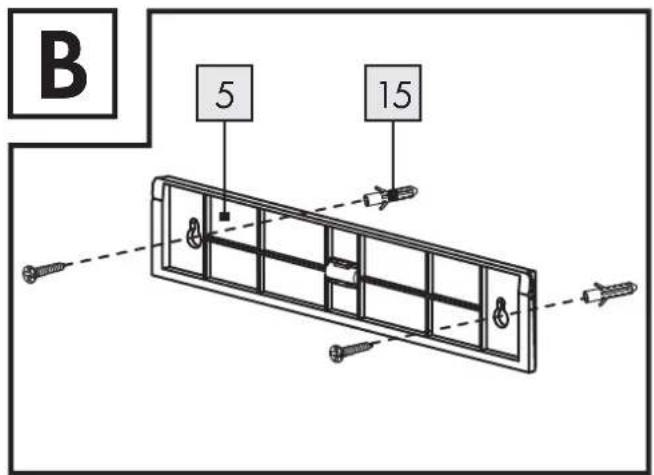

☐ Using the screws secure the wall bracket to the wall (see Fig. B).
☐ Install the light onto the wall bracket (see Fig. C).

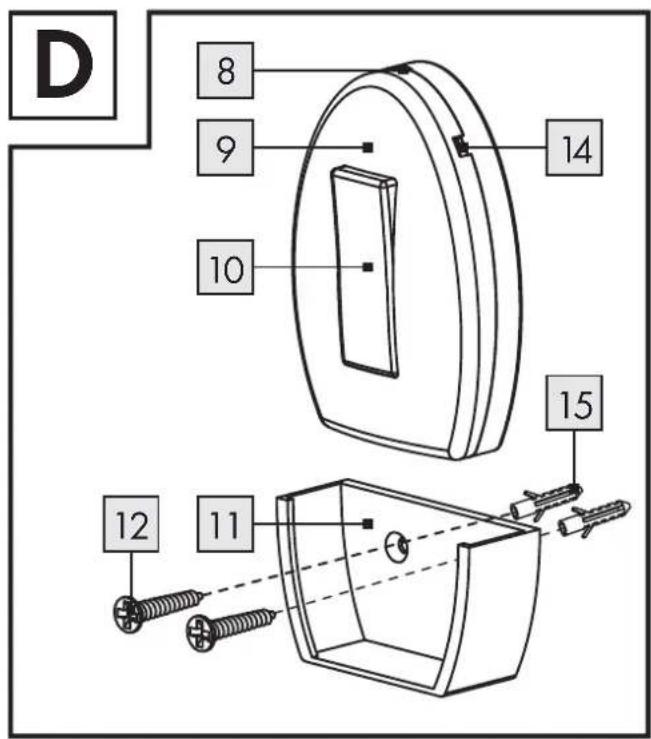

- Mounting the infrared remote control

Note: you will need a drill for installation.

CAUTION! RISK OF INJURY!

Refer to your drill's operating instructions.

Place the mounting bracket for the infrared remote control 11 in the desired location on the wall and mark the drill holes. If necessary, use a level (see Fig. D).

□ Drill the holes.

CAUTION! Be sure not to damage lines inside the wall.

☐ Insert the dowels in the drilled holes.

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

□ Using the screws secure the mounting bracket on the wall 12 (see Fig. D).

☐ Secure the infrared remote control 9 in the mounting bracket.

- Switching the lamp on/off

☐ To turn the light on switch the ON / OFF switch of the LED spot-light 4 or the infrared remote control 10 to ON.

☐ To turn the light off switch the ON / OFF switch of the LED spot-light 4 or the infrared remote control 10 to OFF.

Note: the infrared remote control 9 has a range of approx. 4 metres. Point the infrared remote control directly at the light with the infrared diode 8 facing up and ahead.

□ Push ON/OFF switch 14 to switch the remote control on and off.

Color palette bar and a target symbol on a white background (no text or labels)

- Cleaning and Care

□ Use a dry, lint-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials which may be disposed through your local recycling facilities.

Contact your local waste disposal authority for more details on how to dispose of the product when it is no longer needed.

To help protect the environment, please properly dispose of the product when it has reached the end of its useful life, not through household waste. Contact your municipal authorities for information

Color palette bar and a target symbol on a white background (no text or labels)

regarding collection points and their opening hours.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC. Return batteries and / or the equipment through the collection facilities provided.

Environmentaldam- age due to improper battery disposal!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

EMC CE

68 GB/MT

Color palette bar and a target symbol with crosshair (no text or labels)

Bestimmungsgemäße

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

LED-Bilderleuchte

Color palette bar and a target symbol with crosshair (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Inbetriebnahme

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar and a target symbol with crosshair (no text or labels)

Color swatch bar with grayscale gradient from gray to yellow (no text or symbols)

Two horizontal color swatches: gray and yellow with solid borders, no text or symbols present.

Color palette bar with grayscale and color swatches, no text or symbols present

IAN 73552

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model-No.: Z31206A

Version: 05/2012

© by ORFGEN Marketing

Last Information Update
