USER MANUAL IAN 56632 Livarno Lux

A 1 2 3 4 5 6 7 8 9 10 11 12 13 14

LIVARNO LUX

B 165° 1 3

C 2

LIVARNO LUX

Technical line drawing of a robotic arm and foot (no text or symbols)

6

LIVARNO LUX

E 15 15 15 15 15 15

LIVARNO LUX

Table of Contents

Introduction

Proper use Page 9

Description of parts and features ......Page 9

Technical data Page 10

Included items Page 11

Safety Instructions......Page 11

Preparing for use

Charging the rechargeable light batteries ......Page 13

Use Page 14

Using the light without the power lead ......Page 15

Using the light connected to a power supply ......Page 15

Maintenance and cleaning......Page 16

Troubleshooting Page 16

Disposal Page 17

8 GB/IE

LIVARNO LUX

LED Work Light

- Introduction

Familiarise yourself with the product before using it for the first time. In addition please refer carefully to the operating instructions below and the safety advice. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

- Proper use

This lamp is intended for use indoors only. Any other use or modification of the product constitute improper use and pose a risk of short circuits, fire, electric shocks and damage to the product. The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

● Description of parts and features

1 Lamp head
2 Hanger
3 Hinge
4 Handle
5 Magnet
6 LEDs (handle)
7 Connection socket

LIVARNO LUX

9 GB/IE

Introduction

8 Cap

9 Charging indicator

10 On/Off switch (handle)

11 On / Off switch (lamp head)

12 LEDs (lamp head)

13 Cigarette lighter socket adapter

14 Mains adapter

15 Screws

- Technical data

Bulbs: 26 LEDs (white, non-replaceable), of which 21

are in the lamp head / 5 in the handle

Lamp rechargeable

batteries: Ni-MH, 1600 mAh, 3.6 V

Charging time: Approx. 8 hours

Light stays on for: LEDs in lamp head approx. 4 hours, LEDs in handle approx. 7 - 8 hours (with fully charged batteries)

Service life of LEDs: Approx. 20,000 hours

Protection class:

Power source connection

Mains adapter:

Input: 230 - 240 V \~ 50 Hz

Output: 6 V ——, 400 mA

Model: YH-BS350600400D

Protection class:

Protection type: IP20

BS standard tested

10 GB/IE

LIVARNO LUX

Introduction / Safety Instructions

Cigarette lighter socket:

Input: 12 =V

- Included items

1 LED Work Light
1 Mains adapter
1 Cigarette lighter socket adapter
1 Operating instructions

Safety Instructions

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Rechargeable batteries are not intended to be in the hands of children. Do not leave the removed batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately!

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.
■ Never leave children unattended with the packaging material. It can cause suffocation. Children often underestimate dangers. Always keep children away from the product.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.

LIVARNO LUX

11 GB/IE

Safety Instructions

Do not use the article if you detect any kind of damage. The LED cannot be replaced.

CAUTION! DANGER OF EXPLOSION! Do not operate the lamp in potentially explosive environments in which there are inflam mable vapours, gases or dusts.

- Protect the light from moisture. Never hang the product in the vicinity of a wash basin, pond etc. The product and the mains adapter must never be immersed in water or other liquids. Failure to observe this advice risks electric shock!

- Connect the light to a properly installed mains socket or a suitable cigarette lighter socket only. The voltages in each case must comply with information given in the section "Technical data".

■ Ensure that the electrical socket is easily accessible so that you can pull the mains adapter 14 quickly out of the socket if necessary.

Do not carry out any modifications or repairs to the product yourself. The LEDs cannot and must not be replaced.

⚠️ ATTENTION! The protective cover in front of the LEDs is non-replaceable. Dispose of the lamp when you detect cracks or signs of breakages in the protective cover.

■ Never connect the light to a power supply socket if the light, power lead or mains adapter 14/cigarette lighter socket 13 are damaged or the light has been dropped.

■ Ensure that the power lead cannot become damaged by sharp edges or hot objects. Unwind all the lead completely before use.

- Keep easily flammable materials away from the product. Never hang objects above the light or the mains adapter 14 and never cover them.

Pull the mains adapter4/cigarette lighter socket 13 out of the mains adapter 14/cigarette lighter socket 13 when you are not using the light or before you clean it. Do this as well if signs of a fault develop during use or charging, e.g. smoke, burning smell etc., or

12 GB/IE

LIVARNO LUX

Safety Instructions / Preparing for use

during a storm. When doing this, pull directly on the mains adapter 14/cigarette light socket 13 and not on the lead.

■ Protect the product against heat, cold, strong vibrations and impacts.

Never point the LED beam on reflective areas, people or animals. This can blind or irritate people and animals. Even an LED beam of low power can cause damage to

the eye.

● Preparing for use

● Charging the rechargeable light batteries

Do not connect the light to the cigarette lighter socket in your vehicle if the vehicle battery is very old or exhausted. This could cause the engine to fail to start.

In order for the device to be used without the mains lead, the rechargeable batteries must first be charged. The charging process takes about 8 hours. The rechargeable batteries are permanently installed in the handle.
☐ You can charge the rechargeable batteries from an ordinary domestic 230 - 240 V\~ mains outlet or from the cigarette lighter socket in your motor vehicle.
① Tip: We recommend charging the light from an ordinary domestic 230 - 240 V\~ mains outlet to avoid draining your vehicle's battery.
☐ Switch off the light during the charging process (press the On / Off switch 10, 11).
Remove the cap8 from the connection socket 7.
☐ Insert the connection plug of the mains adapter 14 or the connection plug of the cigarette lighter socket adapter 13 into the connection socket 7 in the light handle.

LIVARNO LUX

13 GB/IE

Preparing for use / Use

ATTENTION! When charging from a cigarette lighter socket, make sure that the cigarette lighter socket adapter 13 is always fully inserted into your vehicle's cigarette lighter socket. Failure to observe this advice may result in overheating and consequent risk of fire.

☐ Insert the mains adapter4 into a mains socket or insert the cigarette lighter socket adapter 13 into the cigarette lighter socket in your vehicle. The charging indicator 9 lights up red to show that the battery is being charged. The battery is fully charged as soon as the charging indicator 9 lights up green

Note: The product is fitted with an overcharge protection circuit. In spite of this, you should disconnect the light from the power supply after the charging process is complete.

Use

When using the light in a vehicle make sure that you do not endanger the driver or the passengers. Store and secure the light in such a way that, even under conditions of full braking, there is no danger of damage to the product or personal injury.

Never point the LED beam on reflective areas, people or animals. This can blind or irritate people and animals. Even an LED beam of low power can cause damage to

the eye.

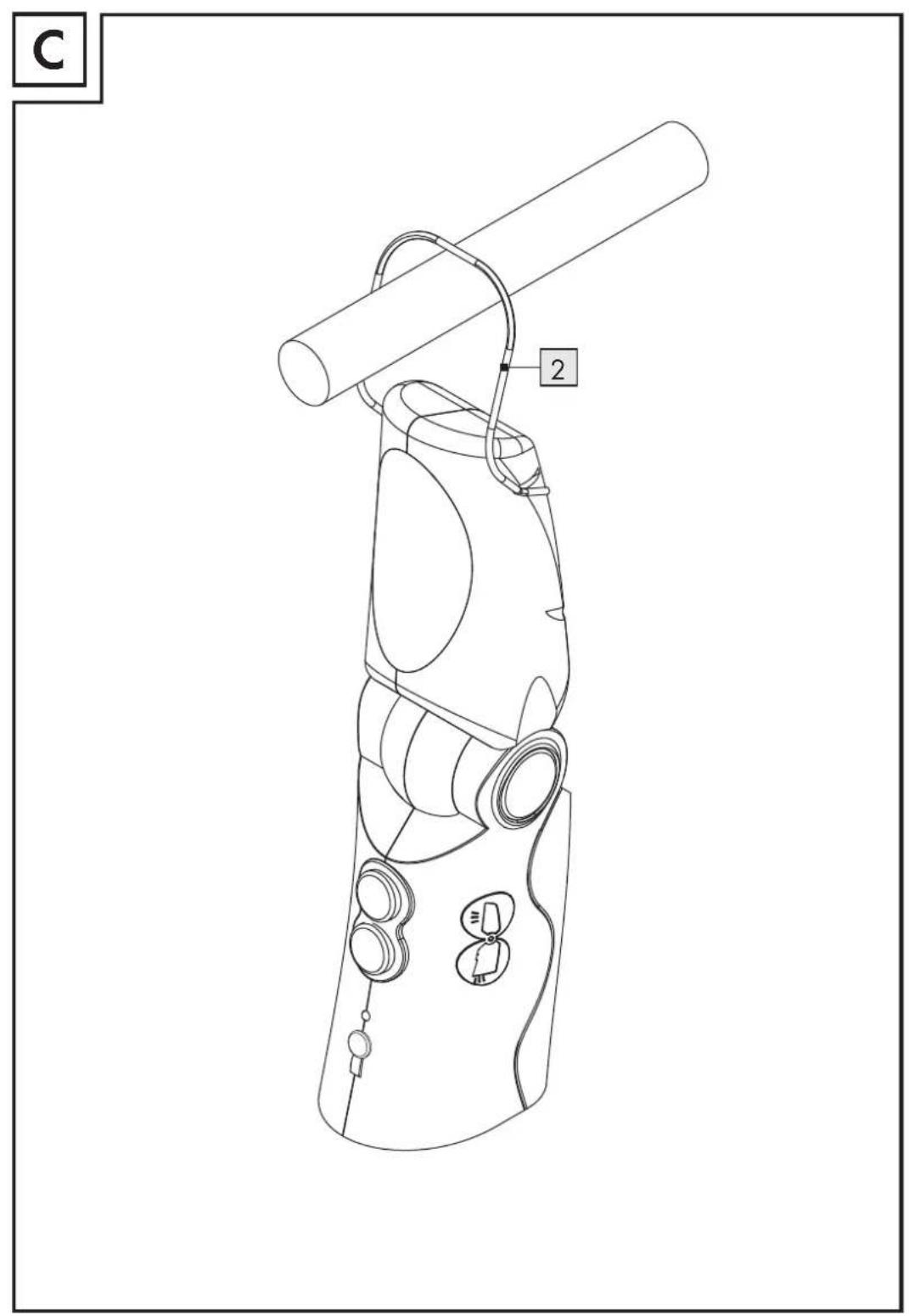

Note: The product has a hanger, which can be used to suspend the light. To do this, fold out the hanger 2 upwards (see Fig. C). Do not pull on the light when it is hanging from the hook. The hook could be torn out and the light damaged.

Note: The light also has a magnet which can be used to attach the light to magnetic surfaces (see Fig. D). Make sure that the light is not struck or knocked while it is attached to a magnetic surface.

14 GB/IE

LIVARNO LUX

Use

Failure to observe this advice may result in the light falling down and becoming damaged.

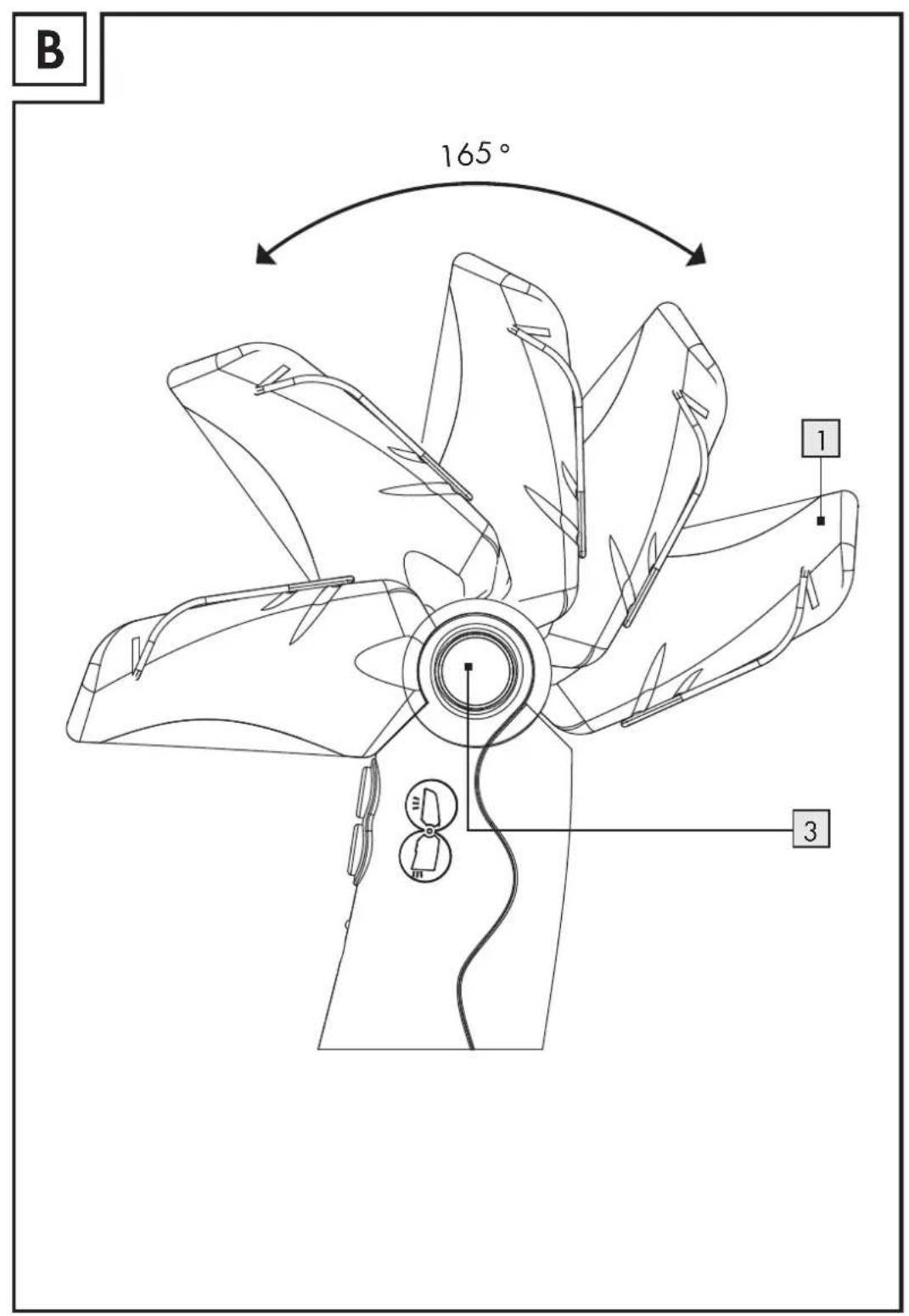

Note: The lamp head can be adjusted through 165^ (see Fig. B). Bring the lamp head 1 into the desired position by articulating the light at the hinge 3.

● Using the light without the power lead

☐ Fully charge the rechargeable light batteries as described in the section "Charging the rechargeable light batteries".

☐ Press the On / Off switch, 11 to switch on the LED work light.

● Using the light connected to a power supply

⚠️ Arrange the power lead so that it does not create a trip hazard.

⚠️ CAUTION DANGER OF ACCIDENT! Do not connect or use the light if you are in moving traffic, for example driving a vehicle. The light is not a passenger compartment light or a reading light!

☐ Insert the plug on mains adapter 14 or the cigarette lighter socket adapter 13 into the connection socket 7 in the handle 4 of the light.

☐ Insert the mains adapter4 into a 230 - 240 V\~ mains socket or insert the cigarette lighter socket adapter 13 into the cigarette lighter socket in your vehicle.

☐ Press the On / Off switch, 11 to switch on the LED work light.

Maintenance and cleaning / Troubleshooting

● Maintenance and cleaning

The product is maintenance-free. The LEDs cannot be replaced!

CAUTION! RISK OF ELECTRIC SHOCK! Disconnect the product from the mains supply before cleaning.

■ Never immerse the product in water or other liquids.
□ Clean the product regularly with a dry, fluff-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
☐ Do not use corrosive cleaning agents.

- Troubleshooting

Fault Possible cause and remedy
Not functioning	- Is the mains adapter14 or the cigarette lighter socket adapter 13 fully inserted?
Charging indicator does not illuminate	On connecting to the cigarette lighter socket:- Is there power at the cigarette lighter socke? Some cigarette lighter sockets are only supplied with power if the ignition is switched on.- Check the vehicle fuse.
Charging takes a very long time	On connecting to the cigarette lighter socket:- Is the vehicle's battery too weak?

16 GB/IE

LIVARNO LUX

Disposal

- Disposal

☐ The rechargeable battery must be removed before the product is taken for disposal.

After the battery has been removed, the product can no longer be used.

To remove the rechargeable battery proceed as follows:

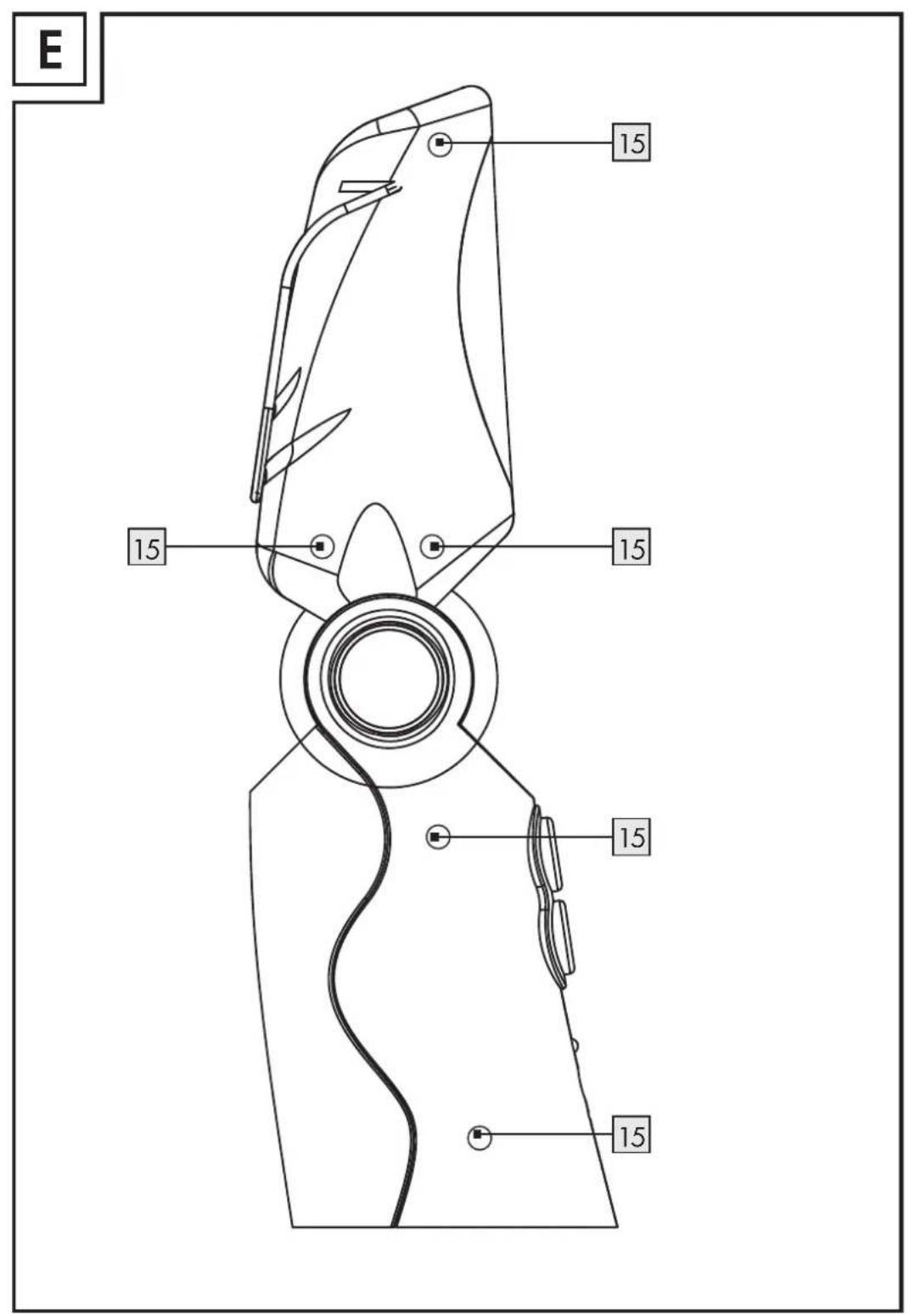

1. Open the light by unscrewing the 5 screws 15 using a small Phillips screwdriver (see Fig. E).
2. Separate the two halves of the light housing and cut through the lead.
3. Remove the rechargeable batteries. The batteries are bound together in a film.
4. Dispose of the rechargeable batteries in accordance with your local authority's regulations. Under no circumstances should you throw away the batteries with ordinary domestic waste.

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Environmental damage through incorrect disposal of the rechargeable batteries!

LIVARNO LUX

17 GB/IE

Disposal

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used rechargeable batteries at a local collection point.

Product Description:

LED Work Light

Model No.: Z30503-BS

Version: 02/2011
