LED Rope Light

Intendeduse

This product is suitable for use indoors.

This product is intended for use in private, domestic environment only and not for commercial purposes.

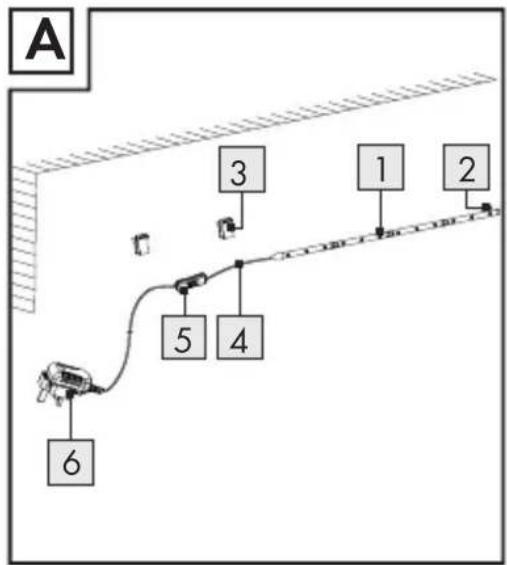

• Description of parts

1 LED strip
2 Double-face tape (on the back side of the LED strip and the cable holders)
3 Cable holder
4 Power lead
5 In-line switch
6 Mains adapter

●Technicaldetails

LED light strip:

Operating

voltage:230-240V\~,

50/60 Hz

Ratedpower:3.2W

Note: the bulbs

cannot be replaced

Protection class: □

LED light strip (Model No.

Z31132A-BS).

Color palette bar with grayscale gradient and a crosshair symbol (no text or labels)

Mains adapter:

Nom. voltage,

primary: 100-240V\~,

50 - 60 Hz

Nom. voltage,

secondary:12V ---, 250 mA

Protection class: □

Mains adapter

(Model No. LPS3-120-0250)

KEMA/CE tested.

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

This device is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling this device.
Children or other individuals who do not know or have no experience of handling this device, or whose physical, sensory or mental abilities are restricted, must not use the device without supervision or

instruction by an individual responsible for their safety.

Children must be supervised in order to ensure that they do not play with the device.

■ Ensure that the product is installed by suitably experienced or qualified persons only.
Check before installation that the supporting surface is suitable for the fastenings and the weight of the lighting product. If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
Do not pull on the product lead. Ensure that it is positioned to avoid creating a trip hazard.
The product can be used on all surfaces officially classified as being of "normal flammability".
- Do not attach any other objects to the product.
■ After use store the light fitting in its original packaging to avoid causing unintentional damage.
■ Ensure that the light fitting does not present a trip hazard.

CAUTION! RISK OF OVER-

HEATING! Do not operate the light fitting while it is still in the packaging or rolled up.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230-240V\~).
Before connecting to the mains, always check the product for any damage.
■ Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This article does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
■ Never open any of the electrical parts or insert any kind of object into them.
■ Protect the product from sharp edges, mechanical loads and hot surfaces.
■ Always remove the mains plug from the socket before installing, dismantling or cleaning.
■ Never touch the mains plug or the product with moist or wet hands.
Use the lighting product with only the components described in these operating instructions.

Color palette bar with grayscale gradient and a crosshair symbol (no text or labels)

■ Disconnect the lighting product from the mains if you intend not to use it for an extended period (e.g. holiday).

■ Do not connect the LED strip light to another strip light.

●Safetyadvice for installation

The product can be mounted with the supplied fastenings on to all surfaces officially classified as being of "normal flammability".

Before installation, check whether the substrate is suitable for the fastenings and can support the weight of the product. If you are unsure about any aspects of this step, please seek the advice of an electrical equipment specialist.

- Do not use any sharp and / or pointed objects, such as wire, nails or clamps, to fasten the product in place.

- Installation

Note: Thoroughly clean the surface on to which you intend to install the product. The surface must be clean, dry and free of grease. Otherwise the double-face tape 2 may not stick properly.

1. Using a pencil, mark the position on the wall on to which you intend to attach the LED light strip. If necessary, use a spirit level as a guide.

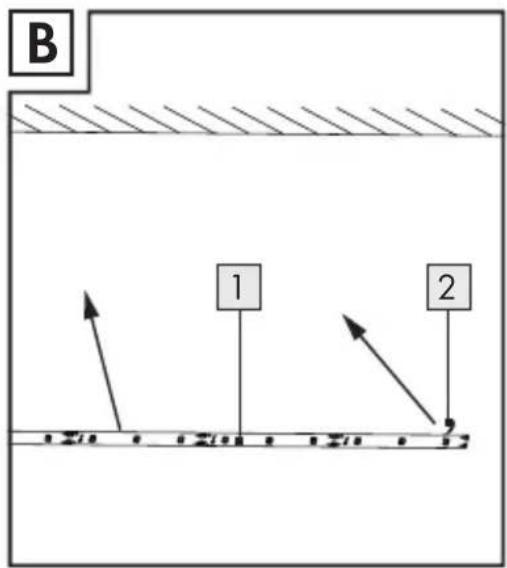

2. Pull the paper from the double-face tape 2 on the back of the LED strip 1 (Fig. B).
3. Position the LED light strip on the pencil markings on the wall and press to fix it firmly into place (Fig. B).

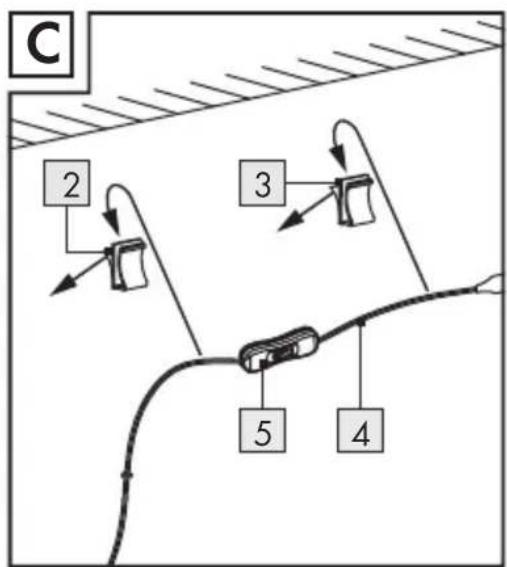

4. Pull the paper from the double-face tape on the back of the cable holders 3 (Fig. C).
5. Press to fix the cable holders firmly into place (Fig. C).
6. Mount the power lead 4 in the cable holders (Fig. C).

●Shorteningthe LED strip

The LED strip can be shortened with scissors every 10 cm at the indicated positions.

Operation

☐ Insert the mains adapter 6 into the mains socket.
☐ Press the ON / OFF switch on the in-line switch 5 to switch on the lights.
☐ Press the ON / OFF switch on the in-line switch to switch off the lights.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First remove the mains

plug from the socket.

☐ Only a dry, lint-free cloth should be used for cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

EMC CE

Color palette bar with grayscale and solid color swatches (no text or symbols)

IAN 71714

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model-No.: Z31132A-BS

Version: 01/2012

© by ORFGEN Marketing

Last Information Update: 12 / 2011

Ident.-No.: Z31132A-BS122011-6
