Product type	LED projector with motion detector
Brand	Livarno Lux
Model	IAN 286954
Total dimensions	15,5 x 17,5 x 14,5 cm
Weight	Approx. 460 g (accessories included)
Power supply	230 V ~ 50 Hz
Power consumption	18 W
Bulb type	30 x LED 0,5 W (non-replaceable)
Motion detector	Integrated, detection angle 180° horizontally
Detection range	Up to 10 m
Adjustable lighting duration	Approx. 10 s (±5 s) to 4 min (±1 min)
Adjustable twilight threshold	From 10 lx to 20 000 lx
Protection rating	IP44 (splash-proof)
Protection class	II (double insulation)
Housing material	Plastic and metal
Usage	Indoor and outdoor
Mounting	Wall mounting with bracket
Package contents	Projector, detector, bracket, wall plugs, screws, toothed washers, flat washers, instruction manual
Warranty	3 years
Certifications	TÜV SÜD / GS, CE
Maintenance	Clean with a soft, slightly damp cloth and mild detergent
Safety	Disconnect power before installation/cleaning; min. distance 1 m from illuminated objects

Frequently Asked Questions - IAN 286954 Livarno Lux

How to install the projector?

Electrical installation must be carried out by a qualified electrician. Before any intervention, turn off the power at the circuit breaker. Fix the mounting bracket to the wall using the supplied wall plugs and screws, then connect the power cable to the terminal block in the connection box respecting the markings L (live), N (neutral) and ∞ (earth). Close the box and attach the projector to the bracket.

How to adjust the lighting duration?

Turn the TIME knob located under the motion detector clockwise to increase the duration, and counterclockwise to reduce it. The adjustment range is about 10 seconds to 4 minutes.

How to adjust the brightness threshold (twilight)?

Turn the LUX knob under the detector: at the (sun) position the projector lights up only at night (about 20 lux), at the * (moon) position it reacts even during the day up to 20,000 lux.

What to do if the detector does not detect correctly?

Check that the detector is not obstructed and that it is aimed at the desired area. You can unscrew the detector locking screw and orient it manually. Make sure the mounting height is between 1.80 and 2.50 m and that no stray light source (street lighting) illuminates the detector.

Can the LEDs be replaced?

No, the LEDs are integrated and cannot be replaced. If the LEDs reach end of life, the entire projector must be replaced.

Is the projector suitable for outdoor use?

Yes, it has a protection rating of IP44, which protects against water splashes. It can therefore be installed outdoors, for example on a facade.

How to clean the projector?

Before any cleaning, turn off the power at the circuit breaker. Use a slightly damp, lint-free cloth with a mild detergent. Never immerse the projector in water.

What is the maximum range of the motion detector?

The maximum range is about 10 meters with a detection angle of 180° horizontally, depending on the installation height.

Does the projector consume energy when turned off?

Yes, even when off, the projector remains powered and consumes a very low power. For a complete shutdown, unplug it from the main power supply or turn off the circuit breaker.

What to do if the projector does not turn on?

First check that the power supply is properly connected and that the circuit breaker has not tripped. Check the settings of the TIME and LUX knobs. Make sure the detector is not obstructed. If the problem persists, contact an electrician.

USER MANUAL IAN 286954 Livarno Lux

Assembly, operating and safety instructions

NL BE

LED-SCHIJNWERPER 18 W

Intended use....Page 13

Parts description Page 13

Technical data Page 14

Scope of delivery Page 14

General safety instructions....Page 14

Before installation Page 15

Installation Page 16

Start-up Page 16

Adjusting the motion detector....Page 16

Setting the lighting duration....Page 17

Setting the daylight level Page 17

Aligning the motion detector....Page 17

Cleaning and Care Page 17

Disposal Page 17

Warranty Page 18

List of pictograms used
	Alternating current		Detection angle of motion detector: approx. 180°
	Splash-proof (IP44)		Motion detector detection range: approx.10 m
	LED lifespan Protection class I
	Power consumption per LED

LED spotlight 18 W

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended to illuminate indoor and outdoor areas. This product is only intended for

private use and is not suitable for commercial use or for use in other applications.

Partsdescription

1 Screw
2 Mounting bracket
3 Wall plug
4 Tooth lock washer
5 Flat washer
6 Spring washer
7 Locking screw (mounting bracket)
8 Spotlight
9 Locking screw (motion detector)
10 Motion detector
11 Insulation strip
12 Terminal block
13 Connection box
14 Cord anchorage
15 Translucent seal ring
16 Cable gland
17 Fixing screw (connection box)

18 Seal ring
19 TIME rotary control
20 LUX rotary control

●Technicaldata

Operating voltage: 230V\~50Hz

Total power consumption: 18 W

Illuminant: 30 × 0.5 W LED

(non-replaceable)

Twilight-switch:adjustablebetween

10|x - 20,000|x

Lighting duration: adjustable between

approx. 10s +/- 5s -

4min +/- 1min

Coverage angle of

motion detector: approx.180°

horizontal

Reach of the

motion detector: maximum 10 m

Protection class: I

Degree of protection: IP44 (splash-proof)

Overall dimension: 15.5 × 17.5 × 14.5 cm

Weight: approx. 460g

(includes accessories)

Projected area: max. 15.5 x 17.5 cm

Mounting height: approx. 1.8–2.5 m

TÜV SÜD / GS certified.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED spotlight with motion detector
2 Wall plugs (∅ 8 mm)
2 Screws (∅ 5 mm × 50 mm)
1 Mounting bracket
1 Cord anchorage
2 Tooth lock washers
2 Flat washers
2 Spring washers
2 Locking screws
1 Instructions for use

Generalsafety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL

CHILDREN! Never leave children unattended

with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the

dangers. Please keep the product out of the reach of children at all times.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
■ DANGER OF SUFFOCATION! Children could swallow and choke on small included parts (e.g. screws). Keep children away from the work area during assembly.
The illuminants are not replaceable.
If the illuminants fail at the end of their lives, the entire product must be replaced.

Danger to life by electric shock

■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~50 Hz). Otherwise do not install the product.

CAUTION! DANGER OF BURN INJU-

RIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.

FIRE HAZARD! Fit the product so that it is at least 1.0 m away from the material to be illuminated.

Excessive heat can result in a fire.

The product is only suited for use with the built-in LED control gear.
The product continues to draw a small amount of power even if the product is off as long as product is connected to supply mains. To switch the device off completely, the mains switch should be switched off.

● Before installation

Note: Remove all packaging materials from the product.

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the product and the connection regulations.

Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
Use a voltage tester to verify the de-energised status.
The included mounting material (screw ^16 and wall plugs 3) is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.

- Installation

Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill in the manual for the power drill. Death or injury due to electric shock may otherwise result.

When selecting the mounting location, pay attention to the following:

Make sure that the spotlight illuminates the desired area. You can move the spotlight 8 vertically.
Make sure the motion detector covers the desired area. The motion detector has a maximum coverage range of max. 10 m, with a coverage angle of about 180^ (depending on the mounting height – a height of 1.80–2.50 m is ideal) (Fig. D, E, F).

Make sure the motion detected is not illuminated at night by street lighting. This can influence its functioning.

Use the mounting bracket ^2 as a pattern to mark the drilling holes onto the wall. Ensure that there are no cables or wires in this area in the wall. Drill two holes ( 8 mm) and insert the wall plugs ^3 . Screw the mounting bracket ^2 with the help of the screws ^1 and check the tight fit.

Open the connection b d by using a crosshead screw driver to loosen the fixing screws 17 of the connection box 13 (Fig. B).

☐ The cable gland has to be loosened, then run the flexible supply line, e. g. type H05RN-F 3G 1.0 mm ^2 , through the cable gland 16 and into the connection box 13. Open the

terminal block 12 by using a slot head screw driver to loosen the screws.

☐ Attach ferrules to the wires of the supply line. Also attach the cord anchorage 14 to the supply line and use pliers to tighten it on the supply line (Fig. B). Connect them with the terminal block 12 in the connection box 13. Pay attention to the markings on the terminal block 12 (L for live, N for neutral and for the earth wire) (Fig. B). Close the terminal block 12 again by fastening the screws.

☐ Close the connection box again by fastening the fixing screws 17.

Now attach the spotlight to the mounting bracket 2 using the included locking screws 7, spring washers 6, flat washers 5 and tooth lock washers 4 (Fig. A).

☐ Re-install the fuse for this circuit or switch on at the circuit breaker (I position) in the fuse box.

- Start-up

- Adjusting the motion detector

Depending on the pre-adjustments of the motion detector 10, the product will switch itself on for a certain period of time as soon as the motion detector 10 detects movement. These pre-adjustments are made using the two controllers on the underside of the motion detector 10 (Fig. C).

- Setting the lighting duration

Turn the TIME rotary control on the bottom side of the motion detector 10 clockwise to increase the duration of illumination. The lighting duration can be adjusted within a time window of approx. 10s +/- 5s - 4min +/- 1min.

- Setting the daylight level

Turn the LUX rotary control on the bottom side of the motion detector 10 clockwise to increase the daylight level: In the position, the motion detector only reacts at night (at approx. 20 lx). In the * position, the motion detector also responds at daylight levels, as long as about 20,000 lx are not exceeded.

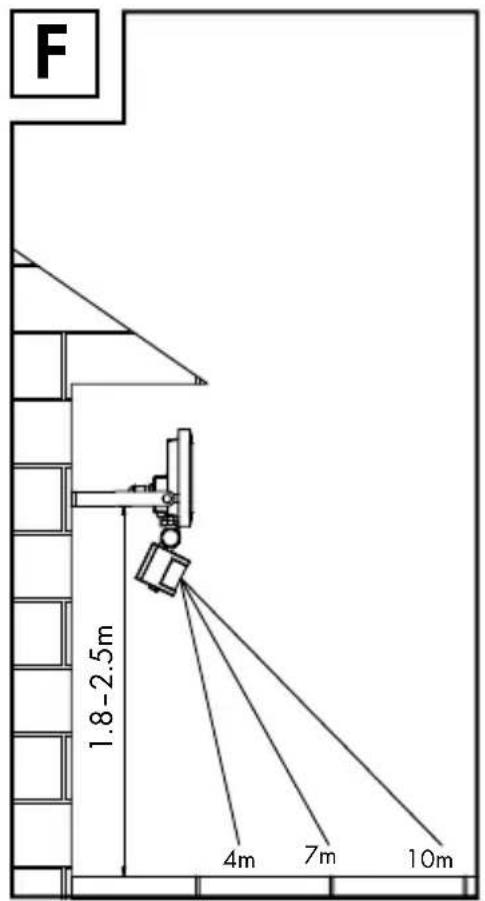

- Aligning the motion detector

Note: Perform this adjustment at twilight.

☐ Loosen the locking screw (motion detector) ☐ Turn the LUX rotary control to position * ☐ Align the motion detector into the central region of the desired coverage area.

Move about through the coverage area until you are satisfied with the response characteristics of the motion detector 10. To find the proper orientation, change the orientation of the motion detector 10.

☐ When you have aligned the motion detector 10 satisfactorily, re-tighten the locking screw 9 to fix the adjustment.

- Cleaning and Care

Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.
Never immerse the product in water or other liquids. Otherwise the product can be damaged.
☐ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.
☐ Re-install the fuse for this circuit or switch on at the circuit breaker (I position) in the fuse box.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your
