USER MANUAL FTHSA 20 A1 FLORABEST

AKKU-TELESKOP-HECKENSCHERE / CORDLESS TELESCOPIC HEDGE TRIMMER / TAILLE-HAIES TÉLESCOPIQUE SANS FIL FTHSA 20 A1

DE AT CH

AKKU-TELESKOP-HECKENSCHERE

Translation of the original instructions

NL BE

TELESCOPISCHE ACCUHEGGENSCHAAR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Akku (Li-Ion).... FAP 20 A1

Anzahl der Zellen 5

Nennspannung 20 V=

Kapazität 2,0 Ah

Diagram showing a tool interacting with a textured surface, no text or symbols present

Intended Use ......25

General Description ......25

Extent of delivery 25

Function Description 25

Overview 26

Technical Data ......26

Notes on Safety ......27

Symbols and Icons 27

General Notes on Safety 28

General safety instructions for power tools 29

Hedge trimmer safety warnings .....32

Correct handling of the Battery charger ....32

Removing/inserting the battery 33

Charging Process ....33

Used batteries ....34

Checking the charge status of the rechargeable battery ....34

Recharging the battery....34

Assembling ....34

Operation 35

Adjust telescopic arm 35

Swivelling the cutter bar 35

Attach the shoulder strap 35

Switching On and Off 35

Working with the Device ....36

Putting down the device ....36

Cutting Techniques 36

Working Safely 37

Maintenance/Cleaning ....37

Storage 37

Waste Disposal/

Environmental Protection ......38

Spare Parts/Accessories ......39

Trouble Shooting 40

Guarantee 41

Repair Service ....42

Service-Center 42

Importer 42

Translation of the Original

EC Declaration of Conformity ....142

Exploded Drawing 149

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Do not use the hedge trimmer in the rain or on wet hedges.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Extent of delivery

• Cordless telescopic hedge trimmer (two-part)
• Blade protection
• Wrench
• Shoulder strap
• Rechargeable battery
• Charger
• Instruction Manual

Function Description

The cordless telescopic hedge trimmer is driven by an electronic motor.

The hedge trimmer is equipped with a double-sided safety cutter bar. When cutting, the blades move backwards and forwards in linear motion. The safety cutter bar can be adjusted in 7 positions at an angle.

The unit can only be operated with the deadman switch depressed, in order to protect the operator.

Please note the following descriptions for the function of the operating components.

Overview

1 Safety blade

2 Motor head

3 Release buttons

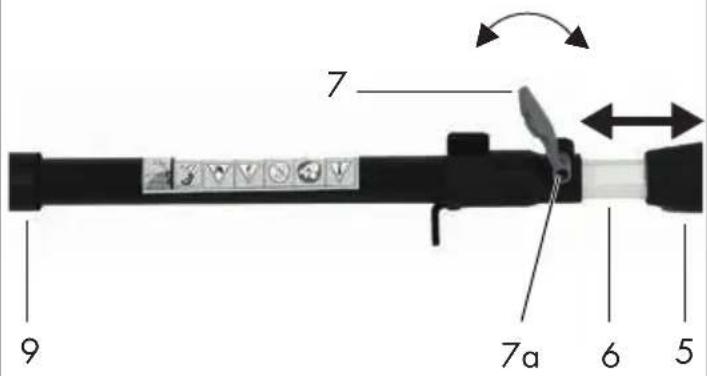

4 Articulated joint

5 Cap nut

6 Telescopic tube

7 Clamping lever

8 Wrench

9 Handle with padding

10 Lifting lug

11 Switch lock

12 On/Off switch (not visible)

13 Shoulder strap

14 Snap hook

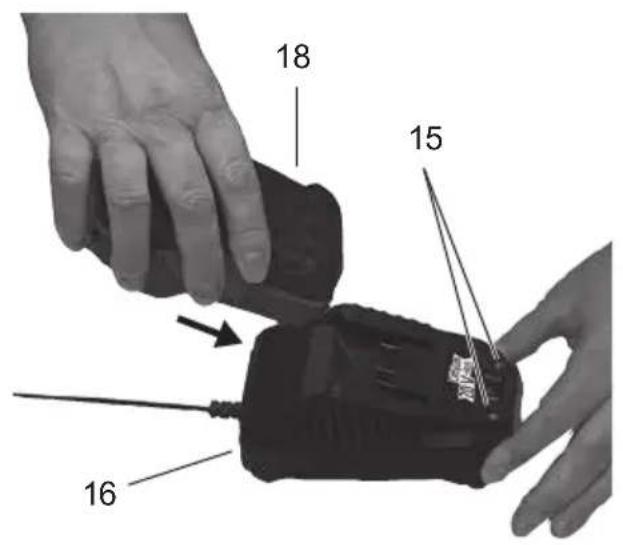

15 Control displays (LED) on charger

16 Charger

17 Button for charge status display

18 Rechargeable battery

19 Release button for rechargeable battery

20 Charge status display for rechargeable battery

21 Blade guard

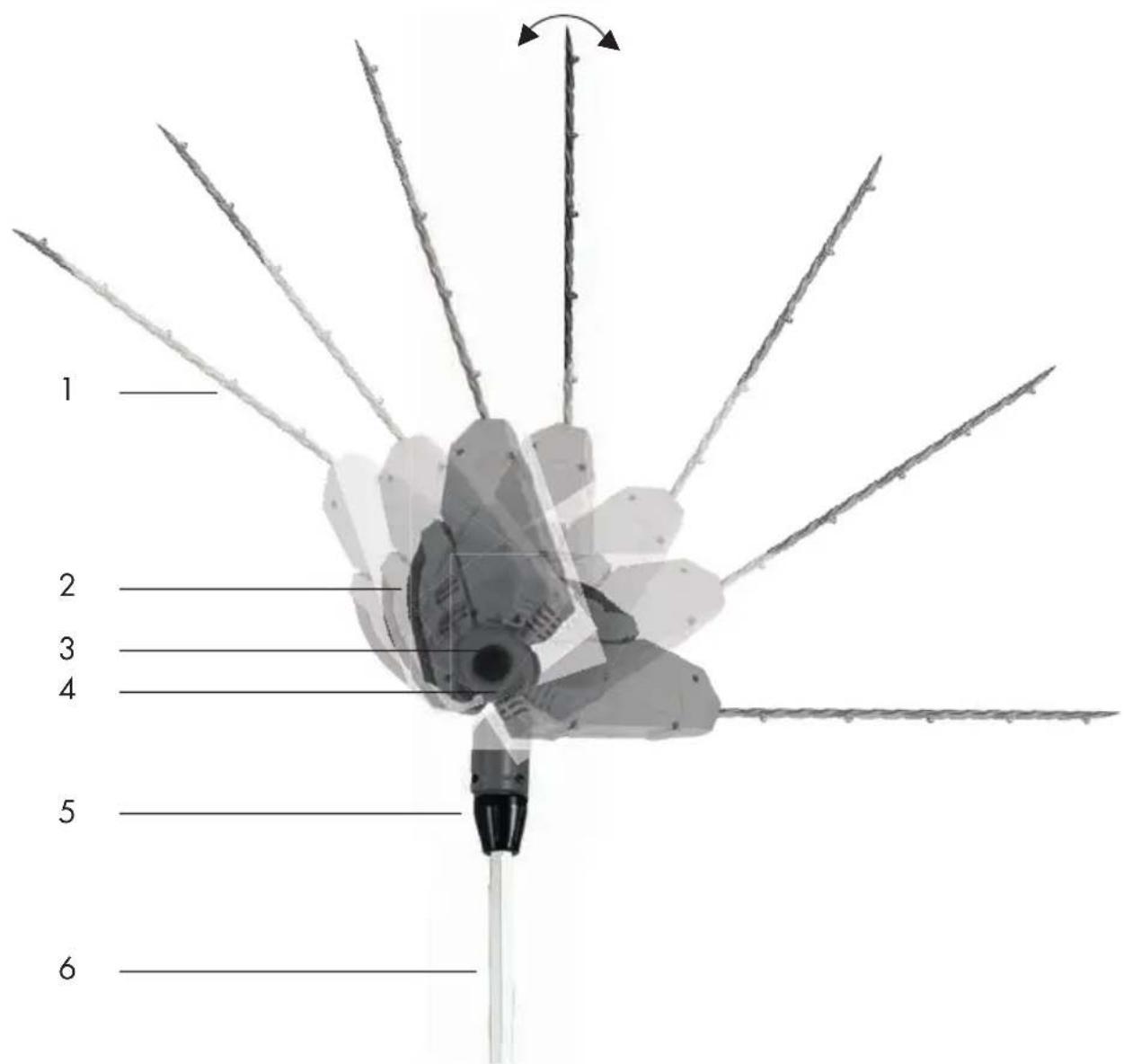

B 22 Thread for motor head mounting

23 Assembly stop and fixation pin

Technical Data

Cordless telescopic hedge trimmer FTHSA 20 A1

Motor voltage U.... 20 V==

Idling speed n_0 .....2300 min ^-1

Safety class .... III

Protection category......IPXO

Weight (without battery).... 3.6 kg

Cutting length ....approx. 410 mm

Cutting capacity......approx. 15 mm

Sound pressure level

(L_pA) 77.2 dB(A); K_pA = 3 dB

Sound power level ( L_WA )

measured...... 89.16 dB(A); K_WA = 3 dB

guaranteed 91 dB(A)

Vibration at the handle

(a_h) 1.258 m/s²; K = 1.5 m/s²

Battery (Li-Ion) ...... FAP 20 A1

Battery cells....5

Nominal voltage 20 V=

Capacity 2.0 Ah

Charging time .... approx. 1 h

Charger PLCP-007A

Nominal consumption....65 W

Voltage input.....230-240 V\~, 50 Hz

Voltage output.... 21.5 V=

Output current 2.4 A

Safety class ...... □ II

Protection category....IPXO

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Notes on Safety

This section deals with the basic safety regulations to be observed when working with the electric hedge trimmer.

Symbols and Icons

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Symbols on the Equipment

Caution!

Read through the instruction manual carefully.

Wear personal protective equipment. Basically, wear protective goggles or, even better, face protection, ear protection, safety helmet, cut-protection working clothes.

Wear cut-resistant gloves.

Wear anti-slip safety shoes.

Keep the equipment away from nearby people.

Do not use the hedge trimmer in the rain or on wet hedges.

Danger of death by electrocution! Keep at least 10m away from power lines.

Caution! Falling objects. Particularly when cutting overhead.

Caution! Risk of injury from blades in operation.

Cutting length

Remove the battery prior to servicing the appliance.

Information of the acoustic power level L_WA in dB.

Machines are not to be place with domestic waste.

[Non-Text]

Symbols on the Battery

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45°C).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Symbols on the Charger

Caution!

Read the operating instructions before charging.

The rcharger is for indoor use only.

Miniature fuse

Protection class II (Double insulation)

Electrical appliances must not be disposed of with the domestic waste.

LED display while charging.

General Notes on Safety

Before working with the equipment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an experienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. Inappropriate use of the device may result in serious injury.

If an accident or fault occurs during operation, immediately switch off the device and disconnect at the plug. Treat injuries appropriately or consult a doctor. For the correction of faults, read the "Troubleshooting" chapter or contact our service centre.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• The appliance is not for use by children

2) ELECTRICAL SAFETY

Caution! The following states how to avoid accidents and injuries due to electric shock:

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
• Where possible, connect the equipment only to a plug socket with a leakage-current-operated circuit breaker (FI switch), with a rated current of not more than 30 mA.

3) PERSONAL SAFETY

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influ-

ence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

In this way you avoid accidents and injuries:

- Hold the electric tool by the insulated handle surfaces when performing work where the cutting tool may come into contact with hidden wiring. Contact with a live

wire can also cause a charge in metal parts of the appliance and result in an electric shock.

4) POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Carefully inspect the area to be cut and remove all wires or other foreign bodies.

- Carefully inspect the area to be cut and remove all wires or other foreign bodies.

- Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

7) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

- Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents. - Recharge the batteries indoors only because the battery charger is designed for indoor use only. Risk of electric shock.

- To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

- Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

- Allow a hot battery to cool before charging.

- Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort. After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

- Do not use non-rechargeable batteries. This could damage the appliance.

Hedge trimmer safety warnings

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Always ensure that all handles and safety devices are securely mounted when you use the hedge trimmer. Never try to use an incompletely assembled hedge trimmer or a hedge trimmer with impermissible modifications.
• Always be familiar with your surroundings and pay attention to potential dangers that you may not be able to hear because of the noise of the hedge trimmer.
• During transport or storage, the cutter unit of the hedge trimmer must always be covered with the protective hood of the cutter unit.

Correct handling of the Battery charger

• This device can be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience or knowledge if they are supervised or have been instructed in how to use the device safely and understand the associated dangers. Children must not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
  • To charge the battery, use only the charger supplied. Risk of fire and explosion.
• Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening connection to the battery/power tool/device. This ensures that the battery and charger are not damaged.

• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not charge non-re-chargeable batteries in the charger. This could damage the appliance.

Removing/inserting the battery

1. To remove the battery (18) from the appliance, press the release button (A 19) on the battery and pull out the battery.
2. To insert the battery (A 18), place it on the guide track and push it into the appliance. It will audibly snap in.

Charging Process

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

• Charge the battery before the first time of use.
• Only charge with the originally supplied charger.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.

GBIE

- The warranty excludes all defects caused by improper handling.

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Checking the charge status of the rechargeable battery

The battery charge status indicator (20) signalises the state of charge of the battery (A18).

Press the button (A 17) on the battery (A 18). The state of charge of the battery is displayed by illuminating the 3-colour LED lights of the state of charge display.

3 LEDs light up: Battery is fully charged.

2 LEDs light up: Battery has a residual charge.

1 LED lights up: Battery has to be charged.

Recharging the battery

Only charge the battery (18) when the red LED on the charge status indicator (A20) is on.

Charging time is approx. 1 hour.

1. Remove the battery (18) from the appliance, as necessary (see

„Removing/inserting the battery“).

1. Insert the battery (18) in the charging compartment of the battery charger (16).

2. Plug the battery charger (16) into a mains outlet. The red LED on the control display (20) of the charger (16) comes on when the battery (18) is loading. If the green LED on the charger (16) is on, the battery (18) is charged.

3. When the battery is fully re- charged unplug the battery charger (16) from the mains.

4. Remove the battery (18) from the charger (16).

Assembling

Do not insert the battery until the appliance is fully assembled. Risk of injury!

Use only original parts.

1. Unpack the device and check for completeness.

1. Slide the motor head (2) onto the tubular shaft of the telescopic tube (6). Slide the motor head (2) up to the assembly stop (23) onto the telescopic tube (6). The position is preset by the fixation pin (23).

2. Secure the motor head (2) and the telescopic tube (6) with the cap nut (5). To do this, screw the cap nut (5) onto the thread of the motor head mounting (22) and tighten the cap nut (5) by hand.

Operation

Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment.

Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.

Note noise protection and local specifications. The use of the equipment on certain days (e.g. Sundays and national holidays), at certain times of day (lunch times, night time quiet periods) or in special areas (e.g. health resorts, clinics etc.) is restricted or forbidden.

Adjust telescopic arm

The telescopic tube (6) can be adjusted continuously with the clamping lever (7).

1. Fold the clamping lever (7) forward according to the illustration and change the length of the arm by pushing or pulling it.

2. Fold the lever (7) back again and set the desired working length of the telescopic tube (6).

3. If the lever (7) loosens, tighten the Allen screw (7a) using the wrench (A8).

Swivelling the cutter bar

1. Hold the blade safety bar (1) on the bottom of the motor head (2).

2. Press the release button (3) on both sides of the articulated joint (4).

3. Swivel the motor head (2) with the blade safety bar (1) into the desired angular position and release the release buttons (3). The motor head (2) locks back into place again. There are 7 possible positions.

Attach the shoulder strap

1. Put on the shoulder strap.

2. Attach the shoulder strap spring clip (A14) to the carrying eyelet (A10) on the tubular shank of the device.

3. Set the strap length such that the spring clip (A14) on the shoulder strap (A13) is roughly at the height of your hip.

4. You can also adjust the height of the carrying eyelet (A10) on the telescopic arm after loosening the hex socket head screw.

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

1. To switch on, hold the safety switch (A11) depressed and simultaneously press the on/off switch (A12). The hedge trimmer

will be run at maximum speed.

1. The equipment will switch off again when you release on/off switch (A12).

Working with the Device

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

• Check the shoulder strap (A13) on a pleasant position, which makes it easier for you to hold the hedge trimmer.
• If the blades become jammed with solid objects, turn the device off immediately, take out the rechargeable battery, and remove the object.
• Avoid overstraining the equipment during work.

Putting down the device

• Place the device on the ground with the motor housing (A2) first.
• The safety cutter bar (A1) must be placed on the ground without being subjected to any pressure.
• Do not apply any static pressure whatsoever to the safety cutter bar (A1).

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.

• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.

• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.

• In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

1. Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
2. Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape
3. Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Working Safely

• Do not use the high pruning saw when standing on a ladder or in an unsafe position.
• Do not be tempted to make unconsidered cuts. Doing so may endanger both yourself and others.
• Children must be supervised to ensure that they do not play with the equipment.
• Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a personal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use.

Maintenance/Cleaning

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Switch off the device and remove the battery before carrying out any work on the equipment.

Wear gloves while handling the blades.

Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.

- Before each use, check the hedge trimmer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.

• Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
• Check coverings and safety devices for damage and correct seating. Replace these where necessary.
• Keep the ventilation slots and motor housing of the device clean. Use a damp cloth or a brush to do this. Do not wash down the equipment with water, or submerge it in water.
• Do not use any cleaning agents or solvents. These could cause irreparable damage to the equipment. Chemical substances can attack the plastic parts of the equipment.

- Clean the cutter bar carefully after each use. Wipe it off with an oily cloth or spray it with a metal protective spray.

• The gears is maintenance free

Diagram of a tool interacting with a grid-like structure (no text or symbols)

Storage

• Keep the unit in the blade protection supplied, in a dry place and out of reach of children. Store the unit in a lying position or secured against falling over.
• Remove the battery before storing the unit for longer periods of time (e.g. hibernation).
• Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage period (two LED lights of the charge status indicator (D 20) light up).
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

GBIE

• In order to keep the battery well charged, avoid exposing the appliance to extreme heat or cold in storage.
• Store the equipment between 10^ C and 25^ C. During storage, avoid extreme cold or heat so the battery does not lose power.

Waste Disposal/Environmental Protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Electric units do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit and the recharger to a recycling centre. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste

management company or our service centre.

• Defective units returned to us will be disposed of for free.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 42). Please have the order number mentioned below ready.

Position Position Description Order No. instruction exploded manual drawing

A 1 4 Safety blade and gear			91102900
A 5 13 Cap nut			91102902
A 6 12 Telescopic tube			91102901
A 7	18-20,23,24 Clamping lever with accessories			91102904
	17 Fiberglass tube		91102903
A 16	Charger EU			91099421
A 18	34 Rechargeable battery			91099420

Trouble Shooting

Problem Possible	cause Troubleshooting
Device does not start	Rechargeable battery (18) discharged	Charge the rechargeable battery (see 'Charging process')
	Rechargeable battery (18) not inserted	Insert rechargeable battery (see 'Charging process')
	Switch lock (11) has not been activated properly	Switch it on (see 'Operation')
	On/off switch (12) is broken	Repair by service centre
	Worn out carbon brushes
	Defective motor
Device works with interruptions	Internal loose contact	Repair by service centre
	On/off switch (12) is broken
Blade safety bar (1) is getting hot	Blade safety bar (1) is blunt	Sharpen or replace blade safety bar (1) (service centre)
	Blade safety bar (1) contains nicks	Check or replace the blade safety bar (1) (service centre)
	Too much friction due to lack of lubrication	Lubricate the blade safety bar (1)
Bad cutting results	Too much friction due to lack of lubrication	Lubricate the blade safety bar (1)
	Dirty blade safety bar Clean the blade safety bar (1)
	Blade safety bar (1) is blunt	Have the blade safety bar (1) sharpened or replaced (service centre)
	Bad cutting technique See 'Working with the device'
Charging not possible (red LED flashing on the charger (16))	Battery (18) too warm Allow battery (18) to cool
Charging not possible (red and green LED flashing on the charger (16))	Battery (18) defective	Replace battery (see „Spare Parts/Accessories")

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. cutter bar) or to cover damage to breakable parts (e.g. switches, batteries).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 280245) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the

service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 280245

IF Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 280245

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ......62

Service-Center 62

Importateur ......62

Simple line drawing of a tool interacting with a textured surface (no text or symbols)

Rangement

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Diagram showing a tool interacting with a surface of repeating patterns (no text or symbols)

Skladování

recargable ....FTHSA 20 A1

Diagram showing a tool interacting with a grid of pins (no text or symbols present)

Almacenaje

	Translation of the original EC declarationof conformity
We confirm, that the design type of the Cordless telescopic hedge trimmer Design Series FTHSA 20 A1 Serial number 201704000001 - 201704011506 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2005/88/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN ISO 12100:2010 EN ISO 10517:2009/A1:2013 • EN 55014-1:2006/A2:2011 EN 55014-2:2015 • EN 61000-3-2:2014 • EN 60335-1:2012/A11:2014 EN 60335-2-29:2004/A2:2010 • EN 62233:2008 • EN 61000-3-3:2013
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline: Guaranteed sound power level: 91 dB(A) Measured sound power level: 89.16 dB(A) Compliance evaluation process carried out in accordance with Appendix V, 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, 17.05.2017 Germany

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

informativ • informative • informatif • informatief • informační • informativo

2017-05-16_rev02_gs

C

D

E

GRIZZLY TOOLS GMBH & CO. KG
