Brand	Klarstein
Model	Stella Prima
Product type	Microwave with grill
Reference	10028130
Power supply	230 V ~ 50 Hz
Microwave power	800 W
Grill power	1000 W
Capacity	20 liters
Control panel	Rotary knob, touch keys
Main functions	Microwave, grill, combination, defrost, auto cooking, delayed cooking
Automatic programs	8 programs (popcorn, pizza, drinks, potatoes, fish)
Child safety	Key lock
Display	Digital LED
Opening type	Door with handle
Cavity material	Stainless steel or enameled (unspecified)
Cleaning and maintenance	Regular cleaning with damp cloth, do not use abrasive products
Included accessories	Turntable, metal rack, roller ring

Frequently Asked Questions - Stella Prima Klarstein

How to set the time on the Klarstein Stella Prima microwave?

After plugging in the appliance, press the CLOCK key, turn the knob to set the hours, press CLOCK again to switch to minutes, turn to set the minutes, then press CLOCK and wait 5 seconds.

What is the maximum microwave power?

The maximum microwave power is 800 W (100P). You can choose from 5 levels: 100P, 80P, 60P, 40P, 20P.

Can I use metal containers in this microwave?

No, metal containers must not be used in microwave or combination mode as they can produce sparks. Use suitable glass, ceramic or plastic containers.

How to use the grill function?

Press the Grill/Combi key several times to choose the mode: G (grill only), C1 (30% microwave, 70% grill) or C2 (55% microwave, 45% grill). Set the time and press Start.

How to defrost food?

Press the DEFROST key to choose the program according to food type: d.1 (meat), d.2 (poultry), d.3 (seafood). Set the weight and press Start. Turn food halfway through.

How to clean the microwave?

Unplug the appliance. Clean the outside and inside with a soft, damp cloth. Do not use abrasive products or a metal sponge. The turntable and ring can be washed with soapy water.

Why doesn't the interior light turn on?

Check that the door is properly closed. If the light does not turn on, test with a glass of water as described in the Troubleshooting section. If the problem persists, contact after-sales service.

How to disable child safety?

Press the Pause/Cancel key for 3 seconds to activate or deactivate the lock.

How to program a delayed cooking?

First set the current time, then the cooking program (power and duration). Press PRESET, set the start time, confirm with PRESET. The oven will start automatically at the set time.

What types of containers are suitable for grill mode?

For grilling, use heat-resistant ceramic or resistant glass containers. The provided metal rack can be used. Avoid plastic and lacquered containers.

USER MANUAL Stella Prima Klarstein

INHALTSVERZEICHNIS

Technische Daten 3

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 22

Product Description and Control Panel 24

Installation 25

Getting Started 25

Programs and Functions 26

Notes on the Cooking Utensils 34

Cooking Tips 35

Cleaning and Care 36

Troubleshooting 37

Hints on Disposal 38

Declaration of Conformity 38

TECHNICAL DATA

Item number 10028130
Power supply 230 V ~ 50 Hz
Power microwave 800 W
Power grill 1000 W
Capacity 20 L

SAFETY INSTRUCTIONS

Read all the safety and operating instructions carefully and retain them for future reference. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

To reduce the risk of fire in the oven cavity:

• Do not overcook the food.
• Remove wire twist ties from paper or plastic bags before placing bags in the oven.
• Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
• After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.
  • Built up grease may overheat and begin to cause smoke or catch fire.
• If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

To reduce the risk of explosion and sudden boiling:

• Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
• Use the wide mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
• Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
• After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
• Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

To prevent the turntable from breaking:

• Let the turntable cool down before cleaning.
• Do not place hot foods or utensils on the cold turntable.
• Do not place frozen foods or utensils on the hot turntable.

General Instructions

• Make sure that the cookware does not touch the walls of the microwave.
- Only use containers that are suitable for microwave ovens.
- Do not store food or other items in the microwave.
- Do not use the microwave without contents, otherwise it may be damaged.
- If you use the microwave, do not leave it unattended in the presence of children.
- Only use accessories specified by the manufacturer.
- Only use the microwave indoors.
- If the door or seals are damaged, do not continue to use the microwave, have it repaired by a specialist company.

- Do not attempt to repair the appliance yourself. Repairs may only be carried out by trained specialists.

- If smoke is generated, pull the plug and keep the microwave door closed to prevent possible flames.

- Heating liquids may result in sudden boiling. Be careful when removing the container.

- Do not use abrasives or metal scrapers to clean the door to avoid scratching or shattering the glass.

- Do not use the unit with an external timer or remote-controlled power outlet.

- The unit is not intended for commercial use, but only for household and similar environments.

- The appliance is designed to heat food and beverages. Heating clothes, slippers, heat pads, and sponges may cause injury, fire, or fire.

- Children, physically and mentally handicapped persons should only use the unit if they have been thoroughly familiarized with its functions and safety precautions by a supervisor. Ensure that children do not play with the device.

- Do not use a steam jet for cleaning.

- Do not touch any parts of the appliance, door or heating elements inside during operation, they can become very hot.

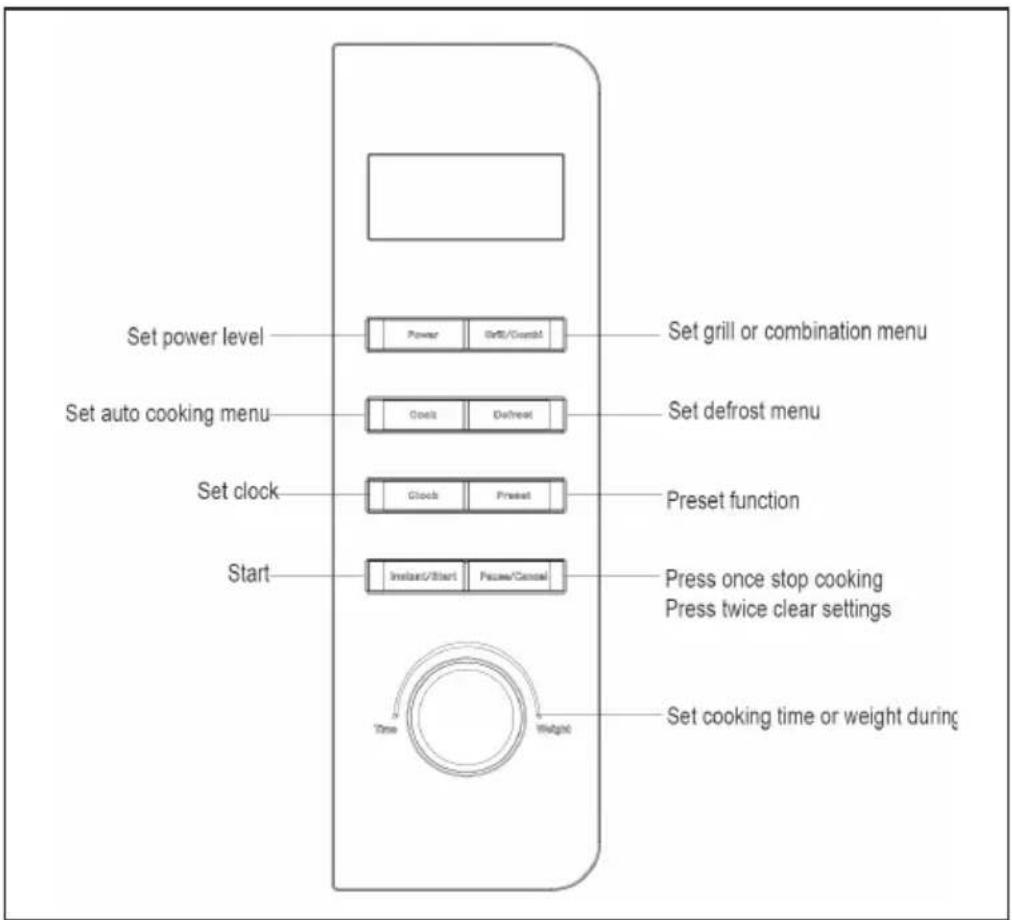

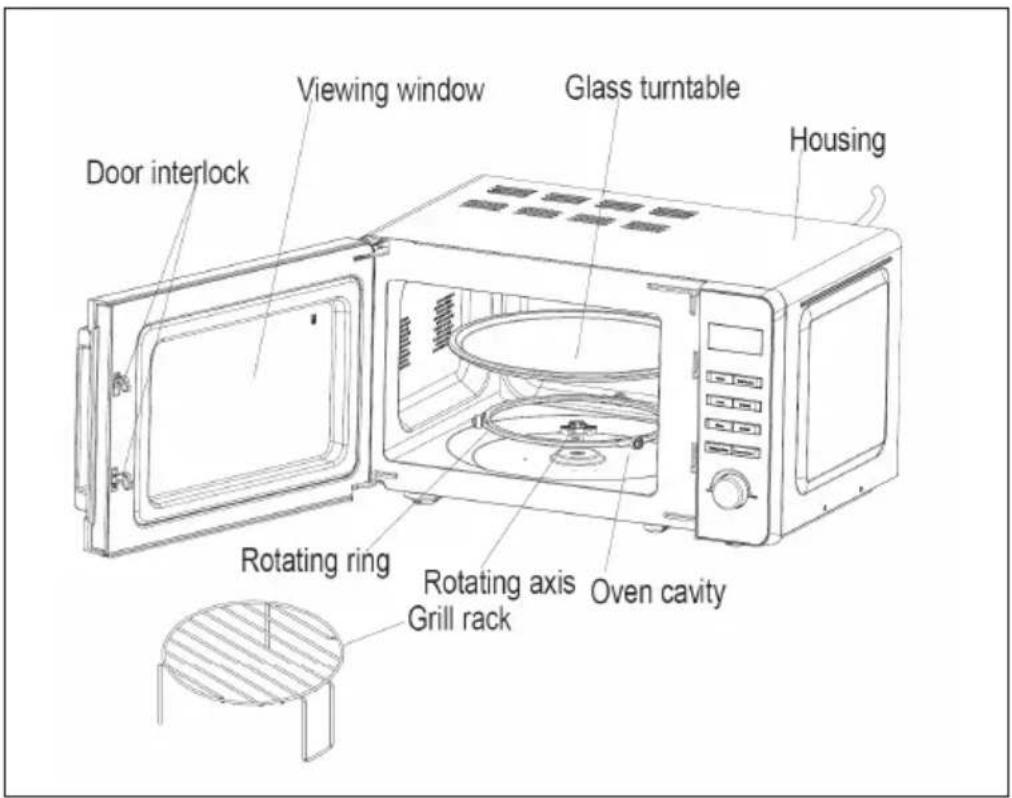

PRODUCT DESCRIPTION AND CONTROL PANEL

INSTALLATION

Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
- Microwave ovens must be placed under dry and non corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
- To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
- The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.
- The appliance must be positioned so that the plug is accessible.
- The microwave oven must be operated with the door closed.
- The microwave must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
• The back of the oven must be placed against a wall
- As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to set the oven to grill mode and operate dry several times.

GETTING STARTED

The LED flashes 3 times when plugged in power supply. Then it flashes “:”, prompting you to input the cooking menu and time.

Auto reminder

When your preset cooking procedure has finished, the LED Display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will sound at an interval of 3 minutes.

Clock setting

Clock button make it available for you to input current or preset time when ":" flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.

Example: How to set 12:30

	Steps Display
1	After power-up, the colon flashes . :
2	Press Clock button once. 00:00
3	Turn Time/Weight knob to set exact hours. 12:00
4	Press Clock button once again. 12:00
5	Turn Time/Weight knob to set exact minutes. 12:30
6	Press Clock button once again or wait for 5 seconds,and the numbers will go steadily.

PROGRAMS AND FUNCTIONS

Microwave cooking

This function uses for cooking and heating food. Press Power button, LED cycles to show 100P—80P—60P—40P—20P.

100P	High power 100% power for fast heating.
80P	Medium High power 80% power for medium rapid heating.
60P	Medium power 60% power for steam cooking.
40P	Medium Low power 40% power for defrosting.
20P	Low power 20% power to keep warm.

• The maximum time that can be set is 60 minutes.
- If you only use the microwave, do not use the grill.
- Do not start the microwave when it is empty.
- If you turn the food over while cooking, press Instant/Start to continue cooking.
- If you want to take the food before time runs out, press Pause/Cancel to cancel the cooking process and prevent the program from running unexpectedly the next time you use it.

• You may change the cooking time during cooking. And it is recommended turning the food halfway, after you turn the food. Press Instant/Start button once to continue.
• At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

Example: To cook at 80P for 10 minutes

	Steps Display
1	After power-up, the colon fl ashes. :
2	Select the desired microwave power by pressing Power button consecutively.	80P
3	Set cooking time by turning Time/Weight knob. 10:00
4	Press Instant/Start button to start and LED will count down to show running time.

Grill Combi

This function use for grill food, press this button, LED Display will cycle to show G, G1, G2.

G	Grill, the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork, sausage, chicken wing as good brown color can be obtained
C1	Combination of Grill and microwave cooking. 30% of time microwave output and 70% of time grilling
C2	Combination of Grill and microwave cooking. 55% of time microwave output and 45% of time grilling

CAUTION

Risk of burns! In grill mode, all oven parts, the grill and all containers become very hot. Use oven gloves to avoid burning yourself.

Example: To grill food with C2 cook menu for 10 minutes

	Steps Display
1	After power-up, the colon flashes. :
2	Press Grill/Combi button to select desired grill menu. C2
3	Set cooking time by turning the Auto Cooking Time / Weight knob.	10:00
4	Press Instant. Start to start cooking.

Defrost

This function use for Defrost food, Press Defrost button and the LED display will cycle to show d.1 - d.2 - d.3.

d.1	For defrosting meat, the weight range from 0.1 to 2.0 kg.
d.2	For defrosting poultry, the weight range from 0.2 to 3.0kg.
d.3	For defrosting seafood, the weight range from 0.1 to 0.9kg.

• It is necessary to turn over the food during operation to obtain uniform effect.
  • Usually defrosting will need longer time than that of cooking the food.
• If the food can be cut by knife, the defrosting process can be considered completed.
• Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: To defrost 0.4kg poultry

	Steps Display
1	After power-up, the colon flashes. :
2	Press Defrost button to set the food kind. d.2
3	Turn Time/Weight knob to set the defrost weight. 0.4
4	Start cooking by pressing Instant/Start.
5	In half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Instant/start button again to continue defrosting.

Auto cooking

The oven has default cooking menu for simple operation. When the LED flash colon, press the Cook button and LED will cycle to show A.1, A.2 ..... A.8. Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

	Kind Method
A.1	Popcorn Suitable for popping a bag of corn, which is available in the market, weighted 85 g. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press Pause/ Cancel button to stop the popping process.
A.2	Popcorn Same as A.1 except 100 g weight.
A.3	Pizza Warm a piece of chilled pizza of 0.15 kg.
A.4	Beverage Heating a cup of 250 ml liquid. The liquid temperature is about 5-10°C. Use a big mouth cup and do not seal.
A.5	Beverage Heating a cup of 500 ml liquid. The liquid temperature is about 5-10°C. Use a big mouth cup and do not seal.
A.6	Potato Cooking the potato strips, cut into 5 mm width and height, length. Total weight is about 0.45kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss.
A.7	Potato Same as A.6 except the weight of potato strips is about 0.65 kg.
A.8	Fish Suitable for steaming a fish of 0.45 kg. After the fish washed and scales removed, make a slits on the skin of fish .Put the fish on a shallow dish of 22-27 cm diameter sprinkle lightly with some ingredient and cover the dish with a thin film to prevent water loss. After cooking, stand for 2 minutes.

The temperature of food before cooking would be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Example: Steam 0.45 kg fish

	Steps Display
1	After power-up, the colon flashes. :
2	Press Cook button to set the cooking menu. A.8
3	Start cooking by pressing Instant/Start button and LED will count down to show running time.	6:30

Automatic starting (delayed function)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: Setting the current clock and setting the cooking menu and time.

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20.

	Steps Display
1	After power-up, the colon flashes. :
2	Press Clock button. 00:00
Setting the current clock
3	Set hours by turning Time/Weight knob 12:00
4	Press Clock button again to confirm hours 12:00
5	Set minutes by turning Time/Weight knob 12:30
6	Press Clock button once or waiting for 5 seconds, and the numbers will go steady.
Setting the cooking menu and time
7	Select cooking power by pressing Power button 100P
8	Turn Time/Weight knob to set cooking time 9:30
9	Press Preset button once to return to current clock.
10	Set hours by turning Time/Weight knob
11	Press Preset button again to confirm hours
12	Set minutes by turning Time/Weight knob 14:20
13	Press Preset button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.
14	You may check the preset starting time by pressing Preset button.

Multi-sequence cooking

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow.

Example: You want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2 sequence setting.

	Steps Display
1	Press Power button to select power level. 100P
2	Turn Time/Weight knob to set cooking time. 3:00
3	Press Grill/combi button to select desired grill menu G
4	Turn Time/Weight knob to set cooking time. 9:00
5	Start cooking by pressing Instant/Start

Note: When microwave cooking is finished, the microwave oven automatically starts grilling. A maximum of 4 steps can be programmed.

Child lock function

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode. Set lock: Press and hold Pause/Cancel button about 3 seconds. Cancel lock: Press and hold Pause/Cancel button about 3 seconds.

NOTES ON THE COOKING UTENSILS

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material Micro Grill Combi Notes
Heat-resistant ceramic	Yes Yes	Yes Never use	the ceramics	which are decorated with metal rim or glazed
Heat-resistant plastic	Yes No	No Can not be used for long time microwave cooking
Heat-resistant glass	Yes Yes Yes
Plastic film Yes No	No It should	not be used when		cooking meat or chops as the over-temperature may do damage to the film
Grill rack No Yes Yes
Metal container No	No No It should not be used			in microwave oven.Microwave can not penetrate through metal.
Iacquer No No No	Poor heat-resistant. Can			not be used for High-temperature cooking
Bamboo wood and paper	No No	No Poor heat-resistant. Can		not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner.

Whether the food is done

Color and hardness of food help to determine if it is done, these include: Steam coming out from all parts of food, not just the edge, Joints of poultry can be moved easily, Pork or poultry shows no signs of blood and Fish is opaque and can be sliced easily with a fork.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

CLEANING AND CARE

- The oven should be cleaned regularly and any food deposits removed.

- Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

- Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance

- Do not remove the waveguide cover

How get rid of strange odors

When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them:

1 Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.

2 Place a cup of red tea in oven, then heat with high micro power.

3 Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

Tips for Cleaning

Exterior	Wipe the enclosure with a dampened soft cloth
Door	Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter.
Control panel	Wipe the control panel with a slightly dampened soft cloth.
Interior walls	Wipe clean the cavity with a dampened soft cloth. Wipe clean the waveguide cover to remove any food splashed
Turntable, rotation ring and rotation axis	Wash with mild soap water. Rinse with clean water and allow drying thoroughly.

TROUBLESHOOTING

Please check the following before contacting our customer service:

Place a cup of water (150 ml) in the microwave and close the door. Once the door is securely closed, the interior lights will go out. Turn on the microwave and let it run for one minute.

• Is the oven light on?
• Is the cooling fan running? To check, hold your hand to the ventilation slots on the back.
• Is the glass plate turning? The plate can rotate both clockwise and counterclockwise.
  • Is the water hot after one minute?

If you answer any of these questions NO, check the socket and fuse in the fuse box. If the socket and fuse are OK, contact our customer service or a specialist company.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

Estimado cliente:

ÍNDICE DE CONTENIDOS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

SOMMAIRE

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
