Product Type	Microwave with Grill
Brand	Klarstein
Model	10032640 / 10032641
Oven Capacity	20 L
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Rated Input Power (Grill)	1000 W
Power Supply	220-240 V ~ 50 Hz
Microwave Power Levels	Low (17%), Med. Low (33%), Med (55%), Med. High (77%), High (100%)
Combination Modes	Combi 1 (80% Grill, 20% Microwave), Combi 2 (70% Grill, 30% Microwave), Combi 3 (60% Grill, 40% Microwave)
Grill Function	100% Grill (1000 W input)
Control Type	Dual knob (power and timer)
Timer	Up to 35 minutes
Turntable	Yes (glass tray with roller ring)
Grill Rack	Included (for grill functions)
Installation Clearance (Above)	Minimum 30 cm
Installation Clearance (Sides)	Minimum 20 cm
Minimum Installation Height	85 cm
Safety Features	Door interlock switches, child safety (not for children under 8 without supervision)
Cleaning	Wipe cavity with damp cloth; use lemon and water for easy cleaning
Waste Disposal	Do not dispose as household waste; recycle per local regulations

Frequently Asked Questions - 10032640 Klarstein

Can I use metal containers in the microwave?

No, metal containers or utensils can cause arcing and damage the oven. Use only microwave-safe materials such as glass, ceramic, or plastic labeled 'Microwave Safe'.

Why does the oven not start?

Ensure the power cord is securely plugged in. If it still doesn't start, check the fuse or circuit breaker. If the problem persists, contact a qualified technician.

How do I clean the microwave easily?

Place half a lemon in a bowl with 300 ml water and microwave on high (100% power) for 10 minutes. Then wipe the interior with a soft dry cloth.

What is the correct clearance for installation?

Leave at least 30 cm clearance above the oven and 20 cm on the sides. The rear should be against a wall. Minimum installation height is 85 cm.

Can I run the microwave empty?

No, operating the microwave without food inside can cause overheating and damage the magnetron. Always set the timer to 0 when not in use.

What does the 'Combi' function do?

Combi modes combine grill and microwave cooking. Combi 1 uses 80% grill and 20% microwave, Combi 2 uses 70% grill and 30% microwave, and Combi 3 uses 60% grill and 40% microwave.

Why does steam accumulate on the door?

Steam is normal during cooking. It escapes through vents but may condense on cooler surfaces like the door. Wipe dry if necessary.

Is the microwave safe for children to use?

Children aged 8 and above can use the microwave under supervision. Keep the appliance and cord out of reach of children under 8. Cleaning should not be done by children unless supervised.

What materials should I avoid in the microwave?

Avoid aluminum trays, metal handles, metal twist ties, paper bags, plastic foam, and wood. These can cause arcing, fire, or damage.

How do I defrost food using this microwave?

Set the power knob to Med. Low (33% power) for defrosting. Turn the timer to the desired time based on food weight. The oven will start automatically.

USER MANUAL 10032640 Klarstein

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENTS

Technical Data 17

Safety Instructions 18

Product Description 22

Notes on Installation 23

Control Panel and Features 24

Notes on Cookware 26

Care and Cleaning 28

Troubleshooting 29

Hints on Disposal 30

Declaration of Conformity 30

TECHNICAL DATA

Item number 10032640, 10032641
Power supply 220-240 V ~ 50 Hz
Rated input power (microwave) 1050 W
Rated output power(microwave) 700 W
Rated input power (grill) 1000 W
Oven capacity 20 L

SAFETY INSTRUCTIONS

Precautions to avoid possible exposure to prevent excessive microwave energy

- Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

General Instructions

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

- Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Only use utensils that are suitable for use in microwave ovens.

- The oven should be cleaned regularly and any food deposits should be removed.

- Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not overcook food.

- Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

- Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

- Install or locate this oven only in accordance with the installation instructions provided.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave

ovens since they may explode, even after microwave heating has ended.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses; bed and breakfast type environments.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not store or use this appliance outdoors.

- Do not use this oven near water, in a wet basement or near a swimming pool.

- The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

- Do not let cord hang over edge of table or counter.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- Accessible parts may become hot during use. Young children should be kept away.

• Steam cleaner is not to be used.

- During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

- Only use the temperature probe recommended for this oven (for ovens provided with a facility to use a temperature-sensing probe).

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- The microwave oven must be operated with the decorative door open (for ovens with a decorative door).

• The surface of a storage drawer can get hot.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Grounding Installation

DANGER

Electric Shock Hazard! Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
• This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
• Only use an extension cord if it is absolutely necessary.
• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

If a long cord set or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• Note, that the total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on „Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

PRODUCT DESCRIPTION

Grill Rack

Only be used in grill function and be placed on the glass tray

A	Control panel
B	Turntable shaft
C	Turntable ring assembly
D	Glass tray
E	Observation window
F	Door assembly
G	Safety interlock system

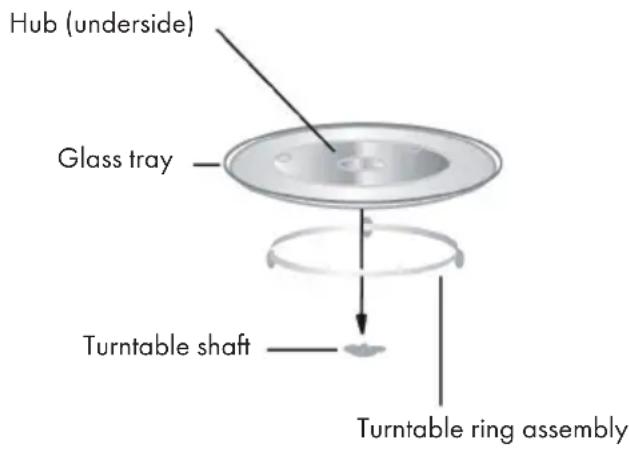

Turntable

NOTES ON INSTALLATION

• Select a level surface that provide enough open space for the intake and/or outlet vents.
  • The minimum installation height is 85 cm.
• The rear surface of appliance shall be placed against a wall.
• Leave a minimum clearance of 30 cm above the oven, a minimum clearance of 20 cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven.
• Blocking the intake and or outlet openings can damage the oven.
• Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
• Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
• WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged.

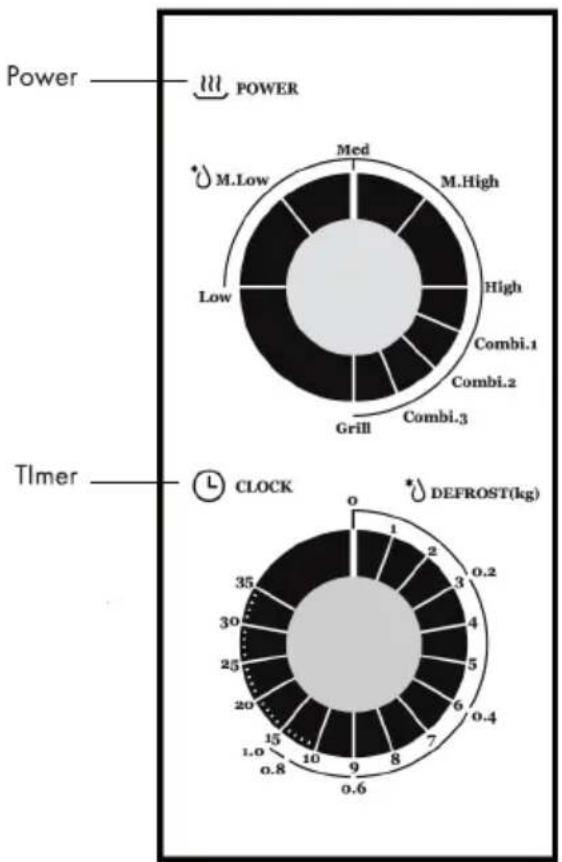

CONTROL PANEL AND FEATURES

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to „0”.

Settings and application areas

Function Power Application areas
Low 17 % Microwave Thawing food
Med. Low (defrost) 33 % Microwave Soup stew, soften butter or defrost
Med. 55 % Microwave Stew, fish
Med. High 77 % Microwave Rice, fish, chicken, ground meat
High 100 % Microwave Reheat, milk, boil water, vegetables, beverage

Function Power Application areas
Combi. 1	80 % Grill,20 % Microwave	Sausage, lamb, kabobs,seafood, steak
Combi. 2	70 % Grill,30 % Microwave	Chicken pieces, chickenbreasts, pork chops
Combi. 3	60 % Grill,40 % Microwave	Whole chicken
Grill	100 % Grill	Baked bread, slice food

Note: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

NOTES ON COOKWARE

Materials you can use in microwave oven:

Utensils Remarks
Aluminum foil Shielding only.	Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking.Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5 cm) away from oven walls.
Browning dish Follow man	manufacturer's instructions. The bottom ofbrowning dish must be at least 3/16 inch (5 mm) abovethe turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only.	Follow manufacturer's instructions.Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm.Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there isno metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close withmetal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leaveoven unattended while cooking.
Paper towels Use to cover	food for reheating and absorbing fat.Use with supervision for a short-term cooking only.
Parchment paper Use as a	cover to prevent splatteringor a wrap for steaming.
Plastic Microwave-safe only.	Follow the manufacturer'sinstructions. Should be labeled „Microwave Safe“. Someplastic containers soften, as the food inside gets hot.,Boiling bags" and tightly closed plastic bags shouldbe slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only.	Use to cover food during cookingto retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat) thermometers.
Wax paper Use as a cover	to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause	arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause	arcing and could cause a fire in the oven.
Paper bags May cause a	fire in the oven.
Plastic foam Plastic foam	may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out	when used in the microwave oven and may split or crack.

CARE AND CLEANING

Note: Be sure to unplug the appliance from the power supply.

• Clean the cavity of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Cleaning Tip: For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

TROUBLESHOOTING

Problem Possible Cause	Suggested Solution
Microwave oven interfering TV reception.	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like TV reception mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light. In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.
Oven can not be started.	Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	Trouble with outlet. Test outlet	with other electrical appliances.
Oven does not heat. Door	not closed well. Close door	well.
Glass turntable makes noise when microwave oven operates.	Dirty roller rest and oven bottom.	Refer to „Care and Cleaning“ to clean dirty parts.

HINTS ON DISPOSAL

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T
