Bestzeit - Microwaves Klarstein - Free user manual and instructions

Product Type	Microwave Oven
Brand	Klarstein
Model	Bestzeit
Cavity Capacity	25 L
Power (Microwave)	1000 W
Power Supply	220-240 V ~ 50/60 Hz
Dimensions (H x W x D)	312 mm x 520 mm x 442 mm
Weight	17.7 kg
Control Type	Digital with LED Display
Power Levels	3 (High, Medium, Low)
Cooking Programs	Multi-stage (up to 3 stages), Preset & X2 Quick Programs
Parental Lock	Yes
Usage Counter	Yes
Turntable	Yes, with rotation ring and axis
Interior Light	Yes
Warranty	Standard manufacturer warranty
Included Accessories	Turntable, rotation ring, user manual
Repair Service	Professional repair recommended; do not self-repair
Cleaning	Wipe with damp cloth; mild soap for turntable

Frequently Asked Questions - Bestzeit Klarstein

How do I set the cooking time and power level?

Press the POWER LEVEL button repeatedly to select High (1x), Medium (2x), or Low (3x). Then use the numeric keypad to enter the cooking time (max 99:99 minutes) and press START.

Can I store my favorite cooking programs?

Yes. In standby mode, press PROG, then a number key (0-9). Set the power level and time, then press PROG again to save. You can store up to 3 stages per program.

How do I use the X2 quick cooking function?

Press X2 in standby mode, then a number key (0-9) to select a preset time. You can overwrite it by pressing PROG, then X2, select a number, adjust power and time, and save with PROG.

What should I do if the microwave stops working?

Check if the socket and fuse are OK. Place 150 ml water inside, close the door, and run for 1 minute. If the light, fan, or turntable doesn’t work, or water isn’t hot, contact customer service.

How do I clean the microwave?

Unplug the unit. Wipe the exterior, door, control panel, and interior walls with a damp soft cloth. Clean the turntable, rotation ring, and axis with mild soapy water, rinse, and dry thoroughly.

Can I use metal containers?

No. Metal containers may cause sparks. Use heat-resistant ceramic, glass, or plastic containers. Check the cooking utensils table in the manual for details.

How do I activate the parental lock?

In standby mode, press and hold the PROG button for 5 seconds. To deactivate, press and hold PROG again for 5 seconds.

How can I remove bad odors from the microwave?

Place lemon slices in a cup and heat on High for 2-3 minutes. Alternatively, heat a cup of red tea or orange peel on High for 1 minute.

What is the maximum cooking time I can set?

The maximum cooking time is 99 minutes and 99 seconds (99:99).

How do I check how many times the microwave has been used?

Open the door, press and hold STOP/RESET, then press POWER LEVEL. The display shows the usage count.

USER MANUAL Bestzeit Klarstein

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 16

Notes on the Cooking Utensils 18

Cooking Tips 19

Product Overview and Control Panel 20

Operation 21

Cleaning and Care 24

Troubleshooting 25

Hints on Disposal 26

Declaration of Conformity 26

TECHNICAL DATA

item number 10034440
power supply 220-240 V ~ 50/60 Hz
power 1000 W
volume 25 L
Dimensions (H x W x D) 312 mm × 520 mm × 442 mm
Weight 17.7 kg

SAFETY INSTRUCTIONS

Read all the safety and operating instructions carefully and retain them for future reference. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

To reduce the risk of fire in the oven cavity:

• Do not overcook the food.
• Remove wire twist ties from paper or plastic bags before placing bags in the oven.
• Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
• After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.
  • Built up grease may overheat and begin to cause smoke or catch fire.
• If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

To reduce the risk of explosion and sudden boiling:

• Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
• Use the wide mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
• Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
• After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
• Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

To prevent the turntable from breaking:

• Let the turntable cool down before cleaning.
• Do not place hot foods or utensils on the cold turntable.
• Do not place frozen foods or utensils on the hot turntable.

General Instructions

• Make sure that the cookware does not touch the walls of the microwave.
- Only use containers that are suitable for microwave ovens.
- Do not store food or other items in the microwave.
- Do not use the microwave without contents, otherwise it may be damaged.
- If you use the microwave, do not leave it unattended in the presence of children.
- Only use accessories specified by the manufacturer.
- Only use the microwave indoors.
- If the door or seals are damaged, do not continue to use the microwave, have it repaired by a specialist company.
- Do not attempt to repair the appliance yourself. Repairs may only be carried out by trained specialists.
- If smoke is generated, pull the plug and keep the microwave door closed to prevent possible flames.
- Heating liquids may result in sudden boiling. Be careful when removing the container.
- Do not use abrasives or metal scrapers to clean the door to avoid scratching or shattering the glass.
- Do not use the unit with an external timer or remote-controlled power outlet.
- The appliance is designed to heat food and beverages. Heating clothes, slippers, heat pads, and sponges may cause injury, fire, or fire.
- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
- Do not use a steam jet for cleaning.
- Do not touch any parts of the appliance, door or heating elements inside during operation, they can become very hot.

NOTES ON THE COOKING UTENSILS

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material Micro Grill Combi Notes
Heat-resistant ceramic	Yes Yes	Yes Never use	the ceramics	which are decorated with metal rim or glazed
Heat-resistant plastic	Yes No	No Can not be used for long time microwave cooking
Heat-resistant glass	Yes Yes Yes
Plastic film Yes No	No It should	not be used when		cooking meat or chops as the over-temperature may do damage to the film
Grill rack No Yes Yes
Metal container No	No No It should not be used			in microwave oven.Microwave can not penetrate through metal.
Iacquer No No No	Poor heat-resistant. Can			not be used for High-temperature cooking
Bamboo wood and paper	No No	No Poor heat-resistant. Can		not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner.

Whether the food is done

Color and hardness of food help to determine if it is done, these include: Steam coming out from all parts of food, not just the edge, Joints of poultry can be moved easily, Pork or poultry shows no signs of blood and Fish is opaque and can be sliced easily with a fork.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

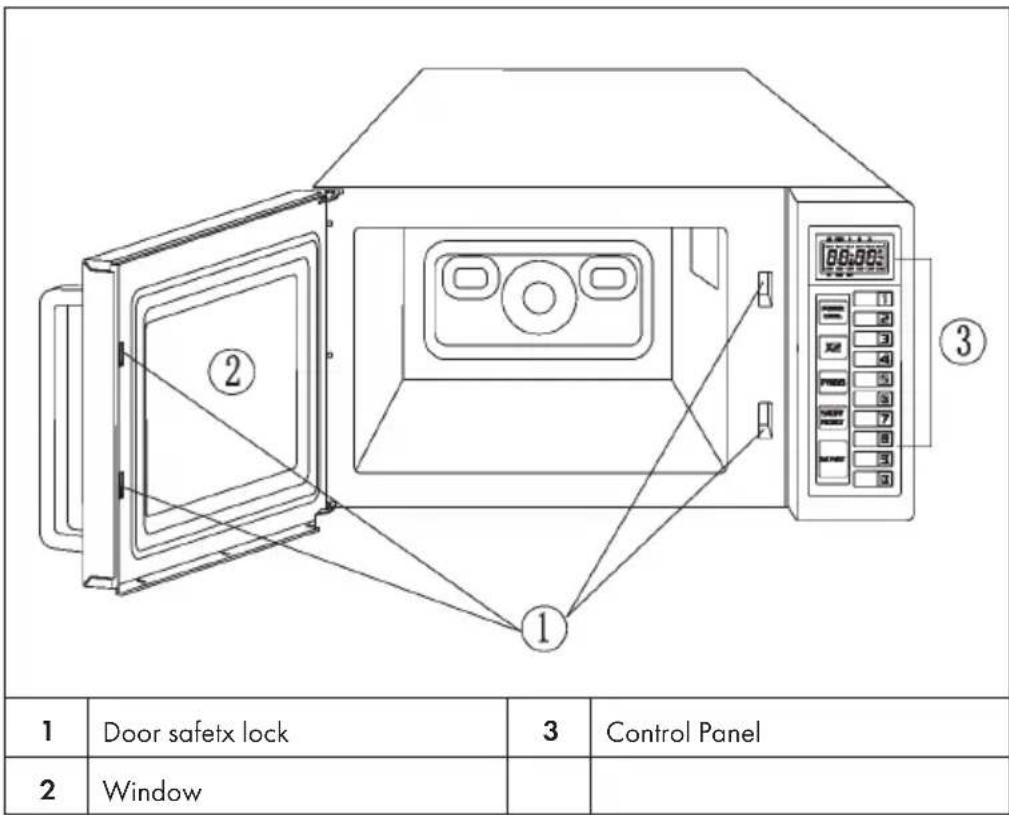

PRODUCT OVERVIEW AND CONTROL PANEL

·DISPLAY: Displays cooking time, power and usage time. ·NUMBER KEYS: Used to set the cooking time and store several cooking programs. ·POWER LEVEL: Press this button repeatedly to adjust the power. ·X2: Press this button to store a cooking program on a number button and recall it later. ·PROG: Used to select a cooking program and store the cooking program on a number key. ·STOP/RESET: Press once during cooking to stop cooking temporarily, press twice to cancel the cooking program. ·START: Press this button to start the selected cooking program.

OPERATION

After plugging in the connector, a beep will sound and the display backlight will turn on. The unit is in standby mode.

Setting the cooking time and power

1. Press the POWER LEVEL button repeatedly to select one of the 3 power levels: High (press 1x), Medium (press 2x), Low (press 3x).
2. Then press the NUMBER buttons to set the cooking time (max. 99:99 minutes).
3. Press START.

Setting and saving the cooking program

If you use the same program frequently, you can store it on one of the number keys so that you can call it up more quickly next time.

Each of the number buttons is preset to a specific cooking time. Press each button to select one of the preset cooking times:

Button Preset cookintime (min.)
1 0:10
2 0:20
3 0:30
4 0:45
5 1:00
6 1:30
7 2:00
8 2:30
9 3:00
0 3:30

You can overwrite the cooking times stored under the ten number keys at any time. For example, to save a cooking program that can contain up to 3 consecutive cooking times with different power levels, proceed as follows:

Example: Setting a cooking program and storing it on the number key 1

1. Press the PROG button in standby mode.
2. Press the NUMBER KEY 1.
3. Press POWER LEVEL repeatedly and select the desired power level.
4. Then press the NUMBER buttons to set the cooking time (99:99 minutes max.).
5. Press PROG to save the program to button 1.

Note: You can program up to 3 consecutive times and power levels by repeating steps 3-4.

1. After you have finished, press START and the display will show the total cooking time.

Calling up and overwriting X2 cooking programs

In standby mode, press the X2 button and press one of the NUMBER buttons to display one of the following preset programs:

Button Preset cookintime (min.)
1 0:20
2 0:40
3 1:00
4 1:30
5 2:00
6 3:00
7 4:00
8 5:00
9 6:00
0 7:00

You can overwrite the cooking times stored under the ten number keys at any time. To overwrite a cooking program, proceed as follows:

1. In standby mode, press the PROG key.
2. Then press the X2 key.
3. Press one of the NUMBER buttons.
4. Press POWER LEVEL repeatedly and select the desired power level.
5. Then press the NUMBER buttons to set the cooking time (99:99 minutes max.).
6. Press PROG to save the program on the selected button.

Note: With the X2 function, only single-stage cooking programs can be stored.

When all settings are complete, press STOP/RESET to return to standby mode. The oven will start after you press X2 and then the corresponding NUMBER key.

Reading the period of use

You can read the number of times the oven has been used. This function allows you to analyze the use of the kiln and the traffic flow at a specific location where the kiln is used commercially. To do this, proceed as follows:

1. Open the door.
2. Press and hold the STOP/RESET button, then press POWER LEVEL. The number on the display indicates how many times the oven has been used.

Parental Lock

In standby mode, press and hold PROG for 5 seconds to activate the parental control. Press PROG again for 5 seconds to deactivate the parental control.

CLEANING AND CARE

- The oven should be cleaned regularly and any food deposits removed.

- Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

- Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance

- Do not remove the waveguide cover

How get rid of strange odors

When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them:

1 Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2 Place a cup of red tea in oven, then heat with high micro power.
3 Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

Tips for Cleaning

Exterior	Wipe the enclosure with a dampened soft cloth
Door	Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter.
Control panel	Wipe the control panel with a slightly dampened soft cloth.
Interior walls	Wipe clean the cavity with a dampened soft cloth. Wipe clean the waveguide cover to remove any food splashed
Turntable, rotation ring and rotation axis	Wash with mild soap water. Rinse with clean water and allow drying thoroughly.

TROUBLESHOOTING

Please check the following before contacting our customer service:

Place a cup of water (150 ml) in the microwave and close the door. Once the door is securely closed, the interior lights will go out. Turn on the microwave and let it run for one minute.

• Is the oven light on?
- Is the cooling fan running? To check, hold your hand to the ventilation slots on the back.
- Is the glass plate turning? The plate can rotate both clockwise and counterclockwise.
• Is the water hot after one minute?

If you answer any of these questions NO, check the socket and fuse in the fuse box. If the socket and fuse are OK, contact our customer service or a specialist company.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
