Dr. Beef III - Grill Klarstein - Free user manual and instructions

Product type	Electric table barbecue
Brand	Klarstein
Model	Dr. Beef III
Article number	10034694
Power supply	220-240 V ~ 50/60 Hz
Control type	Rotary thermostat with indicator light
Heating element	Heating tube with safety microswitch
Cooking grills	Large and small grill, adjustable to 3 heights
Drip tray	With MAX water level indicator
Wind shields	2 removable wind shields
Side shelves	2 removable side shelves
Materials	Steel, plastic, glass (depending on parts)
Care and cleaning	Grills and tray washable with soapy water; do not immerse the appliance or use harsh chemicals
Safety	Microswitch preventing heating outside the housing; automatic thermostat shut-off; minimum distance of 30 cm from walls
Included parts	Grills (large/small), wind shields, shelves, drip tray, tray support, chassis, uprights, shelf, connectors, foot tubes, control boxes, cable
Compliance	Directives 2014/30/EU (EMC), 2014/35/EU (LVD), 2011/65/EU (RoHS)
Intended use	Grilling outdoors or in well-ventilated indoor areas, on a heat-resistant surface

Frequently Asked Questions - Dr. Beef III Klarstein

How to assemble the Dr. Beef III barbecue?

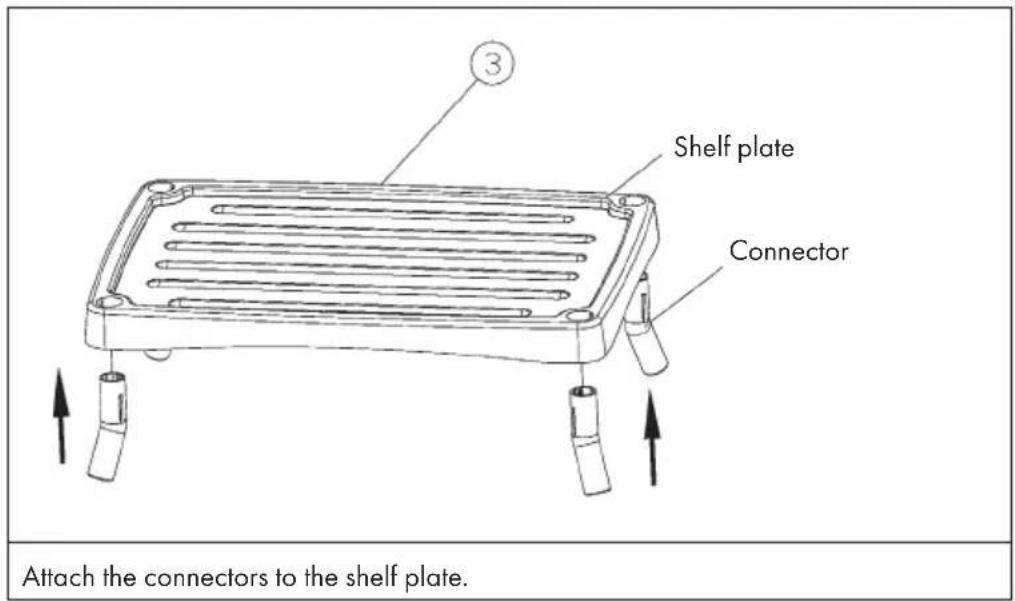

Follow the steps in the manual: attach the connectors to the shelf, then assemble the upright tubes, foot tubes, chassis, control boxes, grills and drip tray. Make sure to insert the heating element correctly into the housing and that the microswitch is engaged.

Why won't the heating element turn on?

Check that the heating element is correctly installed in the control box. The safety microswitch prevents the heater from operating if it is not in place. Also ensure the appliance is plugged in and the thermostat is not set to 0.

Can I use aluminum foil on the grill?

No, it is not recommended to use plates, bowls or aluminum foil under the food as this could obstruct heat circulation and cause overheating. Place food directly on the grill.

How to clean the barbecue?

Always unplug the appliance and let it cool down. Clean the grills and drip tray with a damp cloth or soapy water. Do not use harsh chemicals, metal sponges or sharp objects. Never immerse the appliance body in water.

What to do if food sticks to the grill?

Make sure the grill is clean and lightly oiled before cooking. You can also use a suitable cooking spray. Set the temperature to a moderate level to prevent food from burning.

How to adjust the grill height?

The cooking grill can be positioned at three heights. To change it, remove the grill and insert it into the notches on the side supports. Choose a height based on the thickness of the food and desired cooking intensity.

Why does the indicator light go out during use?

This is normal. The thermostat regulates the temperature: the light goes off when the selected temperature is reached, then comes on again when it drops. If the appliance is not heating enough, increase the thermostat setting.

Is it safe to leave the barbecue unattended?

No, never leave the appliance running unattended. Keep a safe distance of 30 cm from walls and flammable materials, and place it on a stable, heat-resistant surface. Unplug it after use.

What is the drip tray for?

The tray collects fat and cooking juices. Before use, add water up to the MAX mark to prevent fat accumulation in food and reduce smoke. Clean it after each use.

Can I use this barbecue indoors?

Yes, it is an electric barbecue suitable for indoor use, provided it is placed on a heat-resistant surface and kept at least 30 cm away from walls. Ensure good ventilation to remove smoke and odors.

USER MANUAL Dr. Beef III Klarstein

INHALTSVERZEICHNIS

Technical line drawing of a device's internal components with arrows indicating assembly (no text or symbols)

Line drawing of a portable grater with heat sink and control panel (no text or symbols)

Line drawing of a portable grill with a lid and handle, showing internal grating and legs (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Single Parts 17

Assembly 20

Operation 24

Cleaning and Care 25

Troubleshooting 25

Hints on Disposal 26

Declaration of Conformity 26

TECHNICAL DATA

Item number 10034694
Power supply	220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

- Connect the device so that the mains plug is easily accessible at all times.

- Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person.

- Repairs may only be carried out by qualified personnel, do not attempt to repair the device yourself.

- Do not connect the unit to a timer or a remote control power outlet.

- Never immerse the appliance, power cord or plug in water or other liquids.

- Do not handle the plug with wet hands.

- Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.

- Do not use the cable as a handle.

- Lay the cable in such a way that no one will trip over it.

- Do not let the cable run over sharp edges.

- Do not use the unit in wet rooms or in the rain.

- Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

- Unplug the appliance from the wall outlet when it is no longer in use.

- Keep the appliance away from open fire and heat sources.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep children away from the grill and do not leave the appliance unattended during operation.

- Place the appliance on a stable, level surface.

- Make sure that there are no easily inflammable objects or materials around the grill.

- Keep at least 30 cm away from walls.

- Do not touch the grill grate or other hot surfaces during operation.

- Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

- Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

- To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

- Do not place the appliance on or near a stove.

- Do not expose the appliance to excessive temperatures and weather variations.

• Never fill the grill with liquids.

- If parts are damaged, do not continue to use the grill.

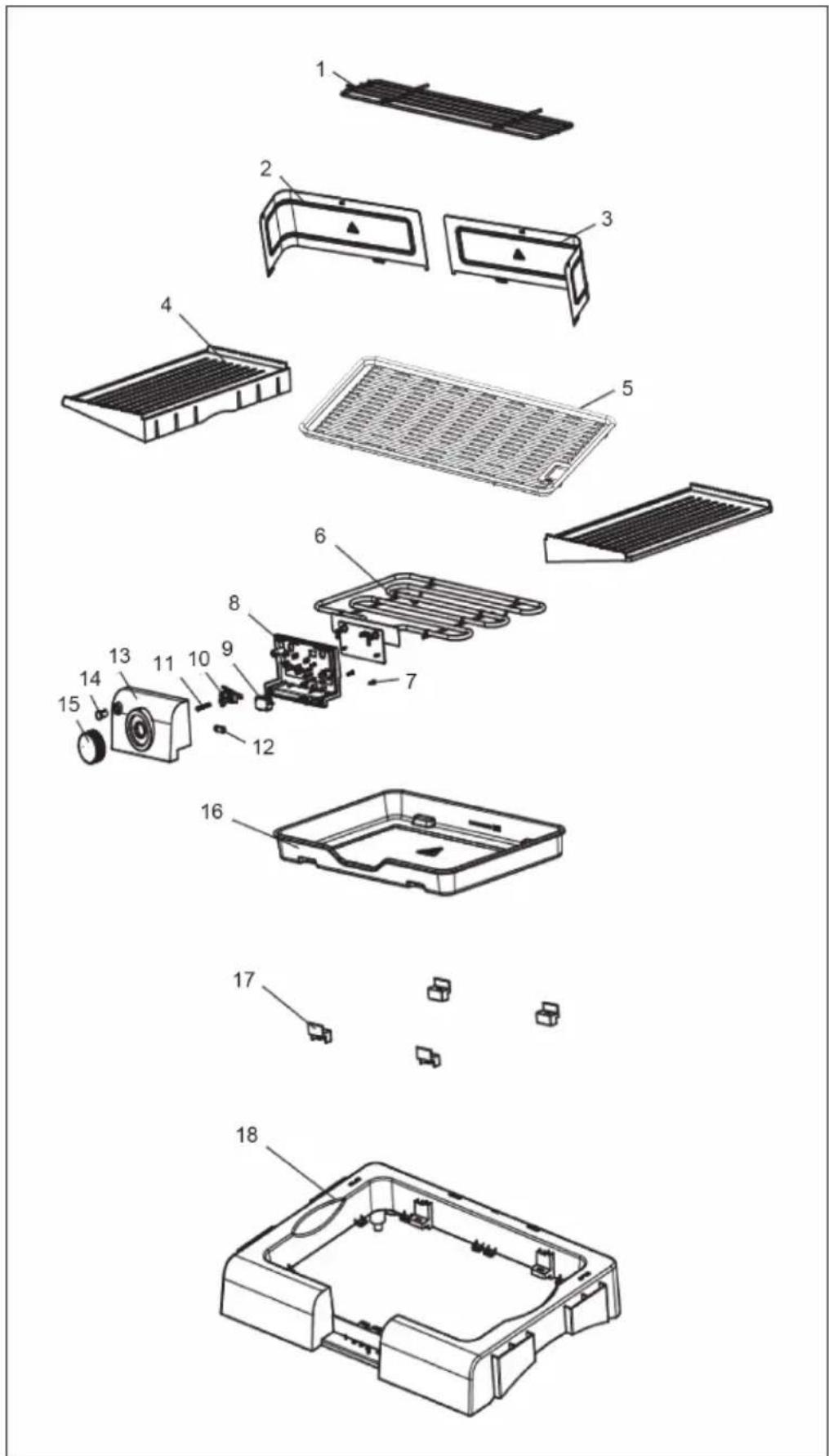

SINGLE PARTS

1	Small grating	13	Switch box II
2	Wind deflector	14	Indicator light
3	Wind deflector	15	Governor
4	Shelves	16	Collecting tray for grease
5	Large grating	17	Fixing the drip tray
6	Heating pipe	18	Case
7	Screws	20	Stand pipe
8	Switch box I	21	Shelf plate
9	Microswitches	22	Connectors
10	Thermostat	23	Pipe feet
11	Screw	24	Cord
12	Cable clamp

ASSEMBLY

Technical line drawing of a portable air conditioner unit with internal components and airflow arrows (no text or symbols)

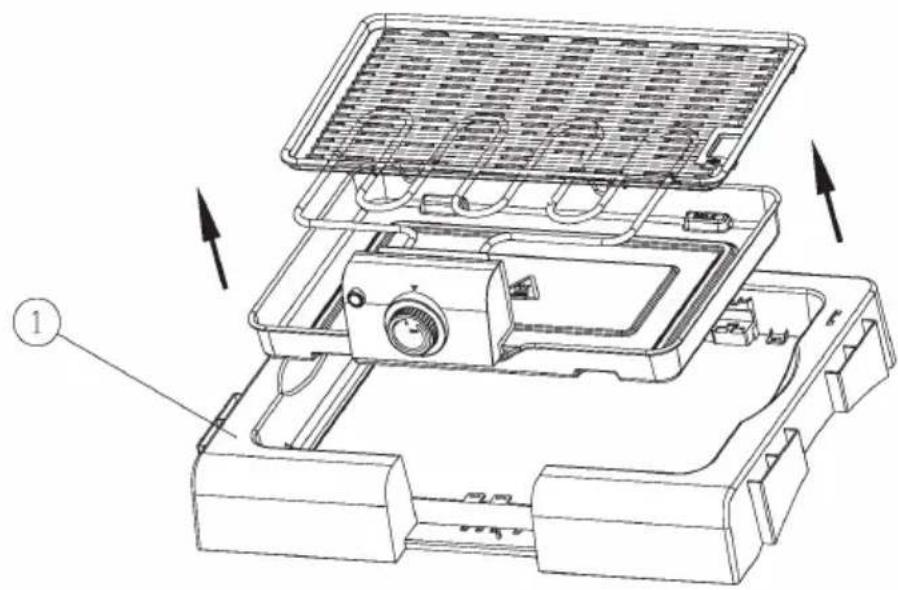

For easier cleaning, the parts shown can be removed in the direction of the arrow.

Technical line drawing of a portable grater with heat exchanger and control panel (no text or symbols)

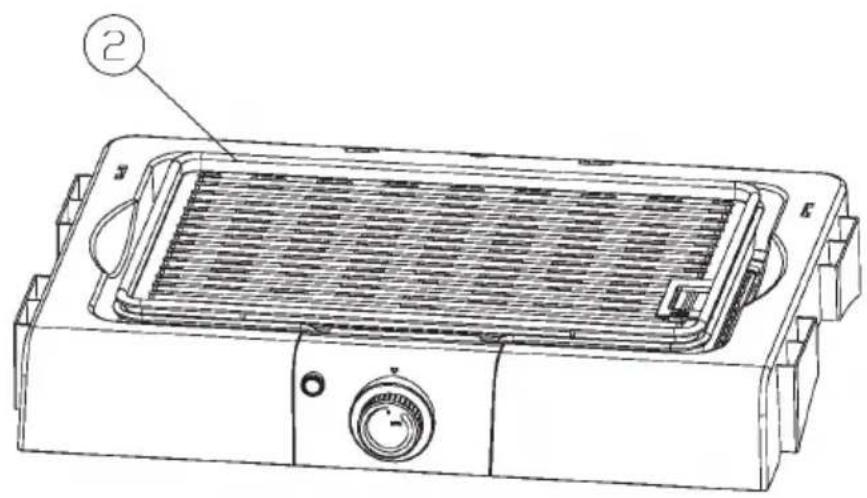

This is what the assembled table grill looks like.

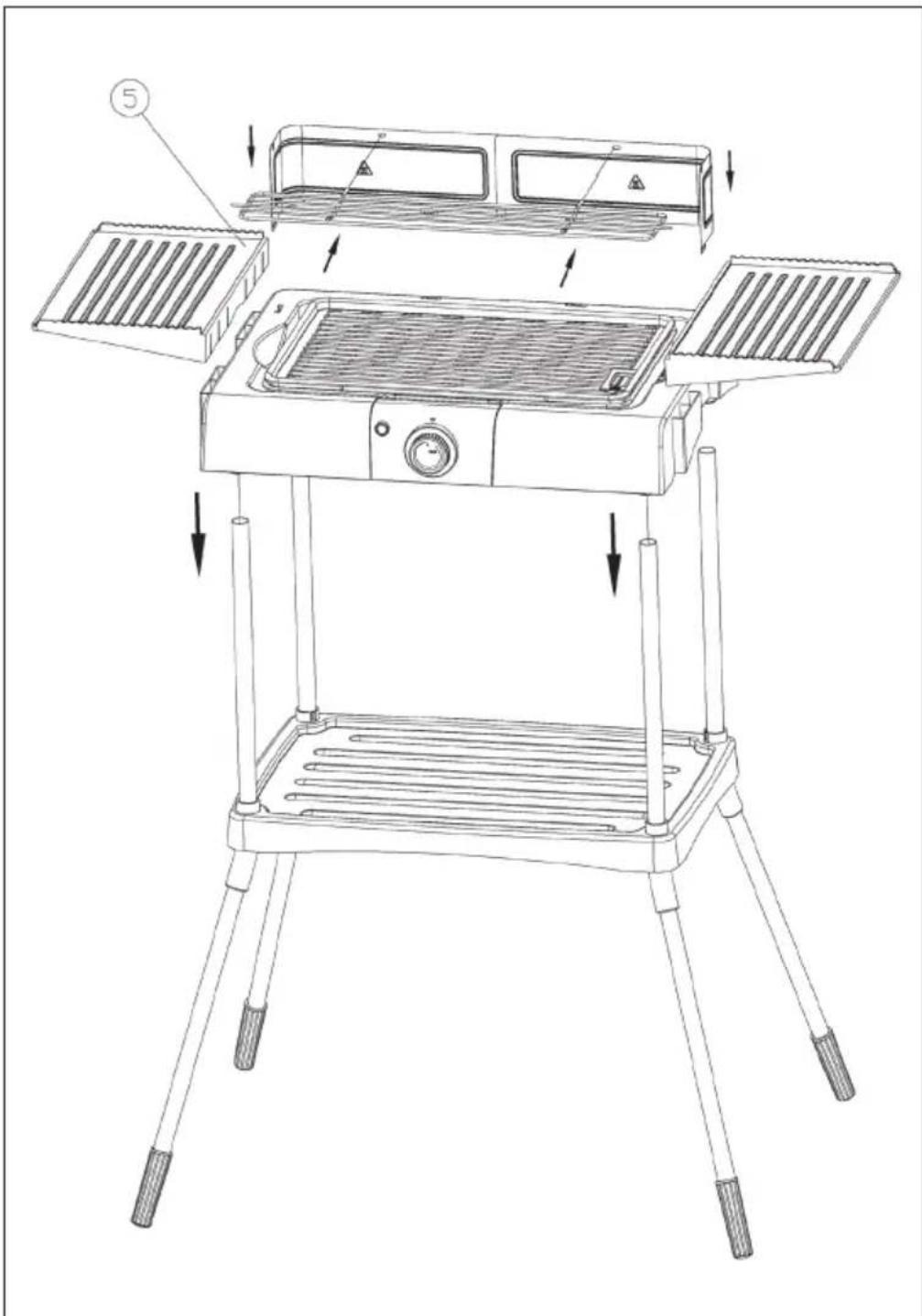

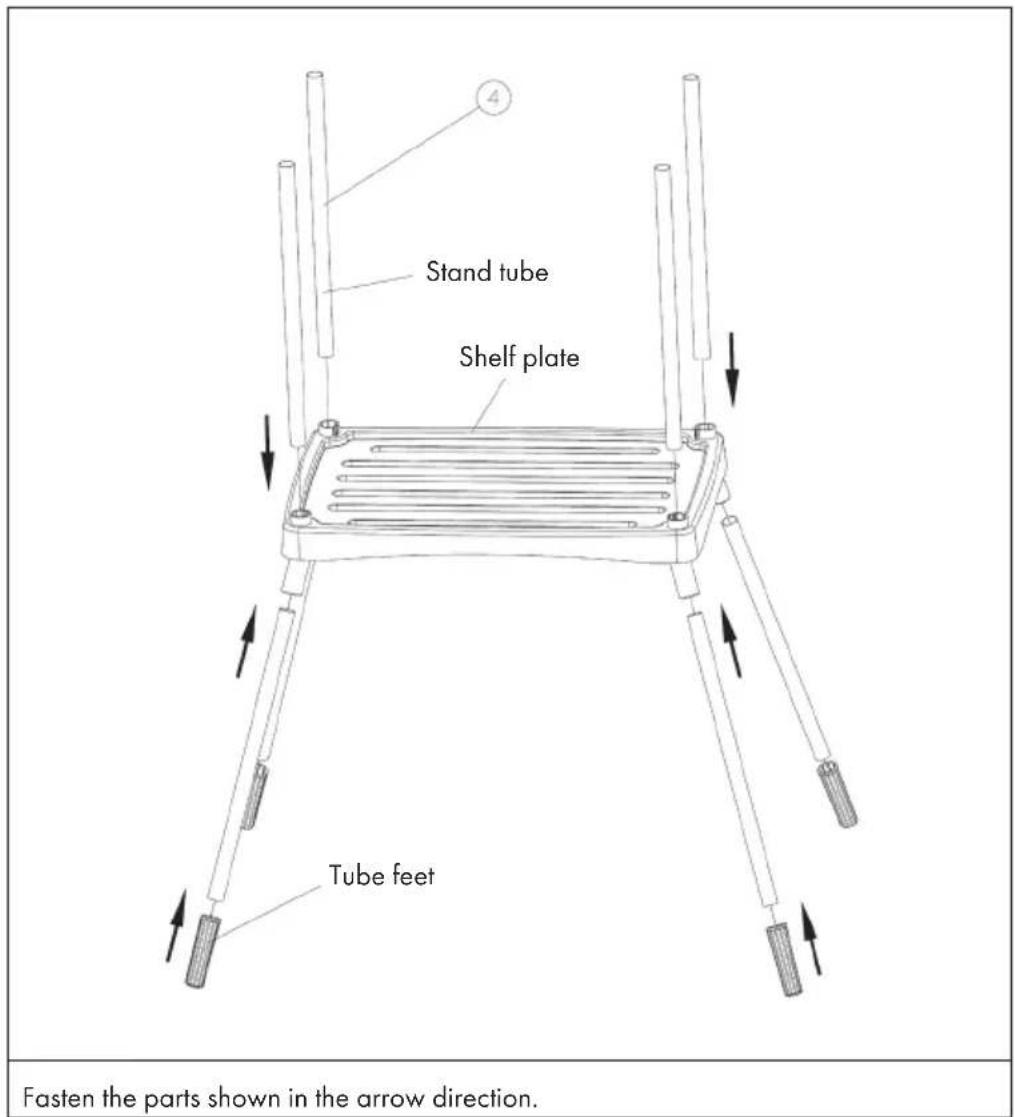

Fasten the parts shown in the arrow direction.

Line drawing of a portable grill with a lid and handle, showing internal grating and legs (no text or symbols)

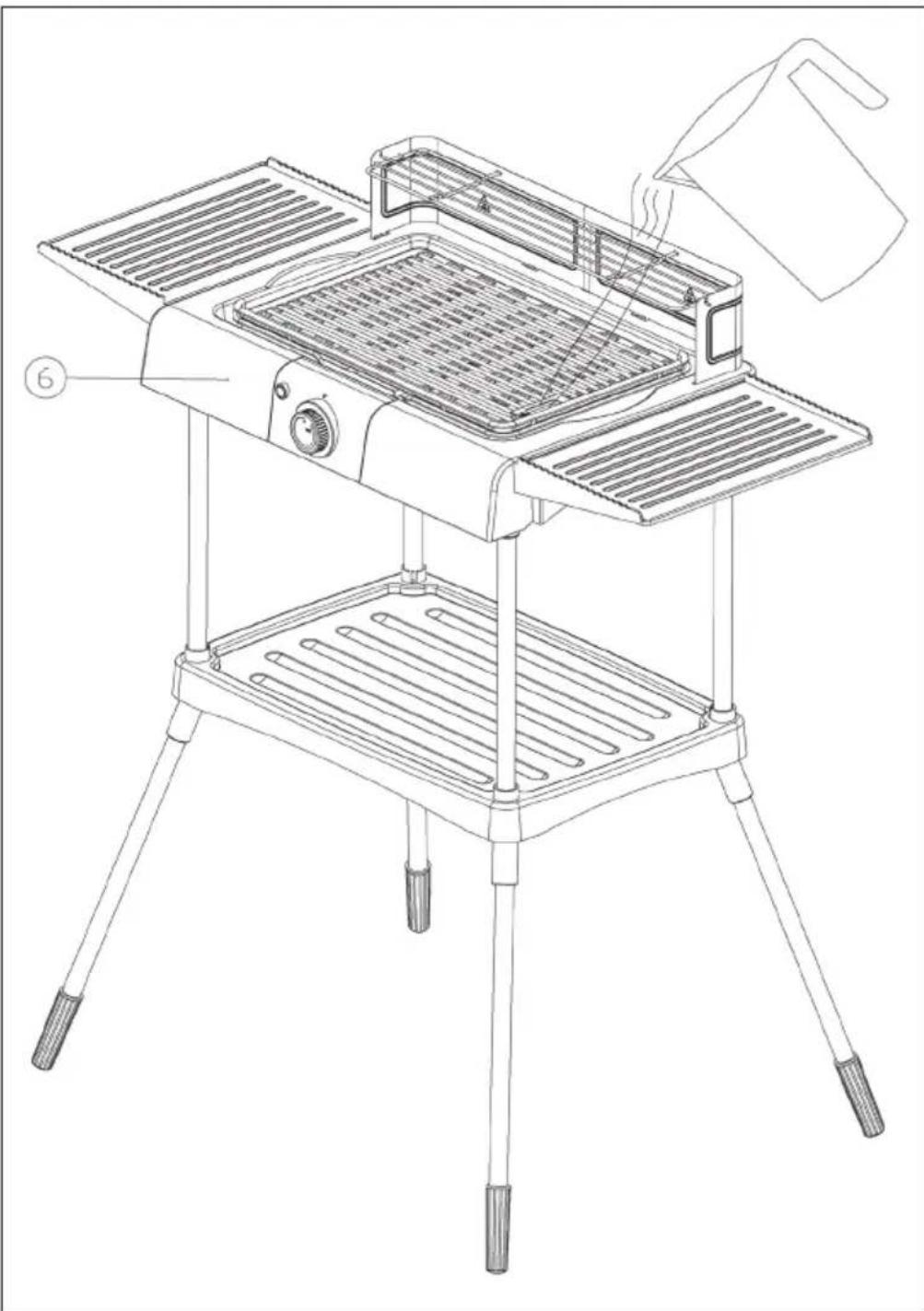

Pour some water into the grease drip tray before grilling.

OPERATION

1. Remove any packaging material that may be present.
2. Mount the device as described.
3. Clean the large grating (5), the small grating (1) and the collecting tray (16) with a damp cloth.
4. Fill the drip tray (16) with fresh water up to the MAX mark.

Note: Always fill the drip tray (16) with water before use to prevent the formation of flames by fat from food. During the first use, an odour may be created by the materials used in the appliance. The smell is normal and disappears after a short time.

1. Set the thermostat to the desired level: choose a low or medium temperature for heating or slow grilling, choose MAX for fast cooking and grilling. The control lamp (14) switches off as soon as the desired temperature is reached.
2. Place the food directly on the large grid (5). Never use plates, trays or aluminium foil under the food. The grilling time depends on the thickness of the food. Turn the food from time to time.

Note: The height of the grill can be adjusted in three steps.

1. After use, please turn the thermostat to „0“ and unplug the appliance.

Note on the heating element

The heating element is equipped with a safety switch. This prevents the heating element from running outside the grill. If the heater does not turn on, check the connection and that the heater is correctly mounted in the housing.

CLEANING AND CARE

Important Hints:

• Pull the mains plug out of the socket with earthing contact before cleaning.
  • Make sure that no liquids penetrate the housing.
• Never submerge the tabletop grill in water or other liquids.
• Do not use any aggressive cleaners such as alkaline- or chlorine-based cleaners and sharp or metallic cleaning utensils such as knives, hard scrapers or similar.

TROUBLESHOOTING

Problem Possible cause Solution
The tabletop grill does not heat up.	The tabletop grill is not connected to the power supply.	Insert the mains plug in a socket with earthing contact.
The tabletop grill switches off on its own.	The selected temperature setting has been reached. The thermostat will automatically switch off.	The thermostat will automatically switch back on once the selected temperature setting is underrun.
		Slide the thermostat control to a higher temperature setting.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
