| Product Type | Dirty Water Submersible Pump |
| Brand | FLORABEST |
| Model | FTS 1100 C3 |
| Rated Voltage | 230 V ~ 50 Hz |
| Rated Power Input | 1100 W |
| Max. Discharge Rate (Q max) | 20000 l/h |
| Max. Discharge Head (H max) | 9 m |
| Max. Immersion Depth | 7 m |
| Max. Water Temperature | 35 °C |
| Max. Particle Size | 35 mm |
| Hose Connections | 1", 1¼", 1½" |
| Switching Point ON | Approx. 520 mm |
| Switching Point OFF | Approx. 230 mm |
| Mains Cable Length | 10 m |
| Weight (incl. accessories) | 6.18 kg |
| Safety Class | I |
| Degree of Protection | IPX8 |
| Housing Material | Stainless Steel |
| Float Switch | Yes, adjustable |
| Thermal Overload Protection | Yes |
| Scope of Delivery | Pump, angle adapter, reducer, 8 m nylon cord, manual |
| Guarantee | 3 years |
Frequently Asked Questions - FTS 1100 C3 FLORABEST
User questions about FTS 1100 C3 FLORABEST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Water pump in PDF format for free! Find your manual FTS 1100 C3 - FLORABEST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FTS 1100 C3 by FLORABEST.
USER MANUAL FTS 1100 C3 FLORABEST
DIRTY WATER SUBMERSIBLE PUMP FTS 1100 C3
GB IE NI CY
DIRTY WATER SUBMERSIBLE PUMP
Translation of the original instructions
GR CY
BYOIZOMENH ANTAIA
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
GR CY
Special instructions for safe operating....5
Areas of Application ....5
General Description......6
Scope of Delivery......6
Functional description....6
Overview......6
Technical Data......6
Performance data....7
Notes on Safety ....7
Symbols in the manual....7
Symbols on the equipment .....7
General notes on safety....7
Initial Operation....9
Positioning/Hanging 9
Mains Connection....10
Connecting the Pressure Line......10
Adjustment of the float switch .....10
Operational start-up 11
Cleaning/Maintenance/Storage..11
General cleaning instructions......11
Replacing the backflow preventer....12
Cleaning the Fan Wheel......12
Storage....12
Waste Disposal/Environmental
Protection 12
Guarantee 12
Repair Service....14
Service-Center....14
Replacement parts/Accessories ..15
Importer 15
Troubleshooting 16
Translation of the original EC declaration of conformity ..... 47
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Special instructions for safe operating
- The equipment is not to be operated if there are people in the water. There is a risk of electric shock.
- Connect the equipment only to a socket with a residual current protection device (residual current circuit breaker) with a rated current of not more than 30 mA; minimum fuse 6 amperes.
- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Contamination of the liquid can occur when the lubricant leaks out.
- See further information in the section on "Maintenance and cleaning".
Areas of Application
The dirty water submersible pump is a drainage pump and designed for transporting water and sewage water (max. particle size 35 mm) up to a temperature of max. 35 °C.
It is suitable e.g. for pumping around and pumping out basins and containers, for pumping out flooded cellars, and for extracting water from wells and shafts.
This equipment is not suitable for industrial use. Industrial use will invalidate the guarantee.
Any other use, not expressly authorised in these instructions, may cause damage to the equipment and represent a serious risk for the user.
The pump is not suitable for continuous operation. Continuous operation reduces the durability and shortens the guarantee period.
The operator or user is responsible for accidents or damage to other people or their property.
The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.
General Description
The diagram of the most important functional elements can be found on the foldout side.
Scope of Delivery
Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.
- Fully assembled dirty water submersible pump
- Angle adapter
- Reducer
- 8 m nylon cord
- Instruction Manual
Functional description
The dirty water submersible pump has a stainless steel casing, a stable suction foot and a non-corrosive motor shaft. The pump is fitted with a float switch, which automatically switches the equipment on or off. The motor is protected from overload by a thermal safety switch.
Please refer to the following descriptions for the function of the operating parts.
Overview
1 Round handle
2 Pump housing
3 Pump outlet
4 Floor plate
5 Foot part
6 Mains connection cable
7 Float switch
8 Float switch grating
9 Reducer
10 Angle adapter
11 8 m nylon cord
B 12 Backflow stop (12a) with seal (12b)
Technical Data
Rated voltage ....230 V\~, 50 Hz
Rated power input/
Power consumption 1100 W
Max. discharge rate (Q max) .. 20000 l/h
Max. discharge head (H max) ..... 9 m
Max. depth of immersion 7 m
Max. water temperature (T max) ..... 35 °C
Hose connection .... 1", 1¼", 1½"
Max. foreign body size....35 mm
Switching point level:
ON......approx. 520 mm
OFF......approx. 230 mm
Mains cable 10 m
Weight (incl. accessories)......6.18 kg
Safety class ....I
Degree of protection.....IPX8
Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.
The maximum performance data are measured with a straight, direct outlet flow.
The angle piece and backflow valve may reduce performance.

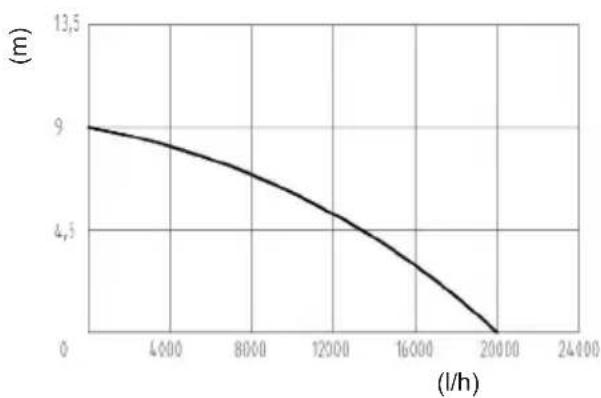

Performance data
line
| (l/h) | (m) | | ----- | --- | | 0 | 9 | | 4000 | 8.5 | | 8000 | 7.5 | | 12000 | 6.0 | | 16000 | 4.0 | | 20000 | 1 | | 24000 | 0 |Notes on Safety
This section deals with the general safety regulations for working with the equipment.
Symbols in the manual
Warning symbols with information on damage and injury prevention.
Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.
Help symbols with information on improving tool handling.
Symbols on the equipment
Caution! Not suitable for water with a high sand content!
Before beginning work, familiarise yourself thoroughly with all the operating ele-
ments, particularly with how they function and operate. Ask a specialist if necessary. Read and follow the operating instructions provided for the device!
Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.
Greatest possible operating immersion depth.
Electric appliances should not be disposed of in the domestic garbage.
General notes on safety
Working with the equipment:
Caution: to avoid accidents and injuries:
- People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.
- Wear sturdy footwear to protect against electric shock.
- Should there be people in the water, do not operate the equipment. Risk of electric shock!
• Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury! - Do not use the equipment in the vicinity of flammable liquids or
GBIENICY
gases. Non-observance will result in a risk of fire or explosion.
- Store the equipment in a dry place and out of reach of children.
Caution! To avoid damage to the equipment and any possible person injury resulting from this:
- The transportation of aggressive, abrasive (grinding effect, e.g. sandwater), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. The temperature of the liquid being transported must not exceed 35 °C. Non-observance can lead to device damage and create a risk for the user.
- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.
- Monitor the equipment during operation (particularly in residential spaces, in order to detect automatic switching off or dry running of the pumps in time. Regularly check the function of the float switch (see chapter "initial operation"). Non-observance will invalidate all guarantee and liability claims.
- Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the equipment regularly for correct functioning.
- Note that the lubricants used in the equipment may cause damage or contamination if they escape. Do not use the pump in garden ponds with fish stocks or valuable plants.
- Do not carry or fix the equipment by the cable or pressure line.
- Protect the equipment from frost and from running dry.
- Use only original accessories and do not carry out conversion work on the equipment.
- Please read the notes in the operating instructions on the topic of "maintenance and cleaning". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Electrical safety:
Caution: to avoid accidents and injuries from electric shocks:
• After erection, the mains plug must be freely accessible when the equipment is in operation.
- Before operating your new pump, have a specialist check: - The earthing, the protective multiple earthing; the residual current circuit break-
ing must be compliant with the safety regulations of the energy supply company and function without fault,
- The protection of the electrical plug connections from the wet.
- If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.
- Ensure that the mains voltage matches the specifications on the rating plate.
- The electrical installation shall be according to national wiring rules.
- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have damage on your equipment repaired by an authorised specialist.
- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
- Do not carry or fix the equipment by the cable.
- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.
- Disconnect the mains plug from the socket before all work on the equipment, in case of leaks in the water system, during work breaks, and when not in use.
- The cross-section of mains connection lines must be no smaller than rubber hose lines with the designation H07RN8-F. The line must be 10 m long. The flexible lead cross-section of the extension cord must at least 2.5 mm ^2 .
- Perform the electrical installation in accordance with national regulations.
Initial Operation
Positioning/Hanging
- The dimensions of the pump shaft must be not less than 40 × 40 × 50 cm, in order that the float switch (7) can move freely.
- The pump can be suspended by the round handle (1) or placed on the shaft floor.
The pump can be suspended and/or removed using the nylon cord (1.1) provided.
To hang up safely, loop the nylon cord around both of the cable holders that are pointing downwards and pull it upwards through the round handle.
Never suspend the pump by the hose.
Ensure that the equipment is not hung up or held by the mains cable. There is a risk of electric shock from damaged mains cables.
GBIENICY
Note that, over time, dirt and sand may collect on the bottom of the shaft, which could damage the pump.
We recommend standing the pump on a brick.
If the water level is too low, the silt in the shaft can quickly dry out and impede the pump when warming up.
Mains Connection
The pump you have purchases is already fitted with an earthed plug. The equipment is designed for connection to an earthed wall socket with a residual current operated device (RCD switch) at 230 V \~ 50Hz.
Connecting the Pressure Line
The pump is installed
- Either with a fixed pipeline
- Or with a flexible hose line.
-
Screw the bracket adapter (10) onto the pump outlet (3).
-
Insert the seal (12b) into the backflow preventer (12).
-
Insert the backflow preventer (12) between the angle adapter (10) and reducer (9) in such a way that the valve opens in the direction of flow and closes against the direction of flow.
-
Fit the hose over the reducer (9) and secure it with a hose clamp.
Or use a screw connection at the bracket adapter (10) or the reducer (9).
① Outlet with a 1½" internal thread on the pump for connection of the angle adapter (10) or for direct connection of a hose with a 1½" external thread;
② Outlet with 1½" external thread at the bracket adapter (10) for connection of the reducer (9) or a 1½" screw connection;
③ Outlet on reducer (9) for connection of a 1½" or 1½" hose as a compression joint (fixing with a hose clamp);
4 Outlet with 1" external thread at the reducer (9) for connection of a 1" screw connection;
5 Outlet with 1½" thread at the reducer (9) for connection of a 1"hose as clamp connection (fixing with a hose clamp).
Note that the particle size may be max. 19 mm if the reducer (∅ 19.3 mm) is used, otherwise the reducer and hose can become blocked.
To increase pump output, the backflow stopper (12) may be taken out of the angle adaptor (10) (see "replacing backflow stopper"). This is particularly recommended for hose connections smaller than 1". Please bear in mind that the water may then flow back during pumping, or in the event of a power cut.
Adjustment of the float switch
The float switch (Z) is adjusted so that it can be started up immediately. In the case of stationary installation, check regularly (no less then once every three months) that the float switch is working. The ON and OFF switching point of the float switch can be adjusted by changing
the position of the float switch in the float switch grating. Please check the following points before start of operation.
- The float switch must be attached so that the switching point ON level and the switching point OFF level can be reached easily and with little expenditure of energy. Check this by placing the pump into a vessel filled with water and lift the float switch carefully by hand and then lower it again. In this case, you can see whether the pump switches on and off.
- Also ensure that the separation distance between the float switch head and the float switch latching mechanism (8) is not too small. In the case of a separation distance which is too small, trouble-free functioning cannot be guaranteed.
- During the adjustment of the float switch, ensure that the float switch does not contact the floor before the pump switches off.
There is a risk of dry running if the float switch cable is selected to be too long
Operational start-up
- Check that the pump is standing firmly on the bottom of the shaft or hung up safely.
- Check whether the pressure line has been attached correctly and the unused pump outlet is fully closed.
- Avoid that the pump runs dry. Regularly check the function of the float switch. In case of non-observance or if the pump runs dry, guarantee and liability claims are invalidated.
- Check that the electrical connection is 230 V \~50 Hz
- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 6 A, RCD switch). Insert the pump plug into the plug socket and the pump is ready for operation.
- Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution.
Cleaning/Maintenance/Storage
Clean and maintain your equipment regularly. This will guarantee its performance and long durability.
Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.
This will prevent damage to the equipment and any resulting personal injury.
Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.
General cleaning instructions
- In case of transport for utilization in different locations, the pump must be cleaned with clear water after every use.
- In case of stationary installation, the function of the float switch (7) is to be checked regularly (at the latest every three months).
GBIENICY
- With a water jet, remove fluff and fibrous particles which are possibly present in the pump casing.
- Regularly remove sludge from the pit base and also clean the shaft walls.
- Clean precipitation from the float switch with clear water.
- In the case of a long period of non-use, the pump must be thoroughly cleaned after the last use and before the new use, since difficulties in start-up can arise due to precipitation and residues.
Replacing the backflow preventer
Replace a faulty backflow preventer (see "Spare Parts/Accessories").
B
-
Unscrew the reducer (9) on the angle adapter (10) and take out the backflow preventer (12) and seal (12b).
-
Insert the seal (12b) in the new backflow preventer (12a).
-
Insert the backflow preventer (12) between the angle adapter (10) and reducer (9) in such a way that the valve opens in the direction of flow and closes against the direction of flow.
Cleaning the Fan Wheel
In case of soiling or blockage of the impeller, this can be cleaned via the pump outlet (3) or by removing the floor plate (4):
C
-
Unscrew the bracket adapter (10) from the pump outlet (3).
-
Remove the 3 screws on the bottom of the base (5) and take off the base plate (4).
-
Clean the fan wheel using clean water.
-
To re-assemble, reverse this order.
Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Storage
- Keep the equipment clean, dry and out of the reach of children.
- Unscrew the bracket adapter (10) for storage.
Waste Disposal/Environmental Protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
Defective units returned to us will be disposed of for free.
Guarantee
Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statu-
tory rights are not restricted by our guaran- tee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. connector set, fan wheel) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
In the case of pumping water containing sand or aggressive liquids or other incorrect, non-design-appropriate use, as well as in case of non-observance of the operating manual, application of force in use or inappropriate or insufficient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materials (sand, stone).
Note: submersible pumps are drainage pumps. This kind of pump is constructed with the purpose of transporting or removing a certain volume of water – depending on its output category – as quickly as possible. Submersible pumps are not intended as irrigation (for example, in garden irrigation systems) or as constant water-flow pumps (such as in artificial streams or ornamental fountains). Inappropriate use will invalidate the warranty.
In particular, the guarantee is likewise void in the case of employment of the sewage water pumps without base plate or (this applies for all pumps) in case of damages which are caused by supporting on or sus-
pending from the mains cable. The pumps must not be run dry or exposed to frost.
Processing in Case of Guarantee
To ensure efficient handling of your query, please follow the directions below:
- Please have the receipt and identification number (IAN 279527) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB
Service Great Britain
Tel.: 0871 5000 720
(£ 0.10/Min.)
E-Mail: grizzly@lidl.co.uk
IAN 279527
IE
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzly@lidl.ie
IAN 279527
CY
Service Cyprus
Tel.: 8009 4409
E-Mail: grizzly@lidl.com.cy
IAN 279527
Replacement parts/Accessories
Spare parts and accessories can be obtained at www.grizzly-service.eu
If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 14). Please have the order number mentioned below ready.
Item Description Product No.
| A 4 Floor plate | 91103470 |
| C 4a Screw set for floor plate | 91103471 |
| A 9/10 Connector set (reducer, sealing ring, angle adapter) | 91103472 |
| A 11 8 m nylon cord | 91103473 |
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
| Faults Causes Remedies | ||
| Pump does not start | Mains voltage is not applied Check mains voltage | |
| Float switch (7) does not switch | Bring float switch into higher position | |
| Pumps has no discharge | Buckled pressure hose Repair point at which the line is bent | |
| Trapped air in the pump casing | Tip the pump underwater until the air escapes | |
| Pump does not switch off | Float switch (7) cannot drop | Set up pumps correctly on the pit base |
| Flow rate insufficient | Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect | Clean pumps and replace wear parts |
| Backflow stop (12) is incorrectly fitted or faulty | Check the backflow stop's connection. Change it if necessary (see "Maintenance and Cleaning") | |
| Backflow stop (12) reduces pump performance | Remove the backflow stop from the angle adaptor (10) (see "Start-up") | |
| Pump switches off after a short period | Motor contactor disconnects the pumps because of water pollution that is too severe. | Pull out power plug and clean the pump as well as shaft |
| Water temperature too high, motor contactor breaks | Note maximum water temperature of 35 °C! | |
Περιεχόμενα
Εισαγωγή 17
line
| (l/h) | (m) | | ----- | --- | | 0 | 9 | | 4000 | 8.5 | | 8000 | 7.5 | | 12000 | 6.5 | | 16000 | 5 | | 20000 | 0 | | 24000 | 0 |Service-Center......42
Importeur ....42
Fehlersuche....43
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.
- DIRTY WATER SUBMERSIBLE PUMP FTS 1100 C3
- GR CY
- Introduction
- Special instructions for safe operating
- Areas of Application
- General Description
- Scope of Delivery
- Functional description
- Overview
- Technical Data
- Performance data
- Notes on Safety
- Symbols in the manual
- Warning symbols with information on damage and injury prevention.
- Symbols on the equipment
- General notes on safety
- Working with the equipment:
- GBIENICY
- Electrical safety:
- Initial Operation
- Positioning/Hanging
- Mains Connection
- Connecting the Pressure Line
- Adjustment of the float switch
- Operational start-up
- Cleaning/Maintenance/Storage
- General cleaning instructions
- Replacing the backflow preventer
- B
- Cleaning the Fan Wheel
- C
- Storage
- Waste Disposal/Environmental Protection
- Guarantee
- Terms of Guarantee
- Guarantee Period and Statutory Claims for Defects
- Guarantee Cover
- Processing in Case of Guarantee
- Repair Service
- Service-Center
- GB
- Service Great Britain
- IE
- Service Ireland
- CY
- Service Cyprus
- Replacement parts/Accessories
- Spare parts and accessories can be obtained at www.grizzly-service.eu
- Importer
- Περιεχόμενα
Brand : FLORABEST
Model : FTS 1100 C3
Category : Water pump
