Product Type	Hydraulic Bottle Jack
Brand	Ultimate Speed
Model	IAN 289553
Maximum Load Capacity	3000 kg
Lifting Range (Stroke)	18.5 cm to 36 cm
Weight	3.0 kg
Hydraulic Oil Specification	ISO VG 15
Operating Temperature Range	-20°C to +40°C
Maximum Force on Lever	350 N (approx. 35 kg)
Safety Features	Safety valve (preset), release valve, overload protection
Included Items	Jack body, lifting handle, rod for release valve, operating instructions
Intended Use	Raising and lowering motor vehicles (not for commercial use)
Warranty	3 years from date of purchase
Maintenance	Regular greasing of moving parts, top-up hydraulic oil as needed
Cleaning	Use a slightly oily cloth; avoid harsh or corrosive cleaners
Storage	Dry environment, protected from moisture; ensure support plate fully lowered and extension screw retracted
Standards Compliance	EN 1494/A1:2008
Manufacturer	OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, Germany
Product Dimensions (Approx.)	Not specified; weight and stroke provided

Frequently Asked Questions - IAN 289553 ULTIMATE SPEED

What is the maximum load capacity of the Ultimate Speed IAN 289553 hydraulic bottle jack?

The maximum load capacity is 3000 kg. Never exceed this rating to avoid injury or damage.

What type of hydraulic oil should I use for this jack?

Use only hydraulic oil that complies with ISO VG 15. Other oils may damage the system.

How do I remove air from the hydraulic system?

First, turn the release valve anticlockwise to fully lower the support plate. Remove the oil plug, then pump the lifting handle several times with the rod inserted. Finally, close the release valve and replace the oil plug.

Can I use the jack without axle stands?

No, never work under a raised vehicle without additional support. Always use axle stands and wheel chocks in addition to the jack to prevent accidents.

What should I do if the jack does not lift the vehicle high enough?

Check if the release valve is fully closed. If not, close it completely. Also, ensure sufficient hydraulic oil and bleed air from the system if necessary.

How do I lower the vehicle safely?

First, check that no person or object is under the vehicle. Then, slowly turn the release valve anticlockwise using the rod. Lower gradually; turning faster increases lowering speed.

What is the purpose of the safety valve?

The safety valve is preset at the factory and prevents overloading. Never adjust it as this could cause failure.

How should I store the jack after use?

Ensure the support plate is fully lowered and the extension screw is completely screwed in. Store in a dry place away from moisture. Grease moving parts regularly.

What cleaning agents can I use?

Clean the jack with a slightly oily cloth. Do not use harsh or corrosive cleaning agents as they may damage the surface.

What is the warranty period for this product?

The warranty is 3 years from the date of purchase. Keep the original sales receipt as proof.

USER MANUAL IAN 289553 ULTIMATE SPEED

HYDRAULIC BOTTLE JACK

GB

HYDRAULIC BOTTLE JACK

Operation and Safety Notes

Translation of the original instructions

SI

HIDRAVLIČNA DVIGALKA ZA AVTOMOBILE

GB Operation and Safety Notes Page 5

Technical line drawing of a mechanical device with labeled component 'B' and directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical device with a cylindrical component and directional arrows indicating motion (no text or symbols)

Proper use Page 6

Description of parts....Page 6

Technical data......Page 6

Included items....Page 6

Safety notes....Page 6

Use Page 7

Raising the vehicle....Page 7

Lowering the vehicle Page 8

Cleaning and Care Page 8

Maintenance and storage......Page 8

Topping up the hydraulic oil / greasing......Page 8

Removing air from the hydraulic system....Page 8

Storing....Page 9

Troubleshooting Page 9

Disposal Page 9

Translation of the original Conformity Declaration......Page 10

Warranty Page 10

Hydraulic Bottle Jack

● Proper use

The hydraulic vehicle jack is intended for raising and lowering motor vehicles. Other uses or modification of the hydraulic vehicle jack shall be considered as improper use and may lead to injury or damage. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Note: Reclose the release valve 5 after each use!

● Description of parts

1 Support plate
2 Extension screw
3 Lifting handle socket
4 Safety valve
5 Release valve
6 Lifting handle (for pump mechanism)
7 Rod (for release valve)
8 Oil plug

- Technical data

Stroke: approx. 18.5–36 cm

Maximum load: 3000 kg

Weight: approx. 3.0 kg

Hydraulic oil: Complies with ISO VG 15

- Included items

1 Hydraulic vehicle jack
1 Lifting handle
1 Rod for release valve
1 Operating instructions

Safety notes

⚠️ DANGER! Follow the instructions below to avoid the threat of loss of life, injury, or damage to the product etc.

■ Always use axle stands and wheel chocks in addition to your hydraulic vehicle jack.
Never work under a raised vehicle unless you have taken additional safety precautions. This is intended to prevent the vehicle from rolling away, sliding off or overturning the jack.
Use the product on a solid, level surface only. Using the product on an unstable or uneven surface – such as a gravel surface – may lead to the load slipping.
Ensure that you never exceed the allowable (rated) load capacity.
The person operating the jack must observe the jack and the load during all movements.
■ Never work under the raised load if it has not been made secure by suitable means.
Do not allow the hydraulic vehicle jack to be used by uninstructed or inexperienced persons.
Before using the hydraulic vehicle jack take precautions to prevent the vehicle from rolling away. Put the handbrake on, place the vehicle in gear (with automatic gearboxes set to "P") and chock the wheels.
Even with safety measures in place always remain alert and make a visual check that the support plate 1 is firmly seated against the vehicle jacking point.
■ Make sure that no petrol, battery acid or any other dangerous substance can flow out of the vehicle when the vehicle is being lifted.
Check that no person or object is under the vehicle before you lower it.
■ Lower the vehicle slowly.
Check that all parts have been assembled and fitted properly and are undamaged.
Before each use check that the hydraulic vehicle jack is working properly. Check the screws and valves of the hydraulic vehicle

jack for correct seating and look out for hydraulic oil leaks in particular.

Never use the hydraulic vehicle jack for moving or loading a vehicle. Never use it to lift a whole vehicle completely off the ground.

Make sure that no-one – especially a child – is in the vehicle and that everyone is kept at an adequate distance away from the vehicle when the hydraulic vehicle jack is in use.

Never change the setting of the safety valve Use 4. It is preset to the correct setting in the factory and must never be readjusted later. Rais

Do not use the hydraulic car jack if the sealing (safety valve 4) is damaged.

Before using the vehicle jack, the user must be made familiar with the device by an experienced person. The pump force and the transferred force are equal to approximately 350 N.

If the markings on the product are damaged enough so as to be illegible then the vehicle jack must not be used until the markings are renewed.

No modifications may be carried out to the hydraulic bottle jack. Any physical modification of the device and its compliance with EN 1494/A1: 2008.

The applied force when using the vehicle jack must not exceed 350 N. The equates to a force on the lever of approximately 35 kg.

CAUTION! RISK OF SHEARING AND CRUSHING INJURY! Keep your fingers away

from the area of the lifting handle socket 3 while pumping. Failure to observe this advice may result in shearing and crushing injury.

The operating temperature of the hydraulic oil of this equipment is between -20 °C to +40 °C.

Do not use this equipment in rooms exposed to fire hazards, where flammable or explosive vapours or dusts may be present (e.g. in stables, barns or paint shops).

■ Only use this device to lift and lower the vehicle, not to keep the vehicle in a lifted

position. Do not move it whilst raising or lowering.

• Do not use the equipment if oil leaks are present.
  ■ After use return all parts used into their original position. Have the hydraulic oil or oil pump replaced by a professional if the parts can no longer be moved.

Use

- Raising the vehicle

⚠️ CAUTION! RISK TO LIFE! Check that the vehicle jack and axle stands are in an undamaged condition before you use them. Ensure that the hydraulic vehicle jack is used only in combination with axle stands. Have your axle stands to hand before raising the vehicle. If you do not use axle stands, the vehicle may tip over and cause a risk to life.

Follow these steps:

☐ Ensure that the support plate 1 is fully lowered and the extension screw 2 is completely screwed in before you put away the vehicle jack.
Place the hydraulic vehicle jack in the desired position. In choosing the position, observe the provisions of the owner's manual for your vehicle.
☐ If necessary screw out the extending screw 2 until it comes into contact with the underside of the vehicle (Fig. B).

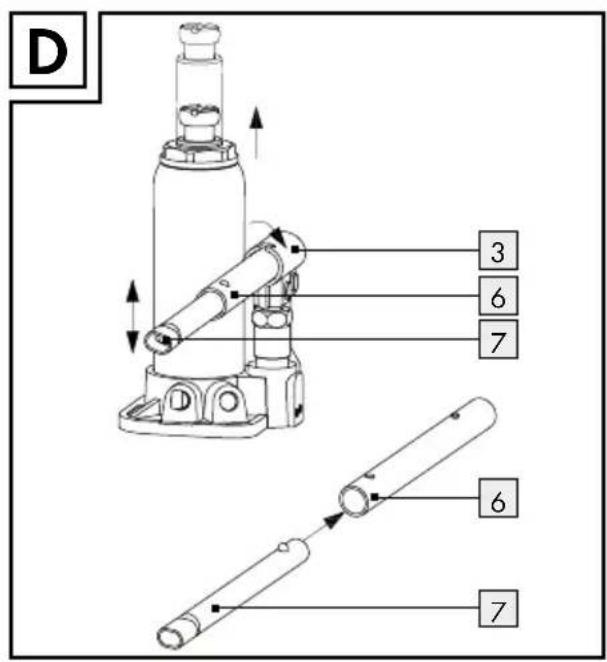

☐ Connect the rod 7 to the lifting handle 6 to extend the lifting handle.

CAUTION! RISK OF SHEAR-ING AND CRUSHING IN-

JURY! Keep your fingers away

from the area of the lifting handle socket 3 while pumping. Failure to observe this advice may result in shearing and crushing injury.

☐ Guide the end of the lifting handle 6 into the lifting handle socket 3 and pump the vehicle up to the desired height (Fig. D).

Place the axle stands under the designated jacking points under the vehicle.
☐ Relieve the load from the vehicle jack by placing the rod 7 with the oval opening on to the release valve 5, then turning the rod 7 slightly anticlockwise before turning it back immediately. The support plate 1 drops slightly and the vehicle is held on the axle stands.

- Lowering the vehicle

⚠️ DANGER TO LIFE! Check that no person or object is under the vehicle before you lower it.
⚠️ CAUTION! Lower the vehicle slowly, otherwise there is the danger of injury and damage to the product or to the vehicle.
☐ First raise the vehicle slightly in order to be able to remove the axle stands. Proceed as described in the section on „Raising the vehicle“.
□ Remove the axle stands.

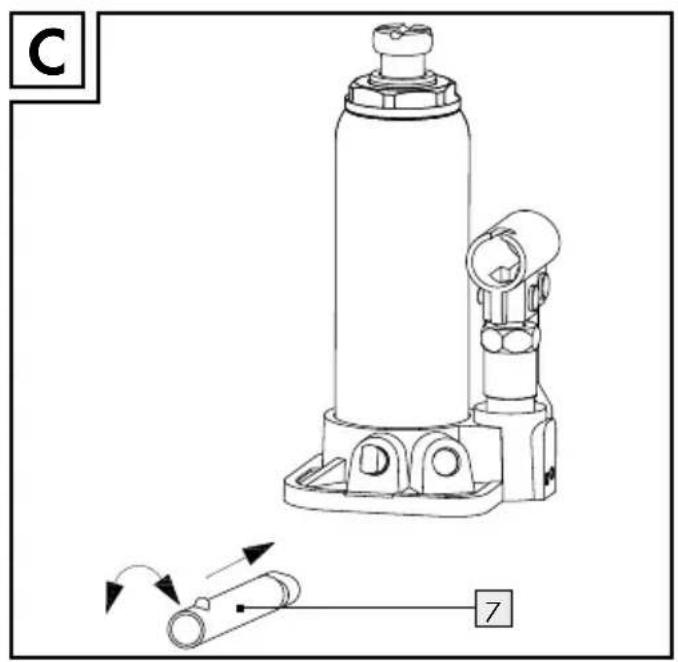

Place the rod 7 with oval opening on to the release valve 5 and turn the rod slowly anticlockwise (Fig. C). The vehicle is lowered slowly.

Note: The more quickly the rod 7 is turned anticlockwise, the faster the vehicle is lowered. Therefore you should proceed very cautiously at first in order to get a feeling for the correct speed.

☐ Lower the support plate 1 until it is no longer loaded. Then pull the vehicle jack out from under the vehicle. Press down on the support plate 1 until it is fully lowered.
☐ Close the release valve 5 by turning the rod 7 on the release valve 5 clockwise.
☐ Take the rod 7 off the release valve 5.
☐ If it is extended, screw the extension screw 2 back down into the jack body.

- Cleaning and Care

□ Liberally grease all external moving parts.
□ Clean the hydraulic trolley jack using a slightly oily cloth.
□ Never use harsh or corrosive cleaning agents.

● Maintenance and storage

- Topping up the hydraulic oil / greasing

Note: Use only hydraulic oil that complies with ISO VG 15.

☐ Stand the vehicle jack upright on a level, flat surface.
☐ Screw the extension screw 2 completely down into the jack body.
Place the rod 7 with oval opening on to the release valve 5 and turn the rod anti-clockwise (Fig. C) until the support plate 1 is fully lowered.

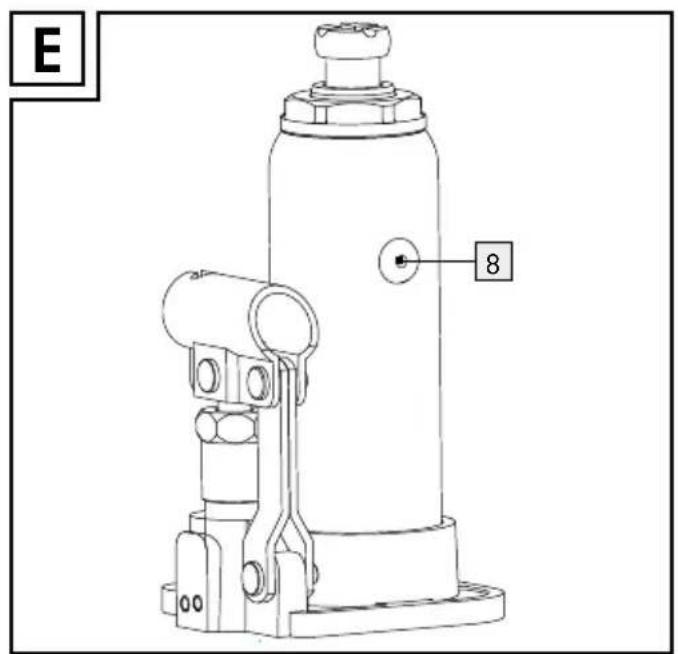

☐ Pull the oil plug 8 out of the oil reservoir.
☐ Introduce hydraulic oil from a suitable vessel into the oil reservoir. Fill the hydraulic oil reservoir up to the bottom edge of the filling opening.
☐ Remove any air present in the hydraulic system. To do this follow steps 3–4 in section on "Removing air from the system".
☐ Replace the oil plug 8 back into the oil reservoir opening.
☐ Grease all moving parts on the vehicle jack regularly to prevent corrosion.
☐ Top up with approximately 100–105 ml oil if all the oil has been used up.

- Removing air from the hydraulic system

Air in the hydraulic system may detrimentally affect the proper functioning of the vehicle jack.

Proceed as follows to remove air from the hydraulic system:

1. Place the rod 7 with oval opening on to the release valve 5 and turn the rod anti-clockwise (Fig. C) until the support plate 1 is fully lowered.
2. Pull the oil plug 8 out of the oil reservoir.
3. Guide the lifting handle 6 into the lifting handle socket 3 and pump it up and down several times to allow any air to escape.
4. Place the rod 7 with oval opening on to the release valve 5 and turn the rod clockwise (Fig. C). The release valve 5 is now closed again.
5. Replace the oil plug 8 back into the oil reservoir opening.
6. If necessary, repeat steps 1-5 until all the air has escaped.

Storing

Place the rod 7 with oval opening on to the release valve 5 and turn the rod anti-clockwise (Fig. C) until the support plate 1 is fully lowered.
☐ Screw the extension screw 2 completely down into the jack body.
Store the hydraulic vehicle jack and the lifting handle in a dry environment and protected from moisture.
☐ Ensure that the support plate 1 is fully lowered and the extension screw 2 is completely screwed in before you put away the vehicle jack. This will prevent the oil escaping from the oil plug 8.
☐ Grease all moving parts on the vehicle jack regularly to prevent corrosion.

● Troubleshooting

● = Fault
● = Cause
O = Remedy

● = The vehicle jack does not raise the vehicle at all or does not raise it high enough.
© = The release valve5 was not properly closed.
O = Close the release valve 5 completely (see the section on "Raising the vehicle").
●=There is not enough hydraulic oil in the vehicle jack.
O = Top up the hydraulic oil (see the section on "Topping up the hydraulic oil / greasing").
● = There is too much hydraulic oil in the cylinder.
O = Remove the excess quantity of hydraulic oil from the cylinder.
- = There is air in the hydraulic system.
O = Remove the air in the hydraulic system (see the section on "Removing air from the hydraulic system").

● = The vehicle jack gives way under load.
© = The release valve5 was not properly closed.
O = Close the release valve 5 completely (see the section on "Raising the vehicle").
● = Hydraulic oil escapes.
● = There is too much hydraulic oil in the cylinder.
O = Remove the excess quantity of hydraulic oil from the cylinder.
● = The pump mechanism works only partially.
- = There is too much hydraulic oil in the cylinder.
O = Remove the excess quantity of hydraulic oil from the cylinder.
- = There is air in the hydraulic system.
O = Remove the air in the hydraulic system (see the section on "Removing air from the hydraulic system").

- Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

In the interest of the environment, do not throw out the product with your household refuse. Take it to a suitable centre where it can be disposed of

properly. Your local council will be able to tell you where the collection centres are located and their opening times.

Dispose of the hydraulic oil in an environmentally compatible manner. Ask your local repair garage to see to its disposal or find your nearest waste materials collection centre.

● Translation of the original Conformity Declaration

We, OWIM GmbH & Co. KG Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Hydraulic Bottle Jack, Model No.: HG02971, Version: 07 / 2017, to which this declaration refers, complies with the directive of 2006/42/EC.

Related harmonised standard:

EN 1494/A1:2008

Serial number: IAN 289553

Tobias Koenig

Division Manager

The complete declaration of conformity can be viewed at: www.owim.com

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this

product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Višina dviga: pribl. 18,5–36 cm

Maksimalna nosilnost: 3000 kg

Teža: pribl. 3,0 kg

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

DE-74167 Neckarsulm

NEMČIJA

Tobias Koenig Division Manager Neckarsulm, 29.03.2017
