MX9105 - Hand blender VOX - Free user manual and instructions

Product Type	Hand Mixer
Model	MX9105
Brand	VOX
Speed Settings	6 speeds + Turbo boost
Accessories Included	2 beaters, 2 dough hooks
Ejector Button	Yes, for easy accessory removal
Maximum Operating Time	5 minutes per use
Rest Time Between Uses	Minimum 20 minutes
Power Supply	220-240V, 50/60 Hz (typical for this category)
Cord Length	Approximately 1.5 m (estimated)
Dimensions (approx.)	20 x 10 x 15 cm (estimated)
Weight (approx.)	1.0 kg (estimated)
Material	Plastic body, stainless steel beaters and dough hooks
Safety Features	Do not immerse in water; automatic shut-off when overheating? Not specified, but typical.
Dishwasher Safe Parts	Beaters and dough hooks
Cleaning	Wipe body with damp cloth; do not immerse
Usage	Household and similar applications (kitchens, farms, hotels, B&B)
Recipes Included	Sponge Cake (beaters), Steamed Bun (dough hooks)
Environmental Disposal	Recycle at appropriate waste center
Warranty	Standard 1-year (assumed)

Frequently Asked Questions - MX9105 VOX

How do I attach the beaters or dough hooks to the VOX MX9105 mixer?

Before attaching, ensure the mixer is unplugged and the speed selector is at '0'. Insert the beaters into either socket (they are identical). For dough hooks, the one with a washer goes into the larger socket; the other goes into the smaller socket. Do not reverse them.

What is the maximum operating time per use?

The mixer should not be used for more than 5 minutes continuously. After each cycle, allow at least 20 minutes of rest before the next use.

Can I immerse the mixer body in water for cleaning?

No, do not immerse the mixer body, cord, or plug in water or any liquid. Wipe the exterior with a damp cloth and dry immediately. The beaters and dough hooks can be washed in warm soapy water or in the dishwasher.

What does the turbo button do?

Pressing the turbo button runs the mixer at the highest speed for burst power. It can be used at any time during operation.

How do I remove the beaters safely?

Turn the speed selector to '0' and unplug the mixer. Hold the beaters with one hand and press the ejector button firmly with the other hand. They will release.

What are the speed settings for?

There are 6 speed settings. Use lower speeds for mixing dry ingredients and higher speeds for creaming or whipping. For kneading dough, start at low speed then increase gradually. Refer to your recipe for guidance.

Can children use this mixer?

Children aged 8 years and older can use the mixer under supervision. Persons with reduced capabilities may also use it if supervised. Children should not play with the appliance. Keep the mixer and cord out of reach of children under 8.

What should I do if the supply cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the mixer with a damaged cord.

Can I use metal utensils in the bowl while the mixer is running?

No, do not insert knives, spoons, forks, or other metal objects into the bowl while the mixer is operating to avoid injury and damage. Use a rubber or wooden spatula if needed.

Is there a recipe included for the beaters?

Yes, the manual includes a recipe for Sponge Cake: beat 4 eggs, 30ml water, 3g salt, and 125g sugar at maximum speed for 3 minutes, then add 150g flour and blend at lowest speed for 20 seconds.

USER MANUAL MX9105 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MX - 9105

OPERATING INSTRUCTIONS MIXER MANUALE DELL'UTENTE SBATTITORE BEDIENUNGSANLEITUNG MIXER ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ МИКСЕР UPUTSTVO ZA UPOTREBU MIKSER MANUAL DE USUARIO BATIDORA MANUAL DO USUÁRIO BATEDEIRA ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΜΙΞΕΡ NAVODILA ZA UPORABO MEŠALNIK UPUTE ZA UPORABU MIJEŠALICA UPUTSTVO ZA UPOTREBU MIKSER УПАТСТВА ЗА МИКСЕР MANUALI I PERDORUESIT MIKSER

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

MIXER

INSTRUCTION MANUAL

MX - 9105

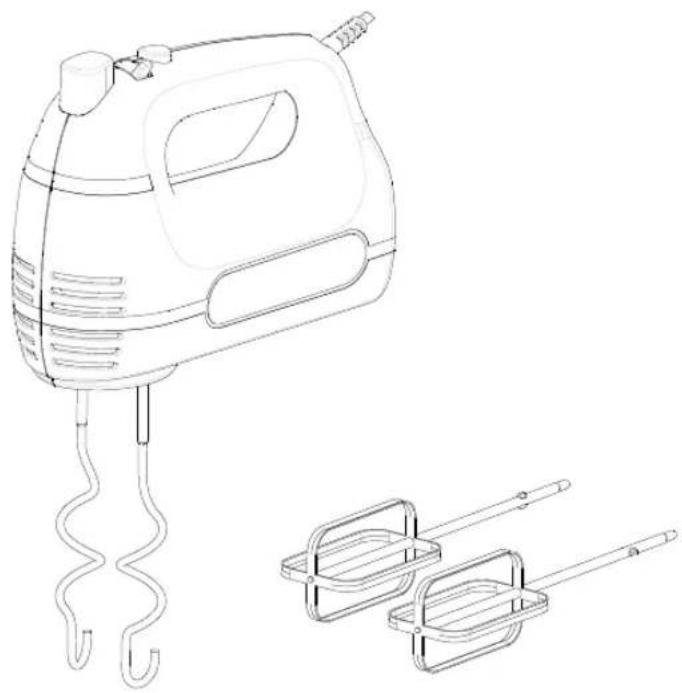

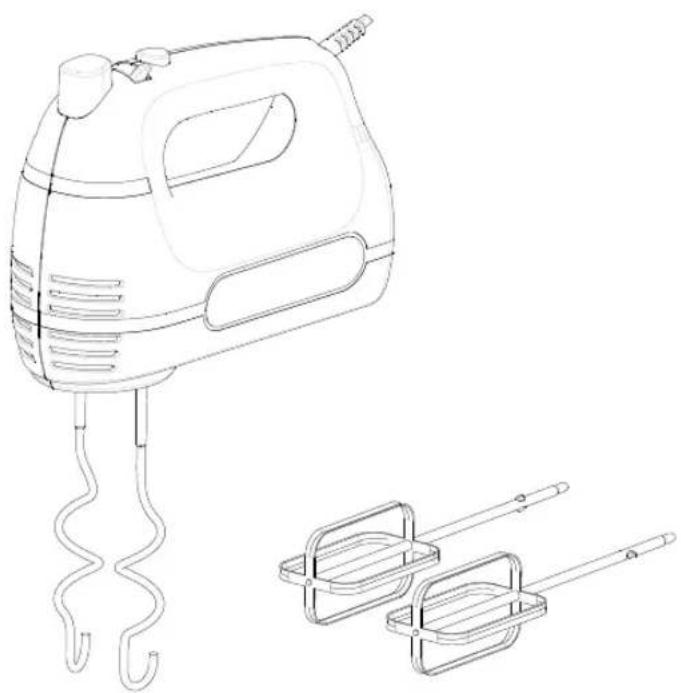

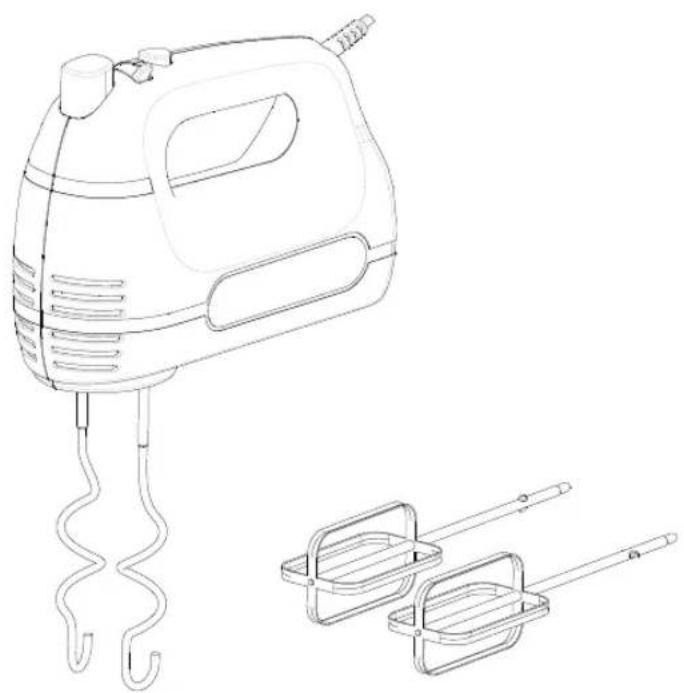

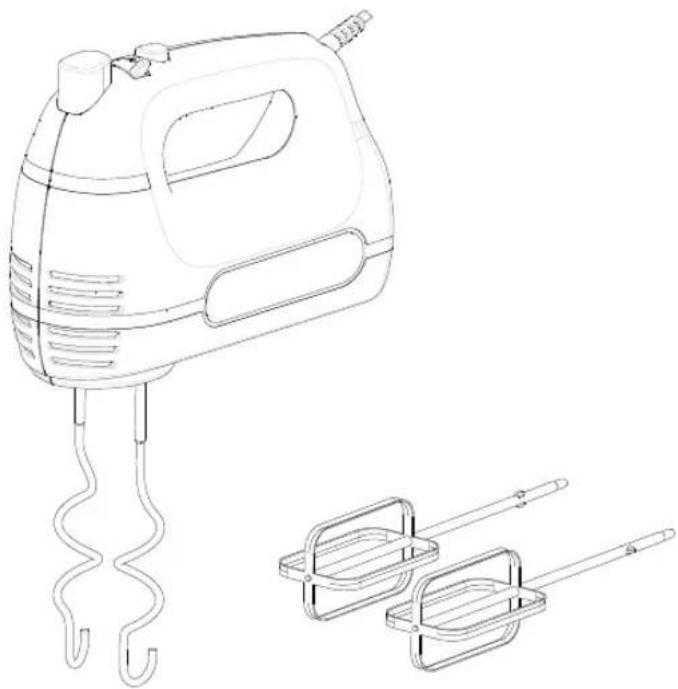

Line drawing of a hand mixer with two separate handles (no text or symbols)

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use, check that the voltage of your wall outlet corresponds to the one on the rating plate which is on the bottom of the appliance.
3. Do not operate the appliance with a damaged cord or after malfunction or if it has been damaged in any manner.

4. Do not let cord hang over an edge of a table or counter or hot surface.

5. Do not immerse the cord or the body of the mixer into water as this can give rise to electric shock.

6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.

7. Close supervision is necessary when your appliance is used near children or infirm persons.

8. Do not place the appliance on or near a hot gas or on a heated oven.

9. Never eject beaters or dough hooks when the appliance is in operation.

10. Do not leave the mixer unattended while it is operating.

11. Unplug from outlet while not in use, before putting on or taking off parts and before cleaning.

12. Use of any parts except those recommended or sold by the manufacturer may cause fire, electric shock or injury.

13. Remove the beaters from mixer before washing.

14. Make sure the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF and then remove plug from wall outlet.

15. Avoid any contact with moving parts.

16. Keep hands, clothing, as well as spatulas and other utensils away from beaters during operating in order to reduce the risk of injury to persons and/or damage to the mixer.

17. The appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

18. Keep the appliance and its cord out of reach of children younger than 8.

19. Switch off the appliance before changing or approaching the parts which move in use.

20. This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. Keep these instructions for future reference.

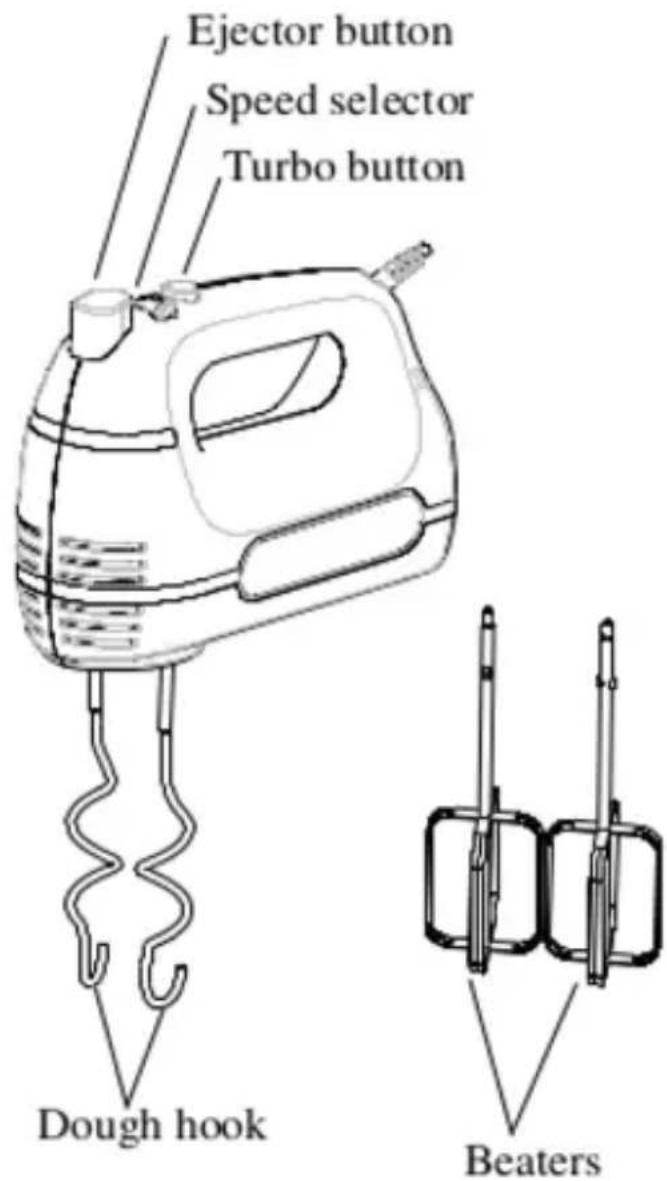

KNOW YOUR MIXER

BEFORE USING MIXER

Remove any packages, disassemble any detachable parts. Clean the dough hooks and beaters. Before assembling the mixer, make sure the power cord is unplugged from the power outlet and the speed selector is at the “0” position.

USING YOUR MIXER

1. Assemble proper beaters or dough hooks into mixer.

NOTE: Beaters can be inserted in either socket, as the beaters are identical. For dough hooks, the one with washer can only be inserted into the bigger socket and the other one can only be inserted into smaller one. The two dough hooks cannot be inserted in reverse.

1. Ensure that the unit is at the “0” setting, and then plug in the power source.
2. Set the speed selector to your desired speed. There are 6 speed settings to be selected. When kneading yeast dough, we suggest selecting the speed selector to lower speed and then to higher speed as to achieve the best results. The mixer will run at the highest speed when pressing turbo button.

WARNING: Do not stick knives, metal spoons, forks and so on into the bowl while operating.

1. The maximum operation time per use shall be less than 5 minutes. Minimum 20 minutes rest time must be maintained between continuous two cycles.

NOTE: During operation you can rotate the bowl with your hands as to achieve the best results.

1. When mixing is complete, turn the speed selector to "0" setting, and unplug the cord from power outlet.
2. If necessary, scrap the excess food particles from the beaters or dough hooks by rubber or wooden spatula.
3. Hold the beaters or dough hooks with one hand and press the Ejector button firmly down with the other hand as to remove the beater or dough hooks.

NOTE:

1) Remove the beaters or dough hooks only when the speed selector is on the “0” setting.
2) While operating, you can put the mixer vertically, but make sure the speed selector is on the "0" setting.

Recipe (for beater): Sponge Cake

Ingredients:

Egg: 4

Water: 30ml

Salt: 3g

White sugar: 125g

Flour: 150g

Operation:

Add the eggs, water, salt and white sugar and run the appliance under the maximum setting for 3 minutes. Add the flour and blend under the lowest setting for 20 seconds.

Recipe (for dough hook): Steamed bun

Ingredients:

High gluten flour: 924g

Water: 665g

Operation:

Add the high gluten flour and water, run the appliance under the lowest setting for 30 seconds, then blend under the maximum setting for 3 minutes and 30 seconds.

CLEANING AND MAINTENANCE

1. Unplug the appliance and wait until it is completely cooled before cleaning it.
2. Wipe the outside surface of the head with a damp cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Wash the beaters and dough hooks in warm soapy water and wipe them with a dry cloth. The beaters and dough hooks may be washed in the dishwasher.

CAUTION: The mixer cannot be immersed into water or other liquid.

Warning: Any other serving should be performed by an authorized service representative.

COOKERY TIPS

1. Refrigerated ingredients, i.e., butter and eggs should be at room temperature before mixing begins. Take these ingredients out ahead of time.

2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into a separate container first, then add to be mixed.

3. Do not over-beat. Make sure you only mix/blend mixtures as recommended in your recipe. Stir dry ingredients only until just combined. Always use the low speed.

4. Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.
5. Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin with no text or numbers present

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

SBATTITORE

MANUALE DELL'UTENTE

MX - 9105

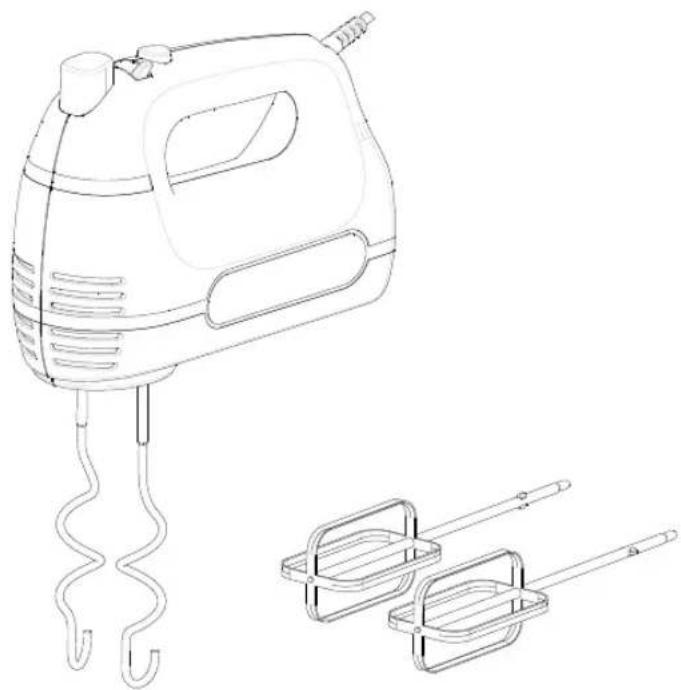

Line drawing of a hand mixer with coiled cord and two side handles (no text or symbols)

Symbol of a trash bin with no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

MIXER

BEDIENUNGSANLEITUNG

MX - 9105

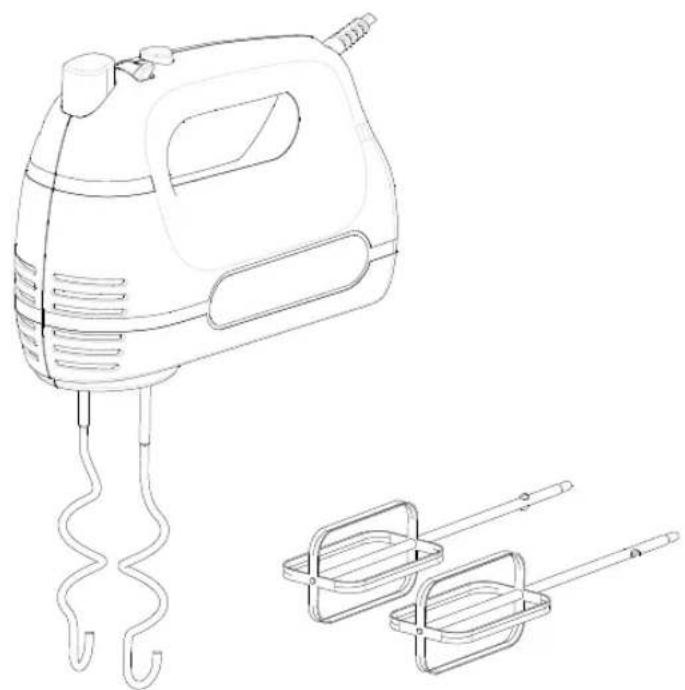

Line drawing of a hand mixer with two separate handles (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Line drawing of a hand mixer with two separate handles (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a hand mixer with two separate handles (no text or symbols)

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a hand mixer with two separate handles (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

BATEDEIRA

MANUAL DE INSTRUÇÕES

MX - 9105

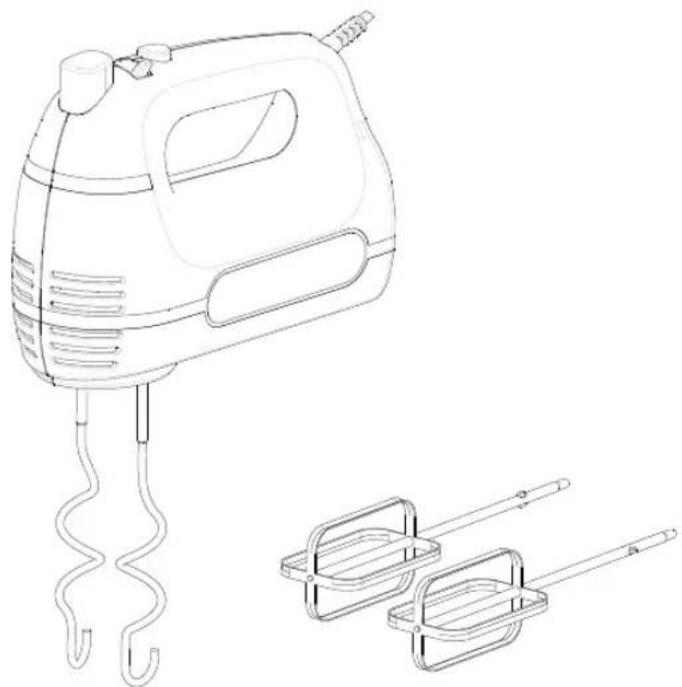

Line drawing of a hand mixer with two separate handles (no text or symbols)

Symbol of a trash bin with no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

M I E E P

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

MX - 9105

Line drawing of a hand mixer with two separate handles (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MEŠALNIK

NAVODILA ZA UPORABO

MX - 9105

Line drawing of a hand mixer with two separate electrical enclosures (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

MIJEŠALICA

KORISNIČKE UPUTE

MX - 9105

Line drawing of a hand mixer with two separate handles (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a hand mixer with two separate views: one showing a wavy handle and the other showing two rectangular handles (no text or symbols)

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

МИКСЕР

КОРИСНИЧКО УПАТСТВО

MX - 9105

Line drawing of a hand mixer with coiled-coil and two separate handles (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

MIKSERIT

UDHËZIM PËR PËRDORIM

MX - 9105

Line drawing of a hand mixer with two separate handles (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)
