MSR701 - Shaver BLAUPUNKT - Free user manual and instructions

Product Type	Electric Shaver
Brand	Blaupunkt
Model	MSR701
Dimensions (approx.)	5.5 cm x 4.5 cm x 2.5 cm
Weight (approx.)	150 g
Power Source	Rechargeable Li-ion battery
Charging Time	8 hours
Usage Time	45 minutes
Shaving System	Rotary, 2 floating heads
Trimmer	Pop-up trimmer for sideburns
Wet/Dry Use	Yes, can be used with foam or gel
Waterproof	IPX7 (rinsable under tap)
Cleaning	Rinse under running water; replace foil and cutter every 6-12 months
Safety Features	Automatic voltage adjustment (100-240V); overcharge protection
Replacement Parts	Foil and cutter set available
Repairability	Replacement parts user-serviceable
Included Accessories	Charging stand, protective cap, cleaning brush

Frequently Asked Questions - MSR701 BLAUPUNKT

How long does the battery last on a full charge?

A full charge provides approximately 45 minutes of cordless shaving time.

Can I use the shaver in the shower?

Yes, the MSR701 is waterproof (IPX7) and can be used in the shower or rinsed under the tap.

How do I clean the shaver?

Remove the head and rinse under running water. Use the included cleaning brush to remove hair debris. Let it dry before reassembly.

How often should I replace the foil and cutter?

For optimal performance, replace the foil and cutter set every 6 to 12 months depending on usage.

Is the shaver suitable for wet shaving with gel?

Yes, the shaver is designed for wet and dry use. You can apply shaving foam or gel for a more comfortable shave.

What type of charger does it use?

It uses a standard two-pin or USB charger (specific to model). Voltage is automatic 100-240V.

How do I charge the shaver?

Connect the charger to the shaver and plug into a wall outlet. The charging indicator will show red while charging and turn green when full.

Can I use the shaver while it is charging?

It is recommended to use the shaver cordless only. Do not use while plugged in to avoid electrical hazards.

What spare parts are available?

Replacement foil and cutter sets are available. Contact Blaupunkt service or authorized retailers.

How do I store the shaver when not in use?

Place the protective cap over the shaver head and store in a dry place. For travel, use the provided case if any.

USER MANUAL MSR701 BLAUPUNKT

Black and white photo of a Blaupunk 15 electric shaver with digital display (no text or symbols visible)

Enjoy it.

Man's shaver Golarka męska Pánský holicí strojek Pánsky holiaci strojček Férfi borotva Moški brivnik

Aparat za brijanje Ανδρική ξυριστική μηχανή Μъжка самобръсначка Aparat de ras pentru bărbați Skustuvas vyrams Meeste raseerija

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as

accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

- This device uses only the power adapter supplied with the device or recommended by the manufacturer.

• Having disconnected the appliance from the power supply, clean it under running water no warmer than 50 degrees.

- Only a wireless appliance may be used in the bath or shower.

- Do not use the shaver if the film or blades are damaged in any way.

- The appliance may be charged in temperatures in the range of 5-35 degrees Celsius.

- For reasons of hygiene, the appliance should be used by one person only.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL SPECIFICATIONS OF THE POWER SUPPLY UNIT

Input voltage: 100-240V\~50/60Hz

Maximum input current: 0,2A

Output voltage: 5V

Maximum output current: 1000mA

TECHNICAL SPECIFICATIONS OF THE APPLIANCE

Voltage: 5V

Max. input current: 1000mA

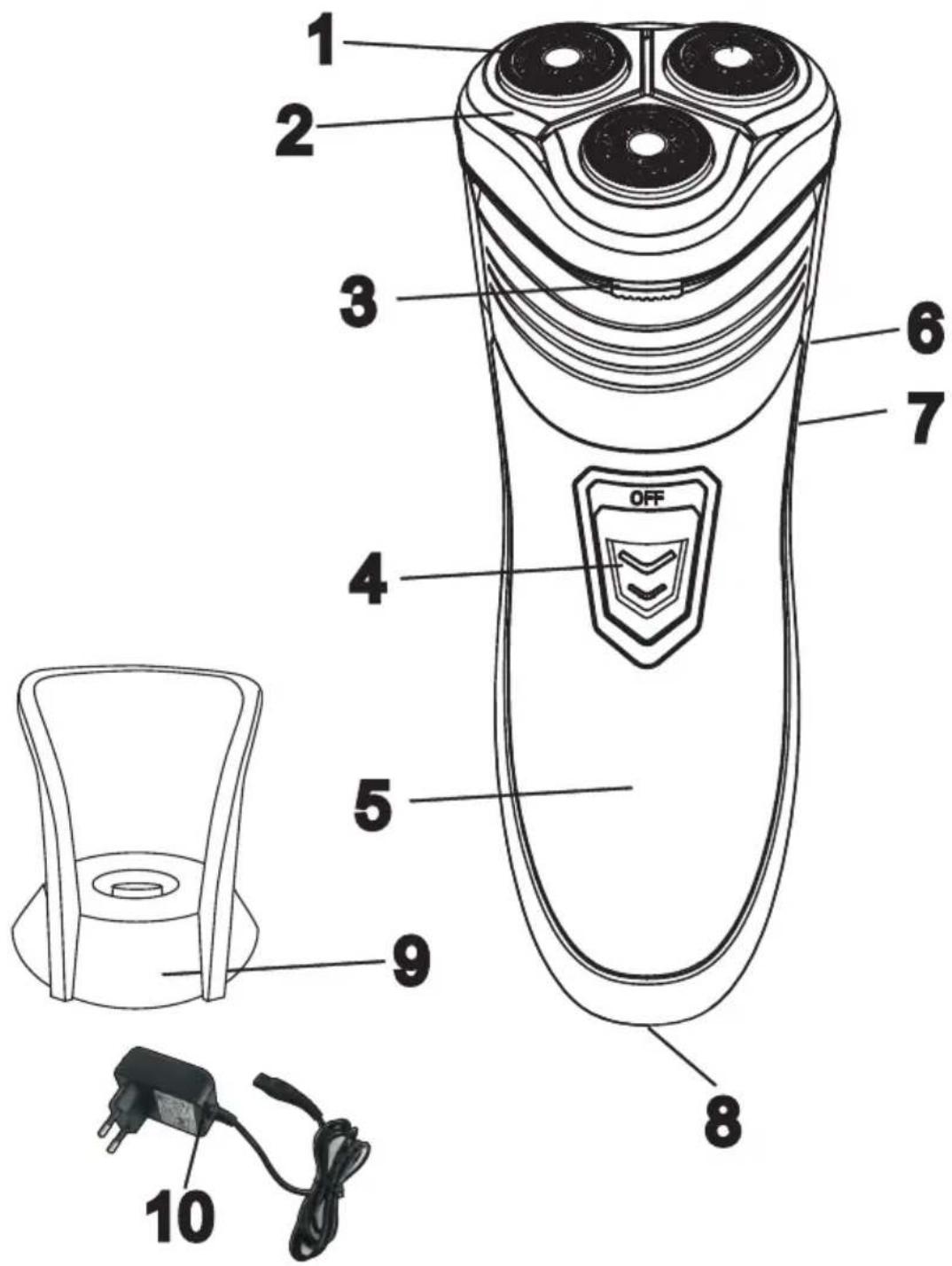

1. Shaving head
2. Housing of the shaving heads
3. Button used to open the housing of the shaving heads
4. On/Off button

5. Display (presents the percentage of battery charge)

6. Trimmer

7. Trimmer lock
8. Socket
9. Charging station
10. Power cord with a adaptor (may be connected both directly to the shaver and to the charging station)

CHARGING THE APPLIANCE

If the appliance's battery charge is low or the battery is totally discharged, it needs charging. Insert the power supply cord into the appliance and connect the power supply unit to the electrical grid.

The charging indicator of the appliance will then display its charging status. If the appliance is totally discharged, the indication of its charging status may be delayed. This delay should be no longer than 2 minutes.

Having connected the appliance to the charger, you may continue using the appliance. However, do not use the appliance in the vicinity of baths, showers, swimming pools or similar water tanks.

SHAVER OPERATION

Switch the shaver on with the On/Off button.

Move the shaver across the skin surface, making circular movements.

Clean the shaving head after each use with the provided brush.

The appliance may be used for wet or dry shaving. If you use shaving foam or gel, rinse the shaver regularly under a stream of tap water to prevent the shaving head from "clogging".

Note: Each shaver requires the skin and hair growth to adjust to the blade system applied. The first shaves may not be perfectly accurate and the skin may be irritated. The adjustment period may last up to 3 weeks.

SHAVER CLEANING

Make sure the appliance is switched off and not connected to the charger.

Clean the shaving film and the shaver blades after each use of the shaver. Use the brush for this purpose. The blades may be rinsed under running water.

Clean the appliance regularly with due care. Press the button opening the housing of the shaving heads. Remove all hair from the inside. Turn the ring mounting the blade heads to the left. Remove the ring. Remove and clean each head and set of blades.

Note: place the blades in the heads they have been removed from (each blade is assigned to a respective head, and if used in another head, the blade may be less effective or even get damaged).

Having cleaned the heads, place them in the housing along with the blades (pay attention to the cuts and grooves), insert the mounting ring and close it by turning it to the right.

GROWTH TRIMMING (TRIMMER)

Switch the shaver off. Move the trimmer lock down. The blade of the trimmer will then push out. Switch the shaver on and trim the hair. Switch the shaver off. To hide the trimmer, push it back into place on the shaver.
