Product Type	Electric Shaver
Brand	Blaupunkt
Model	MSR502
Power Supply	5V DC, 500 mA max input current
Charging Time	Approximately 1-2 hours (typical for similar models)
Battery Type	Rechargeable Lithium-ion (assumed)
Operating Time	Approximately 60 minutes (estimated)
Shaving System	Rotary with 3 floating heads
Blade Type	Blaupunkt ACC069
Cleaning Method	Rinse under running water and use brush
Water Resistance	Rinseable head, not fully waterproof
Usage	Wet or dry shaving (if rinsable, dry recommended for battery)
Travel Lock	Yes, hold power button 3 seconds
Indicators	LED charging status (red flashing charging, solid green charged, flashing low battery)
Dimensions	Approximately 6 x 3 x 2 inches (estimated)
Weight	Approximately 200 g (estimated)
Safety Features	Overcharge protection, auto shut-off
Accessories Included	Charging cable, cleaning brush
Country of Origin	China (typical for Blaupunkt)
Warranty	2 years (standard in EU)

Frequently Asked Questions - MSR502 BLAUPUNKT

How do I charge the Blaupunkt MSR502 shaver?

Connect the power supply cord to the shaver's socket and plug the adapter into a mains outlet. The LED will flash red during charging and become solid when fully charged. Charging may take up to 2 hours if the battery is completely empty.

Can I use the shaver while it is charging?

Yes, you can use the shaver while it is connected to the charger, but do not use it near water sources like a bath or shower.

How do I clean the shaver?

Switch off and unplug the shaver. Remove the shaving head by pulling it upwards. Rinse the head under running water (no hotter than 50°C) and use the provided brush to remove hairs. Do not immerse the shaver body in water.

Why is my shaver not giving a close shave?

New users may experience an adjustment period of up to 3 weeks as skin and hair adapt to the rotary system. Ensure the blades are clean and not damaged. If the problem persists, consider replacing the blade set.

How do I activate the travel lock?

Hold the On/Off button for 3 seconds to activate or deactivate the travel lock. This prevents accidental switching on during transport.

What does a flashing LED while using the shaver mean?

A flashing LED during operation indicates a low battery level. Charge the shaver soon.

Can I replace the blades?

Yes, the blades are replaceable. Use only authentic Blaupunkt ACC069 blades. Each blade is assigned to a specific head; note their positions to avoid reduced performance.

Is the shaver waterproof?

The shaver head can be rinsed under running water, but the main unit is not waterproof. Do not immerse the shaver in water or use it in the shower unless it is a cordless model (this model is not specified as shower-safe).

What is the recommended way to dispose of the shaver?

Since the product contains electronic components and a battery, do not throw it in household waste. Follow local regulations for electronic waste recycling. The packaging materials (cardboard, polystyrene, polyethylene) can be recycled separately.

What should I do if the shaver stops working?

Check that the battery is charged. If the device still does not turn on, contact Blaupunkt service at [e-mail] or call [phone]. Do not attempt to disassemble the shaver yourself.

USER MANUAL MSR502 BLAUPUNKT

Black BAUPUNKT electric shaver with three circular head modules (no text or symbols visible on body)

Enjoy it.

Ph v vkdyhu huuh udvlhuhu rodund p S vn krolf v urhn S vn kroldfv urn uil erur yd Pr nleuly In

s dud d eulnd rh ut ut i o s dud h udv sh u e e Vn v ydv y udp v P hhv h udvhhulrd ulh vn yhnolv

Illustration of a hand holding a small bowl with granular substance, next to a close-up of a mechanical component (no text or symbols)

Diagram showing a hand holding a device with internal components, and a separate view of a mechanical component (no text or symbols present)

Illustration of a hand using a tool to adjust or install a three-part mechanical component (no text or symbols present)

Technical line drawing of a multi-chamber electric motor assembly with internal gear and housing (no text or labels)

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. • Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

- Having disconnected the appliance from the power supply, clean it under running water no warmer than 50 degrees.

- Only a wireless appliance may be used in the bath or shower.

- Do not use the shaver if the film or blades are damaged in any way. The appliance may be charged in temperatures in the range of 5-35 degrees Celsius. For reasons of hygiene, the appliance should be used by one person only.

Device is compliant with EU directives: - Electromagnetic compatibility (EMC) Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL SPECIFICATIONS OF THE APPLIANCE

Voltage: 5V

Max. input current: 500mA

Shaving blades: Blaupunkt ACC069

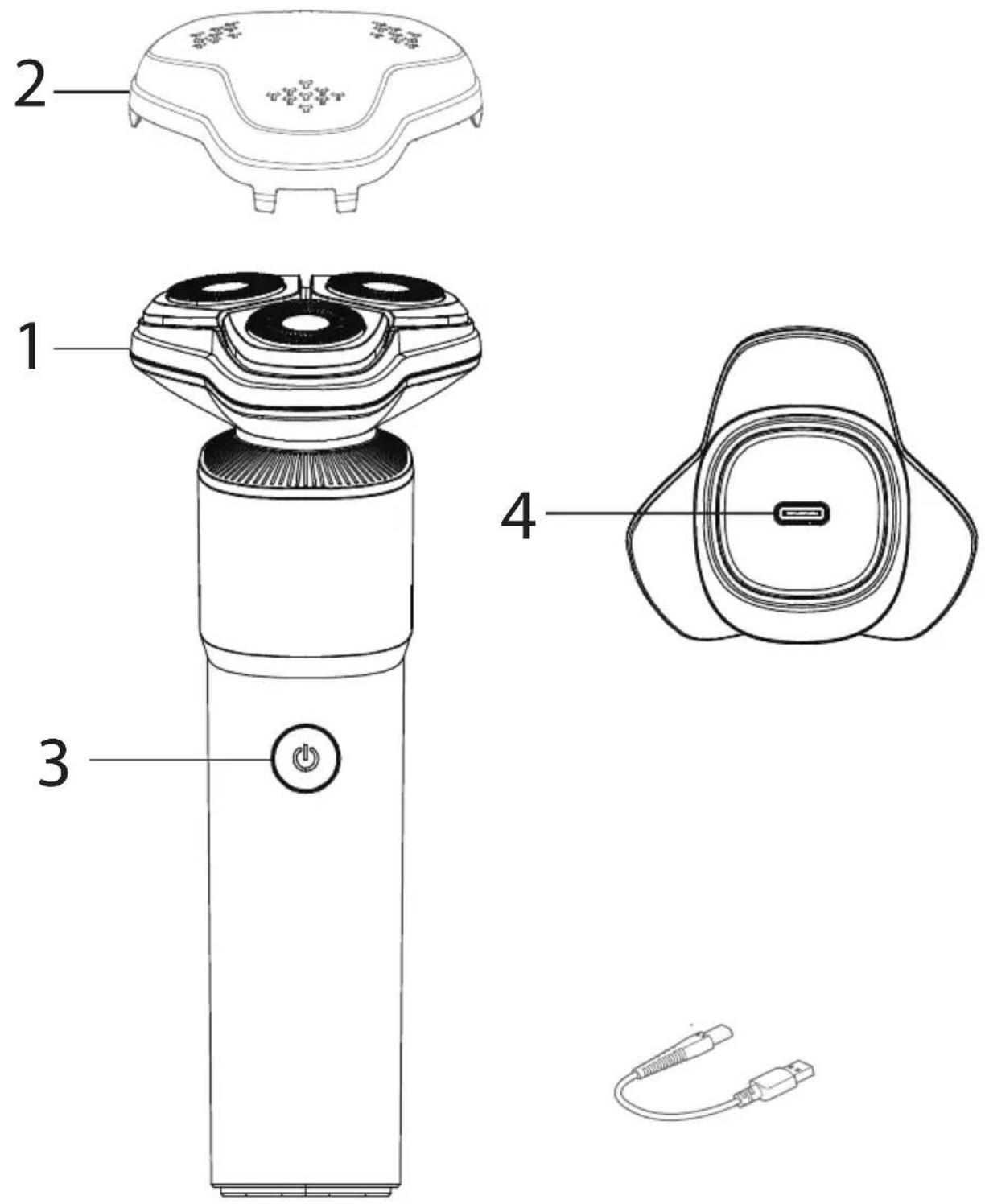

1. Shaving head
2. Housing of the shaving heads
3. On/Off button
4. Socket

CHARGING THE APPLIANCE

If the appliance's battery charge is low or the battery is totally discharged, it needs charging. Insert the power supply cord into the appliance and connect the power supply unit to the electrical grid.

The charging indicator of the appliance will then display its charging status. If the appliance is totally discharged, the indication of its charging status may be delayed. This delay should be no longer than 2 minutes.

Having connected the appliance to the charger, you may continue using the appliance. However, do not use the appliance in the vicinity of baths, showers, swimming pools or similar water tanks.

SHAVER OPERATION

Switch the shaver on with the On/Off button.

Move the shaver across the skin surface, making circular movements.

Clean the shaving head after each use with the provided brush.

Note: Each shaver requires the skin and hair growth to adjust to the blade system applied. The first shaves may not be perfectly accurate and the skin may be irritated. The adjustment period may last up to 3 weeks.

The diode indicates the device's operating status and charging status. After connecting to a power source, a red flashing LED indicates that the device is charging. The LED is constantly lit to indicate that it is fully charged. If the diode starts flashing while the device is operating, it indicates a low battery level.

Travel lock: to activate or remove the travel lock (protection against accidental switching on), hold the power button for 3 seconds.

SHAVER CLEANING

Make sure the appliance is switched off and not connected to the charger.

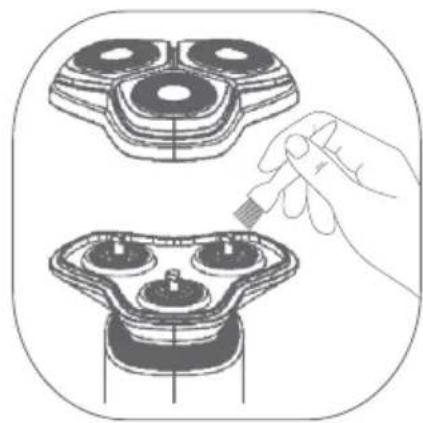

Clean the shaving film and the shaver blades after each use of the shaver. Use the brush for this purpose. The blades may be rinsed under running water.

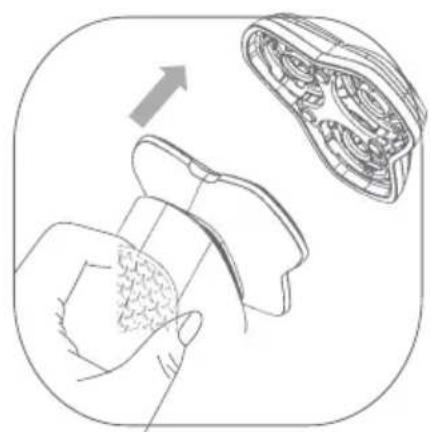

Clean the appliance regularly with due care. To remove the blade head, pull it upwards. Rinse the head under running water. Use a brush to sweep away any dirt. Do not immerse the shaver in water.

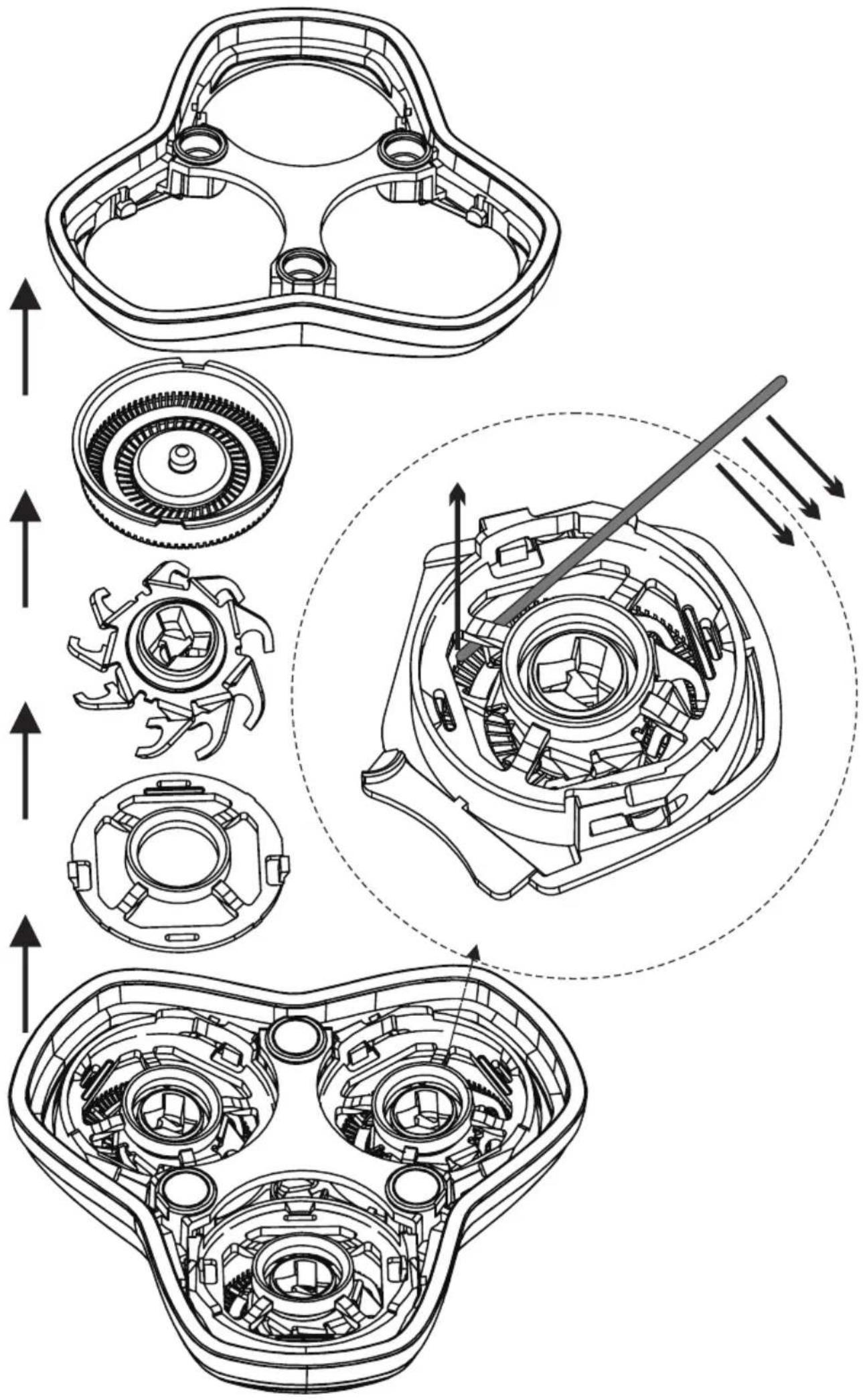

You can remove the blades by following the diagram in section one of this manual

Note: place the blades in the heads they have been removed from (each blade is assigned to a respective head, and if used in another head, the blade may be less effective or even get damaged).

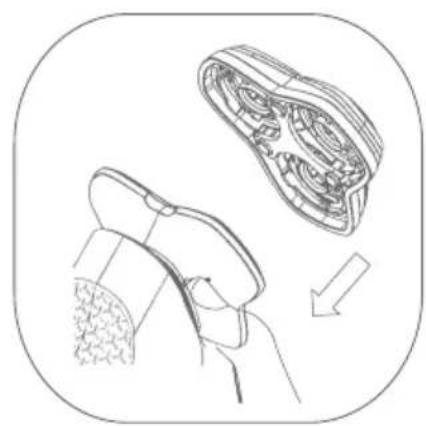

Having cleaned the heads, place them in the housing along with the blades (pay attention to the cuts and grooves).

Device is compliant with EU directives:

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

Device is compliant with EU directives:

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]
