MSR401 - Shaver BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	MSR401
Product Type	Men's Electric Shaver
Shaving System	Rotary, 3 blades
Wet & Dry Use	Yes, can be used with foam/gel or dry
Trimmer	Pop-up precision trimmer
Power Source	Rechargeable battery (built-in)
Charging Voltage	100-240V~50/60Hz (adapter)
Charging Time	Approx. 8 hours (typical)
Battery Life	Approx. 45 minutes cordless use
Dimensions (Approx.)	15 x 5 x 4 cm
Weight (Approx.)	200 g
Charge Indicator	LED indicator on device
Cleaning Method	Rinse under running water (50°C max) or use brush
Water Resistance	Yes, suitable for wet shaving (wireless only)
Safety Features	Overcharge protection, auto shut-off? Clean only when unplugged
Accessories Included	Power adapter with cord, cleaning brush
Replaceable Parts	Blades and foils (specific to each head)
Compliance	CE, LVD, EMC, RoHS, WEEE
Environmental	Recyclable packaging, battery disposal in dedicated points

Frequently Asked Questions - MSR401 BLAUPUNKT

Can I use the Blaupunkt MSR401 in the shower or bath?

Yes, you can use the shaver in the shower or bath, but only when it is not connected to the charger (wireless operation). The device is water-resistant for wet shaving.

How long does it take to fully charge the shaver?

The charging time is approximately 8 hours. The LED indicator shows charging status; when fully charged, the indicator may turn off or change color.

How long does the battery last on a full charge?

The battery provides approximately 45 minutes of cordless shaving time. Actual runtime may vary based on usage habits and beard density.

Can I replace the shaving blades?

Yes, the blades and foils are replaceable. Each blade is designed for a specific head; always reassemble the same blade to its original head to maintain optimal performance.

How should I clean the shaver?

Clean the shaving head after each use with the provided brush. For wet shaving, rinse the head under running water (max 50°C) while the device is switched off and unplugged. Periodically remove the heads and clean inside.

Can I use shaving foam or gel with this shaver?

Yes, the MSR401 supports both wet and dry shaving. If you use foam or gel, rinse the shaver head regularly under water to prevent clogging.

Is the shaver suitable for sensitive skin?

The shaver may cause slight irritation during the first few uses as your skin adjusts to the blade system. This adjustment period can last up to 3 weeks. Using lukewarm water before shaving can help.

What does the LED indicator mean?

The LED indicator lights up during charging. It may blink or change color to indicate charging progress. Refer to the user manual for exact behavior (typically steady light when charging, off when full).

Can I use the shaver while it is charging?

The shaver is designed for cordless use only when shaving. It can be used while plugged in? The manual does not explicitly state, but it is recommended to shave unplugged for safety and flexibility. If you need corded use, check the manual.

Where can I find replacement parts for the Blaupunkt MSR401?

Replacement blades and foils can be obtained from authorized service centers. Contact Blaupunkt support via email [e-mail] or call [phone] for assistance.

USER MANUAL MSR401 BLAUPUNKT

Blue and black electric shaver with three rotary dials and a digital display (no visible text or symbols)

Enjoy it.

Men's shaver Herrenrasierer Golarka męska Pánský holicí strojek Pánsky holiaci strojček Férfi borotva Moški brivnik

Aparat za brijanje Ανδρική ξυριστική μηχανή Μъжка самобръсначка Aparat de ras pentru bărbați Skustuvas vyrams Meeste raseerija

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as

accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

• This device uses only the power adapter supplied with the device or recommended by the manufacturer.

• Having disconnected the appliance from the power supply, clean it under running water no warmer than 50 degrees.

- Only a wireless appliance may be used in the bath or shower.

- Do not use the shaver if the film or blades are damaged in any way.

• The appliance may be charged in temperatures in the range of 5-35 degrees Celsius.

- For reasons of hygiene, the appliance should be used by one person only.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL SPECIFICATIONS OF THE POWER SUPPLY UNIT

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

Input voltage: 100-240V\~50/60Hz

Maximum input current: 0,3A

Output voltage: 3,5V

Maximum output current: 1000mA

Average active efficiency: 70,86%

No-load power consumption: ≤0,1W

TECHNICAL SPECIFICATIONS OF THE APPLIANCE

Voltage: 3,5V

Max. input current: 1000mA

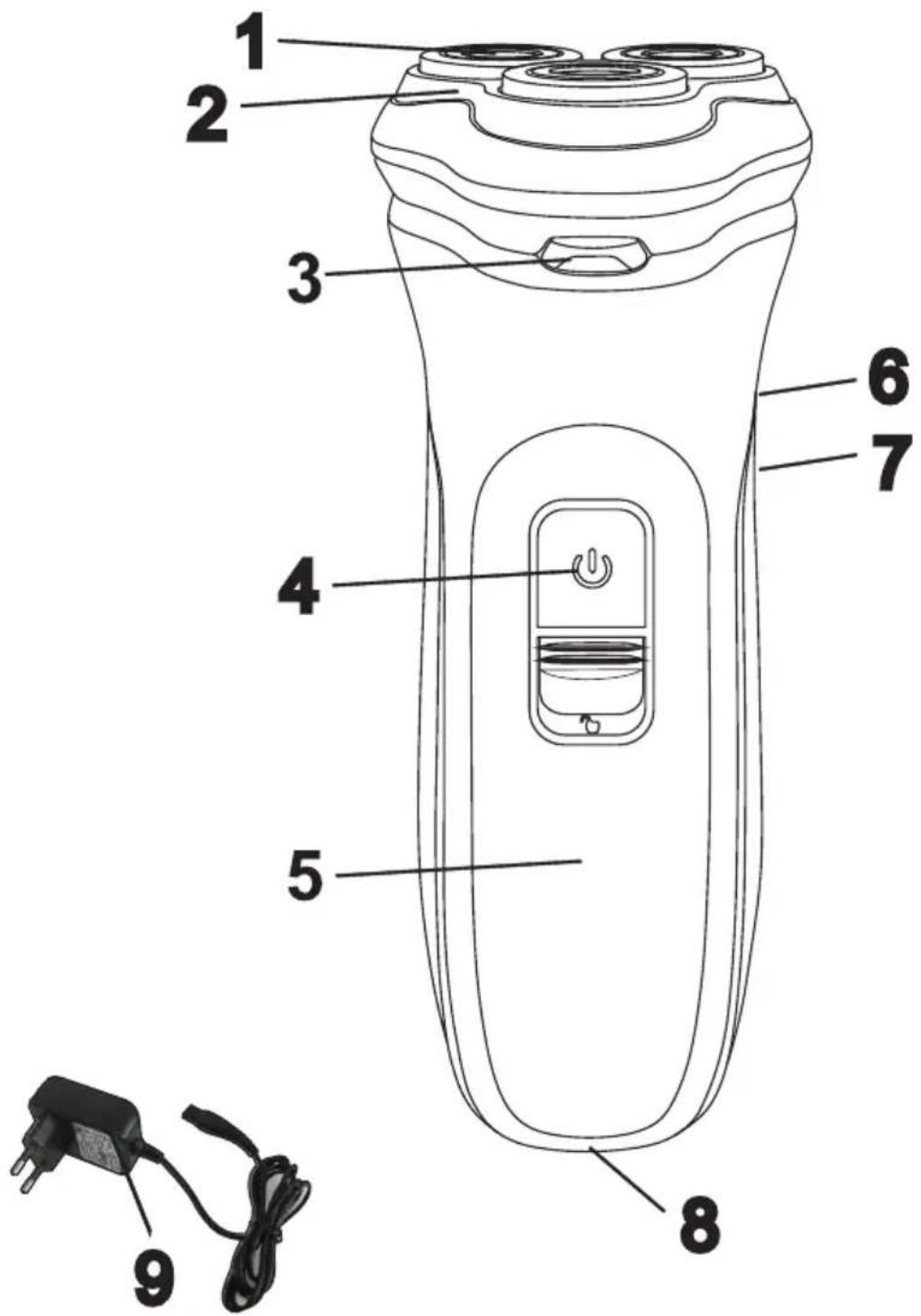

1. Shaving head
2. Housing of the shaving heads
3. Shaving heads lid release button
4. On/Off button

5. Charge indicator

6. Trimmer

7. Trimmer lock
8. Socket
9. Power cord with a adaptor

CHARGING THE APPLIANCE

If the appliance's battery charge is low or the battery is totally discharged, it needs charging. Insert the power supply cord into the appliance and connect the power supply unit to the electrical grid.

The charging indicator of the appliance will then display its charging status. If the appliance is totally discharged, the indication of its charging status may be delayed. This delay should be no longer than 2 minutes.

SHAVER OPERATION

Switch the shaver on with the On/Off button.

Move the shaver across the skin surface, making circular movements.

Clean the shaving head after each use with the provided brush.

The appliance may be used for wet or dry shaving. If you use shaving foam or gel, rinse the shaver regularly under a stream of tap water to prevent the shaving head from "clogging".

Note: Each shaver requires the skin and hair growth to adjust to the blade system applied. The first shaves may not be perfectly accurate and the skin may be irritated. The adjustment period may last up to 3 weeks.

SHAVER CLEANING

Make sure the appliance is switched off and not connected to the charger.

Clean the shaving film and the shaver blades after each use of the shaver. Use the brush for this purpose. The blades may be rinsed under running water.

Clean the appliance regularly with due care. Press the button opening the housing of the shaving heads. Remove all hair from the inside. Turn the ring mounting the blade heads to the left. Remove the ring. Remove and clean each head and set of blades.

Note: place the blades in the heads they have been removed from (each blade is assigned to a respective head, and if used in another head, the blade may be less effective or even get damaged).

Having cleaned the heads, place them in the housing along with the blades (pay attention to the cuts and grooves), insert the mounting ring and close it by turning it to the right.

GROWTH TRIMMING (TRIMMER)

Switch the shaver off. Move the trimmer lock down. The blade of the trimmer will then push out. Switch the shaver on and trim the hair. Switch the shaver off. To hide the trimmer, push it back into place on the shaver.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

Vhodna napetost: 100-240V\~50/60Hz

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

Ulazni napon: 100-240V\~50/60Hz

Maks. struje: 0,3A

Izlazni napon: 3,5V

Maks. jakost struje: 1000mA

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

Tensiune de intrare: 100-240V\~50/60Hz

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

E-TEK Electronics Manufactory CO., LTD

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105

Shenzhen, Guangdong, China

ZD006C035100EUE

Sisendpinge: 100-240V\~50/60Hz

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
