Brand	Husqvarna
Model	Royal 50 SE
Product type	Self-propelled push lawn mower
Engine power	Unleaded petrol, 4-stroke engine
Starting	Electric key start (12 V battery) and manual emergency starter
Cutting width	50 cm (approx.)
Cutting height adjustment	Central, lever with multiple positions
Discharge system	Rear grass catcher with fill indicator
Mulching function	Yes, with removable mulching insert
Blade brake clutch (BBC)	Available on BBC variant, not on standard SE
Engine brake	Yes, by safety handlebar
Self-propulsion	Yes, handlebar control and speed variator
Bag capacity	Not specified (estimated 60 L)
Blade	Single rotary blade, bolt attachment
Engine oil	SAE 30, capacity not specified
Battery	12 V rechargeable, charging time 24 h
Routine maintenance	Brush cleaning, oil change every 25 h, blade replacement every 50 h
Safety	Engine brake handlebar, spark plug disconnection, projection protection
Main spare parts	Blade, bolts, battery, spark plug, air filter, belt
Weight	Not specified (estimated 35-40 kg)

Frequently Asked Questions - ROYAL 50 SE HUSQVARNA

How to start the Royal 50 SE lawn mower?

To start, make sure the throttle control is set to fast position '+'. Turn the key while holding the safety handlebar close to the handle. If the battery is discharged, use the manual starter following the steps for the Royal 50S.

What to do if the engine does not start?

Check for fuel, throttle control position (must be on '+'), and that the safety handlebar is engaged. If necessary, remove and dry the spark plug. For cold start, prime with the primer pump (5 times).

How to recharge the battery of the Royal 50 SE?

Stop the mower, disconnect the spark plug. Remove the cap from the charger connection socket on the wiring harness, connect the supplied charger, then to a mains socket. Let charge for 24 hours. Then disconnect and replace the cap.

What oil to use and how to check the level?

Use a good quality SAE 30 4-stroke engine oil. Check the level with the dipstick: it should be at the FULL level. Add if necessary every 5 hours of use.

How to adjust the cutting height?

The cutting height is adjusted using a central lever. Pull the lever out of its slot, place it in the desired position, then release. Several notches are available.

How to use the mulching insert?

Stop the mower and disconnect the spark plug. Lift the safety flap, insert the mulching insert into the discharge channel until it is securely fixed. Close the flap. The insert prevents collection and mulches the grass.

When and how to replace the blade?

Replace the blade every 50 hours or at least every 2 years. Disconnect the spark plug, remove the blade bolt by turning counterclockwise. Mount the new blade with the cutting edges facing outward and tighten the bolt. Wear gloves.

How to clean the mower?

Never use water. Remove accumulated grass under the deck with a brush. Clean the air intakes, height adjustment, wheels and bag with a soft brush. Wipe with a dry cloth.

How to store the mower in winter?

Drain the oil and fuel. Clean the mower thoroughly. Let the engine cool down. Store in a cool, dry place. Recharge the battery at least once every six months.

What to do in case of excessive vibrations?

Disconnect the spark plug. Check the blade mounting: it must be properly fixed and not worn. Replace if necessary. If vibrations persist, contact an authorized center.

USER MANUAL ROYAL 50 SE HUSQVARNA

Line drawing of a mechanical linkage assembly (no text or symbols)

ROYAL 50SE

Line drawing of a lawn mower with visible frame and wheels (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ROYAL 50S/BBC

Simple line drawing of an open book with no text or symbols visible

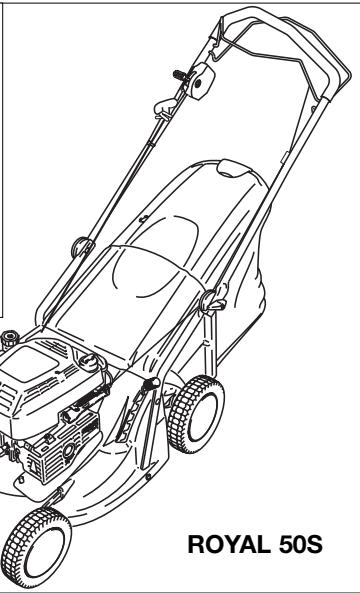

ROYAL 50S

ROYAL 50SE

ROYAL 50S/BBC

CE

GB

Operator's Manual

Read the operator's manual carefully and make sure that you understand the contents before using the lawnmower.

D

Betriebsanleitung

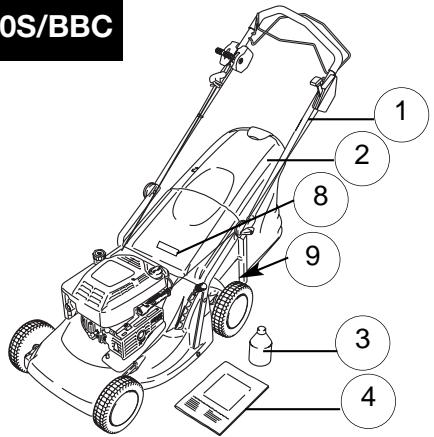

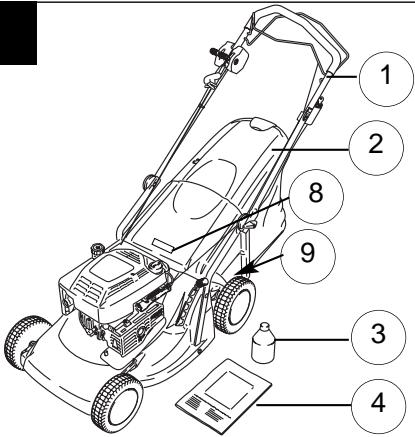

1. Handle Assembly
2. Grassbox
3. Bottle of oil
4. Instruction Manual
5. Mulching Plug
6. Key Start (Royal 50SE)
7. BBC Lever (Royal 50S/BBC)
8. Warning Label
9. Rating Label
10. Battery Charger (Royal 50SE)

D - INHALT

Line drawing of a folded paper airplane with a numbered label (5) in the corner, no text or symbols present.

(A) ROYAL 50SE

Technical line drawing of a mechanical clamp or bracket assembly with a numbered label (6) pointing to the handle (no text or symbols beyond the number)

Line drawing of a folded paper or envelope with a numbered circle (5) and no visible text or symbols

(A) ROYAL 50S/BBC

Line drawing of a mechanical component with a numbered circle (5) and no visible text or symbols

SAFETY PRECAUTIONS

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower.

Never use the mower unless the grassbox or guards provided by the manufacturer are in position.

Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC

Warning

Read the user instructions carefully to make sure you understand all the controls and what they do.

Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out

Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area

Beware or severing toes or hands. Do not put hands or feet near a rotating blade.

Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period.

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

General

1. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
2. Only use the lawnmower in the manner and for the functions described in these instructions.
3. Never operate the lawnmower when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.

Fuel Safety WARNING - Petrol is highly flammable

• Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable
• refuel outdoors only and do not smoke while refuelling
• add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot
• if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated
• replace all fuel tanks and container caps securely
• move the product away from the fuelling area before starting

Safety Procedures when Charging the Battery (ROYAL 50SE)

1. Check the charger cable regularly for damage or deterioration due to age.
2. Do not use the lawnmower if the charging cable is not in good condition.
3. Do not attempt to charge other products with the charger from this unit.

4. Do not attempt to use this battery with any other charger.

5. Charging should only be carried out in a safe location where neither battery nor cord cable can be trodden on or tripped over.

6. Location should be well-ventilated.

7. During charging, the battery charger becomes warm. This is normal and means the charger is operating properly.

8. Do not cover the battery charger with anything during charging.

9. Ensure that neither the charger nor the battery are exposed to moisture.

10. Avoid extreme temperatures.

11. The charger will not operate below freezing point nor above 40^ C.

12. Do not short circuit the battery terminals.

SAFETY PRECAUTIONS

Preparation

1. Do not mow barefoot or in open sandals. Always wear suitable clothing, gloves, and stout shoes.
2. The use of ear protection is recommended.
3. Make sure the lawn is clear of sticks, stones, bones, wire and debris; they could be thrown by the blade.
4. Before using always visually inspect to see that blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades together with their fixings in sets to preserve balance.
5. Have faulty silencers replaced.

Use

1. Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can collect.
2. Use the lawnmower only in daylight or good artificial light.
3. Avoid operating your lawnmower in wet grass, where feasible.
4. Take care in wet grass, you may lose your footing.
5. On slopes, be extra careful of your footing and wear non-slip footwear.
6. Mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Mowing on banks and slopes can be dangerous. Do not mow on banks or steep slopes.
9. Do not walk backwards when mowing, you could trip. Walk never run.
10. Never cut grass by pulling the mower towards you.
11. Stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
12. Never operate the lawnmower with damaged guards or without guards in place.
13. Do not overspeed the engine or alter governor settings. Excessive speed is dangerous and shortens lawnmower life.
14. Disengage all blade and drive clutches before starting.
15. Always start the lawnmower carefully with feet well away from the blades.
16. Do not tilt lawnmower when starting the engine

17. Do not put hands near the grass discharge chute whilst engine is running.

18. Never pick up or carry a lawnmower while the engine is running

19. Spark plug wire may be hot - handle with care.
20. Do not attempt any maintenance on your lawnmower when the engine is hot.

21. Stop the engine, and wait until the blade has stopped:-

22. before leaving the mower unattended for any period;

23. Stop the engine, wait until the blade has stopped and disconnect the spark plug lead:-

24. before refuelling

25. before clearing a blockage;
26. before checking, cleaning or working on the appliance;
27. if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition.;
28. if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
29. Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition.
2. Check the grassbox/grassbag frequently for wear or deterioration.
   3 Replace worn or damaged parts for safety.
3. Only use the replacement blade, blade bolt, spacer and impeller specified for this product.
4. Never store the lawnmower with fuel in the tank inside a building where fumes can reach an open flame or spark.
5. Allow the engine to cool before storing in any enclosure.
6. To reduce fire hazard, keep the engine, silencer, battery compartment and fuel storage area free of grass, leaves or excessive grease.
7. If the fuel tank has to be drained, this should be done outdoors.
8. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

PRODUCT RATING LABEL

B

Product Number ....

Model Number ....

Serial Number.....

Date of Purchase ....

Place of Purchase....

- PLEASE KEEP PROOF OF PURCHASE-

Your product is uniquely identified by a silver and black product rating label. To ensure you have full product information when obtaining spares or advice from one of our approved service centres or if you need to contact our customer service department you should make a note in the space provided of the information shown in Fig B

ASSEMBLY INSTRUCTIONS

Handle Assembly

1. Your product is supplied with the handles folded over the product. (C1)

2. Loosen handle adjusters (C2) on both sides of the product and lift handle assembly up.

3. Adjust handle assembly to the most comfortable operating position (C3) and tighten handle adjusters (C2) on both sides of the product

Recoil Starter

1. Disconnect the spark plug lead.

2. Pull the Operator Presence Control (D1) to release the brake on the engine. ROYAL 50S AND ROYAL 50SE ONLY

You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

Line drawing of a wheeled vehicle chassis with wheels and suspension components (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Locate cord in the pull cord guide on the lower handle. (D2)

2. Locate cord in the pull cord guide on the upper handle. (D3)

Fitting the Grassbox

1. Lift safety flap. (E1)
2. Locate grassbox to machine. (E2)
3. Locate safety flap onto the top of the grassbox. (E3). Ensure the grassbox is securely located.

E2

Line drawing of a vehicle's front wheel assembly (no text or symbols)

D2

Line drawing of a hand holding a tool near a surface, with no visible text or symbols

D3

Line drawing of a hand holding a tool with a spring and bracket, no text or symbols present

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical device with gears and components (no text or symbols)

Please Note :- Ensure no gap remains between the safety flap and the grassbox

Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed

ENGINE NOTES

Oil

1. Check oil level periodically and after every five hours of operation.
2. Add oil as necessary to keep the level to the FULL mark on the dipstick.

3. Use a good quality SAE 30 four stroke oil.

4. To fill with oil:- a) Remove oil filler cap. (F1) b) Fill to the FULL mark on the dipstick. (F2)

5. Change the oil after the first five hours operation and thereafter every 25 working hours.

6. Always change the oil while the engine is warm - but not hot - never attempt any maintenance on a hot engine.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Petrol

1. Use fresh regular grade lead free petrol.
2. Do not fill the fuel tank when the engine is hot.
3. Do not fill the fuel tank while smoking.
4. Do not fill the fuel tank while the engine is

running.
5. To avoid introducing dirt into the fuel system, wipe all grass and dirt from the petrol filler cap before unscrewing it. (G1)

1. It is recommended that you fill the tank through a funnel with a filter. (G2)

2. Wipe away spillages before starting.

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical diagram showing a lever and gear assembly (no text or symbols)

Please Note :- move the product away from the fuelling area before starting

STARTING - PRIMING THE ENGINE

Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section.

Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated.

Starting the engine for the first time

1. Advance engine speed control to FAST ‘+’ as illustrated in the Use - starting and stopping section.

2. Push primer bulb (H) firmly five times

3. Follow instructions in the Use - starting and stopping section.

4. If engine fails to start after three pulls of the pull cord, push primer bulb three times and repeat step 3.

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Starting engine thereafter

1. Move engine speed control to FAST ‘+’ position and push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.

USE - STARTING AND STOPPING

Starting & Stopping Royal 50S

Starting

1. Connect the spark plug lead.
2. Move the Engine Speed Control to the FAST '+' position before starting. (J1)
3. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J2)
4. Pull the recoil starter fully towards you until you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent. (J3)
5. After the engine has started, allow to run for 30 seconds before commencing to use.

Engaging the Drive

1. Forward drive is engaged and disengaged with the Powerdrive lever at the top of the handle (J4).
2. Releasing the Powerdrive Lever stops the forward drive automatically.

Stopping

1. Release the powerdrive lever.
2. Release the OPC lever.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Starting & Stopping Royal 50SE

Starting

1. Follow steps 1-3 for the Royal 50S
2. Turn the key and hold until the engine starts (K). The key will return to the original position when released.
3. If the engine fails to start when you turn the key your battery may not

Pure mechanical diagram showing a lever mechanism with no text or symbols

Engaging the Drive - See Royal 50S

Drive speed can be altered with the drive speed control. (L)

Stopping - See Royal 50S

Please note:- Your Royal 50SE can be started manually by following steps 1-5 in Starting & Stopping Royal 50S

Key Start Only - During mowing, your engine will recharge the battery

Starting & Stopping Royal 50S/BBC (BBC - Blade, Brake, Clutch)

1. Follow steps 1 - 2 - 4 and 5 for the Royal 50S.
2. Pull the BBC arm to the handle (M1).
3. While holding the BBC arm, push forward BBC control lever until a click is heard (M2).
4. Release the BBC control lever which will return to its original position.
5. Releasing the BBC arm will stop the blade from rotating.

Please Note:

Leaving the engine running without the blade rotating for an extended length of time could lead to the engine overheating.

Illustration of a hand using a bicycle seatbelt mechanism (no text or symbols)

Diagram of a hand holding a curved mechanical component with a rotation arrow, labeled M2 (no text or symbols on the diagram itself)

Engaging the Drive - See Royal 50S

Drive speed can be altered with the drive speed control. (L)

Stopping

1. Release the powerdrive lever.
2. Release the BBC arm.
3. Move Engine Speed Control to the '-' position.

How to Mow

1. Always use the correct mowing position (N1).
2. Start mowing from the outside edge of the lawn, mowing in strips in alternate directions (N2).
3. Mow twice a week in the growing season, your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection.

N1

Line drawing of a person using a lawn mower (no text or symbols)

N2

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

Please Note:-

Do not overload your Lawnmower

When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see Cutting Height, will help reduce engine overload and will help prevent damage to your lawnmower.

Cutting Height

Adjustment

1. The height of cut is altered by pulling the adjustment lever away from the location slots and moving to the selected position (N3).

Grass Collection Indicator

1. Your lawnmower has a grass collection indicator which tells you when the grassbox needs emptying. (N4)
2. When the indicator is at the top of the tube, grass is being collected.
3. When the indicator starts to drop, it's time to empty the grassbox. Adopt a stationary position, keeping the lawnmower running for 10 seconds. Release the OPC lever or BBC arm and remove the grassbox for emptying.(N5)

Interior view of a vehicle showing dashboard, steering wheel, and rear seats (no text or symbols visible)

N4

Simple line drawing of a curved road with a shaded oval object, no text or symbols present

Technical line drawing of a vehicle chassis with visible components and structural details (no text or symbols)

Emptying the Grassbox

1. Release the latch on the grassbox. (N6)
2. Release collection bag from grassbox frame. (N7)
3. Empty grassbox. (N8)

N7

Line drawing of a mechanical device with handle and internal components (no text or symbols)

Using as a mulcher

1. Your lawnmower is supplied with a mulching plug. (N9)
2. Stop your lawnmower as described in Use - starting and stopping, and disconnect the spark plug.
3. Lift safety flap. Twist and slide mulching plug into rear discharge chute. (N10)
4. Ensure mulching plug is securely fitted. (N11)
5. The mulching plug prevents grass from being collected by blocking the collection chute on the underside of the deck. (N12)
6. Ensure the safety flap is positioned correctly. (N13)

N12

Illustration of a mechanical device with gears and a central rotating component (no text or symbols)

N6

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a person using a tool to lift or lift a tree (no text or symbols)

Line drawing of a geometric object resembling a folded paper or envelope (no text or symbols)

Line drawing of a vehicle chassis frame with wheels and a cylindrical component (no text or symbols)

Line drawing of a grassy off-road vehicle with a mounted tool (no text or symbols)

MAINTENANCE

IMPORTANT

Do not attempt any maintenance on your lawnmower when the engine is hot.

Cleaning

IMPORTANT

Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

1. Remove grass from under the deck with a brush (P1 and P2).

1. Using a soft brush - remove grass clippings from the engine air intakes and exhaust (P3), cutting height adjustment area. (P4), around the wheels (P5) and the grassbox (P6 & P7).

Line drawing of a hand operating a vehicle tire with a mechanical component (no text or symbols)

1. Wipe over the surface of your lawnmower with a dry cloth.

Technical line drawing of a vehicle chassis with visible components and suspension (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a hand using a tool to clean or adjust a grid-patterned object (no text or symbols)

Cutting System Removing the Blade Q1 or Q2 BBC Only

• Disconnect the spark plug lead.
• Use spanner to loosen blade bolt by turning anti-clockwise.
• Remove the blade bolt, blade and spacer washer.
• Inspect for damage and clean as necessary.

Fitting the Blade

Q1 or Q2 BBC Only

1. Fit the blade to the machine with the sharp edges pointing away from
2. Re-assemble blade bolt through blade and spacer washer.
3. Hold firmly and tighten blade bolt firmly with a spanner. Do not over tighten.

Please note

If you have a machine fitted with BBC then you must remove both blade bolts with a hexagonal drive key.

Always handle the blade with care - sharp edges could cause injury.

USE GLOVES

Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one.

How to Charge the Battery (50SE ONLY)

1. Stop your lawnmower.
2. Disconnect the spark plug.
3. Remove the cap from the charging point at the bottom of the wiring loom (R).
4. Plug charger lead into connection on battery loom
5. Plug the battery charger into a domestic electric socket.
6. Charging will then commence.
7. Charge for 24 hours.
8. After charging, disconnect the charger from the socket and charging point.
9. Replace the cap on the charging point.
10. The unit is now ready for use.

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.

BATTERY DISPOSAL

• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
• Do NOT dispose of battery to water.
• Do NOT incinerate

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.
• Do NOT dispose of used fuels/oils with household waste
• Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
• Do NOT dispose of used fuels/oils to water.
• Do NOT incinerate
• Do NOT dispose of used fuels/oils to water.

MAINTENANCE

Battery Replacement

1. The battery is located underneath a cover behind the engine.
2. Stop the lawnmower and disconnect the spark plug.
3. Remove the screws from the cover.
4. Remove cover to gain access to the battery.

IMPORTANT:-Replacement batteries will need to be charged before use.

Ensure that neither the charger nor the battery are exposed to moisture

The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads.

General Guidance on Rechargeable Battery

1. Charging time is 24 hours.
2. Under normal usage the battery will be charged during the running of the engine.
3. To keep in prime condition the battery should be charged at least once every six months.
4. Exceeding the charging period may shorten the battery life.
5. Protect electric cable. Never carry the battery charger by the electric cable only.
6. If after an extended usage period the battery quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.
7. Do not attempt to open the main body casing.
8. Clean only with a dry soft cloth.
9. Never use a damp cloth or flammable liquids such as petrol, white spirits, thinners etc.
10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 sec. CAUTION! For adjustment contact your authorized service dealer.

At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.
2. Clean your lawnmower thoroughly.
3. Ask your local Service Centre to clean the air filter thoroughly and carry out any service or repairs required.
4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after use.
2. Wait until the engine has cooled to avoid a potential fire hazard.
3. Clean your lawnmower
4. Store in a cool, dry place where your lawnmower is protected from damage.

Service Recommendations

We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Engine Maintenance Schedule

Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions

First 5 hours - Change oil.

Every 5 hours or daily - Check oil lever. Clean finger guard. Clean around muffler.

Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner.

Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped.

Every 100 hours or every season - Clean cooling system*. Replace spark plug.

* Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass.

Engine Servicing & Guarantee

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer.

Fault Finding

Engine Will Not Start

1. Ensure OPC Lever /BBC arm is in the start position.
2. Check that the control lever is in the '+' position
3. Check that there is sufficient fuel in the tank and the cap air vent is clear.
4. Remove and dry the spark plug.
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. Check that the blade bolt is tight. A loose bolt could cause difficult starting.
7. If the engine will still not start, immediately disconnect the spark plug lead.
8. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Engine Will Not Turn Over (50SE only)

1. Ensure OPC Lever /BBC arm is in the start position.
2. Battery flat - start your lawnmower manually.
3. If the engine will still not turn over, immediately disconnect the spark plug lead.
4. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Lack of Engine Power and/or Overheating

1. Check that the control lever is in the 'normal' position.
2. Disconnect the spark plug lead and allow the engine to cool down.
3. Clean grass clippings and debris from around the engine and air inlets and the underside of the deck including the chute.
4. Clean the engine air filter (Ask your local Approved Service Centre to clean the engine air filter thoroughly).
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. If the engine still lacks power and/or is overheating, immediately disconnect the spark plug lead.
7. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Excessive Vibration

1. Disconnect the spark plug lead.
2. Check that the blade is correctly fitted see page 7.
3. If the blade is damaged or worn replace it with a new one.
4. If vibration persists, immediately disconnect the spark plug lead.
5. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car chassis with visible engine and wheels (no text or symbols)

C2

Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of a vehicle chassis with visible frame and wheels (no text or symbols)

D2

Line drawing of a person using a tool on a mechanical component (no text or symbols)

D3

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with hands operating it, no text or symbols present

Line drawing of a mechanical component with gears and levers (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Benzin

Line drawing of a car engine compartment with a valve and handle (no text or symbols)

Mechanical diagram showing a lever interacting with a car intake manifold (no text or symbols)

Line drawing of a car's front engine compartment showing internal components and wiring (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a pulley system with no text or symbols

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present

Hinweis:

Top-down view of a car interior showing dashboard, steering wheel, and gear (no text or symbols visible)

Simple line diagram with a circular object on a horizontal line, no text or symbols present

Technical line drawing of a vehicle chassis with visible components and structural lines (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a printer with paper spines and a keyboard (no text or symbols)

Line drawing of a person collecting or sorting material from a pile (no text or symbols)

Line drawing of a geometric object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a vehicle chassis with front wheels and side-mounted sensors (no text or symbols)

Top-down schematic of a mechanical or robotic device with four wheels and a central circular component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle (no text or symbols)

WARTUNG

WICHTIG

Illustration of a robotic arm with exposed mechanical components and a circular head (no text or symbols)

Illustration of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a vehicle engine component (no text or symbols visible)

Technical line drawing of a lawn mower assembly (no text or symbols)

Technical line drawing of a mechanical component with hands operating it (no text or symbols)

Line drawing of a mechanical device with hands operating it, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand holding a net with a mesh handle, no text or symbols present

Schneidwerk

Messer ausbauen

Q1 oder Q2, nur BBC

Technical line drawing of a mechanical component with no visible text or symbols

Q2 - Nur BBC

Technical line drawing of a mechanical component with no visible text or symbols

Hinweis

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car chassis with wheels and suspension components (no text or symbols)

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a pliers to handle a tool, labeled D1 (no text or symbols on the diagram itself)

Technical line drawing of a car chassis with visible structural components (no text or symbols)

Line drawing of a hand holding a tool near a textured object, possibly a device or tool, with no visible text or symbols.

Line drawing of a mechanical clamp or wire assembly with no visible text or symbols

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a car's front wheel assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Diagram of a vehicle's internal components, possibly engine or dashboard, with no visible text or symbols

Essence

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical diagram showing a lever assembly with a bucket and valve (no text or symbols)

Line drawing of a car interior showing engine, dashboard, and exhaust components (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a lever and connecting rod (no text or symbols)

Line drawing of a hand using a belt drive mechanism (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and a switch, labeled M2 (no text or symbols on the diagram itself)

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present

Interior view of a vehicle showing dashboard, air intake manifold, and battery compartment (no text or symbols visible)

Simple line diagram showing a circular object on parallel lines with curved lines, labeled N4 (no text or symbols within the diagram itself)

Line drawing of a vehicle chassis with visible structural components and no text or symbols

Line drawing of a vintage typewriter with keyboard and paper (no text or symbols)

Broyage

Diagram of a mechanical or architectural component with no visible text, numbers, or symbols

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a person handling a large pile of material or debris (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a vehicle chassis with wheels and structural components (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13 (no text or symbols on the diagram itself)

ENTRETIEN

IMPORTANT

Illustration of a mechanical device with a hand operating it, no visible text or symbols

Line drawing of a car wheel assembly with a hand adjusting the wheel (no text or symbols)

Line drawing of a car's front suspension system with visible brackets and wheels (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a car interior with hand holding tool, no text or symbols present

Line drawing of a car interior with hand holding a tool, no text or symbols present

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car chassis with visible engine and wheels (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Technical line drawing of a vehicle chassis with visible components and structural details (no text or symbols)

D2

Line drawing of a hand holding a tool over a surface, with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical component with gears and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Benzine

Line drawing of a car engine compartment with no visible text or symbols

Mechanical assembly diagram showing a lever and valve mechanism (no text or labels)

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Line drawing of a person using a bicycle seatbelt mechanism (no text or symbols)

Diagram of a mechanical clamp or lever mechanism with no visible text or symbols

Let op:

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a mechanical component with directional arrows and a central cylindrical element (no text or symbols)

Interior view of a car dashboard with airbags and a vehicle (no visible text or symbols)

Abstract diagram with curved lines and a central oval shape, no text or symbols present

Line drawing of a car chassis with visible structural components and no text or symbols

De grasopvangbak legen

Line drawing of a computer keyboard with scrollbars (no text or symbols)

Top-down schematic of a mechanical or robotic device with four wheels and a central circular component (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a person handling a tray with a pile of material (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Technical line drawing of a vehicle chassis frame with visible wheels and structural components (no text or symbols)

Line drawing of a grassy tractor with visible wheel, handle, and wheels (no text or symbols)

ONDERHOUD

BELANGRIJK

Mechanical assembly diagram showing a hand operating a circular component with attached parts (no text or symbols)

Line drawing of a car's wheel assembly with a hand adjusting the component (no text or symbols)

Technical line drawing of a vehicle's engine and chassis components (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a mechanical device with a tool inserted, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand holding a tool interacting with a grid-patterned object (no text or symbols)

Snijmechanisme

Let op

Line drawing of a car chassis with visible engine and wheels (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a vehicle's front wheel assembly (no text or symbols)

D2

Line drawing of a hand holding a tool over a surface, with no visible text or symbols

D3

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a grass lawn mower with visible frame and wheel (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Bensin

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical diagram showing a lever and gear assembly (no text or symbols)

Line drawing of a car's front engine compartment showing internal components and wiring (no text or symbols)

Line drawing of a person using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Line drawing of a person using a cable device to lift a seatbelt (no text or symbols)

Diagram of a mechanical clamp or bracket with a hand holding a tool, showing rotational motion (no text or symbols)

Line drawing of a person using a lawn mower (no text or symbols)

N2

Pure schematic diagram of a mechanical or electrical component with directional arrows, no text or symbols present.

Merk:

Interior view of a vehicle showing dashboard, steering wheel, and gear mechanism (no text or symbols)

N4

Simple line drawing of a curved track with a shaded oval object, no text or symbols present

Technical line drawing of a car's front wheel assembly (no text or symbols)

Line drawing of a mechanical device with hands operating it (no text or symbols)

Bruk av BioClip

Line drawing of a hand holding a tool or instrument, no text or symbols present

Illustration of a person digging with a shovel, labeled 'N8' in the top-left corner (no other text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a military vehicle chassis with visible wheels and structural components (no text or symbols)

Technical line drawing of a mechanical component with gears and a central rotating element (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a small wheeled vehicle with wheels and a handle (no text or symbols)

VEDLIKEHOLD

VIKTIG

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Line drawing of a car engine component being adjusted for tire repair (no text or symbols)

Line drawing of a vehicle's front suspension system with visible brackets and wheels (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with no visible text or symbols

Line drawing of a car interior with hand positioning and exhaust pipe (no text or symbols)

Line drawing of a hand holding a tray with a grid pattern, no text or symbols present

Klippesystem

Fjerning av kniven

Kun Q1 eller Q2 BBC

Merk

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a toy car chassis with wheels and suspension components (no text or symbols)

Illustration of a hand using a tool to cut or wire around a textured object (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Line drawing of a mechanical device with a handle and wheels, no text or symbols present

Käynnistysvaijeri

1. Irrota sytytystulpan johto.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a vehicle chassis with visible components and wiring (no text or symbols)

Line drawing of a vehicle's front wheel assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Bensiini

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Mechanical diagram showing a lever mechanism with a bucket and shaft (no text or symbols)

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a tool with a spring, no text or symbols present

Pure mechanical diagram showing a pulley system without any text, numbers, or symbols

Line drawing of a hand using a cable to lift a seatbelt, no text or symbols present

Diagram of a hand holding a flexible hose with a curved handle and attached bracket (no text or symbols)

Huom!

Line drawing of a person using a lawn mower (no text or symbols)

N2

Pure schematic diagram of a mechanical or electrical component with directional arrows, no text or symbols present.

Interior view of a vehicle showing dashboard, steering wheel, and gear mechanism (no text or symbols)

N4

Simple line drawing of a curved track with a shaded oval object, no text or symbols present

Line drawing of a vehicle chassis with visible structural components and no text or symbols

Line drawing of a mechanical device with hands operating it (no text or symbols)

N6

Line drawing of a hand holding a tool or device, no text or symbols present

N8

Illustration of a person pouring grain from a machine (no text or symbols)

N9

Line drawing of a geometric object resembling a folded paper or envelope (no text or symbols)

Illustration of a hand holding a tool next to a vehicle, with no visible text or symbols

N11

Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

N12

Technical line drawing of a mechanical component with gears and a central rotating wheel (no text or symbols)

N13

Line drawing of a grass lawn mower with visible tracks and wheels (no text or symbols)

KUNNOSSAPITO

Illustration of a hand using a tool to adjust or install a vehicle chassis (no text or symbols visible)

Technical line drawing of a car under assembly, showing engine, suspension, and wheel components (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a textured base and circular components (no text or symbols)

Line drawing of a mechanical device with a hand operating it, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to clean or inspect a grid-patterned object (no text or symbols)

Q2 - BBC -MALLIT

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a wheeled vehicle with visible wheels and suspension components (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a vehicle chassis with visible components and mounting brackets (no text or symbols)

D2

Line drawing of a hand holding a tool over a car wheel (no text or symbols)

D3

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with hands operating it, no text or symbols present

Line drawing of a mechanical device with gears and levers (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Bensin

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Line drawing of a car's front engine compartment showing internal components and wiring (no text or symbols)

Påföljande starter

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

Inkoppling av

framdrivningen - se

Royal 50S

Line drawing of a person using a belt drive mechanism (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and arrow indicating rotation (no text or symbols)

Pure mechanical diagram showing a pulley or clamp mechanism without any text, numbers, or symbols

Inkoppling av framdrivningen - se Royal 50S

Line drawing of a person using a lawn mower to maintain a vehicle (no text or symbols)

N2

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

Observera:

Interior view of a car dashboard with airbags and a vehicle (no visible text or symbols)

N4

Simple line diagram showing a curved path with an oval marker, no text or symbols present

Line drawing of a vehicle chassis with visible components and structural lines (no text or symbols)

Tömning av

gräsuppsamlare

Line drawing of a mechanical device with handle and base (no text or symbols)

Illustration of a mechanical device with gears and a central rotating component (no text or symbols)

N6

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a person handling a container with a pile of material (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a vehicle chassis with visible frame and wheels (no text or symbols)

Line drawing of a grassy tractor with visible wheels and handle (no text or symbols)

UNDERHÅLL

VIKTIGT

Mechanical assembly diagram showing a motor or gear mechanism with no visible text or symbols

Line drawing of a car's wheel assembly with hands operating the engine compartment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand cleaning a mechanical component (no text or symbols visible)

Line drawing of a car interior with hand tools and structural components (no text or symbols)

Line drawing of a hand using a tool to clean or wire meshing a small container (no text or symbols)

Klippsystem

Demontering av kniv

Q2 - Endast BBK

Technical line drawing of a mechanical component with no visible text or symbols

Observera

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Line drawing of a car chassis with wheels and suspension components (no text or symbols)

C2

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a vehicle chassis with wheels and structural components (no text or symbols)

D2

Line drawing of a hand holding a tool over a surface, with no visible text or symbols

D3

Line drawing of a hand holding a spring attached to a cable or wire (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a grass lawn mower with visible frame and wheel (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Benzin

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Line drawing of a car's front engine compartment showing internal components (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Start og standsning af Royal 50SE Start

Simple line drawing of a mechanical lever or latch mechanism with no text or symbols

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

Diagram of a hand holding a curved mechanical component, labeled M2 (no text or symbols on the diagram itself)

Line drawing of a person using a lawn mower (no text or symbols)

N2

Isometric diagram of a mechanical linkage system with directional arrows (no text or symbols)

Interior view of a vehicle showing dashboard, steering wheel, and gear mechanism (no text or symbols)

N4

Simple line drawing of a curved track with a shaded oval object, no text or symbols present

Technical line drawing of a mechanical assembly or vehicle component (no visible text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

N7

Line drawing of a mechanical device with handle and base (no text or symbols)

Line drawing of a person digging with a shovel, labeled 'N8' in the top-left corner (no other text or symbols)

Brug af bioprop

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a military vehicle chassis with tires and hull (no text or symbols)

N12

Illustration of a mechanical device with gears and a central rotating component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle (no text or symbols)

VEDLIGEHOLDELSE

VIGTIGT

Mechanical assembly diagram showing a wheel and gear assembly (no text or symbols)

Illustration of a mechanical device with a hand operating it, showing no text or symbols.

Illustration of a hand using a tool to adjust or install a vehicle on a tire (no text or symbols visible)

Technical line drawing of a lawn mower assembly (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a meshed ring and lever mechanism (no text or symbols)

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols)

Line drawing of a hand holding a tool interacting with a grid-patterned device (no text or symbols)

Klippesystem

Afmontering af kniv

Kun Q1 eller Q2 BBC

Bemærk venligst

Line drawing of a car chassis with wheels and suspension components (no text or symbols)

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a vehicle chassis with visible components and mounting brackets (no text or symbols)

D2

Line drawing of a hand holding a tool over a surface, with no visible text or symbols

D3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a grasshopper with visible frame and wheels (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Gasolina

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical diagram showing a lever and gear assembly (no text or symbols)

Line drawing of a car's front engine compartment showing internal components and wiring (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and a switch, labeled M2 (no text or symbols on the diagram itself)

Arranque y parada de la Royal 50SE

Arranque

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a mechanical or architectural component with directional arrows and a spring-like element (no text or symbols)

Interior view of a car dashboard with airbags and a vehicle (no visible text or symbols)

Simple line diagram with a circular object on a horizontal line, no text or symbols present

Technical line drawing of a vehicle chassis with no visible text or symbols

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a person bending over a pile of grain, no text or symbols present

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a 3D geometric object resembling a conical frustum or pyramid, with no visible text or symbols.

Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

Top-down schematic of a mechanical component or assembly (no text or symbols visible)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13 (no text or symbols on the diagram itself)

MANTENIMIENTO

IMPORTANTE

Mechanical assembly diagram showing a rotating component with gears and a central eye (no text or symbols)

Line drawing of a car wheel assembly with a hand adjusting the wheel (no text or symbols)

Line drawing of a vehicle's front wheel assembly (no text or symbols)

Mechanical assembly diagram showing a motor and gear assembly (no text or symbols)

Line drawing of a mechanical device with hands operating it, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to clean or adjust a car interior panel (no text or symbols visible)

Line drawing of a car's front wheel assembly (no text or symbols)

C2

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Posicione a corda na guia da corda de arranque situada na pega inferior. (D2)
2. Posicione a corda na guia da corda de arranque situada na pega superior. (D3)

Technical line drawing of a vehicle chassis with wheels and structural components (no text or symbols)

D2

Line drawing of a hand holding a tool over a surface, with no visible text or symbols

D3

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a grassy outdoor lawn mower (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a shaft and pivot (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Gasolina

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Mechanical assembly diagram showing a lever interacting with a cup (no text or symbols visible)

Line drawing of a car's front engine compartment showing internal components and wiring (no text or symbols)

Arranque Posterior do Motor

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Paragem

1. Liberte a alavanca de engrenamento.
2. Liberte a alavanca de CPO.

Pure mechanical diagram showing a lever mechanism with no text or symbols

Illustration of a person using a bicycle seatbelt device (no text or symbols visible)

Diagram of a hand holding a flexible hose with a curved handle and a switch, labeled M2 (no text or symbols on the diagram itself)

Engrenamento -

Ver Royal 50S

Line drawing of a person using a lawn mower to maintain a vehicle (no text or symbols)

N2

Isometric diagram of a mechanical device positioned on a grid-patterned surface (no text or symbols)

Note que:-

Interior view of a vehicle showing dashboard, steering wheel, and gear mechanism (no text or symbols)

N4

Simple line drawing of a curved track with an oval object on one end (no text or symbols)

Technical line drawing of a mechanical assembly or vehicle component (no visible text or symbols)

Line drawing of a mechanical device with hands operating it (no text or symbols)

N6

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a person handling a container with a pile of material (no text or symbols)

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

Line drawing of a vehicle chassis frame with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with gears and a central hub (no text or symbols)

Line drawing of a grassy off-road vehicle with visible wheels and handle (no text or symbols)

MANUTENÇÃO

IMPORTANTE

Mechanical assembly diagram showing a rotating component with gears and levers (no text or symbols)

Line drawing of a hand operating a vehicle tire with a car body visible (no text or symbols)

Mechanical assembly diagram showing a vehicle's internal components and suspension system (no text or labels)

Mechanical assembly diagram showing hands operating a component with a textured handle (no text or symbols visible)

Line drawing of a hand using a tool to lift a vehicle's grille (no text or symbols)

Line drawing of a hand cleaning a mechanical component with a brush (no text or symbols)

Sistema de Corte

Remoção da Lâmina

Q1 ou Q2, Apenas BBC

Note que:

Line drawing of a car's front wheel assembly (no text or symbols)

C2

Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

D2

Line drawing of a hand holding a tool near a surface, with no visible text or symbols

D3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a car's front wheel assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Benzina

Line drawing of a car dashboard with a hand adjusting the wheel (no text or symbols)

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Pure mechanical diagram showing a spring-loaded component with directional arrows and polarity signs (no text or symbols)

Line drawing of hands operating a tool with a spring scale (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols present

Pure mechanical diagram showing a pulley system without any text, numbers, or symbols

Line drawing of a person using a belt buckle device (no text or symbols)

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Line drawing of a person pushing a lawn mower (no text or symbols)

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present

Nota bene:

Interior view of a car showing dashboard, air intake manifold, and exhaust pipe (no text or symbols)

Simple line diagram with a circular object on a horizontal line, no text or symbols present

Technical line drawing of a vehicle chassis with structural components (no text or symbols)

Line drawing of a hand holding a tool, with no visible text or symbols

Line drawing of a printer with visible circuitry and paper spines (no text or symbols)

Line drawing of a person bending over a pile of material, no text or symbols present

Line drawing of a 3D geometric object resembling a conical frustum or pyramid, with no visible text or symbols.

Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

Top-down schematic of a vehicle or robot with four wheels and a central circular component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13 (no text or symbols on the diagram itself)

MANUTENZIONE

IMPORTANTE

Mechanical assembly diagram showing a wheel and gear assembly (no text or symbols)

Illustration of hands operating a vehicle chassis with tire and engine components (no text or symbols)

1. Strofinare la superficie del tosaerba con un panno asciutto.

Technical line drawing of a lawn mower assembly (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols)

Nota bene:

Electrolux Outdoor Products

Aycliffe Industrial Park

NEWTON AYCLIFFE

Co.Durham DL5 6UP

ENGLAND

Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339

UK Customer Helpline- 01325 300303 Fax - 01325 310339

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries.

© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ

Registered number 974979 England

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
