BUCKET 9659974-01 - Gardening Equipment HUSQVARNA - Free user manual and instructions
Find the device manual for free BUCKET 9659974-01 HUSQVARNA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | HUSQVARNA |
| Model | BUCKET 9659974-01 |
| Category | Gardening equipment |
| Product type | Loading bucket |
| Maximum load | 65 kg |
| Power supply | Hydraulic (tractor connection) |
| Main functions | Loading, unloading, tilt adjustment |
| Installation | Mount on PT 26D; connect hydraulic hoses under the base plate |
| Tilt adjustment | Move the lever to the right or left; the cylinder must be extended at least 50 mm |
| First use | Detach hoses and quick couplings if necessary |
| Routine maintenance | Daily check of lubrication points |
| Lubrication | Ball bearing grease on both fittings at the cylinder ends |
| Safety | Stop the engine and remove the key before maintenance; risk of crushing; do not transport people |
| Safety instructions | Keep hands and feet away from moving parts; respect the maximum load |
| Spare parts | Contact an authorized dealer |
| User manual | 36 pages, available in FR, DE, EN |
| Model number | 9659974-01 |
| Hitch type | PT 26D |
| Hydraulic pressure relief | Turn the key to ON position, move the lever several times |
| Cylinder position | Must be extended at least 50 mm |
Frequently Asked Questions - BUCKET 9659974-01 HUSQVARNA
What is the maximum load of the HUSQVARNA 9659974-01 bucket?
The maximum load is 65 kg. Never exceed this limit.
Can people be transported in the bucket?
No, it is strictly forbidden to transport people in the bucket. Risk of serious injury.
How to adjust the tilt of the bucket?
Use the lever: move it to the right or left to change the tilt. Make sure the cylinder is extended at least 50 mm.
How to connect the hydraulic hoses?
Connect the hoses in the location under the base plate. For first use, it may be necessary to detach the hoses and quick couplings.
How to lubricate the bucket?
Use ball bearing grease. Apply to the two grease fittings located at the cylinder ends. Check daily.
What to do before any maintenance operation?
Stop the engine and remove the key to avoid accidental starting.
How to reduce the hydraulic pressure in the cylinder?
Turn the key to ON position for a few seconds and move the lever several times to the right and left to lower the pressure.
What is the correct cylinder position?
The cylinder must always be extended at least 50 mm for proper operation.
How to install the bucket on a PT 26D tractor?
Make sure all cotter pins are properly secured. Mounting is done via the PT 26D hitch system.
Where to download the user manual?
The manual is available free of charge in PDF format on notice-facile.com in French, German, and English.
User questions about BUCKET 9659974-01 HUSQVARNA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Gardening Equipment in PDF format for free! Find your manual BUCKET 9659974-01 - HUSQVARNA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BUCKET 9659974-01 by HUSQVARNA.
USER MANUAL BUCKET 9659974-01 HUSQVARNA
Owner's manual, p. 14-19

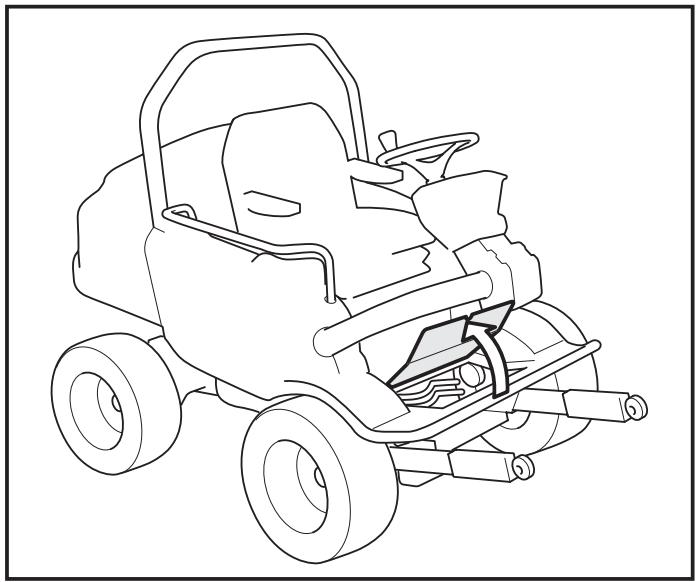

Read through the owner's manual carefully before you begin using the product.
Warning sign with warning triangle, warning block, and hand gesture pointing to a right arrownatural_image
Technical line drawing of a mechanical assembly with two connected components and directional arrows indicating movement (no text or symbols)natural_image
Line drawing of a hand using a rotary knob to interact with a control panel (no text or symbols visible)natural_image
Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)Hydraulslangarna kopplas in under luckan i fotplåten.
Technical line drawing of a mechanical assembly with no visible text or symbolsCylinderns läge
Line drawing of a hand pressing down on a car intake console (no text or symbols)
Smörjes med kullagerfett
Line drawing of a hand using a rotary knob to interact with a control panel (no text or symbols visible)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Line drawing of a tractor with driver seat and wheels (no text or symbols)Liitä letkut.
Technical line drawing of a mechanical assembly with no visible text or symbolsSylinterin asento
Line drawing of a hand pressing down on a car intake console (no text or symbols)
Study and understand the owner's manual before use.


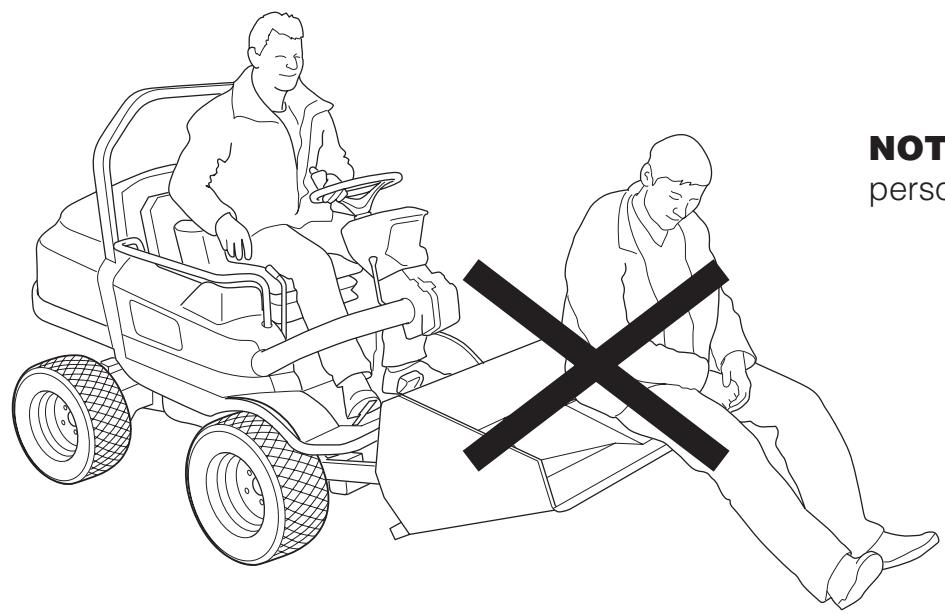

NOT personNOTE! Never transport person/persons in the bucket.

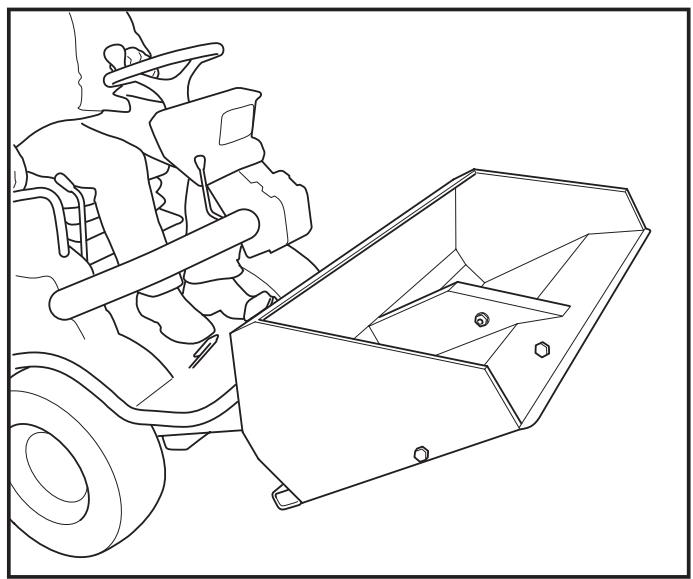

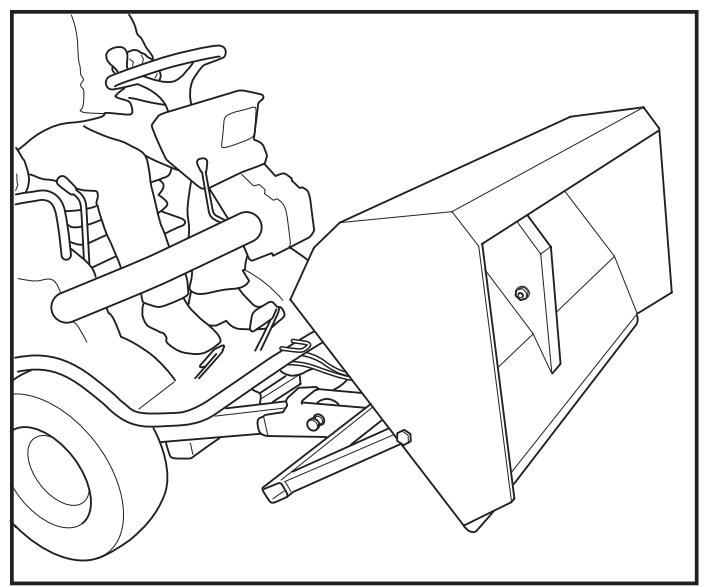

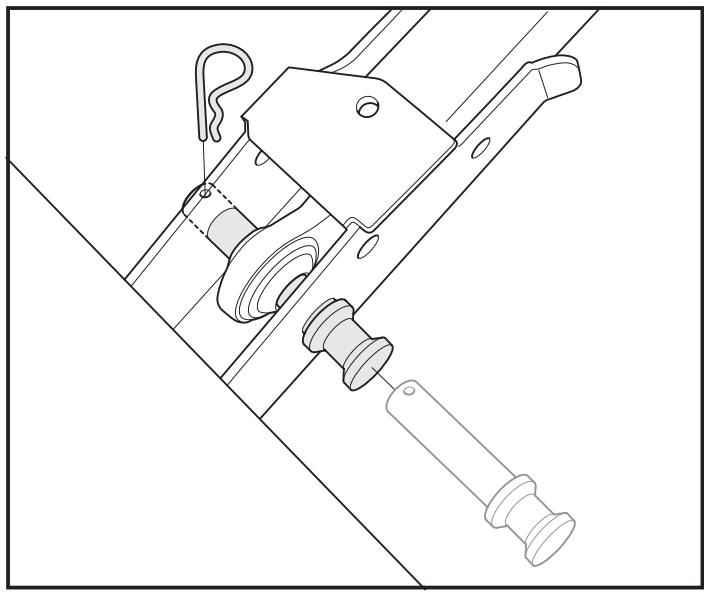

Fit the bracket.


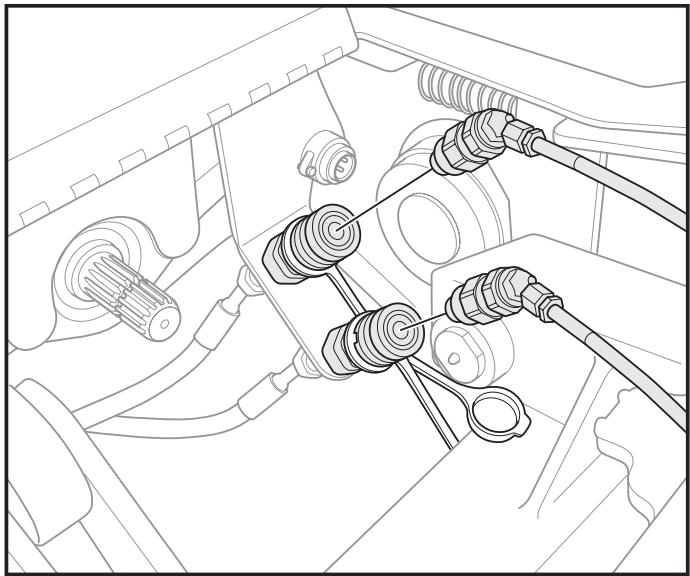

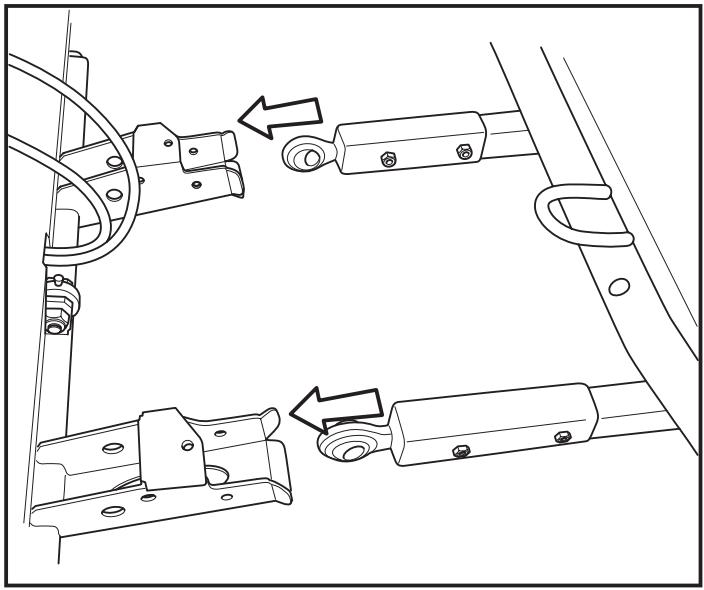

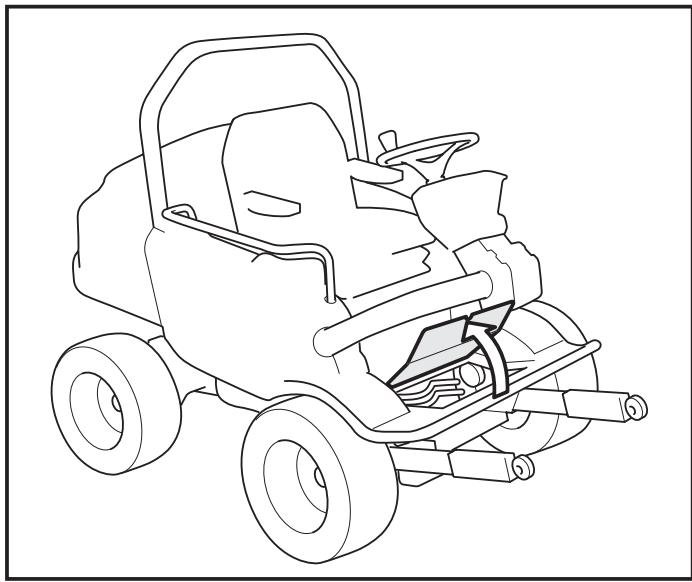

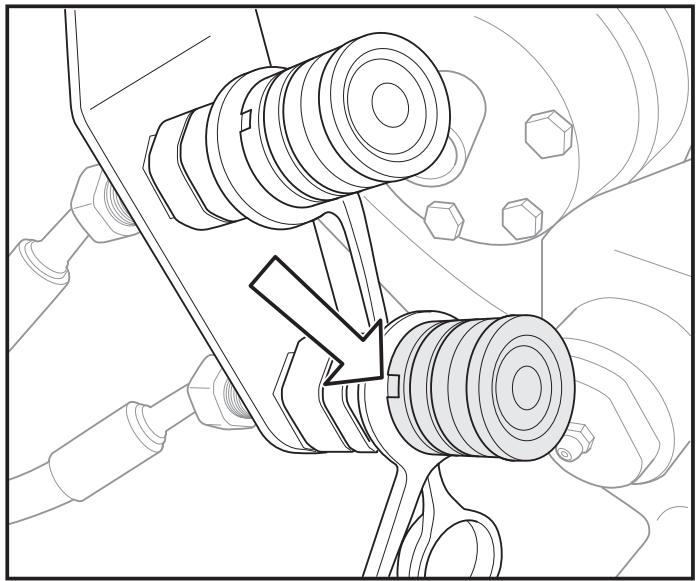

NOTE! In some cases it can be necessary to post tension the hoses and quick couplings the first time the bucket is used.


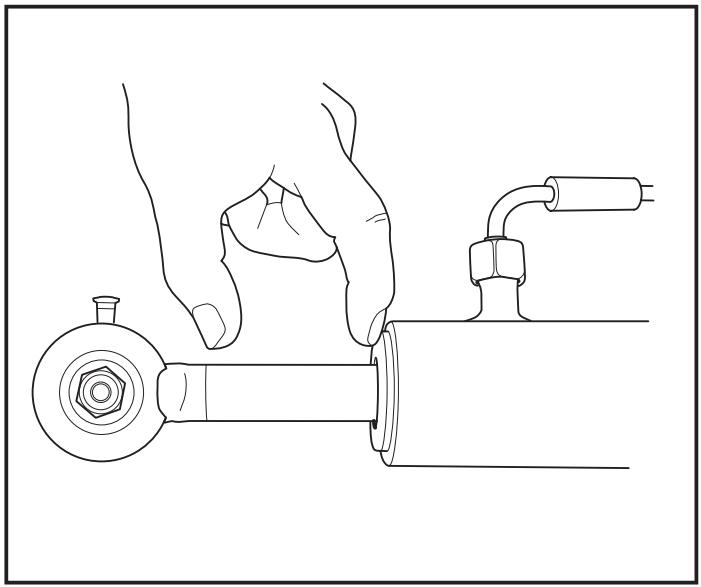

The cylinder should always be extended at least 50 mm.


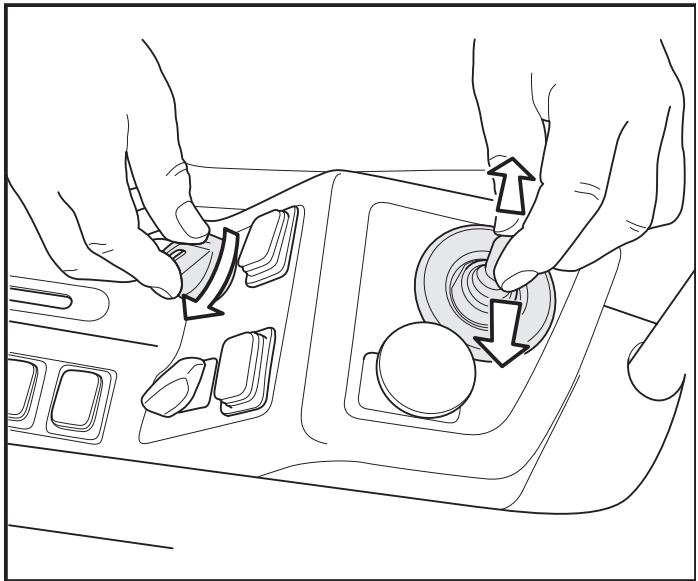

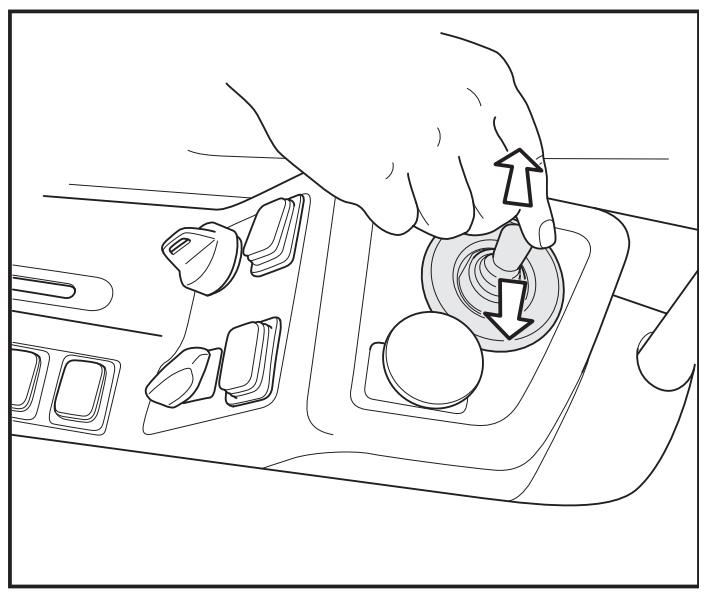

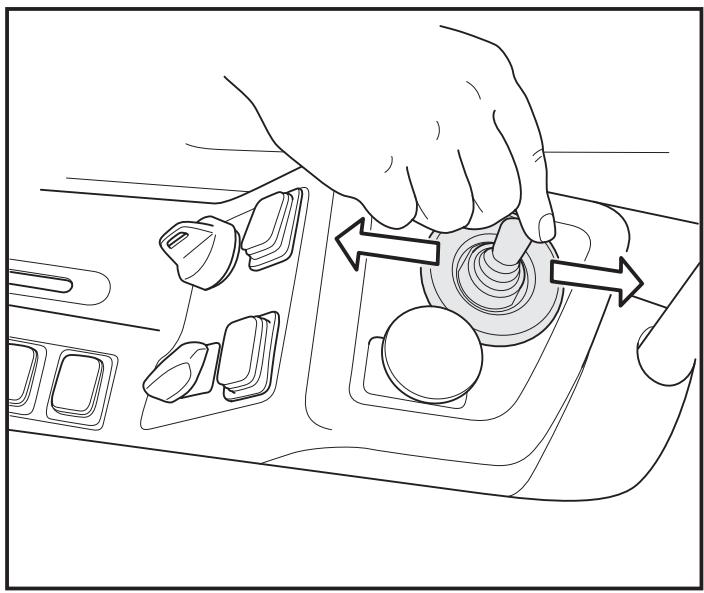

Turn the key to ON for a few seconds and simultaneously pull the lever to the right and left a few times to reduce the pressure in the bucket's cylinder.
Lubricate with ball bearing grease.

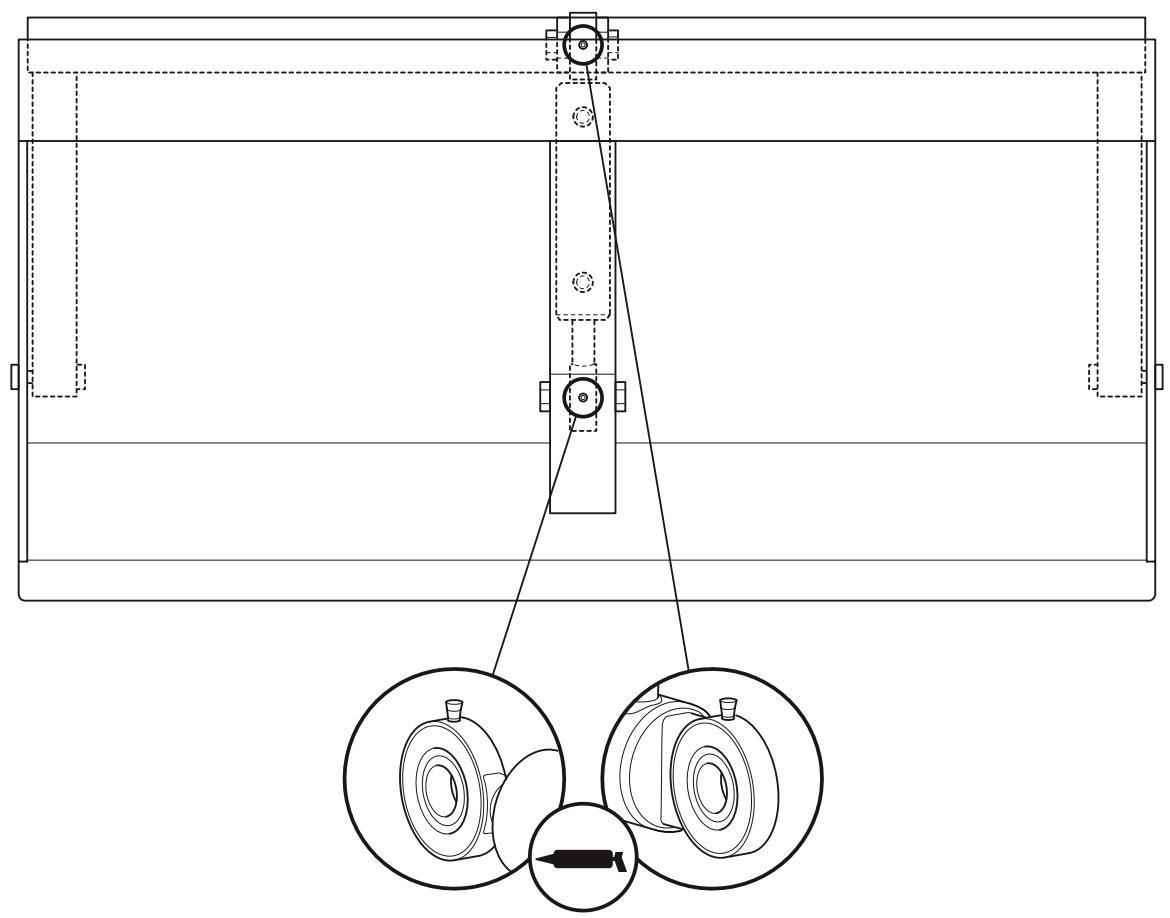

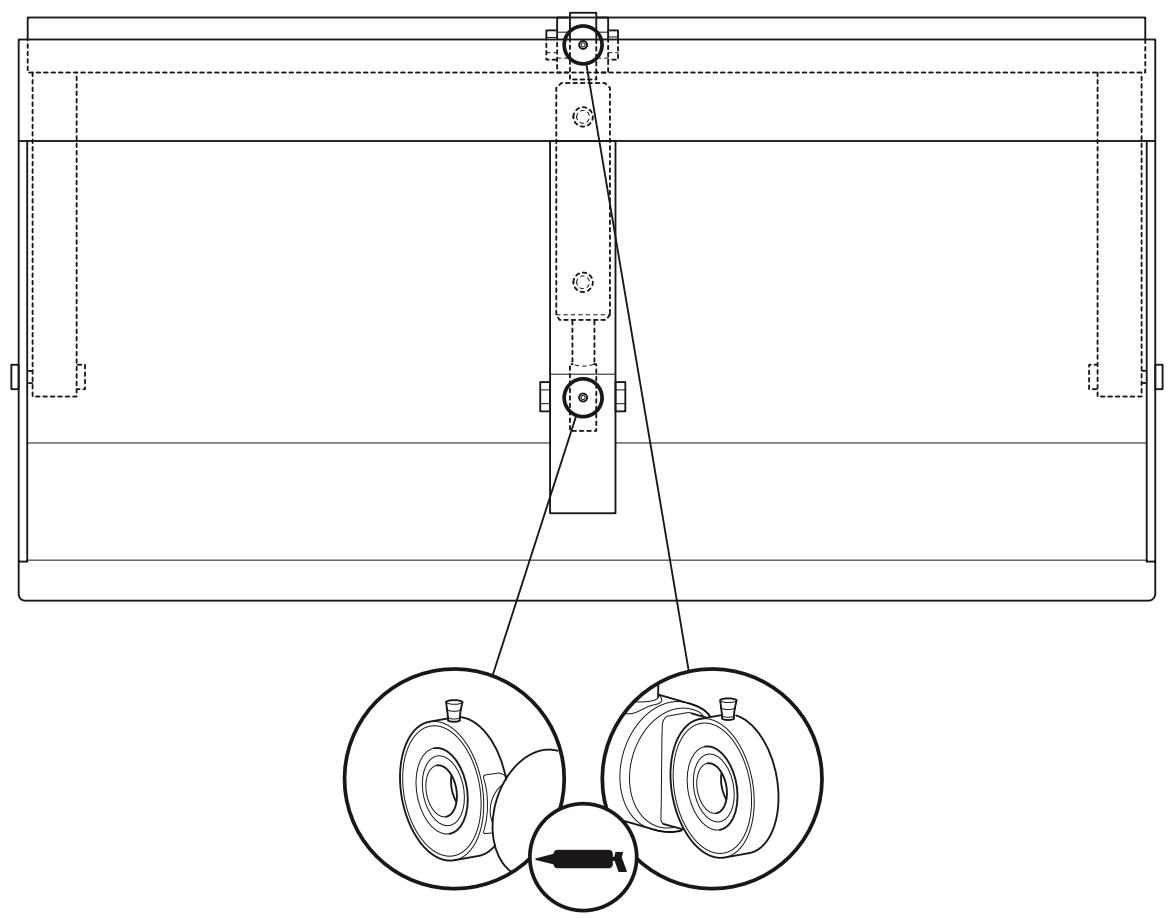

There are two grease nipples on the cylinder's ends (joints)
Lubricate them regularly with ball bearing grease. Check the lubrication points before each day of use.
The nipples are lubricated on delivery.
Line drawing of a hand pressing a button on a vehicle's control panel (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)natural_image
Line drawing of a tractor with visible frame, wheels, and driver compartment (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols present)Marche à vide
Line drawing of a hand pressing down on a car intake console (no text or symbols)
Warning sign with warning triangle, warning block, and hand gesture pointing to a right arrownatural_image
Technical line drawing of a mechanical assembly with two connected components and directional arrows indicating movement (no text or symbols)natural_image
Line drawing of a hand pressing a button on a vehicle's control panel (no text or symbols)natural_image
Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)natural_image
Line drawing of a tractor with visible frame, wheels, and driver compartment (no text or symbols)natural_image
Technical line drawing of a vehicle engine assembly with hoses and connectors (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols present)Druckabsenkung
Line drawing of a hand pressing down on a car intake console (no text or symbols)
| 1. | 751203 | Skopa | Bucket |
| 2. | 931074 | M20 loc | M20 loc |
| 3. | 932518 | M20x80 | M20x80 |
| 4. | 904215 | Cylinder | Cylinder |
| 5. | 751207 | Slang 900 mm | Hose 900 mm |
| 6. | 751206 | Slang 700 mm | Hose 700 mm |
| 7. | 751202 | Ram | Frame |
| 8. | 751204 | M16 loc | M16 loc |
| 9. | 751205 | M16x90 | M16x90 |
| 10. | 915035 | Sprint till fäste | Pin for the bracket |
Mobile: +46(0)70-567 00 11
Fax: +46(0)44-340350
