KOU65962XK - Oven ZANKER - Free user manual and instructions

Product Type	Built-Under Oven
Brand	Zanker
Model	KOU65962XK
Energy Efficiency Class	A
Energy Consumption (Conventional Mode)	0.93 kWh/cycle
Energy Consumption (Fan-Forced Mode)	0.81 kWh/cycle
Number of Cavities	1
Heat Source	Electricity
Oven Volume	72 L
Weight	27.2 kg
Oven Functions	True Fan Cooking, Turbo Grilling, Fast Grilling, Pizza Setting, Conventional Cooking, Bottom Heat, Moist Fan Baking, True Fan + Steam
Special Functions	True Fan Cooking PLUS (steam assist), Safety thermostat
Cleaning Features	Removable shelf supports, removable door glass panels, cavity embossment cleaning with vinegar
Child Safety	Child lock (if activated)
Display Type	Digital with clock functions
Controls	Retractable knobs and sensor fields
Accessories Included	Wire shelf, Combi pan

Frequently Asked Questions - KOU65962XK ZANKER

How do I set the clock on my Zanker KOU65962XK oven?

Press the CLOCK button repeatedly until the time indicator flashes. Use the + or - buttons to set the correct time. After 5 seconds, the flashing stops and the time is saved.

What should I do if the display shows '400' and an acoustic signal sounds?

This indicates the oven is incorrectly connected to the electrical supply. Check the connection or consult a qualified electrician. Refer to the installation diagram if available.

How do I use the True Fan Cooking PLUS steam function?

Fill the cavity embossment at the bottom of the oven with a maximum of 250 ml of water (only when cold). Select the True Fan + Steam function, set the temperature between 130°C and 230°C, and place food inside. Do not open the door during operation to avoid burns from released steam.

Can I clean the oven door glass panels in the dishwasher?

No. Remove the internal glass panels carefully and clean them with water and soap. Dry thoroughly before reinstalling. Do not use abrasive cleaners or sharp metal scrapers.

How do I replace the oven lamp?

Turn off the oven and disconnect from mains. Place a cloth in the cavity. Turn the lamp glass cover counterclockwise to remove it. Replace with a 300°C heat-resistant halogen lamp. Always hold the lamp with a cloth to avoid grease residue.

Why is steam condensing on my food and inside the oven?

This can happen if you leave dishes in the oven for too long after cooking. Remove food within 15-20 minutes after the process ends. Also, preheat the oven for 10 minutes before cooking to reduce condensation.

What is the maximum amount of water for the cavity embossment?

The maximum capacity is 250 ml. Do not overfill, as water may leak out. Only add water when the oven is cold.

How do I remove the shelf supports for cleaning?

Pull the front of the shelf support away from the side wall, then pull the rear end away to remove it. Install in reverse order. Be careful not to damage the oven cavity.

What does the Moist Fan Baking function do?

This function saves energy during cooking. It uses a fan to circulate moist air, reducing cooking time. Keep the oven door closed to maintain efficiency. Recommended for baking and roasting.

How do I reset the oven after a power cut?

The display will show '12.00' after a power cut. Press the CLOCK button until the time indicator flashes, then set the current time using + or -. The oven is ready to use.

USER MANUAL KOU65962XK ZANKER

Using the accessories.9 ____
Additional functions 10 ____
Hints and tips 10 ____
Care and cleaning 20
Troubleshooting 23
Installation 24
Energy efficiency 25 ____

Subject to change without notice.

⚠️ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

- Only a qualified person must install this appliance and replace the cable.

• The control panel must be connected to specified heating unit with matching colours of connectors, to avoid possible hazard.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Always use oven gloves to remove or put in accessories or ovenware.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

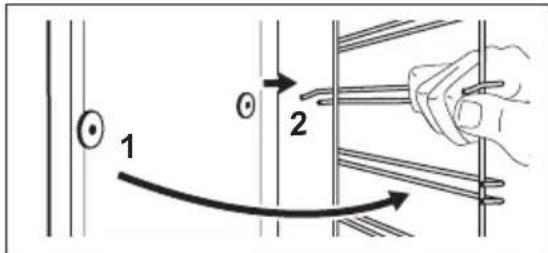

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must have suitable dimensions.
• Keep the minimum distance from other appliances and units.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Parts of the appliance carry current. Close the appliance with furniture to prevent touching the dangerous parts.

- The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

Electrical connection

Warning! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door, especially when the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
  • This appliance complies with the E.E.C. Directives.

Use

Warning! Risk of injury, burns and electric shock or explosion.

• This appliance is for household use only.
- Do not change the specification of this appliance.
- Make sure that the ventilation openings are not blocked.
- Do not let the appliance stay unattended during operation.
- Deactivate the appliance after each use.
- Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
- Do not operate the appliance with wet hands or when it has contact with water.
- Do not apply pressure on the open door.
- Do not use the appliance as a work surface or as a storage surface.
- Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
- Do not let sparks or open flames to come in contact with the appliance when you open the door.
- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
• do not put aluminium foil directly on the bottom of cavity of the appliance.
• do not put water directly into the hot appliance.

– do not keep moist dishes and food in the appliance after you finish the cooking.

– be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
  • Always cook with the oven door closed.

Care and cleaning

Warning! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instruction on it's packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

Internal lighting

Warning! Risk of electric shock.

• The type of light bulb or halogen lamp used for this appliance is for household appliances only. Do not use it for house lighting.
• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

Disposal

Warning! Risk of injury or suffocation.

- Disconnect the appliance from the mains supply.

Product description

• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

General overview

53 1 4 7 6 ⑤ ④ ③ ② ① 13 8 9 10 11 12

Accessories

• Wire shelf
  For cookware, cake tins, roasts.
• Combi pan

Control panel

1 Control panel
2 Knobs for the hob
3 Power lamp / symbol
4 Knob for the heating functions
5 Display
6 Control knob (for the temperature)
7 Temperature indicator / symbol
8 Heating element
9 Lamp
10 Fan
11 Cavity embossment
12 Shelf support, removable
13 Shelf positions

For cakes and biscuits. To bake and roast or as a pan to collect fat.

Knobs for the cooking zones

You can operate the hob with the knobs for the cooking zones.

You must read the Safety chapters in the hob user manual.

Heat settings

Knob indication Function
0 Off position
1 - 9 Heat settings
∅	Double zone switch

1. Turn the knob to a necessary heat setting.
2. To complete the cooking process, turn the knob to the off position.

Using the double zone (if applicable)

To activate the double zone, turn the knob clockwise. Do not turn it through the stop position.

1. Turn the knob clockwise to position 9.
2. Turn the knob slowly to the symbol until you can hear a click. The two cooking zones are on.
3. To set the necessary heat setting refer to "Heat settings".

Buttons

Sensor field / Button Function Description
	MINUS To set the time.
	CLOCK To set a clock function.
(HZW5)	PLUS To set the time.

Display

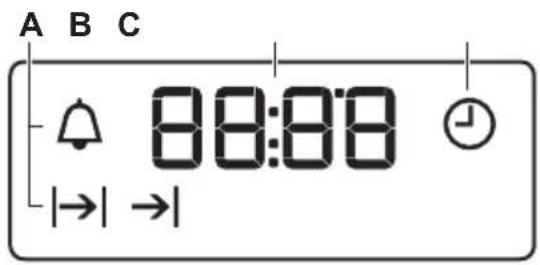

A B C 88:88 |→| →|

A. Clock functions
B. Timer
C. Clock function

Before first use

Warning! Refer to Safety chapters.

To set the Time of day refer to "Clock functions" chapter.

Initial Cleaning

Remove all accessories and removable shelf supports from the oven.

Refer to "Care and cleaning" chapter.

Clean the oven and the accessories before first use. Put the accessories and the removable shelf supports back to their initial position.

Preheating

Preheat the empty oven before first use.

Daily use

For function: True Fan Cooking PLUS refer to "Daily use" chapter, Setting the function: True Fan Cooking PLUS".

1. Set the function .Set the maximum temperature.
2. Let the oven operate for 1 hour.
3. Set the function . Set the maximum temperature.
4. Let the oven operate for 15 minutes.
5. Set the function . Set the maximum temperature.
6. Let the oven operate for 15 minutes.
7. Turn off the oven and let it cool down. Accessories can become hotter than usual. The oven can emit an odour and smoke. Make sure that the airflow in the room is sufficient.

Warning! Refer to Safety chapters.

Retractable knobs

To use the appliance press the knob. The knob comes out.

Setting a heating function

1. Turn the knob for the heating functions to select a heating function.
2. Turn the control knob to select the temperature. The lamp turns on when the oven operates.
3. To turn off the oven, turn the knob for the heating functions to the off position.

Heating functions

Oven function Application
0Off position	The oven is off.
Light	To turn on the lamp without a cooking function.
True Fan + Steam	To steam dishes. Use this function to decrease the length of the cooking time and to preserve the vitamins and nutrients in the food. Select the function and set the temperature between 130 °C to 230 °C.
Moist Fan Bak-ing	This function is designed to save energy during cooking. For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. The oven door should be closed during cooking so that the function is not interrupted and to ensure that the oven operates with the highest energy efficiency possible. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving. This function was used to comply with the energy efficiency class according to EN 60350-1.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
True Fan Cook-ing	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.

Oven function Application
Turbo Grilling	To roast larger meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Fast Grilling	To grill flat food in large quantities and to toast bread.
Pizza Setting	To bake pizza. To make intensive browning and a crispy bottom.
Conventional Cooking (Top / Bottom Heat)	To bake and roast food on one shelf position.

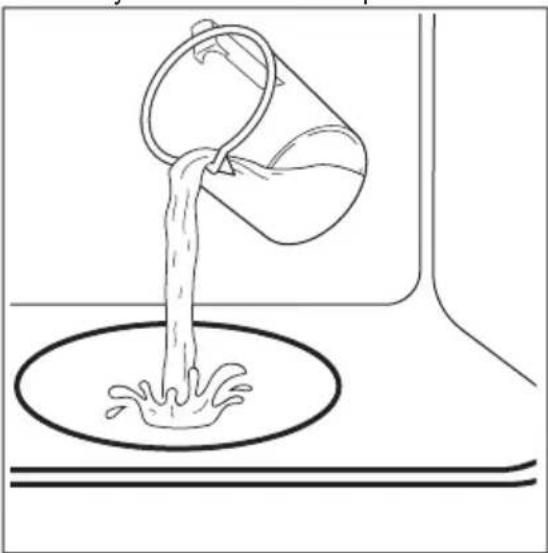

Setting the function: True Fan Cooking PLUS

This function allows to improve humidity during the cooking.

Warning! Risk of burns and damage to the appliance.

Released humidity can cause burns:

• Do not open the oven door when the function works.
• Open the oven door with care after the function stops.

Refer to "Hints and tips" chapter.

1. Fill the cavity embossment with tap water.

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

The maximum capacity of the cavity embossment is 250 ml.

Fill the cavity embossment with water only when the oven is cold.

Caution! Do not refill the cavity embossment with water during cooking or when the oven is hot.

1. Put food in the oven and close the oven door.
2. Set the function: .

Clock functions

1. Turn the control knob to select a temperature.
2. Turn the knob for the heating functions to the off position to turn off the oven.
3. Remove water from the cavity embossment.

Warning! Make sure that the oven is cold before you remove the remaining water from the cavity embossment.

Clock functions table

Clock function Application
➊	TIME OF DAY To set, change or check the time of day.
|→|	DURATION To set how long the appliance operates.
→|	END To set when the appliance deactivates.
|→|→|	TIME DELAY To combine DURATION and END function.
➁	MINUTE MINDER To set countdown time. This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any time, also when the appliance is off.

Setting the time. Changing the time

You must set the time before you operate the oven.

The flashes when you connect the appliance to the electrical supply, when there was a power cut or when the timer is not set.

Press the + or - to set the correct time.

After approximately five seconds, the flashing stops and the display shows the time of day you set.

To change the time of day press again and again until starts to flash.

Setting the DURATION

1. Set an oven function and temperature.
2. Press again and again until starts to flash.

3. Press + or to set the DURATION time.
   The display shows || .

4. When the time ends, flashes and an acoustic signal sounds. The appliance deactivates automatically.

5. Press any button to stop the acoustic signal.

6. Turn the knob for the oven functions and the knob for the temperature to the off position.

Setting the END

1. Set an oven function and temperature.
2. Press again and again until starts to flash.
3. Press or to set the time.

The display shows → I.

1. When the time ends, flashes and an acoustic signal sounds. The appliance deactivates automatically.

2. Press any button to stop the signal.

3. Turn the knob for the oven functions and the knob for the temperature to the off position.

Setting the TIME DELAY

1. Set an oven function and temperature.
2. Press again and again until starts to flash.

3. Press or to set the time for DURATION.

4. Press . ⏻

5. Press or to set the time for END.
6. Press to confirm.
   Appliance turns on automatically later on, works for the set DURATION time and stops at the set END time. At the set time an acoustic signal sounds.
7. The appliance deactivates automatically. Press any button to stop the signal.
8. Turn the knob for the oven functions and the knob for the temperature to the off position.

Setting the MINUTE MINDER

1. Press again and again until starts to flash.

Using the accessories

1. Press or to set the necessary time.
   The Minute Minder starts automatically after 5 seconds.
2. When the set time ends, an acoustic signal sounds. Press any button to stop the acoustic signal.
3. Turn the knob for the oven functions and the knob for the temperature to the off position.

Cancelling the clock functions

1. Press the again and again until the necessary function indicator starts to flash.
2. Press and hold 一.
   The clock function goes out after some seconds.

Warning! Refer to Safety chapters.

Inserting the accessories

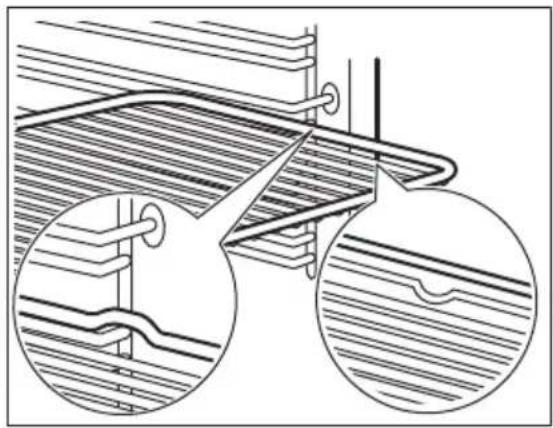

Wire shelf:

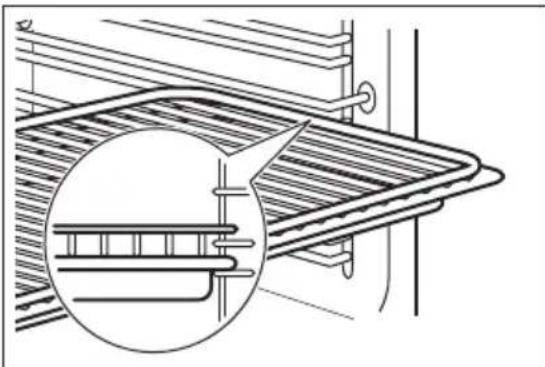

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

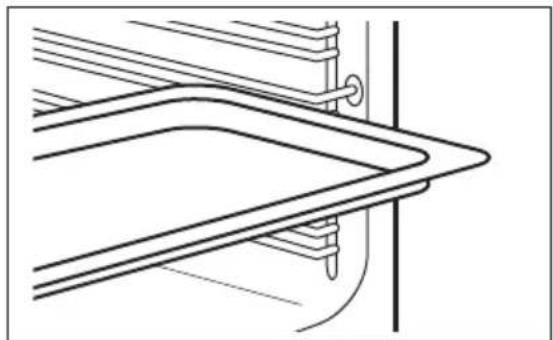

Deep pan:

Push the deep pan between the guide bars of the shelf support.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Wire shelf and deep pan together:

Push the deep pan between the guide bars of the shelf support and the wire shelf on the guide bars above.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Small indentation at the top increase safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

Hints and tips

Safety thermostat

Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.

Warning! Refer to Safety chapters.

The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

Cooking recommendations

The oven has five shelf positions.

Count the shelf positions from the bottom of the oven floor.

Your oven may bake or roast differently to the oven you had before. The below tables provide you with the standard settings for temperature, cooking time and shelf position.

If you cannot find the settings for a special recipe, look for the similar one.

The oven has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption.

True Fan Cooking PLUS

Cakes / pastries / breads

Preheat the empty oven for 5 minutes.

Use the baking tray.

Use the second shelf position.

Baking cakes

Do not open the oven door before 3/4 of the set cooking time is up.

If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.

Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

Food Water in the cavity em-bossment (ml)	Temperature (°C) Time (min)
Cookies, scones, croissants	100 150 - 180 10 - 20
Focaccia 100 200 - 210 10 - 20
Pizza 100 230 10 - 20
Bread rolls 100 200 20 - 25
Bread 100 180 35 - 40
Plum cake, apple pie, cinnamon rolls baked in a cake mould.	100 - 150 160 - 180 30 - 60

Frozen ready meals
Preheat the empty oven for 10 minutes.
Use the second shelf position.

Food Water in the cavity em-bossment (ml)	Temperature (°C) Time (min)
Pizza 150 200 - 210 10 - 20
Croissants 150 170 - 180 15 - 25
Lasagna 200 180 - 200 35 - 50

Food regeneration
Use the second shelf position.
Use 100 ml of water.
Set the temperature to 110 °C.

Food Time	(min)
Bread rolls 10 - 20
Bread 15 - 25
Focaccia 15 - 25
Meat 15 - 25
Pasta 15 - 25
Pizza 15 - 25
Rice	15 - 25

Food Time	(min)
Vegetables	15 - 25

Roasting
Use the glass baking dish.
Use the second shelf position.
Use 200 ml of water.

Food	Temperature (°C)	Time (min)
Roast beef	200	50 - 60
Chicken	210	60 - 80
Roast pork	180	65 - 80

Baking and roasting
Cakes

Food Top / Bottom Heat True Fan Cooking Time (min) Comments
	Temperature(°C)	Shelf position	Tempera-ture (°C)	Shelf position
Whisked recipes	170 2 160 3 (2 and 4) 45 - 60 In a cake					mould
Shortbread dough	170 2 160 3 (2 and 4) 20 - 30 In a cake					mould
Buttermilk cheesecake	170 1 165 2 60 - 80 In a 26 cm					cake mould
Apple cake (Apple pie) ^1)	170 2 160 2 (left and			right)	80 - 100 In two 20 cmcake mouldson a wire shelf
Strudel 175 3	150 2 60 - 80 In a baking					tray
Jam-tart 170	2 165 2 (left and			right)	30 - 40 In a 26 cmcake mould
Sponge cake	170 2 160 2 50 - 60 In a 26 cm					cake mould
Christmas cake / Rich fruit cake^1)	160 2 150 2 90 - 120 In a 20 cm					cake mould
Plum cake^1)	175 1 160 2 50 - 60 In a bread					tin
Small cakes - one level	170 3 140 - 150 3 20 - 30 In a baking					tray
Small cakes - two levels	-- 140 - 150 2 and 4 25 - 35 In a baking					tray
Small cakes - three lev-els	-- 140 - 150 1, 3 and 5	30 - 45 In a baking				tray
Biscuits / pastry stripes - one level	140 3 140 - 150 3 30 - 35 In a baking					tray
Biscuits / pastry stripes - two levels	-- 140 - 150 2	and 4 35 - 40 In a baking				tray
Biscuits / pastry stripes - three levels	-- 140 - 150 1, 3 and 5 35 - 45 In a baking					tray
Meringues - one level	120 3 120 3 80 - 100 In a baking					tray
Meringues-two levels ^1)	-- 120 2 and 4 80 - 100 In a baking					tray
Buns ^1)	190 3 190 3 12 - 20 In a baking					tray
Eclairs - one level	190 3 170 3 25 - 35 In a baking					tray
Eclairs - two levels	-- 170 2 and 4 35 - 45 In a baking					tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm						cake mould
Rich fruit cake	160 1 150 2 110 - 120 In a 24 cm					cake mould
Victoria sandwich	170 1 160 2 (left and right)				50 - 60 In a 20 cm

1) Preheat the oven for 10 minutes.

Bread and pizza

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Tempera-ture (°C)	Shelf posi-tion	Tempera-ture (°C)	Shelf posi-tion
White bread1)	190 1 190 1 60 - 70		1 - 2 pieces,			500 gr per piece
Rye bread	190 1 180 1 30 - 45		In a bread			tin
Food Top / Bottom Heat True Fan Cooking Time (min) Comments
	Tempera-ture (°C)	Shelf posi-tion	Tempera-ture (°C)	Shelf posi-tion
Bread rolls 1)	190 2 180 2 (2 and 4) 25 - 40 6 - 8 rolls in					a baking tray
Pizza 1)	230 - 250 1 230 - 250 1 10 - 20 In a baking					tray or a deep pan
Scones 1)	200 3 190 3 10 - 20 In a baking					tray

1) Preheat the oven for 10 minutes.

Flans

Food Top / Bottom Heat True Fan Cooking Time (min) Comments
	Tempera-ture (°C)	Shelf posi-tion	Tempera-ture (°C)	Shelf posi-tion
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable flan	200 2 175 2 45 - 60 In a mould
Quiches1)	180 1 180 1 50 - 60 In a mould
Lasagne1)	180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannelloni1)	180 - 190 2 180 - 190 2 25 - 40 In a mould

1) Preheat the oven for 10 minutes.

Meat

Food Top / Bottom Heat True Fan Cooking Time (min) Comments
	Tempera-ture (°C)	Shelf posi-tion	Tempera-ture (°C)	Shelf posi-tion
Beef 200 2 190 2 50 - 70 On a wire						shelf
Pork 180 2 180 2 90 - 120 On a wire						shelf
Veal 190 2 175 2 90 - 120 On a wire						shelf
English roast beef, rare	210 2 200 2 50 - 60 On a wire					shelf
English roast beef, medium	210 2 200 2 60 - 70 On a wire					shelf
English roast beef, well done	210 2 200 2 70 - 75 On a wire					shelf
Shoulder of pork	180 2 170 2 120 - 150 With rind
Shin of pork	180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in						pieces
Hare 190 2 175 2 150 - 200 Cut in						pieces
Pheasant 190 2 175 2 90 - 120	Whole

Fish

Food Top / Bottom Heat True Fan Cooking Time (min) Comments
	Tempera-ture (°C)	Shelf posi-tion	Tempera-ture (°C)	Shelf posi-tion
Trout / Sea bream	190 2 175 2 40 - 55 3 - 4 fish
Tuna fish / Salmon	190 2 175 2 35 - 60 4 - 6 fillets

Grilling

Preheat the oven for 3 minutes.

Use the fourth shelf position.

Set the maximum temperature.

Food Quantity Time (min)
	Pieces Quantity (kg) 1st side 2nd side
Fillet steaks 4 0.8 12 - 15 12 - 14
Beef steaks 4 0.6 10 - 12 6 - 8
Sausages 8 - 12 - 15 10 - 12
Pork chops 4 0.6 12 - 16 12 - 14
Chicken (cut in 2) 2 1 30 - 35 25 - 30
Kebabs 4 - 10 - 15 10 - 12
Breast of chicken	4 0.4 12 - 15 12 - 14
Hamburger 6 0.6 20 - 30 -
Fish fillet	4 0.4 12 - 14 10 - 12
Toasted sandwiches	4 - 6	-5 - 7	-
Toast	4 - 6	-2 - 4	2 - 3

Turbo Grilling

Use the first or the second shelf position.

Beef

Preheat the oven.

To calculate the roasting time multiple the time given in the table below by the centimetres of thickness of the fillet.

Food	Temperature (°C)	Time (min)
Roast beef or fillet, rare	190 - 200	5 - 6
Roast beef or fillet, medium	180 - 190	6 - 8
Roast beef or fillet, well done	170 - 180	8 - 10

Pork

Food	Temperature (°C)	Time (min)
Shoulder, neck, ham joint, 1 - 1.5 kg	160 - 180	90 - 120

Food	Temperature (°C)	Time (min)
Chop, spare rib, 1 - 1.5 kg	170 - 180	60 - 90
Meat loaf, 0.75 - 1 kg	160 - 170	50 - 60
Pork knuckle (pre-cooked), 0.75 - 1 kg	150 - 170	90 - 120

Veal

Food	Temperature (°C)	Time (min)
Roast veal, 1 kg	160 - 180	90 - 120
Knuckle of veal, 1.5 - 2 kg	160 - 180	120 - 150

Lamb

Food Temperature(°C)	Time (min)
Leg of lamb, roast lamb, 1 - 1.5 kg	150 - 170 100 - 120
Saddle of lamb, 1 - 1.5 kg	160 - 180 40 - 60

Poultry

Food Temperature(°C)	Time (min)
Poultry por-tions, 0.2 - 0.25 kg each	200 - 220 30 - 50
Chicken, half, 0.4 - 0.5 kg each	190 - 210 35 - 50
Chicken, pou-lard, 1 - 1.5 kg	190 - 210 50 - 70

Food Temperature(°C)	Time (min)
Duck, 1.5 - 2 kg	180 - 200 80 - 100
Goose, 3.5 - 5 kg	160 - 180 120 - 180
Turkey, 2.5 - 3.5 kg	160 - 180 120 - 150
Turkey, 4 - 6 kg	140 - 160 150 - 240

Fish (steamed)

Food Temperature(°C)	Time (min)
Whole fish, 1 - 1.5 kg	210 - 220 40 - 60

Moist Fan Baking

For best results follow suggestions listed in the table below.

Food Accessories Temperature		(°C)	Shelf position	Time (min)
Sweet rolls, 12 pieces	baking tray or dripping pan 175 3 40 - 50
Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 45
Pizza, frozen, 0.35 kg	wire shelf 180 2 45 - 55
Swiss roll baking tray or dripping pan 170 2 30 - 40
Brownie baking tray or dripping pan 170 2 45 - 50
Soufflè, 6 pieces ceramic ramekins on wire shelf 190 3 45 - 55
Sponge flan base flan base tin on wire shelf	180 2 35 - 45
Victoria Sandwich	baking dish on wire shelf	170 2 35 - 50
Poached fish, 0.3 kg	baking tray or dripping pan 180 2 35 - 45
Whole fish, 0.2 kg	baking tray or dripping pan 180 3 25 - 35
Fish fillet, 0.3 kg	pizza pan on wire shelf	170 3 30 - 40
Pouched meat, 0.25 kg	baking tray or dripping pan 180 3	35 - 45
Shashlik, 0.5 kg baking tray or dripping pan 180 3 40 - 50
Cookies, 16 pieces baking tray or dripping pan 150 2 30 - 45
Macaroons, 20 pieces	baking tray or dripping pan 180 2	45 - 55
Muffins, 12 pieces baking tray or dripping pan 170 2 30 - 40
Savory pastry, 16 pieces	baking tray or dripping pan 170 2	35 - 45
Short crust biscuits, 20 pieces	baking tray or dripping pan 150 2	40 - 50
Tartlets, 8 pieces baking tray or dripping pan 170 2 30 - 40
Poached vegetables, 0.4 kg	baking tray or dripping pan 180 2	35 - 45
Vegetarian omelette	pizza pan on wire shelf 180 3 35 - 45
Vegetables, medi-terrean 0.7 kg	baking tray or dripping pan 180 4	35 - 45

Drying - True Fan Cooking

Cover trays with grease proof paper or baking parchment.

For a better result, stop the oven halfway through the drying time, open the door and let it cool down for one night to complete the drying.

Vegetables

For one tray use the third shelf position.

For 2 trays use the first and fourth shelf position.

Food Temperature (°C) Time (h)
Beans 60 - 70 6 - 8
Peppers 60 - 70 5 - 6
Vegetables for sour 60 - 70 5 - 6
Mushrooms	50 - 60 6 - 8
Herbs	40 - 50 2 - 3

Fruit

Food Temperature (°C) Time (h) Shelf position			1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4

Information for test institutes

Tests according to IEC 60350-1.

Food Function Accesso-		ries	Shelf position	Tempera-ture (°C)	Time (min) Comments
Small cake	Conventional Cooking	Baking tray	3 170 20 - 30 Put 20 small cakes		per one baking tray.
Small cake	True Fan Cooking / Fan Cooking	Baking tray	3 150 - 160	20 - 35 Put 20 small cakes per one baking tray.
Small cake	True Fan Cooking / Fan Cooking	Baking tray	2 and 4	150 - 160	20 - 35 Put 20 small cakes per one baking tray.
Apple pie Conventional Cooking		Wire shelf	2 180 70 - 90 Use 2 tins (20 cm di-		ameter), diagonally shifted.
Apple pie True Fan Cooking / Fan Cooking		Wire shelf	2 160 70 - 90 Use 2 tins (20 cm di-		ameter), diagonally shifted.
Fatless-ponge cake	Conventional Cooking	Wire shelf	2 170 40 - 50 Use a cake mould (26		cm diameter). Preheat the oven for 10 minutes.
Fatless-ponge cake	True Fan Cooking / Fan Cooking	Wire shelf	2 160 40 - 50 Use a cake mould (26		cm diameter). Preheat the oven for 10 minutes.
Food Function Accesso-	ries	Shelf position	Tempera-ture (°C)	Time (min) Comments
Fatless-ponge cake	True Fan Cooking / Fan Cooking	Wire shelf 2 and 4	160 40 - 60 Use a cake mould	(26 cm diameter). Diagonally shifted. Preheat the oven for 10 minutes.
Short bread	True Fan Cooking / Fan Cooking	Baking tray	3 140 - 150	20 - 40 -
Short bread	True Fan Cooking / Fan Cooking	Baking tray	2 and 4	140 - 150	25 - 45 -
Short bread	Conventional Cooking	Baking tray	3 140 - 150	25 - 45 -
Toast 4 - 6 pieces	Grilling Wire shelf 4 max. 2 - 3 minutes first			side; 2 - 3 min- nutes second side	Preheat the oven for 3 minutes.
Beef bur- ger 6 pieces, 0.6 kg	Grilling Wire shelf and drip- ping pan		4 max. 20 - 30 Put the wire shelf on		the fourth level and the dripping pan on the third level of the oven. Turn the food halfway through the cooking time. Preheat the oven for 3 minutes.

Care and cleaning

Warning! Refer to Safety chapters.

Notes on cleaning

Clean the front of the oven with a soft cloth with warm water and a mild cleaning agent.

To clean metal surfaces, use a dedicated cleaning agent.

Clean the oven interior after each use. Fat accumulation or other food remains may result in a fire. The risk is higher for the grill pan.

Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent. Do not clean the accessories in the dishwasher.

Clean stubborn dirt with a special oven cleaner.

If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can cause damage to the nonstick coating.

Moisture can condense in the oven or on the door glass panels. To decrease the condensation, operate the oven for 10 minutes before cooking. Clean the moisture from the cavity after each use.

Stainless steel or aluminium ovens

Clean the oven door with a damp cloth or sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions.

Cleaning the cavity embossment

The cleaning procedure removes limestone residue from the cavity embossment after cooking with steam.

For the function: True Fan Cooking PLUS we recommend to do the cleaning procedure at least every 5 - 10 cooking cycles.

1. Put 250 ml of white vinegar into the cavity embossment at the bottom of the oven. Use maximum 6% vinegar without any additives.
2. Let the vinegar dissolve the residual limestone at the ambient temperature for 30 minutes.
3. Clean the cavity with warm water and a soft cloth.

Cleaning the door gasket

Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the oven if the door gasket is damaged. Contact an Authorised Service Centre.

To clean the door gasket, refer to the general information about cleaning.

Removing the shelf supports

To clean the oven, remove the shelf supports.

Caution! Be careful when you remove the shelf supports.

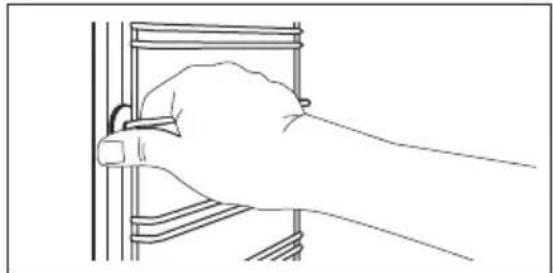

1. Pull the front of the shelf support away from the side wall.

Line drawing of a hand holding a vertical object, possibly a tool or device, with no visible text or symbols.

1. Pull the rear end of the shelf support away from the side wall and remove it.

1 2

Install the removed accessories in the opposite sequence.

Removing and installing door

The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. Read the whole "Removing and installing door" instruction before you remove the glass panels.

The oven door may close if you try to remove the internal glass panel before you remove the oven door.

Caution! Do not use the oven without the internal glass panel.

1. Open the door fully and hold both hinges.

Technical diagram of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

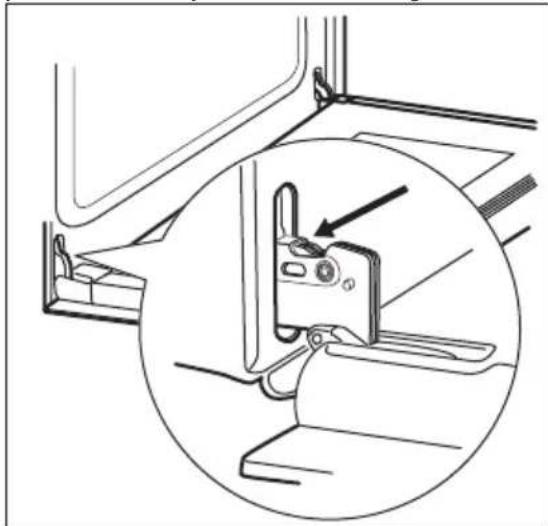

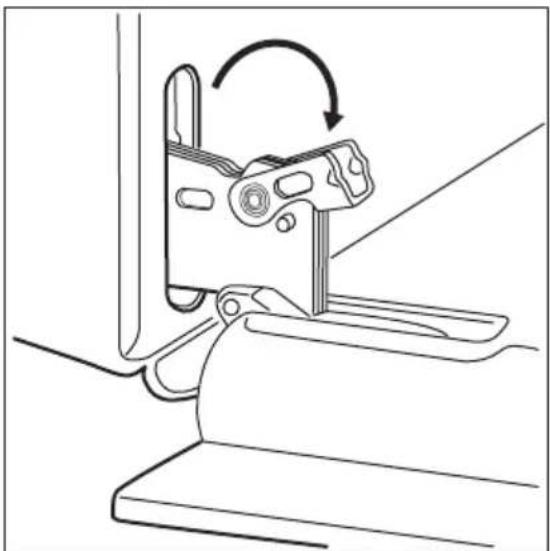

1. Lift and turn the levers fully on both hinges.

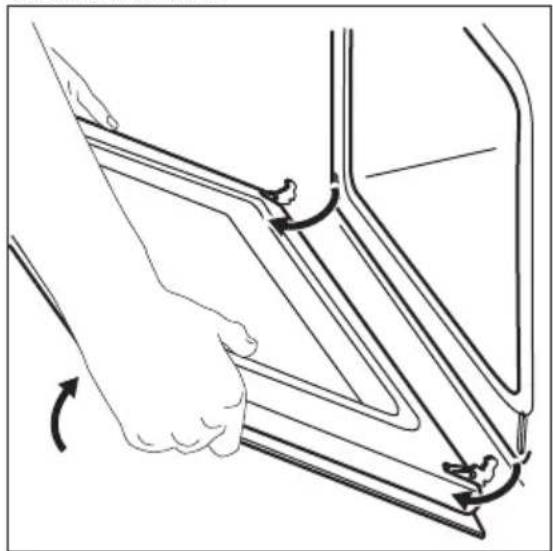

Technical line drawing of a mechanical clamp or bracket assembly with rotation arrow (no text or symbols)

1. Close the oven door halfway to the first opening position. Then lift and pull forward and remove the door from its seat.

Line drawing of a hand holding a rectangular object with curved arrows indicating rotation (no text or symbols)

1. Put the door on a soft cloth on a stable surface.

2. Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.

2 B 1

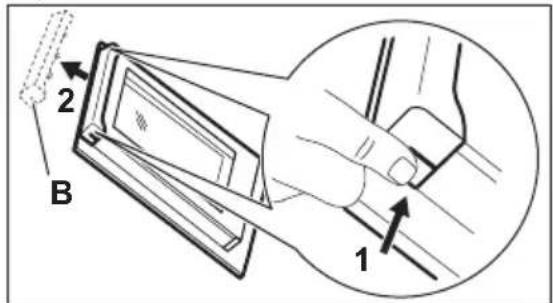

1. Pull the door trim to the front to remove it.

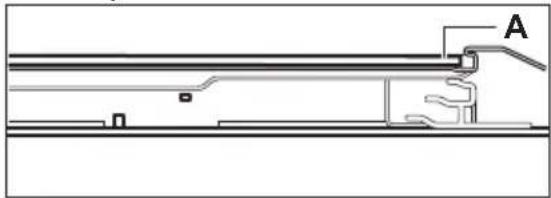

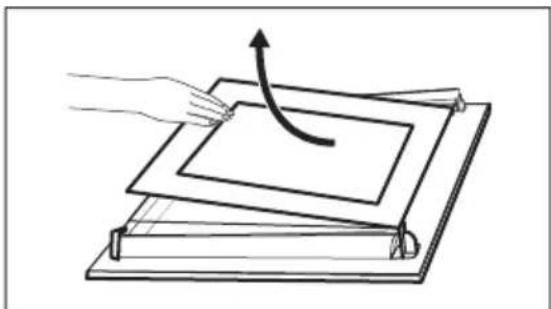

2. Hold the door glass panel by its top edge and carefully pull it out. Make sure the glass slides out of the supports completely.

Diagram of a hand pressing a curved arrow on a layered rectangular object (no text or symbols)

1. Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.

When the cleaning is completed, install the glass panel and the oven door.

The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it.

When installed correctly the door trim clicks.

Make sure that you install the internal glass panel in the seats correctly.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Replacing the lamp

Warning! Risk of electric shock. The lamp can be hot.

1. Turn off the oven.

Wait until the oven is cooled down.

1. Disconnect the oven from the mains.

2. Put a cloth on the bottom of the cavity.

Caution! Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

The back lamp

1. Turn the lamp glass cover to remove it.

2. Clean the glass cover.

3. Replace the lamp with a suitable 300 °C heat-resistant lamp.

4. Install the glass cover.

Warning! Refer to Safety chapters.

What to do if...

Problem Possible cause	Remedy
The cooking zones do not operate. Refer to the operating instructions for the built-in cooking surface.
You cannot activate or operate the oven. The display shows “400” and an acoustic signal sounds.	The oven is incorrectly connected to an electrical supply.	Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are not set. Make sure that the settings are correct.
The oven does not heat up. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation settle on the food and in the cavity of the oven.	You left the dish in the oven for too long.	Do not leave the dishes in the oven for longer than 15 - 20 minutes after the cooking process ends.
There is no good cooking performance using the function: True Fan Cooking PLUS.	You did not turn on the function: True Fan Cooking PLUS.	Refer to "Activating the function: True Fan Cooking PLUS".
The water in the cavity embossment does not boil.	The temperature is too low. Set the temperature at least to 110 °C.Refer to "Hints and tips" chapter.
The water comes out of the cavity embossment.	There is too much water in the cavity embossment.	Deactivate the oven and make sure that the appliance is cold. Wipe the water with a cloth or sponge. Add the correct amount of water to the cavity embossment. Refer to the specific procedure.
The display shows "12.00". There was a power cut. Reset the clock.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:

Model (MOD.) ....

Product number (PNC) ....

Serial number (S.N.) ....

Installation

Warning! Refer to Safety chapters.

Building Under

Caution! Only a qualified and competent person must do the installation of the appliance. If you do not contact a qualified or competent person, the guarantee becomes invalid if there is damage.

Before you install the appliance, fit it with the applicable hob from the table.

Type Maximum power

EHE60001X 6000 W

Type Maximum power

KEV6041FBB 6000 W

KEV6041XXK 6500 W

KEV6043FBB 7600 W

KEV6046XXK 7400 W

Electrical connection with the hob

The hob connection socket is at the top of the oven cabinet. The hob has connection leads for the cooking zones and the ground cable. The leads have plug-in connectors. To connect the hob to the oven, plug the connectors into the correct oven sockets. The design of the plugs and sockets prevents incorrect connections.

Building In

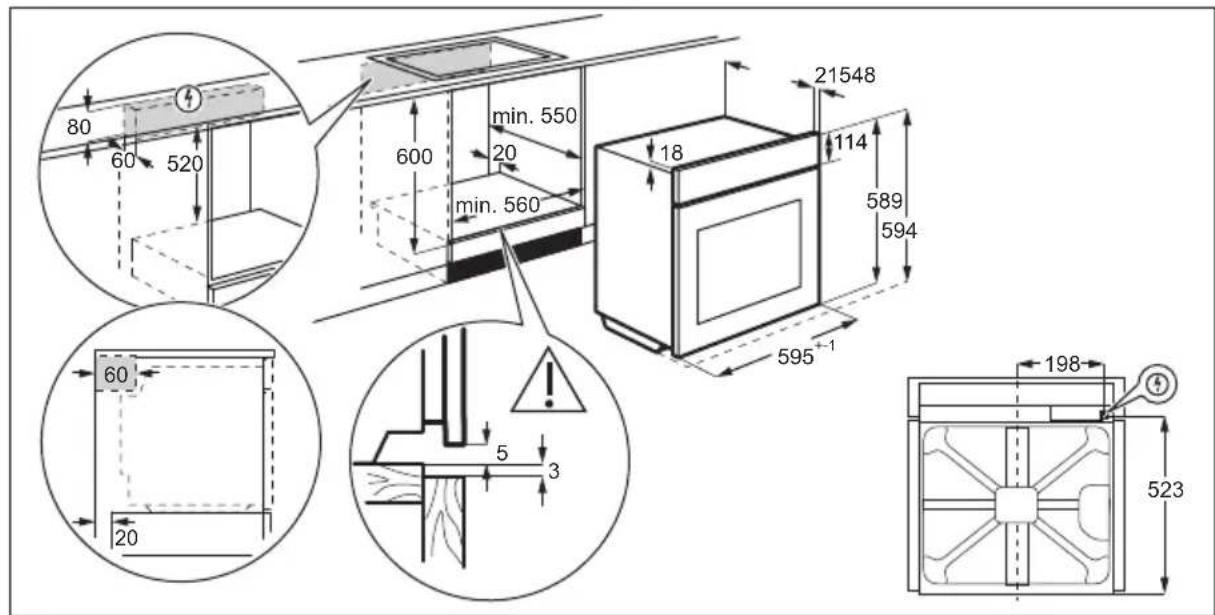

80 60 520 min. 550 600 20 min. 560 18 21548 114 589 594 595+1 60 20 5 3 198 523

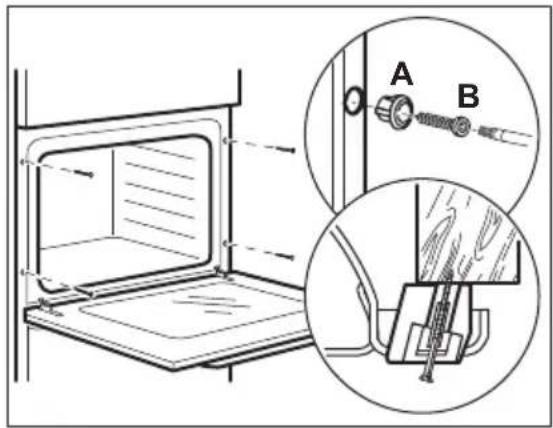

Securing the appliance to the cabinet

Technical diagram showing a door opening with labeled parts A and B, including a magnified inset of the component.

Electrical installation

The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters.

This appliance is supplied without a main plug and a main cable.

Cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate.

Connecting the terminal board

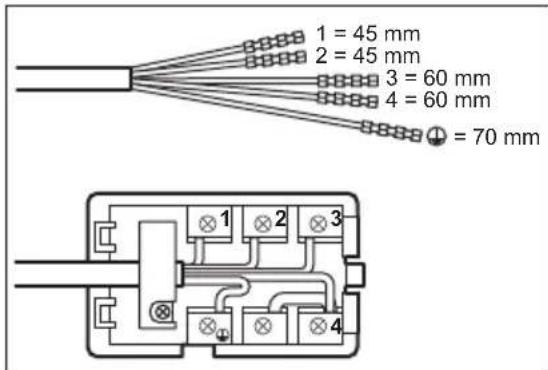

The appliance has a six-pole terminal board. The jumpers (bridges) are set for operation on a 400 V three-phase with a neutral wire.

Energy efficiency

1 = 45 mm 2 = 45 mm 3 = 60 mm 4 = 60 mm = 70 mm

L 1 - 2 - 3 = phase cables

N 4 = neutral cable

+ = earth cable

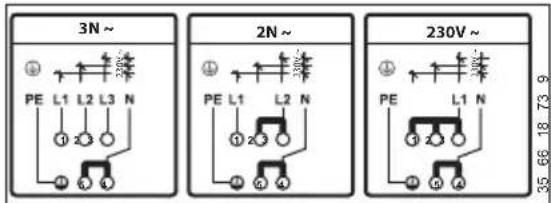

If the mains voltage is different, rearrange the jumpers on the terminal board (refer to the connection diagram below). Connect the ground cable to the terminal. After you connect the supply cable to the terminal board, attach it with a junction clamp.

3N ~ PE L1 L2 L3 N 2N ~ PE L1 L2 N 230V ~ PE L1 N 35 66 18 73 9

Product Fiche and information according to EU 65-66/2014

Supplier's name Zanker
Model identification KOU65962XK
Energy Efficiency Index 95.3
Energy efficiency class A
Energy consumption with a standard load, conventional mode 0.93 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.81 kWh/cycle
Number of cavities 1

Heat source Electricity

Volume 721

Type of oven Built-Under Oven

Mass 27.2 kg

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

Energy saving

The oven contains features which help you save energy during everyday cooking.

General hints

Make sure that the oven door is closed properly when the oven operates. Do not open the door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal dishes to improve energy saving.

When possible, do not preheat the oven before you put the food inside.

Environmental concerns

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not

When the cooking duration is longer than 30 minutes, reduce the oven temperature to minimum 3 - 10 minutes before the end of the cooking time, depending on the duration of the cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep breaks between baking as short as possible when you prepare few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

Moist Fan Baking

Function designed to save energy during cooking.

dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Inhaltsverzeichnis

A B C 88:88 |→| →|

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

Uhrfunktionen

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Zusatzfunktionen

Kühlgebläse

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Line drawing of a hand holding a vertical object, no text or symbols present

Technical diagram of a mechanical assembly with an inset showing a close-up of a bracket component (no text or symbols present)

Line drawing of a mechanical clamp or bracket assembly with an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram of a hand pressing a curved arrow on a layered rectangular object (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical diagram showing a door opening with labeled parts A and B, including a magnified inset of the component.

1 = 45 mm 2 = 45 mm 3 = 60 mm 4 = 60 mm = 70 mm

L 1 - 2 - 3 = Phasenleiter

N 4 = Nullleiter
