Product Type	Built-In Electric Oven
Model	KOB25723XK
Brand	ZANKER
Energy Efficiency Class	A
Energy Consumption (Conventional)	0.83 kWh/cycle
Energy Consumption (Fan-Forced)	0.75 kWh/cycle
Volume	57 L
Mass	26.7 kg
Dimensions (H x W x D)	598 x 594 x 561 mm
Built-in Dimensions (H x W x D)	579 x 558 x 540 mm
Cabinet Min. Height	590 (600) mm
Cabinet Width	560 mm
Cabinet Depth	550 mm
Depth with Door Open	1007 mm
Mains Supply Cable Length	1100 mm
Heat Source	Electricity
Heating Functions	Fan Cooking, Conventional Cooking, Bottom Heat, Turbo Grilling, Fast Grilling, Grill, Moist Baking
Accessories Included	Wire shelf, Baking tray
Child Safety Device	Yes (retractable knobs)
Cooling Fan	Automatic
Safety Thermostat	Yes
Interior Light	Replaceable (300°C heat-resistant lamp)
Self-Cleaning	No (manual cleaning)
Removable Door	Yes (two glass panels)
Removable Shelf Supports	Yes

Frequently Asked Questions - KOB25723XK ZANKER

How do I set the time of day on the oven?

After connecting to power, the display flashes '12.00'. Press the '+' or '-' button to set the current time. After approximately 5 seconds, the flashing stops and the time is saved.

How do I use the child safety feature?

The retractable knobs act as a child safety device. To use the oven, press the knob and it comes out. When not in use, the knobs are flush and less accessible to children.

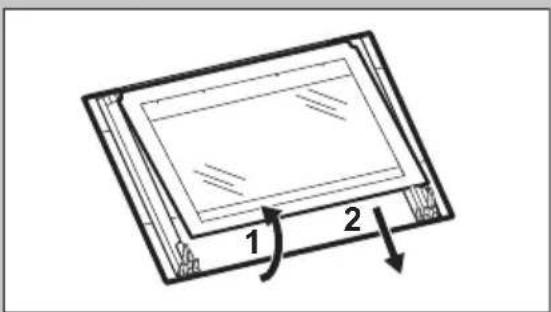

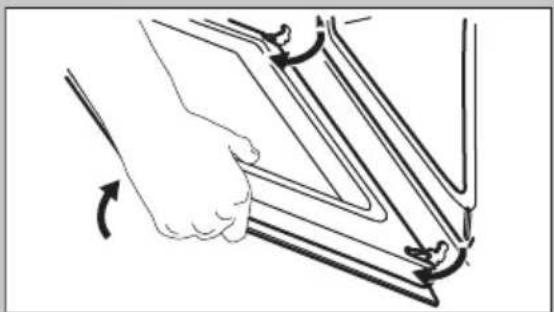

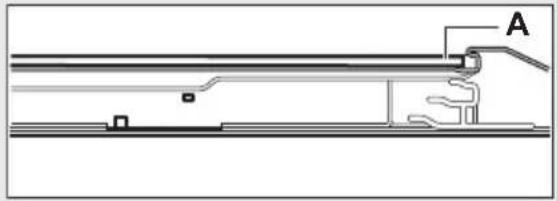

How do I clean the oven door?

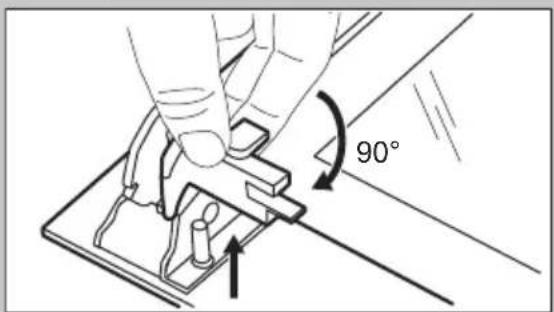

First remove the door by opening it fully, turning the levers on both hinges, then closing halfway and lifting it off. Release the locking system, remove the internal glass panel, and clean with water and mild detergent. Do not use abrasive cleaners or dishwasher. Reinstall carefully.

What should I do if the oven does not heat up?

Check if the fuse has blown. Also ensure the oven is properly connected to power. If the door gasket is damaged, do not use the oven and contact an Authorised Service Centre.

How do I replace the oven lamp?

Turn off the oven and disconnect from mains. Let it cool. Remove the glass cover by turning it, clean the cover, replace the lamp with a suitable 300°C heat-resistant lamp (same specifications), and reinstall the cover.

What heating functions are available?

The oven offers: Fan Cooking (even heat on multiple levels), Conventional Cooking, Bottom Heat, Turbo Grilling (for large roasts), Fast Grilling, Grill, and Moist Baking (energy-saving).

How do I use the timer or minute minder?

Press the clock button repeatedly until the Minute Minder symbol flashes. Use '+' or '-' to set the desired time. The function starts automatically after 5 seconds. When time ends, a signal sounds. Press any button to stop.

Can I use aluminium foil in the oven?

No, do not put aluminium foil directly on the bottom of the cavity. It can damage the enamel. You may use foil on a baking tray if needed, but avoid contact with heating elements.

How do I save energy while using the oven?

Use metal cookware, avoid preheating when possible, keep the oven door closed, and use the fan-assisted functions. For cooking longer than 30 minutes, turn off the oven 3-10 minutes early to use residual heat.

What is the 'Moist Baking' function?

This function is designed to save energy by reducing heating power. It is ideal for baking moist dishes like cakes, rolls, and soufflés. Follow the recommended temperature and time in the manual for best results.

USER MANUAL KOB25723XK ZANKER

Safety information 2

Safety instructions 3

Installation 6

Product description 7

Control panel 7

Before first use 8

Daily use 8

Clock functions 9

Using the accessories 10

Additional functions 11

Hints and tips 11

Care and cleaning 19

Troubleshooting 21

Energy efficiency 22

Subject to change without notice.

Get usage advice, brochures, trouble shooter, service and repair information:

⚠ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

- Only a qualified person must install this appliance and replace the cable.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Always use oven gloves to remove or put in accessories or ovenware.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

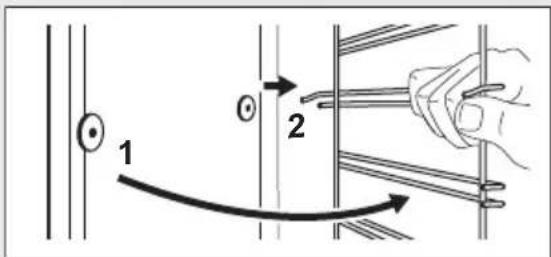

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

Cabinet minimum height (Cabinet under the work-top minimum height)	590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance	598 mm
Height of the back of the appliance	579 mm
Width of the front of the appliance	594 mm
Width of the back of the appliance	558 mm
Depth of the appliance 561 mm
Built in depth of the appli-ance	540 mm
Depth with open door 1007 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1100 mm
Mounting screws 4x25 mm

Electrical connection

Warning! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W) Section of the cable(mm2)

maximum 1380 3 x 0.75

maximum 2300 3 x 1

maximum 3680 3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

Use

Warning! Risk of injury, burns and electric shock or explosion.

• This appliance is for household use only.
- Do not change the specification of this appliance.
- Make sure that the ventilation openings are not blocked.
- Do not let the appliance stay unattended during operation.
- Deactivate the appliance after each use.
- Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
- Do not operate the appliance with wet hands or when it has contact with water.
- Do not apply pressure on the open door.
- Do not use the appliance as a work surface or as a storage surface.
- Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
- Do not let sparks or open flames to come in contact with the appliance when you open the door.
- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  – do not put ovenware or other objects in the appliance directly on the bottom.
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
  • Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

Care and cleaning

Warning! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

Internal lighting

Warning! Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• Use only lamps with the same specifications.

Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

Warning! Refer to Safety chapters.

Building in

(*mm)

(*mm)

Securing the oven to the cabinet

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols)

General overview

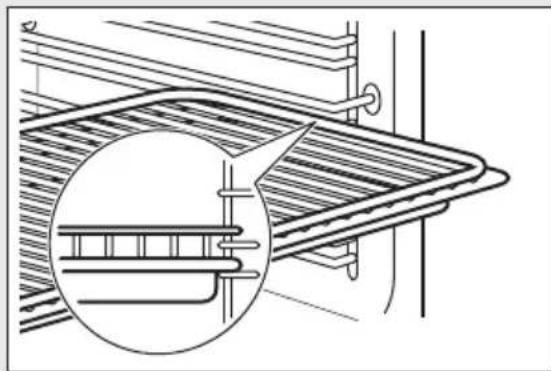

Accessories

- Wire shelf

For cookware, cake tins, roasts.

Control panel

1 Control panel
2 Power lamp / symbol
3 Knob for the heating functions
4 Display
5 Control knob (for the temperature)
6 Temperature indicator / symbol
7 Air vents for the cooling fan
8 Heating element
9 Lamp
10 Fan
11 Shelf support, removable
12 Shelf positions

• Baking tray

For cakes and biscuits.

Retractable knobs

To use the appliance press the knob. The knob comes out.

Sensor fields / Buttons

-	To set the time.
➊	To set a clock function.
+	To set the time.

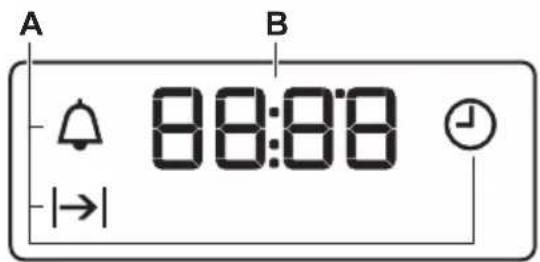

Display

A. Clock functions

B. Timer

Warning! Refer to Safety chapters.

Before first use

The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

Step 1 Step 2		Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the time.After approximately 5 sec., the flashing stops and the display shows the time.	1. Remove all accessories and removable shelf supports from the oven.2. Clean the oven and the accessories with a soft cloth, warm water and a mild detergent.	1. Set the maximum temperature for the function: Time: 1 h.2. Set the maximum temperature for the function: Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.

Daily use

Warning! Refer to Safety chapters.

How to set: Heating function

Step 1 Turn the knob for the heating functions to select a heating function.

Step 2 Turn the control knob to select the temperature.

Step 3 When the cooking ends, turn the knobs to the off position to turn off the oven.

Heating functions

Heating function	Application
0Off position	The oven is off.

Heating function	Application
Fan Cooking	To roast or roast and bake food with the same cooking temperature on more than one shelf position, without flavour transference.
Conventional Cooking	To bake and roast food on one shelf position.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Turbo Grill-ing	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Fast Grilling	To grill thin pieces of food in large quantities and to toast bread.To grill thin pieces of food and to toast bread.
Grill
Moist Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Baking.

Clock functions

Clock functions

Clock function Application
	To set, change or check the time of day.
Time of Day
	To set how long the oven works.
Duration
[CZD6]	To set a countdown. This function has no effect on the operation of the oven. You can set this function at any time, also when the oven is off.
Minute Minder

How to set: Clock functions

How to set: Time of Day

- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is not set.

+, - press to set the time.After approximately 5 sec., the flashing stops and the display shows the time.

How to change: Time of Day
Step 1	💡 - press repeatedly to change the time of day.💡 starts to flash.
Step 2	+ , — press to set the time.After approximately 5 sec., the flashing stops and the display shows the time.
How to set: Duration
Step 1 Set an oven function and the temperature.
Step 2	- press repeatedly. - starts to flash.
Step 3	+, - press to set the duration.The display shows: |→| |→| - flashes when the set time ends. The signal sounds and the oven turns off.
Step 4 Press any button to stop the signal.
Step 5 Turn the knobs to the off position.

How to set: Minute Minder
Step 1	- press repeatedly. → starts to flash.
Step 2	+, - press to set the time.The function starts automatically after 5 sec.When the set time ends, the signal sounds.
Step 3 Press any button to stop the signal.
Step 4 Turn the knobs to the off position.

How to cancel: Clock functions
Step 1	- press repeatedly until the clock function symbol starts to flash.
Step 2	Press and hold: —The clock function turns off after few seconds.

Using the accessories

Warning! Refer to Safety chapters.

Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim

around the shelf prevents cookware from slipping of the shelf.

Wire shelf:

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Baking tray:

Push the tray between the guide bars of the shelf support.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Wire shelf, Baking tray:

Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Additional functions

Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

Safety thermostat

Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.

Hints and tips

Refer to Safety chapters.

Cooking recommendations

The oven has four shelf positions.

Count the shelf positions from the bottom of the oven floor.

Your oven may bake or roast differently to the oven you had before. The below tables provide you with the standard settings for temperature, cooking time and shelf position.

If you cannot find the settings for a special recipe, look for the similar one.

The oven has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption.

Baking cakes

Do not open the oven door before 3/4 of the set cooking time is up.

If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

Baking and roasting

CAKES	Conventional Cooking Fan Cooking				(min)
	(°C) (°C)
Whisked recipes 170 2 165 2 (1 and				3)	45 - 60 Cake mould
Shortbread dough 170 2 160 2 (1 and				3)	20 - 30 Cake mould
Buttermilk cheese-cake	170 1 165 2 70 - 80 Cake mould, ∅ 26					cm
Strudel 175 2 150 2 60 - 80 Baking tray
Jam tart 170 2 160 2 (1 and				3)	30 - 40 Cake mould, ∅ 26 cm
Fruit cake 170 2 155 2 50 - 60 Cake mould, ∅ 26						cm
Christmas cake 170 2 160 2 50 - 60 Cake mould, ∅ 20						cm
Plum cake, preheat the empty oven	170 2 165 2 20 - 30 Bread tin
Biscuits, preheat the empty oven	150 3 140 3 (1 and			3)	30 - 35 Baking tray
Meringues 100 3 115	3 35 - 40 Baking tray
Buns, preheat the empty oven	190 3 180 3 80 - 100	Baking tray
Choux pastry, pre-heat the empty oven	190 3 180 3 (1 and			3)	15 - 20 Baking tray
Plate tarts 180 3 170 2 25 - 35 Cake mould, ∅ 20						cm
Rich fruit cake 160 1 150 2 110 - 120 Cake mould, ∅ 24						cm
Victoria sandwich 180 1 or 2 170 2 45 - 70 Cake mould, ∅ 20						cm

Preheat the empty oven.

BREAD ANDPIZZA	Conventional Cooking Fan Cooking				(min)
	(°C) (°C)
White bread, 1 - 2 pieces, 0.5 kg each	190 1	195 1	60 - 70	-
Rye bread, preheat-ing is not needed	190 1	190 1	30 - 45	Bread tin
Bread rolls, 6 - 8 rolls	190 2	180 2 (1 and 3)and		25 - 40	Baking tray
Pizza	190	1	190	1	20 - 30	Deep pan
Scones	200	3	190	2	10 - 20	Baking tray

Use the cake mould.

FLANS	Conventional Cooking Fan		Cooking		(min)
	(°C)		(°C)
Pasta flan	180	2	180 2 40 - 50
Vegetable flan	200	2	200 2 45 - 60
FLANS	Conventional Cooking Fan Cooking				(min)
	(°C) (°C)
Quiches 190 1 190 1 40 - 50
Lasagne 200 2 200 2 25 - 40
Cannelloni 200 2 200 2 25 - 40
Yorkshire pudding, 6 pudding moulds, preheat the empty oven	220 2 210 2 20 - 30

Use the wire shelf.

MEAT	Conventional Cooking Far		Cooking		(min)
	(°C) (°C)
Beef 200 2 190 2 50 - 70
Pork 180 2 180 2 90 - 120
Veal 190 2 175 2 90 - 120
English roast beef, rare 210 2 200 2 44 - 50
English roast beef, medium	210 2 200 2 51 - 55
English roast beef, well done	210 2 200 2 55 - 60

MEAT	Conventional Cooking		Fan Cooking		(min)
	(°C)		(°C)
Pork shoulder, with rind	180	2	170	2	120 - 150
Pork shin, 2 pieces	180	2	160	2	100 - 120
Leg of lamb	190	2	190	2	110 - 130
Whole chicken	200	2	200	2	70 - 85
Whole turkey	180	1	160	1	210 - 240
MEAT	Conventional Cooking Fan Cooking				(min)
	(°C) (°C)
Whole duck 175 2 160 2 120 - 150
Whole goose 175 1 160 1 150 - 200
Rabbit, cut in pieces 190 2 175 2 60 - 80
Hare, cut in pieces 190 2 175 2 150 - 200
Whole pheasant 190 2 175 2 90 - 120

FISH

(min)

(°C) (°C)

Trout / Sea bream, 3 - 4 fish 190 2 175 2 (1 and 3) 40 - 55

Tuna / Salmon, 4 - 6 fillets 190 2 175 2 (1 and 3) 35 - 60

Grill

Preheat the empty oven.

Use the third shelf position.

Set the temperature to 250 °C.

GRILL	(kg)	(min)1st side	(min)2nd side
Fillet steaks, 4 pieces	0.8 12 - 15	12 - 14
Beef steak, 4 pieces	0.6 10 - 12	6 - 8
Sausages, 8	-	12 - 15	10 - 12
Pork chops, 4 pieces	0.6 12 - 16	12 - 14
Chicken, half, 2	1	30 - 35	25 - 30
Kebabs, 4	-	10 - 15	10 - 12
Chicken breast, 4 pieces	0.4 12 - 15	12 - 14
Burgers, 6	0.6 20 - 30	-
Fish fillet, 4 pieces 0.4 12 - 14 10 - 12
Toasted sandwiches, 4 - 6 - 5 - 7 -
Toast, 4 - 6 - 2 - 4 2 - 3

Turbo Grilling

Preheat the empty oven.

Set the temperature to 200 °C.

Use the third shelf position.

		(min)
	(kg) 1st side 2nd side
Rolled joint, turkey 1 30 - 40 20 - 30
Chicken, half, 2 1 25 - 30 20 - 30
Chicken drumsticks, 6 pieces - 15 - 20 15 - 18
Quail, 4 pieces 0.5 25 - 30 20 - 25
Vegetables au gratin	- 20 - 25 -
Scallops	- 15 - 20 -
Mackerel, 2 - 4 - 15 - 20 10 - 15
Fish slices, 4 - 6	0.8 12 - 15 8 - 10

Moist Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Simple line drawing of an oval shape with no text or symbols

Pizza pan

Simple line drawing of a circular container with a small handle at the bottom (no text or symbols)

Baking dish

Ramekins

Simple line drawing of a bowl or container with no text, numbers, or symbols

Flan base tin

Dark, non-reflective28 cm diameter

Dark, non-reflective26 cm diameter

Ceramic8 cm diameter, 5cm height

Dark, non-reflective28 cm diameter

Moist Baking

For the best results follow suggestions listed in the table below.

		(°C) (min)
Sweet rolls, 12 pieces baking tray or dripping pan 180 2 35 - 40
Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 40
Pizza, frozen, 0.35 kg wire shelf 220 2 35 - 40
Swiss roll baking tray or dripping pan 170 2 30 - 40
Brownie baking tray or dripping pan 180 2 30 - 40
Soufflè, 6 pieces ceramic ramekins on wire shelf		200 3 30 - 40
Sponge flan base flan base tin on wire shelf 170 2 20 - 30
Victoria sandwich baking dish on wire shelf 170 2 35 - 45
Poached fish, 0.3 kg baking tray or dripping pan 180 3 35 - 45
Whole fish, 0.2 kg baking tray or dripping pan 180 3 35 - 45
Fish fillet, 0.3 kg	pizza pan on wire shelf	180 3 35 - 45
Poached meat, 0.25 kg	baking tray or dripping pan 200 3 40 - 50
Shashlik, 0.5 kg	baking tray or dripping pan 200 3 25 - 35
Cookies, 16 pieces	baking tray or dripping pan 180 2 20 - 30
Macaroons, 20 pieces	baking tray or dripping pan 180 2 40 - 45
Muffins, 12 pieces	baking tray or dripping pan 170 2 30 - 40
Savory pastry, 16 pieces	baking tray or dripping pan 170 2 35 - 45
Short crust biscuits, 20 pieces	baking tray or dripping pan 150 2 40 - 50
Tartlets, 8 pieces	baking tray or dripping pan 170 2 20 - 30
Vegetables, poached, 0.4 kg	baking tray or dripping pan 180 3 35 - 40
Vegetarian omelette pizza pan on wire shelf 200 3 30 - 45
Mediterranean vegetables, 0.7 kg	baking tray or dripping pan 180 4 35 - 40

Information for test institutes

Tests according to IEC 60350-1.

				(°C) (min)
Small cakes, 20 per tray	Conventional Cooking	Baking tray	3 170 20 - 30 -
Apple pie, 2 tins ∅20 cm	Conventional Cooking	Wire shelf 1	170 80 - 120 -
Sponge cake, cake mould ∅26 cm	Conventional Cooking	Wire shelf 2	170 35 - 45 -
Short bread	Conventional Cooking	Baking tray	3 150 20 - 35 Preheat the oven for			10 minutes.
Toast, 4 - 6 pieces	Grill Wire shelf	3 max. 2 - 4 minutes first			side; 2 - 3 min- nutes second side	Preheat the oven for 3 minutes.
Beef bur- ger, 6 pieces, 0.6 kg	Grill Wire shelf	and drip- ping pan	3 max. 20 - 30 Put the wire shelf on			the third level and the dripping pan on the second level of the oven. Turn the food halfway through the cooking time.Preheat the oven for 3 minutes.

Warning! Refer to Safety chapters.

Notes on cleaning

	Clean the front of the oven with a soft cloth with warm water and a mild detergent. Clean and check the door gasket around the frame of the cavity.
	Use a cleaning solution to clean metal surfaces.
Cleaning Agents	Clean stains with a mild detergent.
	Clean the cavity after each use. Fat accumulation or other residue may cause fire.
	Moisture can condense in the oven or on the door glass panels. To decrease the condensation, let the oven work for 10 minutes before cooking. Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.
Everyday Use
	Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
	Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
Accessories

How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.

Step 2 Pull the front of the shelf support away from the side wall.

Step 3 Pull the rear end of the shelf support away from the side wall and remove it.

Step 4 Install the shelf supports in the opposite sequence.

How to remove and install: Door

The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. Read the whole "Removing and installing door" instruction before you remove the glass panels.

Caution! Do not use the oven without the glass panels.

Step 1 Open the door fully and hold both hinges.

Technical diagram of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Step 3 Close the oven door halfway to the first opening position. Then lift and pull forward and remove the door from its seat.

Step 2 Lift and turn the levers fully on both hinges.

Mechanical assembly diagram showing a bracket with a rotating lever and mounting base (no text or symbols)

Step 4 Put the door on a soft cloth on a stable surface and release the locking system to remove the internal glass panel.

Illustration of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

Step 5 Turn the fasteners by 90° and remove them from their seats.

Line drawing of a hand using a tool to adjust or install a component, with an arrow indicating rotation (no text or symbols present)

Step 6 First lift carefully and then remove the glass panel.

Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.

Step 8 After cleaning, install the glass panel and the oven door.

When installed correctly the door trim clicks.

Make sure that you install the internal glass panel in the seats correctly.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

How to replace: Lamp

Warning! Risk of electric shock.

The lamp can be hot.

Before you replace the lamp:
Step 1 Step 2 Step 3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Back lamp

Step 1 Turn the glass cover to remove it.

Step 2 Clean the glass cover.

Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.

Step 4 Install the glass cover.

Troubleshooting

Warning! Refer to Safety chapters.

What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

Problem Check if.
The oven does not heat up.	The fuse is blown.
The door gasket is damaged.	Do not use the oven.Contact an Authorised Service Centre.

Problem Check if...
The display shows "12.00".	There was a power cut. Set the time of day.
The lamp does not work. The lamp is burnt out.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ....

Serial number (S.N.) ....

Energy efficiency

Product Information and Product Information Sheet*

Supplier's name Zanker
Model identification KOB25723XK 944068142
Energy Efficiency Index 94.9
Energy efficiency class A
Energy consumption with a standard load, conventional mode 0.83 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.75 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 57 l
Type of oven Built-In Oven
Mass 26.7 kg

* For European Union according to EU Regulations 65/2014 and 66/2014. For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. For Ukraine according to 568/32020.
Energy efficiency class is not applicable for Russia.
EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

When the cooking duration is longer than 30 min, reduce the oven temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

Moist Baking

Function designed to save energy during cooking.

Environmental concerns

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not

dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Inhaltsverzeichnis

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols present)

Gerätebeschreibung

Gesamtansicht

Zubehör

• Kombirost

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Backblech:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Kühlgebläse

Simple line drawing of an oval-shaped object with no text or symbols

Pizzapfanne

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Backform

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortenbodenform

Line drawing of a hand inserting a spring into a frame (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a bracket detail (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a folded paper or sheet with arrows indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with an arrow indicating rotation (no text or symbols present)

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Austausch: Lampe
